| Product type | Built-in oven |
| Brand | Constructa |
| Model | CH210253 |
| Power supply | 220-240 V, 50/60 Hz |
| Total power | Approx 3 kW (estimated) |
| Oven capacity | Approx 60 L (estimated) |
| Cooking modes | Top heat/bottom heat, large area grill, top heat, bottom heat, lighting |
| Maximum temperature | 270 °C (grill) |
| Included accessories | Rack, aluminum baking tray, enameled drip pan |
| Insertion heights | 4 levels |
| Interior lighting | E14 bulb, 40 W, resistant to 300 °C |
| Cleaning | Manual cleaning with dish soap; door and glass panels can be removed |
| Safety | Accessory stop function (anti-tilt), door hinge lock |
| Spare parts available | E14 40 W bulb, door seal, optional accessories (telescopic rails, etc.) |
| After-sales service | E and FD numbers on rating plate behind the door |
Frequently Asked Questions - CH210253 CONSTRUCTA
User questions about CH210253 CONSTRUCTA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Oven in PDF format for free! Find your manual CH210253 - CONSTRUCTA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CH210253 by CONSTRUCTA.
USER MANUAL CH210253 CONSTRUCTA
[en] Instruction manual 41
Einbauherd CH210253
Cuisiniere encastrable CH210253
Built-in cooker CH210253
de
Inhaltsverzeichnis
(waste electrical and electronic equipment - WEEE)
gekarakteriseerd.
Uw neue apparaat
Important safety information. 41
Environmentally-friendly disposal. 42
Your new appliance 43
Your accessories. 44
Before using the appliance for the first time 44
Operating the appliance 45
Baking 45
Roasting 47
Grilling 48
Yoghurt 49
Cleaning and care 49
Faults and repairs 52
Test dishes. 53
Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.
Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.
Risk of fire!
- Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box.
- A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories.
Risk of burns!
- The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.
- Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.
- Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care.
Risk of scalding!
- The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.
- When you open the appliance door, hot steam may escape. Open the appliance door with care. Keep children at a safe distance.
Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.
Risk of injury!
Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
Risk of electric shock!
- Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
- The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
Penetrating moisture may cause an electric shock. Do not use any high-pressure cleaners or steam cleaners. - When replacing the cooking compartment bulb, the bulb socket contacts are live. Before replacing the bulb, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
- A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
Causes of damage
Caution!
- Accessories, foil, greaseproof paper or ovenware on the cooking compartment floor: do not place accessories on the cooking compartment floor. Do not cover the cooking compartment floor with any sort of foil or greaseproof paper. Do not place ovenware on the cooking compartment floor if a temperature of over 50^ has been set. This will cause heat to accumulate. The baking and roasting times will no longer be correct and the enamel will be damaged.
Water in a hot cooking compartment: do not pour water into the cooking compartment when it is hot. This will cause steam. The temperature change can cause damage to the enamel. - Moist food: do not store moist food in the cooking compartment when it is closed for prolonged periods This will damage the enamel.
Fruit juice: when baking particularly juicy fruit pies, do not pack the baking tray too generously. Fruit juice dripping from the baking tray leaves stains that cannot be removed. If possible, use the deeper universal pan.
Cooling with the appliance door open: only allow the cooking compartment to cool when it is closed. Even if the appliance door is only open a little, front panels of adjacent units could be damaged over time. - Very dirty door seal: If the door seal is very dirty, the appliance door will no longer close properly when the appliance is in use. The fronts of adjacent units could be damaged. Always keep the door seal clean.
- Appliance door as a seat, shelf or worktop: Do not sit on the appliance door, or place or hang anything on it. Do not place any cookware or accessories on the appliance door.
- Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door. Always insert the accessories into the cooking compartment as far as they will go.
- Carrying the appliance: do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance and could break.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
This appliance is labelled in accordance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment - WEEE.
The directive gives a framework for the collection and recycling of old appliances, which is valid across the EU.
Your new appliance
In this section, you will find information about the appliance.

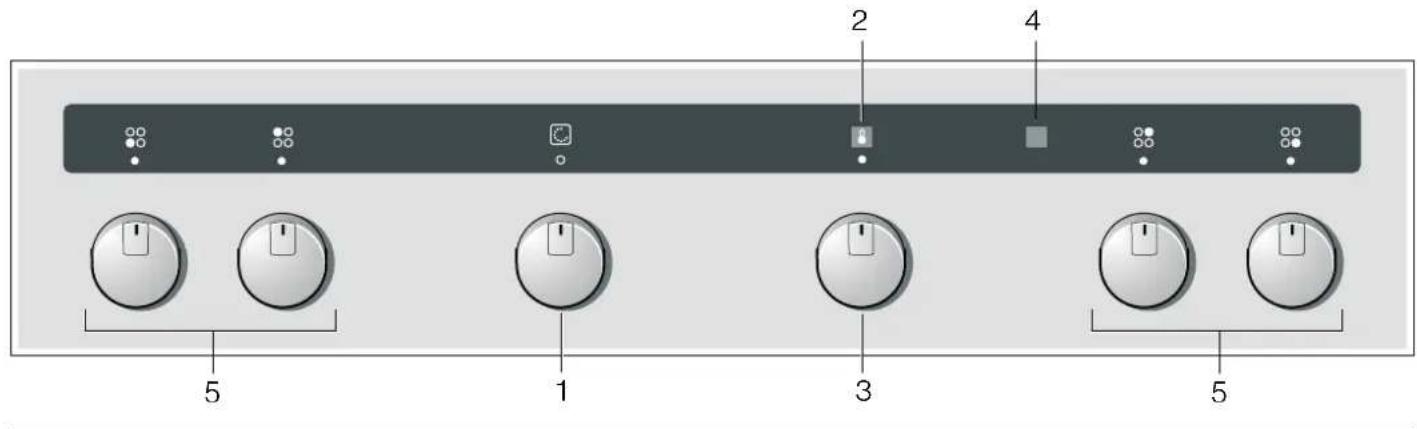

Control panel
Press the retractable control knob to pop it in or out.
Control element Use
Oven
1 Operating mode selector Selects operating mode (see section: Operating the appliance)
2 Temperature selector indicator The indicator light lights up when the appliance is heating up and during any subsequent heating
3 Temperature selector Selects a temperature
Hob
4 Indicator light for hotplates Indicator light is not lit: Hotplates off
Indicator light is lit: At least one hotplate is on
5 Control knob for hotplates Switches the hotplates on and off (see section: Operating the appliance, see Instructions for use for the hob)
Operating modes
Operating mode Use
Top/bottom heat For baking and roasting. Especially suitable for cakes with moist toppings (e.g. cheesecake)
Full-surface grill For flat, small items for grilling (e.g. steaks, sausages)
Top heat For food and baked goods which should form a crust or which require more browning on the top. Switch on "Top heat" at the end of the baking time for a brief period only
Bottom heat For food and baked goods which should form a crust or which require more browning on the underside. Switch on "Bottom heat" at the end of the baking time for a brief period only
Light Helps with the care and cleaning of the cooking compartment
Your accessories
In this section, you will find information about the accessories, the right way to insert them into the cooking compartment, the shelf positions and the optional accessories.
Accessories
The following accessories are supplied with your appliance:
Aluminium baking tray
for baking tray bakes and small baked products
Wire rack
for baking in baking tins, roasting in roasting dishes and grilling
Universal pan, enamelled
for baking moist cakes, roasting, grilling and collecting drops of liquid during cooking
Note: The baking tray and universal pan may become distorted if subjected to significant temperature differences (e.g. with frozen foods in the hot cooking compartment).

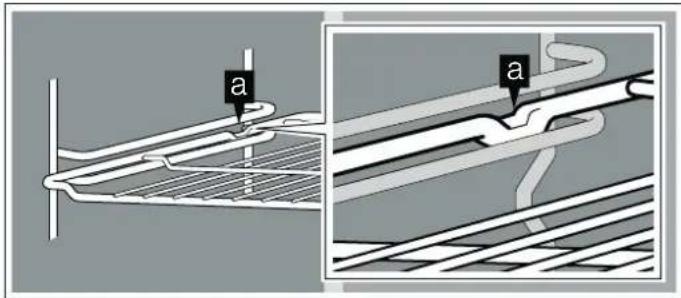

Inserting accessories
The accessories are equipped with a locking function. The locking function prevents the accessories from tilting when they are pulled out. The accessories must be inserted into the cooking compartment correctly for the tilt protection to work properly.
When inserting the wire rack, check
that the lug (a) is pointing downwards
that the lug (a) is in the rear part of the wire rack
When inserting the baking tray or the universal pan, check
that the lug (a) is in the rear part of the of the accessory
that the sloping edge of the accessory faces towards the appliance door when it is inserted
Shelf positions
The cooking compartment has four shelf positions. The shelf positions are counted from the bottom up.
Optional accessories
You can purchase optional accessories from the after-sales service or specialist retailers.
Accessories Order no.
Baking tray, aluminium CZ 1332 X0
Baking tray, enamelled CZ 1342 X0
Universal pan with wire insert CZ 1242 X1
Wire insert for roasting and grilling, to be 740766 used in the universal pan
Baking and roasting wire rack CZ 1432 X1
Pizza tray CZ 1352 X0
System steamer CZ 1282 X3
Telescopic shelf x2 CZ 1702 X2
Telescopic shelf x3 CZ 1742 X2
Telescopic shelf with full extension x4 CZ 1755 X2
Before using the appliance for the first time
Clean your appliance before using it for the first time.
1.Remove accessories and any remaining packaging from the cooking compartment.
2.Clean the accessories and cooking compartment with hot soapy water (see section: Cleaning and care).
- Heat with Top/bottom heat at 240^ for 60 minutes.
- Afterwards, wipe the cooled cooking compartment with hot, soapy water.
5.Clean the outside of the appliance with a soft, damp cloth and soapy water.
Operating the appliance
In this section, you will find out how to switch your appliance on and off, and how to select an operating mode and temperature.
Switching on the appliance
- Turn the operating mode selector until the desired operating mode is selected.
- Turn the temperature selector until the desired temperature is selected.
The indicator lamp lights up while the appliance is heating up and during any subsequent heating.
Switching off the appliance
- Turn the operating mode selector back to the o position.
- Turn the temperature selector back to the position.
After the appliance is switched off, the cooling fan may continue to run.
Switching the hob on and off
Your hob comes with its own instructions for use. This contains important safety information, detailed set-up instructions and a lot of information on care and cleaning.
Baking
Baking accessories
Baking tins
Use dark metal baking tins. Tinplate and glass dishes increase the baking time required and the cake will not brown evenly. If you want to bake with tinplate baking tins, use shelf position 1. Always place a loaf tin diagonally and a round baking tin in the centre of the wire rack.
Baking trays
We recommend that you only use original baking trays, as these have been optimally designed for the cooking compartment and the operating modes.
Always carefully push the baking trays in as far as they will go. Make sure that the sloping edge of the baking tray is facing the appliance door.
Baking table for basic doughs/cake mixtures
The information in the table is a guideline and applies to both aluminium baking trays and dark-coloured baking tins. The values may vary depending on the type and amount of dough/mixture and on the baking tin.
The values for bread dough apply to both dough placed on a tray and dough placed in a loaf tin.
We recommend that you set the lower of the specified temperatures the first time. This will generally allow more even browning.
If you are baking with your own recipe, use similar recipes in the table as a guide.
Observe the notes in the table about preheating.
Top/bottom heating
Basic dough Shelf position Temperature in ^ Baking time in minutes
| Sponge mixture | ||
| Tray bakes with topping 1 180 - 190 30 - 40 | ||
| Springform cake tin/loaf tin 2 160 - 170 60 - 70 | ||
| Shortcrust pastry | ||
| Tray bake with dry topping, e.g. crumble 1 190 - 200 45 - 55 | ||
| Tray bake with moist topping, e.g. egg custard 1 180 - 190 75 - 90 | ||
| Springform cake tin, e.g. sponge base cheesecake 2 160 - 180 50 - 90 | ||
| Flan-base cake tin 2 | 170 - 180* | 25 - 35 |
| Sponge mixture | ||
| Swiss roll | 1 200 - 210* 10 - 15 | |
| Sponge (6 eggs) | 2 160 - 170 30 - 45 | |
| Sponge (3 eggs) | 2 160 - 170* 20 - 30 | |
| Yeast dough | ||
| Tray bake with dry topping, e.g. crumble 1 180 - 200 45 - 55 | ||
| Savarin/plaited loaf (500 g) | 1 180 - 190 35 - 45 | |
| Springform cake tin 2 160 - 170 30 - 40 | ||
| Ring cake tin | 2 170 - 180 35 - 45 | |
- Preheat oven
Small baked items Shelf position Temperature in ^ C Baking time in minutes
| Yeast dough 2 180 - 190 15 - 25 | |||
| Meringue mixture 2 80 180 - 200 | |||
| Puff pastry/choux pastry | 1 | 200 - 220* | 25 - 35 |
| Sponge mixture, e.g. muffins | 1 | 170 - 180* | 20 - 30 |
| Shortcrust pastry, e.g. butter biscuits | 2 | 150 - 160* | 15 - 20 |
- Preheat oven
Top/bottom heating
| Bread/bread rolls | Shelf position Temperature in °C Baking time in minutes | |
| Bread rolls | 1 | 240* 15 - 25 |
| Flatbread | 1 | 240* 15 - 25 |
| Bread dough 750 - 1000 g | ||
| Final baking | 2 | 220* 35 - 40 |
| Bread dough 1000 - 1250 g | ||
| Initial baking | 2 | 240* 10 - 15 |
| Final baking | 2 | 200 40 - 45 |
| Bread dough 1250 - 1500 g | ||
| Initial baking | 2 | 240* 10 - 15 |
| Final baking | 2 | 200 40 - 50 |
- Preheat oven
Baking table for fresh meals and pre-prepared frozen products
Please note the following points:
Line the baking tray with greaseproof paper
Spread chips out in a single layer
Turn frozen potato products half way through the baking time
- Do not season frozen potato products until after baking
Leave a little space between bread rolls when crisping them up. Do not place too many on a baking tray
Follow the manufacturer's instructions.
The information in the table is a guideline and applies to aluminium baking trays. The values may vary depending on the type and amount of dough/mixture and on the baking tin.
We recommend that you set the lower of the specified temperatures the first time. This will generally allow more even browning.
The values in the table apply to putting food in the cold oven.
| Meals | Top/bottom heat | ||
| Shelf position | Temperature in °C | Baking time in minutes | |
| Pizza, fresh | 1 | 210 - 230* | 20 - 30 |
| Savoury flan | 1 | 210 - 230* | 15 - 25 |
| Quiche | 2 200 - 220 50 - 60 | ||
| Tart | 1 | 200 - 220* | 30 - 45 |
| Swiss flan | 1 | 180 - 200* | 45 - 55 |
| Potato gratin made from raw potatoes | 2 200 - 220 50 - 60 | ||
| Strudel, frozen | 1 200 - 220 35 - 45 | ||
| Pizza, frozen | 1 210 - 230 10 - 20 | ||
| Potato products, frozen | |||
| Chips | 1 200 - 220 15 - 25 | ||
| Croquettes/Rösti | 1 190 - 210 20 - 30 | ||
| Baked goods | |||
| Bread rolls, frozen | 2 190 - 210 | 5 - 15 | |
| Part-baked rolls, frozen | 2 180 - 200 10 - 20 | ||
| Part-baked rolls | 2 190 - 210 | 5 - 15 | |
- Preheat oven
Tips and tricks
| The cake is too light in colour Check the shelf position and the recommended bakeware. Place the baking tin on the wire rack and not on the baking tray. Increase the baking time or the temperature. | |
| The cake is too dark Check the shelf position. Shorten the baking time or reduce the temperature. | |
| The cake is unevenly browned in the baking tin | Check the shelf position and the temperature. Check that the baking tin is in the correct position on the wire rack. |
| The cake on the baking tray is unevenly browned | Check the shelf position and the temperature. When baking small items, make sure that they are the same size and thickness. |
| The cake is too dry Shorten the baking time and increase the temperature slightly. | |
| The cake is too moist in the centre Reduce the temperature. Note: Higher temperatures do not mean shorter baking times (cooked on the outside, but not on the inside). Increase the baking time and allow the cake mixture to rise for longer. Add less liquid to the mixture. | |
| The cake collapses when you take it out of the oven | Add less liquid to the mixture. Increase the baking time or reduce the temperature. |
| The specified baking time is not correct | For small baked items, check the amount on the baking tray. Small baked items must not be touching each other. |
| Frozen products are not browned evenly after baking | If frozen products are unevenly browned when prebaked, then uneven browning is to be expected after baking. |
| Frozen products are not browned, not crispy or the specified times are not cor-rect | Remove ice from frozen products before baking them. Do not use heavily frosted frozen products. |
Roasting
There is a risk of injury if you use roasting dishes that are not heat-resistant!
Only use roasting dishes that are marked as being suitable for use in the oven.
Open roasting
For open roasting, a roasting dish without a lid is used.
Add liquid to the roasting dish if required. During roasting, the liquid in the roasting dish will evaporate. If necessary, carefully add more hot liquid.
Turn the roast approximately half to two thirds of the way through the roasting time.
Roasting in the universal pan
Juices escape from the roasting meat and are collected in the universal pan. You can use these juices as the basis for a tasty gravy.
You can also cook side dishes (e.g. vegetables) at the same time as roasting meat in the universal pan.
For smaller joints, you can use a smaller roasting dish instead of the universal pan. Place this directly on the wire rack.
Roasting with a lid
Roasting dishes with lids are used for this kind of roasting. This method is particularly suitable for pot roasts.
Roasting table
The roasting time and temperature depend on the size, height, type and quality of the item.
As a general rule: the larger the item, the lower the temperature and the longer the roasting time.
The information in the table is a guideline, and relates to items cooked without a lid. The values may vary depending on the type and quantity of the meat/fish and on the roasting dish.
You should set the lower of the specified temperatures the first time. This will generally allow more even browning.
At the end of the roasting time, switch the oven off and leave the roast to rest for approximately 10 minutes in the cooking compartment with the door closed. The recommended rest time is not included in the given roasting times.
The information in the table is for food placed in a cold oven and for meat/fish taken directly from the refrigerator.
Top/bottom heating
Item for roasting Shelf position Temperature in ^ Roasting time in min
| utes | |
| Meat loaf (made from 500 g meat) 2 200 - 210 60 - 70 | |
| Fish, whole (300 g) | 2 180 - 200 20 - 30 |
| Fish, whole (700 g) | 2 180 - 200 30 - 40 |
- Roast pot roasts in ovenware with a lid
** Use shelf position 1 for tall items
Pork
| Item for roasting | Shelf position | Top/bottom heating | |
| Temperature in °C | Roasting time in min-utes | ||
Fillet, medium (400 g) 3 200 - 230 30 - 45
Roast with rind (1.5kg) 2200-220120-150
Joint, marbled, without rind, e.g. neck (1.5 kg) 2 190 - 210 100 - 130
Roast, lean (1 kg) 2 180 - 200 70 - 90
Smoked pork 2 190 - 210 70 - 80
Beef
Fillet, medium (1 kg) 2 200 - 220 45 - 65
Sirloin, medium (1.5 kg) 2200 - 22030 - 45
Pot roast (1.5kg)^*2200 - 220120 - 150
Veal
| Joint/breast of veal (1.5 kg) | 2 180 - 200 | 90 - 120 |
| Knuckle | 2 190 - 210 100 - 130 |
Poultry (not stuffed)
| Chicken, whole (1 kg) | 2 200 - 220 60 - 70 | ||
| Duck, whole (2 - 3 kg) | 2 | 190 - 210 | 90 - 120 |
| Goose, whole (3 - 4 kg) | 2** | 180 - 200 | 130 - 180 |
- Roast pot roasts in ovenware with a lid
** Use shelf position 1 for tall items
Tips and tricks
| Crust too thick and/or roast too dry | Check the shelf height. Reduce temperature or roasting time. |
| Crust too thin | Increase the temperature or switch on the grill briefly at the end of the roasting time. |
| The meat is not cooked right through | Remove any accessories that are not required from the cooking compartment. Increase the roasting time. Check the core temperature of the roast using a meat thermometer. |
| Steam in the cooking compartment is condensing on the appliance door | The steam dries during the course of the cooking. If there is an excessive volume of steam, you can carefully open the door briefly to dissipate the steam more quickly. |
Grilling
Caution!
Material damage due to effect of heat: The temperature generated in the cooking compartment is very high. Keep the appliance door closed when using the grill. Never grill with the appliance door open.
For grilling, always use the wire rack and universal pan. Insert the wire rack at the shelf position indicated in the grilling table. To prevent the oven from becoming dirty, insert the universal pan one level lower. Always place the food to be grilled in the centre of the wire rack
Note: Always use the universal pan in the standard position (not the other way up).
If you are grilling more than one piece of meat, make sure that they are the same sort of meat and that they are of similar thickness and weight.
Brush the items to be grilled with a little oil according to taste.
Turn the grilling items half to two-thirds of the way through the grilling time.
The information in the table is only a guideline. The values may vary depending on the type and amount of food to be grilled. They apply to meat placed into a cold oven straight from the refrigerator.
| Grilled food | Shelf posi- tion | Tempera- ture in ℃ | Grilling time in minutes | Notes |
| Sausages | 4 | 250 | 10 - 14 | Lightly score skins |
| Vegetables | 4 | 270 | 15 - 20 | |
| Toast with topping | 3 | 220 | 10 - 15 | The shelf position should be adapted to the height of the topping |
| Grilled food | Shelf posi- tion | Tempera- ture in \( {}^{ \circ }\mathrm{C} \) | Grilling time in minutes | Notes |
| Pork | ||||
| Fillet steaks, medium-sized (3 cm thick) | 4 270 12 - 15 | |||
| Steak, well-done (2 cm thick) 4 270 15 - 20 | ||||
| Beef | ||||
| Fillet steaks (3 - 4 cm thick) | 4 | 270 | 15 - 20 | Grilling times can be increased or reduced, depend- ing on how well cooked the food should be |
| Tournedos 4 270 12 - 15 | ||||
| Lamb | ||||
| Filletts 4 270 8 - 12Grilling times can be increased or reduced, depend- Chops | 4 270 10 - 15 | ing on how well cooked the food should be | ||
| Poultry | ||||
| Chicken legs | 3 250 25 - 30 Pricking the skin can prevent blistering during grilling | |||
| Small chicken portions | 3 250 25 - 30 | |||
| Fish | ||||
| Steaks | 4 220 15 - 20 The pieces should be of equal thickness | |||
| Chops | 4 220 15 - 20 | |||
| Whole fish | 3 220 20 - 25 | |||
Yoghurt
You can also make home-made yoghurt with your appliance. The heat from the light is used for this.
- Remove the accessories and hook-in rack.
- Heat 1 litre of long-life milk (3.5% fat) or fresh pasteurised milk to 40^
Bring 1 litre fresh milk to the boil once and allow to cool down to 40^ .
-
Add 150g of set yoghurt to the warm milk, stir in and fill the jars or bowls evenly. Do not pour more than 200ml into any single container.
-
Cover the filled containers with a suitable lid or cling film.
- Preheat the oven with the full-surface grill for 15 minutes at 100^ .
- Then move the operating mode selector to Light.
- Evenly space the containers over the cooking compartment floor, then close the appliance door.
- Switch off the light after 8 hours and place the containers in the refrigerator for at least 12 hours.
Cleaning and care
Risk of short circuit!
Do not use high-pressure cleaners or steam jet cleaners to clean your appliance.
Caution!
Surface damage due to incorrect cleaning: Do not use any
harsh or abrasive cleaning agents
■ cleaning agents that contain alcohol
- abrasive cleaning aids such as steel wool or scourers.
Observe the specifications in the tables.
Note: Highly recommended cleaning and care products can be purchased through our after-sales service. Observe the manufacturer's instructions.
Cleaning the appliance exterior
To ensure that the different surfaces are not damaged by using the wrong cleaning agent, pay attention to the information in the table.
Wash new sponge cloths thoroughly before use.
| Appliance part/sur-face | Cleaning agent/aid |
| Stainless steel surfaces | Apply washing-up liquid with a soft,damp cloth or chamosis; dry with a softcloth. Use cleaners for brushed stainlesssteel finishes if very dirty. |
| Oven front | Hot soapy water:Clean with a dish cloth and dry with asoft cloth. Do not use glass cleaners orglass scrapers. |
| Door panels | Apply glass cleaner or detergent with asoft, damp cloth or chamosis leather; drywith a soft cloth.The inner door panel of the appliancedoor has a coating which can have theeffect of a light-coloured film. |
Cleaning the cooking compartment
Caution!
Risk of damaging the surface. Do not clean the appliance while still warm, even if using oven cleaners specially intended for this purpose.
Notes
Due to its technical properties, the enamel may exhibit colour variations. However, this has no effect on the function.
The edges of thin trays may be rough. Anti-corrosion protection is still guaranteed, however.
Appliance part Cleaning agent/aid
| Enamel surfaces Apply washing-up liquid or vinegar solution with a soft, damp cloth or chamois; dry with a soft cloth. Soften baked-on food residues with a damp cloth and detergent. Leave the cooking compartment open to dry after cleaning. We recommend using oven cleaner if the oven is very dirty. Observe the manufacturer's instructions when cleaning with an oven cleaner. |
Door seal Hot soapy water
| Hook-in racks Hot soapy water: | |
| Soak and clean with a dish cloth or brush. | |
| Telescopic shelves | Hot soapy water:Clean with a dish cloth or a brush.Do not remove the lubricant while the pull-out rails are pulled out - it is best to clean them when they are pushed in.Do not soak or clean in the dishwasher. |
| Accessories Soak | in hot soapy water. Clean with a brush and sponge or wash in the dishwasher. |
Keeping the appliance clean
Clean the cooking compartment every time it is used, since dirt will be burnt on next time the oven heats up and will thus become hard to remove. Always remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately.
Removing and fitting the appliance door
You can remove the appliance door to clean it more thoroughly.
Risk of injury!
The hinges of the appliance door may snap shut with great force. Always open the hinge locking lever fully when removing the appliance door and close it fully after refitting. Do not reach into the hinge.
Risk of injury!
If the appliance door has only been unhinged on one side, do not reach into the hinge. The hinge can snap back with great force. Call the after-sales service.
Removing the appliance door
- Open the appliance door fully.

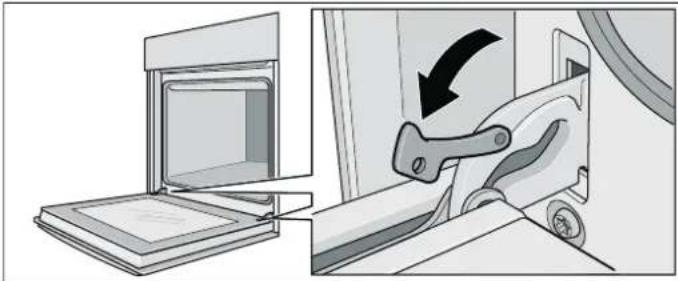

- Open the locking levers on the left and right-hand side fully.
The hinges are secured and cannot snap closed.
3.Close the appliance door until resistance becomes noticeable (figure A).

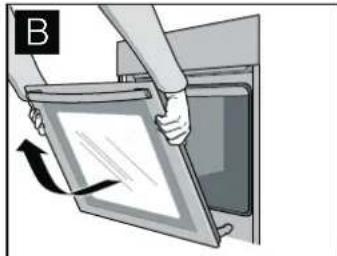

4. With both hands, grip the door on the left and right-hand side, close the door a little more and pull it out (figure B).
Fitting the appliance door
1.Insert the hinges in the left and right-hand holders (figure C). The notch on both hinges must engage.
2. Open the appliance door fully.
3.Close the locking levers on the left and right-hand side fully (figure D).
The appliance door is secured and can no longer be removed.
4.Close the appliance door.
Cleaning the door panels
To facilitate cleaning, you can remove the inner door panels from the appliance door.
Risk of injury!
The components inside the appliance door may have sharp edges. Take care not to cut yourself. Wear protective gloves.
Risk of injury!
The appliance must not be used again until the door panels and appliance door have been correctly fitted.

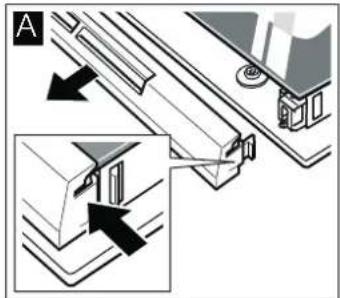

Removing the door panel
Note: Before removing, make a note of which way round the door panel is fitted, so that it is not refitted the wrong way round.
- Unhook the appliance door and lay it on a soft, clean surface with the front side facing downwards (see section: Removing and installing the appliance door).
- Pull off the cover at the top of the appliance door. Press in the tabs on the left and right using your fingers (fig.A).

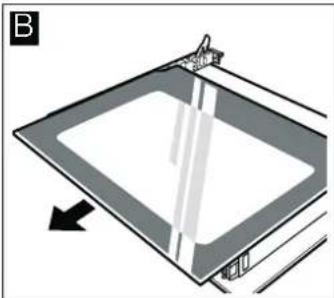

- Lift the door panel slightly and pull it out (Fig. B).

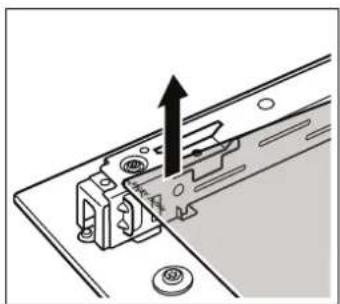

Removing the intermediate panel
Lift the intermediate panel slightly and pull it out towards you.
Cleaning
Clean the door panel with glass cleaner and a soft cloth.
Risk of injury!
Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.

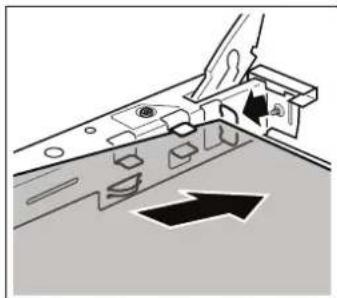

Fitting the intermediate panel
Note: During installation, make sure that the lettering "top right" is upside down at the bottom left.
Insert the intermediate panel towards the back as far as it will go.
Fitting the door panel
- Insert the door panel at an angle towards the back into both brackets as far as it will go. The smooth surface must face outwards.
- Put the cover back in place and press on it until it clicks in place.
- Refit the appliance door.
Cleaning the hook-in racks
You can remove the hook-in racks for easier cleaning.
Risk of burning due to hot components in the cooking compartment!
Wait until the cooking compartment has cooled down.

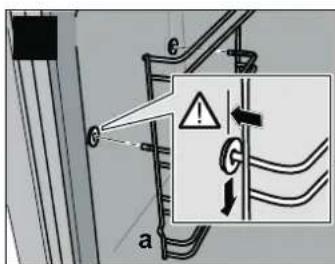

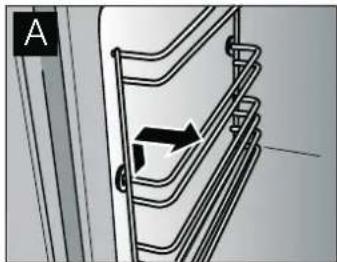

- Push the hook-in rack upwards at the front and unhook to the side (figure A).

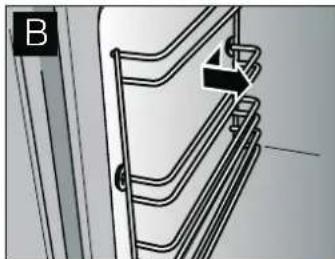

- Pull the hook-in rack forwards at the rear and unhook to the side (figure B).
- Clean the hook-in rack with washing-up liquid and a sponge or brush.

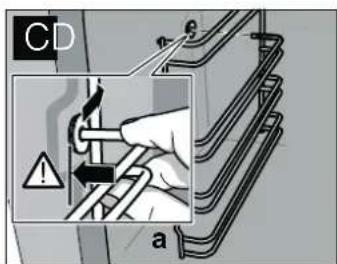

- Align the hook-in rack with the indentation (a) facing downwards, so that the shelf heights match.
- Insert the hook-in rack at the rear as far as it will go and push to the rear (figure C).
- Insert the hook-in rack at the front as far as it will go and push downwards (figure D).
Faults and repairs
In the event of a fault, check the tips in the following table before calling the after-sales service.
Risk of electric shock!
Work on the appliance electronics may only be performed by a specialist.
Always disconnect the appliance from the power supply when work is carried out on the electronics. Switch off the circuit breaker or remove the fuse from your household fuse box.
Problem Possible cause Remedial action
| Electrical operation is faulty (e.g. indicator lamps no longer light up) | Fuse defective Check fuses in the fuse box and replace if necessary | |
| Liquid or runny dough runs to one side | Appliance not installed level | Check the appliance installation (see the Installation instructions) |
| Smoke is generated during roasting or grilling | Fat is burning on the grill element Continue grilling or roasting until the fat on the grill element is burnt away | |
| Wire rack or universal pan inserted incorrectly | Check the shelf heights (see section: Roasting or grilling) | |
| High levels of condensation are generated in the cooking compartment | Normal occurrence (e.g. when baking cakes with very moist toppings or roasting a large joint) | Open the appliance door briefly from time to time during operation |
| Enamelled accessories have matt, light-coloured marks | Normal occurrence caused by dripping meat or fruit juices | Not possible |
| Door panels are misted up Normal occurrence caused by temperature differences | Heat the appliance up to 100 °C and then switch off again after 5 minutes | |
Replacing the oven light bulb
Replace faulty oven light bulbs.
You can obtain replacement light bulbs from customer service or specialist retailers: E14, 220 - 240 V, 40 W, heat resistant to 300^ . Only use these oven light bulbs.
Risk of electric shock!
Disconnect the appliance from the power supply. Switch off the circuit breaker or remove the fuse from the household fuse box.
- Place a tea towel in the cold cooking compartment to prevent damage.
- Turn the glass cover anticlockwise and remove it.
- Replace the oven light bulb with a bulb of the same type.
4.Screw on the glass cover again. - Remove the tea towel and switch on the circuit breaker.
Note: If the glass cover cannot be unscrewed: use rubber gloves to turn it. You can order a special removal tool through the after-sales service (order no. 613634)
Changing the door seal
If the door seal is defective, it must be replaced. Replacement seals for your appliance can be obtained from the after-sales service.

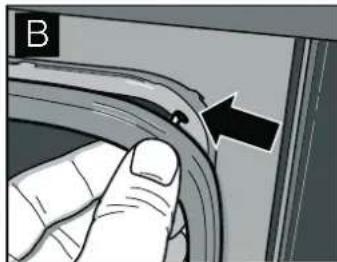

The door seal is attached in four places (figure A). When replacing it, disconnect and attach the hooks at all four points (figure B).
Check again to ensure that the seal is seated correctly in the corners in particular.
After-sales service
In the event of faults and repairs that you cannot rectify yourself, please use our after-sales service.
You can find the addresses in the after-sales service directory.
Note: You will be charged for calling the after-sales service regarding an operating error.
When contacting the after-sales service, please specify the E-number and FD number.
You can find these on the rating plate behind the appliance door on the left-hand bottom edge.
E no. FD no.
Additional information on products, accessories, replacement parts and services can be found at www.constructa.de and in the online shop www.constructa-eshop.com
Test dishes
Test dishes tested to standard EN 50304/EN 60350 (2009) and IEC 60350. Please note the information in the tables about preheating.
| Baking Shelf posi- | tion | Operating mode | Temperature in °C | Baking time in minutes |
| Piped cookies | 2 | ☐ | 160 - 170* | 20 - 25 |
| Small cakes (20 per tray) 2 ☐ 160 - 170** 25 - 30 | ||||
| Hot water sponge cake | 2 | ☐ | 160 - 170* | 25 - 35 |
| Apple pie*** (Baking tins next to one another on the wire rack) | 1 ☐ 190 - 200 70 - 80 | |||
| * Preheat oven | ||||
| ** Preheat for 10 minutes | ||||
| *** Use a black baking tray | ||||
| Grilling Shelf position Operating | mode | Temperature in °C | Grilling time in minutes | |
| Toast (universal pan + wire rack) | 3 + 4 | ☐ | 275* | 1 - 2 |
| Beef steaks, x 12 (universal pan + wire rack) | 3 + 4 | ☐ | 275 | 20 - 25** |
- Preheat for 10 minutes
** Turn over after 13 of the cooking time
