USER MANUAL SC2285 TRISTAR

Modern kitchen juicer with fresh juice glasses and fruit in background (no text or symbols visible)

eN Instruction manual
NI Gebruiksaanwijzing
FR Mode d'emploi
De Bedienungsanleitung
eS Manual de usuario
PT Manual de utilizador
PI Instrukcja obsługi
IT Manuale utente
SV Bruksanvisning

SC-2285

*** TRISTAR

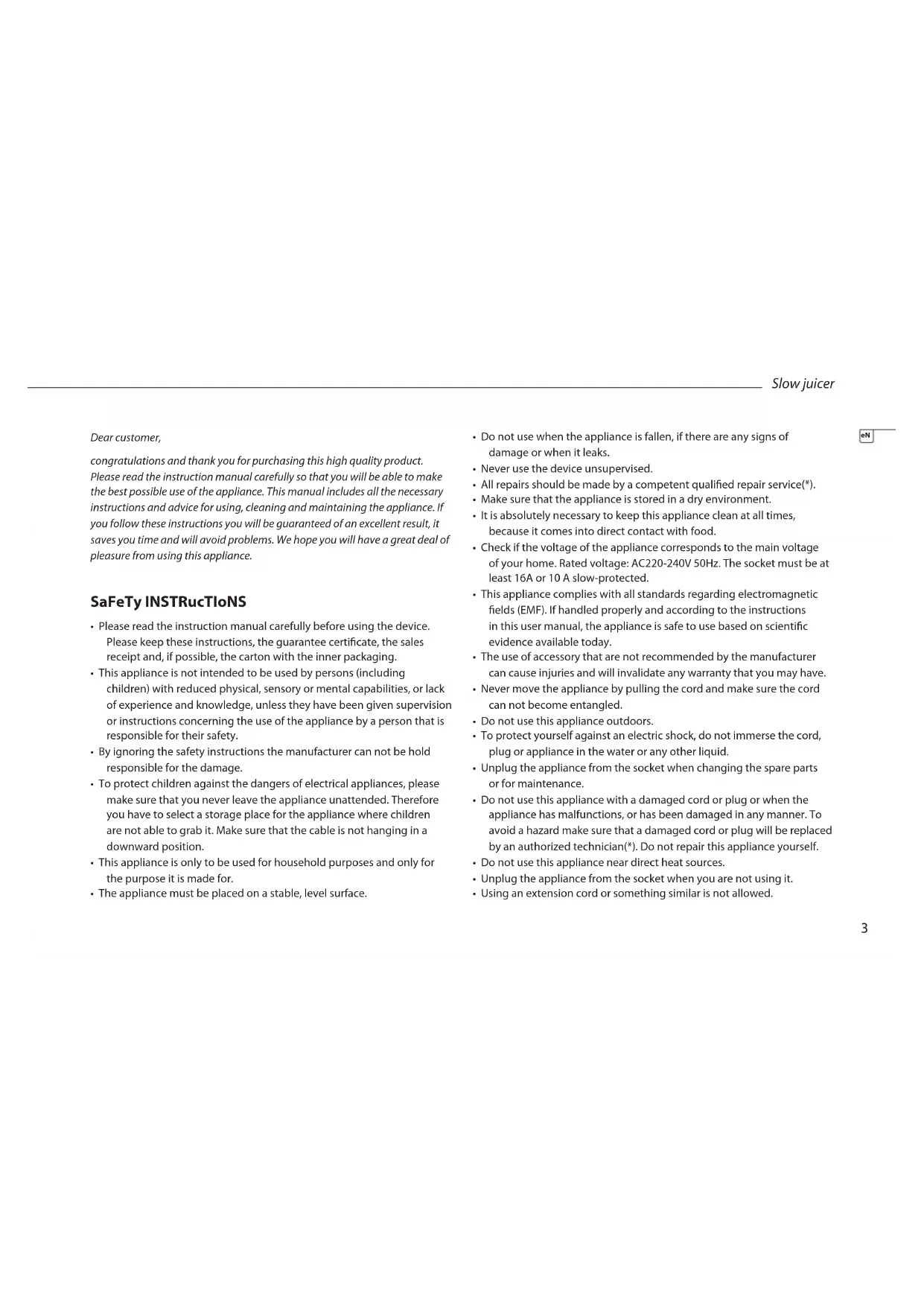

Dear customer,

congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SaFeTy INSTRucTloNS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• To protect children against the dangers of electrical appliances, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.

• The appliance must be placed on a stable, level surface.

• Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.

• Never use the device unsupervised.
• All repairs should be made by a competent qualified repair service(*).
• Make sure that the appliance is stored in a dry environment.
• It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.
• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16A or 10 A slow-protected.
• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• The use of accessory that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• Do not use this appliance outdoors.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Unplug the appliance from the socket when changing the spare parts or for maintenance.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician(*). Do not repair this appliance yourself.
• Do not use this appliance near direct heat sources.
• Unplug the appliance from the socket when you are not using it.
• Using an extension cord or something similar is not allowed.

TRISTAR Instruction manual

• Make sure that the cord is not hanging over the edge of the table or counter, does not touch any hot surfaces or is coming directly into contact with the hot parts of the appliance. Do not place the appliance underneath or close to curtains, window coverings etc.
• Do not use this appliance in the bathroom or near a sink filled with water. If this appliance has fallen into the water do not under no circumstances directly grab this appliance, but first pull the plug from the socket.
  (*) Competent qualified repair service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this repair service.

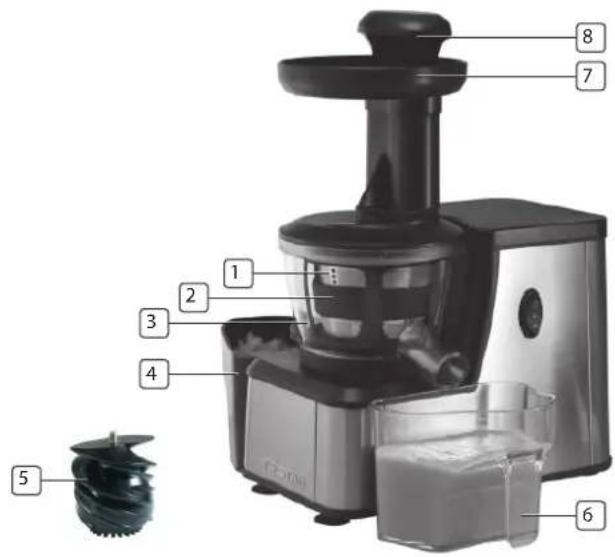

PaRTS DeScRIPTIoN

1. Strainer
2. Auto cleaning brush
3. Bowl
4. Pulp tank
5. Auger
6. Juice cup
7. Hopper
8. Food pusher

Labeled diagram of a coffee maker with numbered parts for identification and assembly reference.

ASSEMBLING

Before assembling please make sure that the power cord is unplugged.

• Place the juice bowl on the top of the main body, turn it clockwise so it will lock and can't be moved.
• Put the strainer holder into the juice bowl.
• Put the strainer into the strainer holder, make sure the pulp spout of the strainer falls in the notch in the juice bowl.
• Put the juice auger into the strainer.
• Put the cover on the top of the juice bowl, turn it clockwise so it locks into the main body, if the cover isn't fixed properly the safety lock will not be unlocked and the juicer won't function.
• Place the pulp tank on its position under the pulp spout.
• Place the juice cup on its position under the juicer spout.
• Use the food pusher to push down the food in the shaft.

IMPORTANT: The juicer is equipped with a safety lock, if the juice bowl and the cover are not properly assembled, the juicer will not operate.

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
- Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
- Place the device on a flat stable surface and ensure a minimum of 10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.
- Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16A or 10 A slow-protected.

USE

• Make sure all the parts are assembled properly, please refer paragraph assembling.
• Note: the juicer won't function if the lid isn't mounted properly, the lid is equipped with a safety switch
• Position both collecting containers correctly beneath the outlets in order to prevent spillage.
• Turn on the juicer.
• Put the ingredients in the filling shaft, push with the food pusher if necessary, please refer paragraph recipes for possibilities.
• Trapped stones or pits can be released by pressing on the "R" button (rewind).

CLEANING AND MAINTENANCE

• Before cleaning, always unplug the appliance.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Plug in the appliance and turn on the appliance, then rinse the appliance with warm water..
• Do not put any parts in the dishwasher. Never immerse the motor unit in water. The device in not dishwasher proof.

RECIPES

Fruit juice recipes

Fruit remnants can be used for preparing curry or chilli dishes.

Kiwi juice

• Rub off the hairs of the kiwi. Cut the kiwi into pieces and put into the juicer with the skin.
• 250g. Kiwi ≈ 2 dl.

\*\*\* TRISTAR Instruction manual

Orange juice

• Peel orange and cut into suitable pieces. Put into the juicer.
• 200g. Orange ≈ 2 dl.

Strawberry juice

• Wash strawberries. Put into the juicer with the stem.
  • 200g. Strawberry ≈ 2 dl.

Vegetable recipes

Vegetable remnants can be used for preparing vegetable soups.

Broccoli juice

• Cut broccoli into suitable pieces with the stem. Put into the juicer. Refine with pear, apple or melon.
  • 400g. Broccoli ≈ 2 dl.

Carrot juice

• Wash and scrub carrots. Cut into pieces and put into the juicer.
  • 350g. carrot ≈ 2 dl.

Ice cream recipes

- Stir ice cream and sorbet with a spoon every 10 - 15 minutes.

Water melon sorbet

• Put the water melon in the juicer without the peel. Sweeten with honey or saccharin. Place into the freezer.
  • 200g. water melon ≈ 2 dl.

Frozen pineapple Yoghurt

• Peel pineapple, put into the juicer. Combine with natural yoghurt and condensed milk. Place into the freezer.
  • 250g. pineapple ≈ 2 dl.

Ketchup

Ketchup

- Wash and juice 3 tomatoes and 12 onion. While bringing to a boil, add 4 teaspoons of white wine vinegar, 3 teaspoons of honey and salt. Thicken with corn starch

GUARANTEE

- Tristar is not liable for damages occurred through: o In case the appliance has fallen.

o In case the appliance has been technically changed by the owner or another third party.
o In case of improper use of the appliance.
o In case of normal wear of the appliance.

- By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.

• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.
• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.
• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.

• This appliance may not be amended or changed.

• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.

• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
  • After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point

for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This appliance is designed to come into contact with food and is designed in accordance with EC Directive89/109/EEC

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC",

the protection requirements of the EMC Directive 2004/108/EC

"Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
