SC2281 - Juicer TRISTAR - Free user manual and instructions

Product type	Centrifugal juicer
Brand	TriStar
Model	SC2281
Power supply	220-240 V ~ 50/60 Hz, 500 W
Number of speeds	2 (speed 1 for soft foods, speed 2 for hard foods)
Pulp container capacity	1.5 L
Juice jug capacity	1 L
Housing material	Plastic
Filter	Stainless steel (fine filter)
Dimensions (approx.)	25 x 20 x 40 cm
Weight (approx.)	3 kg
Power cord length	100 cm
Pusher	Included
Cleaning brush	Included
Foam separator function	Yes (in the lid)
Safety	Lid safety lock (the appliance only works if the lid is properly locked)
Overheat protection	Yes (automatic shut-off in case of overload)
Cleaning	Filter to be cleaned with the provided brush; other parts washable with soapy water (do not put in dishwasher)
Spare parts available	Filter, pusher, pulp container, jug, brush
Warranty	2 years

Frequently Asked Questions - SC2281 TRISTAR

How to assemble the SC2281 juicer?

First place the filter holder in the pulp container. Insert the filter into its holder. Place the lid and lock it by engaging the two locks (top then bottom). Ensure the pulp container is in place. Finally, position the jug under the juice spout.

What fruits and vegetables can I use with this juicer?

You can extract juice from most fruits and vegetables: apples, carrots, oranges (peeled), celery, spinach, beets, etc. Remove pits and hard skins before extraction.

Why does my juicer stop during use?

This may be due to overload. The appliance is designed for a maximum continuous use of 2 minutes with hard foods, and a maximum quantity of 1.5 kg. If the motor stops, turn off the appliance and unblock the pusher, then let it cool for a few minutes before restarting.

How to clean the juicer filter?

Use the provided brush to remove food residues. Rinse it under warm water while brushing. Do not put the filter in the dishwasher. If discoloration persists, rub with a cloth soaked in vegetable oil.

Can I extract juice from leafy green vegetables like spinach?

Yes, but it is recommended to insert them slowly alternating with harder fruits or vegetables (like apples) to optimize extraction. Dark green vegetables produce a very concentrated juice, to be consumed in moderation.

What is the maximum continuous use time?

For hard foods, do not exceed 2 minutes of continuous use with a maximum quantity of 1.5 kg. For soft foods, you can use the appliance longer, but regular breaks are advised to avoid overheating.

How to reduce foam in the juice?

The lid is equipped with a foam separator that reduces foam formation. You can also remove foam with a spoon if necessary.

Are the pulp container and juice jug dishwasher safe?

No, according to the manufacturer's instructions, these parts should not be cleaned in the dishwasher. Wash them by hand with warm soapy water and dry them thoroughly.

What to do if a burning smell comes from the motor?

Immediately stop the appliance and unplug it. The smell may be due to prolonged use or overload. Let the appliance cool for at least 30 minutes before trying again. If the smell persists, contact customer service.

How to store freshly squeezed juice?

Drink the juice immediately to get the most vitamins. If you need to store it, place it in the refrigerator in a closed container and add a few drops of lemon juice to preserve color and nutrients, up to 24 hours.

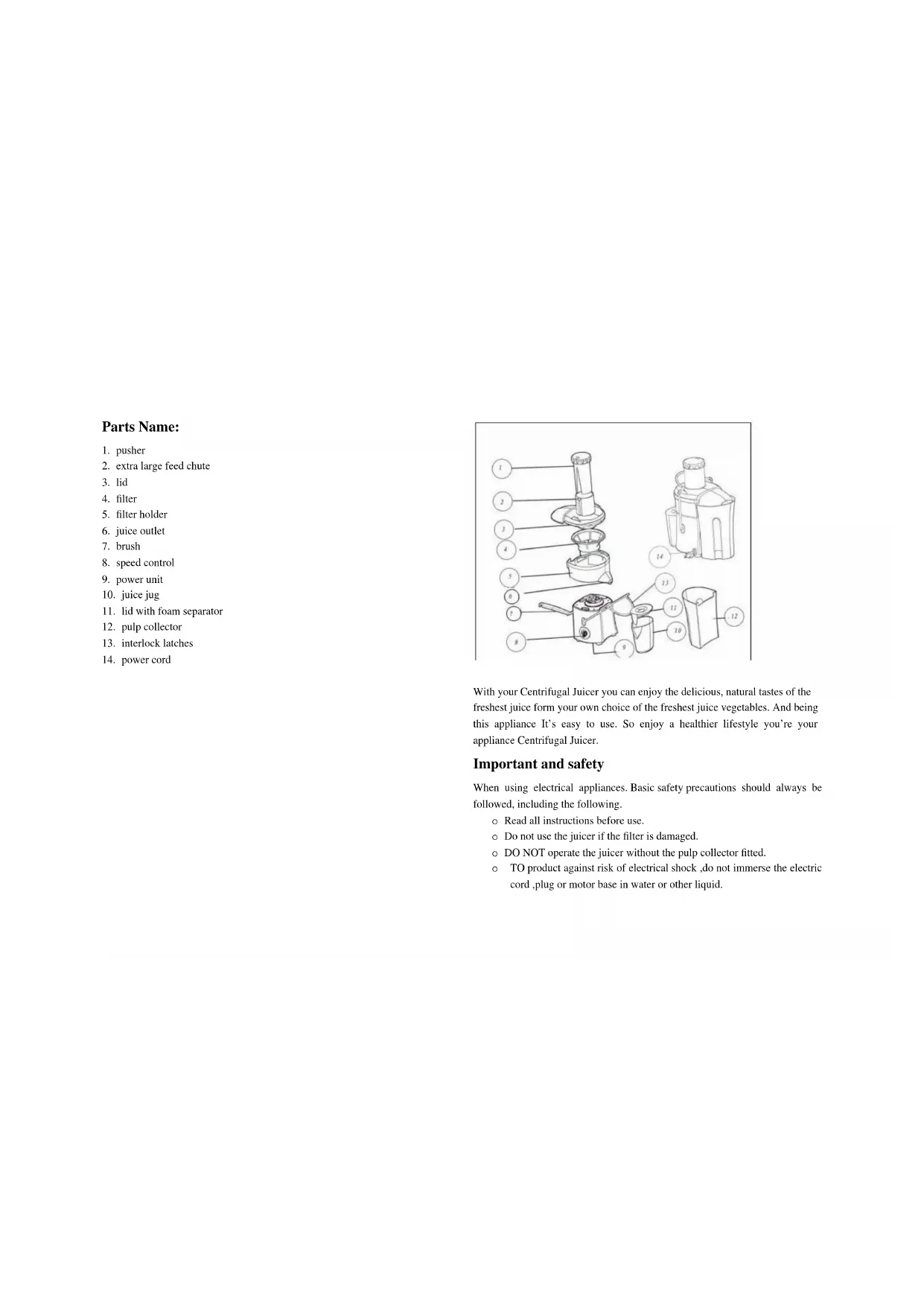

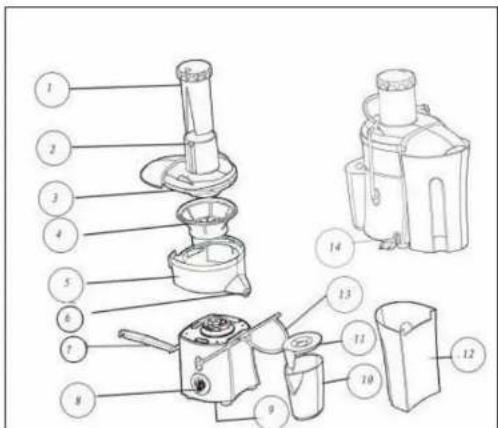

USER MANUAL SC2281 TRISTAR

1. pusher
2. extra large feed chute
3. lid
4. filter
5. filter holder
6. juice outlet
7. brush
8. speed control
9. power unit
10. juice jug
11. lid with foam separator
12. pulp collector
13. interlock latches
14. power cord

With your Centrifugal Juicer you can enjoy the delicious, natural tastes of the freshest juice form your own choice of the freshest juice vegetables. And being this appliance It's easy to use. So enjoy a healthier lifestyle you're your appliance Centrifugal Juicer.

Important and safety

When using electrical appliances. Basic safety precautions should always be followed, including the following.

Read all instructions before use.
Do not use the juicer if the filter is damaged.
DO NOT operate the juicer without the pulp collector fitted.
TO product against risk of electrical shock,do not immerse the electric cord,plug or motor base in water or other liquid.

Switch off and unplug:
Before fitting or removing parts
Before cleaning.
After use.
- Never use a damaged juicer or cord/plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, electrical or mechanical adjustment.
Only use the pusher supplied. Close supervision is necessary when any appliance is used by or near children.
- Avoid contact with moving parts.
- Never put your fingers in the feed tube. Unplug before unblocking the feed tube.
Before removing the lid, switch off and wait for the filter to stop.
Don't let children or infirm people use the juicer without supervision.
Never let the cord touch hot surfaces or hang down where a child could grab it.
Don't touch moving parts.
Never leave the juicer on unattended.
This juicer is for domestic use only.
Don't let children play with the machine.
To disconnect juicer, wait unit motor stop before moving plug from electrical outlet.
Other than cleaning, no additional maintenance or servicing of this appliance is required repairs, when necessary must be preformed at an authorized Electrical service station.
Always unplug after use.

Before plugging in

Make sure your electricity supply is the same as the one shown on the underside of your juicer.
- This juicer complies with European Economic Community Directive

Before using for the first time

1. Remove all packaging.
2. Wash the parts : see 'Cleaning'.

Using your juicer

Fig 1

fig2

Preparing food

1. Remove stones(plums, peaches, cherries etc).
2. Remove tough skins (melons, pineapples, cucumbers, potatoes etc). Soft-skinned and other foods just need washing (apples pears, carrots, radishes, kettuce, cabbage, parsley, spinach, grapes, strawberries, celery etc.)
3. Citrus Fruit- Peel and remove the white pith, otherwise the juice may taste bitter.

Assembly and use

Fit the filter holder O,5^ and pulp collector O,12.
Fit the filter O,4^ inside the filter holder and push down- ensuring the the filter in the correct position.
Fit the lid. Lock the lid by clipping the top of the latches(Fig.1) to the lid. Then snap the bottom of the latches(Fig.2) into place.
Your juicer will not work if the lid is unlocked.
Do not operate the juicer without the pulp collector fitted.
- Put the juice jug under the outlet. The foam separator in the jug ensures that the juice is free from foam.
Switch on '2' and feed the food items down with the pusher-ensuring the groove in the pusher aligns with the notch on the inside for the feed tube. Use speed 1 for softer food such as citrus and strawberries.
- When juicing hard foods we recommend a maximum quantity of 1.5Kg with a maximum operation time of 2minutes. Some very hard foods may make your juicer slow down or stop .If this happens switch off and unblock the filter.
Switch off and clear the pulp collector regularly during use.
8. The juicer is factory lubricated and requires no further lubrication.

To take your juicer apart

Reverse the assembly procedure to take the juicer apart.

Hints

Insert soft food slowly to get the most juice.
Vitamins disappear – the sooner you drink your juice, the more vitamins you'll get.
If you need to store the juice for a few hours put it in the fridge. It will keep better if you add a few drops of lemon juice.
Don't drink more than three 230mls (8 fl. oz.) glasses of juice a day unless you're used to it.
Dilute juice for children with an equal amount of water.
Juice from dark green (broccoli, spinach etc) or dark red (beetroot, red cabbage etc.) vegetables is extremely strong, so people with diabetes or low blood sugar should avoid drinking to much.

CLEANING

1. Before cleaning, unplug your juicer.
2. If the filter is too tight to remove, wait a few minutes until it loosens up.
3. Some foods, e.g. carrot, will discolor the plastic. Rubbing with a cloth dipped in vegetable oil helps remove discoloring.

Motor

The motor unit if you use it, wipe with a damp cloth, then dry.

Filter

1. Clean using the brush supplied.
2. Check the filter regularly for signs of damage. Do not use if the filter is damaged.

Other parts

Wash in hot soapy water, then dry all the parts. Don't clean parts in a

dishwasher or running water.

Flip the spout down fully in order to clean it properly. The spout can not be detached from the appliances.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be

disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.
