USER MANUAL AVTF129 Ariston Thermo

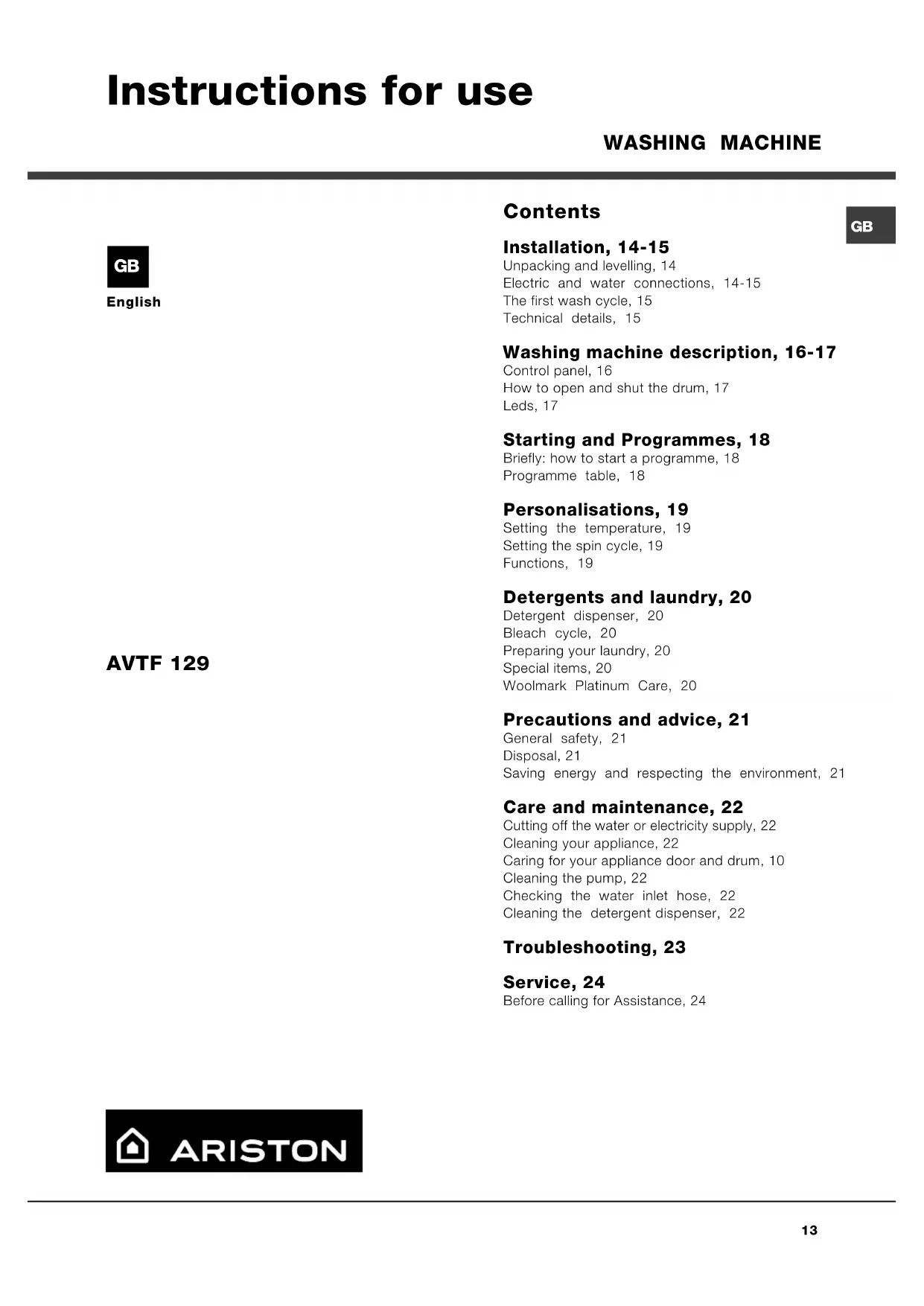

Contents Installation, 14-15 Unpacking and levelling, 14 Electric and water connections, 14-15 The first wash cycle, 15 Technical details, 15 Washing machine description, 16-17 Control panel, 16 How to open and shut the drum, 17 Leds, 17 Starting and Programmes, 18 Briefly: how to start a programme, 18 Programme table, 18 Personalisations, 19 Setting the temperature, 19 Setting the spin cycle, 19 Functions, 19 Detergents and laundry, 20 Detergent dispenser, 20 Bleach cycle, 20 Preparing your laundry, 20 Special items, 20 Woolmark Platinum Care, 20 Precautions and advice, 21 General safety, 21 Disposal, 21 Saving energy and respecting the environment, 21 Care and maintenance, 22 Cutting off the water or electricity supply, 22 Cleaning your appliance, 22 Caring for your appliance door and drum, 10 Cleaning the pump, 22 Checking the water inlet hose, 22 Cleaning the detergent dispenser, 22 Troubleshooting, 23 Service, 24 Before calling for Assistance, 24 WASHING MACHINE AVTF 129 Instructions for use

Installation Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. Read these instructions carefully: they contain vital information on installation, use and safety. Unpacking and levelling Unpacking

1. Unpack the washing

washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

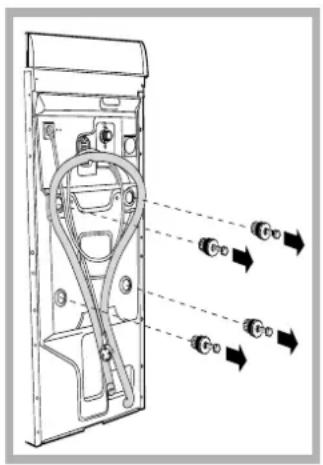

protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the

washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure

you fasten the shorter ones at the top. Packaging materials are not children's toys. Levelling

1. Install the washing machine on a flat sturdy floor,

without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, compen- sate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Putting your appliance in place and moving it. If your washing machine is equipped with a special set of retractable wheels you can easy move it. To lower the wheels and thus move the appliance effortlessly, just pull the lever, situated on the left-hand side beneath the base. Once the appliance is in the required position, put the lever back in place. The washing machine is now firmly in place (see figure). Electric and water connections Connecting the water inlet hose

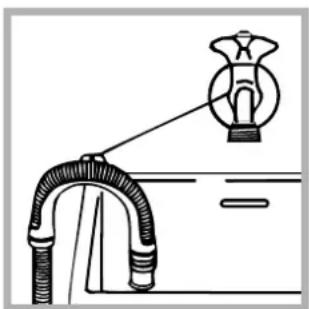

1. Insert seal A into the

end of the inlet hose and screw the latter onto a cold water tap with a 3/ 4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

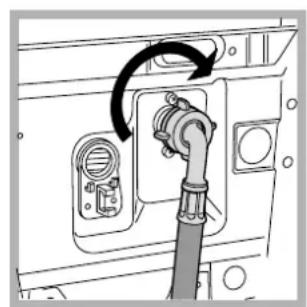

2. Connect the other end

of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are

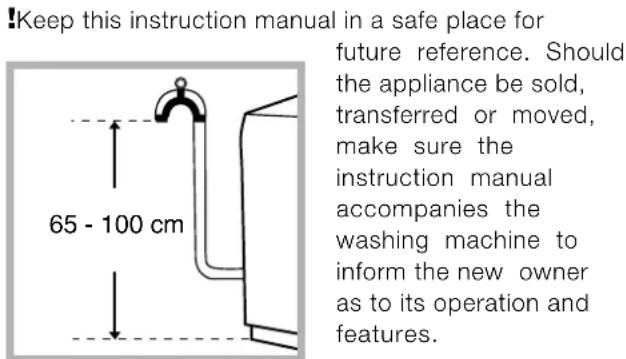

no kinks or bends in the hose. The water pressure at the tap must be within the values indicated in the Technical details table (on the next page). If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman. A15

Keep this instruction manual in a safe place for future reference. Shouldthe appliance be sold,transferred or moved,make sure theinstruction manualaccompanies thewashing machine toinform the new owneras to its operation andfeatures. Read these instructions carefully:they contain vitalinformation oninstallation, use andsafety. Unpacking and levelling Unpacking1. Unpack the washingmachine.2. Check whether the washing machine has beendamaged during transport. If this is the case, do notinstall it and contact your retailer.3. Remove the four protective screws and therubber washer with the respective spacer, situatedon the rear of the appliance (see figure).4. Seal the gaps using the plastic plugs provided.5. Keep all the parts: you will need them again if thewashing machine needs to be moved to anotherlocation.Warning: should the screws be re-used, make sureyou fasten the shorter ones at the top. Packaging materials are not children's toys. Levelling1. Install the washing machine on a flat sturdy floor,without resting it up against walls, furniture cabinetsor other.2. If the floor is not perfectly level, compensate forany unevenness by tightening or loosening theadjustable front feet (see figure); the angle ofinclination, measured according to the worktop,must not exceed 2°.Levelling your appliance correctly will provide it withstability and avoid any vibrations, noise and shiftingduring operation. If it is placed on a fitted or loosecarpet, adjust the feet in such a way as to allowenough room for ventilation beneath the washingmachine.Putting your appliance in place and moving it.If your washing machine is equipped with a specialset of retractable wheels you can easy move it. Tolower the wheels and thus move the applianceeffortlessly, just pull the lever, situated on the left-hand side beneath the base. Once the appliance isin the required position, put the lever back in place.The washing machine is now firmly in place (seefigure). Electric and water connections Connecting the water inlet hose1. Insert seal A into the end of the inlet hose andscrew the latter onto a cold water tap with a 3/4gas threaded mouth (see figure).Before making the connection, allow the water to ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description Technical details ModelAVTF 129Dimensions40 cm wide85 cm high60 cm deepCapacityfrom 1 to 5 kgElectricconnectionsvoltage 220/230 Volts 50 Hzmaximum absorbed power 1850 WWate rconnectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 42 litresSpin speedup to 1200 rpmControlprogrammesaccording toIEC456 directiveprogramme 3; temperature 60°C;run with a load of 5 kg.This appliance is compliant with thefollowing European CommunityDirectives:- 73/23/CEE of 19/02/73 (LowVoltage) and subsequent amendments- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) andsubsequent amendments- 2002/96/CE

Washing machine description A) Opening (Fig. 1). Lift the external lid and open it completely. B) Opening the drum (Soft opening): With one finger, push the button indicated in fig. 2 and the drum will open delicately. C) Loading the washing machine. (Fig. 3). D) Shutting (Fig. 4). - close the drum fully by first shutting the front door followed by the rear one; - then ensure the hooks on the front door are perfectly housed within the seat of the rear door; - after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose; - finally shut the external lid.

Drum End Stop (Fig. 2). Once the wash cycle has been completed, the drum will position itself with the doors facing upward for ease of opening. How to open and shut the drum Display: displays the progress of the wash cycle and/or the programme (see pages 17-19). SPIN key Regulates the speed and cancels the spin cycle speed completely (see page 19). TEMPERATURE key adjusts the wash temperature from 90° to 0°. (see page 19). DELAY TIMER key. To delay the start of the wash cycle by up to 24 hours (see page 19). KEYBOARD LOCK key. To lock all the keys on the washing machine during operation or during Stand-by mode. ON/OFF key to turn the washing machine on and off (see page). 18). START/RESET key. To start programmes or cancel incorrectly set programmes (see page 18). PROGRAMME knob. Selection of programmes (on page 18). PROGRAMME SELECTION knob Fig. 3 Fig. 4 Fig. 1 Fig. 2 Control panel FUNCTION buttons Display ON/OFF key START/RESET key

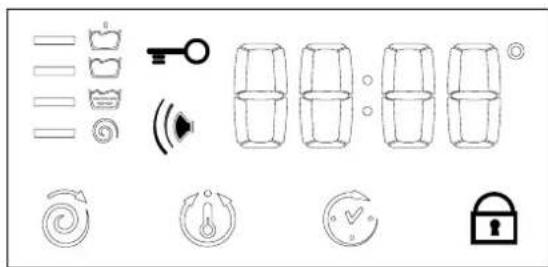

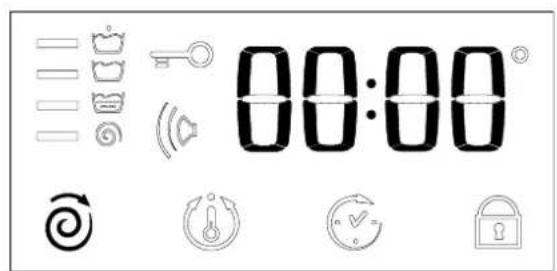

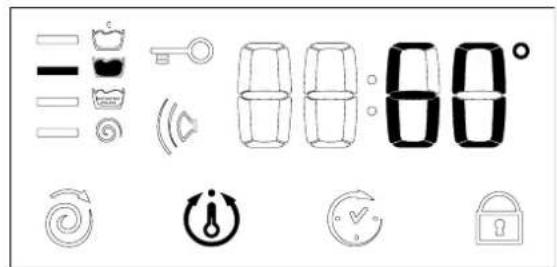

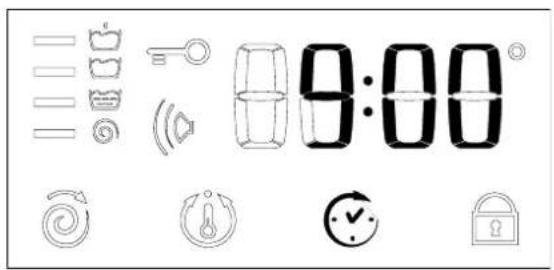

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description Display In addition to being a practical tool to programme your appliance (see page 19), the display provides useful information concerning the wash cycle and status. Once you have pressed the START/RESET button to start the programme, the display will indicate the amount of time left until the end of the wash cycle. If a delayed start has been set (using the Delay Timer, see page 19), the delay time will be indicated on the display. The following information is displayed during the wash cycle: Cycle phase under way: Pre-wash Spin cycle Wash cycle Rinse Customised functions and options: To select functions and options, see below and on page 19. Buzzer : Your washing machine comes with a buzzer, which will inform you of the various functions being carried out, or of any malfunctions: incompatibility, Keyboard lock: For your safety and that of your children, you can block all the keys during the machine's operation or during waiting position (delayed start - Stand-by) by pressing the function key for 2 seconds. To disable this function, hold the same button down for 4 seconds. ON-OFF/Lid lock: If this icon is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the icon is off before you open the appliance door. When the programme has ended, the word End will light up. In the event of an anomaly, an error code will appear, such as: F-01, (see page 24).18

Starting and Programmes Briefly: starting a programme

1. Switch the washing machine on by pressing button .

All the icons will light up for a few seconds and then go off.

2. Load your laundry into the washing machine, add

the detergent and any fabric softener (see page 20) and shut the appliance lid.

3. Set the knob to the desired programme. The

estimated duration of the selected programme is displayed. The temperature and spin speed are automatically set according to the programme (to change them, see page 19).

4. Select any options (see page 19)

5. Start the programme by pressing the START/RESET

button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.

6. When the programme has ended, the word End

will light up. After approximately 3 minutes, the key icon will switch off and you will be able to open the doors. Take out your laundry and leave the doors ajar to make sure the drum dries completely.

7. Turn the washing machine off by pressing .

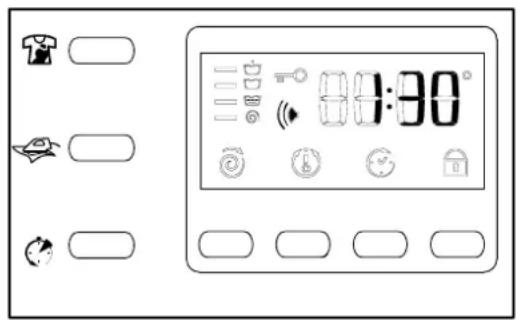

For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative. At the end of the wash cycle, before opening the appliance, wait 3 minutes for the doors of the drum to face upwards. Special programme Daily 30' (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent. Type of fabric and degreeof soilProgrammesWas htemperat.DetergentFabricsoftenerBleaching/optionBleachCyclelength(minutes)Description of wash cycle Pre- wash Wash CottonExtremely soiled whites(sheets, tablecloths, etc.) 90°C Pre-wash, wash cycle, rinsecycles, intermediate and finalspin cyclesExtremely soiled whites(sheets, tablecloths, etc.) 90°C Delicate/Traditional Wash cycl e, rin se cycl es,intermediate and final spincyclesHeavily soiled whites andfast colours 60°C Delicate/Traditional Wash cycl e, rin se cycl es,intermediate and final spincyclesHeavily soiled whites andfast colours 40°C Delicate/Traditional Wash cycl e, rin se cycl es,intermediate and final spincyclesSlightly soiled whites anddelicate colours (shirts,jumpers, etc.) 30°C Delicate/Traditional Wash cycl e, rin se cycl es,intermediate and final spincyclesSyntheticsHeavily soiled fast colours(baby linen, etc.) 60°C Delicate 97Wash cycle, rinse cycles, anti-crease or delicate spin cycleHeavily soiled fast colours(baby linen, etc.) 50°C Delicate 93Wash cycle, rinse cycles, anti-crease or delicate spin cycleDelicate colours (all typesof slightly soiledgarments) 40°C Delicate 83Wash cycle, rinse cycles, anti-crease or delicate spin cycleDelicate colours (all typesof slightly soiledgarments) 30°C Wash cycle, rinse cycles anddelicate spin cyclDelicate Wool

Function Effect Comments Enabled with programmes: Super Was h Allows for an impeccable wash, visibly whiter than a standard Class A wash. This function is incompatible with the RAPID function. 1, 2, 3, 4, 5, 6, 7, 8 Eas y i r o n This option reduces the amount of creasing on fabrics, making t hem easier to iron. When this function is set, programmes 6, 7, 8, 11 and Delicate rinse will end with the laundry left to soak (Anti-crease) and the EASY IRON button flashes: - to conclude the cycle, press the START/RESET button or the EASY IRON button; - to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button. All programmes except for 1, 2, 9, 10 and Draining. Rapi d Cuts the duration of the wash cycle by 30%. This function is incompatible with the SUPER WASH function. 1, 2, 3, 4, 5, 6, 7, 8 Rinses ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description Personalisations Setting the spin cycle If, when the appliance is switched on, the KNOB is positioned on a programme with a spin cycle, a fixed appears. Press button and the maximum spin speed allowed for the programme set will be displayed, and the the icon goes on. Press it again and the values lower until they reach OFF, which indicates that the spin cycle has been excluded (press it again to go back to the maximum value); stop on the desired speed, after approximately 2 seconds the setting is accepted: the symbol remains fixed. The spin cycle setting is enabled with all the programmes except for 11 (curtains, silk) and the Draining cycle. Setting the temperature If, when the appliance is switched on, the KNOB is positioned on a programme for which the temperature needs to be regulated, a fixed appears. Press button and the maximum temperature allowed for the programme set will be displayed and the icon flashes. Press it again and the temperature lowers until it reaches OFF, which indicates a cold wash cycle (press it again to go back to the maximum value); stop on the desired value, after approximately 2 seconds the setting is accepted: the symbol remains fixed. The temperature adjustment is enabled with all wash programmes. Setting the Delay Timer Press the button and you will see the word OFF on the display, while the relative symbol flashes. Press the button again and "1h" appears, that is, a delay of one hour (this can reach up to 24h); stop on the "desired" delay; after approximately 2 seconds the setting is accepted, following which, the time for the set programme appears on the display and the symbol remains on. If you now press the START/RESET button, the set "delay" appears; this decreases every hour until the start of the cycle. In this phase, the "delay" can only be modified by decreasing it. The Delay Timer regulation is enabled with all programmes. Keyboard lock (See page 17) Functions To enable a function:

1. press the button corresponding to the desired function, according to the table below;

2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.20

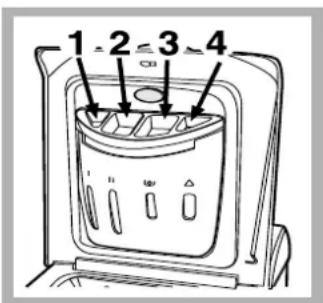

Detergent dispenser Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. Open up the detergent dispenser and pour in the detergent and fabric softener, as follows. compartment 1: Detergent for pre-wash compartment 2: Detergent for the wash cycle (powder or liquid) It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup. compartment 3: Additives (softener, etc.) When pouring the softener in compartment 3, avoid exceeding the "max" level indicated. The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment

3. This is used for the inlet of denser fabric softeners

into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see page 22. compartment 4: Bleach Do not use hand wash detergent because it may form too much foam. Bleach cycle Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool. When pouring in the bleach, be careful not to exceed the "max" level indicated on compartment 4 . To run the bleach cycle alone, pour the bleach into compartment 4 and set the Rinse programme (for cotton fabrics) or delicate Rinse (for synthetic fabrics). Preparing your laundry Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites. Empty all pockets and check for loose buttons. Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g Special items Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg. Woolmark Platinum Care As gentle as a hand wash. Ariston sets a new standard of superior performance that has been endorsed by The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.00221): Set programme 10 for all "Hand wash" garments, using the appropriate detergent. Detergents and laundry21

Precautions and advice ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully. General safety This appliance has been designed for non- professional, household use and its functions must not be changed. This washing machine should only be used by adults and in accordance with the instructions provided in this manual. Never touch the washing machine when barefoot or with wet or damp hands or feet. Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself. Do not open the detergent dispenser while the appliance is in operation. Do not touch the drain water as it could reach very high temperatures. Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings. In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs. Always keep children well away from the appliance while in operation. The appliance door tends to get quite hot during the wash cycle. Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Before loading your laundry into the washing machine, make sure the drum is empty. Disposal Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Disposing of an old washing machine: before scrapping your appliance, cut the power supply cable and remove the appliance door. Saving energy and respecting the environment Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment. Saving on detergent, water, energy and time To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy. The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.22

Care and maintenance Cutting off the water or electricity supply Turn off the water tap after every wash. This willlimit the wear of your appliance's water systemand also prevent leaks. Unplug your appliance when cleaning it andduring all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance canbe cleaned with a soft cloth soaked in lukewarmsoapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out(see figure).Wash it under running water; this operation shouldbe repeatedfrequently. Caring for your appliance door and drum Always leave the appliance door ajar to preventunpleasant odours from forming. Cleaning the pump The washing machine is fitted with a self-cleaningpump that does not require any maintenance.Sometimes, small items (such as coins or buttons)may fall into the pre-chamber that protects thepump, situated in the lower part of the same.To recover any objects that have fallen into the pre-chamber:1. remove the plinth atthe bottom on thefront side of thewashing machine bypulling from the sidewith your hands; (seefigure);2. unscrew the lidrotating it anticlock-wise (see figure): alittle water may trickleout. This is perfectlynormal;3. clean the interiorthoroughly;4. screw the lid back on;

5. reposition thepanel, making surethe hooks aresecurely in placebefore you push itonto the appliance.

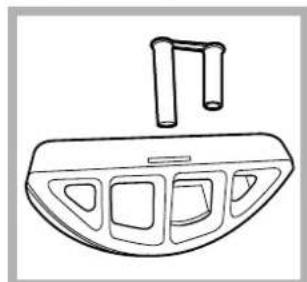

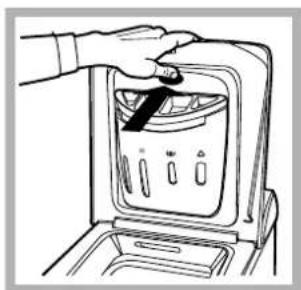

Checking the water inlet hose Check the water inlet hose at least once a year. Ifyou see any cracks, replace it immediately: duringthe wash cycles, water pressure is very strong anda cracked hose could easily split open. Never use hoses that have already been used. Make sure the wash cycle has ended and unplug the appliance. How to clean the detergent dispenser Fig. 1 Fig. 2 Cleaning: Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them. Reassembly: Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1). Disassembly: Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1). Fig. 3 Fig. 423

Troubleshooting ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description Your washing machine could fail to work. Before calling for Assistance (see page 24), make sure the problem can't easily be solved by consulting the following list. Problem The washing machine won't start. The wash cycle won't start. The washing machine fails to load water (The wording H2O is displayed). The washing machine continuously loads and unloads water. The washing machine does not drain or spin. The washing machine vibrates too much during the spin cycle. The washing machine leaks. There is too much foam.

Possible causes/Solution: The appliance is not plugged into the socket, or not enough to make contact. There has been a power failure. The appliance door is not shut properly (the word door is displayed). The button has not been pressed. The START/RESET button has not been pressed. The water tap is not turned on. The water inlet hose is not connected to the tap. The hose is bent. The water tap is not turned on. There is a water shortage. The water pressure is insufficient. The START/RESET button has not been pressed. The drain hose is not fitted between 65 and 100 cm from the floor (see page 15). The free end of the hose is underwater (see page 15). The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops. The programme does not foresee the draining: some programmes require enabling the draining manually (see page 18). The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 19). The drain hose is bent (see page 15). The drain duct is clogged. The drum was not unblocked correctly during installation (see page 14). The washing machine is not level (see page 14). The washing machine is closed in between furniture cabinets and the wall (see page 14). The water inlet hose is not screwed on correctly (see page 14). The detergent dispenser is obstructed (to clean it, see page 22). The drain hose is not secured properly (see page 15). The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). You used too much detergent. ./. Cont.24

Service Service Before calling for Assistance: Check whether you can solve the problem on your own (see page 71); Restart the programme to check whether the problem has been solved; If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate. If the machine has been installed or used incorrectly, you may be charged for the maintenance callout service. Always request the assistance of authorised servicemen. Notify the operator of: the type of problem; the appliance model (Mod.); the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine. ...Fllwg. The machine is locked and the display flashes, indicating an error code (e.g. F-01, F- ...) . This means there is a problem with the machine. Before calling Assistance, please follow the set of instructions below:

1. Switch off the machine.

2. Remove the plug connecting the appliance to the mains supply and wait for at least 40

3. Place the plug back into the socket.

4. Switch on the machine.

5. If the problem is still evident after this process has been carried out, contact
