USER MANUAL MONARCH 7 8x42 NIKON

Please refer to the numbered images on page 3.

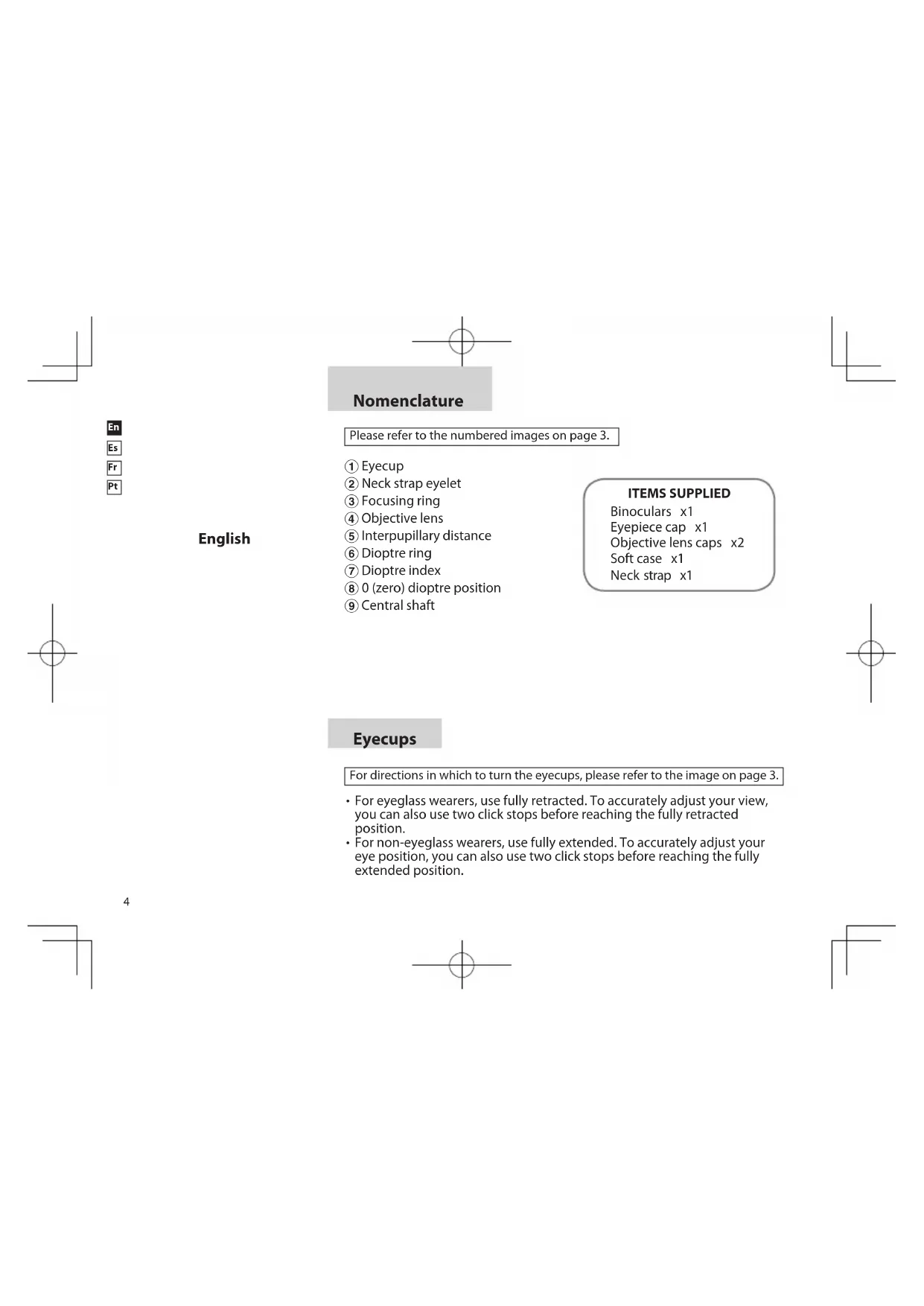

① Eyecup
② Neck strap eyelet
③ Focusing ring
4 Objective lens
(5) Interpupillary distance
⑥ Dioptre ring
⑦ Dioptré index
8 0 (zero) dioptre position
(9) Central shaft

ITEMS SUPPLIED

Binoculars x1

Eyepiece cap x1

Objective lens caps x2

Soft case x1

Neck strap x1

Eyecups

For directions in which to turn the eyecups, please refer to the image on page 3.

• For eyeglass wearers, use fully retracted. To accurately adjust your view, you can also use two click stops before reaching the fully retracted position.
• For non-eyeglass wearers, use fully extended. To accurately adjust your eye position, you can also use two click stops before reaching the fully extended position.

Neckstrap and caps during observation

Please refer to images A, B, C and D on page 3.

Neck Strap

Attach the neckstrap as illustrated (A), paying special attention to avoid twisting the strap. Attach the objective lens caps (B), making sure the cap part hinges open downward from the binocular tube when folded open. The slit should be visible at the left side of each binocular tube, viewed from the eyepiece side, to confirm correct positioning (correctly attached when supplied).

Eyepiece cap

There are two ways you can position the eyepiece cap as you observe your subject.
- Remove the eyepiece cap from the eyepieces and allow it to hang from the neckstrap.
- Remove the eyepiece cap from the eyepieces, then detach the right strap from the cap and allow it to hang from the left neckstrap (C).

To attach/detach caps from the neckstrap as shown in image (D) in the following order:

• Attaching: c b a
• Detaching: a b c

Flipdown objective lens caps

The binoculars are used with the objective lens caps folded open (C).

Specifications

Type: Dach prism central focusing type
Model 8x42 10x42
Magnification (x) 8 10
Effective diameter of objective lens (mm) 42 42
Angular field of view (real) (°) 8.0 6.7
Angular field of view (apparent) (°)* 58.4 60.7
Field of view at 1,000m/yds. (m/ft.) 140/420 117/351
Exit pupil (mm)	5.3 4.2
Brightness	28.1	17.6
Eye relief (mm)	17.1	16.5
Close focusing distance, approx. (m/ft.) 2.5/8	2	2.5/8.2
Interpupillary distance adjustment (mm)	56-72	56-72
Length (mm/in.)	142/5.6	142/5.6
Width (mm/in.)	130/5.1	130/5.1
Weight (g/oz.)	650/22.9	660/23.3
Structure	Waterproof (up to 1 metre for 10 minutes) and nitrogen gas filled *

• The number calculated by the formula [tan ω' = Γ x tan ω]: Apparent field of view: 2ω', Magnification: Γ, Real field of view: 2ω

* Waterproof models:

All models shown are waterproof, and will suffer no damage to the optical system if submerged or dropped in water to a maximum depth of 1 meter for up to 10 minutes.

These products offer the following advantages:

• Can be used in conditions of high humidity, dust and rain without risk of damage.
• Nitrogen-filled design makes them resistant to condensation and mold.

Observe the following when using these products:

As the unit does not have a perfectly sealed structure, it should not be operated nor held in running water.
Any moisture should be wiped off before adjusting movable parts (focusing knob, eyepiece, etc.) of these products to prevent damage and for safety reasons.

To keep your binoculars in excellent condition, Nikon Vision recommends regular servicing by an authorized dealer.

• Specifications and design are subject to change without notice.
• No reproduction in any form of this "Instruction Manual," in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON VISION CO., LTD.
