USER MANUAL SSM 250 B1 SILVERCREST

Black and white photo of a SilverCrest blender with a glass lid, accompanied by a small cup of juice and fresh cherries on a wooden surface (no text or symbols visible on the main objects).

SMOOTHIE BLENDER SSM 250 B1

GB IE

SMOOTHIE BLENDER

Operating instructions

FR BE

BLENDER À SMOOTHIE

Mode d'emploi

DE AT CH

SMOOTHIE-MIXER

Bedienungsanleitung

DK

SMOOTHIE-BLENDER

1. Overview 2
2. Intended purpose 3
3. Safety information .... 4
4. Items supplied 6
5. How to use 6
6. Operation 6
7. Cleaning 8
8. Storage 9
9. Disposal 9
10. Trouble-shooting 9
11. Recipes 9
12. Technical specifications .... 10
13. Warranty of the HOYER Handel GmbH 10

1. Overview

1 Motor unit (rotatable)
2 Mix button
3 Housing
4 Blade assembly with blades
5 Lock symbols for fastening of the blender jug
6 Blender jug: maximum volume approx. 390 and 290 ml
7 Power cable with mains plug
8 Cleaning jug
9 Marking on the blender jug
10 Locking blade
11 Lid with drink opening
12 Spill tray
13 Lock symbols for fastening of the blade assembly
14 Sealing ring in blade assembly

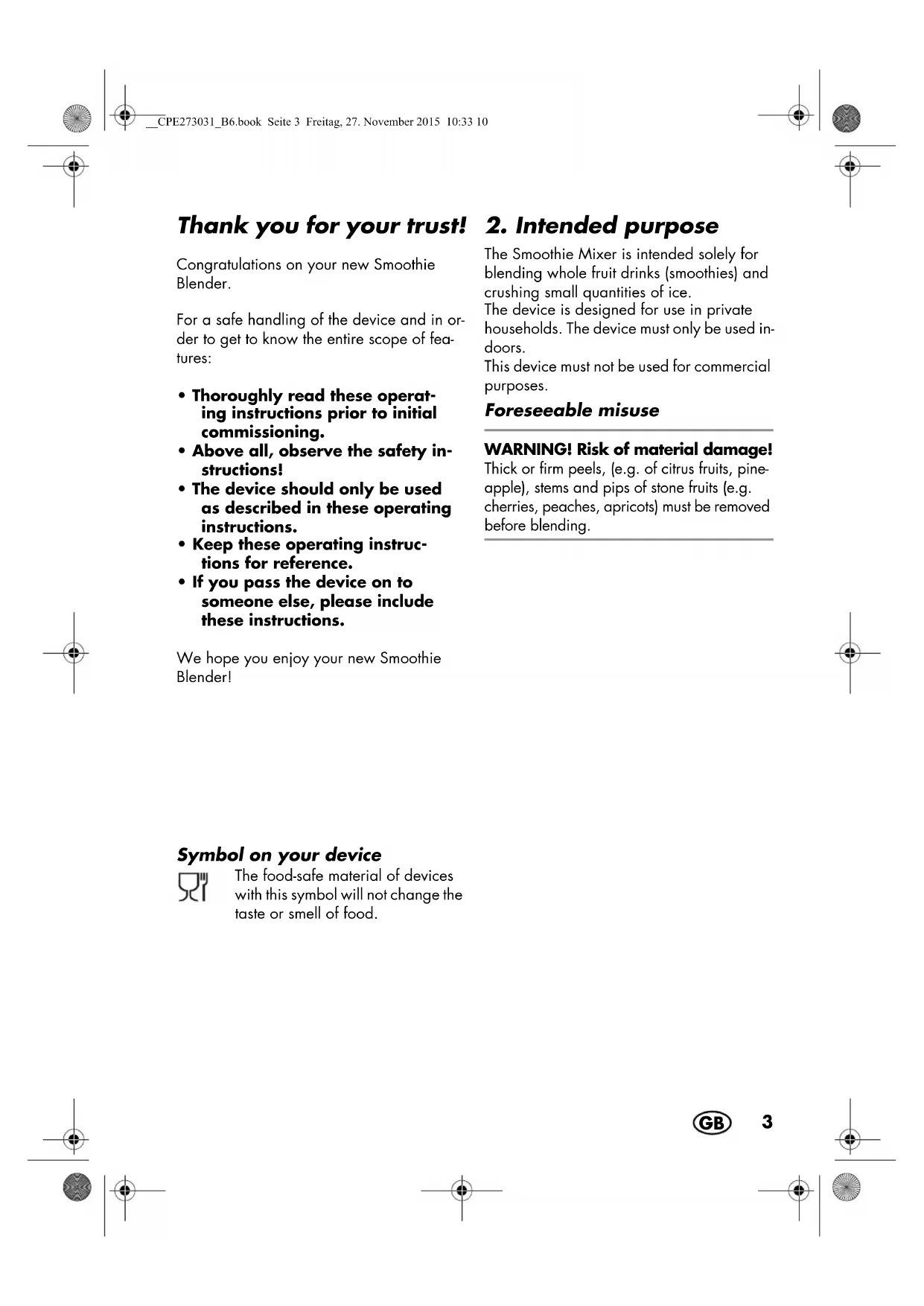

Thank you for your trust!

Congratulations on your new Smoothie Blender.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
- Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
- Keep these operating instructions for reference.
- If you pass the device on to someone else, please include these instructions.

We hope you enjoy your new Smoothie Blender!

2. Intended purpose

The Smoothie Mixer is intended solely for blending whole fruit drinks (smoothies) and crushing small quantities of ice.

The device is designed for use in private households. The device must only be used indoors.

This device must not be used for commercial purposes.

Foreseeable misuse

WARNING! Risk of material damage!

Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.

Symbol on your device

The food-safe material of devices with this symbol will not change the taste or smell of food.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device must not be used by children.
• Children should not be allowed to play with the device.
• The device and the power cable must be kept away from children.
• This device can be used by people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding if they are supervised or instructed on how to use this device safely and if they are aware of the resulting risks.

- If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or a similarly qualified specialist, in order to avoid any hazards.

- Disconnect the mains plug from the wall socket ...

... when it is not supervised, ... before you assemble or disassemble the device, and ... before you clean the device.

- Clean the blade assembly and the blender jugs with warm water and a little detergent.

DANGER for children

- Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation.

- Please ensure that children are not able to pull the device down from the work surface with the power cable.

- Keep the device out of the reach of children.

DANGER to and from pets and livestock

Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

4

GB

DANGER! Risk of electric shock due to moisture

The device must never be operated in the vicinity of a bathtub, a shower, a filled hand basin or similar.

The motor unit, the housing, the power cable and the mains plug must not be immersed in water or other liquids.

- Protect the motor unit and housing from dampness and dripping or splashing water.

- If liquid gets into the motor unit or housing, remove the mains plug immediately. Have the device checked before reusing.

- Never touch the device with wet hands.

- If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device.

DANGER! Risk of electric shock

- Only plug the mains plug into the wall socket after the device has been completely assembled.

- Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

- Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.

The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.

- When using the device, ensure that the power cable cannot be trapped or crushed.

- When removing the mains plug, always pull the plug and never the cable.

- Disconnect the mains plug from the wall socket...

... if there is a fault,

... if you are not using the Smoothie Blender and

... during thunderstorms.

Do not use the device if there is visible damage to the device or the power cable.

- To avoid any risk, do not make modifications to the device.

DANGER! Risk of injury from cutting

The blades of the blade assembly carry on rotating after the device has been switched off. Wait until the blades have come to a standstill before you remove the blender jug.

The blades of the blade assembly are sharp. Handle it with care. When washing manually, the water should be sufficiently clear that you can see the blades easily.

Under no circumstances should the device be operated without the blender jug.

WARNING! Risk of material damage

- Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.

Do not put any ingredients with a temperature in excess of 85 °C into the blender jug.

In order to prevent damage to the device, interrupt the blending process immediately if the blades of the blade assembly rotate with difficulty or not at all. Pull out the mains plug and investigate whether there is an obstruction in the blender jug or whether the contents are too viscous. Also check whether the device is assembled correctly.

Do not operate the device when it is empty, as this causes the motor to overheat and may result in it being damaged.

The device is designed for a maximum operating time of 20 seconds without interruption. After this, the device must remain switched off until it has cooled down to room temperature.

- Only use the original accessories.

The device (housing, motor unit, power cable with mains plug) is not dishwasher safe.

- Do not use any astringent or abrasive cleaning agents.

The device is fitted with non-slip plastic bases. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain ingredients that could attack and soften the non-slip plastic bases. If necessary, place a non-slip mat under the device.

4. Items supplied

1 Smoothie Blender

1 Blade assembly 4

1 Spill tray 12

3 B l e n d e 6/8:g maximum volume ap- prox. 390, 290 and 180 ml (cleaning jug)

2 Lids with drink opening 11

1 Set of operating instructions

5. How to use

• Remove all packing material.
• Check to ensure that all parts are present and undamaged.
• Clean the device prior to its first use! (see "Cleaning" on page 8)
• Place the device on a dry, level, non-slip surface.

6. Operation

DANGER! Risk of electric shock! Only plug the mains plug 7 into the wall socket when the Smoothie Blender is completely assembled.

DANGER! Risk of injury from cutting!

Under no circumstances should the device be operated without the blender jug 6.
- The blades of the blade assembly 4 are sharp. Handle it with care.
The blades of the blade assembly carry on rotating after the device has been switched off. Wait until the blades have come to a standstill before you remove the blender jug.

WARNING! In order to prevent damage to the device, interrupt the blending process immediately if the blades of the blade assembly 4 rotate with difficulty or not at all. In this case, pull out the mains plug 7 and check whether there is an obstruction in the blender jug 6.

Application area

The Smoothie Mixer is intended solely for blending whole fruit drinks (smoothies) and crushing small quantities of ice.

Preparing food

WARNING! Risk of material damage!

Thick or firm peels, (e.g. of citrus fruits, pineapple), stems and pips of stone fruits (e.g. cherries, peaches, apricots) must be removed before blending.

• Rinse or wash the fruits.
• Cut the fruit into rough pieces (approx. 3-4 cm edge length).
• Please use a sufficient amount of liquid (mineral water, fruit juice, milk, yoghurt). We recommend a mixing ratio of 1:1.

Blending

CAUTION: depending on the hardness and consistency of the ingredients in the blender jug 6, do not fill it to the maximum; otherwise the blade assembly 4 could become clogged.

NOTES:

• If the smoothie is too thick, add a little mineral water, fruit juice, milk or yoghurt to suit your taste.
• You may achieve a more even consistency for the smoothie (e. g. when using harder fruits), if you repeatedly interrupt and restart the blending process (pulse function: release and then press the mix button 2 again).

• If there are still bit of food (e.g. fruit cores) on the sealing ring 14, wipe it down with kitchen roll in order to ensure its sealing function.

• Place the fruit pieces and other ingredients into the blender jug 6 as desired.

• Figure C: stick the blender jug into the preassembled blade assembly 4 from the bottom. The marking 9 points towards the opened lock 5. The locking blades 10 on the blender jug engage into the recess at the blade insert.

• Turn the blender jug as far as it will go in a clockwise direction, until the marking 9 points to the closed lock 5.

• Connect the mains plug 7 with the wall socket.

• Figure A: pivot the blender jug with the motor unit 1 into its maximum upward position.

• Press and hold the mix button 2. The blending process is started.

• Release the mix button 2 after approx. 10 - 20 seconds. The blending process is thereby completed.

• Figure B: pivot the blender jug with the motor unit into its fully downwards position.

• Wait until the drink has collected in the blender jug 6.

• Turn the blender jug anti-clockwise until the marking 9 points to the opened lock 5.

• Pull the blender jug downwards to release it from the blade assembly 4. To remove the large blender jug, first pivot the motor unit slightly upwards.

• If there are still rather large pieces of fruit in the smoothie, repeat the blending process for a few seconds.

• If necessary, close the blender jug with the lid 11.

• Clean the device with the cleaning jug 8 as soon as possible after use.

• Disconnect the mains plug 7 from the wall socket.

Crushing ice

• Place a maximum of 50 g of ice cubes per process into the blender jug.
  • To crush ice, you should briefly interrupt and restart the blending process several times (pulse function: release blender button 2 and press it again)

7. Cleaning

Clean the device prior to its first use!

DANGER! Risk of electric shock!

• Pull out the mains plug 7 from the wall socket before cleaning the Smoothie Blender.
  The motor unit 1, the housing 3, the power cable and the mains plug 7 must not be immersed in water or other liquids.

DANGER! Risk of injury from cutting!

When washing manually, the water should be sufficiently clear for you to see the blade assembly 4 easily.

WARNING! Risk of material damage!

Do not use any astringent or abrasive cleaning agents.

NOTE:

The following parts can be cleaned in the dish washer:

• the blender jug 6/8 and its lid 11,
• the spill tray 12.

After every use

Preferably clean the device after each use and remove all food residues from the blade assembly.

1. Fill the cleaning jug 8 with clear water and, if necessary, a little detergent. Then rinse with clear water.
2. Operate the device as described (Chapter "Operation" on page 6).
3. Disconnect the mains plug 7 from the wall socket.
4. Pivot the motor unit 1 upwards. If there are still bit of food (e.g. fruit cores) on the sealing ring 14, wipe it down with kitchen roll in order to ensure its sealing function. If necessary, perform an intensive cleaning (see below).

5. Wipe the housing 3, motor unit 1 and the power cable 7 with a damp cloth if necessary. Dry with a dry cloth.

6. The rest of the parts can be cleaned with warm water and some detergent.

7. Allow all parts to dry completely before you put them away or use the device again.

Intensive cleaning

If food residues can no longer be removed by using the cleaning blender jug, the blade assembly should be removed from the device and should be cleaned separately.

1. Pull out the mains plug 7.
2. If necessary, pull the blender jug 6 anticlockwise and pull it down and off the blade assembly 4.
3. Rotate the motor unit 1 right to the top until it locks into place in this position.
4. Figure D: turn the rim of the blade assembly 4 in a clockwise direction until the arrow symbol shows to the opened lock 13 and pull it up and off the motor unit 1.
5. Clean the blade assembly with warm water and a little detergent.
6. Let the blade assembly dry completely.
7. Place the blade assembly 4 on the motor unit 1. The arrow symbol shows to the opened lock 13.
8. Turn the blade assembly until the arrow symbol shows to the closed lock. The blade assembly is now correctly mounted again.

8. Storage

DANGER for children! Keep the device out of the reach of children. DANGER! In order to avoid accidents, the mains plug 7 must never be connected to a wall socket while in storage.

- Select a location where neither high temperatures nor moisture can affect the device.

9. Disposal

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

10. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
No function	Has the device been connected to the power supply?Check the connection.Is the blade assembly 4 mounted properly?Has the blender jug 6 been engaged properly?
Blade assembly 4 is turning with difficulty or not at all	Switch off immediately, pull out mains plug 7 and check: Blockage in the vessel?
Liquids are running out	Is the quantity of ingredients filled into the blender jug too large?

11. Recipes

CAUTION: depending on the hardness and consistency of the ingredients in the blender jug 6, do not fill it to the maximum; otherwise the blade assembly 4 could become clogged.

NOTE: If you want to use ice to blend a cool smoothie we recommend using crushed ice.

Peach Banana Smoothie

• 1/2 banana (peeled)
• 2 peach halves (peeled and pitted)
- 50 ml grapefruit juice
• 1 squirt of lemon juice

1. Wash the fruit and remove the peels and pips.
2. Cut the fruit into pieces.
3. Place the ingredients in the blender jug and blend them.

Raspberry Pear Smoothie

• 1/2 ripe pear (peeled and cored)
- 75 g raspberries
- 100 ml water
- some honey

1. Cut the pear into pieces.
2. Place the ingredients in the blender jug and blend them.
3. Sweeten with honey to suit your taste.

Raspberry Smoothie

• 100 ml milk
  • 100 g raspberries
• 75 g yoghurt, low-fat
  • 1 teaspoon vanilla sugar

Place the ingredients in the blender jug and blend them.

Mango Kiwi Ginger Smoothie

• 1/2 mango (peeled)
• 1 kiwi (peeled)
• 1 piece of ginger (approx. 1/2 teaspoon)
  • 1 orange (peeled)

• 1/2 lime (peeled)

• Cut the fruit into pieces.

• Place the ingredients in the blender jug and blend them.

12. Technical specifications

Model: SSM 250 B1

Mains voltage: 230 V ~ 50 Hz

Protection class: II ☐

Power rating: Max. 250 W

Max. continuous operation (KB): 20 seconds

Subject to technical modification.

CE

13. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 273031 and the purchase receipt as a purchase verification for all inquiries.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail]

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail]

CY Service Cyprus Tel.: [phone] E-Mail: [e-mail]

IAN: 273031

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.
