| Product type | Electric sharpener |
| Brand | SilverCrest |
| Model | SEAS 20 B1 |
| Supply voltage | 230 V ~, 50 Hz |
| Power consumption | 20 W max. |
| Rotation speed | 3000 min⁻¹ |
| Protection class | II |
| Intermittent operating time (KB) | 3 minutes (then 30 min cooling) |
| Sharpening functions | Smooth blade, serrated blade, scissors blade, slotted screwdriver |
| Accessories included | Electric sharpener, instruction manual |
| Dimensions (L x W x H) approx. | 20 x 10 x 10 cm |
| Weight approx. | 0.5 kg |
| Grinding wheel material | Sharpening stone |
| Integrated dust container | Yes, removable |
| Intended use | Private household (sharpening of knives, scissors, screwdrivers) |
| Warranty | 3 years |
| Maintenance | No user maintenance; cleaning with brush and damp cloth |
| Safety | Do not use by children, unplug before cleaning, protection against moisture |
| Customer service (FR) | 0800 919270, kompernass@lidl.fr |
| Reference (IAN) | 60273 |
Frequently Asked Questions - SEAS 20 B1 SILVERCREST
User questions about SEAS 20 B1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric sharpener in PDF format for free! Find your manual SEAS 20 B1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SEAS 20 B1 by SILVERCREST.
USER MANUAL SEAS 20 B1 SILVERCREST
GB IE
ELECTRIC ALL-PURPOSE SHARPENER
Operating instructions
SE
ELEKTRISK SLIPMASKIN
Bruksanvisning
FR BE
AIGUISEUR ÉLECTRIQUE
Mode d'emploi
DE AT CH
ELEKTRISCHER ALLESSCHÄRFER
Bedienungsanleitung
F
SÄHKÖKÄYTTÖINEN YLEISTEROITIN
Käyttöohje
DK
ELEKTRISK SLIBER
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FI
GB/IE Operating instructions Page 1
| FI | Käyttöohje | Sivu | 11 |
| SE | Bruksanvisning | Sidan | 21 |
| DK | Betjeningsvejledning | Side | |
| FR/BE Mode d'emploi Page 41 | |||
| NL/BE Gebruiksaanwijzing Pagina 51 | |||
| DE/AT/CH | Bedienungsanleitung | Seite | 61 |

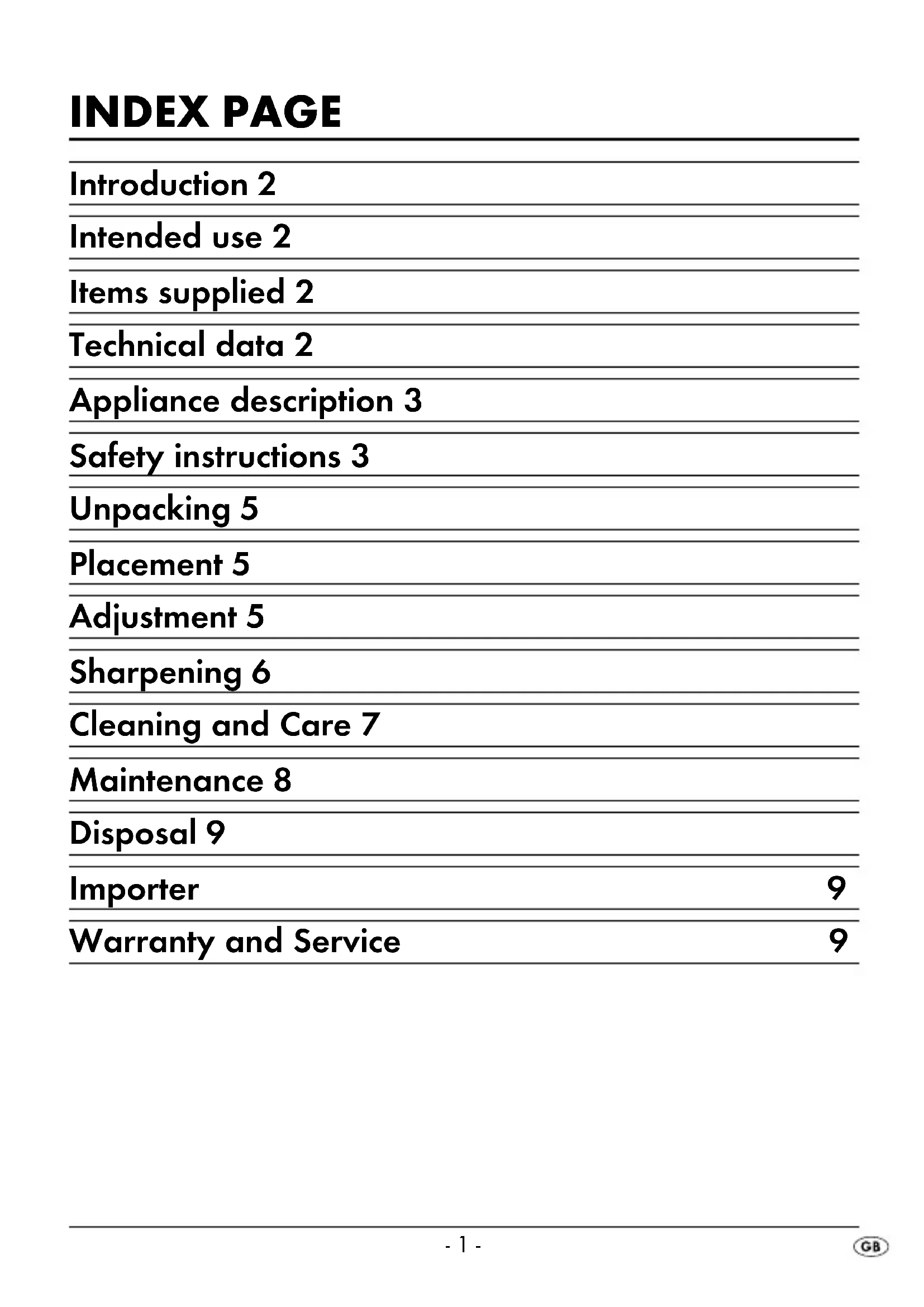

INDEX PAGE
Introduction 2
Intended use 2
Items supplied 2
Technical data 2
Appliance description 3
Safety instructions 3
Unpacking 5
Placement 5
Adjustment 5
Sharpening 6
Cleaning and Care 7
Maintenance 8
Disposal 9
Importer 9
Warranty and Service 9
Introduction
Congratulations on the purchase of your new appliance.
You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.
Intended use
This appliance is intended for the sharpening of knives, screwdrivers and scissors in domestic households. This appliance is not intended for commercial or industrial applications.
Items supplied
1 x Electric All-Purpose Sharpener
1 x Operating Instructions
Technical data
Power consumption : 20 W max.
Mains voltage: 230 V
\~, 50 Hz
Revolutions: 3000 min
-1
Protection class: II
C.O. Time: 3 min.
The C.O. Time (Continuous Operation) details how long an appliance may be used without the motor overheating and being damaged. When the specified C.O. Time has been reached, the appliance must be switched off until the motor has cooled itself down to room temperature (approx. 30 minutes).

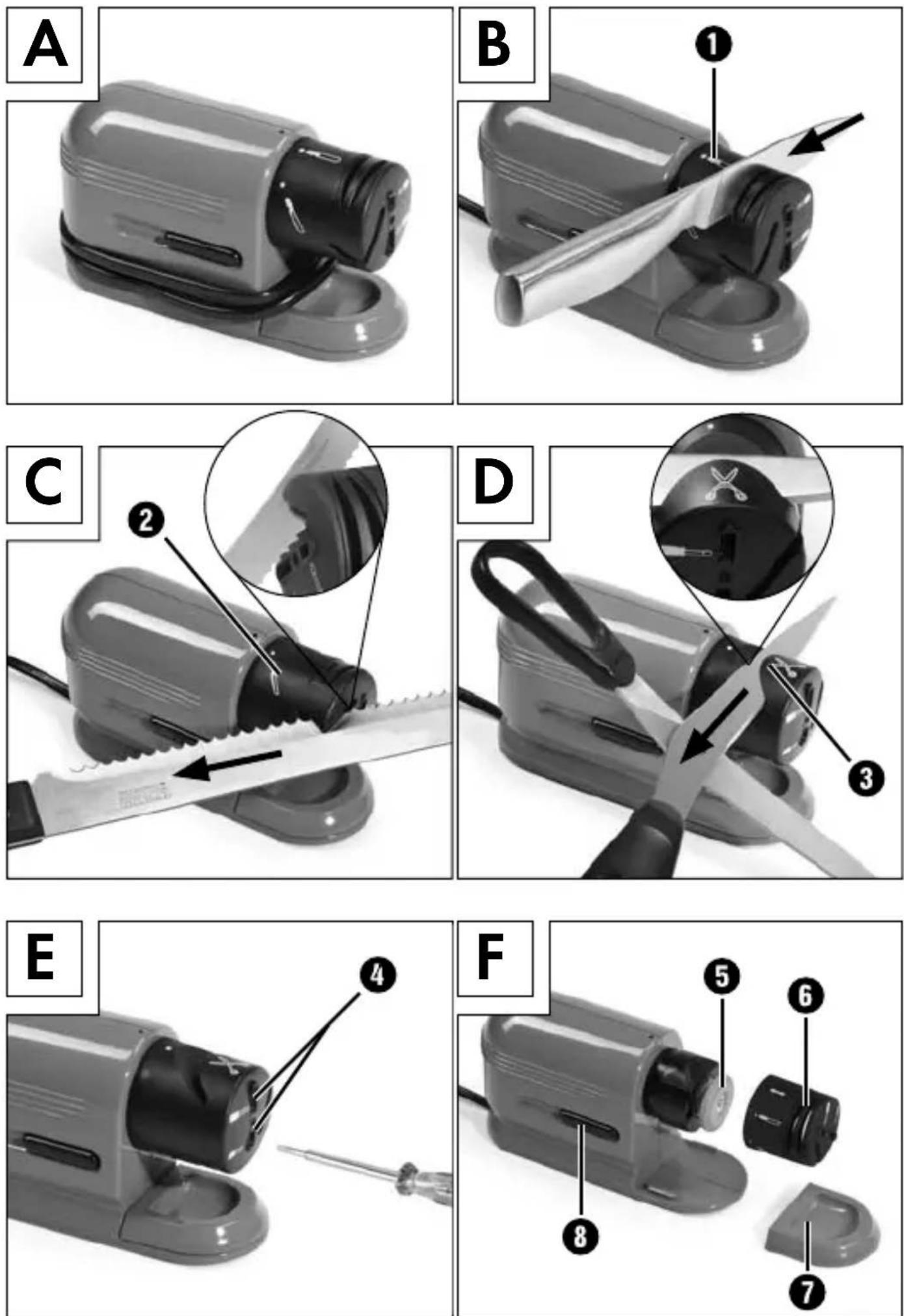

Appliance description
① Function "Knife with smooth edge"
② Function "Knife with serrated edge"
③ Function "Scissor sharpening"
4 Grinder openings for slot-screwdrivers
5 Grindstone
⑥ Function and protective cap
⑦ Abrade collector
8 Switch
Safety instructions
⚠️ To avoid potentially fatal electric shocks:
- Protect the appliance against moisture. Use it only in dry rooms, do not use it outdoors or in damp areas.
- Ensure that the power cable cannot be damaged when the appliance is in use, particularly not by sharpened knife or scissor blades.
- Arrange for defective power plugs and/or cables to be replaced as soon as possible by a qualified technician or by our Customer Service Department to avoid the risk of injury.
-
NEVER open any housing components, other than those specified herein.
-
After use or during extended absences, ALWAYS remove the plug from the power socket. For as long as the plug is inserted in the wall socket the appliance itself is under electrical power.
- Ensure that the power plug is at all times easily accessible, so that it can be quickly and easily removed in the event of potential danger or risk.
⚠ To avoid the risks of accidents and personal injuries:
- Always check to ensure that the appliance is in a service-able condition before taking it into use. If there is recognisable damage to the appliance it may not be used. Arrange for it to be safety-checked by Customers Services before using it again.
• Take steps to ensure that hair, loose clothing and parts of the body do not come into contact with the revolving grindstone ⑤. - Wear protective gloves so as to avoid injury from sharp blades, or, if you are operating the knife sharpener with the function and protective cap ⑥ removed.
- This appliance may not be used by children.
- The appliance should always be disconnected from the mains when not supervised and before assembly, disassembly or cleaning.
- The appliance and its connecting cable must be kept away from children.
• Children must not play with the device.
- This appliance may be used by people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in how to use the appliance safely and have understood the potential risks.
Unpacking
- Check that all items listed are available and that they show no signs of visible damage.
- Remove all parts from the packaging and all packaging remnants from the items.
- Retain the packaging, either for storing the appliance or for reuse in the event of posting it to Customer Services for repair.
- Before the first usage thoroughly clean all component parts as described in the section "Cleaning and care".
Placement
- Place the appliance on a stable and slip-free surface.
- Then insert the plug into the power socket.
Adjustment
- To select the required sharpening function ① ② ③, turn the function and protective cap ⑥ until the cap perceptibly engages.
- In position ② "Knife with serrated edge", the corresponding symbol points to the grinder opening (See Fig. C) – however, the cap engages at the point at the end of the symbol.
- Hold the switch ⑧ pressed down. The grindstone ⑤ revolves continuously until the switch ⑧ is released.
Sharpening
- First present the blade when the grindstone ⑤ is revolving.
- Always draw the knife or scissors back, from the blade stop, in an even movement, not in a repetitive back and forth movement – otherwise the result will be an uneven sharpening.
- Do not apply any great pressure and always sharpen only clean blades, so as to avoid a premature wearing-out of the grindstone.
- Always sharpen knives and scissors so that the blade is at an acute angle to the grindstone (as alluded to in the shape of the opening). Sharpening at the false angle can destroy any blade.
- After sharpening, remove any possible grinding remnants that may be on the blade with a moist cloth.
Knife with smooth edge
If you have selected the setting "Knife with smooth edge" ① (Fig. B):
- Always sharpen knives with a smooth edge on both sides – for this, left and right side sharpening guides are available.
- In the left guide hold the knife inclined to the left, and in the right guide inclined to the right, whilst drawing the blade through.
Knife with serrated edge
If you have selected the setting "Knife with serrated edge" ② (Fig. C):
- Sharpen these only on the side with the serration – the draw through direction for the knife is dependant on which side of the blade this is on. The side with the serrated edge must be pointing in the direction of the grindstone ⑤ during sharpening.
- In general, serrated blades can only be sharpened up to a point. Knifes with a fine sawtoothing (e.g. table knives) do not require sharpening.
Scissor sharpening
If you have selected the setting "Scissor sharpening" ③ (Fig. D):
- Sharpen both scissor blades one after the other. For this, open the scissors out and draw both blades, one after the other, through the guide.
Flat-head screwdriver
Should you wish to grind a slot-screwdriver ④ flat (Fig. E):
- This is possible in every position of the function and protective cap ⑥. Appropriate to its width, insert the screwdriver through one of the two grinding openings ④ on the front of the function cap (see fold-out side). The end face of the screwdriver will now be ground level and flat.
Grinding directly on the grindstone
Certain edges can possibly be more easily sharpened directly on the grindstone ⑤, without the function and protective cap ⑥: For these cases, the function and protective cap ⑥ is removable (Fig. F):
- Turn the function and protective cap ⑥ until the arrow is at the top. You can now take off the function and protective cap ⑥.
• To replace the function and protective cap ⑥, hold it so that the arrow is once again at the top. You can now push the function and protective cap ⑥ on and secure it by turning it to the left or right.
Cleaning and Care
To avoid risks of personal injury and damage:
- Before carrying out any maintenance work, first remove the plug from the wall socket.
- NEVER submerse the appliance in water or other liquids! These could damage the appliance. Additionally, there is a potentially fatal risk of electric shock should moisture come into contact with electrical components.
Cleaning the appliance:
- Turn the function and protective cap ⑥, until the arrow is at the top. You can now remove the function and protective cap ⑥ and clean the area around the grindstone ⑤ with a dry brush.
- Dismantle the abrade collector ⑦ and clean it with a brush and, if necessary, a lightly moistened cloth.
- Clean the remaining parts of the appliance also with a lightly moistened cloth, not with abrasive or aggressive detergents. They can damage the surfaces.
- To replace the function and protective cap ⑥, hold it so that the arrow is once again at the top. You can now push the function and protective cap ⑥ cap on and secure it by turning it to the left or right. To conclude, reassemble the abrade collector ⑦ into the appliance.
Maintenance
- The appliance is maintenance-free. No form of maintenance, either on or in the appliance, is intended for execution by the user. In the event of malfunction or apparent damage, make contact with Customer Services.
- For storage, wrap the power cable around the appliance housing (Fig. A).
Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2012/19/EU.
Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.
Dispose of all packaging materials in an environmentally friendly manner.
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Warranty and Service
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN 60273
Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 60273
Hotline availability:
Monday to Friday 08:00 - 20:00 (CET)
