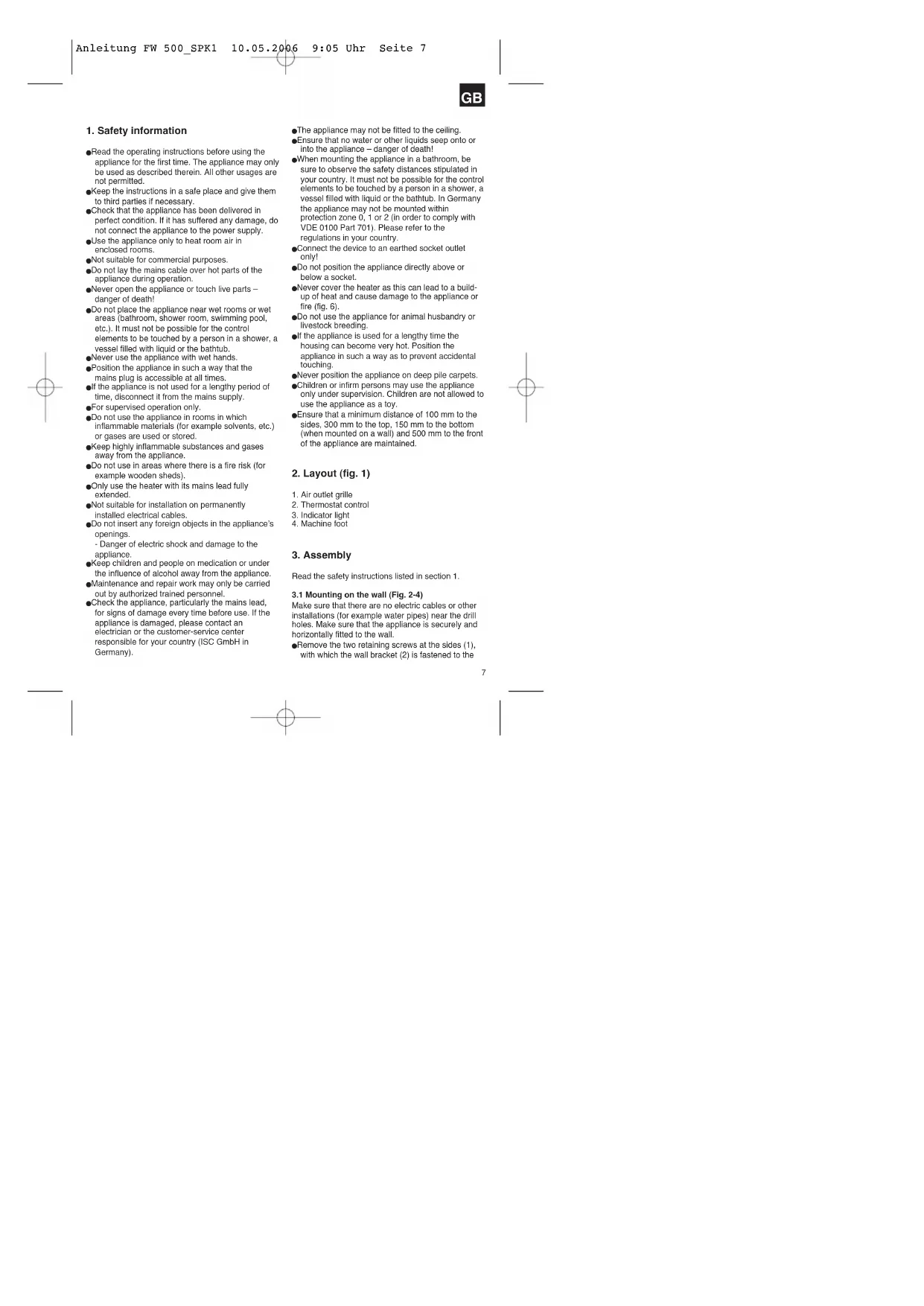

- Read the operating instructions before using the appliance for the first time. The appliance may only be used as described therein. All other usages are not permitted.

- Keep the instructions in a safe place and give them to third parties if necessary.

- Check that the appliance has been delivered in perfect condition. If it has suffered any damage, do not connect the appliance to the power supply.

●Use the appliance only to heat room air in enclosed rooms.

●Not suitable for commercial purposes.

●Do not lay the mains cable over hot parts of the appliance during operation.

●Never open the appliance or touch live parts – danger of death!

- Do not place the appliance near wet rooms or wet areas (bathroom, shower room, swimming pool, etc.). It must not be possible for the control elements to be touched by a person in a shower, a vessel filled with liquid or the bathtub.

●Never use the appliance with wet hands.

- Position the appliance in such a way that the mains plug is accessible at all times.

- If the appliance is not used for a lengthy period of time, disconnect it from the mains supply.

●For supervised operation only.

- Do not use the appliance in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored.

- Keep highly inflammable substances and gases away from the appliance.

- Do not use in areas where there is a fire risk (for example wooden sheds).

●Only use the heater with its mains lead fully extended.

●Not suitable for installation on permanently installed electrical cables.

- Do not insert any foreign objects in the appliance's openings.

- Danger of electric shock and damage to the appliance.

- Keep children and people on medication or under the influence of alcohol away from the appliance.

●Maintenance and repair work may only be carried out by authorized trained personnel.

- Check the appliance, particularly the mains lead, for signs of damage every time before use. If the appliance is damaged, please contact an electrician or the customer-service center responsible for your country (ISC GmbH in Germany).

●The appliance may not be fitted to the ceiling.
- Ensure that no water or other liquids seep onto or into the appliance – danger of death!
- When mounting the appliance in a bathroom, be sure to observe the safety distances stipulated in your country. It must not be possible for the control elements to be touched by a person in a shower, a vessel filled with liquid or the bathtub. In Germany the appliance may not be mounted within protection zone 0, 1 or 2 (in order to comply with VDE 0100 Part 701). Please refer to the regulations in your country.

- Connect the device to an earthed socket outlet only!

●Do not position the appliance directly above or below a socket.

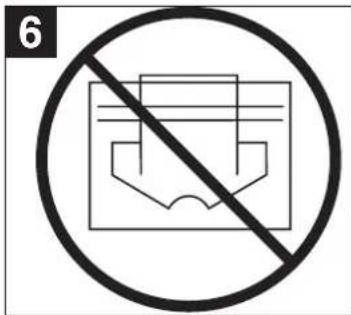

●Never cover the heater as this can lead to a build-up of heat and cause damage to the appliance or fire (fig. 6).

- Do not use the appliance for animal husbandry or livestock breeding.

- If the appliance is used for a lengthy time the housing can become very hot. Position the appliance in such a way as to prevent accidental touching.

●Never position the appliance on deep pile carpets.

●Children or infirm persons may use the appliance only under supervision. Children are not allowed to use the appliance as a toy.

●Ensure that a minimum distance of 100 mm to the sides, 300 mm to the top, 150 mm to the bottom (when mounted on a wall) and 500 mm to the front of the appliance are maintained.

2. Layout (fig. 1)

1. Air outlet grille

2. Thermostat control

3. Indicator light

4. Machine foot

3. Assembly

Read the safety instructions listed in section 1.

3.1 Mounting on the wall (Fig. 2-4)

Make sure that there are no electric cables or other installations (for example water pipes) near the drill holes. Make sure that the appliance is securely and horizontally fitted to the wall.

- Remove the two retaining screws at the sides (1), with which the wall bracket (2) is fastened to the

GB

appliance, and slide the wall bracket (2) off the back of the heater.
●Mark the positions of the drill holes on the wall, drill the holes and insert the dowels.
●Screw the wall bracket horizontally to the wall,
- Slide the back of the heater into the wall bracket which is now fastened to the wall and secure it with the screws on the side.

3.2 Using as a floor-mounted appliance Slide the feet onto the rails (Fig. 5).

4. Technical data:

Rated voltage: 230 V \~ 50 Hz

Output:	400
Thermostat control: Infinitely adjustable
Protection type: IP24
Mains lead: 3 x 0.75 mm2 x 1800 mm
Appliance dimensions, approx.: 300 x 110 x 255 mm

5. Proper use

The appliance is designed only for private use, not for commercial heating purposes. It is designed for antifreeze protection and temperature stabilization of small rooms and for indoor use. You are allowed to operate the heater only when it is mounted in a stationary position. The heater is not intended for outdoor use.

6. Starting up

Important! Before using the appliance for the first time, check that the voltage supply is the same as the voltage details set out on the data plate. Read safety instructions listed under section 1.

When the heater is used for the first time or after a long period of rest it may emit an odor for a short time. This is not a fault. To totally shut down the antifreeze heater with thermostat you must pull the power plug.

6.1 Thermostat control/Room thermostat

(Fig. 1 / Item 2):

Switch on the required heating output. Turn the control to "MAX" until the required room temperature has been reached. Then turn down the control until

you hear a clear click. The thermostat control will switch the radiator on and off automatically to maintain the room temperature at an almost constant level. However, this presupposes that the radiator has sufficient output to cover the heating requirements for the room.

Note: Turn the controller all the way to the left = antifreeze setting (approx. 5°C to 8°C) The device automatically switches itself on or off.

6.2 Overheating guard

In case of excessive heating, the heating function shuts down automatically. If this occurs, turn off the appliance, disconnect the mains plug and wait a few minutes for the appliance to cool. After eliminating the cause (e.g. a covered air grille), the appliance can be switched on again. If the overheating guard triggers repeatedly, please contact your customer service center (in Germany ISC GmbH).

7. Maintenance and cleaning

●Before carrying out any cleaning and maintenance work the appliance must be turned off, disconnected from the power supply and cooled down.
●Maintenance and repair work may only be carried out by an electrical servicing contractor or your customer service center.
- Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an electrician or the customer service responsible for your country in compliance with the relevant regulations.
●Use a damp cloth to clean the casing.
- Remove dust pollution with a vacuum cleaner.

8. Ordering spare parts

Please provide the following information on all orders for spare parts:

●Model/type of machine

●Article number of the machine

●ID number of the machine

●Number of the required spare part

For our latest prices and information please go to: www.isc-gmbh.info

GB

1. Fault

The appliance does not heat Household fuse has triggered Check the household fuse; make sure that no other high-power devices are loading the fuse in addition
	Plug is not connected Connect the plug
	Room temperature is higher than the temperature set on the appliance
	The overheating cutout has responded

If the appliance still fails to work after you have checked the above points, please contact your customer service center (in Germany ISC GmbH).

F

8. Ordering replacement parts

Please quote the following data when ordering

replacement parts:

●Type of machine ●Article number of the machine
●Identification number of the machine
●Replacement part number of the part required

Subject to change without notice

GB WARRANTY CERTIFICATE

The product prescribed in these instructions comes with a 2-year warranty covering defects. This 2-year warranty period begins with the passing of risk or when the customer receives the product.

For warranty claims to be accepted, the product has to receive the correct maintenance and be put to the proper use as described in the operating instructions.

Your statutory rights of warranty are naturally unaffected during these 2 years.

This warranty applies in Germany, or in the respective country of the manufacturer's main regional sales partner, as a supplement to local regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.

NL GARANTIE

Eschenstraße 6 - D-94405 Landau/Isar (Germany)

Info-Tel. [phone] · Telefax 0180-5 835 830

For EU countries only

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handling over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.
