USER MANUAL HT 20001 EINHELL

Original operating instructions Tower Heater

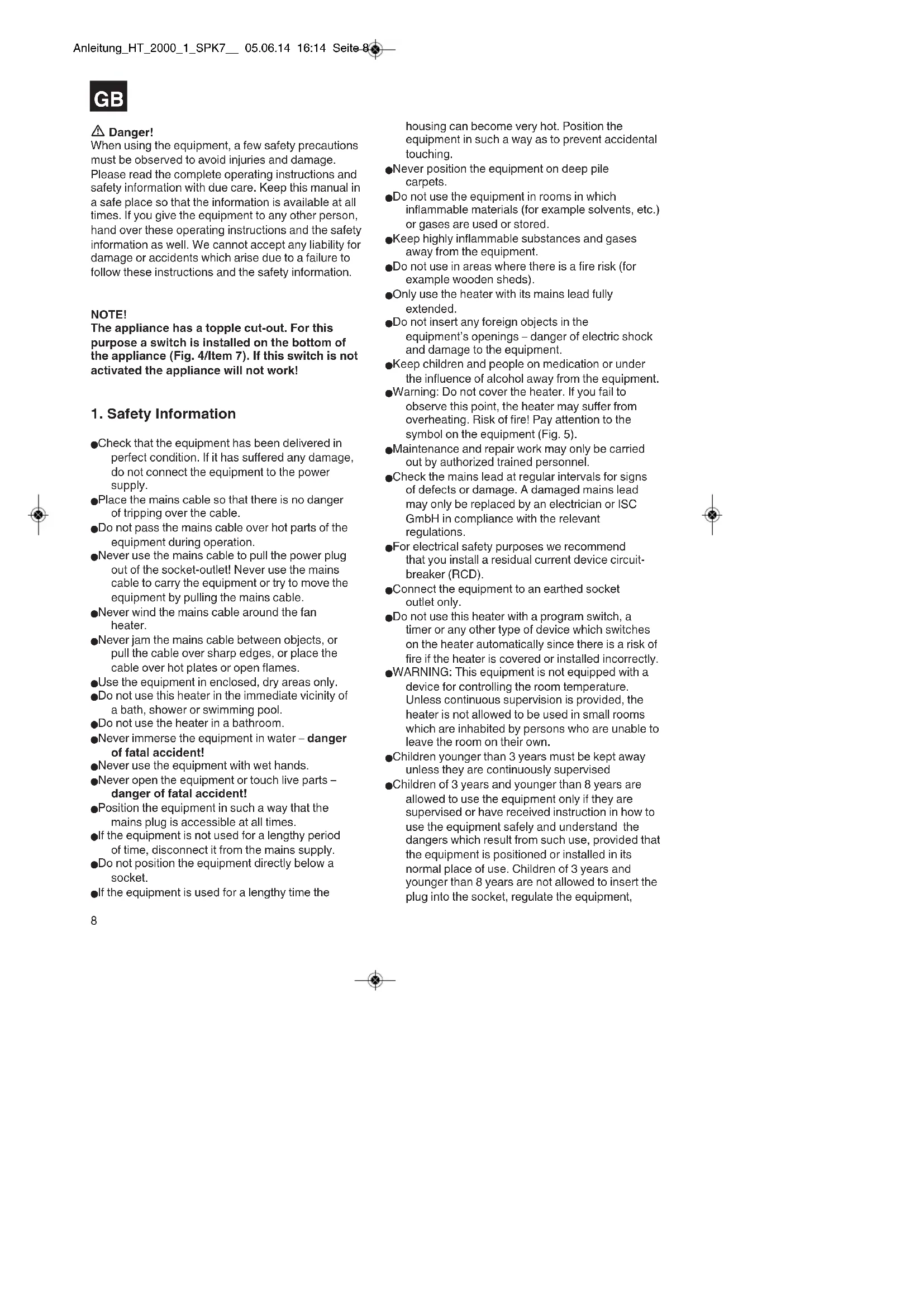

n Check that the equipment has been delivered in perfect condition. If it has suffered any damage, do not connect the equipment to the power supply. n Place the mains cable so that there is no danger of tripping over the cable. n Do not pass the mains cable over hot parts of the equipment during operation. n Never use the mains cable to pull the power plug out of the socket-outlet! Never use the mains cable to carry the equipment or try to move the equipment by pulling the mains cable. n Never wind the mains cable around the fan heater. n Never jam the mains cable between objects, or pull the cable over sharp edges, or place the cable over hot plates or open flames. n Use the equipment in enclosed, dry areas only. n Do not use this heater in the immediate vicinity of a bath, shower or swimming pool. n Do not use the heater in a bathroom. n Never immerse the equipment in water – danger of fatal accident! n Never use the equipment with wet hands. n Never open the equipment or touch live parts – danger of fatal accident! n Position the equipment in such a way that the mains plug is accessible at all times. n If the equipment is not used for a lengthy period of time, disconnect it from the mains supply. n Do not position the equipment directly below a socket. n If the equipment is used for a lengthy time the housing can become very hot. Position the equipment in such a way as to prevent accidental touching. n Never position the equipment on deep pile carpets. n Do not use the equipment in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored. n Keep highly inflammable substances and gases away from the equipment. n Do not use in areas where there is a fire risk (for example wooden sheds). n Only use the heater with its mains lead fully extended. n Do not insert any foreign objects in the equipment’s openings – danger of electric shock and damage to the equipment. n Keep children and people on medication or under the influence of alcohol away from the equipment. n Warning: Do not cover the heater. If you fail to observe this point, the heater may suffer from overheating. Risk of fire! Pay attention to the symbol on the equipment (Fig. 5). n Maintenance and repair work may only be carried out by authorized trained personnel. n Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an electrician or ISC GmbH in compliance with the relevant regulations. n For electrical safety purposes we recommend that you install a residual current device circuit- breaker (RCD). n Connect the equipment to an earthed socket outlet only. n Do not use this heater with a program switch, a timer or any other type of device which switches on the heater automatically since there is a risk of fire if the heater is covered or installed incorrectly. n WARNING: This equipment is not equipped with a device for controlling the room temperature. Unless continuous supervision is provided, the heater is not allowed to be used in small rooms which are inhabited by persons who are unable to leave the room on their own. n Children younger than 3 years must be kept away unless they are continuously supervised n Children of 3 years and younger than 8 years are allowed to use the equipment only if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use, provided that the equipment is positioned or installed in its normal place of use. Children of 3 years and younger than 8 years are not allowed to insert the plug into the socket, regulate the equipment,

Anleitung_HT_2000_1_SPK7__ 05.06.14 16:14 Seite 8clean the equipment and/or perform the maintenance which a user is expected to perform. n Caution – Some parts of the product can become very hot and cause burns. Special care is required when children and persons in need of protection are present. Danger! Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

n Open the packaging and take out the equipment with care. n Remove the packaging material and any packaging and/or transportation braces (if available). n Check to see if all items are supplied. n Inspect the equipment and accessories for transport damage. n If possible, please keep the packaging until the end of the guarantee period. IMPORTANT The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating! n Tower heater n Original Operating Instructions

The equipment is designed exclusively for use as an additional heater in dry, closed rooms. It is designed to be operated only when placed on the floor. The equipment may only be used for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

6. Before starting the equipment

The equipment can be used indoors in a free standing position. Keep a minimum distance of 1 m between the housing and walls, combustible materials (furniture, curtains, etc.). The equipment may only be used completely mounted and standing vertically on a stable surface. It is prohibited to operate the equipment on an instable surface (e.g. on a bed). Important. Before using the equipment for the first time, check that the voltage supply is the same as the voltage details set out on the rating plate. Read the safety regulations in section 1. When the equipment is used for the first time or after a long period of rest it may emit an odor for a short time. This is not a fault. Check the correct air throughput by holding a sheet of paper a distance of 10 cm in front of the air outlet grille in air circulation mode (without heating). The paper must be blown away from the air outlet grille.

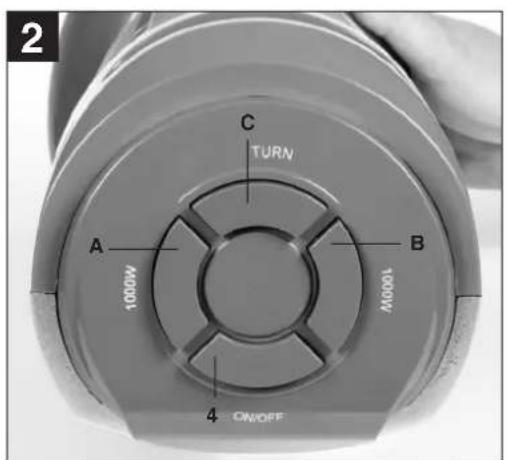

7.1 Switching the equipment on/off (Fig. 2)

Press the main switch (4) “ON/OFF”. The fan will run and the operating LED will be lit. To switch off, press the main switch again.

7.2 Switching on the heat output (Fig. 2)

If you press one of the two heat output switches (A / B) when the heater ON, the equipment will heat with 1000 W. If you press both switches, the equipment will heat with 2000 W.

7.3 Switching on the oscillation function (Fig. 2)

Actuate the oscillation switch (C). The equipment will swivel approx. 45° to the left and 45° to the right. To switch off the oscillation function and have the equipment blow in one specific direction only, actuate the oscillation switch (C) again.

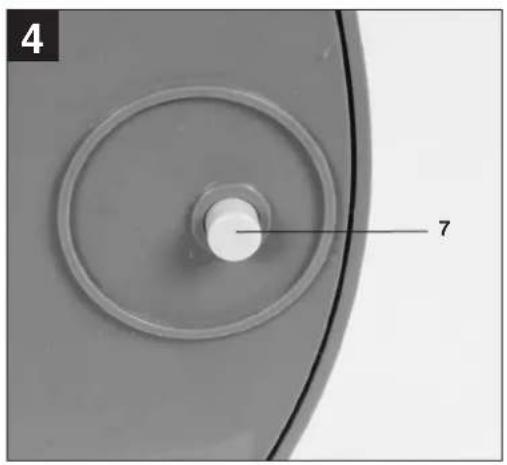

If the appliance topples during operation, it will be turned off automatically by the switch (Fig. 4 / Item 7) and the LED will go out.

7.5 Overheating guard

In case of excessive heating the appliance will shut down automatically. Should this happen, set the mains power switch (Fig. 2 / Item 4) to „0ff“ and pull out the power plug. Allow the appliance to cool for about 15 minutes. After eliminating the cause (e.g. a covered air grille), the appliance can be switched on again as described in 7.1. It will not be possible to switch on the appliance if it has not cooled sufficiently. If the overheating guard triggers repeatedly, please contact your customer service center (in Germany ISC GmbH).

8. Cleaning, maintenance and ordering

Danger! n Before carrying out any cleaning and maintenance work the equipment must be turned off, disconnected from the power supply and cooled down. n Use a damp cloth to clean the casing. n Remove dust pollution with a vacuum cleaner.

n Maintenance and repair work may only be carried out by an electrical servicing contractor or ISC GmbH. n Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an electrician or ISC GmbH in compliance with the relevant regulations. n There are no parts inside the equipment which require additional maintenance. 8.3. Ordering spare parts Please provide the following information on all orders for spare parts: n Model/type of the equipment n Article number of the equipment n ID number of the equipment n Part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

Anleitung_HT_2000_1_SPK7__ 05.06.14 16:14 Seite 109. Storage Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

10. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

GUARANTEE CERTIFICATE Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not

affected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suffered by the device which have been verifiably caused by a material

or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at our discretion. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee

claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device. Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anleitung_HT_2000_1_SPK7__ 05.06.14 16:14 Seite 4748
