USER MANUAL UX32J56BTCDUGA05 BLAUPUNKT

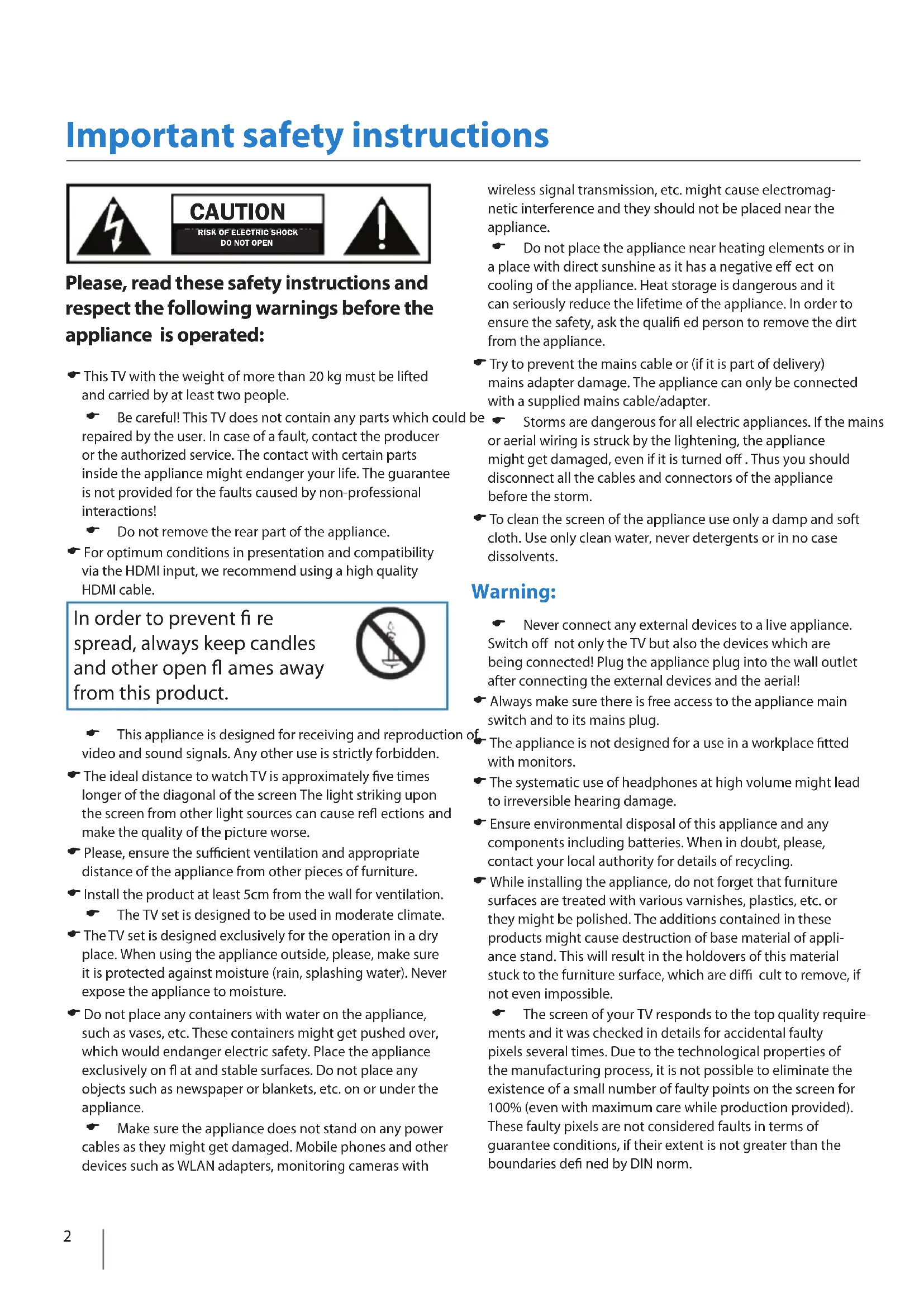

Important safety instructions CAUTION

RISK OF ELECTRIC SHOCKDO NOT OPEN

Please, read these safety instructions and respect the following warnings before the appliance is operated: This TV with the weight of more than 20 kg must be lifted and carried by at least two people. Be careful! This TV does not contain any parts which could be repaired by the user. In case of a fault, contact the producer or the authorized service. The contact with certain parts inside the appliance might endanger your life. The guarantee is not provided for the faults caused by non-professional interactions! Do not remove the rear part of the appliance. For optimum conditions in presentation and compatibility via the HDMI input, we recommend using a high quality HDMI cable. In order to prevent re spread, always keep candles and other open ames away from this product. This appliance is designed for receiving and reproduction of video and sound signals. Any other use is strictly forbidden. The ideal distance to watch TV is approximately ve times longer of the diagonal of the screen The light striking upon the screen from other light sources can cause re ections and make the quality of the picture worse. Please, ensure the su cient ventilation and appropriate distance of the appliance from other pieces of furniture. Install the product at least 5cm from the wall for ventilation. The TV set is designed to be used in moderate climate. The TV set is designed exclusively for the operation in a dry place. When using the appliance outside, please, make sure it is protected against moisture (rain, splashing water). Never expose the appliance to moisture. Do not place any containers with water on the appliance, such as vases, etc. These containers might get pushed over, which would endanger electric safety. Place the appliance exclusively on at and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or under the appliance. Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromag- netic interference and they should not be placed near the appliance. Do not place the appliance near heating elements or in a place with direct sunshine as it has a negative e ect on cooling of the appliance. Heat storage is dangerous and it can seriously reduce the lifetime of the appliance. In order to ensure the safety, ask the quali ed person to remove the dirt from the appliance. Try to prevent the mains cable or (if it is part of delivery) mains adapter damage. The appliance can only be connected with a supplied mains cable/adapter. Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck by the lightening, the appliance might get damaged, even if it is turned o . Thus you should disconnect all the cables and connectors of the appliance before the storm. To clean the screen of the appliance use only a damp and soft cloth. Use only clean water, never detergents or in no case dissolvents.

Never connect any external devices to a live appliance. Switch o not only the TV but also the devices which are being connected! Plug the appliance plug into the wall outlet after connecting the external devices and the aerial! Always make sure there is free access to the appliance main switch and to its mains plug. The appliance is not designed for a use in a workplace tted with monitors. The systematic use of headphones at high volume might lead to irreversible hearing damage. Ensure environmental disposal of this appliance and any components including batteries. When in doubt, please, contact your local authority for details of recycling. While installing the appliance, do not forget that furniture surfaces are treated with various varnishes, plastics, etc. or they might be polished. The additions contained in these products might cause destruction of base material of appli- ance stand. This will result in the holdovers of this material stuck to the furniture surface, which are di cult to remove, if not even impossible. The screen of your TV responds to the top quality require- ments and it was checked in details for accidental faulty pixels several times. Due to the technological properties of the manufacturing process, it is not possible to eliminate the existence of a small number of faulty points on the screen for 100% (even with maximum care while production provided). These faulty pixels are not considered faults in terms of guarantee conditions, if their extent is not greater than the boundaries de ned by DIN norm.English

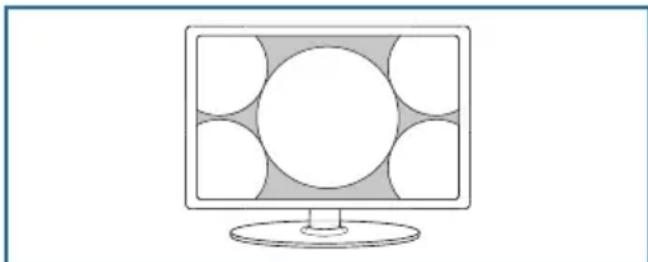

Important safety instructions Important information regarding use of video games, computers, captions and other xed image displays. The extended use of xed image program material can cause a permanent “shadow image “ on LCD screen (this is sometimes incorrectly referred to as “burnout to the screen“). This shadow image is then permanently visible on the screen in the backro-und. It is a partly irreversible damage. You can avoid such a damage by respecting the following instructions: Reduce the brightness/contrast setting to a minimum viewing level. Do not display the xed image for a long period of time. Avoid displaying of: » Teletext time and charts, » TV/DVD menu, e.g. DVD contents, » In the „Pause“ mode (hold): Do not use this mode for a long time, e.g. while watching a DVD or a video. » Turn o the appliance if you are not using it. Batteries Observe the correct polarity when inserting the batteries. Do not expose batteries to high tempera- tures and do not place them on locations where the temperature might increase quickly, e.g. near the re or on the direct sunshine. Do not expose batteries to excessive radiant heat, do not throw them into the re, do not disassemble them and do not try to recharge unrechar- geable batteries. They could leak out or explode. » Never use di erent batteries together or mix new and old ones. » Dispose of batteries in an environmentally friendly way. » Most of the EU countries regulate the disposal of batteries by law. Disposal Do not dispose of this appliance as unsor- ted municipal waste. Return it to a desig- nated collection point for the recycling of WEEE. By doing so, you will help to converse resources and protect the environment. Contact your retailer or local authorities for more information. Cd4 Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in it’s original box/packaging. What is included in the box Accessories Supply of this TV includes following parts:

ATV USB DVD EJECT ZOOM D.DIS SIZE REC PVR

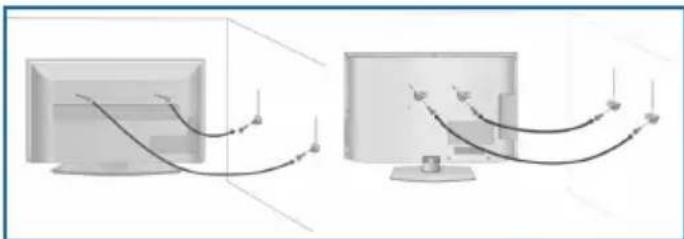

Stand neck assembly Please follow the instruction in stand installation lea et, located in the accessories bag. Safe installation Position the TV close to the wall to avoid the possibility of it falling when pushed. The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage. This method is used if the TV is placed on a glass surface or you do not wish to screw anything into your furniture. Ensure that children do not climb or hang onto the TV. For this type of installation you will need a fastening chord A) Using one/both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening chord/s to the TV. B) Secure the other end of the fastening chord/s to your wall. Wall mounting the TV This television requires a VESA 100 wall mount, or equivalent.

1. Remove the four screws highlighted below.

2. The wall mount can now be easily attached to the mounting

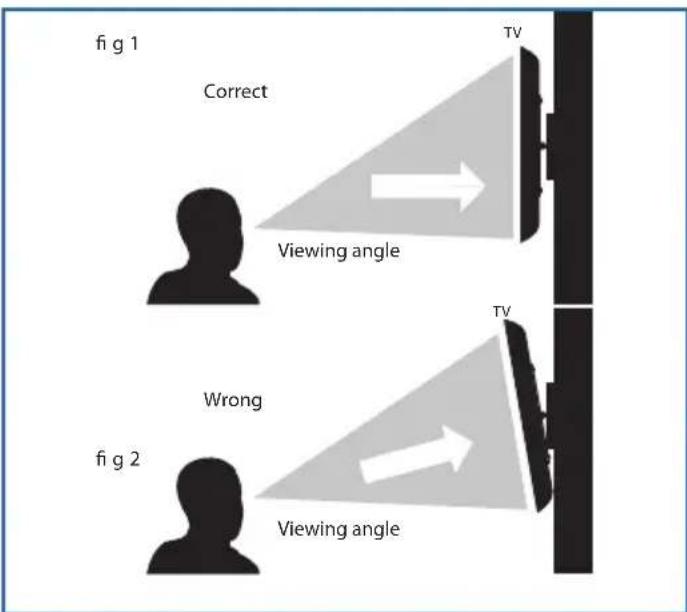

holes on the rear of the TV. These holes are indicated in the picture below. For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV’s screen is ‘face on’. See g 1 and 2 g 1 g 2

Viewing angleViewing angleCorrectWrongViewing angleViewing angle Device Installation6 Getting started - initial set up Tip: If the TV nds some, but not all, of the Digital channels, the TV is functioning correctly but the signal being received is not strong enough. (The signal strength needs to be above 85% - you can see the signal strength the TV is receiving when you change chan- nels/ programmes) you will need to increase the signal reception in order to receive all of the channels available. The most economical way to do this is by purchasing and connecting a ‘signal booster’ in between the TV and the TV aerial socket. If this does not solve the problem, you will need to upgrade the TV aerial to a digital hi-gain compatible aerial

1. Using the RF cable supplied, connect the TV to the TV Aerial wall socket (Fig A).

Connect the power cable to the Electrical outlet (Fig B).

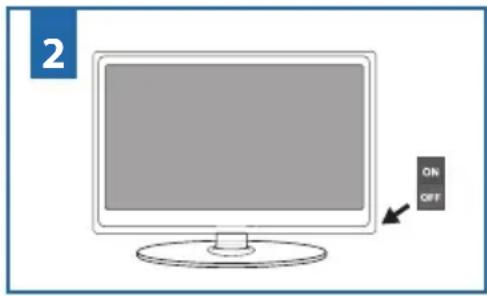

2. Turn on the device with marked ON/OFF switch

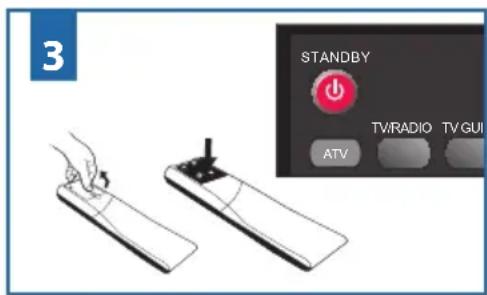

3. Insert the batteries supplied into the Remote control and press the Standby

button to power on the TV.

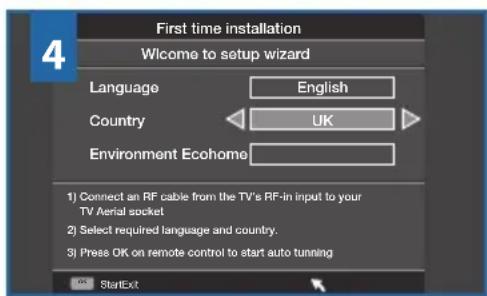

4. You will now be welcomed with the initial set-up screen. If it does not appear, on

the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. As part of our continuing e orts to reduce energy consumption, we added a new Ecohome feature (appears on the screen rst installation). This function helps reduce energy consumption up 15% compared to other modes. The image brightness is reduced using Ecohome mode. If this setting does not suit your environment, you can choose from other modes Note: the professional mode is the optimal default mode, but consumes 15% more than the Ecohome) Select your language, country and environment. Press OK on the remote control and tuning will start.

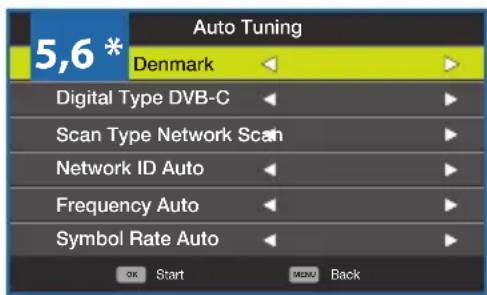

5. In the next step select your digital boradcasting type. You can choose between

DVB-T and DVB-C*. The analog section will be searched automatically, since most cable networks includes analog channels.*

6. Select DVB-C if your TV is connected to a broadband cable network. Keep all

default settings as possible. Then press [OK] button to start search. If DVB-C channels are not found, contact your network provider for the valid "Net- work ID". Then perform a new search. Press the [MENU], select "Automatic Channel Search" and enter here the inquired network ID. Start your search with the [OK] button. *

7. After completion of the following channel search screen is displayed:

STANDBYTV/RADIOTV GUI

ATV First time installationLanguage1) Connect an RF cable from the TV’s RF-in input to your TV Aerial socket2) Select required language and country.3) Press OK on remote control to start auto tunning EnglishCountryWlcome to setup wizardEnvironment Ecohome Start Exit Auto TuningCountry DenmarkDigital Type DVB-CScan Type Network ScanNetwork ID AutoFrequency AutoSymbol Rate Auto Start

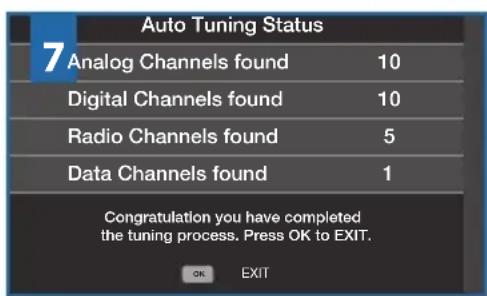

Back MENU Auto Tuning Status Analog Channels found 10 Digital Channels found 10 Radio Channels found 5 Data Channels found Congratulation you have completed the tuning process. Press OK to EXIT.

• - only for models with DVB-C tunerEnglish

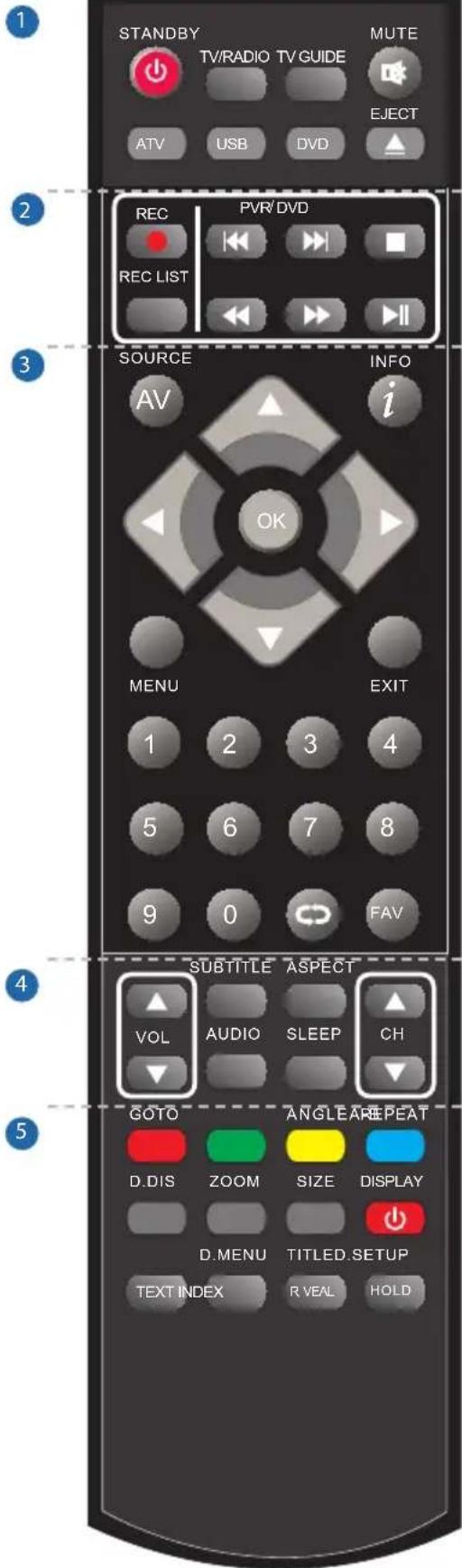

MUTE – Mute the sound or vice versa.TV/RADIO – Switch to Digital and switch between TV and radio in Digital mode.TV GUIDE – Opens the 7 Day TV Guide (Digital mode).ATV – Switch to analogue TV source.USB – Switch to USB source. DVD

- Switch to DVD mode EJECT

– To record what is currently on television.REC LIST – Opens the list of what you have previously recorded.– To restart the current chapter *. – To advance forward to the next chapter*. – To stop the playback*. – To play in fast rewind mode*. – To play in fast forward mode*. – To play/pause * - Pause live TV when USB Memory Stick is inserted).

3. SOURCE/AV – To display the input/source menu.

INFO – Press once for now/next channel information. Press twice for programme information about current programme. (▲/▼/◄/►/ OK ) – Allows you to navigate the on-screen menus and adjust the system settings to your preference.MENU – To display OSD menu.EXIT – To exit all menus.NUMBER BUTTONS – 0 – 9 to select a TV channel directly. – To return to the previous channel viewed.FAV – To display favourites menu.

4. VOL ▲/▼ – To increase / decrease the sound level.

SUBTITLE – To switch the dialogue at the bottom of the screen (on/o ).ASPECT – To switch the screen between the di erent picture formats.AUDIO – To change the audio language (if available).SLEEP – Press repeatedly to cycle through the sleep options. CH ▲/▼ – To increase or decrease the channel being watched.

– DVD mode - To go to a speci c chapter A-B

- Teletext mode - Hold current page which is displayed S MODE

- Picture mode options 1 - Functions are available for TVs with DVD players interiertem available.2 - Functions are available for TVs without a DVD player and PVR available.3 - Functions are available for TVs with PVR available. Remote control VOL

ATV USB DVD EJECT ZOOM D.DIS SIZE REC PVR

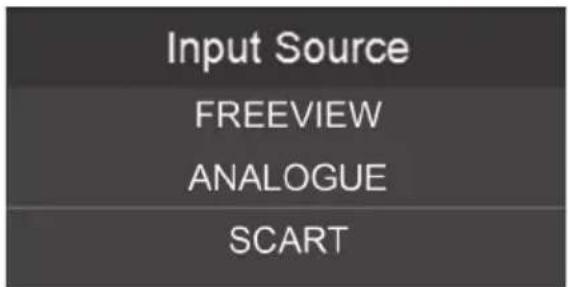

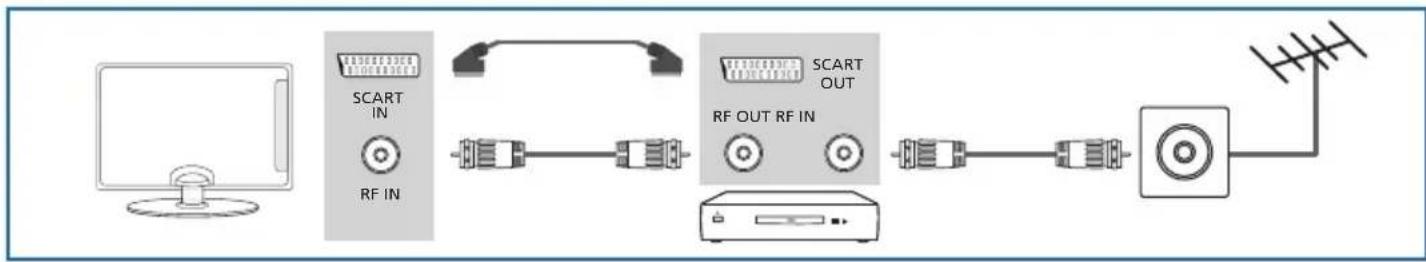

TV buttons & Source menu Choosing Mode Input/Source To switch between the di erent input/connections. a) Using the buttons on the remote control:

1. Press [SOURCE/ AV] - The source menu will appear.

2. Press [▼] or [▲] to select the input you require.

3. Press Vol+ to change input/source to the one selected.

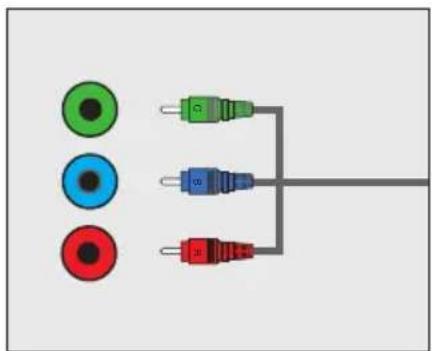

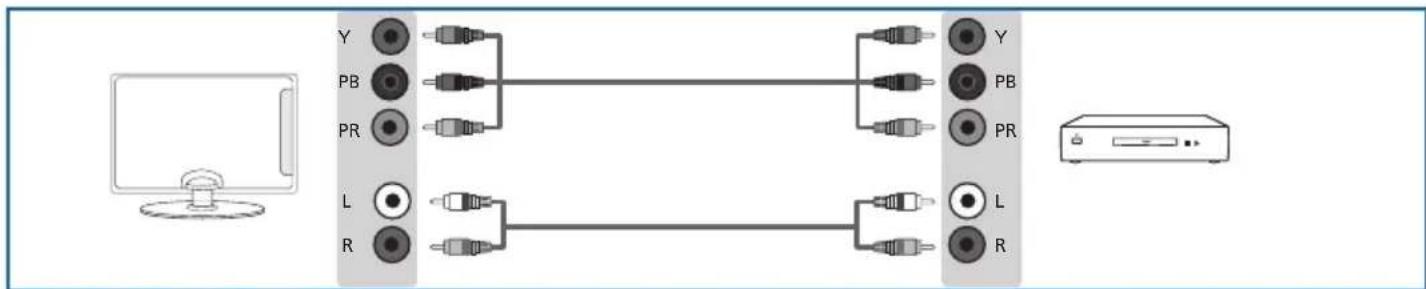

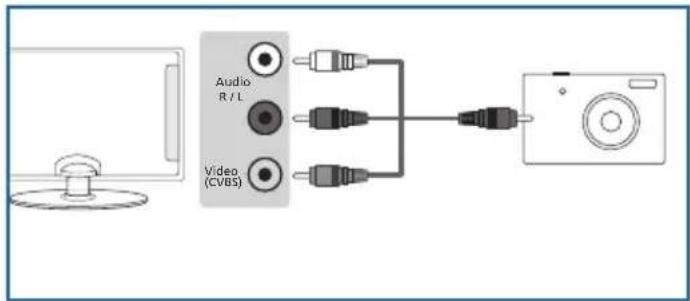

Connecting a Camcorder, Camera or Games Console TVs Input / Source should be set to Video. AudioR / LVideo(CVBS) Connections Connecting a High De nition (HD) Device Option 1 - via HDMI to HDMI cable A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality. TVs Input/Source should be set to HDMI. Option 2 - via Component cable or Mini YPbPr If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must use included YPbPr to MINI YPbPr cable adaptor to connect via Component (for picture) and by phono cable (for sound).

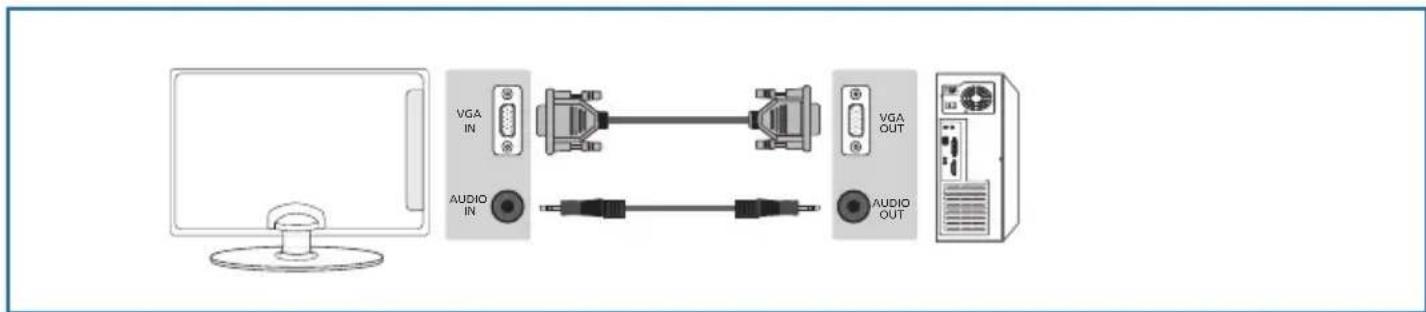

Connecting TV to PC (using as a computer monitor) Connect VGA output with PC or Laptop graphic card VGA output using VGA cable (not supplied) for video. If you want to use built in TV speakers connect TVs 3,5 mm audio input with 3,5mm PC audio output (optional PC headphones output) using 3,5mm audio cable (not supplied). TVs Input/Source should be set to VGA. VGA

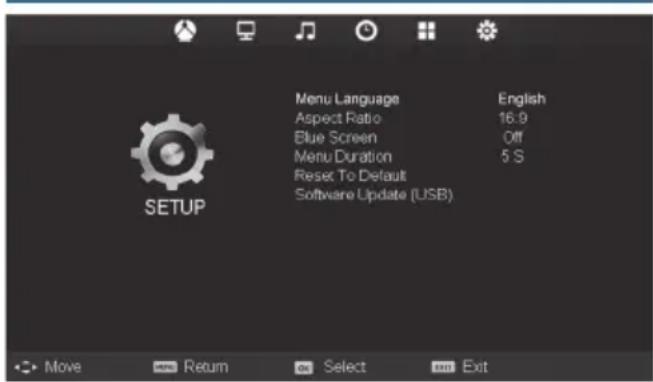

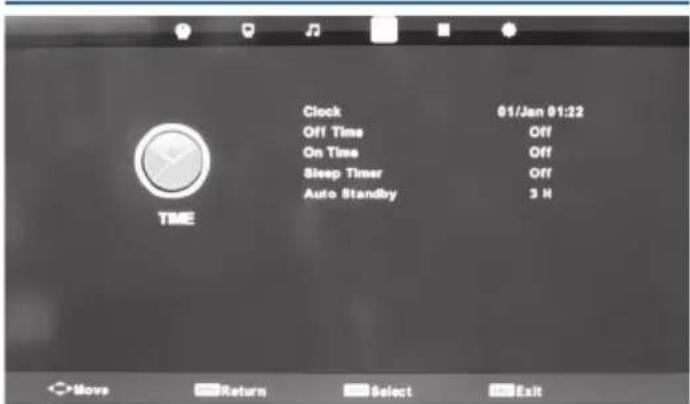

Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see ‘Menu Duration’ section. TV Menu Operation

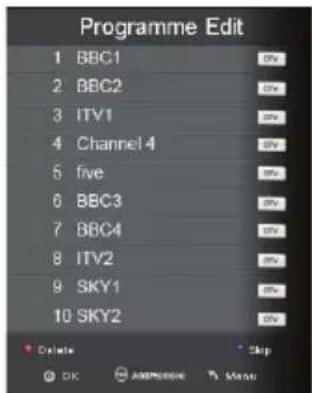

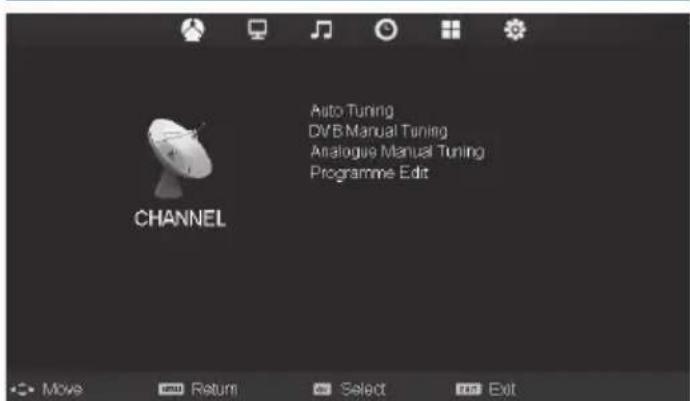

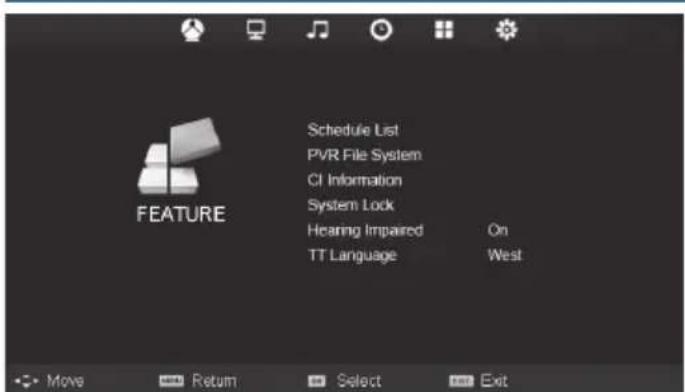

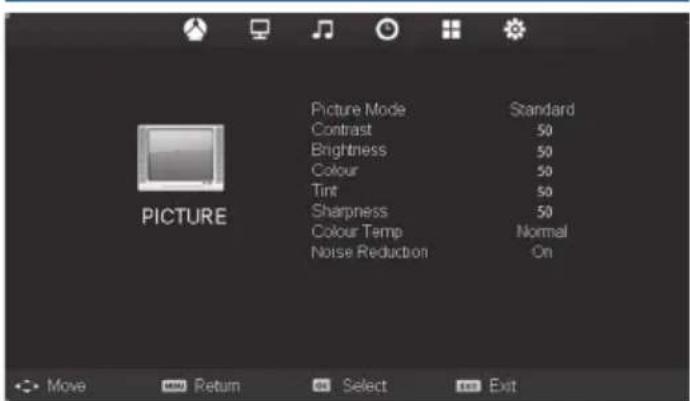

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll (▲/▼/◄/►) buttons. To con rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. Channel menu Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels. Digital Manual Tuning- Allows you to manually tune your digital signal. Analogue Manual Tuning - Allows you to manually tune your analogue signal. Programme Edit - Allows you to delete, skip and add favourite channels. Picture menu Picture Mode - Choose from the following presets. Standard Default settings Dynamic Recommended settings for fast moving pictures Mild Set to be lighter in colour and less bright Personal Lets you manually alter all the settings Ecohome Consume 15% less energy. Contrast - Switch the balance between black and white. Brightness - Increase or decrease the brightness of the picture. Colour - Increases the colour from black and white. Tint - Lets you increase or decrease the level of tint within the picture. Sharpness - Increase or decrease the sharpness of the picture. Colour Temperature - Choose from the following presets. Normal Default settings Warm Increases red within the picture Cool Increases blue within the picturew Noise Reduction - Choose from the following presets. O Turns noise reduction o Low Minor system adjustment Middle Medium system adjustments High Maximum system adjustments Default Default settings TV Menu operation TV Menu Operation | Channel menu | Picture menu12 Sound menu Sound Mode - Choose from the following presets: Standard Default settings Music Emphasises music over voices Movie Provides live and full sound for movies Personal Selects your personal sound settings Sports Emphasises sound for sports Tip: Treble and bass levels can only be adjusted when the sound mode ‘Personal’ is selected. Treble - To adjust the amount of high frequency within the sound. Bass - To adjust the amount of low frequency within the sound. Balance - To switch the sound between the left and right speakers. Auto Volume Level (AVL) - When ‘on’ is selected, the volume will stay at a constant level regardless of input/source. Digital Output - This is the digital COAX Audio output. Choose from the following options: O O Auto Selects the best settings automatically PCM Select this option if you are connecting to a Stereo Hi- via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal) AD Volume - Increase or decrease the overall volume. Time menu Clock - Set the date and time. O Time - Allows you to set a speci c time for your TV to turn o . On Time - Allows you to set a speci c time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day. Time Zone - Change your current time zone. Sleep Timer - Lets you set the sleep timer so the television automatically switches o after a set amount of time. O -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min. Auto standby - Toggle the Function on and o . Feature menu Schedule List - Lists your programme reminders. PVR File System - Checks the le system of the connected USB device and displays the information about the check results. CI Information - Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In). TV Menu operation Sound menu | Time menu | Feature menuEnglish System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use the ◄ button to quit the password input. Use the ► button to clear. Default password is 0000.Hearing Impaired - If signal provides support for the hearing impaired, the subtitles can be displayed by pressing the “Subtitle”. If you set a Hearing Impaired on and switch to a channel with support for hearing impaired subtitles will be activated automatically.TT Language - Encoding settings for the proper display of teletext characters. Setup menu Menu language - Allows you to change the language of the menu.Aspect Ratio - Within the EU the picture format varies depending on the channel/broadcast. There are a number of di erent options to best meet your needs.Auto - Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides.Original - Will display the picture from the broadcaster without any change.Zoom - The picture is the correct proportion but zoomed in to ll the screen.4:3 - Displays the 4:3 picture in its original size. Side bars are shown to ll the 16:9 screen.16:9 - Fills the screen with a regular 16:9 signal and 4:3 picture will be stretch to ll the screen14:9 - Displays the 14:9 picture in the correct proportion. As a result side bars are shown on the screen.Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources).Menu Duration - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing.Reset to default Reset Menu System - This resets the menus to factory settings. Reset TV Channels - This clears all the TV channels from the television.Software Update (USB) - From time to time we may release new rmware to improve the operation of the television (available to download). This menu lets you install the new software/ rmware onto the television. Further details of how to do this will be issued with the rmware. Contact the helpline or refer to the ‘product support’ section of the website. TV Menu operation Setup menu14 PC Settings Auto Adjust - Lets you automatically con gure the television to be used as a computer monitor. H O set - Changes the horizontal position of the picture. V O set - Changes the vertical position of the picture. Size - increase picture size. Phase - To adjust delay time of phase in order to reduce the noise of picture Position Reset - Changes back to the original settings Tip: If the computer is left in-active for a period of time, the television will switch into a ‘sleep’ state (the screen will power o to save power). To switch back on press the standby button. 7 Day TV Guide / USB Record TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the Digital channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

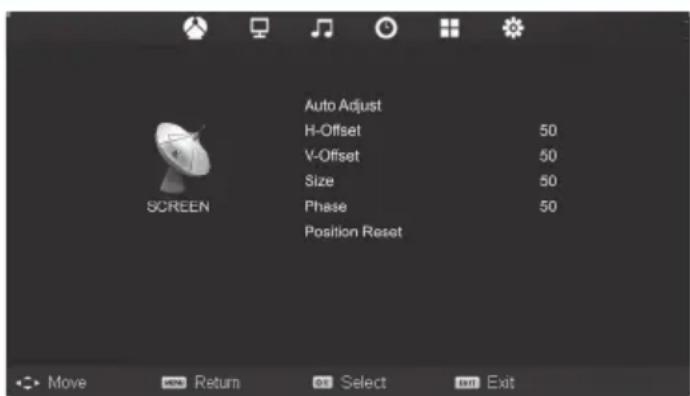

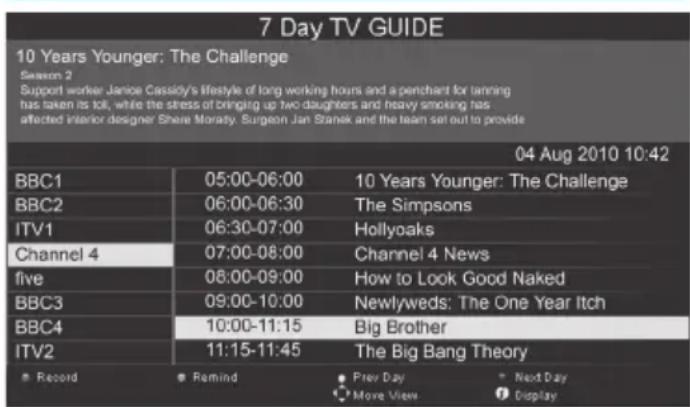

1. Press [TV GUIDE]. The following 7 Day TV Guide will appear.

2. Navigate through the menu using

You can now: Record a Programme by pressing RED.* Set a reminder by pressing GREEN. View a previous day by pressing YELLOW. View the next day by pressing BLUE.

3. Press [EXIT] to exit the 7 day TV Guide.

Note: This TV is designed to operate with USB memory sticks up to 32GB. It is possible to use either a USB memory stick or a USB portable Hard Drive of a larger capacity, however, it must be formatted to the FAT32 le system in order to operate correctly. At the time of printing this user guide, Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/ utility to format larger USB drives/hard drives to FAT32. Additional help and support is available from the web site. USB Record - Digital mode*

USB RECORD – DIGITAL/FREEVIEW MODE

Built into this television is a USB record facility. This function is available in Digital mode when. used in conjunction with a compatible USB memory stick or USB Hard drive. The bene ts of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV).

• One button record, if you decide you want to record the current programme.

• Easy programmable recording from the 7 day TV Guide

• Record TV and watch back on your computer/laptop. Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable). Minimum Speci cation - USB Memory Stick Read Speed 20 MB/s (Mega Byte Per Second) Write Speed 6 MB/s (Mega Byte Per Second) If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide. TV Menu operation PC Settings | 7 Day TV Guide | USB record*English

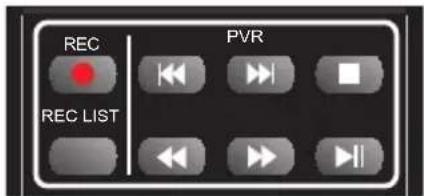

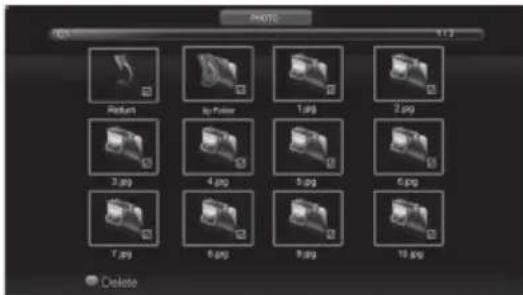

Pause Live TV (Time Shift) * Pausing Live TV is very simple. REC PVR REC LIST - Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again. - Press fast forward to go forward in a recording (i.e. to skip adverts). - Press fast rewind to go back in a recording (i.e. if you fast forwarded too far).Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button. One Button Record At any point in time you may decide to record the current channel that you are watching. To do this you need to press the [REC] button.Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode. Note: USB record function is only avilable in Digital TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source. USB mode / Media player USB mode o ers playback of various di erent types of content that you have saved on your USB Memory Stick. Please refer to technical speci cation page for compatible le types On switching to USB source the above menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on le type.1. You can navigate through the menus using the scroll ▲/▼/◄/►buttons. To con rm the item you wish to play/ view press [OK] button.2. Select the drive you require. (If your drive only has 1 partition you will only see 1 item).3. You can now access the item. Press OK to view.4. While viewing you control the item using or by pressing ( i ) and using ▲/▼/◄/► and (OK) TV Menu operation Pause Live TV (Time Shift)* | USB mode / Media player *- Available only on devices with PVR Function16 DVD Menu * To access this menu, press [D. MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll ▲/▼/◄/► buttons. To con rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. General Setup Page TV Display - Choose from the following options 4:3 PanScan PS Traditional picture format, often used on old lm 4:3 LetterBox LB Traditional picture which has been adapted for widescreen Wide Widescreen picture format OSD Language - Select desired language Audio Setup Page Speaker Setup - Choose from the following options LT/RT Set LT/RT Downmix Stereo Set Stereo Downmix Dolby Digital Page Dual Mono Stereo Outputs 2 channels of sound both left and right Mono L Outputs left side sound Mono R Outputs right side sound Mix Mono Outputs a single channel of sound but mix between right and left Dynamic Range - This is the di erence between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital. Preference Page TV Type - Choose from the following options NTSC Normally used for discs from North America, Japan etc PAL The standard for discs from UK/Europe, most of Asia, Australia etc Auto For both NTSC and PAL Default - This option allows you reset all DVD settings to factory settings. *- only on devices equipped with built in DVD Player*- only on devices equipped with built in DVD PlayerEnglish

Frequently asked questions Important. DVD - Only for tv's with built in DVD Questions: Answers: I have set up digital TV, but the search did not nd any channels or/and the channels I receive are fragmented.

1. 1. I am not receiving any signal

2. Make sure you have a suitable antenna. Many indoor

antennas cclaim that they are digital-ready, but does not receive signal.

3. Consider wheter you should buy a signal ampli er;

it is much cheaper than a digital antenna and solves 70% of the problems with poor signal conditions.

4. In case of the above, use only analog tv until the

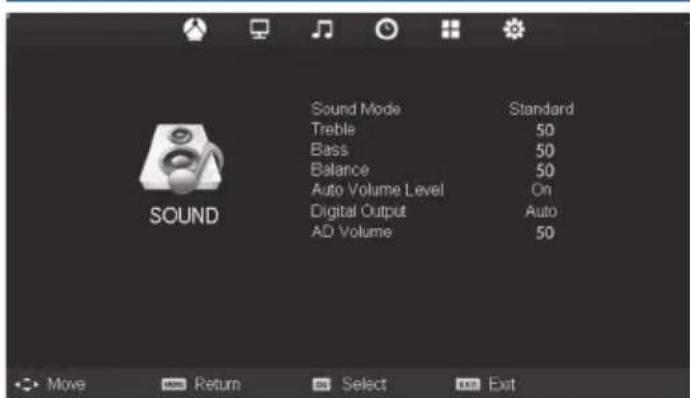

signal becomes stronger in your area To achieve the best performance, we recommend that you use a highgain digital antenna. If you receive some digital stations, you must rst try to connect a signal ampli er between the TV and TV aerial socket. Why is the sound so distorted for the ears? Change the audio settings in Sound menu as shown ear- lier in the instructions to increase bass and lower treble I have inserted a disc in the player and it shows "No Disc"

1. Make it sure you have loaded the page with the

2. Ensure that the disc is clean and is not scratched

3. Some copied discs do not play.

4. Check that the DVD is Region 2 - to change the
