USER MANUAL Saeco Armonia SINO024X PHILIPS

• 18 • 1 GENERAL INFORMATION This coffee machine is ideal for making 1 or 2 cups of espresso coffee and features an adjustable tube for dispensing steam and hot water. All commands on the upper part of the unit are marked with symbols easy to be understood. The machine is designed for household use only. It is not suitable for continuous professional- type use. Warning. The manufacturer shall accept no liability for damage or injury caused by:

• Improper use or use for other than the intended purposes;

• Repairs carried out by anyone other than an authorised service centre;

• Tampering with the power cord;

• Tampering with any machine component;

• Use of spare parts and accessories other than those supplied by the manufacturer. The warranty will be invalidated in such cases.

1.1 To facilitate interpretation

A warning triangle draws attention to the instructions that are important for user safety. Please carefully abide by these instructions to avoid serious injury! Fig.1 Illustrations, parts of the appliance and control functions, etc. are referred to by number or letter; in this case reference is made to the illustration. This symbol is used to highlight information that is especially important for ensuring optimal use of the machine. General information INDEX1 GENERAL INFORMATION .....................182 TECHNICAL SPECIFICATIONS .............. 3 SAFETY RULES ......................................214 INSTALLATION ..................................... 5 MAKING COFFEE ................................. 6 CHOOSING THE TYPE OF COFFEE - TIPS 7 DISPENSING HOT WATER .................... 8 DISPENSING STEAM/ MAKING CAPPUCCINO ....................... 9 CLEANING .......................................... 10 DESCALING ......................................... 11 REGULAR SERVICING ..........................2712 LEGAL INFORMATION ......................... 13 DISPOSAL ............................................ TROUBLESHOOTING .................................

4316036000 - SIN024X Rev00.indd 18 10/05/2004 11.57.11ENGLISH

• 19 • The illustrations corresponding to the text may be found on the inside cover flap. Keep this page open while reading the operating instructions.

1.2 How to use these operating instructions

Keep these operating instructions in a safe place and make them available to anyone else who should use the coffee machine. For further information or in case of problems, contact an authorised service centre. 2 TECHNICAL SPECIFICATIONS Voltage rating See rating plate on appliance Power rating See rating plate on appliance Casing material Thermoplastic Size (w x h x d) 220 x 300 x 270 Weight 4 Kg Cord length 1.2 m Control panel On the upper part Filter holder “Crema” “Pannarello” Special steam tube attachment for cappuccino Water tank Extractible Power supply See rating plate on appliance Water tank capacity 1 litre Pump pressure 15 bars Boiler INOX Steel Safety devices Boiler pressure safety valve Thermostat with manual reset The producer reserves the right to change the technical characteristics of the product. Machine in conformity with European Directive 89/336/EEC (Italian Legislative Decree 476 of 04/12/92) concerning electromagnetic compatibility. Technical specifications 4316036000 - SIN024X Rev00.indd 19 10/05/2004 11.57.11ENGLISH

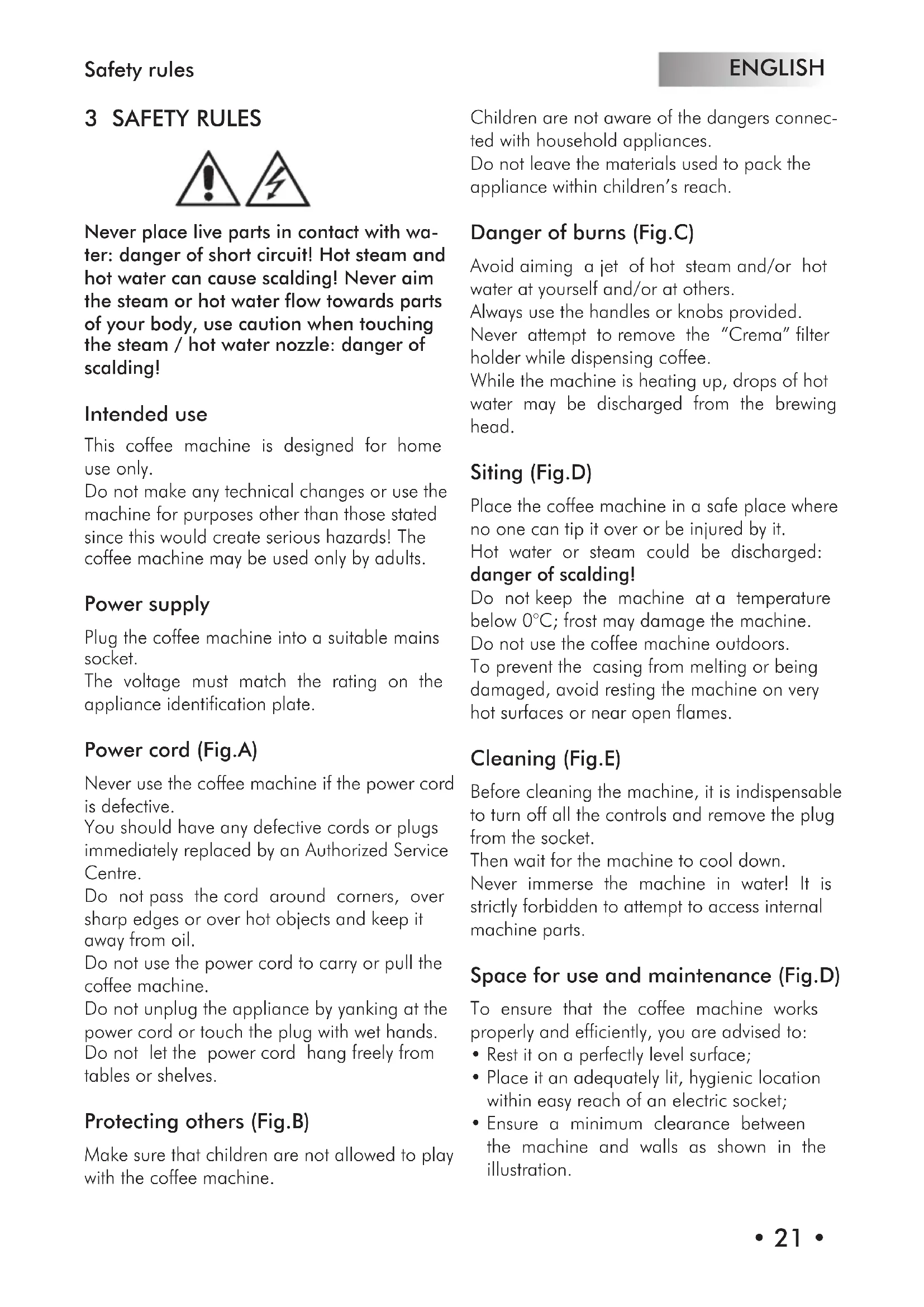

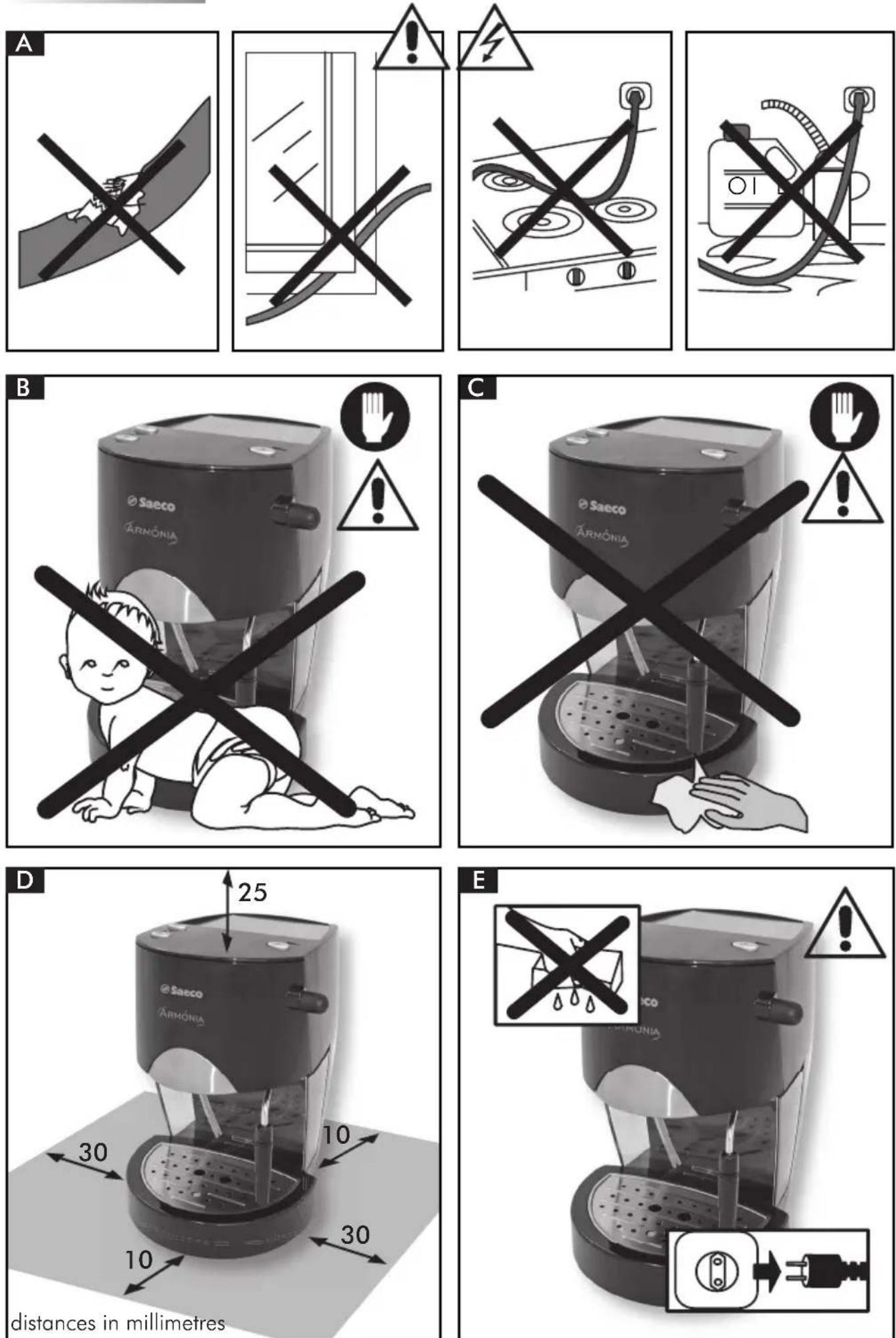

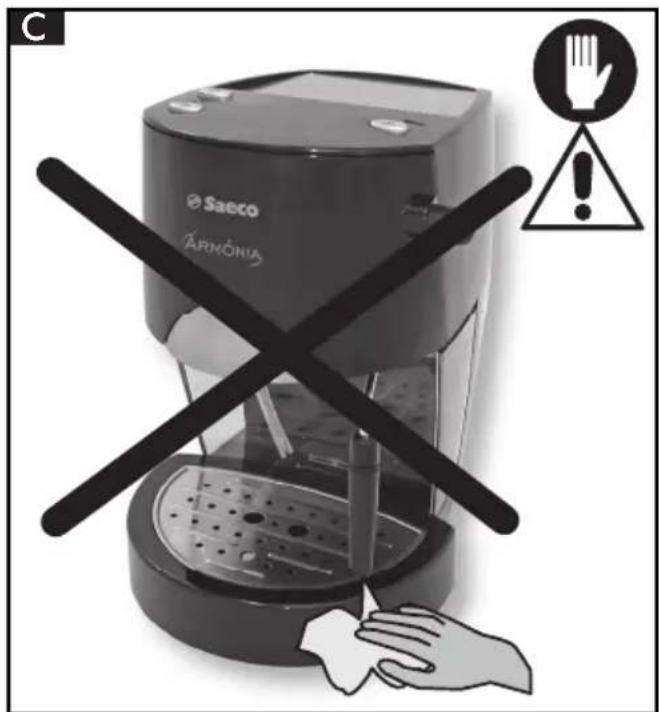

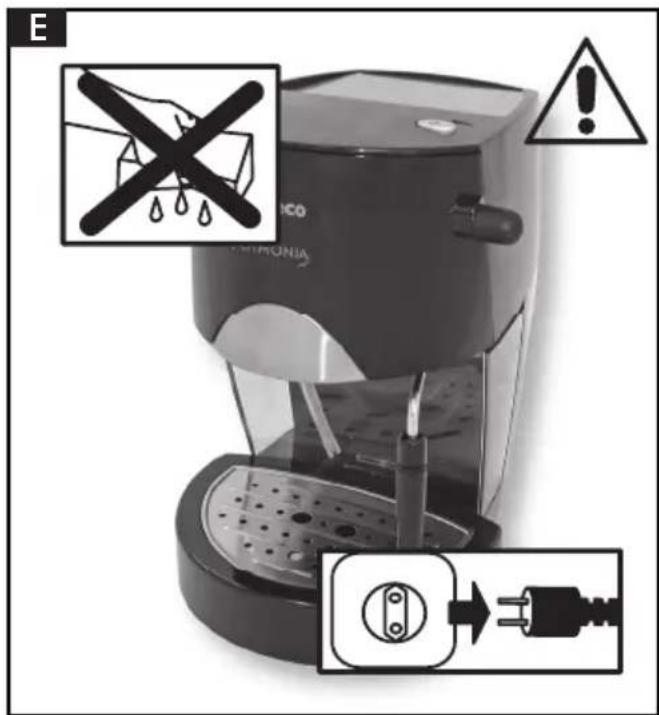

• 21 • 3 SAFETY RULES Never place live parts in contact with wa- ter: danger of short circuit! Hot steam and hot water can cause scalding! Never aim the steam or hot water flow towards parts of your body, use caution when touching the steam / hot water nozzle: danger of scalding! Intended use This coffee machine is designed for home use only. Do not make any technical changes or use the machine for purposes other than those stated since this would create serious hazards! The coffee machine may be used only by adults. Power supply Plug the coffee machine into a suitable mains socket. The voltage must match the rating on the appliance identification plate. Power cord (Fig.A) Never use the coffee machine if the power cord is defective. You should have any defective cords or plugs immediately replaced by an Authorized Service Centre. Do not pass the cord around corners, over sharp edges or over hot objects and keep it away from oil. Do not use the power cord to carry or pull the coffee machine. Do not unplug the appliance by yanking at the power cord or touch the plug with wet hands. Do not let the power cord hang freely from tables or shelves. Protecting others (Fig.B) Make sure that children are not allowed to play with the coffee machine. Children are not aware of the dangers connec- ted with household appliances. Do not leave the materials used to pack the appliance within children’s reach. Danger of burns (Fig.C) Avoid aiming a jet of hot steam and/or hot water at yourself and/or at others. Always use the handles or knobs provided. Never attempt to remove the “Crema” filter holder while dispensing coffee. While the machine is heating up, drops of hot water may be discharged from the brewing head. Siting (Fig.D) Place the coffee machine in a safe place where no one can tip it over or be injured by it. Hot water or steam could be discharged: danger of scalding! Do not keep the machine at a temperature below 0°C; frost may damage the machine. Do not use the coffee machine outdoors. To prevent the casing from melting or being damaged, avoid resting the machine on very hot surfaces or near open flames. Cleaning (Fig.E) Before cleaning the machine, it is indispensable to turn off all the controls and remove the plug from the socket. Then wait for the machine to cool down. Never immerse the machine in water! It is strictly forbidden to attempt to access internal machine parts. Space for use and maintenance (Fig.D) To ensure that the coffee machine works properly and efficiently, you are advised to:

• Rest it on a perfectly level surface;

• Place it an adequately lit, hygienic location within easy reach of an electric socket;

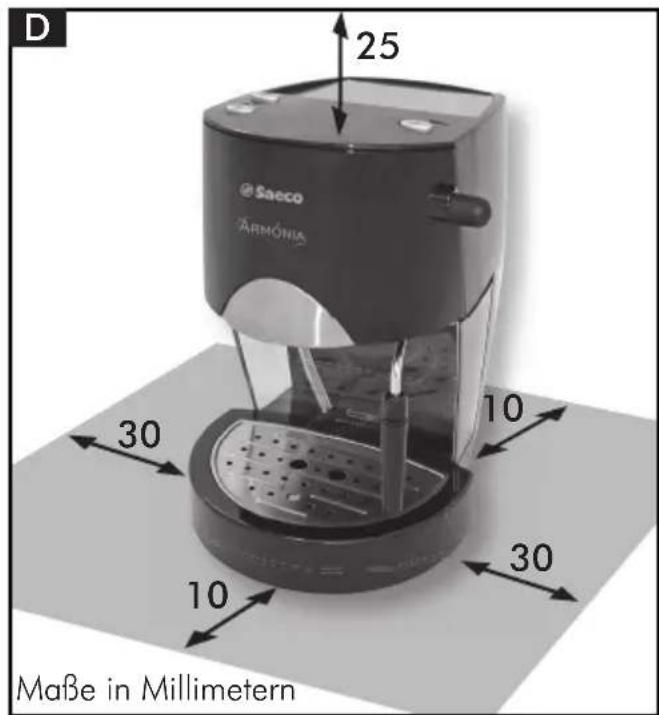

• Ensure a minimum clearance between the machine and walls as shown in the illustration. Safety rules 4316036000 - SIN024X Rev00.indd 21 10/05/2004 11.57.17ENGLISH

• 22 • Storing the machine If the machine is to remain out of use for a long time, it should be switched off and un- plugged. Store it in a dry place out of children’s reach. Keep it protected from dust and dirt. Servicing / Maintenance In the event of a breakdown, fault or suspected damage after a fall, immediately unplug the machine. Never attempt to operate a faulty machine. Maintenance and repairs are to be carried out exclusively by Authorized Service Centres. The manufacturer will accept no liability for any damage caused by improper or unauthorized servicing. Fire safety In the event of a fire, use carbon dioxide (CO

extinguishers. Do not use water or powder extinguishers. Key to machine components (Pg.3) 1 Water tank 2 ON/OFF switch 3 Power ON light 4 Coffee switch 5 Temperature ready light 6 Steam switch 7 Hot water/steam knob 8 Brew unit 9 Steam tube (“pannarello”) 10 Power cord 11 Drip tray + grill 12 Level indicator for the tank 13 Cup-warming plate 14 “Crema” filter holder 15 Filter for “Crema” filter holder (For making either 1 or 2 coffees) 16 Coffee measure 17 Filter for pods 18 Adaptor for pods Safety rules - Key to machine components 4316036000 - SIN024X Rev00.indd 22 10/05/2004 11.57.17ENGLISH

• 23 • 4 INSTALLATION For your own safety and the safety of others, you must strictly comply with the “Safety Rules” described in section 3.

The original packaging was designed and made to protect the machine during shipping. We recommend keeping it for future transport purposes.

4.2 Installation precautions

Before installing the machine, make sure to follow these safety precautions:

• put the machine in a safe place;

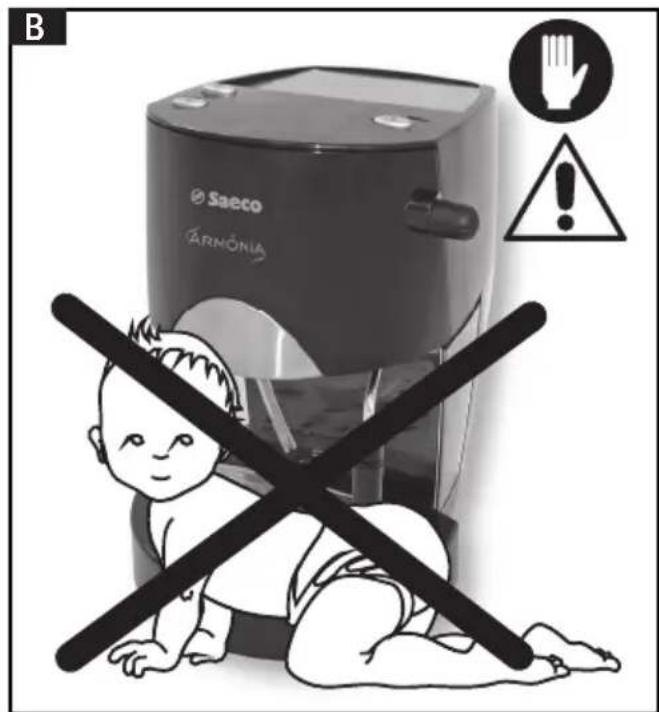

• make sure that children are not allowed to play with the machine;

• avoid placing the machine on very hot surfaces or near open flames. Now the coffee machine is ready to be connected to the mains power supply.

4.3 Mains connection

Electricity can be dangerous! There- fore, always strictly abide by the safety rules. Never use defective cords! Defective cords and plugs must be immediately replaced by an Authorised Service Centre. The coffee machine must be plugged into a suitable electric socket. The voltage of the appliance is factory set. Check that the mains voltage matches the rating specified on the identification plate on the bottom of the appliance.

• Before plugging in the machine, make sure the ON/OFF switch is not pressed (2).

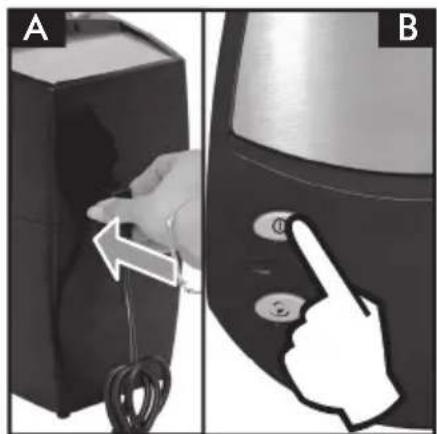

• (Fig.4A) - Put the socket into the outlet on the rear of the machine.

• Connect the other socket to a wall outlet having the proper voltage.

4.4 Filling the water tank

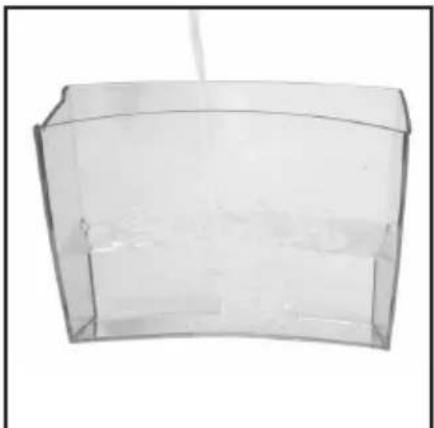

• (Fig.1) - Remove the water tank (1) taking care not to damage the water suction tube.

• (Fig.2) - Rinse out the tank and fill it with fresh drinking water, taking care not to overfill.

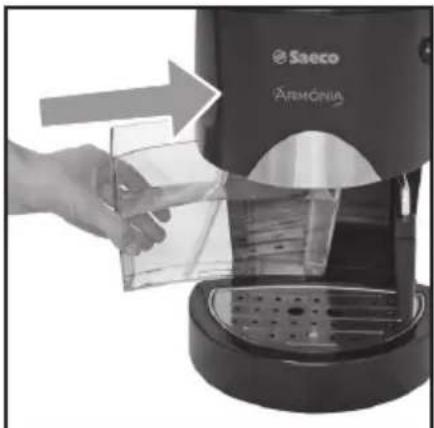

• (Fig.3) - Fit the tank again in its position, and place the tube previously removed. Always fill the tank with fresh, still drinking water. Hot water and/or other liquids may dama

ge the tank. Always make sure that there is sufficient water in the tank before starting the machine.

4.5 Loading the circuit

Before starting the machine, if it has been inoperative for a long time and all the water has been used up, you must reload the circuit.

• (Fig.4B) - Press the ON/OFF switch (2). The light (3) will go on.

• (Fig.5) - Place a container beneath the steam tube. Turn the “hot water/steam” knob (7) counterclockwise to open.

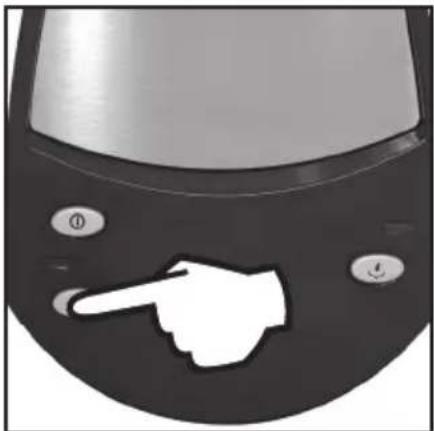

• (Fig.6) - Press the coffee switch (4).

• Wait until a steady stream of water flows from the steam tube (“pannarello”).

• Press the coffee switch (4) again. Turn the “hot water/steam” knob (7) clockwise to shut off flow (Fig.7). Remove the container. The machine is now ready to dispense coffee and steam; for a description of machine functions, see the specific sections. 5 MAKING COFFEE Warning! While the brew unit is operating it is forbidden to remove the “Crema” filter holder by manually turning it clockwise. Danger of burns!

• During this operation the temperature ready light (5) may go on and off; this is normal and not to be considered a fault. Installation 4316036000 - SIN024X Rev00.indd 23 10/05/2004 11.57.18ENGLISH

• Before using the machine, make sure that the hot water/steam knob (7) is closed and that there is a sufficient amount of water in the tank.

• (Fig.4B) - If the machine is off, turn it on by pressing the ON/OFF switch (2); the light (3) will go on.

• Wait until the temperature ready light (5) goes on; now the machine is ready to dispense coffee.

5.1 With ground coffee

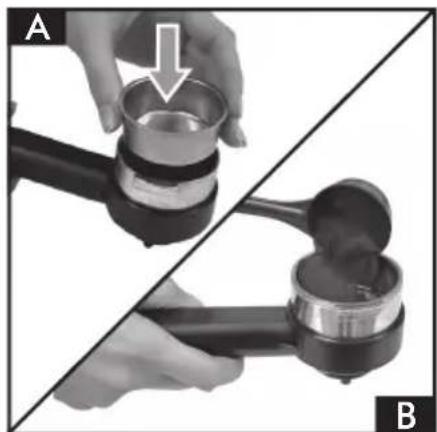

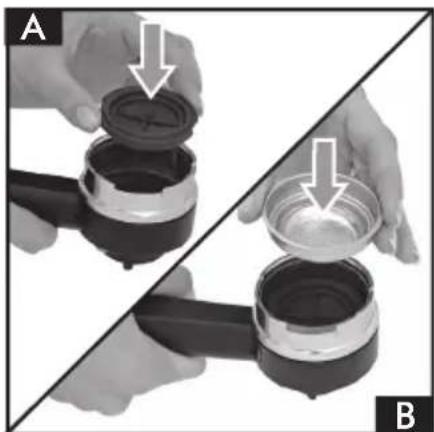

• (Fig.8A) - Place the filter (15) inside the “Crema” filter holder (14).

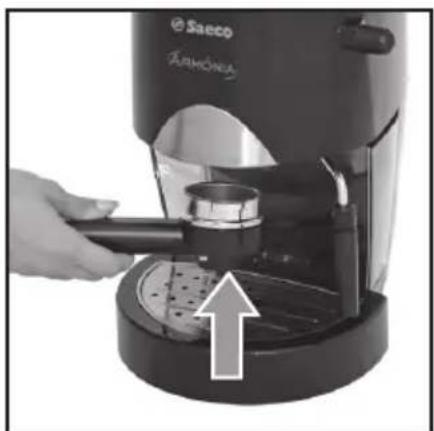

• (Fig.10) - Fit the “Crema” filter holder into the brew unit (8) from below.

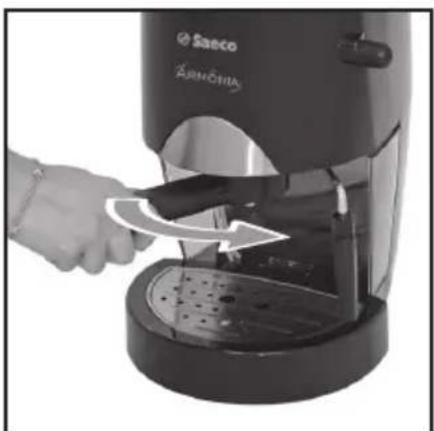

• (Fig.11) - Turn the filter holder from left to right until it locks into place.

• Let go of the handle of the “Crema” filter holder. An automatic system will now cause the handle to shift slightly back to the left. This serves to ensure that the “Crema” filter will function perfectly.

• (Fig.13) - Preheat the “Crema” filter holder by pressing the coffee switch (4); water will start to come out of the “Crema” filter holder (this operation is only necessary for the first cup of coffee).

• After allowing 50cc of water to flow out, press the coffee switch (4) again to shut off the flow of hot water.

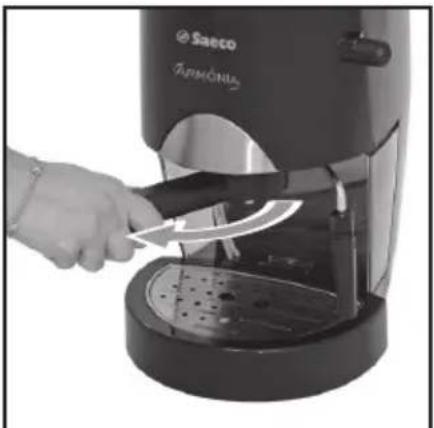

• (Fig.15) - Remove the “Crema” filter holder from the machine by turning it from right to left and empty out any water inside it.

• Thanks to the special “Crema” filter holder (14) supplied with your machine, you need not change the filter when you switch between one and two cups of coffee.

• (Fig.8B) - Pour 1 or 2 level measures of ground coffee in the filter, depending on whether you want to make one or two cups of coffee; wipe the edge of the filter holder clean of any coffee grounds.

• (Fig.10) - Fit the “Crema” filter holder into the brew unit (8) from below.

• (Fig.11) - Turn the filter holder from left to right until it locks into place.

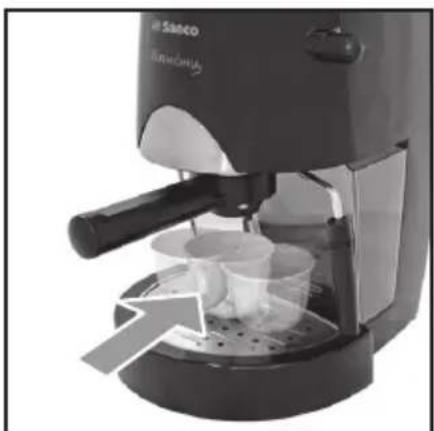

• (Fig.12) - Place 1 or 2 preheated cups beneath the “Crema” filter; make sure that you position them properly under the coffee outlets.

• (Fig.13) - Press the coffee button (4).

• When you have dispensed the desired amount of coffee, press the coffee button (4) again to stop flow and remove the cups containing the coffee (Fig.14)

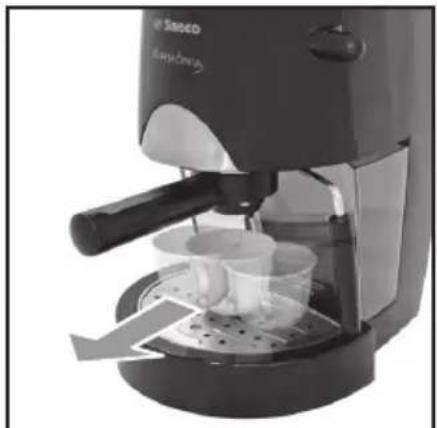

• (Fig.15) - After making coffee, wait a few seconds, remove the “Crema” filter holder and empty out the used grounds. Cleaning note: keep the coffee filter clean by detaching it from the “Crema” filter holder and washing it with drinking water (Fig.16).

5.2 With coffee pods

• (Fig.9) - Fit the adaptor for pods (18) into the “Crema” filter holder (14), then also put the filter (17).

• (Fig.10) - Fit the “Crema” filter holder into the brew unit (8) from below.

• (Fig.11) - Turn the filter holder from left to right until it locks into place.

• Let go of the handle of the “Crema” filter holder. An automatic system will now cause the handle to shift slightly back to the left. This serves to ensure that the “Crema” filter will function perfectly.

• (Fig.13) - Preheat the “Crema” filter holder by pressing the coffee switch (4); water will start to come out of the “Crema” filter holder (this operation is only necessary for the first cup of coffee).

• After allowing 50cc of water to flow out, press the coffee switch (4) again to shut off the flow of hot water. Making coffee 4316036000 - SIN024X Rev00.indd 24 10/05/2004 11.57.18ENGLISH

• (Fig.15) - Remove the “Crema” filter holder from the machine by turning it from right to left and empty out any water inside it.

• Fit the pod into the filter holder; make sure the pod paper does not come out from the filder holder.

• (Fig.10) - Fit the “Crema” filter holder into the brew unit (8) from below.

• (Fig.11) - Turn the filter holder from left to right until it locks into place.

• (Fig.12) - Take 1 pre-warmed cup and put it beneath the filter holder; make sure it is correctly positioned beneath the coffee dispensing nozzles.

• (Fig.13) - Press the coffee button (4).

• When you have dispensed the desired amount of coffee, press the coffee button (4) again to stop flow and remove the cup containing the coffee (Fig.14).

• (Fig.15) - After dispensing, wait some seconds, remove the filter holder, and dispose of the pod used. Cleaning note: keep the coffee filter clean by detaching it from the “Crema” filter holder and washing it with drinking water (Fig.16).

Generally speaking, you can use any type of commercially available coffee. However, coffee is a natural product and its flavour will vary depending on where it comes from and the blend used; it is thus a good idea to try out different types until you find the one that best suits your personal taste. For best results you should use blends specifically prepared for espresso coffee machines. Coffee should flow out smoothly from the “Crema” filter holder without dripping. The speed of flow can be adjusted by slightly changing the amount of coffee in the filter and/ or using coffee with a finer or coarser grind. B E F O R E AT T E M P T I N G A N Y

OPERATION INVOLVING THE

RELEASE OF STEAM OR HOT WATER,

7 DISPENSING HOT WATER

Danger of scalding! Brief sprays of hot water may be discharged at first. The dispensing tube can reach very high temperatures: avoiding touching it directly with your hands.

• (Fig.4B) - If the machine is off, turn it on by pressing the ON/OFF switch (2); the light (3) will go on.

• Wait until the temperature ready light (5) goes on.

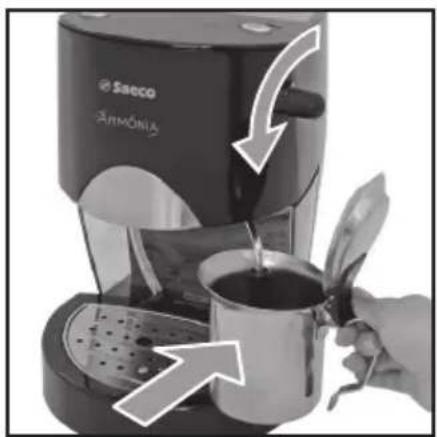

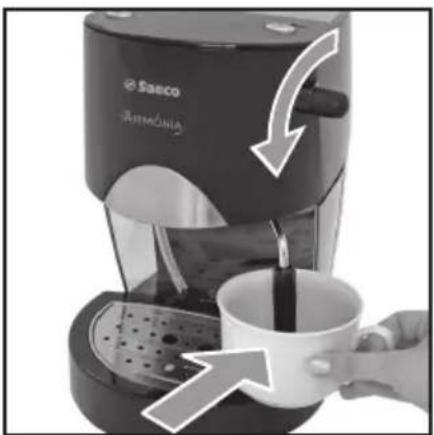

• (Fig.17) - Place a container or mug beneath the steam tube (“pannarello”). Turn the “Hot water/steam” knob (7) counterclockwise to open.

• (Fig.18) - Press the coffee button (4) to dispense hot water.

• When you have dispensed the desired quantity of hot water, press the coffee button (4) again.

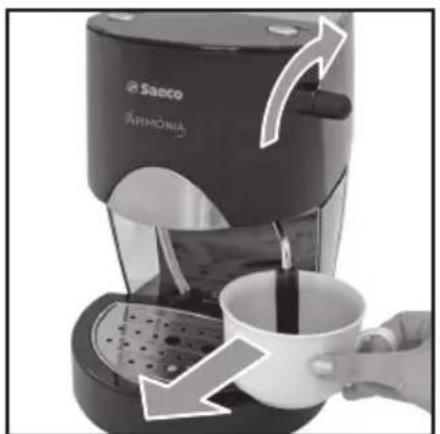

• (Fig.19) - Turn the knob (7) clockwise to close. Remove the container of hot water. 8 D I S P E N S I N G S T E A M / MAKING CAPPUCCINO Danger of scalding! The steam may be preceded by brief sprays of hot water. The dispensing tube can reach very high temperatures: avoiding touching it directly with your hands.

• (Fig.4B) - If the machine is off, turn it on by pressing the ON/OFF switch (2); the light (3) will go on.

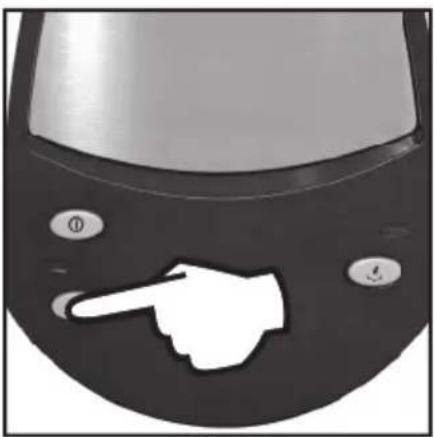

• (Fig.20) - Press the (6) steam switch. The temperature ready light will go off (5).

• Wait until the temperature ready light (5) goes back on. Now the machine is ready to Choosing the type of coffee - Making cappuccino 4316036000 - SIN024X Rev00.indd 25 10/05/2004 11.57.18ENGLISH

• 26 • dispense steam.

• (Fig.17) - Place a container beneath the steam tube and open the “Hot water/ steam” knob (7) for a few seconds to di- scharge residual water from the steam tube (“pannarello”). Shortly only steam will issue from the tube.

• (Fig.19) - Close the knob (7) and remove the container.

• Fill the container you want to use for making cappuccino to 1/3 with cold milk. For best results, use only cold milk when making cappuccino.

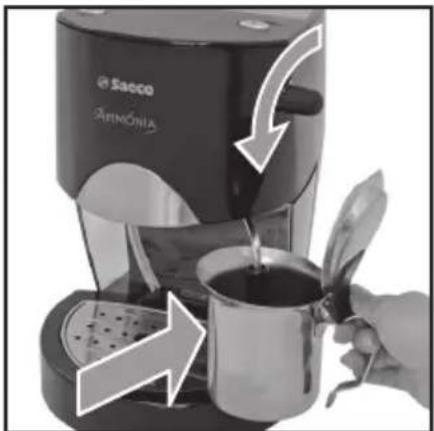

• (Fig.21) - Place the tip of the steam tube in the milk to be heated and turn the knob (7) counterclockwise; move the container slowly up and down and in circles to heat the milk evenly.

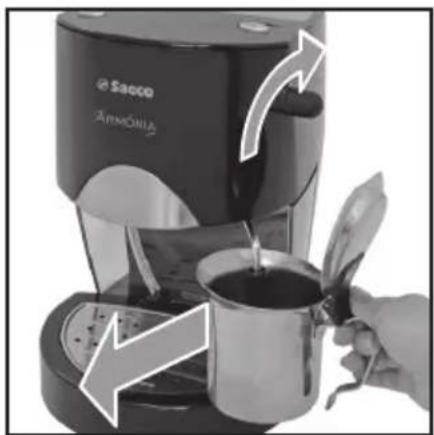

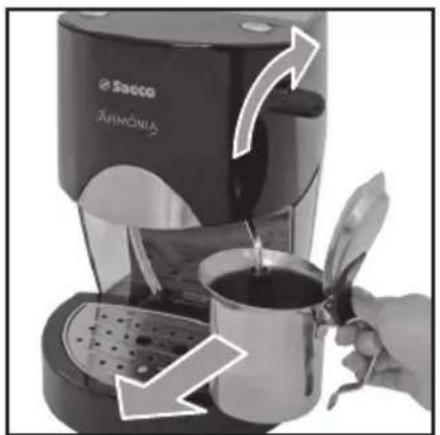

• (Fig.22) - After frothing the milk as desired, turn the knob (7) clockwise to shut off steam. Remove the cup with frothed milk.

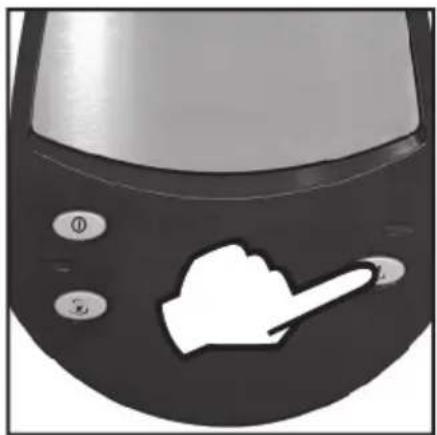

• (Fig.20) - Press the steam switch (6) again.

• Load the circuit as directed in section 4.5 to prepare the machine for use. The same method may be used to heat other beverages.

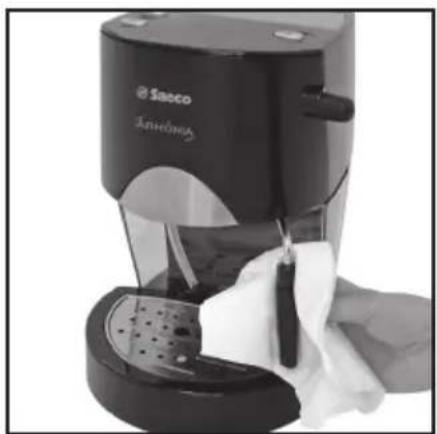

• (Fig.23) - After completing this operation, wipe the steam tube clean with a damp cloth. 9 CLEANING Maintenance and cleaning jobs may be carried out only when the machine is cold and disconnected from the power supply.

• Do not immerse the machine in water nor place any of its components in a dish- washer.

• Do not use sharp objects or harsh chemical products (solvents) for cleaning.

• It is recommended to clean the water tank daily and refill it with fresh water.

• (Fig.23) - After heating milk, release a small quantity of hot water to clean out the tube. Wipe the outside of the tube clean with a damp cloth.

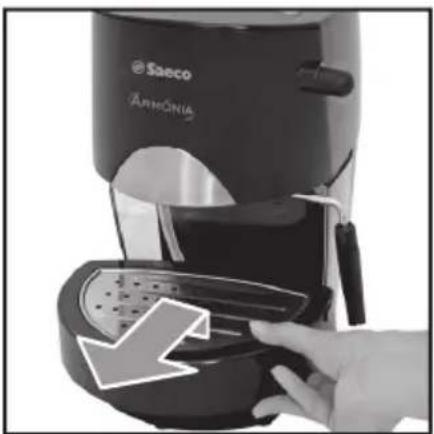

• (Fig.24) - Everyday you should empty and wash the drip tray.

• Use a soft cloth dampened with water to clean the machine body.

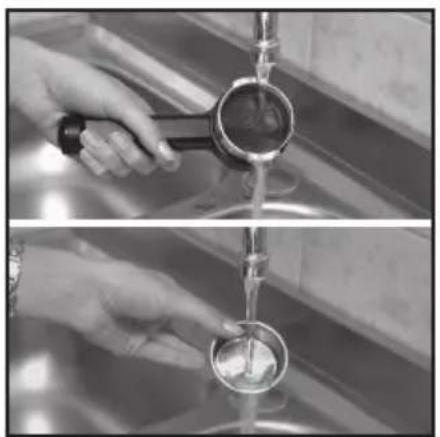

• (Fig.16) - To clean the “Crema” filter holder: - Remove the filter, immerse it in hot water and wash it thoroughly. - Wash out the inside of the “Crema” filter holder.

• Never dry the machine and/or its components in a microwave or conventional oven. 10 DESCALING Scale normally forms inside the machine with use; descaling is necessary every 3-4 months or whenever you observe a decrease in water flow. If you wish to descale the machine yourself, you can use any commercially available non-toxic, non-harmful descaling product for coffee machines. We recommend using Saeco descaler. Warning! Never use vinegar as a descaling agent.

• Remove the water tank and empty out any water left inside it.

• (Fig.2) - Mix the descaling agent with water as directed on the package and pour all the solution into the tank. Place the tank inside the machine

• (Fig.4B) - Turn on the machine by pressing the ON/OFF switch (2).

• (Fig.5) - Place a container beneath the steam tube.

• Empty the entire contents from the water tank at intervals (one cup at a time): turn the steam knob (7) counterclockwise and press the coffee switch (4) to activate flow and then press the coffee switch (4) again and turn the Cleaning - Descaling 4316036000 - SIN024X Rev00.indd 26 10/05/2004 11.57.18ENGLISH

• 27 • steam knob (7) clockwise to shut off flow.

• (Fig.4B) - You should allow the descaling agent to act for about 10-15 minutes during each interval; in the meantime, turn off the machine by pressing the ON/OFF switch (2). Empty out the container.

• (Fig.2) - When all the descaling solution has been run through the machine, take out the water tank, rinse it out and refill it with fresh drinking water.

• (Fig.3; Fig.5) - Place the tank back inside the machine. Empty out 2/3 of the water in the tank by turning the steam knob (7) counterclockwise and pressing the coffee switch (4); to shut off flow press the coffee switch (4) again and turn the steam knob (7) clockwise.

• Let the machine heat up and empty out the remaining water in the tank by turning the steam knob (7) counterclockwise and pressing the coffee switch (4); to shut off flow press the coffee switch (4) again and turn the steam knob (7) clockwise. Should you use a descaling product other than the one recommended, make sure in any case to follow the manufacturer’s directions on the package. 11 REGULAR SERVICING Having your machine regularly serviced by an Authorised Service Centre will extend its life and keep it performing reliably. Keep the original packing container to protect the machine during transport. 12 LEGAL INFORMATION

• These operating instructions contain all the necessary information for proper use, operation and upkeep of the appliance.

• The user must be acquainted with these instructions and observe them carefully in order to operate and maintain the appliance safely and avoid hazards.

• If you wish to receive further information Regular servicing - Legal information or encounter any particular problems you feel have not been explained with sufficient clarity in these operating instructions, please contact your local dealer or the manufacturer directly.

• You should note, moreover, that the contents herein do not form part of a previous or already existing agreement or legal contract and thus do not affect the substance of the latter.

• All the manufacturer’s obligations are based on the conditions set forth in the contract of sale, which also contains complete and exclusive terms with regard to warranty services.

• The warranty terms specified in the contract are neither limited nor extended by the explanations provided herein.

• These operating instructions contain informa- tion protected by copyright.

• They may not be photocopied or translated into another language without the Manufacturer’s prior written consent. 13 DISPOSAL

• Appliances no longer in use should be rendered unusable.

• Unplug the machine, and remove the electric cable.

• At the end of their life appliances should be taken to a suitable waste collection facility. 4316036000 - SIN024X Rev00.indd 27 10/05/2004 11.57.18ENGLISH

• 28 • Troubleshooting Problem Possible causes Remedy The machine does not turn on The machine is not connected to the power supply Connect the machine to the power supply The pump is very noisy Water level in tank too low Add water (section 4.4) The coffee is too cold The temperature ready light (5) was off when you pressed the switch (4) Wait until the light goes on Filter holder not inserted for pre- heating (section 5). Pre-heat the filter holder The milk does not froth properly Wrong kind of milk Check the fat content The coffee flows out too fast and no creamy froth forms on the surface Not enough coffee in the filter holder Add some coffee (section 5) Coffee ground too coarsely Use a different blend (section 6) Stale or unsuitable coffee. Use a different blend (section 6). No coffee flows out or it just drips out slowly Water level in tank too low Add water (section 4.4) Coffee ground too finely Use a different blend (section 6) Coffee compressed too firmly in the filter Loosen the ground coffee Too much coffee in the filter Reduce the amount of coffee in the filter holder “Hot water/steam” knob (7) open. Turn the knob (7) clockwise to close Excessive buildup of scale Descale the machine (section 10) Filter in filter holder clogged Clean the filter (section 9) Coffee leaks outside the rim Filter holder not properly fit into brew unit Fit the filter holder properly in place (section 5) Upper rim of filter holder dirty Clean the filter holder rim Boiler gasket dirty or worn Clean or replace gasket Too much coffee in the filter holder Reduce the amount of coffee. Use the measure for the right amount. Should any problems occur that are not included in the above table or cannot be re- solved using the remedies suggested contact an authorised service centre. 4316036000 - SIN024X Rev00.indd 28 10/05/2004 11.57.19ENGLISH
