USER MANUAL Buffalo Classic Plus Bugaboo

Abstract gray circular lines forming a ring-like pattern (no text or symbols)

bugaboo buffalo

gebruiksaanwijzing

user guide

bedienungsanleitung

mode d'emploi

inhoud

inleiding

in de doos 4

3D rendering of a mechanical frame assembly with no visible text or symbols

onderstel

Isometric illustration of a mechanical linkage or rail system with two articulated arms (no text or symbols)

frame

Illustration of a gray cylindrical object with internal ribs and mounting holes (no text or symbols)

bagagenet

3D rendering of a gray rectangular container with internal curved lines and mounting holes (no text or symbols)

wieg

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

stoel baleinen en

Illustration of a folded fabric or material with no visible text or symbols

regenscherm

A B C D J I H G F E

duwbeugelA.

tashaakB.

K L M N S O P Q R

polsbandK.

meet the bugaboo buffalo 20

warnings

maintenance tips 25

cleaning the fabrics 25

warranty (not for usa and canada) 26

replaceable parts 28

contact 28

2

setting up the bugaboo buffalo

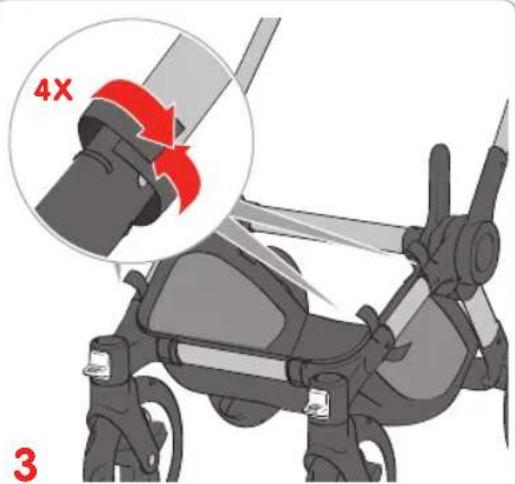

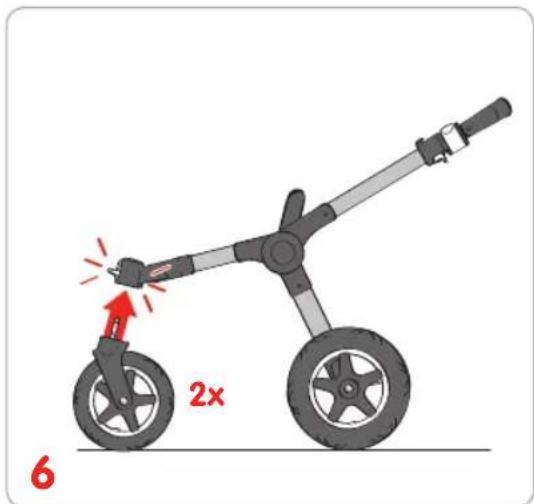

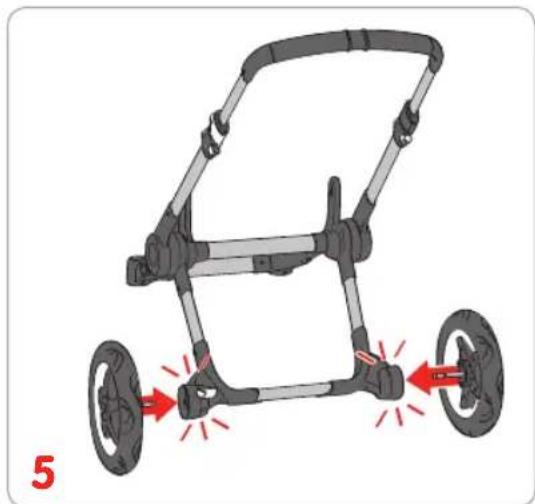

assembling the chassis 214

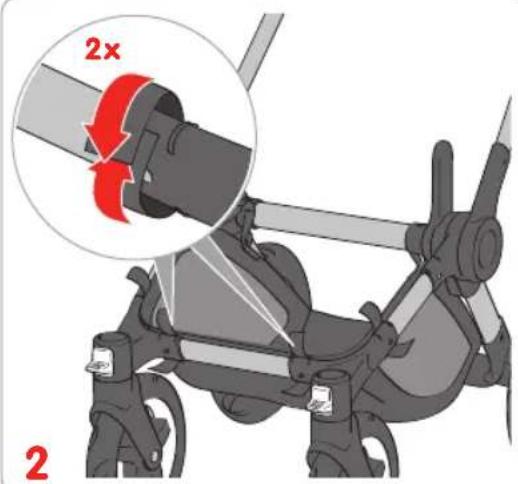

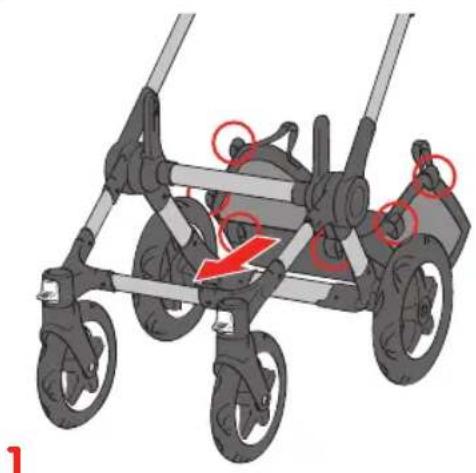

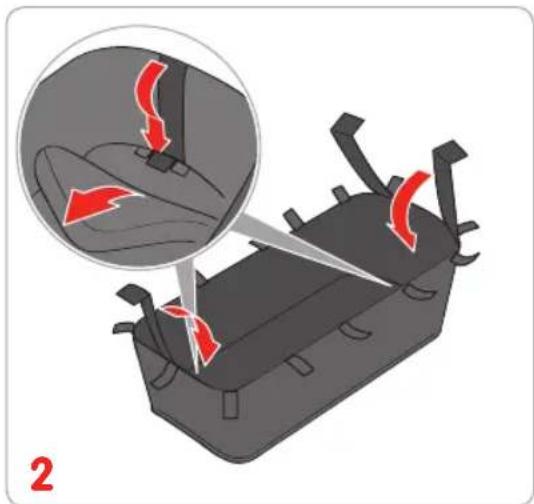

attaching the underseat basket 216

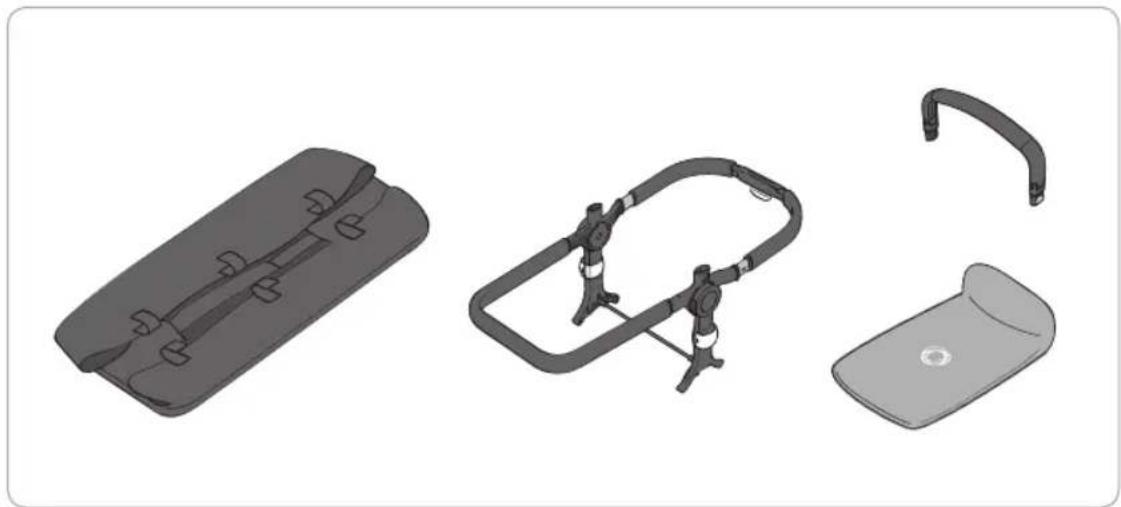

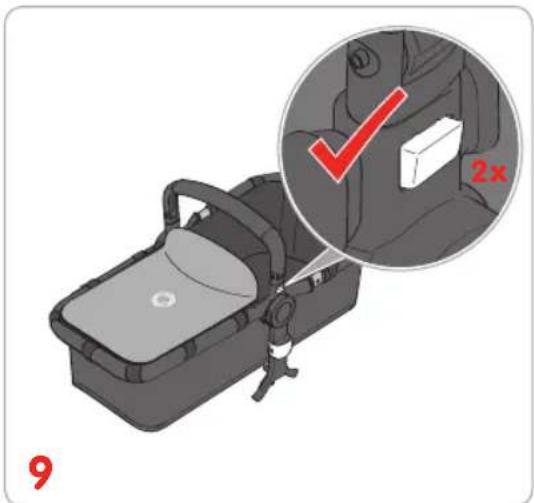

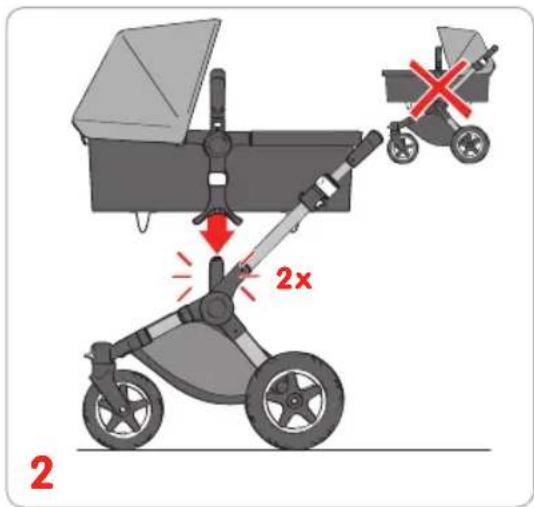

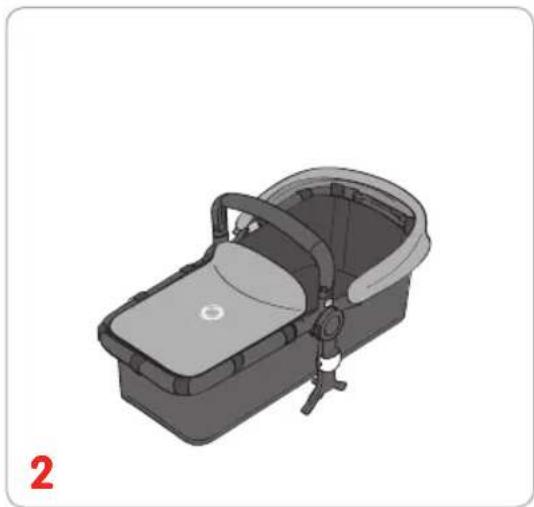

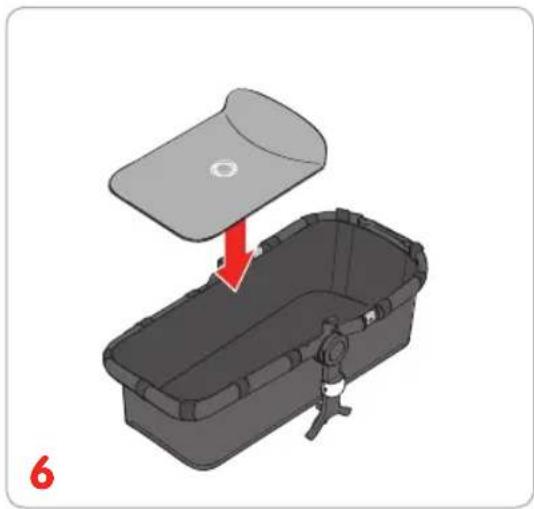

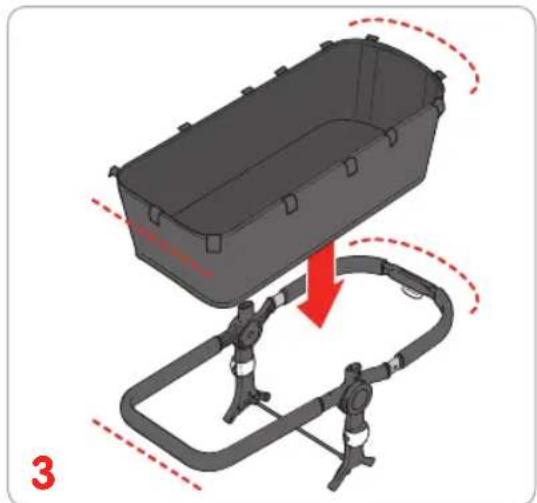

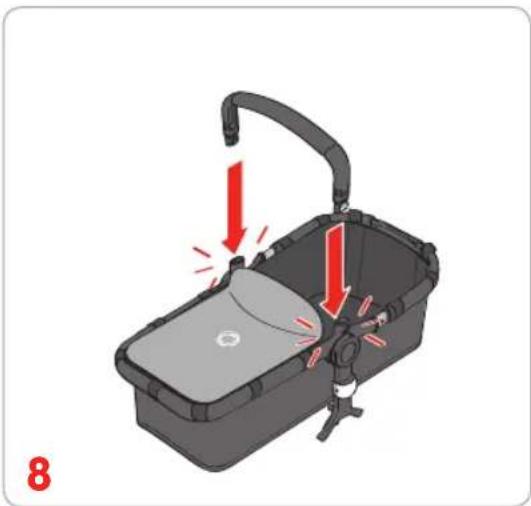

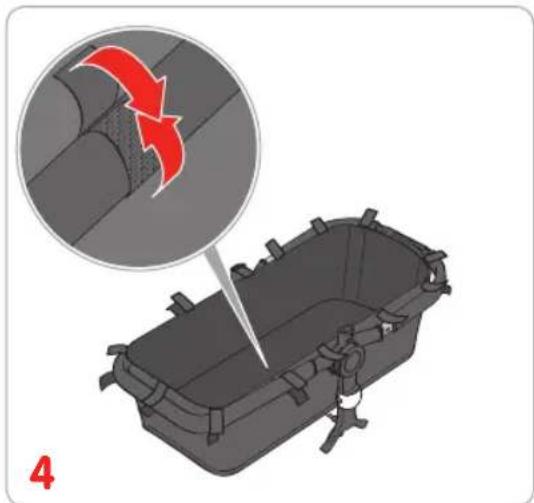

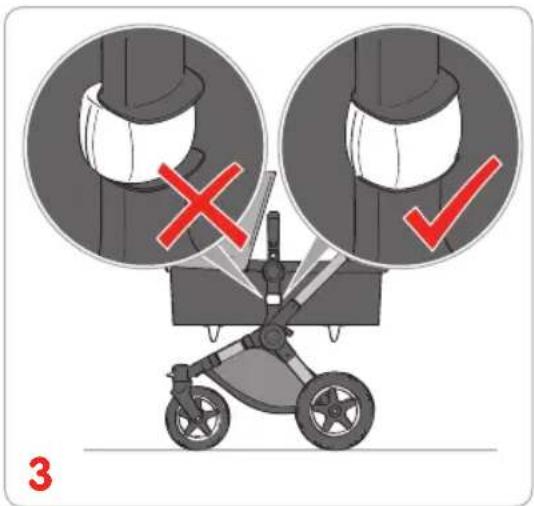

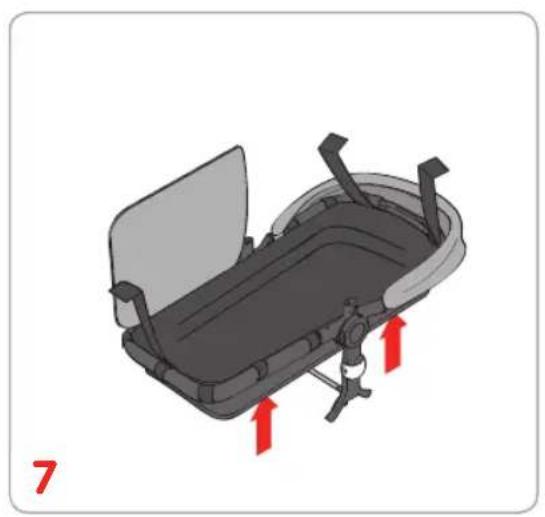

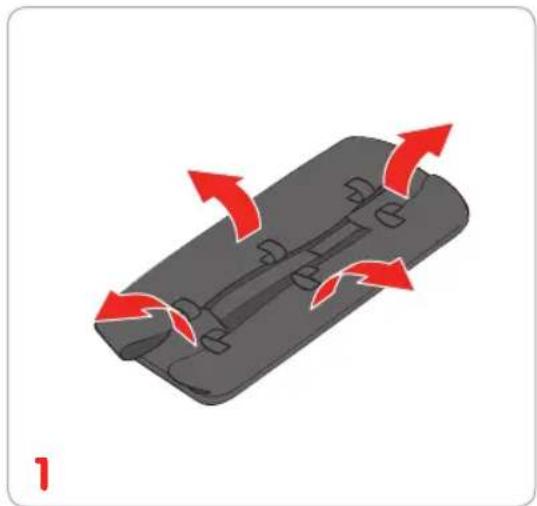

assembling the bassinet/carrycot 217

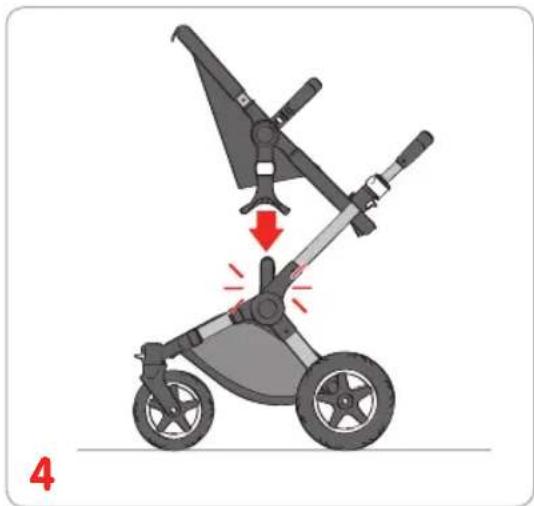

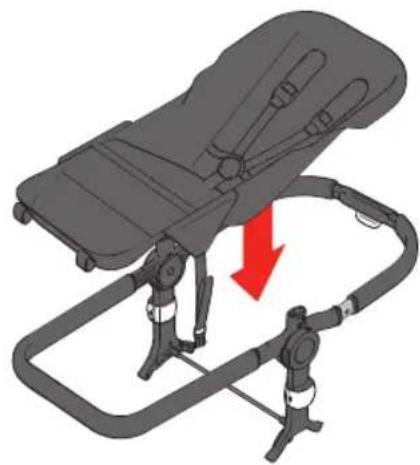

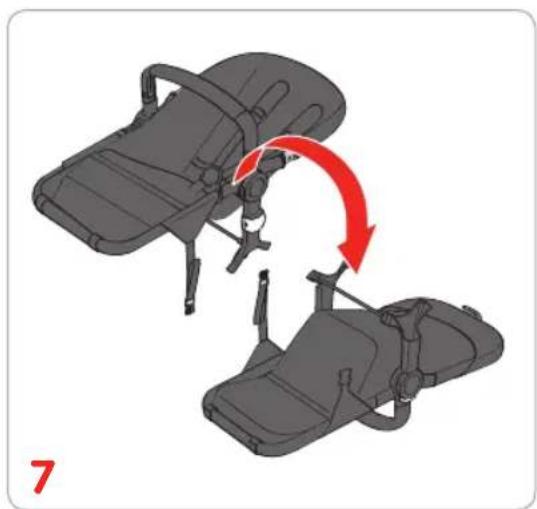

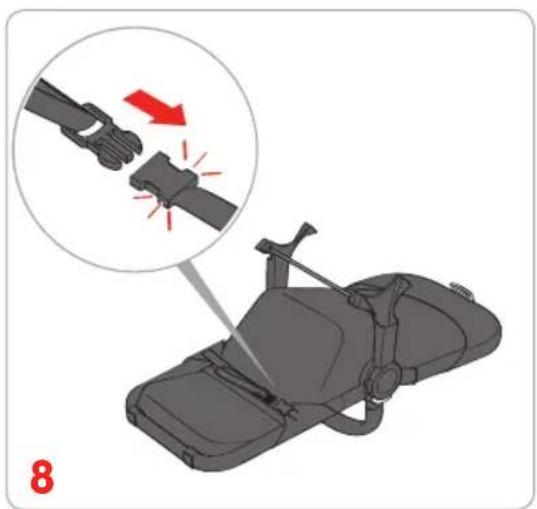

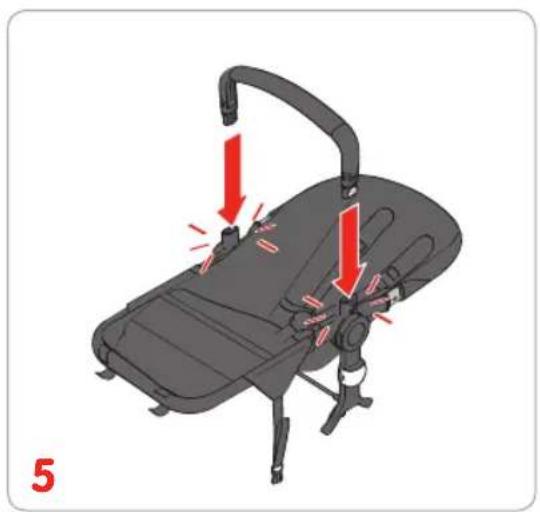

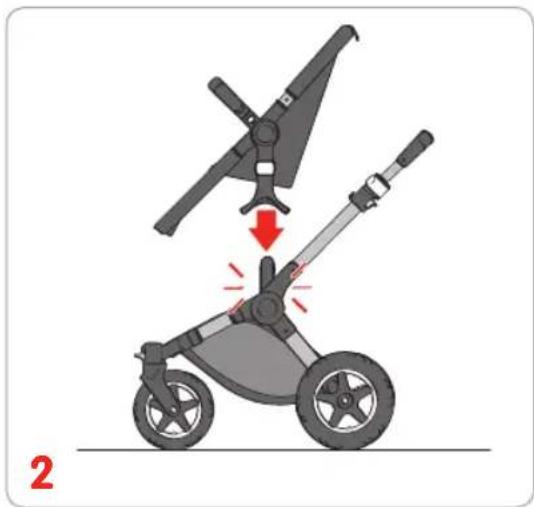

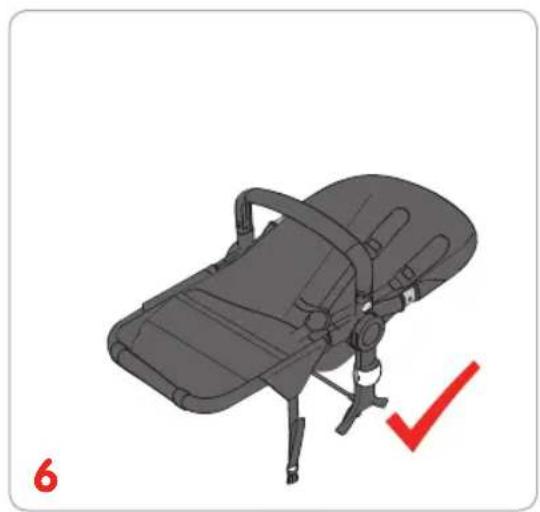

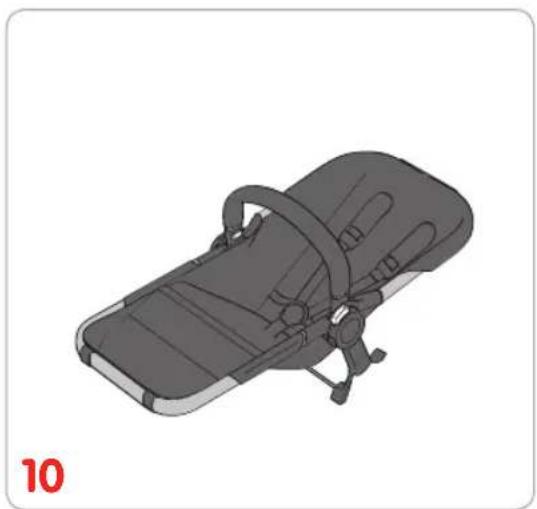

assembling the seat 219

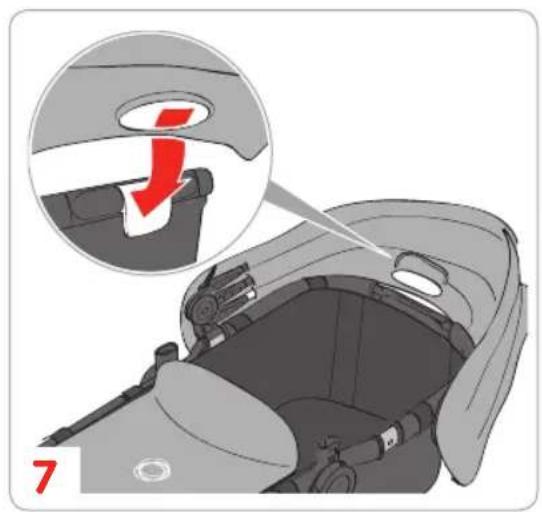

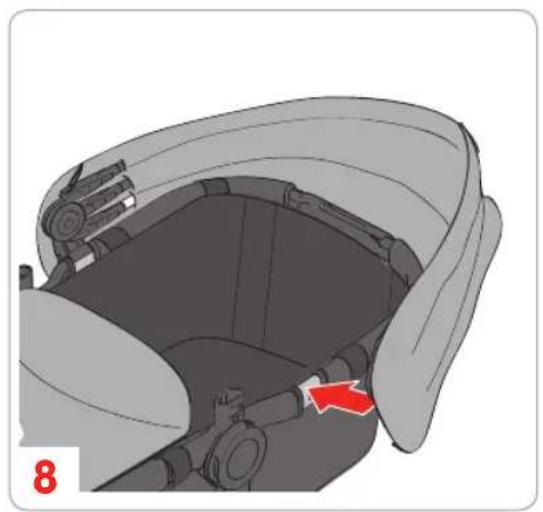

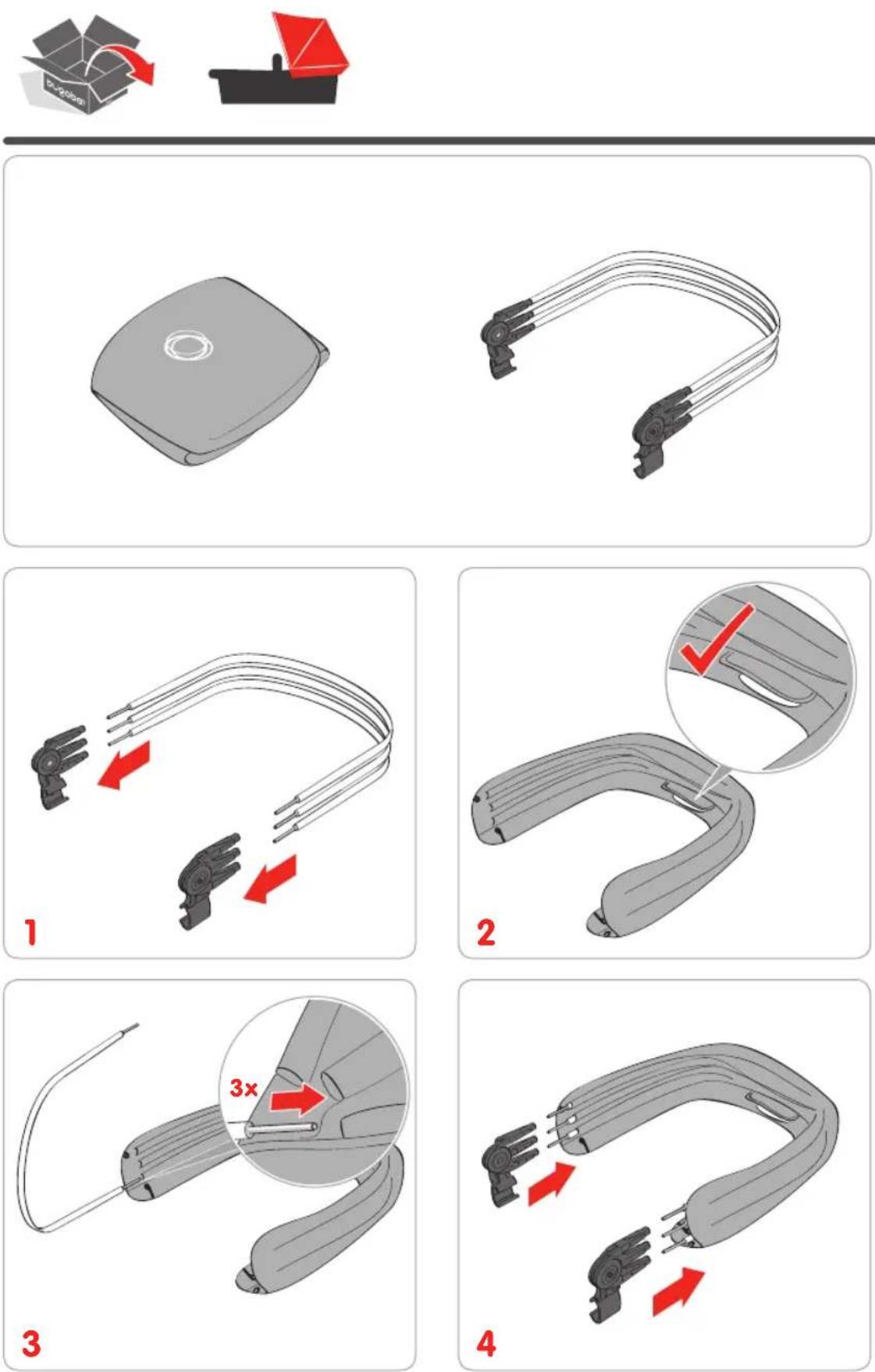

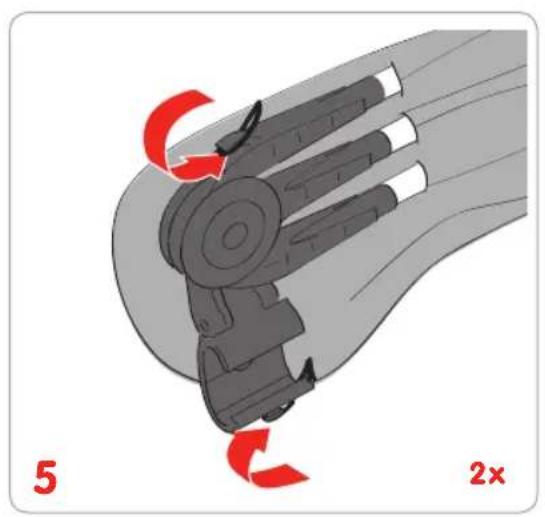

assembling and attaching the sun canopy 221

using the bugaboo buffalo

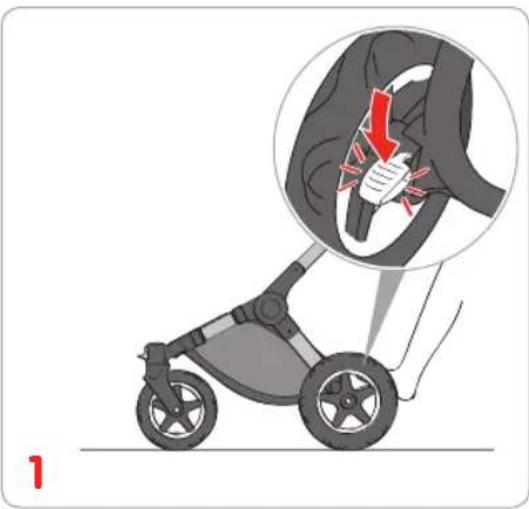

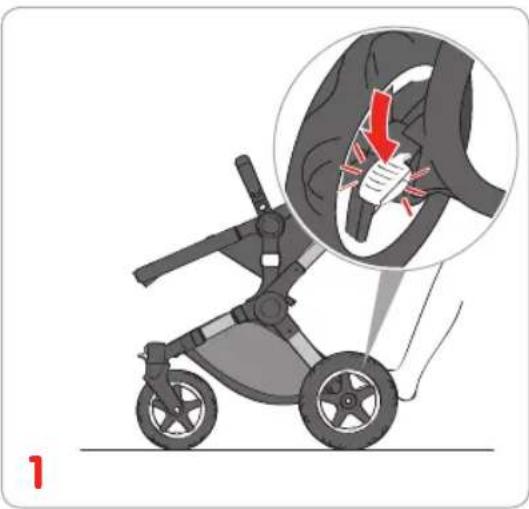

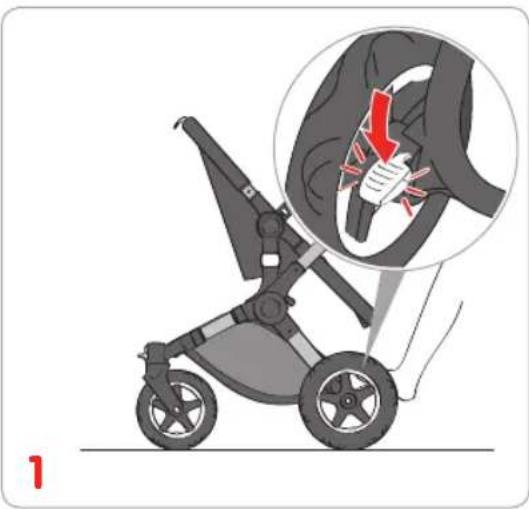

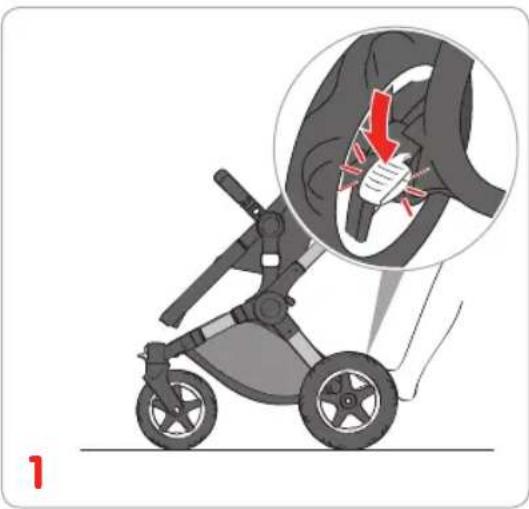

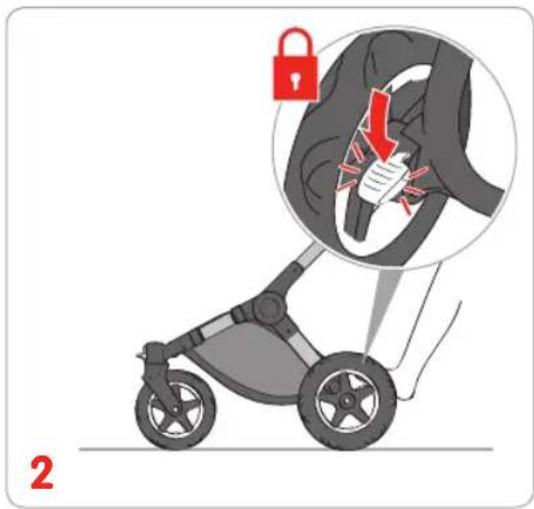

using the brake 223

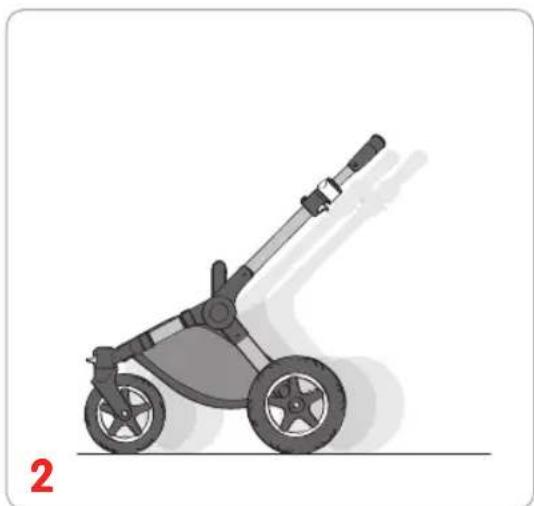

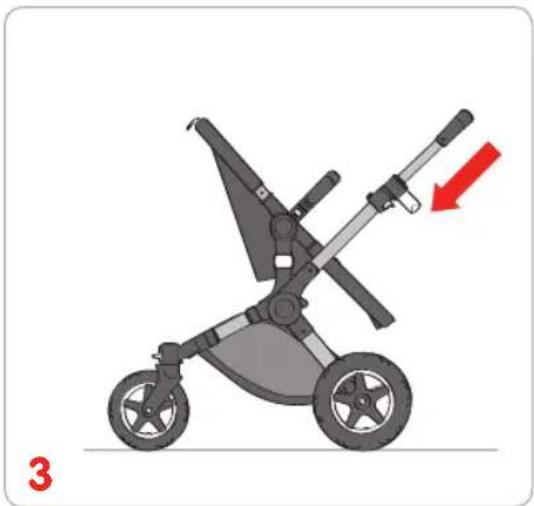

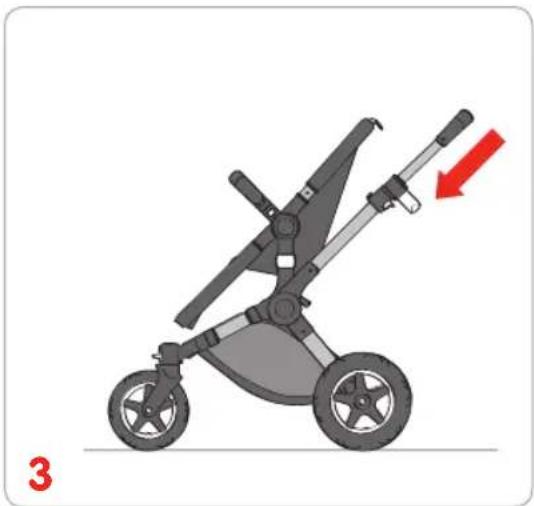

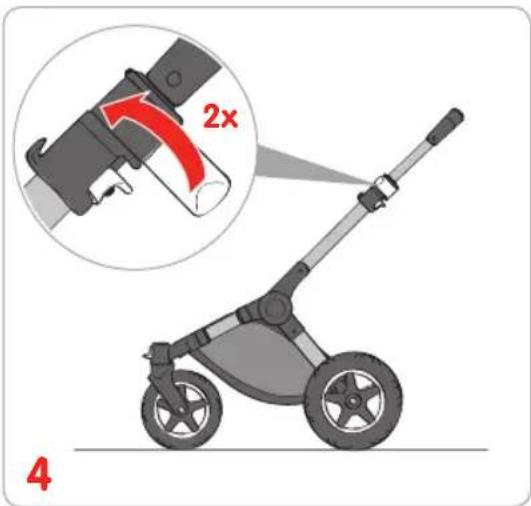

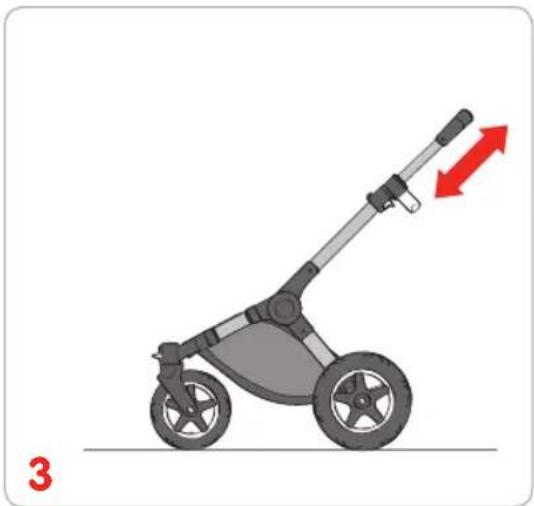

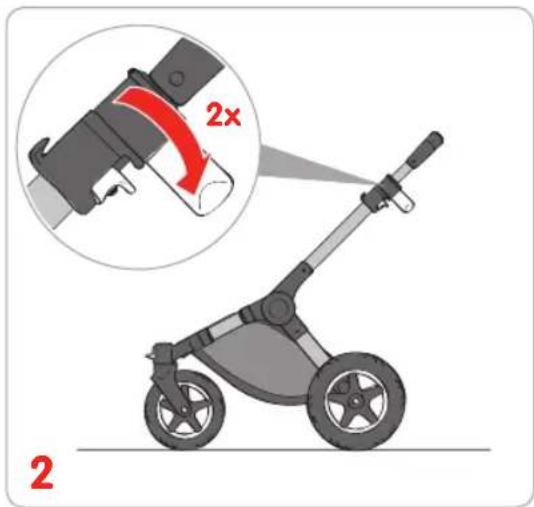

adjusting the handlebar 224

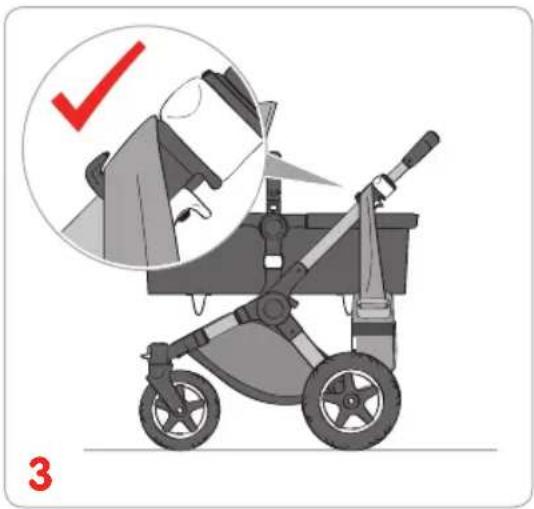

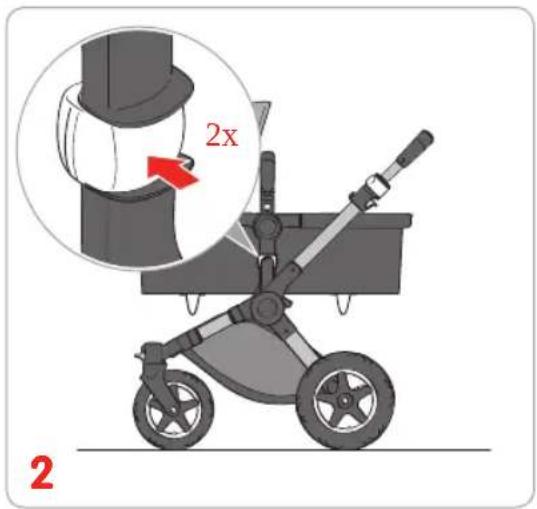

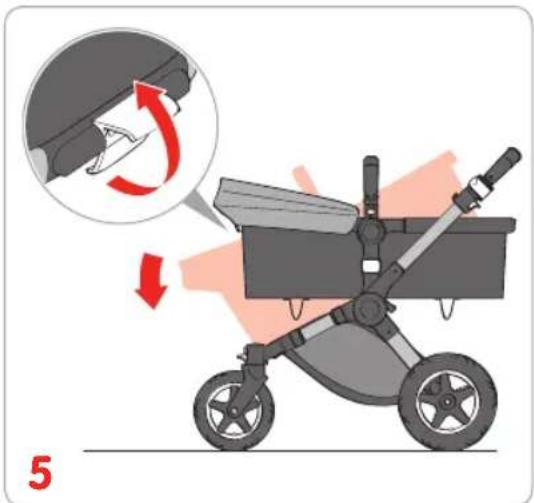

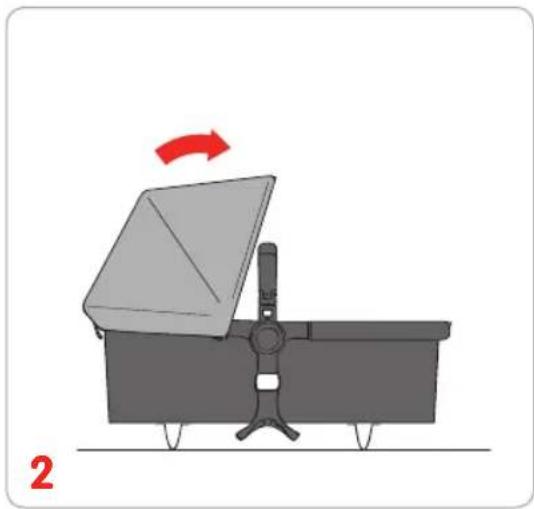

using the bassinet/carrycot

225

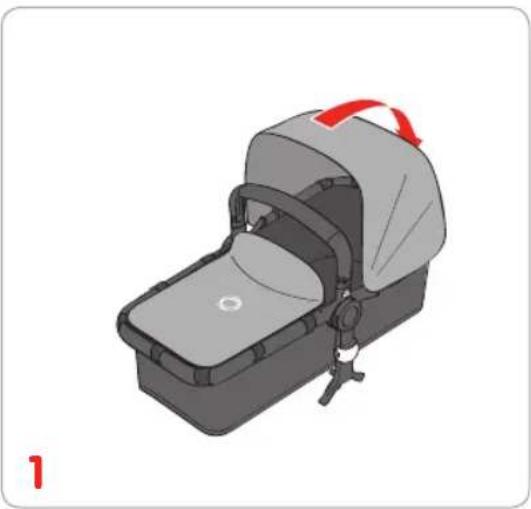

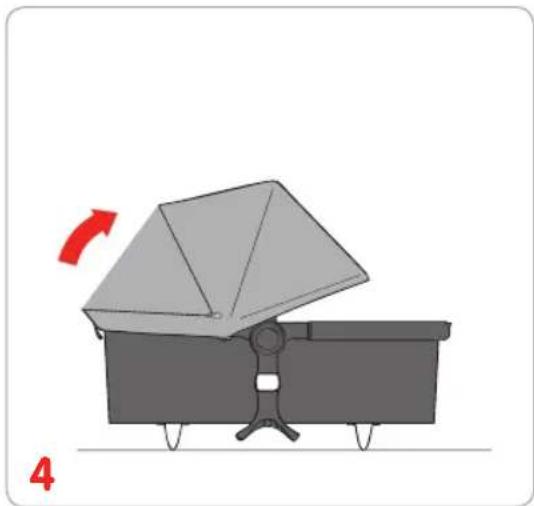

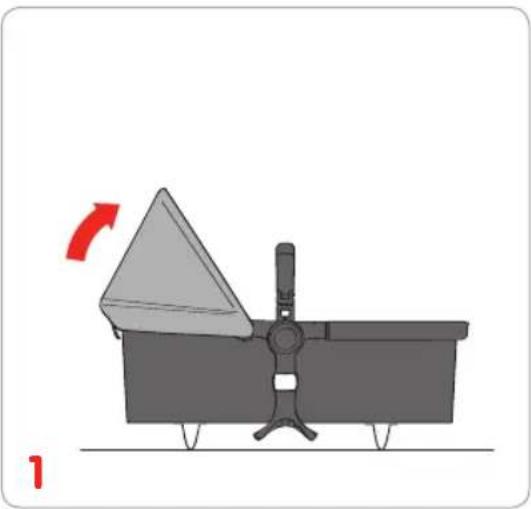

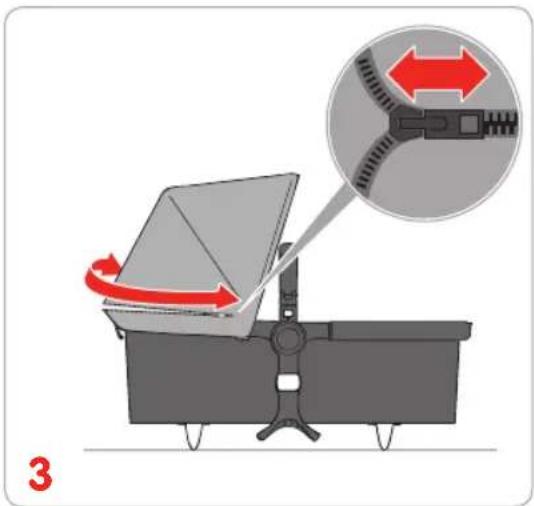

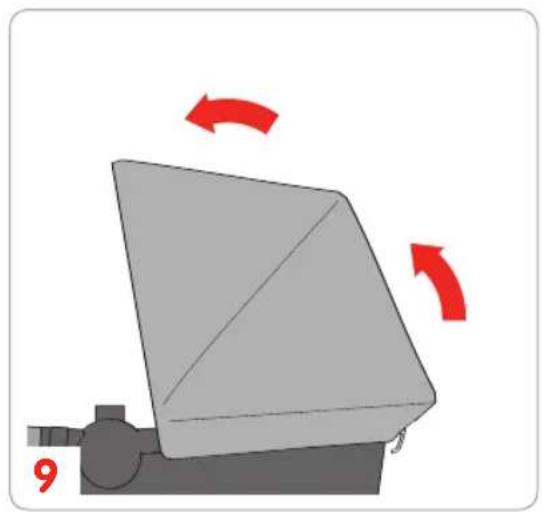

using the sun canopy 227

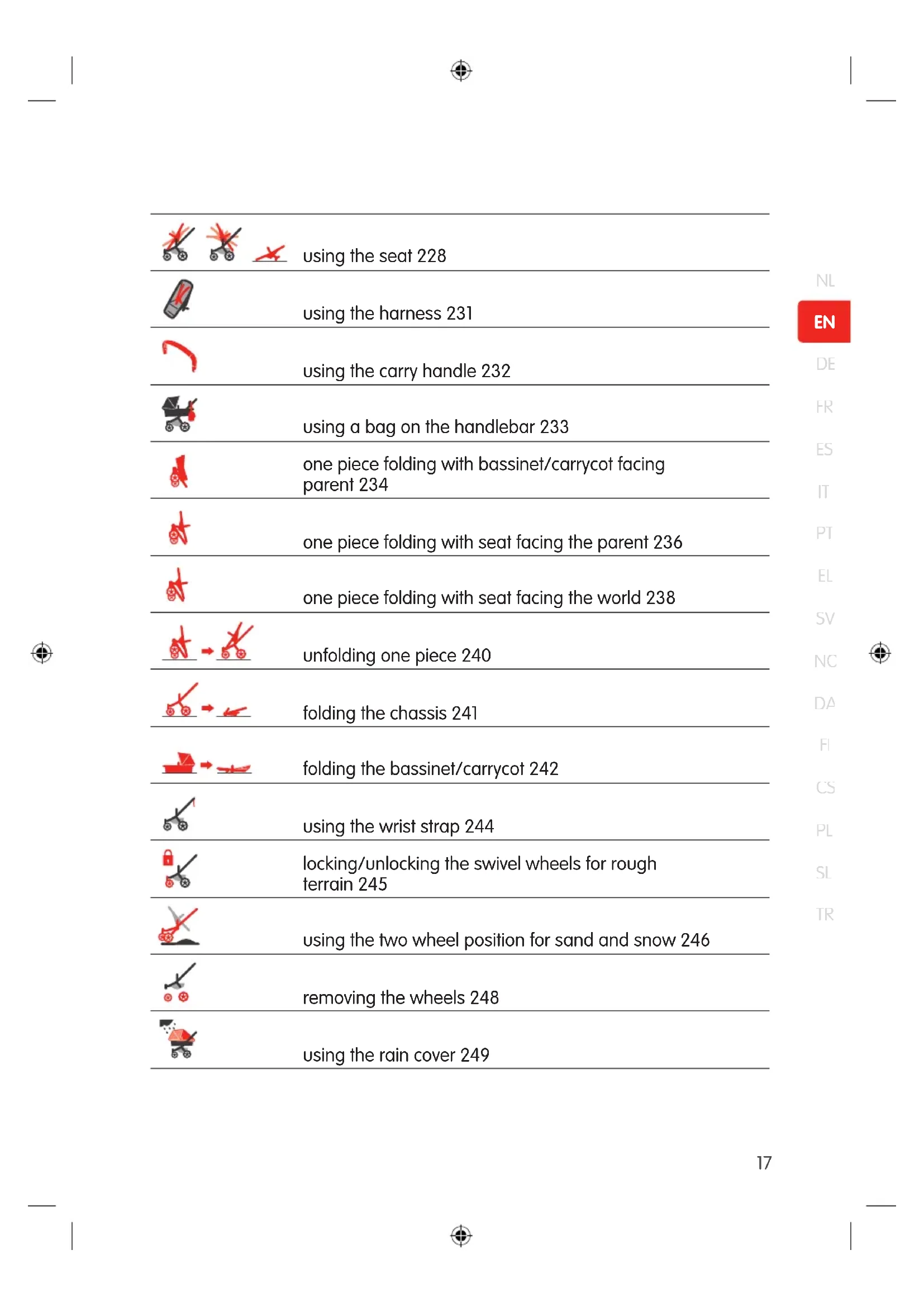

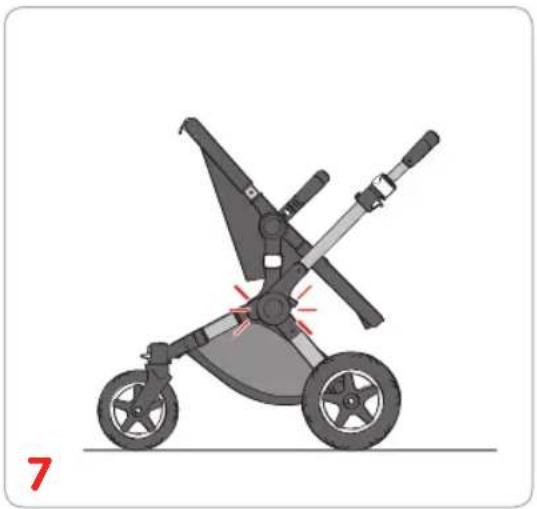

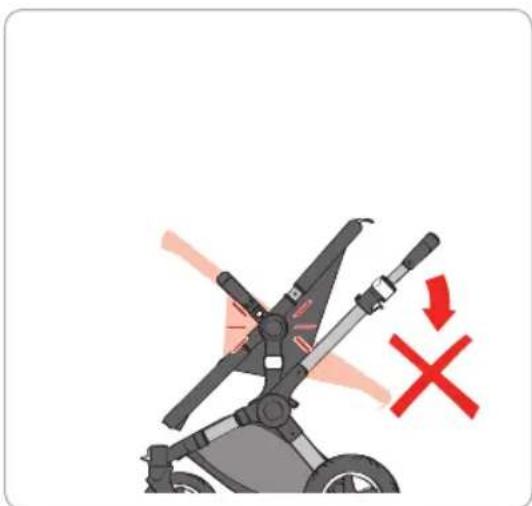

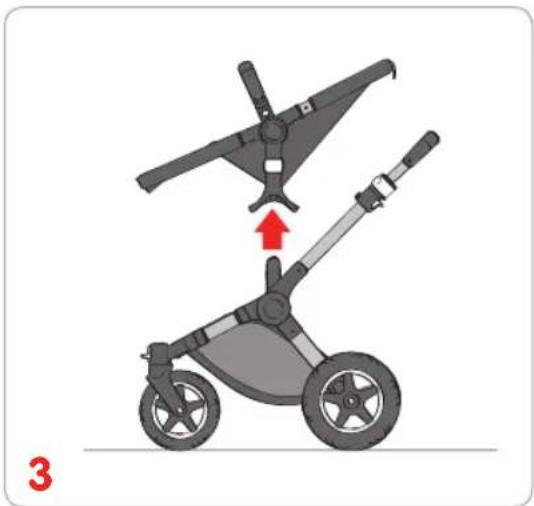

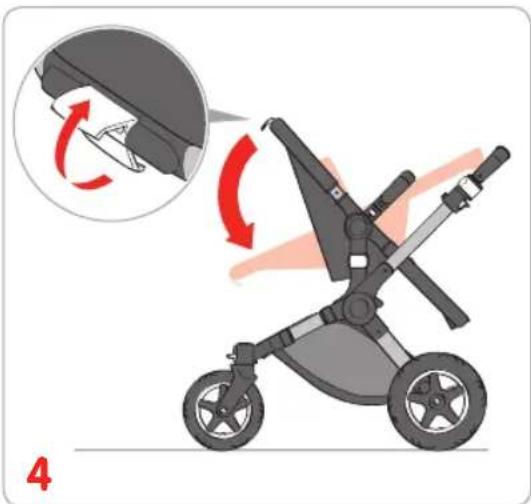

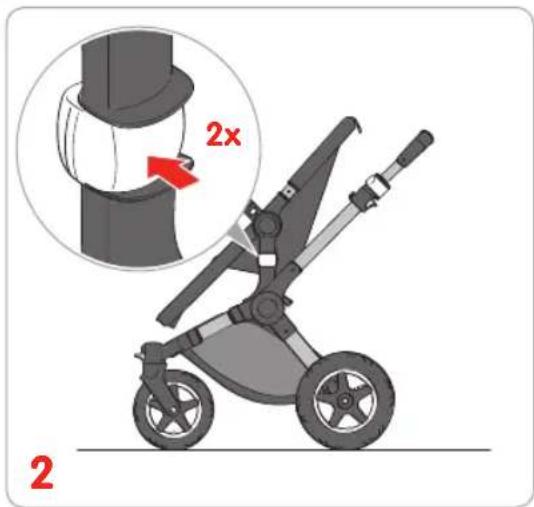

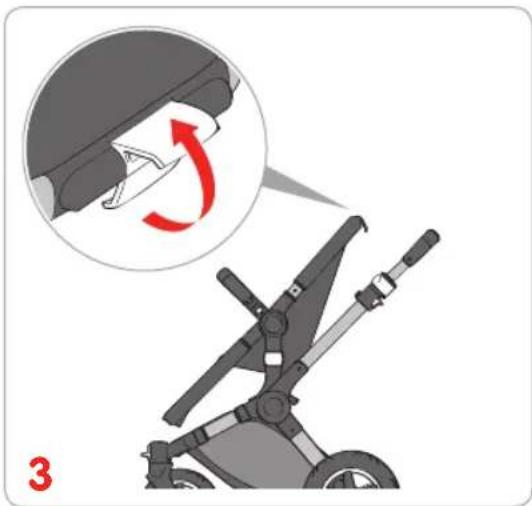

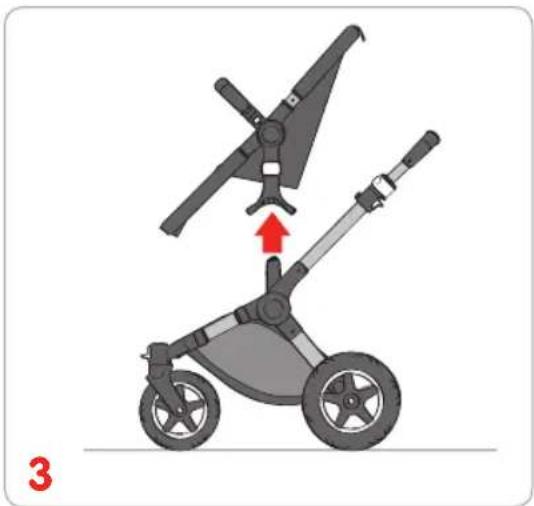

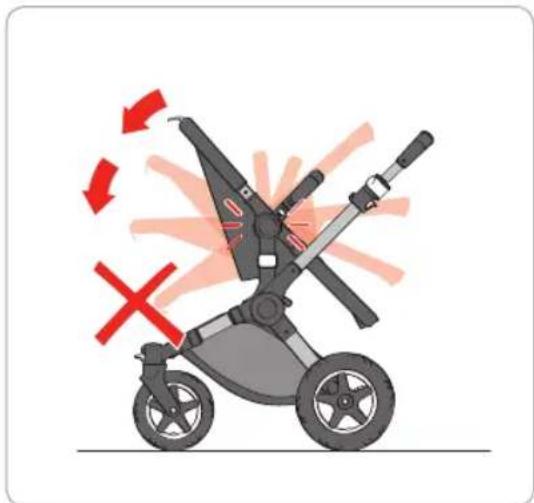

	using the seat 228

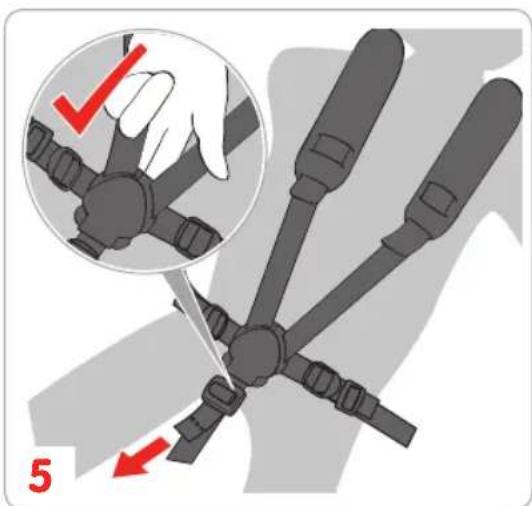

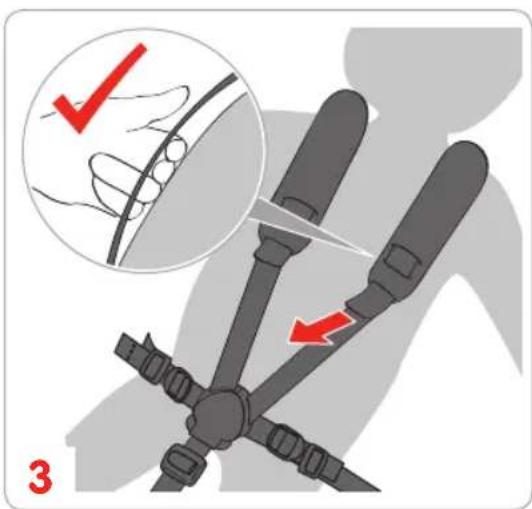

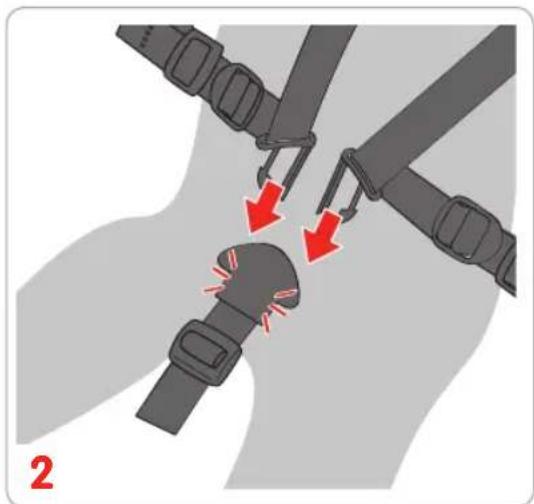

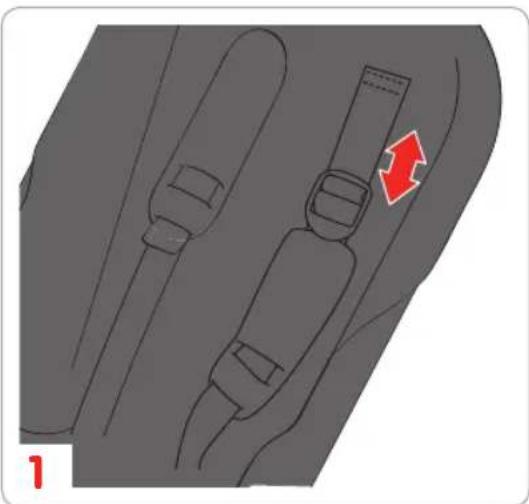

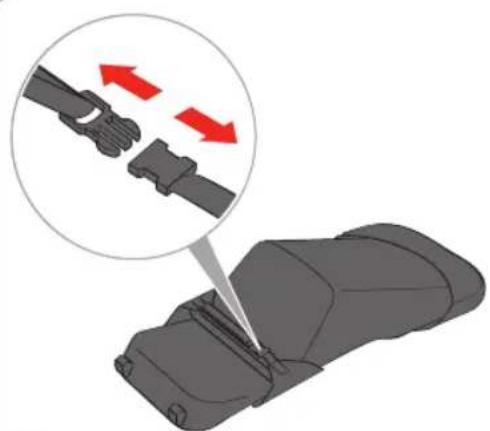

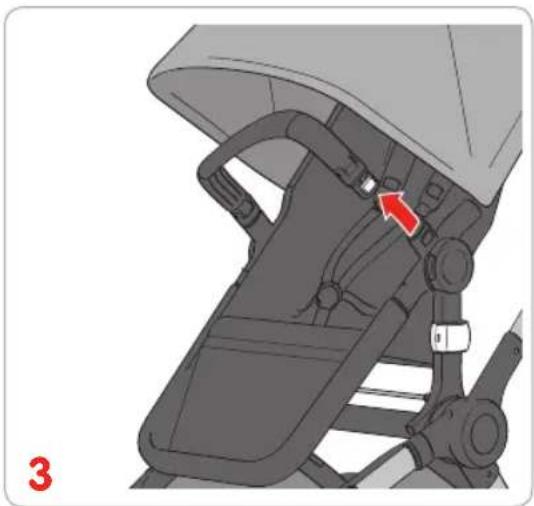

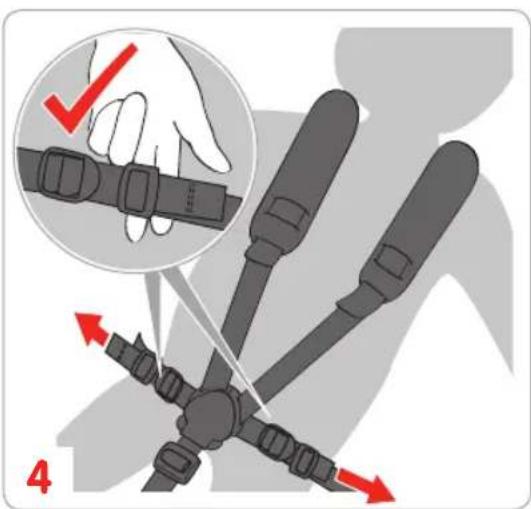

	using the harness 231

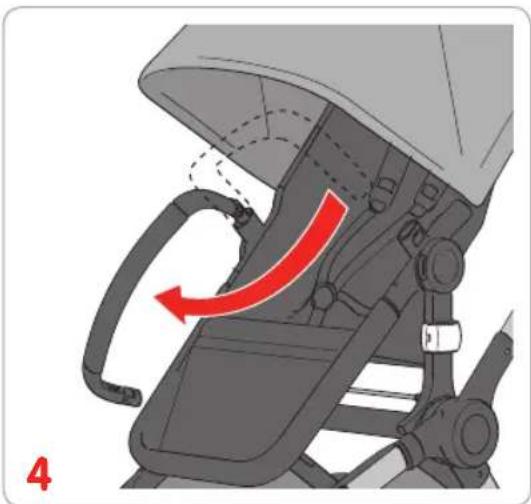

	using the carry handle 232

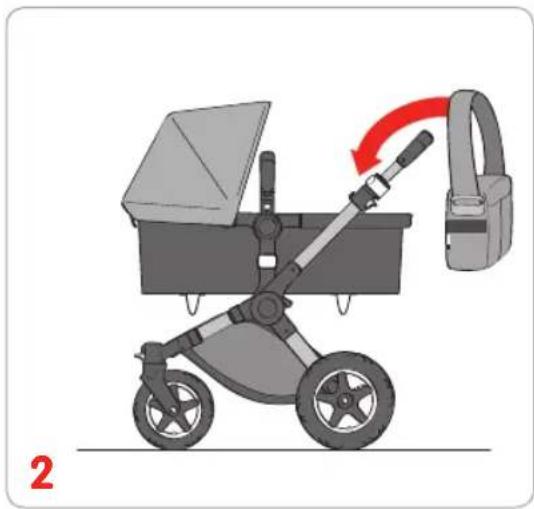

	using a bag on the handlebar 233

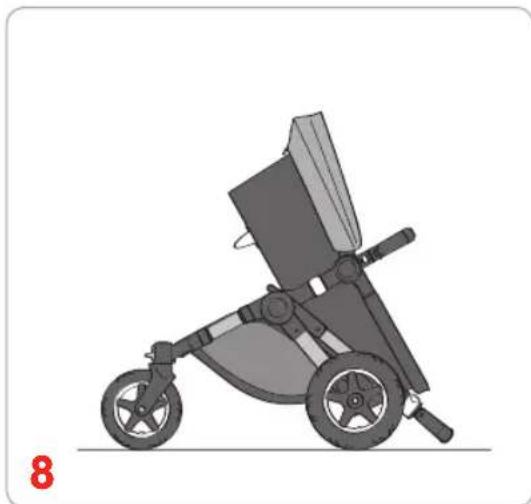

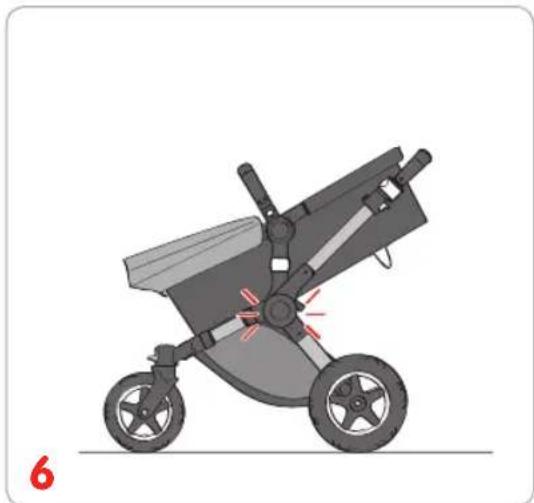

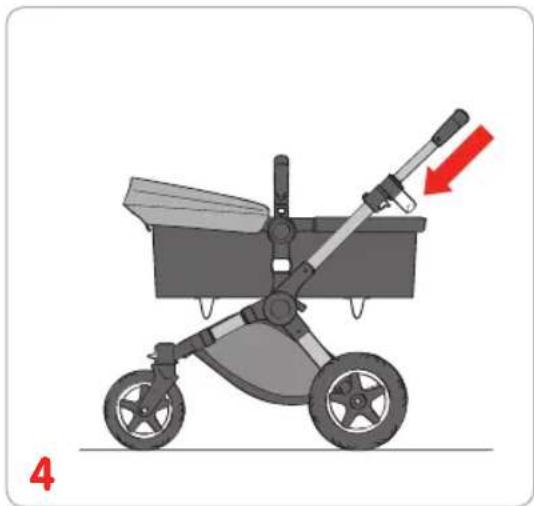

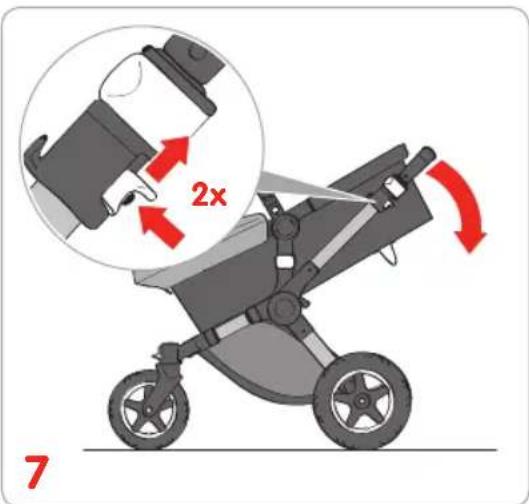

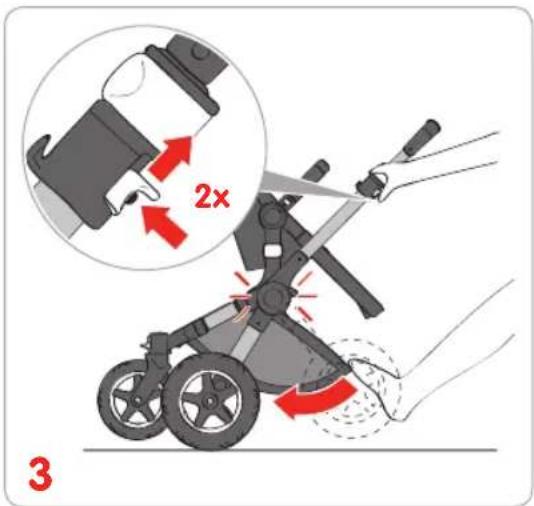

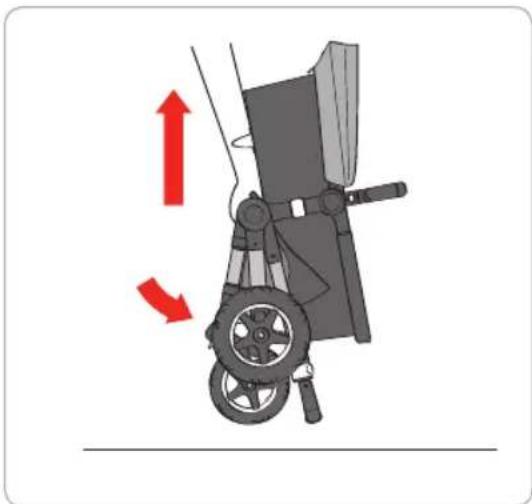

	one piece folding with bassinet/carrycot facing parent 234

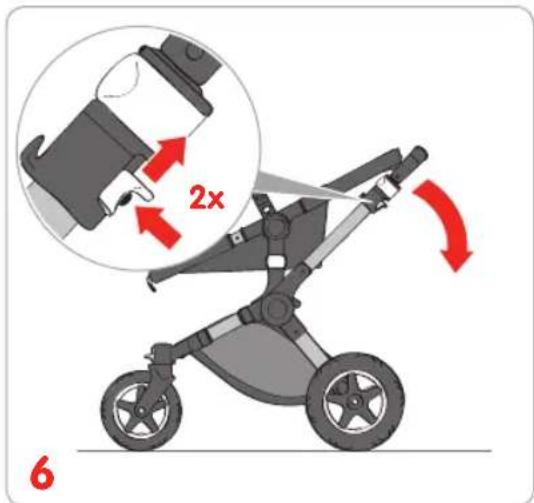

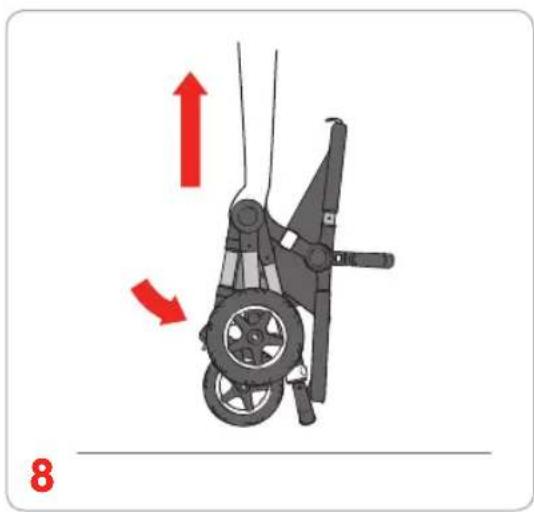

	one piece folding with seat facing the parent 236

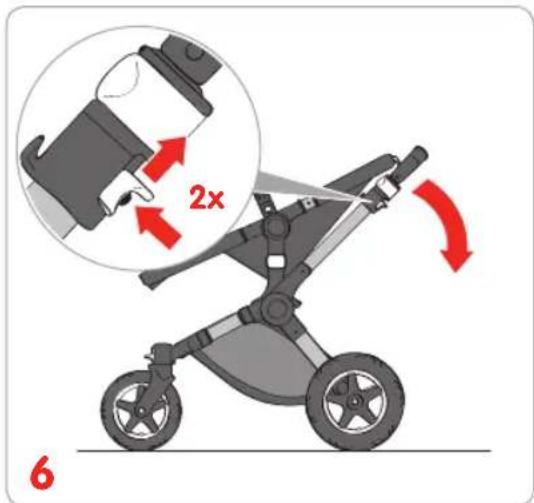

	one piece folding with seat facing the world 238

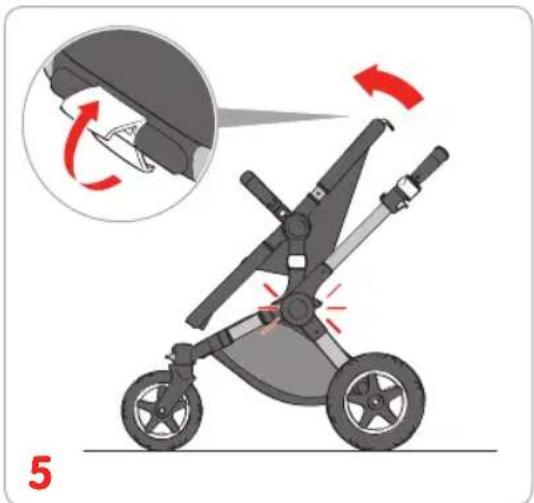

	unfolding one piece 240

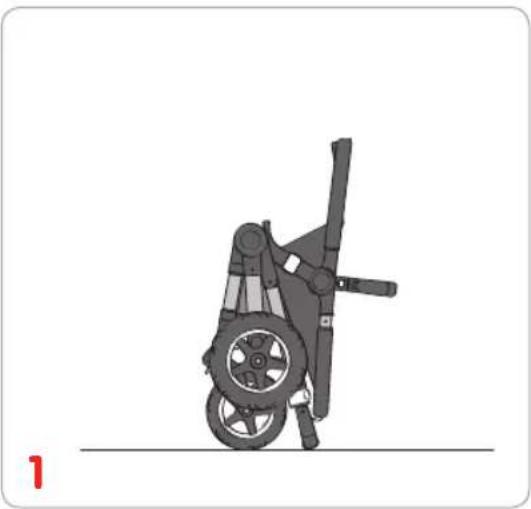

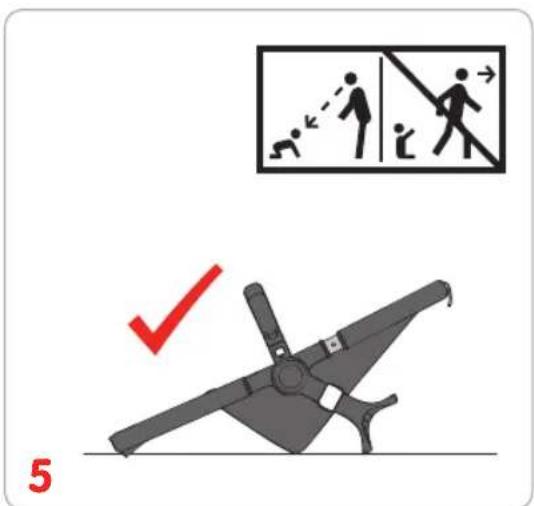

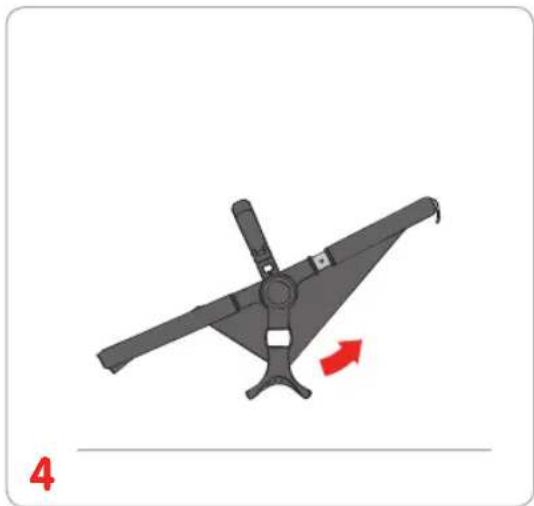

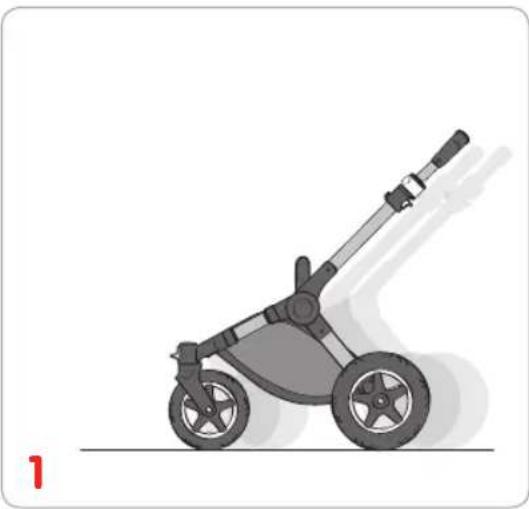

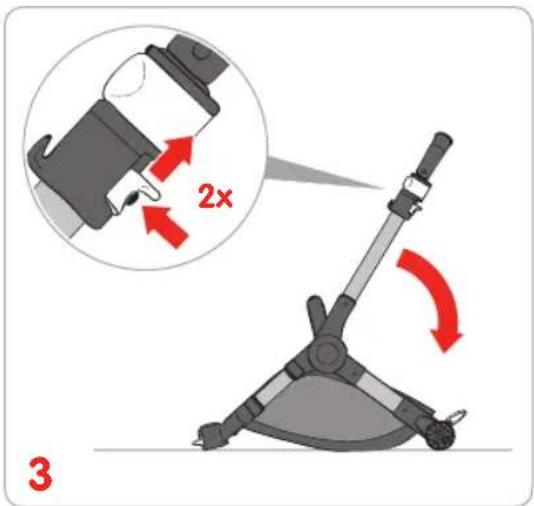

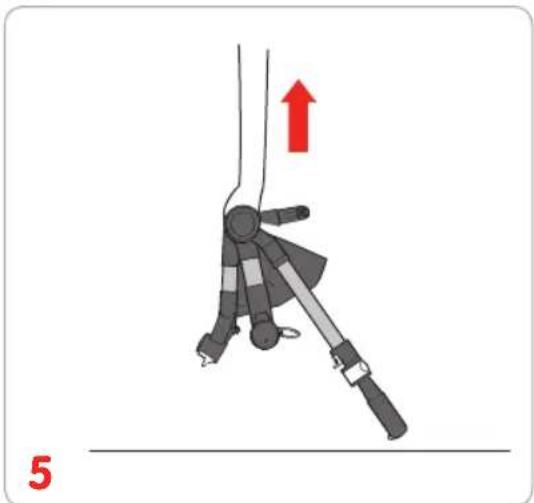

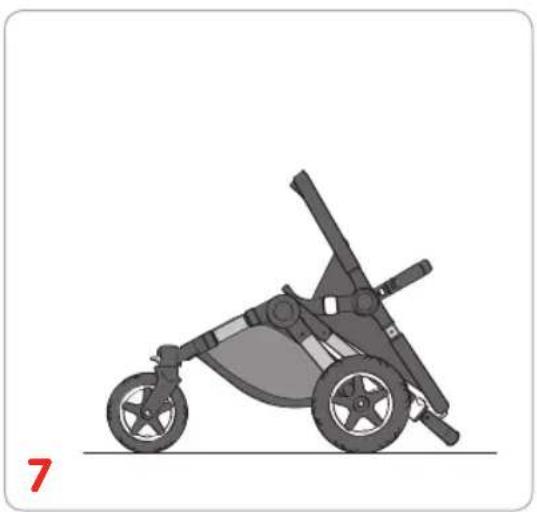

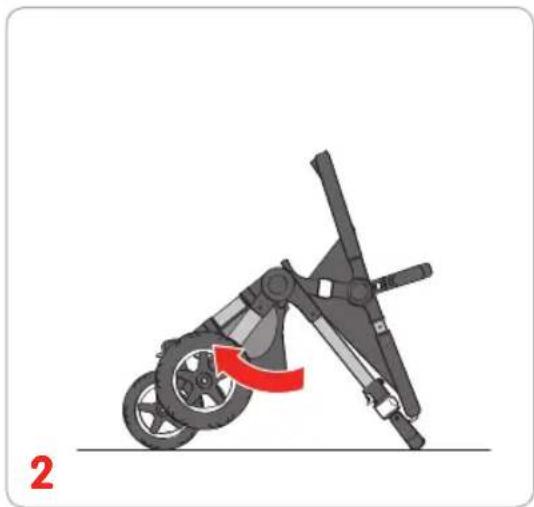

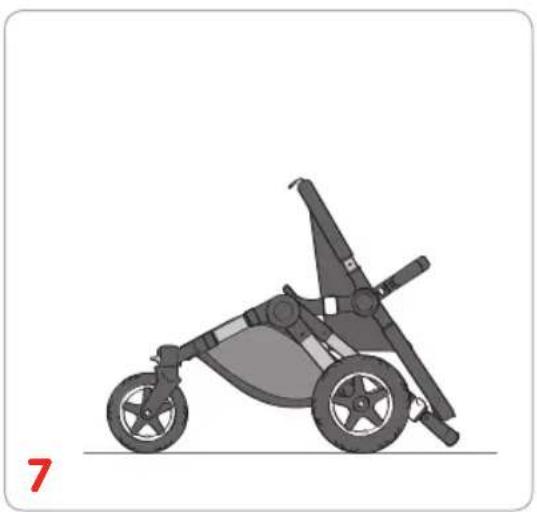

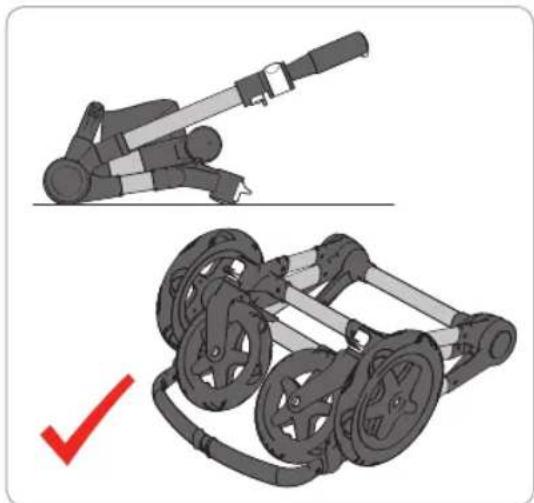

	folding the chassis 241

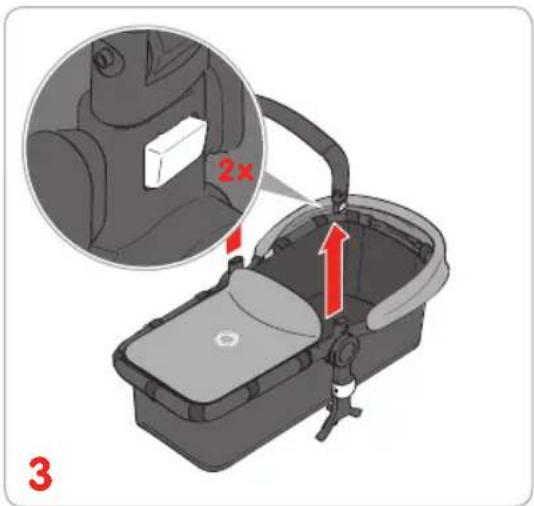

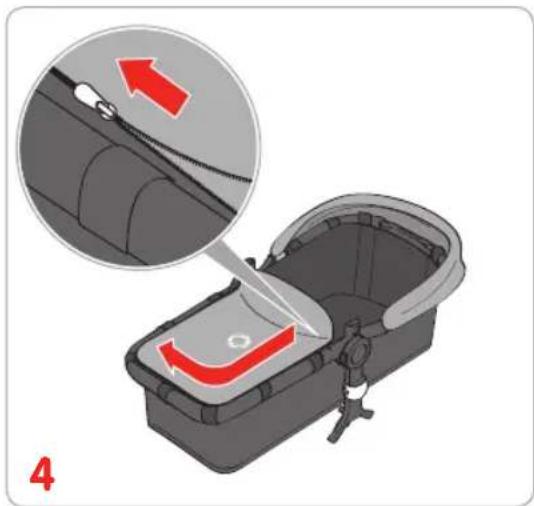

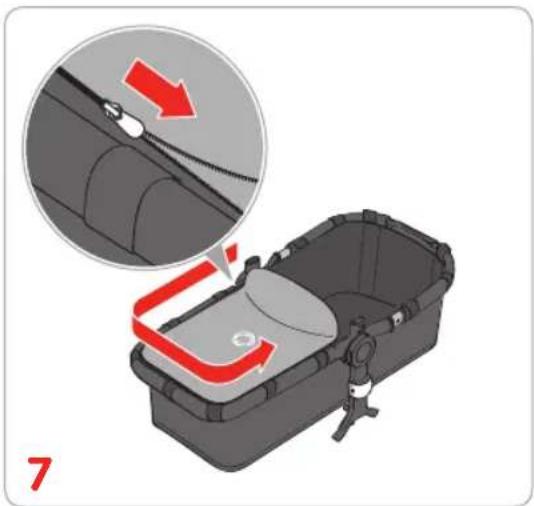

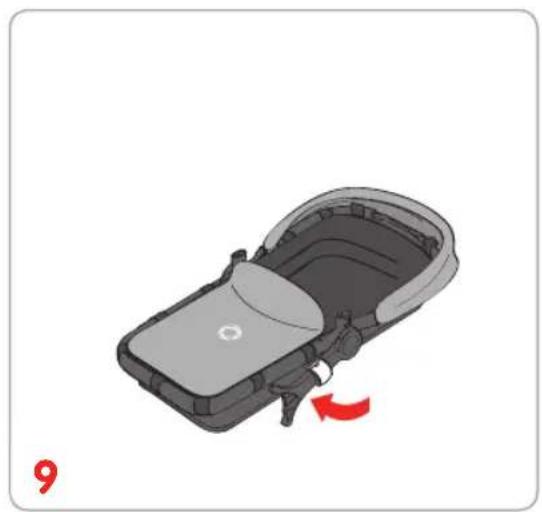

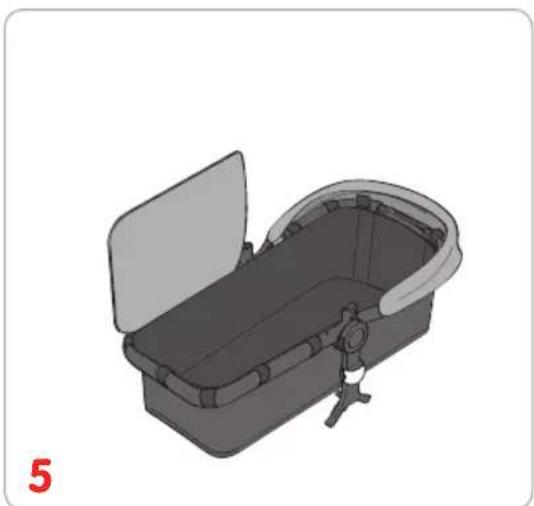

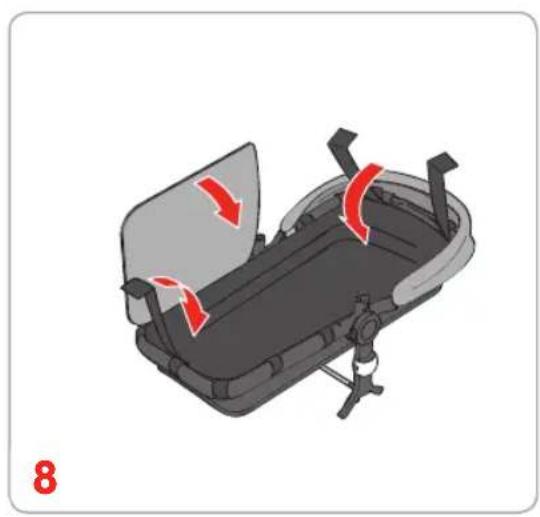

	folding the bassinet/carrycot 242

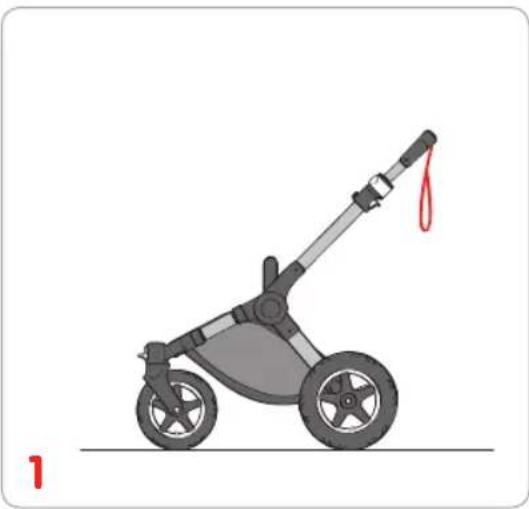

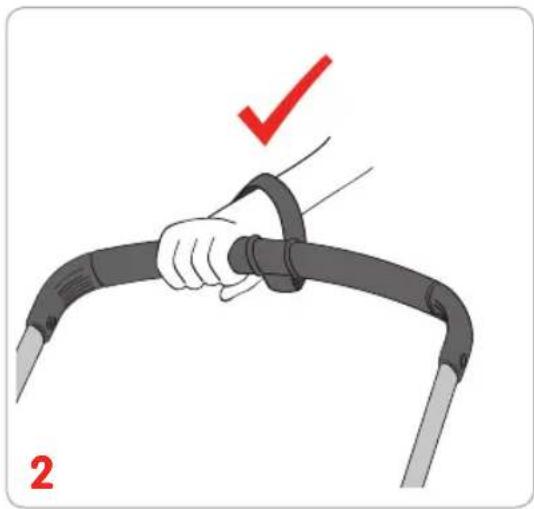

	using the wrist strap 244

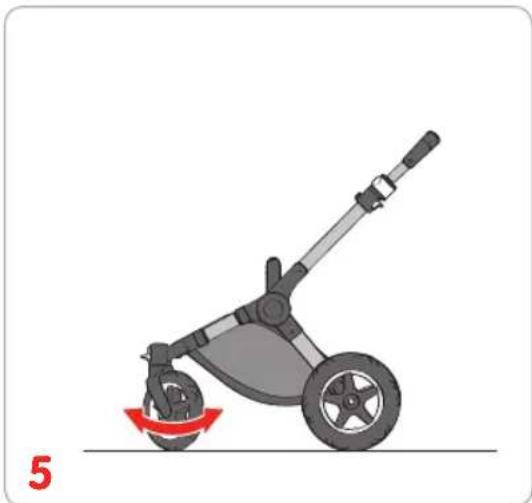

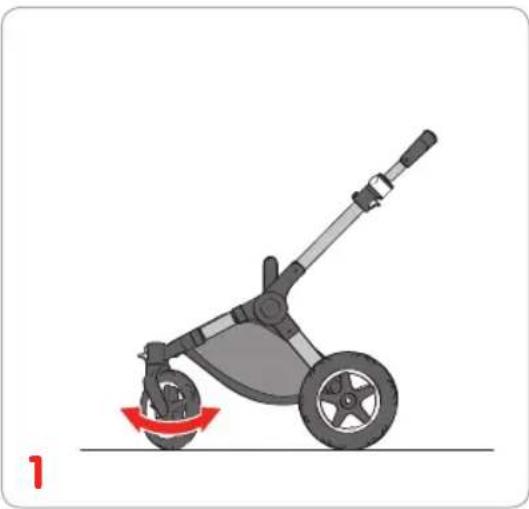

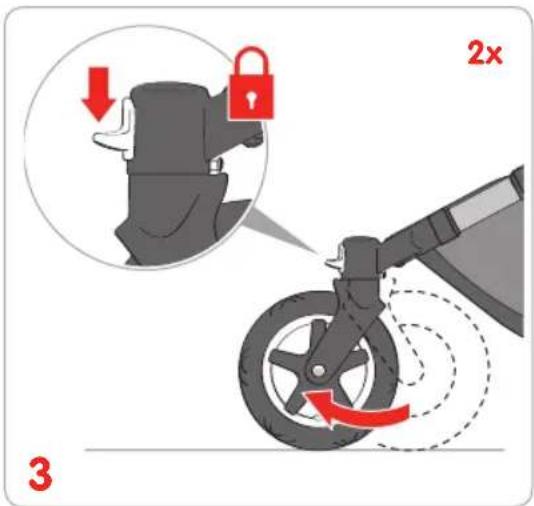

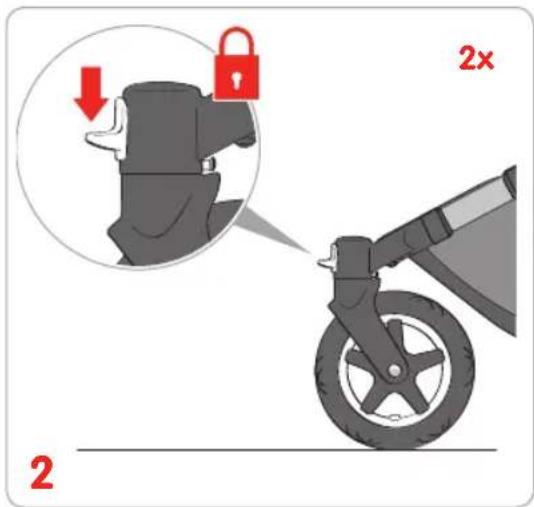

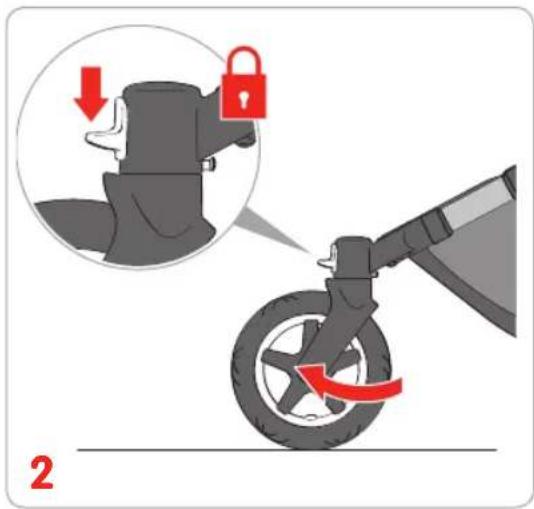

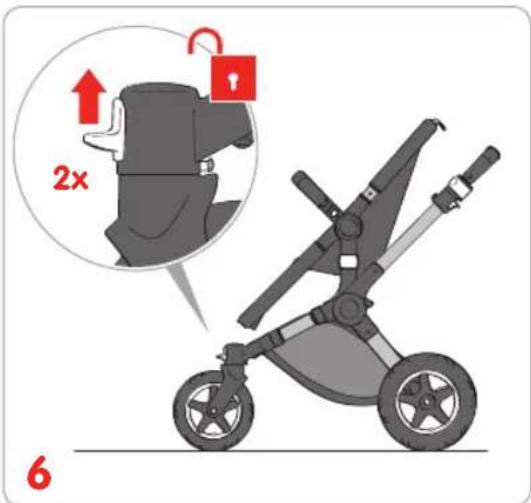

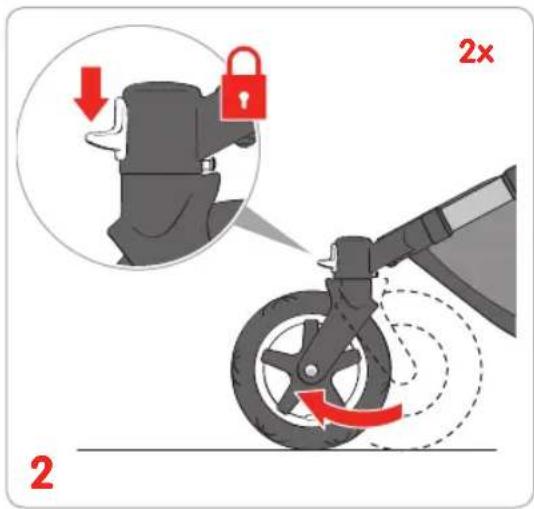

	locking/unlocking the swivel wheels for rough terrain 245

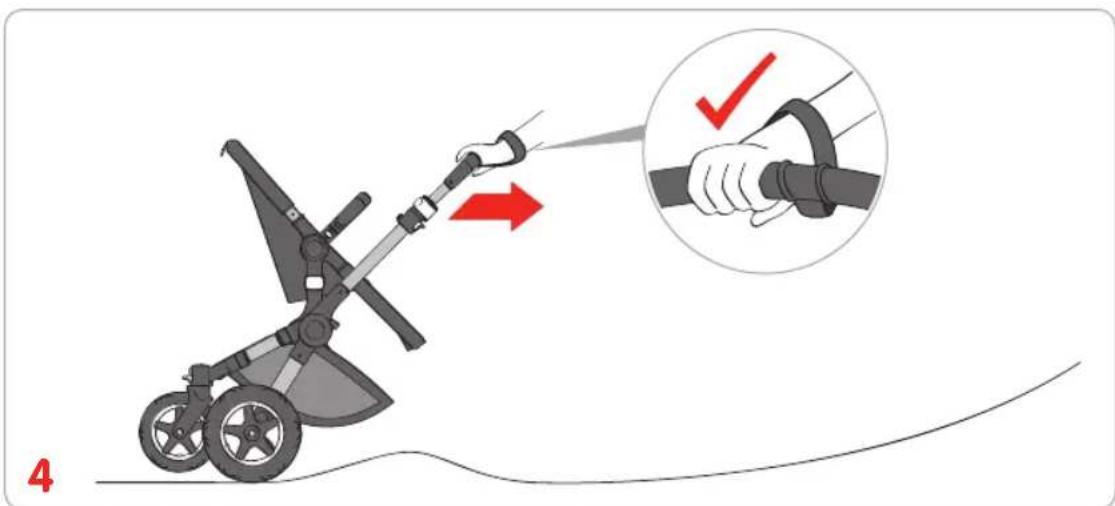

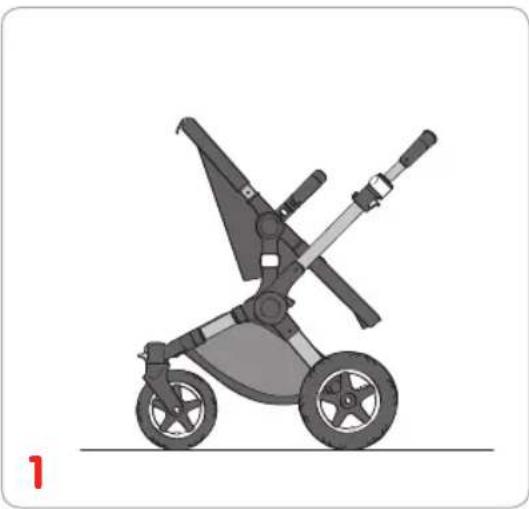

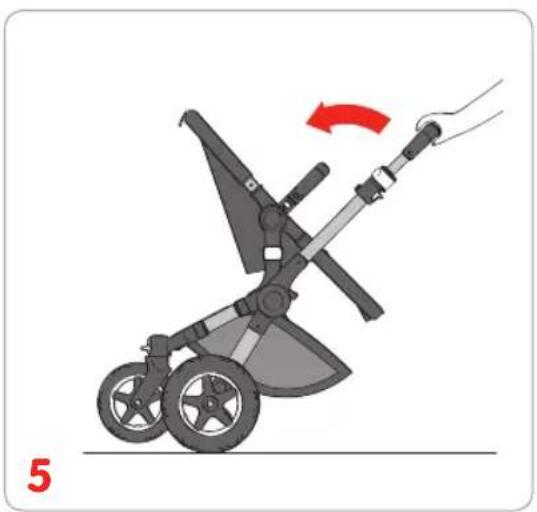

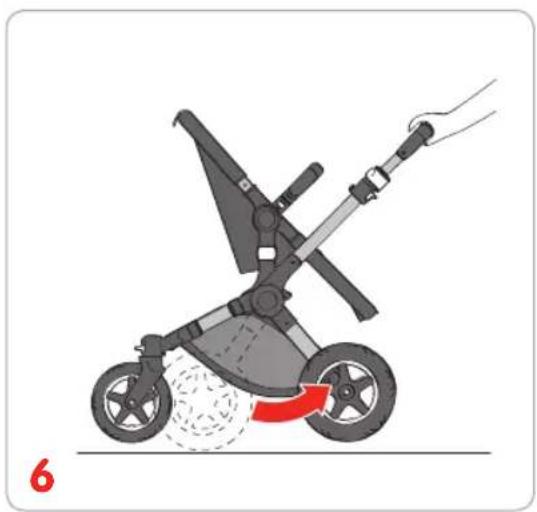

	using the two wheel position for sand and snow 246

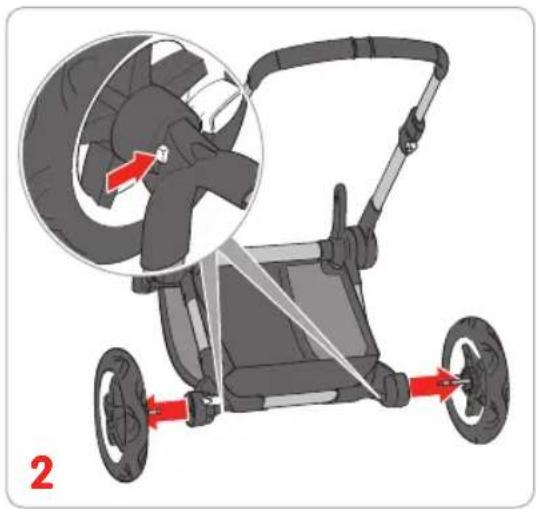

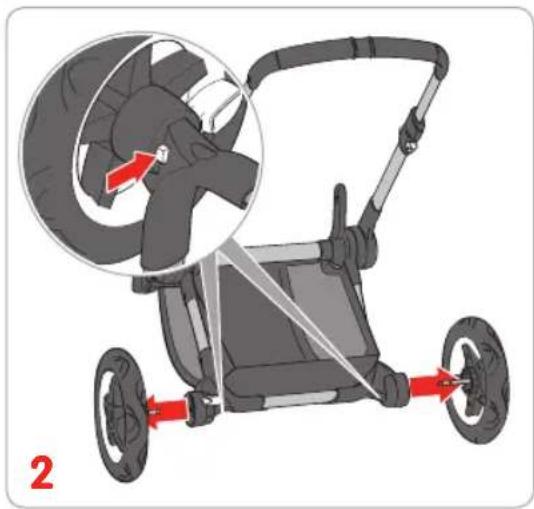

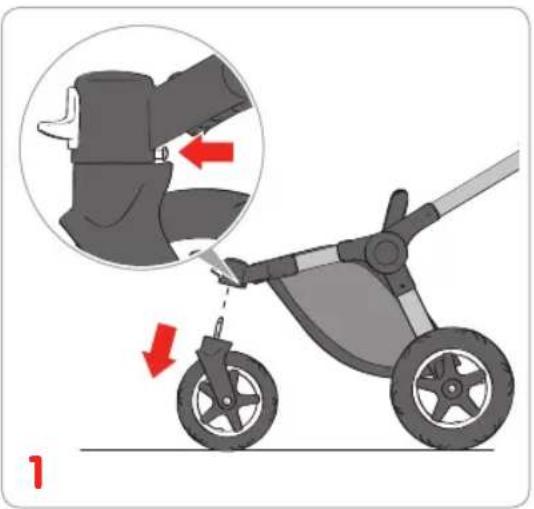

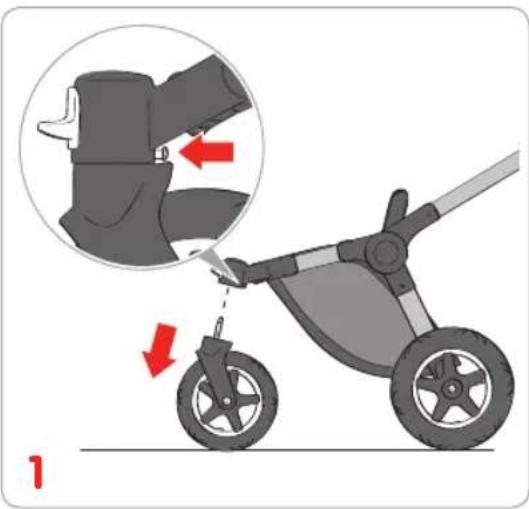

	removing the wheels 248

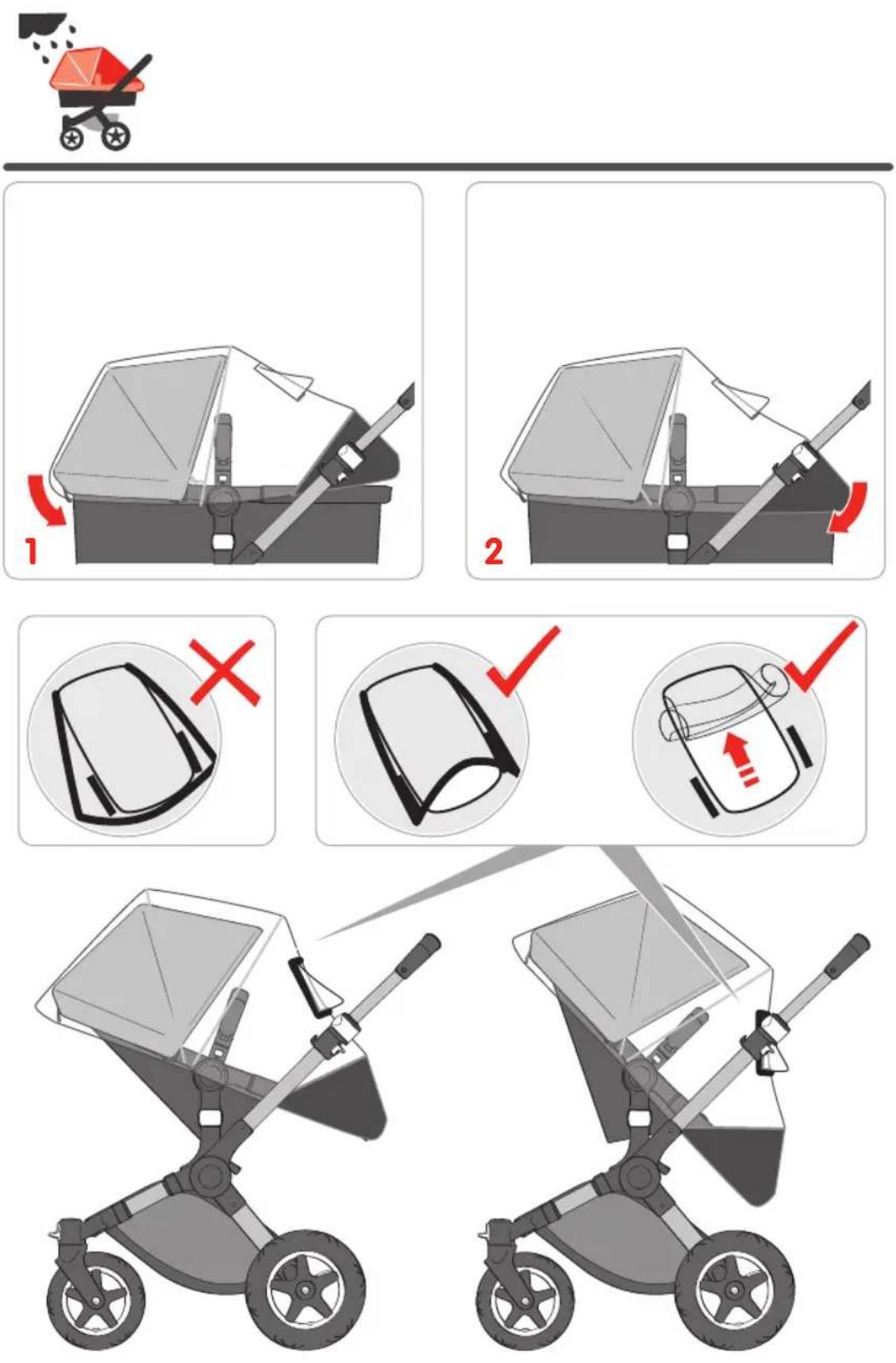

	using the rain cover 249

in the box

Take a minute to check the contents of your packages. If something is missing, please contact your retailer.

3D rendering of a mechanical frame assembly with no visible text or symbols

chassis

Isometric illustration of a mechanical linkage or rail system with two articulated arms (no text or symbols)

frame

Illustration of a gray cylindrical object with side ribs and mounting holes (no text or symbols)

underseat basket

3D rendering of a rectangular container with internal curved lines and mounting holes (no text or symbols)

bassinet/carrycot

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

seat sun canopy wires

and clamps

swivel wheels carry handle rear wheels

sun canopy

apron

Illustration of a folded fabric or material with no visible text or symbols

raincover

user guide visual language

In this user guide we make use of a visual language. Below you can find the meaning of all visuals used.

visual check OK

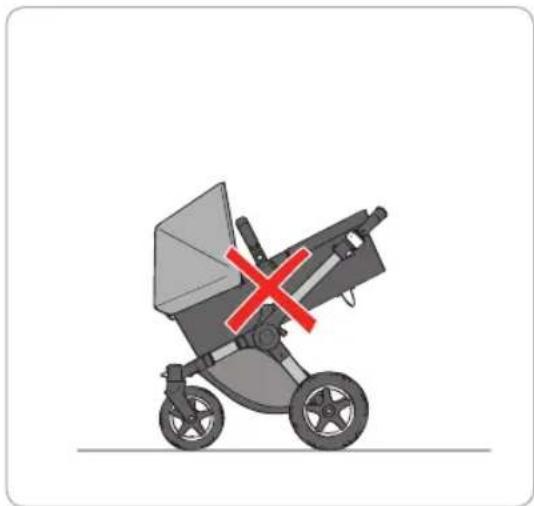

visual check wrong

audible click

movement in the indicated direction

instructions continue on next page

3x

repeat action on similar part(s)

Some instructions require special attention for ensuring the safe use of the Bugaboo Buffalo. When you see this symbol in the instructional part of the user guide, please refer to the warnings in the "WARNINGS" chapter.

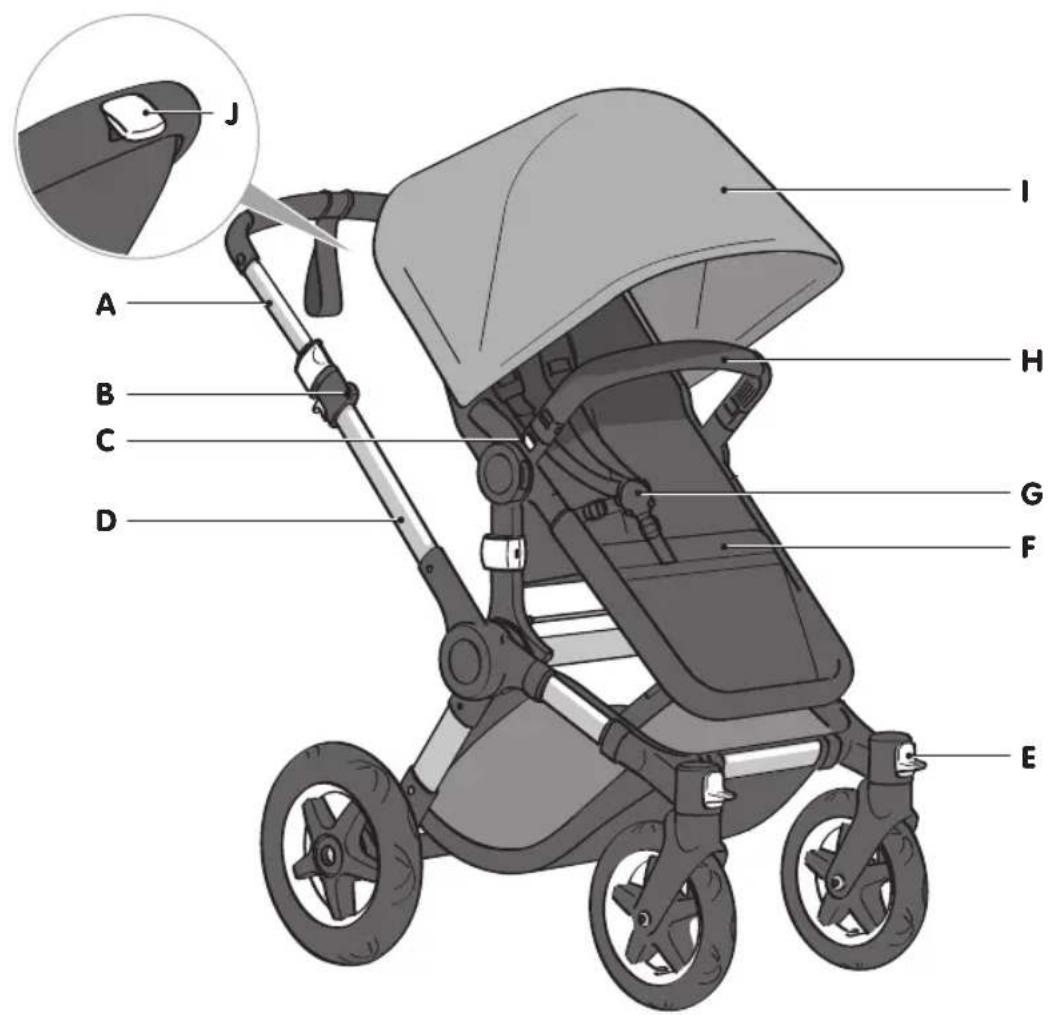

meet the bugaboo buffalo

All the white parts of your Bugaboo Buffalo are functional. They're the parts that allow you to adapt and change your Bugaboo Buffalo.

J A B C D I H G F E

handlebarA.

bag hookB.

carry handle release buttonC.

chassisD.

swivel wheel lockE.

seatF.

harnessG.

carry handleH.

sun canopyl.

backrest adjustment handleJ.

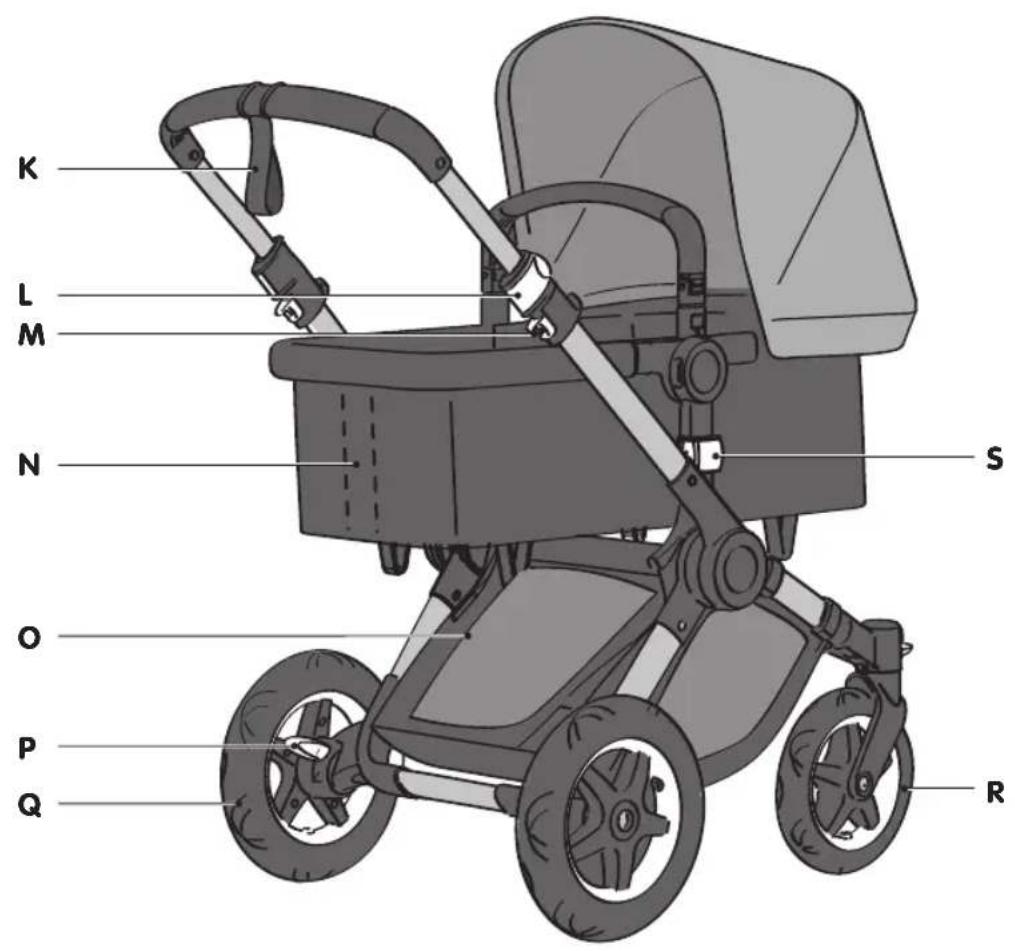

K L M N S O P Q R

wrist strapK.

handlebar adjustment clipL.

folding lockM.

bassinet/carrycot wireN.

underseat basketO.

brakeP.

rear wheelQ.

swivel wheelR.

frame release knobS.

⚠️ WARNINGS

GENERALI.

IMPORTANT - Read the instructions carefully before use and KEEP FOR 1.

FUTURE REFERENCE.

Failure to follow these warnings and the instructions could result in serious 2. injury or death.

Never leave child unattended.3.

Do not use if any part of the product is broken, torn or missing.4.

Use of non-Bugaboo accessories or packages may create a hazardous or 5. unstable condition if placed on the product.

Do not use accessories or replacement parts other than those approved by 6. Bugaboo.

Only replacement parts supplied or recommended by the manufacturer/7. distributor shall be used.

Only use replacement parts supplied or approved by Bugaboo.8.

Be aware of the risk of open fire and other sources of strong heat, such as 9. electric bar fires, gas fires, etc. in the near vicinity of bassinet/carrycot.

The handles and the bottom of the bassinet/carrycot should be inspected 10. regularly for signs of damage and wear.

Avoid serious injury from falling or sliding out. Always use harness.11.

Always use the restraint system.12.

STROLLERII.

Always apply the brake when placing and removing children.13.

1. Never pick up the Bugaboo Buffalo and chassis by the carry handle while your child is lying or sitting in the bassinet/carrycot or seat.
2. Always use the safety features of your Bugaboo Buffalo including locking devices, brake, the harness and the wrist strap (see this user guide for additional information). Check and maintain all safety features frequently.
3. Take your child out of the Bugaboo Buffalo when going up or down stairs and around steep or unstable conditions. Also, take extra care when going up or down a curb or other uneven surfaces.
4. The Bugaboo Buffalo is suitable for children from birth (0 years) to 36 months (17 kg/37.5 lbs).
5. The Bugaboo Buffalo has been designed and tested to 23 kg/50 lbs.
6. The stroller does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
7. Check that the bassinet/carrycot or seat unit or car seat attachment devices are correctly engaged before use.
8. Ensure that all locking devices are engaged before use.
9. To avoid injury ensure that your child is kept away from unfolding and folding this product.

Do not let your child play with this product.23.

This product is not suitable for running or skating.24.

This vehicle is intended for use by only one child.25.

Never leave the carry handle loose in the bassinet/carrycot or seat 26.

area, always ensure that it is properly locked into place. Use only the manufacturer's recommended weights in the underseat basket otherwise the stroller may become unstable:

- The product will become unstable if the manufacturer's recommended load is exceeded

- Any load attached to the handlebar affects the stability of the stroller.

This seat unit is not suitable for children under 6 months.27.

Maximum weight for the underseat basket is 10 kg (22 lbs).28.

Maximum weight for the child on the wheeled board is 20kg (44 lbs).29.

The Bugaboo Buffalo frame (no. 430201) should only be used with the 30.

Bugaboo Buffalo chassis (no. 430200). Do not use Bugaboo Buffalo parts or components with any non-approved stroller or any other Bugaboo product.

Max load on bag hooks: 6kg (13.2 lbs).31.

This product may become unstable if bags or luggage other than those 32. recommended by Bugaboo are placed on the handlebar.

Use only combinations of accessories that are approved by Bugaboo.33.

III. SEAT/BASSINET (OFF CHASSIS)

1. For bassinet/carrycot/seat use off the chassis:

- only use on a firm, horizontal level and dry surface.

- FALL HAZARD to help prevent falls, do not use this product when the infant begins to push up on hands and knees or has reached manufacturer's recommended maximum weight, whichever comes first.

1. Never use the carry cot on a stand.

2. It is dangerous to use the reclined cradle on an elevated surface e.g. a table.

3. The bassinet/carrycot is suitable for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9kg (20 lbs).

4. Maximum weight for the child in the seat when used independently of the chassis is 9 kg (20 lbs).

5. Fall Hazard: Child's movements can slide carrier. NEVER place carrier near edges of counter tops, tables, or other elevated surfaces.

6. Do not use the infant carrier if it is damaged or broken.

7. This product is only suitable for a child who cannot sit up unaided.

8. Do not use the reclined cradle once your child can sit unaided.

9. Do not let other children play unattended near the bassinet/carrycot.

The reclined cradle is not intended for prolonged periods of sleeping.44.

1. The seat or bassinet/carrycot do not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.

To reduce the risk of SIDS, pediatricians recommend health infants be 46. placed on their backs to sleep, unless otherwise advised by physicians.

Strings can cause strangulation! Do not place items with a string around a 47. child's neck, such as hood strings or pacifier cords. Do not suspend strings over a bassinet/carrycot or cradle or attach strings to toys.

Strangulation Hazard: Child can strangle in loose restraint straps. NEVER 48. leave child in carrier when straps are loose or undone.

Use a harness as soon as your child can sit unaided.49.

Use only the pad provided by the manufacturer.50.

Suffocation Hazard: Infant carrier can roll over on soft surfaces and 51.

suffocate child. NEVER place carriers on beds, sofas, or other soft surfaces.

52. SUFFOCATION HAZARD

Infants can suffocate:

- In gaps between an extra pad and side of the bassinet/carrycot/cradle

- On soft bedding.

NEVER add a mattress, pillow, comforter, or padding. Use ONLY the pad provided by Bugaboo.

using the two wheel positionIV.

Always use the wrist strap when in two wheel position.52.

Do not use the bassinet or car seat in the two wheel position.53.

Some instructions require special attention for ensuring the safe use of the Bugaboo Buffalo. When you see this symbol in the instructional part of the user guide, please refer to the warnings in the "WARNINGS" chapter.

The Bugaboo Buffalo complies with:

EN 1888:2012 and is certified by TÜV Süd to bear the TÜV and GS markings.

ASTM F833 and is certified by the Juvenile Products Manufacturing •

Association (JPMA).

© Copyright 2012 012937 rv002 Bugaboo® International BV. The information contained herein is subject to change without notice. Bugaboo International BV shall not be liable for technical errors or omissions contained herein. The purchased product may differ from the product as described in this user guide. Our most recent user guides can be requested at our service departments or at www.bugaboo.com. TM ® BUGABOO and the Bugaboo logos, FROG, GECKO, CAMELEON, BEE, DONKEY and BUFFALO are registered trademarks of Bugaboo International BV. The Bugaboo strollers are patented and design protected.

maintenance tips

These tips will help you take care of your Bugaboo Buffalo and ensure a smooth ride. Periodically remove the wheels and brush off any dirt or sand. Use a brush • and water to clean dirt off the wheels. Do not submerge the wheel bearings in water.

Use a soft brush to clean sand and dirt off the chassis. Take care to brush • dirt away from rotating or sliding parts.

Clean the chassis with a soft towel and lukewarm water and wipe off any • remaining water with a dry cloth.

Use a sponge, warm water and liquid soap to gently rub off any dirt on the • handlebar foam. Wipe clean any soap residue left on the handlebar.

Store your Bugaboo Buffalo and its accessories in a dry place and leave • them unfolded when wet to prevent mould.

For more tips on how to maintain your Bugaboo Buffalo, visit bugaboo.com.

cleaning the fabrics

The Bugaboo Buffalo bassinet/carrycot and seat fabrics are detachable and machine washable.

When washing, don't forget:

maximum temperature 30°C/85°F (cold wash)

do not use bleach or aggressive detergents•

do not tumble dry•

do not iron•

do not dry clean•

always wash separately•

Always check the fabric label before washing.

The aerated inlay of the mattress can be washed at 60^ C. The aerated inlay is placed on top of the thicker foam mattress and can be taken off by removing the mattress cover. After washing, ensure that all mattress parts are replaced in their original positions, with the aerated inlay placed on top of the foam mattress. Do not use the mattress without the aerated inlay.

The Bugaboo Buffalo underseat basket is non-washable, but can be wiped clean with a damp cloth.

warranty (not for usa and canada)

As the manufacturer, Bugaboo International BV, which has its principal place of business in Amsterdam (hereinafter: "Bugaboo"), supplies the Bugaboo Buffalo (hereinafter: "product") under warranty, subject to the following conditions:

The warranty period is 24 months, from the date of purchase. The warranty 1. period will never be extended, even in the event of repairs being made.

This warranty is valid all over the world, except in the United States of 2.

America and Canada.

The warranty provides a right to repair and specifically not to a product's 3. exchange or return. Bugaboo will bear the expense and risk of transport from and to the retailer (hereinafter: "the retailer") where you purchased the product, provided the repair is covered by warranty.

To claim under this warranty you must provide Bugaboo with the following, 4. along with the defective product:

- a copy of the dated receipt of purchase, and

- a clear description of the complaint.

The warranty is not transferable and may therefore only be invoked by the 5. first owner.

The warranty does not affect any statutory rights you may have, for 6. example the right to hold the retailer accountable for defects.

The warranty will void in the following circumstances:

If you have made or arranged for modifications or repairs to be made - without first having received written permission from Bugaboo or the retailer.

Defects resulting from neglect or an accident and/or from any use or - maintenance other than that indicated in the user guide.

If the serial number has been damaged or removed. -

Damage to the product caused by normal wear and tear. -

Incorrect mounting or installation of third-party parts that are incompatible - with the product.

Inadvertent or unintentional damage, abnormal use or insufficient care. - Improper storage / product care. -

Damage to push bars or upholstery due to normal daily use of the product. -

- Holes or tears in the tires.

- Damage due to improper use or due to failure to follow user guide.

- Damage due to repairs carried out by unauthorized persons or due to improper disassembly of the product.

- Transport damage (during air transport or other modes of transport): carefully inspect your Bugaboo product after it was shipped by the airline (or other carrier) and in case of any damage immediately file a claim with the carrier.

Customer dissatisfaction with the product in terms of fit, weight, functionality, colour or design.

bugaboo limited warranty (usa & canada only)

Bugaboo warrants this product to be free from defects in material and workmanship existing at the time of manufacture for a period of two (2) years from the date of initial purchase (sales receipt is required for proof of purchase). If such a defect is discovered during the limited warranty period, we will, at our sole option, repair or replace your product at no cost to you. "Repair" options may include, at Bugaboo's discretion, providing purchasers with self-repair instructions, kits, and/or replacement parts. In the case of stroller models, fabrics or accessories discontinued or modified by Bugaboo before or during the Limited Warranty period, replaced products or repair parts may not be identical to the originals.

This Limited Warranty is applicable to all Bugaboo products subject to dated proof of purchase. Please always keep your dated proof of purchase.

This Limited Warranty does not cover claims resulting from misuse, abuse, neglect, improper assembly, maintenance, storage, or use, failure to follow instructions, alterations, modifications or repairs not made by Bugaboo or Bugaboo's authorized service agent, accidental damage, or normal wear and tear. In addition, this Limited Warranty does not cover corrosion or rust on the wheels and chassis due to environmental conditions, including high humidity, salt spray, ice or snow, damage to handle bar grips, or tire puncture.

This Limited Warranty extends only to the original retail purchaser of the product and is not transferable to anyone who obtains possession or ownership other than the original retail purchaser.

This Limited Warranty is exclusive and in lieu of any other warranty, written or oral, including but not limited to any express warranty of merchantability or fitness for a particular purpose. The duration of any implied warranties, including any implied warranty of merchantability or fitness for a particular purpose, is expressly limited to this Limited Warranty period.

The customer's exclusive remedy for breach of this Limited Warranty or of any implied warranty or of any other obligation arising by operation of law or otherwise shall be limited as specified herein to repair or replacement, at our sole option. In any event, responsibility for special, incidental, or consequential damages is expressly excluded.

United States and Canada: This Limited Warranty gives you specific legal rights; you may have other rights that vary from state to state or province to province. Some states or provinces do not allow limitations on how long an implied warranty lasts. Therefore, these above limitations and exclusions may not apply to you. Some states or provinces do not allow an exclusion or limitation of special, incidental or consequential damages, therefore, that limitation or exclusion may not apply to you.

warranty information for bugaboo buffalo special edition

In case you bought a Bugaboo Buffalo special edition, please go to www.bugaboo.com/customer-service/special-editions for a complete overview of the Bugaboo warranty policy. Your Bugaboo Buffalo special edition might have different warranty conditions to those described in this user guide. Bugaboo reserves the right to discontinue a model, color, fabric or accessory, and therefore will replace a part, with an equivalent product, color or fabric, during the valid warranty period.

important

The product is covered by a 24-month warranty from the date of purchase. In the event of a defect, you are requested to first contact your retailer. If the retailer is unable to repair the defect, you can contact Bugaboo by email at [e-mail] (North American residents, please use [e-mail])

replaceable parts

We pride ourselves on creating products based on high quality and standards. That's why only genuine Bugaboo parts or parts which have been approved by Bugaboo should ever be used in conjunction with the Bugaboo Buffalo. If you need to replace a part of your Bugaboo stroller, please contact your retailer, or visit bugaboo.com for an extensive list of retailers near you.

contact

Before you start using your Bugaboo Buffalo, make sure you fill out the product registration form on line at bugaboo.com.

We are always interested in your feedback and would like to hear your comments on the Bugaboo Buffalo or any other Bugaboo product. Please send us an email at [e-mail], (North American residents, please use [e-mail]) or visit our website at bugaboo.com/register to create your personal account and sign up to participate in Bugaboo consumer research and receive the Bugaboo online newsletter.

NL

EN

DE

FR

ES

IT

PT

EL

SV

NC

DA

F

CS

PL

SI

TR

Inhalt

Einführung

Lieferumfang 32

Illustration of a folded fabric or material with no visible text or symbols

Regenabdeckung

J A B C D I H G F E

SchiebebügelA.

TaschenaufhängungB.

SchwenkradverriegelungE.

SitzF.

HaltegurtG.

TragebügelH.

Sonnendachl.

K L M N S O P Q R

A B C D J I H G F E

guidonA.

crochet de sacB.

K L M N S O P Q R

52. RISQUE D'ASPHYXIE

3D rendering of a mechanical frame assembly with no visible text or symbols

chasis

Isometric illustration of a mechanical linkage or track system with two figures (no text or symbols)

estructura

Illustration of a gray cylindrical object with internal ribs and mounting holes (no text or symbols)

cestilla de compras

3D rendering of a rectangular container with internal curved lines and mounting holes (no text or symbols)

capazo

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

Illustration of a folded fabric or material with no visible text or symbols

J A B C D I H G F E

manillarA.

gancho del bolsoB.

K L M N S O P Q R

Manufacturing Association (JPMA).

3D rendering of a mechanical frame assembly with no visible text or symbols

chassis

Isometric illustration of a mechanical linkage or rail system with two articulated figures (no text or symbols)

telaio

Illustration of a gray cylindrical object with side ribs and mounting holes (no text or symbols)

cesta portaoggetti

3D rendering of a gray rectangular container with internal curved lines and mounting holes (no text or symbols)

navetta

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

Illustration of a folded fabric or material with no visible text or symbols

parapioggia

J A B C D I H G F E

manubrioA.

gancio appendi-borsaB.

K L M N S O P Q R

3D rendering of a mechanical frame assembly with no visible text or symbols

chassis

Isometric illustration of a mechanical linkage or rail system with two articulated arms (no text or symbols)

estrutura

Illustration of a gray cylindrical object with internal ribs and mounting holes (no text or symbols)

cesta de bagagem

3D rendering of a gray rectangular container with internal curved lines and mounting holes (no text or symbols)

alcofa

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

Illustration of a folded fabric or material with no visible text or symbols

A B C D J I H G F E

manípuloA.

gancho para sacoB.

botão de desencaixe da asa de transporteC. chassisD.

K L M N S O P Q R

3D rendering of a mechanical frame assembly with no visible text or symbols

βάση

Isometric illustration of a mechanical linkage or rail system with two articulated figures (no text or symbols)

πλαίσιο

Illustration of a gray cylindrical object with side ribs and mounting holes (no text or symbols)

3D rendering of a gray rectangular container with internal curved lines and mounting holes (no text or symbols)

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

Illustration of a folded fabric or material with no visible text or symbols

κάλυμμα βροχής

A B C D J I H G F E

χειρολαβήΑ.

κρεμάστρα τσάνταςΒ.

K L M N S O P Q R

περικάρπιοΚ.

montera bugaboo buffalo

montera chassit 214

3D rendering of a mechanical frame assembly with no visible text or symbols

chassi

Isometric illustration of a mechanical linkage or rail system with two articulated figures (no text or symbols)

ram

Illustration of a gray cylindrical object with internal ribs and mounting holes (no text or symbols)

varukorg

3D rendering of a gray rectangular container with internal curved lines and mounting holes (no text or symbols)

liggdel

3D rendered illustration of a mechanical device with handle and mounting bracket (no text or symbols)

Illustration of a folded fabric or leather piece with no visible text or symbols

regnskydd

J A B C D I H G F E

styreA.

väskkrokB.

bärhandtagets frigöringsknappC.

chassiD.

K L M N S O P Q R

3D rendering of a mechanical frame assembly with no visible text or symbols

understell

Isometric illustration of a mechanical linkage or rail system with two articulated arms (no text or symbols)

ramme

Illustration of a gray cylindrical object with side ribs and mounting holes (no text or symbols)

handlenett

3D rendering of a gray rectangular container with internal curved lines and mounting holes (no text or symbols)

bag

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

Illustration of a folded fabric or material with no visible text or symbols

regndekke

bruksanvisning visuelt språk

J A B C D I H G F E

styreA.

krok for handleposerB.

K L M N S O P Q R

händleddsbåndK.

justeringsklips for styreL.

klapplåsM.

bagspileN.

handlenettO.

bremseP.

bakhjulQ.

svinghjulR.

3D rendering of a mechanical frame assembly with no visible text or symbols

chassis

Isometric illustration of a mechanical linkage or rail system with two articulated figures (no text or symbols)

stel

Illustration of a gray cylindrical object with side ribs and mounting holes (no text or symbols)

taske under sædet

3D rendering of a gray rectangular container with internal curved lines and mounting holes (no text or symbols)

lift

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

Illustration of a folded fabric or material with no visible text or symbols

regn dækken

A B C D J I H G F E

håndtagA.

taskekrogB.

K L M N S O P Q R

garanti information for bugaboo buffalo special edition

3D rendering of a mechanical frame assembly with no visible text or symbols

runko

Isometric illustration of a mechanical linkage or rail system with two articulated figures (no text or symbols)

kehikko

Illustration of a gray cylindrical object with internal ribs and mounting holes (no text or symbols)

alakori

3D rendering of a rectangular container with internal seam and side connectors (no text or symbols)

kehto/kantokehto

3D rendered illustration of a mechanical device with handle and mounting bracket (no text or symbols)

Illustration of a rolled-up fabric or leather piece with visible texture and small droplets (no text or symbols)

sadesuoja

A B C D J I H G F E

työntöaisaA.

kassikoukkuB.

K L M N S O P Q R

rannehihnaK.

J A B C D I H G F E

rukojet'A.

háček na taškyB.

K L M N S O P Q R

3D rendering of a mechanical frame assembly with no visible text or symbols

podwozie

Isometric illustration of a mechanical linkage or rail system with two articulated figures (no text or symbols)

rama

Illustration of a gray cylindrical object with side brackets and mounting feet (no text or symbols)

3D rendering of a gray rectangular container with internal curved lines and mounting holes (no text or symbols)

gondola

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

Illustration of a folded fabric or material with no visible text or symbols

J A B C D I H G F E

rączkaA.

zaczepy do torbyB.

K L M N S O P Q R

pasek na nadgarstekK.

Illustration of a folded fabric or material with no visible text or symbols

prevleka za dež

vizualni jezik v priročniku za uporabnike

A B C D J I H G F E

ročajA.

kavelj za torboB.

K L M N S O P Q R

3D rendering of a mechanical frame assembly with no visible text or symbols

şasi

Isometric illustration of a mechanical linkage or rail system with two articulated arms (no text or symbols)

çerçeve

Illustration of a gray cylindrical object with side ribs and mounting holes (no text or symbols)

3D rendering of a rectangular container with internal curved lines and mounting holes (no text or symbols)

beşik/portbebe

3D rendered illustration of a vehicle chassis with handlebars and wheels (no text or symbols)

Illustration of a folded fabric or material with no visible text or symbols

yağmurluk

A B C D J I H G F E

gidonA.

çanta askısıB.

K L M N S O P Q R

bileklikK.

gidon ayarlama klipsiL.

katlama kilidiM.

beşik teliN.

Illustration of a mechanical tool or device with articulated arms and a handle (no text or symbols visible)

1

Mechanical device with a red arrow indicating rotation or movement (no text or symbols)

2

Diagram of a mechanical lever mechanism with red motion arrow indicating rotation (no text or symbols)

3

Mechanical linkage component with articulated arms and mounting base (no text or symbols)

4

Diagram of a three-blade lever mechanism with red motion arrows indicating rotation (no text or symbols)

Illustration of a stroller with wheels and red directional arrows indicating motion (no text or symbols)

2x 6

Illustration of a two-wheeled baby stroller with wheels and handle (no text or symbols)

Illustration of a two-wheeled baby walker with wheels (no text or symbols)

3D illustration of a gray mechanical component with red circular annotations indicating features (no text or symbols present)

Illustration of a stroller with four wheels and red arrows indicating motion or movement (no text or symbols)

2x 2

4X 3

2x 4

Three technical illustrations of car seat components, showing front, side, and side views (no text or symbols)

3D diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Diagram of a vehicle interior showing airflow direction and component placement (no text or symbols)

3D diagram of a mechanical assembly with a container and linkage mechanism, no text or symbols present

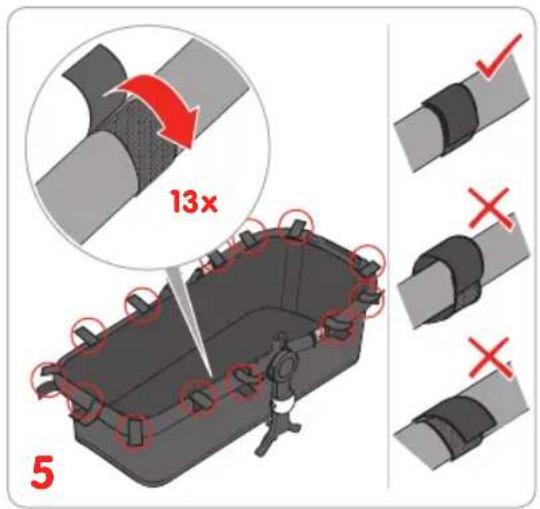

3D illustration of a container with a handle and a magnified inset showing red arrows indicating flow or movement (no text or symbols)

13x 5

3D illustration of a mechanical component with a lid and handle, showing a red arrow pointing to a component (no text or symbols)

Illustration of a mechanical device with a red arrow indicating force or motion, showing a handle and lock mechanism (no text or symbols)

3D illustration of a mechanical device with red arrows indicating motion or force, no text or symbols present

9 2x

3D rendered image of a gray ergonomic seat or cushion device (no text or symbols visible)

Isometric illustration of a mechanical linkage system with two vertical supports and a curved rail (no text or symbols)

Diagram showing a car seatbelt buckle being adjusted to a vehicle's seatbelt, with red arrows indicating clockwise motion (no text or symbols present)

1

Illustration of a person assembling a car seat frame with a red arrow indicating motion (no text or symbols present)

2

Diagram of a car seatbelt buckle with a magnified inset showing the seatbelt being adjusted (no text or symbols present)

3

2x

4

3D diagram of a seatbelt device with red arrows indicating force or movement, no text or symbols present

3D model of a mechanical device with a red checkmark indicating selection (no text or symbols on the device itself)

Mechanical assembly diagram showing two components with a red arrow indicating motion direction (no text or symbols)

Illustration of a car seatbelt with a magnified inset showing the cable being locked, labeled with number 8 (no text or symbols on the diagram itself)

3D model of a mechanical device with a close-up inset showing a red arrow pointing to a component (no text or symbols)

3D rendered image of a small car seat with adjustable arms and seatbelt, no text or symbols visible

Mechanical assembly diagram showing a lever mechanism with red directional arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a clamping device inserted into a housing (no text or symbols visible)

Interior view of a car seatbelt with a red arrow indicating a specific component (no text or symbols present)

Interior view of a car's seat assembly showing steering wheel and dashboard (no text or symbols)

Diagram of a mechanical component with red arrows indicating rotational motion (no text or symbols)

Illustration of a baby stroller with wheels and handle, shown in grayscale without any text or symbols.

2

Illustration of a stroller with a lock icon and red warning symbol, showing a hand holding the steering wheel.

Illustration of a baby stroller with wheels and handle, shown in grayscale without any text or symbols.

Illustration of a stroller with a magnified inset showing a joint fracture (no text or symbols)

2x 2

Illustration of a two-wheeled baby walker with a red directional arrow indicating motion (no text or symbols)

2x 4

Illustration of a stroller with a magnified inset showing the joint structure (no text or symbols)

2x 2

3

Illustration of a baby stroller with a red X symbol on the front panel (no text or symbols present)

Illustration of a baby stroller with a red X symbol indicating crossed-out or no crossing (no text or symbols present)

Illustration of a stroller with a magnified inset showing a joint fracture (no text or symbols present)

2x 2

Illustration of a baby stroller with a canopy and upward arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a triangular component and a lever, showing a red arrow indicating rotation (no text or symbols present)

Diagram of a mechanical device with a rotating blade and lever, labeled with number 2 (no text or symbols on the diagram itself)

Illustration of a folding chair with red arrows indicating rotation, showing the blade being folded (no text or symbols present)

Diagram of a folding table with a folded top and a red arrow indicating rotation (no text or symbols)

Illustration of a stroller with a magnified inset showing the impact of a joint injury on the wheel (no text or symbols present)

Illustration of a stroller with a handle and lever mechanism, showing motion direction (no text or symbols)

Illustration of a baby stroller with a magnified inset showing the blade being adjusted (no text or symbols)

Illustration of a mechanical device with red arrows indicating motion or force direction (no text or symbols)

Illustration of a toy car with a red X mark indicating a warning or issue, no text or symbols present.

Illustration of a stroller with a magnified inset showing a joint fracture (no text or symbols)

2x 2

Illustration of a baby stroller with a red arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of a baby stroller with a magnified inset showing the blade being lifted (no text or symbols)

Illustration of a baby stroller with red X mark indicating no change, surrounded by motion arrows (no text or symbols)

Illustration of a stroller with a magnified inset showing the impact of a joint injury on the wheel (no text or symbols present)

2x 2

Illustration of a baby stroller with a red arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a red arrow indicating motion direction (no text or symbols)

5

Diagram of a hand holding three car seats with a red arrow indicating a specific seat (no text or symbols present)

Diagram showing a mechanical buckle assembly with red arrows indicating motion or force direction (no text or symbols present)

Diagram illustrating a hand holding a cable with red arrows indicating correct and incorrect positions, labeled with number 3.

4

5

Illustration of a stroller with a magnified inset showing a joint fracture (no text or symbols present)

Mechanical assembly diagram showing a bracket with a highlighted component and a red arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a bracket with a red arrow pointing to a component (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with red directional arrow (no text or symbols)

Illustration of a stroller with a magnified inset showing a hand holding a wrist, no text or symbols present.

Illustration of a baby stroller with a red arrow indicating motion, no text or symbols present

3

Illustration of a stroller with a magnified inset showing a hand holding a small object, no text or symbols present.

Illustration of a baby stroller with a red arrow indicating rotation (no text or symbols)

2x 3

Illustration of a baby stroller with a red arrow indicating motion (no text or symbols)

Illustration of a stroller with a handbag and belt, showing a red-handled rotation arrow (no text or symbols)

Illustration of a stroller with wheels and a handle, showing no text or symbols

2x 7

Illustration of a two-wheeled stroller with wheels and a seat, no text or symbols present

Diagram of a wheelchair with wheels and directional arrows indicating motion (no text or symbols)

9

Illustration of a stroller with a magnified inset showing the knee joint (no text or symbols present)

2x 2

Illustration of a baby stroller with a red arrow indicating motion direction (no text or symbols)

Illustration of a baby stroller with hand positioning and red rotation arrows indicating motion (no text or symbols)

Illustration of a two-wheeled baby stroller with visible blades and wheels (no text or symbols)

2x 6

Illustration of a two-wheeled toy car with wheels and a propeller, no text or symbols present

Mechanical device with red directional arrows indicating motion, no text or symbols present

Illustration of a stroller with a magnified inset showing a joint fracture (no text or symbols)

2x 2

Illustration of a stroller with a red arrow indicating motion direction (no text or symbols)

Illustration of a stroller with motion arrows indicating changes, showing body positioning and seat movement (no text or symbols)

Illustration of a two-wheeled stroller with red motion arrows indicating motion (no text or symbols)

2x 6

Illustration of a two-wheeled motorcycle with wheels and a mounted gun (no text or symbols)

Mechanical device with red directional arrows indicating motion, no text or symbols present

Two red stick figures in motion, one climbing and the other swinging (no text or symbols)

Illustration of a mechanical device with wheels and a vertical rod, no text or symbols present

Illustration of a stroller with a red arrow indicating motion, no text or symbols present

Illustration of a two-wheeled stroller with a red directional arrow indicating motion (no text or symbols)

Illustration of a two-wheeled stroller with a red directional arrow indicating motion (no text or symbols)

Illustration of a stroller with motion arrows indicating rotation and change (no text or symbols)

2x 6

Red line drawing showing a vehicle with wheels and an arrow indicating motion (no text or symbols)

Illustration of a stroller with a hand adjusting the wheel, showing a close-up of the seat and a red arrow indicating motion (no text or symbols)

Illustration of a stroller with red arrows indicating motion or force, showing body positioning and wheel movement (no text or symbols)

2x 3

Illustration of a robotic arm gripping a device, showing hand positioning and movement direction (no text or symbols)

Illustration of a climbing device with a red upward arrow indicating motion (no text or symbols)

Illustration of a small wheeled cart being adjusted, with a red checkmark indicating the correct motion (no text or symbols present)

Two red silhouette figures of a boat and a small boat on a flat surface, connected by an arrow (no text or symbols)

Illustration of a baby stroller with a red arrow indicating rotation (no text or symbols)

3D rendering of a small baby care kit with handle and seat (no text or symbols)

2x 3

Illustration of a mechanical device with a red arrow indicating force application, showing a close-up of the component (no text or symbols present)

3D rendering of a rectangular container with an open lid and a small stand, no text or symbols visible

3x 6

3D diagram of a vehicle cabin with red arrows indicating movement or force, no text or symbols present

3D diagram of a mechanical device with red arrows indicating rotation or movement, no text or symbols present

3D diagram of a car interior showing a seatbelt and hand movement with red arrows indicating rotation (no text or symbols)

Illustration of a baby stroller with a red hanging rope, shown in grayscale (no text or symbols)

Illustration of a hand holding a curved black cable with a red checkmark indicating the correct grip (no text or symbols present)

Illustration of a baby stroller with a red-handled wheel, showing motion direction (no text or symbols)

2× 2

Illustration of a baby stroller with wheels and a handle, showing a red arrow indicating motion (no text or symbols)

2x 4

Illustration of a baby stroller with a red-handled shift arrow indicating motion (no text or symbols)

Illustration of a baby stroller with adjustable arms and wheels (no text or symbols)

2

2x 3

4

Illustration of a baby stroller with a red arrow indicating motion, no text or symbols present

Illustration of a stroller with motion arrows indicating speed and direction (no text or symbols)

Illustration of a baby stroller with adjustable arms and wheels, no text or symbols present

Illustration of a stroller with a close-up inset showing the seat being adjusted for a hand (no text or symbols present)

Illustration of a stroller with red arrows indicating motion or force direction, showing wheel assembly and wheelbase (no text or symbols)

bugaboo europe & asia

paasheuvelweg 9 a-b

1105 BE amsterdam z.o.

po box 1299

1000 bg amsterdam

the netherlands

bugaboo americas

bugaboo north america inc

po box 2051

manhattan beach, ca 90267

usa

www.bugaboo.com
