USER MANUAL AC5485 TRISTAR

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the insert packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Check the appliance and the cable and plug for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance, plug or cable on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

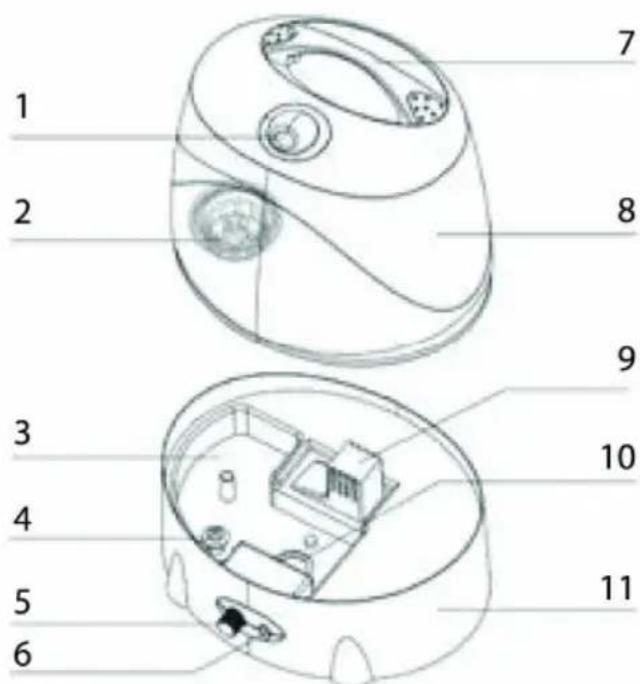

5. Mist intensity controller

This Tristar humidifier AC-5485 is made of recyclable plastic of edible grade. It can work continuously for over 14 hours with maximum mist intensity. Smooth mist, anion-refreshing, power saving, quiet, auto-stop and long service life are its main features.

4. How does it works?

As per the vibrating theory of ultrasonic waves, the humidifier divides water drops into particles sized 1 – 5 µm. Then the particles are diffused by motor-driven devices - fan. During this course, a large quantity of anions are produced and diffused. That’s how this humidifier works to humidify and refresh the air.

5. How to use the humidifier?

• The best environment temperature for the humidifier is ranged from 0℃ to 40℃. Place it in a room for half an hour before the first use.

• It is recommended to use softened and boiled water or distilled water. The water temperature should not be higher than 40℃.

• Place the humidifier on a safe place in your house, on a flat and firm20 underground, which is not insensitive for wet surroundings like a television, HIFI or a bench.

• Take the water tank from the base, open the water lid by turning it anticlockwise, fill in water, make sure that the silicon washer is well fitted in its place and then close the water lid by turning it clockwise.

• Connect to power supply and turn on the switch. Setting proper mist intensity by turning the mist intensity controller.

• Make sure that sprayer will be fixed to the middle of the room, without any obstruction.

6. Cleaning and maintenance

• The water tank should be cleaned frequently. It is recommended to clean once every 3 days.

• Water should be changed frequently. It should not be kept in the water tank more than 2 days.

• Transducer Due to geographic factors, water quality may differ from place to place. Some places have hard water, which contains a large quantity of calcium and magnesium ions. Furthermore, the use of bleaching power (to purify water) also increases the hardness of water. When this kind of water is used to humidify the air, calcium and magnesium ions are diffused together with the mist. As time goes on, there will be sediments of scale on the object surfaces and ground. Meanwhile, there will also be sediments on the transducer and the water groove, which is to affect the functioning of the humidifier. To clean the transducer, please;

• Add some cleanser (about 0.5g) on the transducer, add some water, and wait for 2-5 minutes.

• Use a soft brush to clean the surface of the transducer. Don’t use hard tools to scratch its surface.

• Use cleanser, which you can buy in a market, for cleaning this kind of plastic appliances.

• Do not use soap or other alkaline substances to clean the transducer.

• Do not put this humidifier or some parts into the dish washer.

• If the water groove and water level detector have scale sediments too, please use the cleanser to clean, and then wash the water groove with clean water.

• Do not immerse the base in water and make sure that no water21 enters the vent.

The original package is the best to store the unit. Make sure to clean all the parts and have them dried before storage. Meanwhile, please loose the silicon washer to secure its service life.

Do you know that different places have different humidities and, objects need their own humidities too? Please find the following: The Best Humidity for Human Body: 45%RH – 65%RH The Best Humidity for Disease Preventing and Treatment: 40%RH – 55%RH Furniture and Musical Instrument: 40%RH – 60%RH Computer and Communication Apparatus: 45%RH – 60%RH Dance Hall, Bar, and Other Public Places of Entertainment: 40%RH – 65%RH Library, Art Gallery, Museum: 40%RH – 60%RH

• It is not recommended to use additives like perfume, essence, etc. It is prohibited to add alkaline substances into the water tank.

• When working, do not touch the water in the groove or other parts, as electric shock may happen due to unexpected electric leakage.

• Do not direct the sprayer nozzle to children, furniture and walls, etc. Adjust it to empty space instead.

• Make sure it works far away from other home appliances.

• Do not leave it work on unstable surfaces. When working, do not tilt or overturn it.

• In case of abnormal noise or smell, please turn it off and unplug it from socket immediately.

• When cleaning or moving the unit, please turn it off and remove the water tank. Shakings may lead to overflow of water into the base, so as to affect its function.

• Do not place it in sun-lighted places for a long time.

• Do not repair or replace parts by yourself; send it to professionals or the store for help. Unauthorized modifications or re-structure of the humidifier may lead to inconveniences or dangers.

• If it is not to be used for a long time, please unplug and store it properly.22

10. Trouble shootings

No breeze, no mist A. No power supply. B. Power switch is off. C. Water level of the groove is too high. D. Leakage of the water tank. A. Connect to power supply. B. Turn on the power switch. C. Lower the water level by reducing water in the groove. D. Tighten the water lid. Breeze, but no mist A. No water in the water tank. B. Water level detector is not in the right position. C. The temperature of the unit is too low. A. Fill water into the water tank. B. Re-mount the water level detector. C. Place the unit in a room for half an hour before use. Odd mist smell Water in the tank is kept for too long. Clean the water tank and re-fill it with clean water. Low intensity A. Too much water in the water groove. B. Mist intensity controller is on the minimum side. C. Scale sediments on the transducer. D. The water is too cold. E. The water is not clean. A. Empty the water in the groove and place the water tank again. B. Adjust the controller. C. Clean the transducer D. Use water of ordinary temperature. E. Clean the water tank and re-fill it with clean water. Mist spurts no high A. Mist intensity controller is on the minimum side. B. Water tank and the base are not rightly touched. C. Fan does not work properly. A. Adjust the controller. B. Make sure water tank and the base are touched rightly. C. Ask professionals to check the fan inside the base. Noise A. Resonance caused by too less water in the water tank. B. Resonance caused by unstable surfaces. A. Add water into the water tank. B. Lay the unit on stable surfaces.23
