TAB87DCBT Tablet PC Android 4.2 User ManualAttention: This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Pls make sure to reading the manual carefully before use the device.

1. Please don’t be in high temperature, moisture or very dust place

2. Please don’t be in high temperature, Especially in summer don't put the

device in the car when Windows closed. Avoid fall or Violent collision of the device, don’t make the TFT display screen were violent tremor, This could cause TFT display screen abnormal or damage. Please choose the appropriate volume, Use headphones shoulds not be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition, 4 The battery power ICONS shows have no power 5 The system automatically shut off, startup after power off soon 6 Operation buttons no response 7 The machine that the top right corner show red icons

1. When the device in the format or ongoing upload and download

file, please don't suddenly disconnect, This could cause application error.

1. For those who because of damage to the product, repair, or other causes

of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.

3. Don't use the device one of the place of prohibit to use electronic

equipment in regional (such as the plane)

4. Please don't using the Tablet PC when you in driving or walking down

5. USB just only be used for data transmission

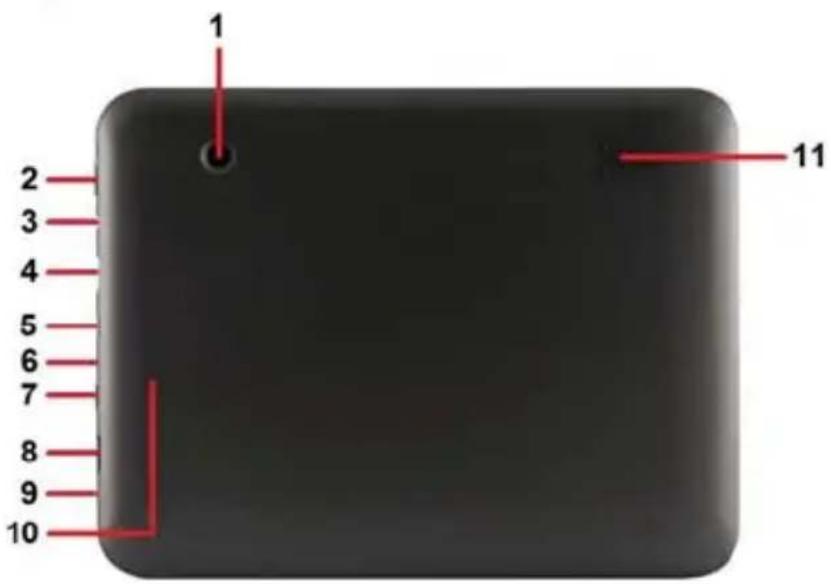

Name function 1 Rear Camera 2M pixel rear camera 2 Power and lock Key Hold and press to turn on or turn off the unit,Briefly press to turn on or turn off the screen. 3 Earphone Jack To connect your earphone 4 MINI HDMI Connect to TV output Via a HDMI cable 5 Micro USB Connect to a computer via a USB cable to transfer data (music,videos,photo,ect.),USB OTG,supports mouse, Keyboard, USB flash disk,etc,with a converting cable. 6 Power jack(DC in – Put) Connect to a 5V output adaptor as included in the accessories 7 ESC key Press the “ESC” to go back 8 TF card slot To insert your TF card 9 Microphone Microphone 10 Reset Press to reset the tablet if it freezes or behaves abnormal 11 Speaker Speaker 2Specifications Display: 8 inch 1024X768 (4:3) Capacitive multi-touch screen CPU: A20 Dual-Core A7 1.2GHZ

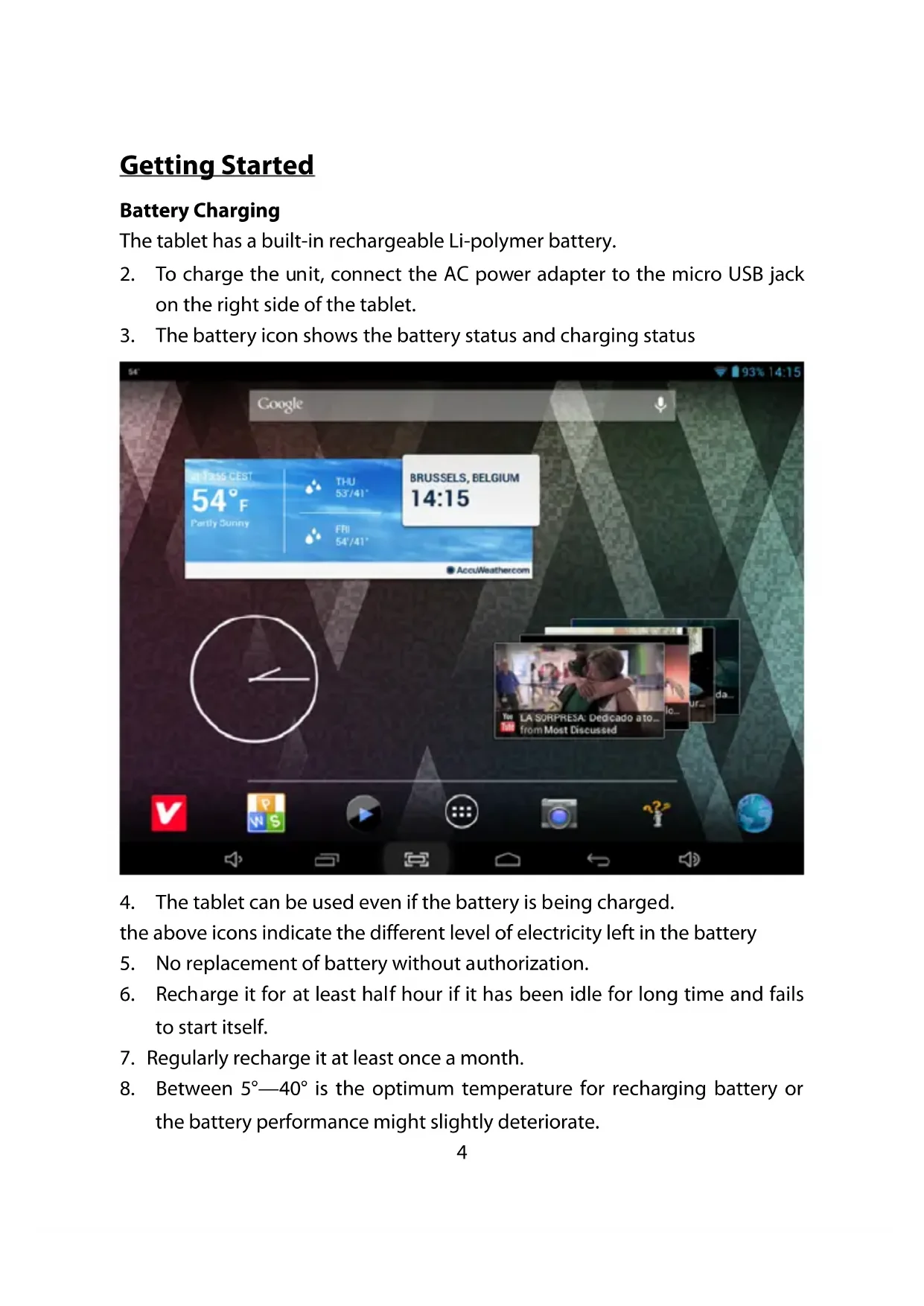

3Getting Started Battery Charging The tablet has a built-in rechargeable Li-polymer battery.

2. To charge the unit, connect the AC power adapter to the micro USB jack

on the right side of the tablet.

3. The battery icon shows the battery status and charging status

4. The tablet can be used even if the battery is being charged.

the above icons indicate the different level of electricity left in the battery

5. No replacement of battery without authorization.

6. Recharge it for at least half hour if it has been idle for long time and fails

7. Regularly recharge it at least once a month.

8. Between 5°—40° is the optimum temperature for recharging battery or

the battery performance might slightly deteriorate. 4Disposal The battery might contain the polluting material, please give it to the official recycling-station before disposal of the tablet pc, and do not litter.

Power ON/OFF ON: press the button for continuous 5 seconds until the tablet turns “ON”. OFF: 1.Press the button for continuous 5 seconds and it will appear 2.Click Power off to power off the tablet Screen Lock This feature locks the screen, at the same time turn OFF the screen’s backlight after a few seconds. Screen locks when:

2. Manually activate it by pressing the Power button once.

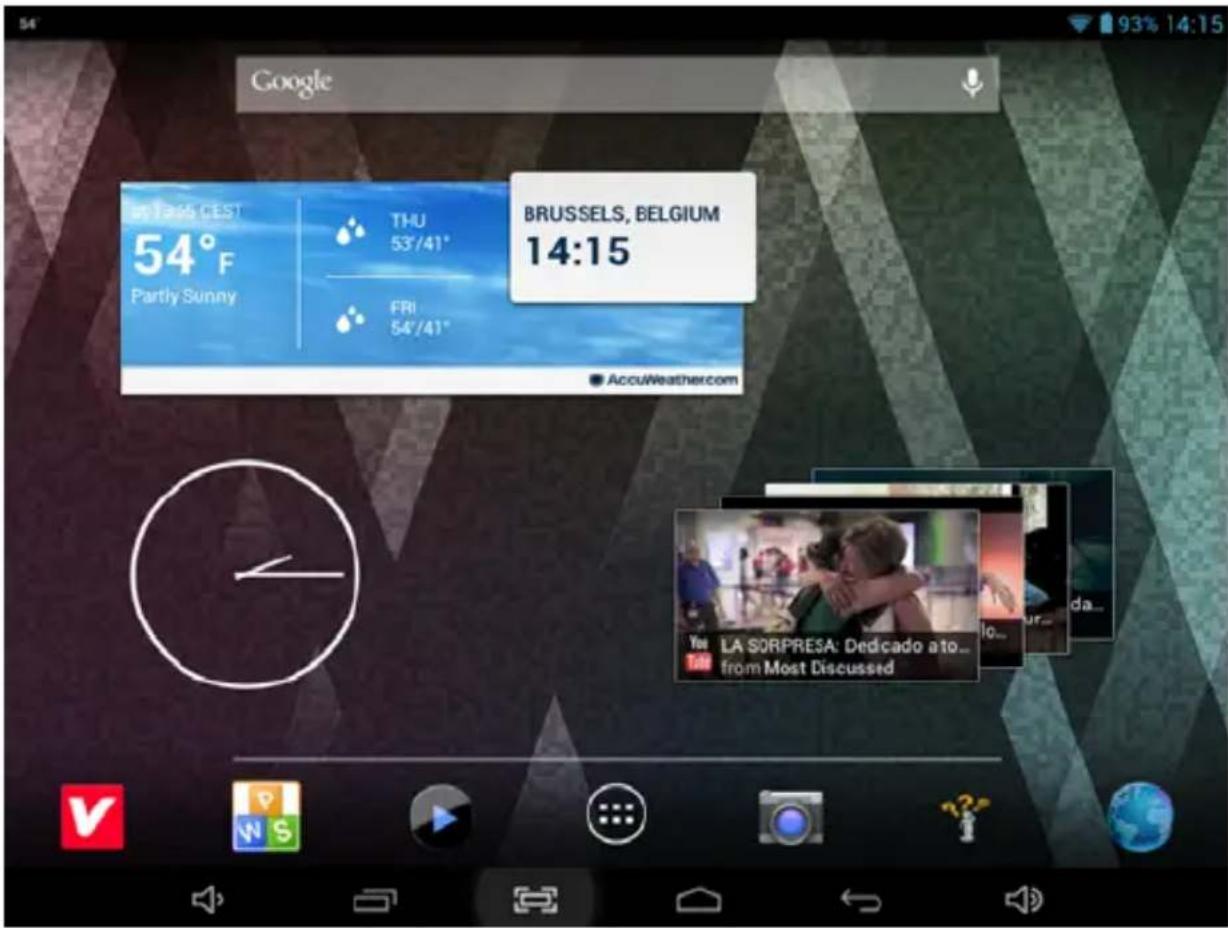

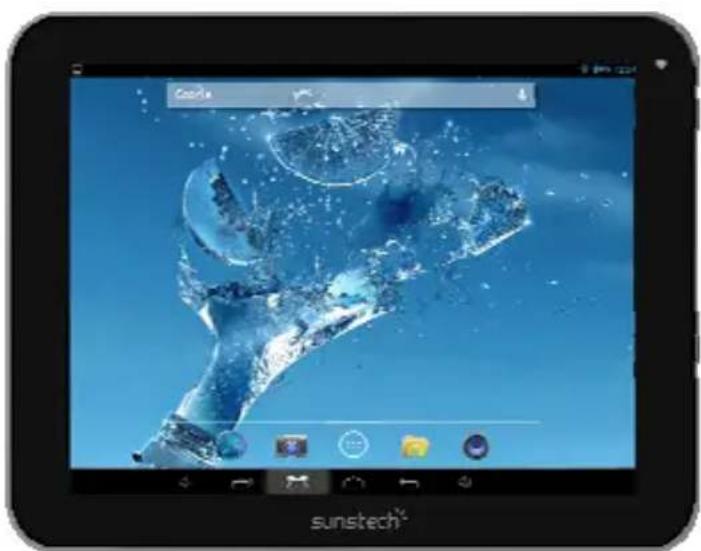

Home screen The Home screen will look similar to the picture below. It is actually five screens, each of which can have a different layout of icons. To switch between screens, simply slide your finger left or right across the display. The status bar and navigation buttons are always visible, no matter which Home screen you can currently viewing. 5The Desktop contains shortcuts to your most-used applications and widgets Touch the screen icon to quickly search the World Wide Web using Google. The icon will launch the Application menu. The status bar displays system information, such as current time and battery. Touch to Expand the status bar for more detailed information. The button moves back one step to the previous menu/page. The buttons returns immediately to the Android desktop. The button display a menu of recently opened applications. The button to screenshot current interface 6The button decrease the volume. The button increase the volume, Settings Menu The settings menu allows you to adjust Tablet system configuration. To change settings:

1. Touch the "Settings" menu icon on the Application menu.The

Settings menu will open.

2. Guide your finger up or down the left side of the screen to scroll through

the list of available categories.

3. Touch a category title to view further options on the right side of the

screen. Wi-Fi - Connect to /disconnect from wireless networks, view connection status Bluetooth: To connect or disconnect from devices to send photos / music… Data usage - Enable / disable mobile data, view current usage, set mobile data limit (note: this function is available only on devices supplied with 3G card) Sound - Change volume, touch sound, screen lock sounds etc Display - Change brightness, wallpaper, sleep settings, font size etc Storage - Manage NAND and Micro SD card, view available capacity etc Battery - See battery status and powered-on time Apps - Manage applications, running services etc Accounts & sync - Switch synchronization on /off, manage accounts etc Location services - Change approximate location detection, improve search results Security - Change screen lock type, encryption, password, credential storage etc Language & input Select language, add to the dictionary, edit on-screen keyboard settings, vocal search, etc 7Backup & reset - Backup & restore data, perform factory reset, etc Date & time - Set date, time zone, time, clock format etc Accessibility - Set up large text, auto-rotate screen, speak password etc Developer options - Advanced functions for Android developers - debugging, HDCP check etc About tablet - Information about your Android device How to Use TF card

1. Insert the TF card into the TF card slot. Gently push TF card into slot until it

2. A prompt will be seen on the screen saying “ Preparing SD card “

1. Close all applications and documents which have been opened from the

2. Select “Setting” and find “ Storage” then click “Unmount SD card”.

3. A prompt will be seen on the screen saying “ SD card safe to remove”

4. Gently press the TF card to remove and pull out the TF card.

Note: Insert the TF card in correct position, otherwise it will damage the card and the slot. Software Keyboard The tablet has a software keyboard which automatically show up when you tap the place on screen where text or number are to be entered. Touch Screen The touch screen responds to finger touch. Note:Do not place any object on the touch screen because it may damage or crush the screen. 8Single Click: single click one icon to choose the icon or option you want. Long Press: press and hold one icon to make appear a menu related to the executed function (if available). Drag: drag on the screen and you can move between magic cube sides or drag the application icons into the shortcut bar.

How to connect with computer Note: Turn on your Tablet before connect the Tablet to PC by USB cable.

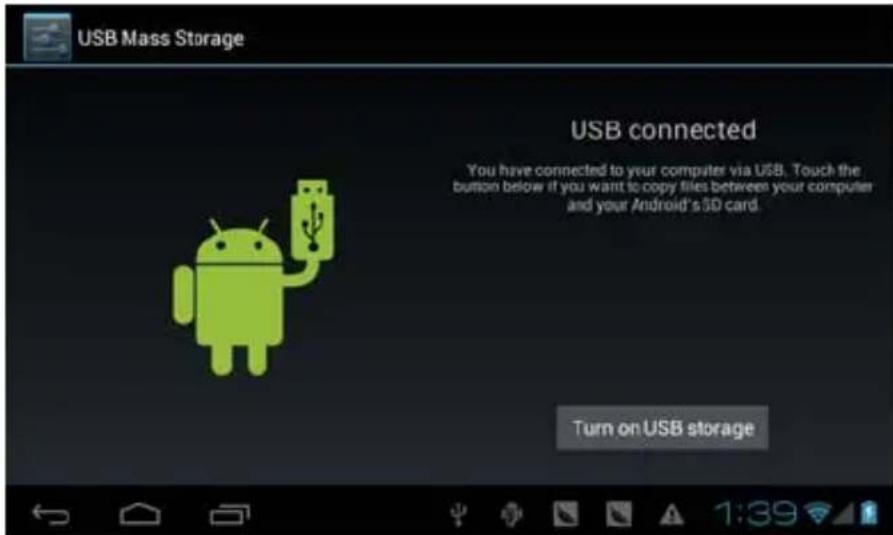

1. Use USB cable to connect MID with computer. System will notice USB

connected on bottom of screen.

2. Press USB connected to pop up, then click Turn on USB storage, click OK.

3. Then the USB connection has been successfully.

9Connection to Internet Wireless:

1. Select “ Settings”

2. Select “Wi-Fi” and slide OFF to ON status.

3. All detected wireless networks in the area will be listed, Click to select

desired wireless connection.

4. Enter WEP key or network key if necessary.

5. Once connected to a wireless network, settings will be saved

6. Wireless icon will appear on the taskbar when connected successfully.

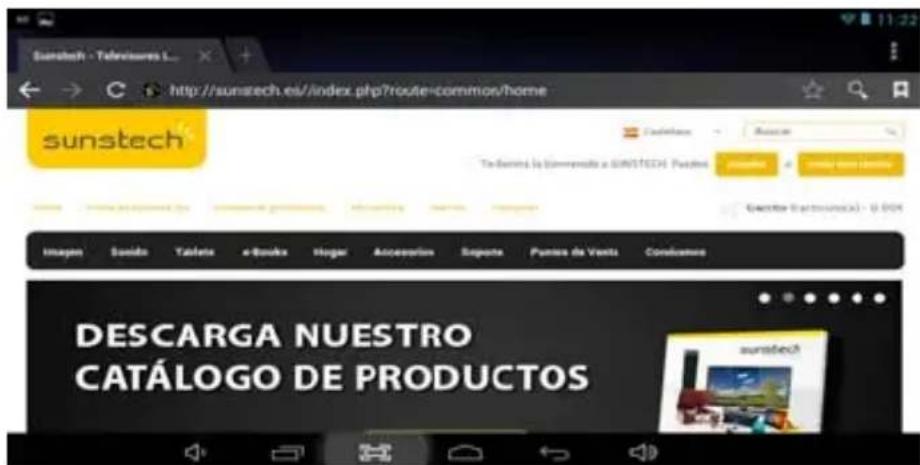

Note: when the tablet detects the same wireless network in the future, the device will connect automatically to the network Web Browsing Connect to the internet and launch the browser.

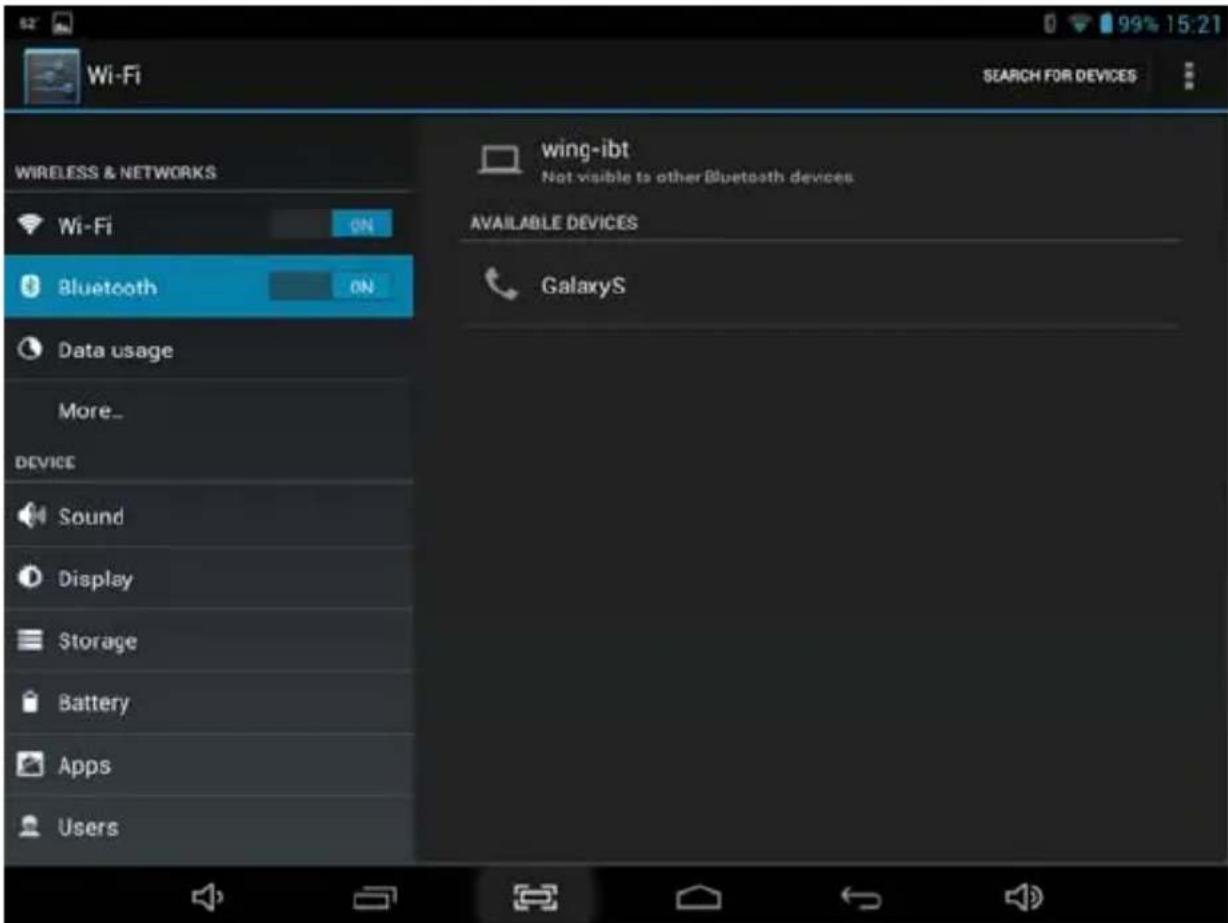

10Connection to Bluetooth

1- Select “Settings”

2- Select “Bluetooth” and slide OFF to ON status.

3-All detected Bluetooth device in the area will be listed, tap to select the device connection.

4- When your select the device must enter code and permission key if

necessary to pairing. 5-On the other device must accept the permissions to connect between them.

6- Now, your can sent photos / Music…

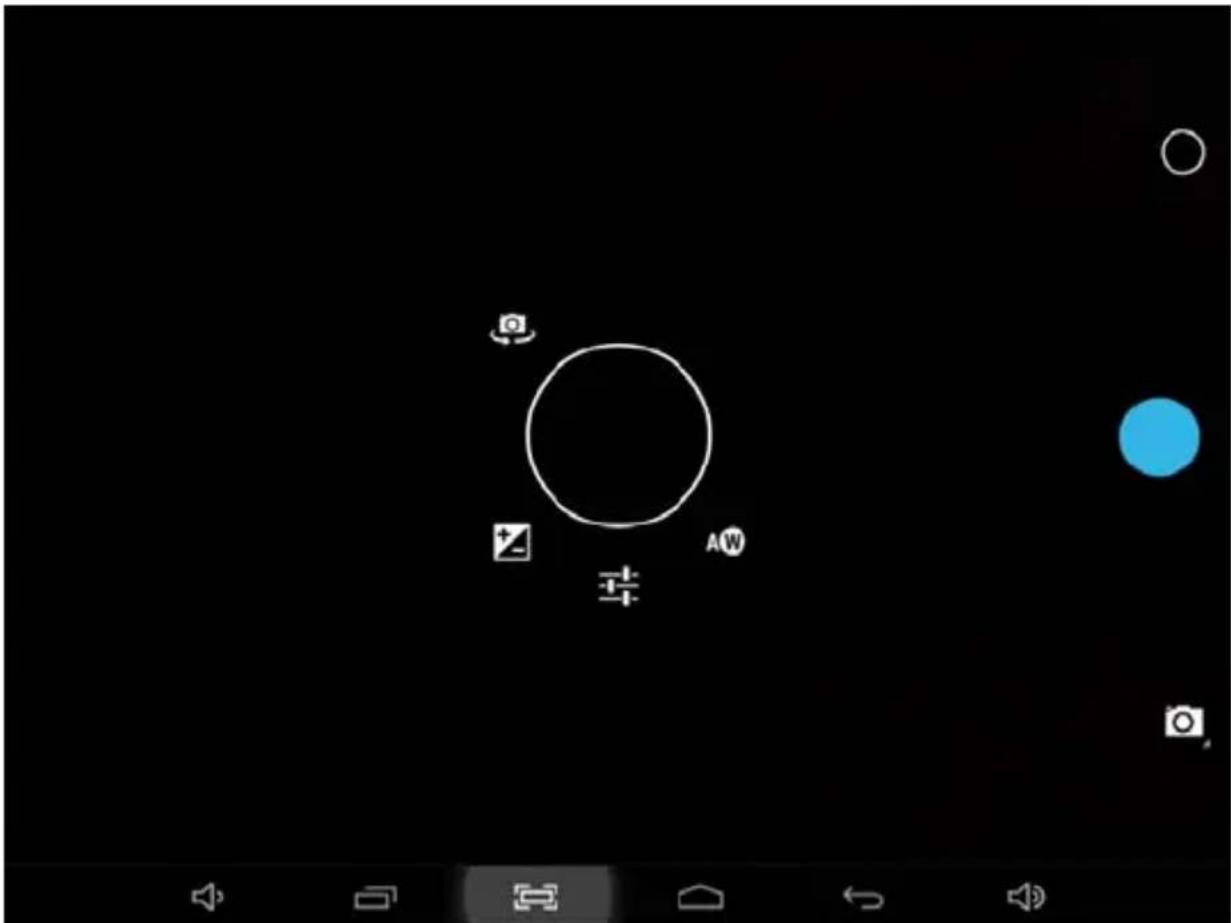

11Camera Touch the icon to enter camera mode and the interface is shown as follows:

1.Touch the icon in the middle to take photo

and you can switch camera mode to camera recording mode.

to change of the front to the back camera.

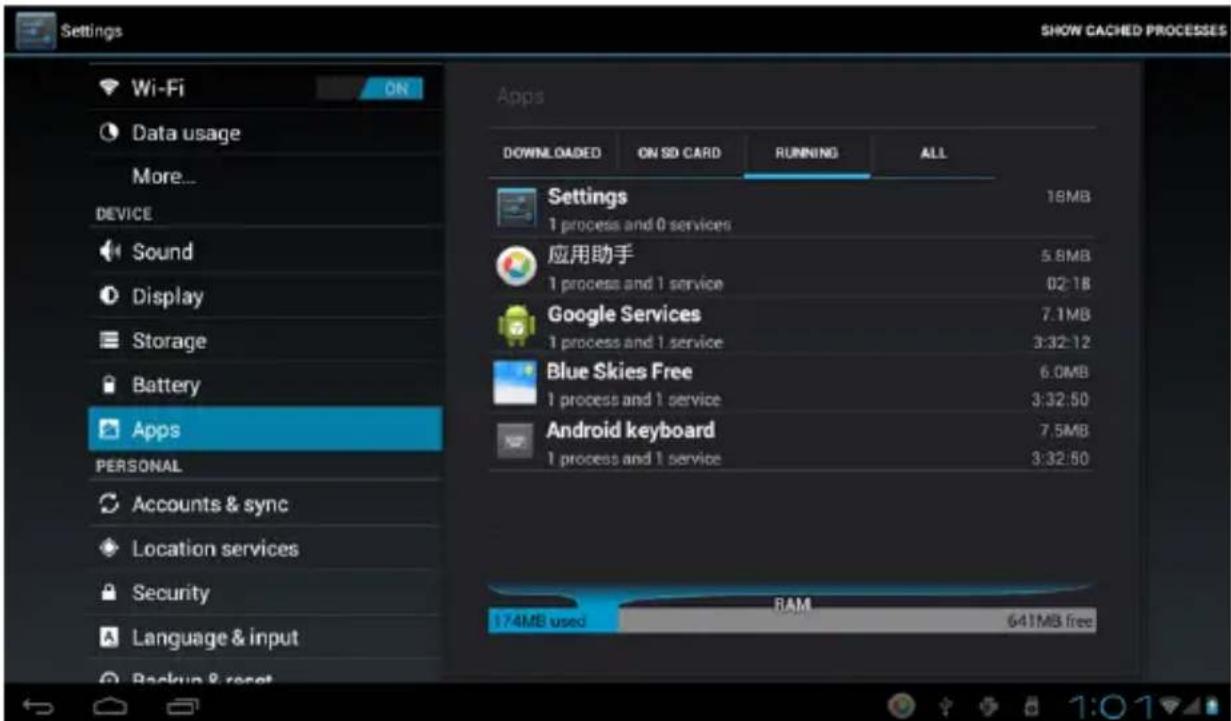

12Trouble Shooting Close Application All running applications take up system memory and will slow down the systems response. Please shut down all idle applications to free memory and get the system speed back to normal. To close the application, click the icon on the shortcut bar to enter the system configuration interface. Select the Application → Running services and the interface is shown as follows: Tap the application you want to close. A pop-up window will be displayed. Tap “Stop” to close that application.

1. Press and hold the power button for 5 seconds and the device will be

2. Press the reset button on the back and the device will be forced to be

powered off. Restore Default Setting If you want to reset the factory setting and erase all materials, please press Settings → Backup & Reset → Factory data reset. ** Warning: A factory data reset will delete your data, configuration of the system and applications that you have installed. **Please use this function carefully. -Recovery mode Function. TAB 87DCBT How to enter in recovery mode. Please follow these steps. To enter in the recovery mode first you should power off the device, Then long-press the “ON-OFF” key and “Return” Key at the same time until the Recovery mode has appeared, pls try it. After a new menu will appear and then you must use the touch panel to select “Wipe data/ factory reset” then press “Power” and then select “Yes delete all user data” Then press “power” again. The unit will then begin the recovery mode.(this process may last for a few minutes).

14When it finishes select “reboot system now” press the “power button” and the unit will re-start itself. (this process may last for a few minutes

-How to download the software using the unit. IMPORTANT: When you download the software, all data will be deleted as photos, videos and Apps that you have been installed. Do not interrupt this process please make sure the battery is fully charged.

Please, follow these steps.

1- Open browser and search and open this link:

www.sunstech.es/download/

2- Select the model of the tablet that you have and download the

software.(This software is installed In the INTERNAL SD).

3- When it finished the download, select the App " update " in your

unit. 4-Select "Local Update", "download". 5-Select the software / Download and wait until the process is finished.

15Warranty conditions - The warranty of this product is for 2 years since the purchase date. - The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company. - For any request regarding the warranty terms, the purchase receipt must be attached. Correct disposal of this Product (Waste Electrical & Electronic Equipment(WEEE) Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their endof-life should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.Please help us to conserve the environment we live in!1. DO NOT place objects on top of the device, as objects may scratch the device.

2. DO NOT expose the device to dirty

3. DO NOT place the device on an

5. DO NOT expose the device to strong

magnetic or electrical field.

6. DO NOT expose the device to directsunlight as it can damage the device. Keep it away from

7. DO NOT store your device in

temperatures higher than 40°C(104°F). The internal operating temperature for this device is from 20°C(68°F) to 60°C(140°F).

8. DO NOT use the device in the rain.

9. Please check with your Local

Authority or retailer for proper disposal of electronic products.

10. The device and adaptor may

product some heat during normal operation of charging. To prevent discomfort or injury from heat exposure, DO NOT leavethe device on your lap.

11. POWER INPUT RATING:

Refer to the rating label on the device and be sure that the power adaptor complies with the rating. Only use accessories specified by the manufacturer.

12. Clean the device with a soft cloth.

If needed, dampen the cloth slightly before cleaning. Never use abrasives or cleaning solutions.

13. Always power off the device to install

or remove external devices that do not support hot-plug.

14. Disconnect the device from anelectrical outlet and power off before cleaning the

Only a certified service technician should perform repair.

16. The device has apertures to

disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

Appareil photo Touchez l'icône to enter camera mode and the interface is shown as follows:

1.Touch the icon in the middle to take photo
