USER MANUAL HTZBD30 PIONEER

Register your product at:
http://www.pioneerelectronics.com (US)
http://www.pioneerelectronics.ca (Canada)

Protect your new investment The details of your purchase will be on file for reference in the event of an insurance claim such as loss or theft.
Receive free tips, updates and service bulletins on your new product
- Improve product development Your input helps us continue to design products that meet your needs.
Receive a free Pioneer newsletter Registered customers can opt in to receive a monthly newsletter.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Cautions andWarnings

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD,DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to.

CLASS 1 LASER PRODUCT PAREIL A LASER DE CLASS

CAUTION: This product is a class 1 laser product classified under the Safety of laser products, IEC60825-1:2007. To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specifi cation page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

WARNING: To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the old battery

from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects flled with liquids, such as vases, shall be placed on the apparatus.

When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.

Notes on Copyrights

• Because AACs (Advanced Access Content System) is approved as content protection system for BD format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc., of AACs protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACs after the production of this product.
• Furthermore, BD-ROM Mark and BD + are additionally used as content protection systems for BD format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD + protected contents. To obtain additional information on AACs, BD-ROM Mark, BD + , or this product, please contact an authorized Customer Service Center.
• Many BD-ROM/DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programmes, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/or criminal liability.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm (7.9 inch) between the radiator and your body. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

CAUTION: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.

WARNING: Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm.

Wash hands after handling!

This Class B digital apparatus complies with Canadian ICES-003

"To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing."

Operation is subject to the following two conditions:

(1) This device may not cause Interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to quali ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level—a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing "comfort level" adapts to higher volumes of sound, so what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

ESTABLISH A SAFE LEVEL:

• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.
• Once you have established a comfortable sound level, set the dial and leave it there.

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES.

• Do not turn up the volume so high that you can't hear what's around you.
• Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas.

Contents

3

Installation

1

Safety Information

2

Preparation

2 Cautions and
5 IMPORTANT
INSTRUCTIONS
8 Introduction
8 About Symbtle
Display
8 Symbols Used in this Manual
Supplied Accessories25 OPTICAL IN 1/2 connection
10 Playable Discs 26 Bluetooth connection
11 File compatibility 28 Connecting to your Home Network
12 Regional Code 29 Network Setup
12 AVCHD (Advanced 31 USB device connection
Codec High Definition)
12 Certain System Requirements 32 Adjust the Setup Settings
12 Compatibility Notes 33 [DISPLAY] Menu
13 Remote control 34 [LANGUAGE] Menu
14 Front panel 35 [AUDIO] Menu
15 Rear panel [LOCK] Menu
37 [NETWORK] Menu
37 [OTHERS] Menu
Sound Eff ect

4

Operation

40 General Playback
42 Advanced Playback
44 On-Screen display
48 Enjoying BD-LIVE
49 Playing movie fi le and VR discs
51 Viewing a photo
53 Listening to music
56 Playing the iPod
58 Radio Operations
59 Playing content via your home network

5

Maintenance

63 Notes on Discs
63 Handling the Unit

6

Troubleshooting

64 General
65 Picture
65 Sound
66 Network

7

Appendix

67 Controlling a TV with the Supplied Remote Control
68 Area Code List
69 Language code List
70 Video output resolution
71 Trademarks and Licences
73 Specifications
75 Software License Notice

2

Preparation

Introduction

About the Symbol Display

"may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific media.

Symbols Used in this Manual

NOTE

Indicates special notes and operating features.

CAUTION

Indicate cautions for preventing possible damages from abuse.

A section whose title has one of the following symbols are applicable only to the disc represented by the symbol.

BD	BD-ROM disc
DVD	DVD-Video, DVD±R/RW in Video mode or VR mode and fi nalized
AVCHD	DVD±R/RW in AVCHD format
ACD	Audio CDs
MOVIE	Movie fi les
MUSIC	Music fi les
PHOTO	Photo fi les

Supplied Accessories

Video cable (1) Remote control (1)

Battery (1) FM antenna (1)

iPod cradle (1)

Accessories of speaker box (S-BD50T)

Color-coded Speaker cables (5)

Screws (12)

Speaker stand bases (4)

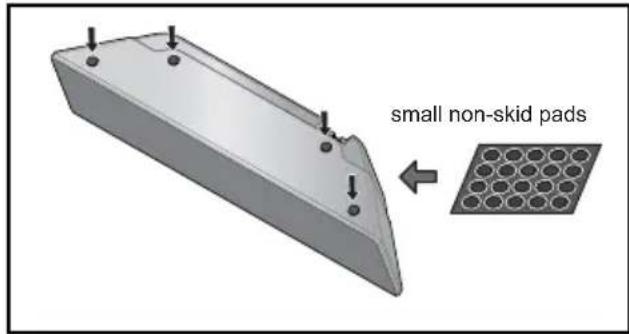

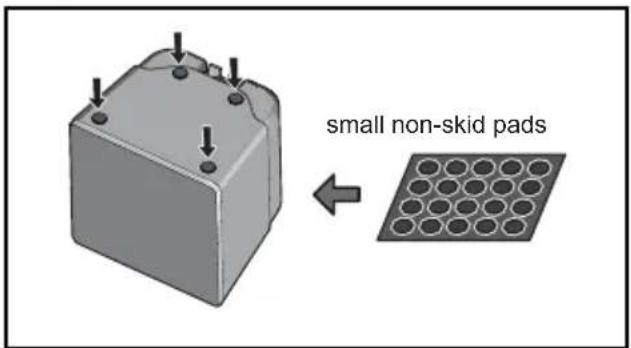

Small non-skid pads (1)

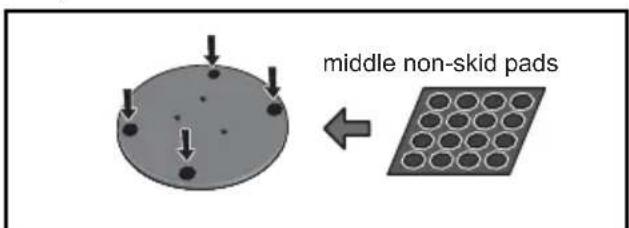

Middle non-skid pads (1)

Accessaries of speaker box (S-BD50SW)

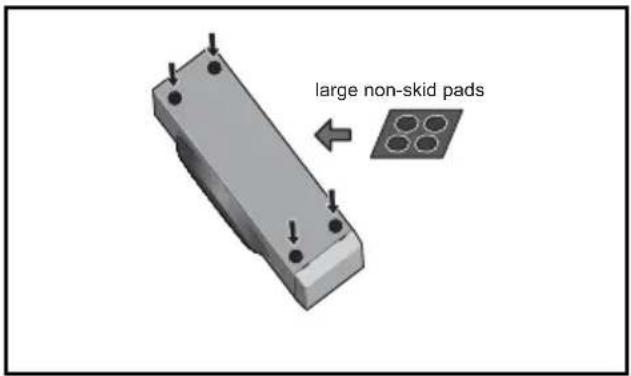

Speaker cable (1) Large non-skid pads (1)

Accessaries of speaker box (S-BD30)

Color-coded Speaker cables (6)

Small non-skid pads (1)

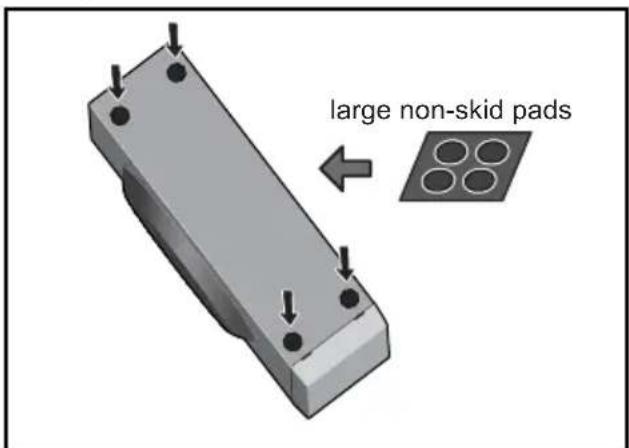

Large non-skid pads (1)

Playable Discs

Blu-ray Disc

• Discs such as movies that can be purchased or rented.

• BD-R/RE discs that contain Movie, Music or Photo files.

DVD-VIDEO

8/12cm disc

Discs such as movies that can be purchased or rented.

DVD±R
8/12cm disc
- Video mode and finalized only
Supports the dual layer disc also
- Finalized AVCHD format
DVD±R discs that contain Movie, Music or Photo fi les

DVD-RW

8/12cm disc

• VR mode, Video mode and finalized only
• Finalized AVCHD format
  DVD-RW discs that contain Movie, Music or Photo files.

DVD+RW

8/12cm disc

• Video mode and finalized only
  -AVCHD format
• Finalized AVCHD format
  DVD+RW discs that contain Movie, Music or Photo files

Audio CD

8/12cm disc

CD-R/RW

8/12cm disc

• CD-R/RW discs that contain audio titles, Movie, Music or Photo files.

NOTE

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
  Depending on the recording software & the finalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.
  BD-R/RE, DVD±R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player's lens.
• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)
• This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.
• Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions to ensure compatible playback.
• Customers should note that permission is required in order to download MP3 / WMA fi les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

File compatibility

Overall

Available File extensions:

• Available file extensions diff er depending on the DLNA servers.
• Some ".wav" files are not supported on this player.
  The file name is limited to 180 characters.
  Depending on the size and number of the files, it may take several minutes to read the contents on the media.

Maximum Files/Folder: Less than 2000 (total number of files and folders)

CD-R/RW, DVD±R/RW, BD-R/RE Format: ISO 9660+JOLIET, UDF and UDF Bridge format

MOVIE

Available resolution size:

1 920 x 1 080 (W x H) pixels
Playable subtitle: SubRip (.srt/.txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)
- VobSub (.sub) is not available in the [Home Link] feature.
Playable Codec format: "DIVX3.xx", "DIVX4.xx", "DIVX5.xx", "XVID", "DIVX6.xx" (Standard playback only), H.264/MPEG-4 AVC, MPEG1 SS, MPEG2 PS, MPEG2 TS
Playable Audio format: "Dolby Digital", "DTS", "MP3", "WMA", "AAC", "AC3"
- Not all the WMA and AAC Audio formats are compatible with this unit.

Sampling frequency:

between 32kHz to 48kHz (WMA), between 16kHz to 48kHz (MP3)

Bit rate:

between 20 kbps to 320 kbps (WMA), between 32 kbps to 320 kbps (MP3)

NOTE

• HD movie files contained on the CD or USB 1.0/1.1 may not play properly. BD, DVD or USB 2.0 are recommended to play back HD movie files.
• This player supports H.264/MPEG-4 AVC profi le Main, High at Level 4.1. For a fi le with higher level, the warning message will appear on the screen.
• This player does not support the files that are recorded with GMC ^1 or Qpel ^2 . Those are video encoding techniques in MPEG4 standard, like DivX or XVID have.

*1 GMC - Global Motion Compensation

*2 Qpel - Quarter pixel

MUSIC

Sampling frequency:

between 8 kHz to 48 KHz (WMA),

between 11 kHz to 48 kHz (MP3)

Bit rate:

between 8 kbps to 320 kbps (WMA, MP3),

NOTE

This unit cannot support the ID3 Tag embedded MP3 file.
- The total playback time indicated on the screen may not be correct for VBR files.


Recommended size:

Less than 4,000 × 3,000 × 24 bit/pixel
Less than 3,000 × 3,000 × 32 bit/pixel
Less than 4 MByte/fi le

• Progressive and lossless compression photo image files are not supported.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or "ALL".

AVCHD (Advanced Video Codec High Defi nition)

• This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.
• The AVCHD format is a high definition digital video camera format.
• The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the conventional image compressing format.
• Some AVCHD discs use the "x.v.Color" format.
• This player can playback AVCHD discs using "x.v.Color" format.
• Some AVCHD format discs may not play, depending on the recording condition.
• AVCHD format discs need to be finalized.
• "x.v.Color" offers a wider color range than normal DVD camcorder discs.

Certain System Requirements

For high definition video playback:

• High definition display that has COMPONENT or HDMI input jacks.
• BD-ROM disc with high definition content.
• HDMI or HDCP capable DVI input on your display device is required for some content (as specified by disc authors).
• For up-conversion of standard defi nition DVD, a HDMI or HDCP capable DVI input on your display device is required for copy protected content.

Compatibility Notes

• Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Center.
  Viewing high-definition content and up-converting standard DVD content may require a HDMI-capable input or HDCP-capable DVI input on your display device.
• Some BD-ROM and DVD discs may restrict the use of some operation commands or features.

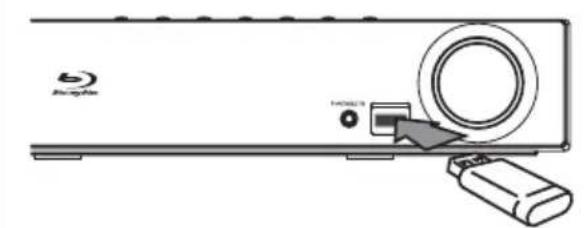

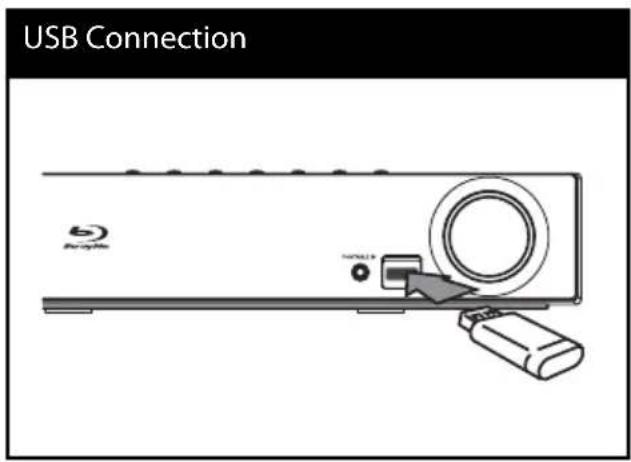

• You can use a USB device that is used to store some disc related information, including downloaded on-line content. The disc you are using will control how long this information is retained.

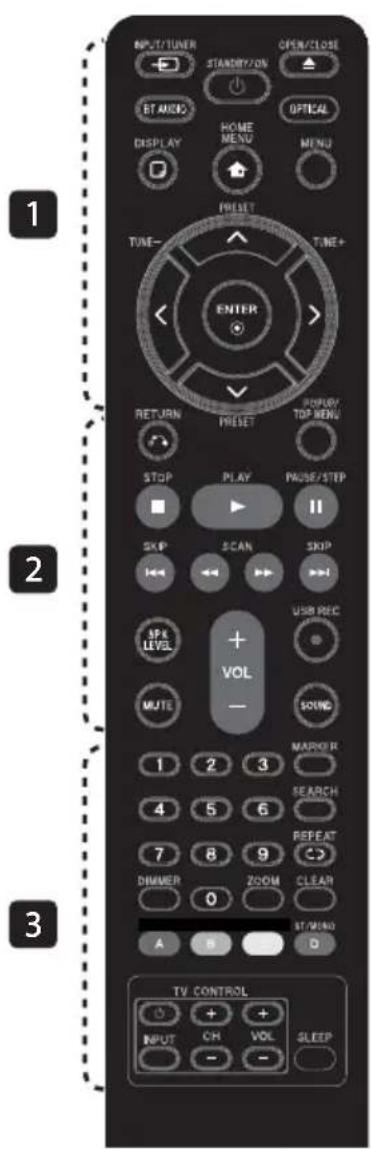

Remote control

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert a R03 (size AAA) battery with +nd matched correctly.

1

(STANDBY/ON): Switches the player ON or OFF.

OPEN/CLOSE: Opens and closes the disc tray.

• INPUT/TUNER: Changes input mode.

BT AUDIO: Changes input mode to BT AUDIO directly.

OPTICAL: Changes input mode to optical directly.

DISPLAY: Displays or exits OnScreen Display.

HOME MENU: Displays or exits the [Home Menu].

MENU:Accesses the menu on a disc.

Direction buttons: Selects an option in the menu.

ENTER: Acknowledges menu selection.

TUNE (+ / - ) :Tunes in the desired radio station.

PRESET: Selects programme of Radio.

2

RETURN: Exits the menu or resumes playback.

POUP/ TOP MENU: Displays the DVD title menu or BD-ROM's pop-up menu, if available.

STOP: Stops playback.

▶ PLAY: Starts playback.

II PAUSE/STEP: Pauses playback

一 一 一 />I SKIP: Goes to the next or previous chapter / track / fi le.

SCAN: Searches backward or forward.

SPK LEVEL: Sets the sound level of desired speaker.

• USB REC: Records an audio CD.

MUTE: Mute the unit.

SOUND: Selects a sound effect mode.

VOL + / - : Adjusts speaker volume.

3

0-9 numerical buttons: Selects numbered options in a menu.

MARKER: Marks any point during playback.

SEARCH: Displays or exits the search menu.

REPEAT: Repeats a desired section or sequence.

CLEAR: Removes a mark on the search menu or a number when setting the password.

DIMMER: Dims the light on the unit.

ZOOM: Accesses the zoom menu.

Colored (A, B, C, D) buttons: Use to navigate on menus.

• D button: Selects MONO or STEREO in FM mode.

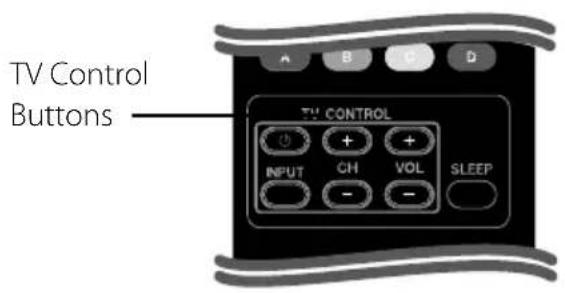

TV Control Buttons: See page 67.
SLEEP: Sets a certain period of time after which the unit will switch to off.

2

onepedde

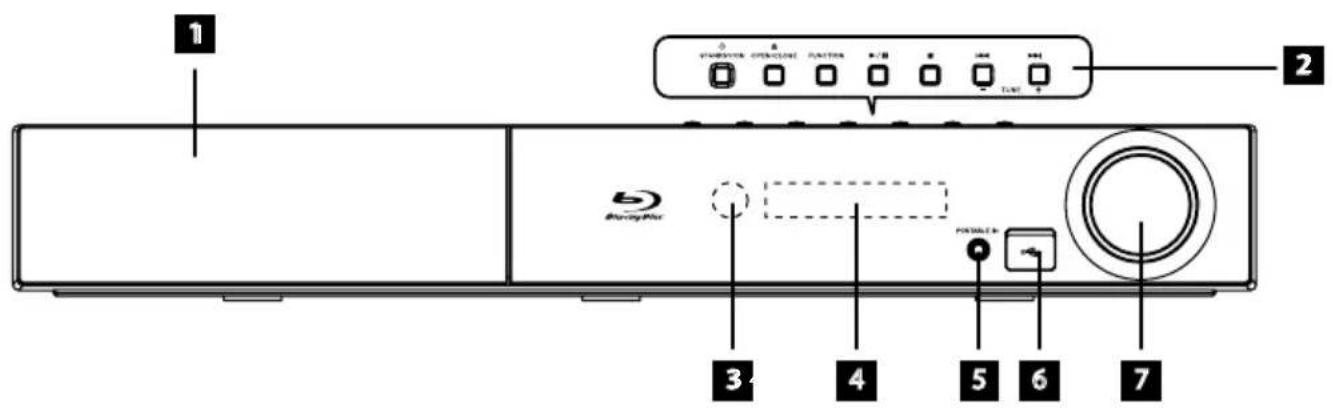

Front panel

1 Disc Tray
2 Operation buttons

STANDBY/ON Button
OPEN/CLOSE
FUNCTION

Changes the input source or function

/ (PLAY/PAUSE)

STOP

SKIP)

-TUNE ^+ (Radio tuning)

3 Remote sensor
4 Display window
5 PORTABLE IN
USB Port
Volume control

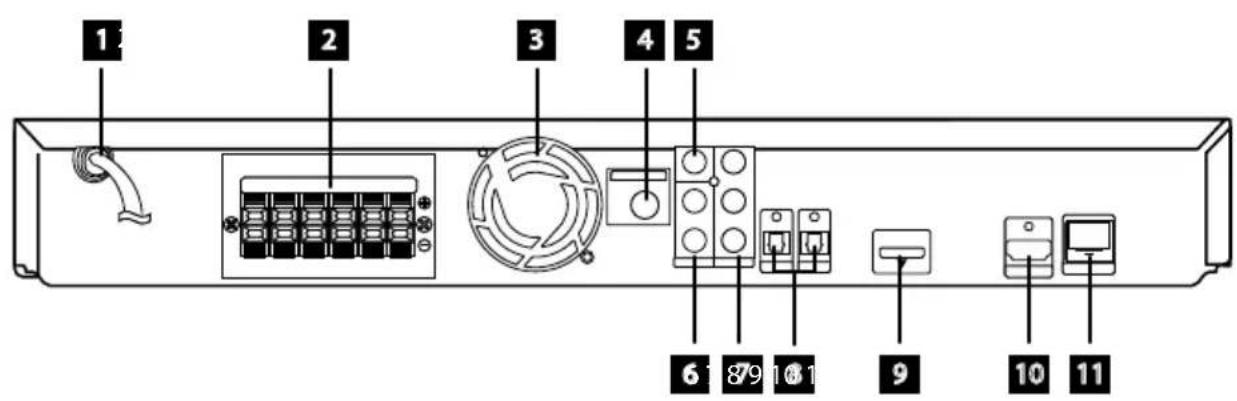

Rear panel

2

ouenrnnnne

1 AC Power cord Plug into the power source.
2 Speakers connectors
3 Cooling Fan
4 Antenna Connector
VIDEO OUT
6 AUX (L/R) INPUT

7 COMPONENTVIDEO (YP_BPR) OUTPUT (PROGRESSIVE SCAN)
8 OPTICAL IN 1(TV) / 2
9 iPod (24 pin) Connect to the furnished iPod cradle.
10 HDMI OUT (type A, Version 1.3) Connect to TV with HDMI inputs.
LAN port

3 Installation

Assemble the speakers

Speaker Setup for HTZ-BD50

Preparing the speakers

1. Attach the non-skid pads to the base of each speaker stand bases, the subwoofer and the center speaker.

For speaker stand bases:

Use the supplied adhesive to attach four middle pads to the base (bottom) of each speaker stand base.

For subwoofer:

Use the supplied adhesive to attach four large pads to the base of subwoofer.

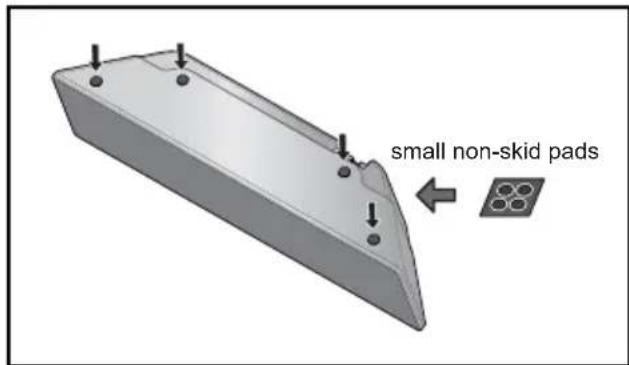

For center speaker:

Use the supplied adhesive to attach four small pads to the base of center speaker.

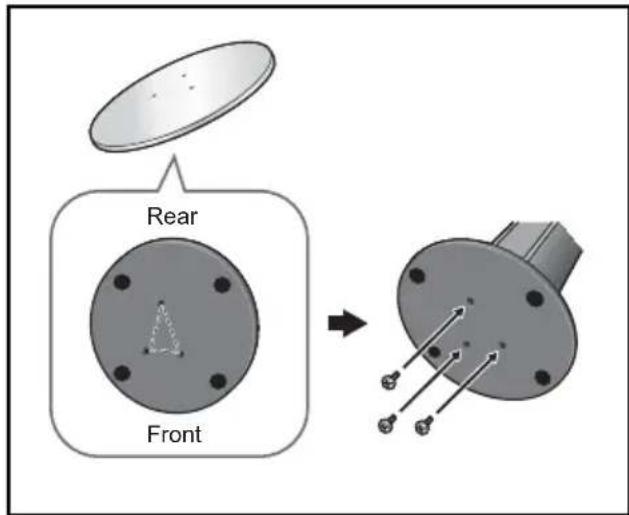

1. Attach the speaker stand bases to the stems using the screws provided.

Once you have aligned the stem and base, secure with the small screws at the points shown below. Note that the speaker should face in the direction of the base of the isosceles triangle.

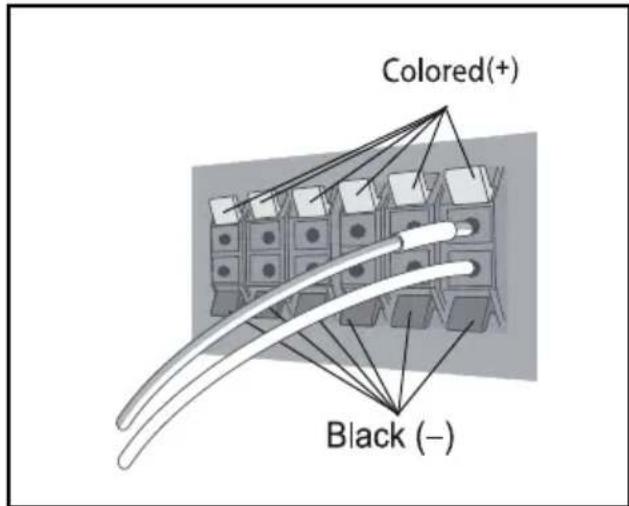

1. Connect the wires to the player.

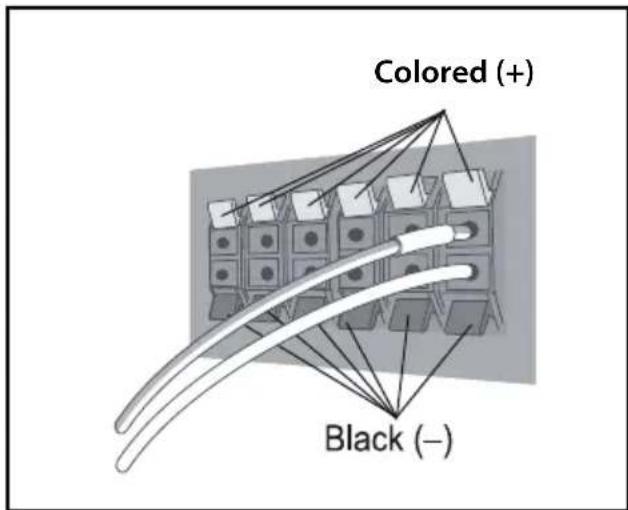

Connect the white wire with gray line into (+) side and the other wire into (-) side. To connect the cable to the player, press each plastic finger pad to open the connection terminal. Insert the wire and release the finger pad.

CAUTION

• Do not connect any speakers other than those supplied to this system.
• Do not connect the supplied speakers to any amplifi er other than the one supplied with this system. Connection to any other amplifi er may result in malfunction or fire.

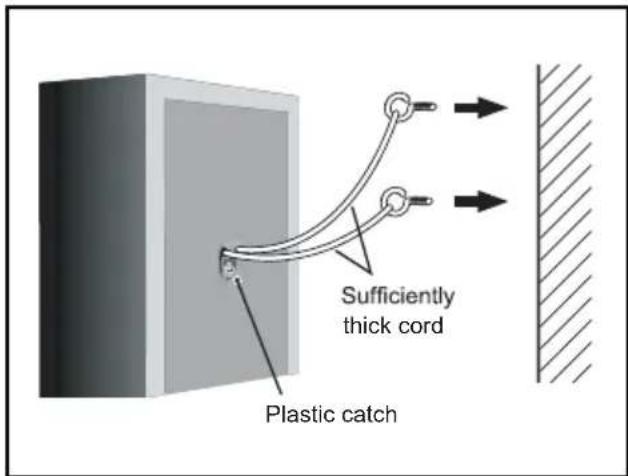

Securing your front and surround speakers

Secure each of the front and surround speakers using the plastic catch provided. Screw two supporting hooks into the wall behind the speaker. Pass a thick cord around the hooks and through the plastic catch so that the speaker is stabilized (make sure to test that it supports the weight of the speaker). After installing, make sure the speaker is securely fixed.

CAUTION

• The plastic catch is not a mounting fixture, and the speaker should not be hung directly from the wall using this catch. Always use a cord when stabilizing the speaker.
• Pioneer disclaims all responsibility for any losses or damage resulting from improper assembly, installation, insufficient strength of the installation materials, misuse, or natural disasters.
• When placing this unit, ensure that it is firmly secured and avoid areas where it may be likely to fall and cause injury in the event of a natural disaster (such as an earthquake).

Speaker Setup for HTZ-BD30

Preparing the speakers

1. Attach the non-skid pads to the base of each speaker.

For speaker stand bases:

Use the supplied adhesive to attach four middle pads to the base (bottom) of each speaker stand base.

For subwoofer:

Use the supplied adhesive to attach four large pads to the base of subwoofer.

For center speaker:

Use the supplied adhesive to attach four small pads to the base of center speaker.

1. Connect the wires to the player.

Connect the white wire with gray line into (+) side and the other wire into (-) side. To connect the cable to the player, press each plastic finger pad to open the connection terminal. Insert the wire and release the finger pad.

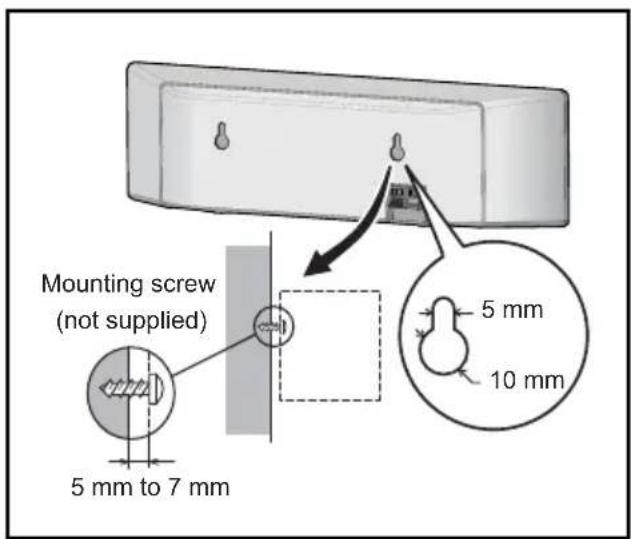

Wall mounting the center speaker

The center speaker have a mounting hole which can be used to mount the speaker on the wall.

Before mounting

Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.

Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

CAUTION

If you are unsure of the qualities and strength of the wall, consult a professional for advice.
- Pioneer is not responsible for any accidents or damage that result from improper installation.

Additional notes on speaker

Install the main front left and right speakers at an equal distance from the TV.

Precautions:

Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

The front, center and surround speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.

The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.

Do not attach the front/surround speakers and subwoofer to a wall or ceiling. They may fall off and cause injury.

Positioning the system

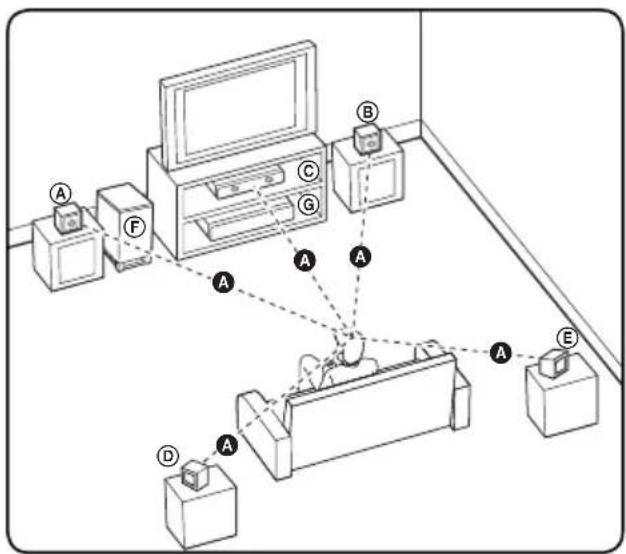

The following illustration shows an example of positioning the system. Note that the illustrations in these instructions differ from the actual unit for explanation purposes.

For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (A).

Front left speaker (L)/
Front right speaker (R):

Place the front speakers to the sides of the monitor or screen and as fl ush with the screen surface as possible.

Center speaker:

Place the center speaker above or below the monitor or screen.

Surround left speaker (L)/
Surround right speaker (R):

Place these speakers behind your listening position, facing slightly inwards.

F Subwoofer:

The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reflections.

⑥ Unit

CAUTION

• Be careful to make sure children do not put their hands or any objects into the subwoofer duct. subwoofer duct: A hole for plentiful bass sound on subwoofer cabinet (enclosure).
• Place the center speaker at a safe distance from the child's reach. Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.
• The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers away from the TV screen or PC monitor screen.

Connecting to Your TV

Make one of the following connections, depending on the capabilities of your existing equipment.

HDMI connection (pages 21-22)
- Component Video connection (page 22)
Video connection (page 23)

NOTE

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.
• Please refer to the manuals of your TV, stereo system or other devices as necessary to make the best connections.
• Make sure the player is connected directly to the TV. Tune the TV to the correct video input channel.
• Do not connect your player via your VCR. The image could be distorted by the copy protection system.

HDMI Connection

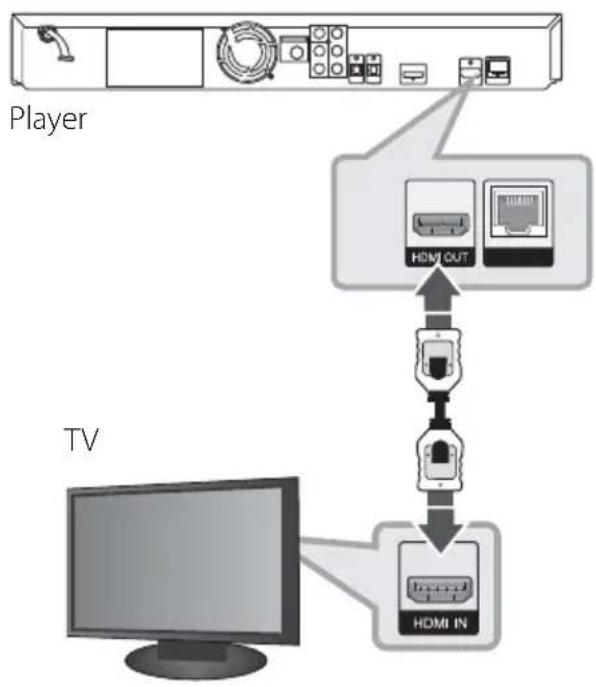

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable(Type A, Version 1.3). Connect the HDMI OUT jack on the player to the HDMI IN jack on a HDMI compatible TV or monitor.

HDMI Connection

Set the TV's source to HDMI (refer to TV's Owner's manual).

NOTE

• Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again.
• When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.
• If there is noise or lines on the screen, please check the HDMI cable (length is generally limited to 4.5m and use a high speed HDMI cable (version 1.3).
• If a connected HDMI device does not accept the audio output of the player, the HDMI device's audio sound may be distorted or may not output.
• When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to "Resolution Setting" on page 23.)
• Select the type of video output from the HDMI OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page 34).

• When you connect a HDMI or DVI compatible device make sure of the following:

• Try switching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

• The connected device's video input is set correctly for this unit.

• The connected device is compatible with 720x576p (480p), 1280x720p, 1920x1080i or 1920x1080p video input.

• Not all HDCP-compatible HDMI or DVI devices will work with this player.

• The picture will not be displayed properly with non-HDCP device.

• This player does not playback and TV screen is changed to black screen.

Component Video Connection

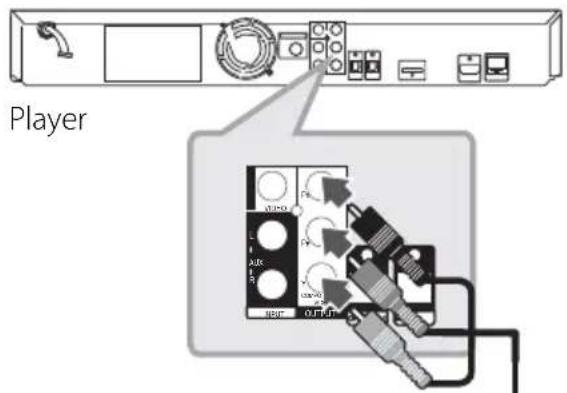

Connect the COMPONENT VIDEO OUT jacks on the player to the corresponding input jacks on the TV using Y Pb Pr cables. You can hear the sound the through the system's speaker.

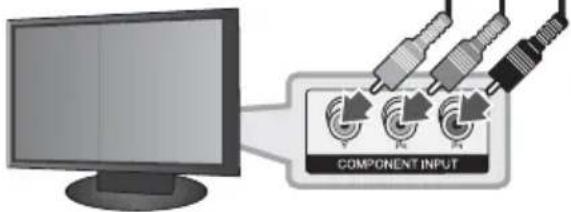

Component Connection

Green

TV

NOTE

When you use COMPONENTVIDEO OUT connection, you can change the resolution for the output. (Refer to "Resolution setting" on page 23.)

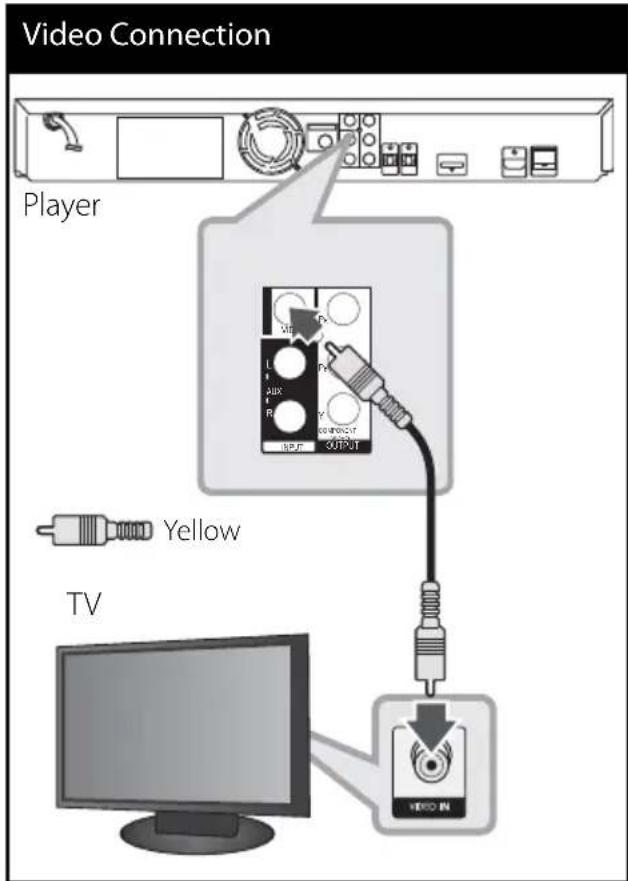

Video Connection

Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable. You can hear the sound through the system's speakers.

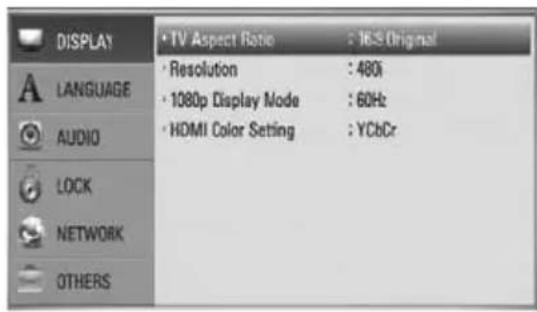

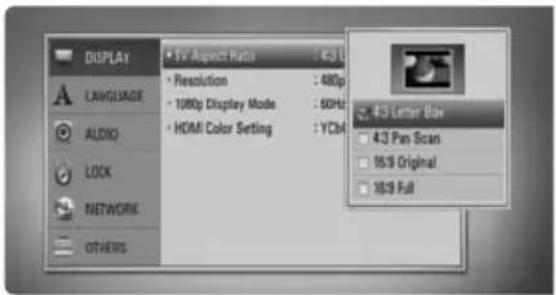

Resolution Setting

The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUT jacks. You can change the resolution using [Setup] menu.

1. Press HOME MENU (

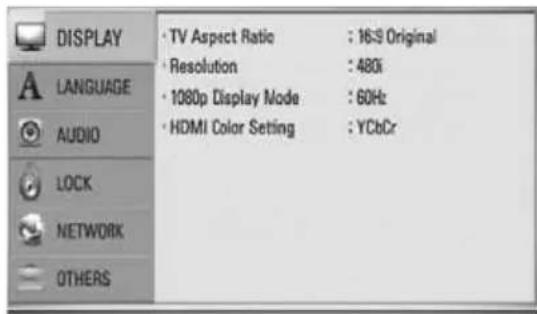

2. Use < / > / / to select the [Setup] and press ENTER (②). The [Setup] menu appears.
3. Use / V to select [DISPLAY] option then press > to move to the second level.
4. Use / V to select the [Resolution] option then press ENTER (O) or > to move to the third level.

1. Use / V to select the desired resolution then press ENTER (O) to confirm your selection.

NOTE

If your TV does not accept the resolution you have set on the player, you can set resolution to 576p (480p) as follows:

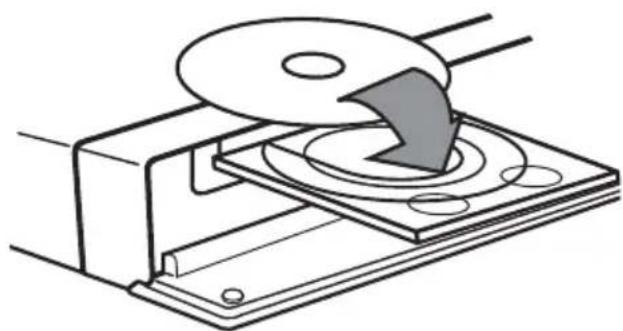

1. Press to open the disc tray.
2. Press for more than 5 seconds.
- Since several factors affect the resolution of video output, see "Video Output Resolution" on page 70.

Antenna connection

Connect the supplied antenna for listening to the radio.

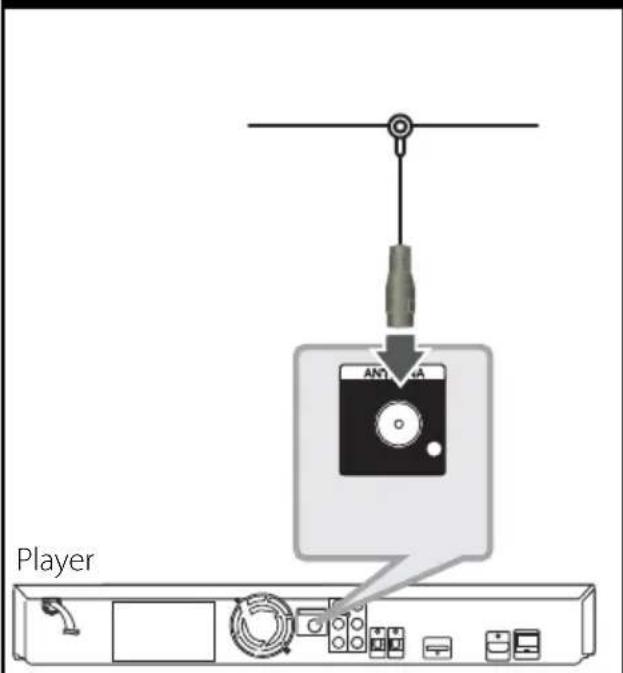

Antenna Connection

NOTE

After connecting the FM wire antenna, keep it as horizontal as possible. Be sure to fully extend the FM wire antenna.

Connections with external device

AUX Connection

You can enjoy the sound from an external component through the speakers of this system.

Connect the analogue audio output jacks of your component into the AUX L/R (INPUT) on this unit. And then select the [AUX] option by pressing INPUT/TUNER, < / > and ENTER () .

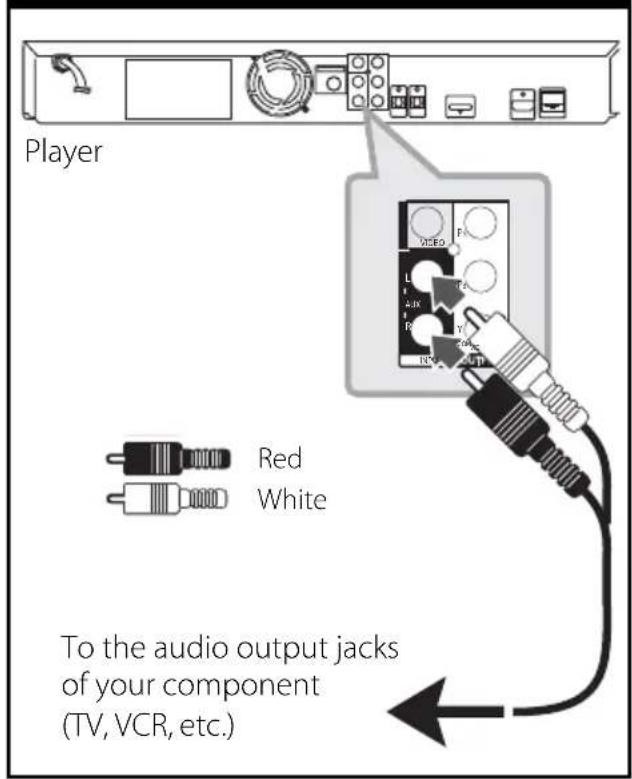

AUX Connection

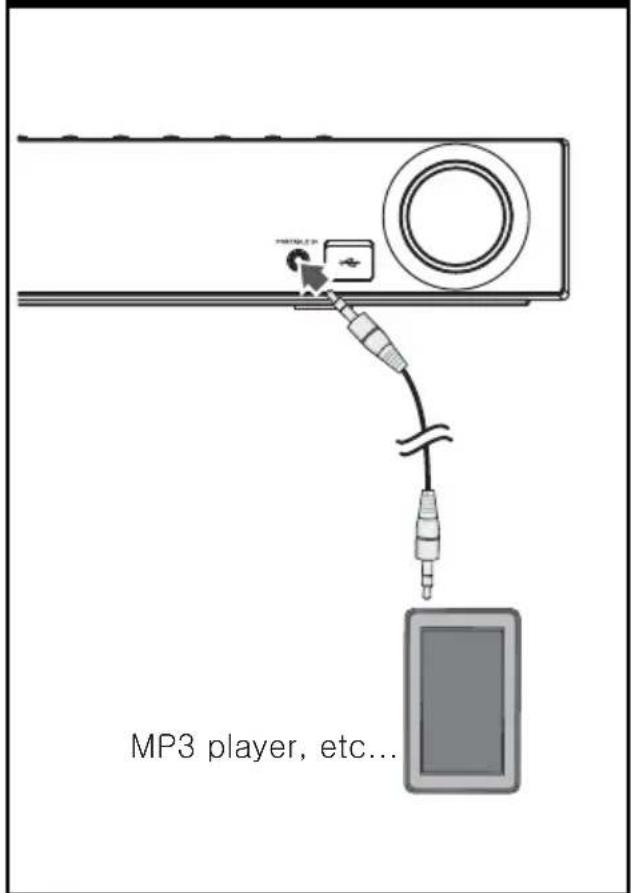

PORTABLE IN connection

You can enjoy the sound from your portable audio player through the speakers of this system.

Connect the headphones (or line out) jack of the portable audio player into the PORTABLE IN socket of this unit. And then select the [PORTABLE] option by pressing INPUT/TUNER, < / > and ENTER () .

PORT.IN Connection

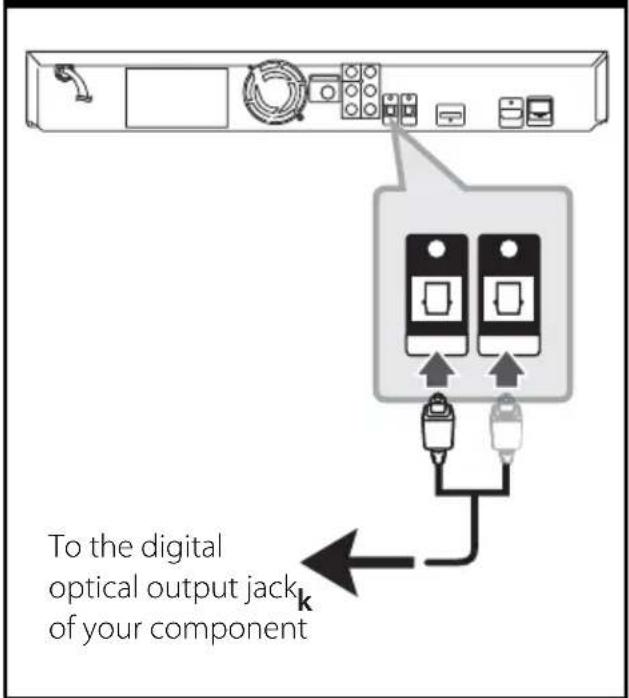

OPTICAL IN 1/2 connection

You can enjoy the sound from your component with a digital optical connection through the speakers of this system.

Connect the optical output jack of your component into the OPTICAL IN 1/2 jacks on the unit. And then select the [OPTICAL 1/2] option by pressing INPUT/TUNER, < / > and ENTER (O). Or press OPTICAL to select directly.

Optical Connection

Bluetooth® connection

About Bluetooth

Bluetooth® is wireless communication technology for short range connection.

The available range is within 10 meters. (The sound may be interrupted when the connection interfered by the other electronic wave or you connect the bluetooth in the other rooms.)

Connecting individual devices under Bluetooth wireless technology does not incur any charges. A mobile phone with Bluetooth wireless technology can be operated via the Cascade if the connection was made via Bluetooth wireless technology.

Available Devices : Mobile phone, MP3, Laptop, PDA (This units be supported the Stereo Headset.)

Bluetooth Profi les

In order to use Bluetooth wireless technology, devices must be able to interpret certain profi les.

This unit is compatible with following profle.

A2DP (Advanced Audio Distribution Profi le)

Listening to music of a Bluetooth device

Pairing your unit and Bluetooth device

Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device's user guide. Once a pairing operation is performed, it does not need to be performed again.

1. Select the Bluetooth function by using the INPUT/TUNER or BT AUDIO. Appears "BT AUDIO" and then "BT READY" in display window.
2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device. Your unit appears as "PIONEER AUDIO".
3. Enter the PIN code.

PIN cord : 0000

1. When this unit successfully paired with your Bluetooth device, Bluetooth LED of this unit lights up and appears "BT SINK".

NOTE

Depending on the Bluetooth device type, some device have a different pairing way.

1. Listening to music. To play a music stored on your Bluetooth device, refer to your Bluetooth device's user guide.

NOTE

• If you change the function of the unit, the Bluetooth function is disconnected, operate pairing again.
  AVRCP cannot be available in this mode.

Checking the information of connected Bluetooth device

This function is operated after pairing. You can check the Bluetooth information.

Press DISPLAY repeatedly.

Bluetooth information is changed as follows. Local Bluetooth Device Address Device Name None ...

NOTE

This units dose not be supported the Mono Headset Profi le (Hands Free Profi le).
- The sound may be interrupted when the connection interfered by the other electronic wave.
- You cannot control the Bluetooth device with this unit.
- Pairing is limited one Bluetooth device per one unit and multi-pairing is not supported.
- Although the distance between your Bluetooth and the set is less than 10m , there are obstacles between both, your Bluetooth device cannot be connected.
- Depending on the type of the device, you may not be able to use the Bluetooth function.
- When not connected the Bluetooth, "BT READY" appears on the display window.
- The Electrical malfunction due to devices using same frequency such as Medical equipment, Microwaves or wireless LAN devices, the connection will be disconnected.
- When someone stands and interrupts communication between Bluetooth device and the player, the connection will be disconnected.
- If the gotten away of the distance between Bluetooth and the unit, the sound quality is lower and lower the connection will disconnect when the space between the Bluetooth and the unit gets out of the operating range of Bluetooth.
- The device with Bluetooth wireless technology is disconnected, if you turn off the main unit or put the device away from the main unit more than 10m .

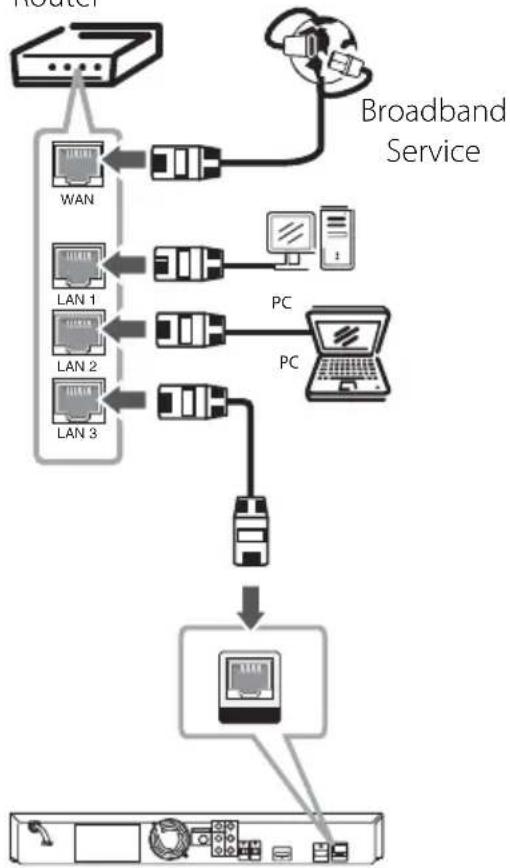

Connecting to your Home Network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel.

Please refer to the documentation for your network device for further instructions. Connect the player's LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable (CAT5 or better with RJ45 connector). In the example configuration for wired connection below, this player would be able to access content from either of the PCs.

Network Connection

Router
Player

NOTE

• When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.
• Do not connect a modular phone cable to the LAN port.
• Since there are various connection configurations, please follow the specific cations of your telecommunication carrier or internet service provider.
• If you want to access content from PCs or DLNA servers, this player must be connected to the same local area network with them via a router.

Network Setup

Before setting the wired network, you need to connect the broadband internet to your home network.

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player's network setting to be adjusted. Adjust the [NETWORK] setting as follows.

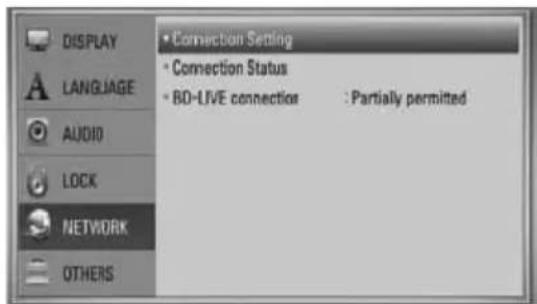

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (⊙).

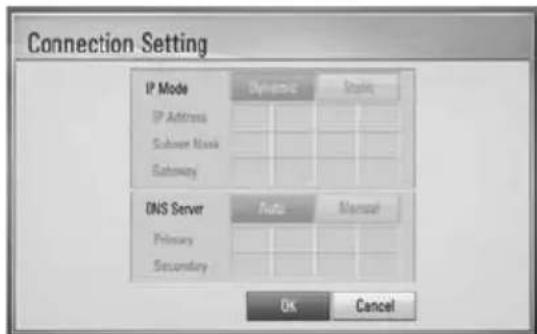

1. Use /V < / > to select the IP mode between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

NOTE

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set the [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using / < / > and numerical buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.

1. Select [OK] and press ENTER (o apply network settings.
2. The player will ask you to test the network connection. Select [OK] and press ENTER (O) to complete the network connection.

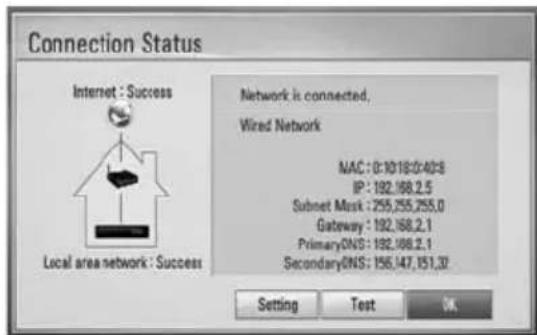

1. If you select [Test] and press ENTER (at step 4 above, the network connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu.

Notes on Network Connection:

• Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.
• Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.
• Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.
• The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.
• Some internet contents may require a higher bandwidth connection.

• Even if the player is properly connected and configured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

• Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
• A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.
• You must use a Router to use xDSL service.
• A DSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)
• The use of a "Router" may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.
• Turn off all unused network equipment in your local home network. Some devices may generate network traffic.

USB device connection

This player can play movie, music and photofi les contained in the USB device.

1. Insert a USB device to the USB port until it fits into place.

1. Press HOME MENU. Select [Movie], [Photo] or [Music] using / / < / > , and press ENTER (
2. Select a file using / V / < / > , and press PLAY or ENTER (⊙) to play the file. You can check the space of the USB device on the screen.
3. Select the other mode. And withdraw the USB device carefully.

NOTE

• This player supports USB flash memory/external HDD formatted in FAT16, FAT32 and NTFS when accessing files (music, photo, movie). However, for BD-LIVE and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB flash memory/external HDD formatted in either FAT16 or FAT32 when using BD-LIVE and Audio CD recording.
• The USB device can be used for local storage for enjoying BD-Live discs from the Internet.
• This unit can support up to 4 partitions of the USB device.
• Do not extract the USB device during operation (play, etc.).
• An USB device which requires additional programme installation when you have connected it to a computer, is not supported.
• USB device: USB device that support USB 1.1 and USB 2.0.
• Movie, music and photo files can be played. For details of operations on each file, refer to relevant pages.
• Regular back up is recommended to prevent data loss.
• If you use a USB extension cable, USB HUB or USB Multi-reader, the USB device may not be recognised.
• Some USB device may not work with this unit.
• Digital camera and mobile phone are not supported.
• The USB Port on this unit cannot be connected to a PC.

Settings

Adjust the Setup Settings

You can change the settings of the player in the [Setup] menu.

1. Press HOME MENU (

1. Use < / > / /V to select [Setup] and press ENTER (The [Setup] menu appears.

1. Use / V to select a first setup option, and press to move to the second level.

1. Use / V to select a second setup option, and press ENTER (C) to move to the third level.

1. Use / V to select a desired setting, and press > or ENTER (to confirm your selection.

[DISPLAY] Menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected. Displays pictures cropped to fi ll your TV screen. Both sides of the picture are cut off .

[16:9 Original]

Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to fit the entire screen.

NOTE

You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

Resolution

Sets the output resolution of the Component and HDMI video signal. Refer to page 23 and 70 or details about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to TVs providing display information (EDID), this automatically selects the resolution best suited to the connected TV. If the COMPONENT VIDEO OUT only is connected, this changes the resolution to 1080i as default resolution.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[576p (480p)]

Outputs 576 (480) lines of progressive video.

[576i (480i)]

Outputs 576 (480) lines of interlaced video.

1080p Display Mode

When the resolution is set to 1080p, select [24 Hz] for smooth presentation of fi lm material (1080p/ 24 Hz) with a HDMI-equipped display compatible with 1080p/ 24 Hz input.

NOTE

• When you select [24 Hz], you may experience some picture disturbance when the video switches video and fi lm material. In this case, select [60 Hz].
• Even when [1080p Display Mode] is set to [24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 60Hz to match the video source format.

HDMI Color Setting

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.

[YCbCr]

Select when connecting to a HDMI display device.

[RGB]

Select when connecting to a DVI (RGB) display device.

[LANGUAGE] Menu

Display Menu

Select a language for the [Setup] menu and on-screen display.

Disc Menu/ Disc Audio/ Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the disc was recorded.

[Other]

Press ENTER to select another language. Use number buttons then ENTER to enter the corresponding 4-digit number according to the language code list on page 69.

[Off] (for Disc Subtitle only)

Turn off Subtitle.

NOTE

Depending on the disc, your language setting may not work.

[AUDIO] Menu

Speaker Setup

To obtain the best possible sound, use the speaker setup display to specify the volume of the speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level.

[Speaker]

Select a speaker that you want to adjust.

[Volume]

Adjust the output level of each speaker.

[Distance]

Adjust the distance between each speaker and the listening position.

[Test/ Stop test tone]

The speakers will emit a test tone.

[OK]

Confirms the setting.

[Cancel]

Cancels the setting.

HD AV Sync

Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it effectively 'waits' for the picture to arrive: this is called HD AV Sync. Use to scroll up and down through the delay amount, which you can set at anything between 0 and 300 ms.

The delay will vary depending on which digital TV channel you are on. If you change channel you may need to readjust the HD AV Sync.

DRC (Dynamic Range Control)

When a title encoded in Dolby Digital or Dolby Digital Plus is playing back, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set [DRC] to [On] for this effect.

NOTE

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

[LOCK] Menu

To access any features in the [LOCK] settings, you must enter the 4-digit security code you have created.

If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (⊙) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press ENTER (O) to create a new password.

[Change]

Enter the current password and press ENTER (O). Enter a 4-digit password twice, and press ENTER to create a new password.

NOTE

If you make a mistake before pressing ENTER (O), press CLEAR. Then input the correct password.

If you forget your password,

If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.
2. Select [Lock] option in the [Setup] menu.
3. Use number buttons to enter "210499" on the [Lock] Menu. The password is cleared.

DVD Rating

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[Unlock]

If you select this, parental control is not active and the disc plays in full.

BD Rating

Sets an age limit for BD-ROM playback. Use number buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding ratings recorded on them.

NOTE

The [BD Rating] will be applied only for the BD disc that containing the Advanced Rating Control.

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 68.

[NETWORK] Menu

Connection Setting

If your home network environment is ready to connect to the player, the player needs to be set up for network communication. (See "Connecting to your Home Network" on page 28.)

Connection Status

If you want to check the network status on this player, select the [Connection Status] option and press ENTER (to check whether a connection to the network and the internet has been established.

BD-LIVE connection

You can restrict Internet access when BD-LIVE functions are used.

[Permitted]

Internet access is permitted for all BD-LIVE contents.

[Partially permitted]

Internet access is permitted only for BD-LIVE contents which have content owner certifi cates. Internet access and AACS Online functions are prohibited for all BD-LIVE contents without a certifi cate.

[Prohibited]

Internet access is prohibited for all BD-LIVE contents.

[OTHERS] Menu

DivX VOD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certifi ed device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

[Register]

Displays the registration code of your player.

[Deregister]

Deactivate your player and display the deactivation code.

NOTE

All the downloaded videos from DivX VOD with this player's registration code can only be played back on this unit.

Auto Power Off

The screen saver appears when you leave the player in Stop mode for about five minutes. If you set this option to [On], the unit automatically turns itself off after the Screen Saver is displayed for 25 minutes. Set this option to [Off] to leave the screen saver until the unit is operated by the user.

Initialize

Factory Set

You can reset the player to its original factory settings.

BD Storage Clear

Removes the BD contents from the connected USB storage.

NOTE

If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the on-line services and network settings again.

Software Information

Displays the current software version.

Sound Effect

You can select a suitable sound mode. Press SOUND repeatedly until the desired mode appears on the front panel display or the TV screen. The displayed items for the equalizer maybe different depending on sound sources and effects.

[Pioneer 1]: Gives you suitable sound setting with connecting small type of speakers (S-BD30).

[Pioneer 2]: Gives you suitable sound setting with connecting tall type of speakers (S-BD50T).

[Bypass]: Software with multichannel surround audio signals is played according to the way it was recorded.

[Bass Blast]: Reinforce the bass sound effect from front left and right speaker and subwoofer.

[PL II Movie]: Performs Pro Logic II movie mode decoding to the input signal and produces five full-bandwidth output channels from 2 channel sources. This setting is ideal for watching videos of overdubbed or old movies. This mode is available only to 2 channel sources.

[PL II Music]: Performs Pro Logic II music mode decoding to the input signal and produces five full-bandwidth output channels from 2 channel sources. This setting is ideal for normal stereo sources such as CD. This mode is available only to 2 channel sources.

[Clear Voice]: This mode makes voice sound clear, improving the quality of voice sound.

[Game]: You can enjoy more virtual sound while playing video games.

[Night]: This may be useful when you want to watch movies at low volumes late at night.

[Mus. ReTouch]: When listening to MP3 fi les or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources.

[Loudness]: Improves bass and treble sound.

4

Operation

GeneralPlayback

Playing Discs

1. Press OPEN/CLOSE, and place a disc on the disc tray.

1. Press OPEN/CLOSE to close the disc tray. For most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.
2. Press HOME MENU.

1. Select [Movie], [Photo] or [Music] using / / < / > , and press ENTER
2. Select the Disc option using < / > and press ENTER (O).

When you connect up to two devices, it appears as above.

1. Select a file using / V < V > , and press PLAY or ENTER (O) to play the file.

NOTE

• Playback functions described in this manual are not always available in every files and medium. Some functions can be restricted depending on many factors.
  Depending on the BD-ROM titles, a USB device connection may be needed for proper playback.

To stop playback

Press STOP during playback.

To pause playback

Press PAUSE/STEP during playback.

Press PLAY to resume playback.

To play frame-by-frame

Press PAUSE/STEP while movie playback.

Press PAUSE/STEP repeatedly to playback

Frame-by-Frame.

To scan forward or backward

Press or to play fast forward or fast reverse during playback.

You can change the various playback speeds

by pressing or repeatedly.

To slow down the playing speed

While the playback is paused, press SCAN

repeatedly to play various speeds of slow

motion.

To skip to the next/previous chapter/track/fi le

During playback, press or to go to the next chapter/track/fe or to return to the beginning of the current chapter/track/fe.

Press twice briefly to step back to the previous chapter/track/fi le.

Using the disc menu

BD

DVD

AVCHD

To display the disc menu

The menu screen may be displayed first after loading a disc which contains a menu. If you want to display the disc menu during playback, press MENU.

Use / < / > buttons to navigate through menu items.

To display the Pop-up menu

Some BD-ROM discs contain a Pop-up menu that appears during playback.

Press POPUP/ TOP MENU during playback, and use /V < / > buttons to navigate through menu items.

Resume playback

BD

DVD

AVCHD

MOVIE

ACD

MUSIC

This unit remembers the STOP depending on the disc.

If "Resume Stop" appears on the screen, briefly, press▶ (PLAY) to resume playback (from the scene point).

If you press (STOP) twice or unload the disc,

"■"(Complete Stop) appears on the screen.

The unit will clear the stopped point.

NOTE

• The resume point may be cleared when a button is pressed (for example; (POWER), (OPEN/CLOSE), etc).
• On BD-Video discs with BD-J, the resume playback function does not work.
• If you press (STOP) once during BD-ROM interactive title playback, the unit will be in Complete Stop mode.

AdvancedPlayback

Repeat Playback

BD DVD AVCHD ACD MUSIC

During playback, press REPEAT (O) repeatedly to select a desired repeat mode.

BDs/DVDs

A- Selected portion will be repeated continually.
Chapter - The current chapter will be played back repeatedly.
Title - The current title will be played back repeatedly.

To return to normal playback, press REPEAT (O) repeatedly to select [Off].

Audio CDs/Music fi les

Track - The current track or file will be played back repeatedly.
All - All the tracks or files will be played back repeatedly.
- The tracks or files will be played back in random order.
All the tracks or fi les will be played back repeatedly in random order.
A-B- Selected portion will be repeated continually. (Audio CD only)

To return to normal playback, press CLEAR.

NOTE

• If you press once during Repeat Chapter/ Track playback, the repeat playback cancels.
• This function may not work on some disc or title.

Repeating a specific portion

BD DVD AVCHD ACD

This player can repeat a portion you have selected.

1. During playback, press REPEAT (O) to select [A-] at the beginning of the portion you wish to repeat. And then press ENTER (O).
2. Press ENTER (O) at the end of the portion. Your selected portion will be repeated continually.
3. To return to normal playback, press REPEAT (O) repeatedly to select [OFF] or press CLEAR.

NOTE

You cannot select a portion less than 3 seconds.

Marker Search

BD DVD AVCHD MOVIE

You can start playback from up to nine memorized points.

To enter a marker

1. During playback, press MARKER at the desired point. The Marker icon appears on the TV screen briefly.
2. Repeat step 1 to add up to nine markers.

To recall a marked scene

1. Press SEARCH and the search menu appears on the screen.
2. Press a number button to select a marker number that you want to recall. Playback starts from the marked scene.

To delete a Marker

1. Press SEARCH and the search menu appears on the screen.

1. Press V to highlight a marker number. Use < / > to select a marked scene that you want to delete.
2. Press CLEAR and the marked scene is erased from the search menu.

NOTE

• This function may not work depending on discs, titles, server ability.
• All marked points are cleared if the title is in complete stop (■) mode, the title is changed or if you unload the disc.
• If the total length of the title is less than 10 seconds, this function is not available.

Using the search menu

BD

DVD

AVCHD

MOVIE

Using search menu, you can easy to find the point where you want to start playback.

To search a point

1. During playback, press SEARCH to display the search menu.

1. Press < / > to skip the playback 15 seconds forward or backward. You can select a point that you want to skip by pressing and holding < / > button.

To start playback from a marked scene

1. Press SEARCH and the search menu appears on the screen.
2. Press V to highlight a marker number. Use < / > to select a marked scene that you want to playback from.
3. Press ENTER (O) to start playback from the marked scene.

NOTE

• This function may not work depending on discs, titles, server ability.
• This function may not work on some [Home Link] contents depending on the file type and ability of the DLNA server.

Last Scene Memory

BD

DVD

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

NOTE

• Last Scene Memory function for a previous disc is erased once a different disc is played.
• This function may not work depending on the disc.
• This unit does not memorize settings of a disc if you switch off the unit before commencing to play it.

On-Screen display

You can display and adjust various information and settings concerning the content.

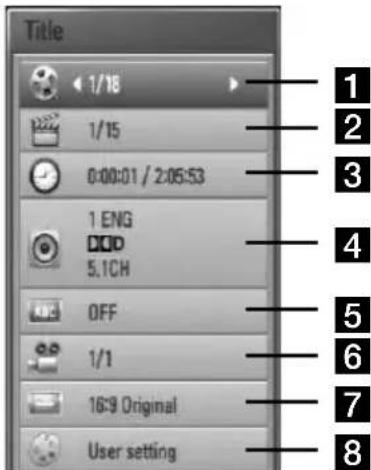

Displaying content information on-screen

BD

DVD

AVCHD

MOVIE

1. During playback, press DISPLAY to show various playback information.

1 Title - Current title number/total number of titles
2 Chapter - Current chapter number/total number of chapters
Time - Elapsed playing time/Total playback time
4 Audio - Selected audio language or channel
5 Subtitle - Selected subtitle
Angle - Selected angle/total number of angles
TV Aspect Ratio - Selected a TV aspect Ratio
8 Picture Mode - Selected picture mode

1. Select an option using / V .
2. Use < / > to adjust the selected option value.
3. Press RETURN (o) to exit the On-Screen display.

NOTE

• If no button is pressed for a few seconds, the on-screen display disappears.
• A title number cannot be selected on some discs.
  Available items may differ depending on discs or titles.
• If BD interactive title is playing back, some setting information is displayed on the screen but prohibited to be changed.

Playing from selected time

BD

DVD

AVCHD

MOVIE

1. Press DISPLAY during playback. The time search box shows the elapsed playing time.
2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter "21020".

Press < / > to skip the playback 60 seconds forward or backward.

1. Press ENTER (O) to start playback from selected time.

NOTE

• This function may not work on some disc or titles.
• This function may not work on some [Home Link] contents depending on the file type and ability of the DLNA server.

Hearing different audio

BD

DVD

AVCHD

MOVIE

1. During playback, press DISPLAY (□) to display the on-screen display.
2. Use / V to select the [Audio] option.
3. Use < / > to select desired audio language, audio track or audio channel.

NOTE

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press POPUP/ TOP MENU or MENU button and choose the appropriate audio from the selections on the disc menu.
• Immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound.

Selecting a subtitle language

BD

DVD

AVCHD

MOVIE

1. During playback, press DISPLAY to display the on-screen display.
2. Use / V to select the [Subtitle] option.
3. Use < / > to select the desired subtitle language.
4. Press RETURN ( ) to exit the On-Screen display.

NOTE

Some discs allow you to change subtitle selections only via the disc menu. If this is the case, press POPUP/ TOP MENU or MENU button and choose the appropriate subtitle from the selections on the disc menu.

Watching from a different angle

BD DVD

If the disc contains scenes recorded at diff erent camera angles, you can change to a diff erent camera angle during playback.

1. During playback, press DISPLAY (□) to display the on-screen display.
2. Use / V to select the [Angle] option.
3. Use < / > to select desired angle.
4. Press RETURN (o) to exit the On-Screen display.

Changing the TV Aspect Ratio

BD DVD AVCHD MOVIE

You can change the TV aspect ratio setting during playback.

1. During playback, press DISPLAY to display the on-screen display.
2. Use /V to select the [TV Aspect Ratio] option.
3. Use < / > to select desired option.
4. Press RETURN (o) to exit the On-Screen display.

NOTE

Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is not changed.

Changing the Picture Mode

BD DVD AVCHD MOVIE

You can change the [Picture mode] option during playback.

1. During playback, press DISPLAY to display the on-screen display.
2. Use / V to select the [Picture Mode] option.
3. Use < / > to select desired option.
4. Press RETURN (o) to exit the On-Screen display.

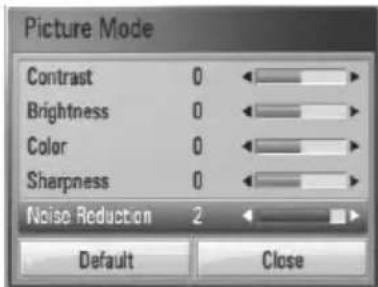

Setting the [User setting] option

1. During playback, press DISPLAY to display the on-screen display.
2. Use / V to select the [Picture Mode] option.
3. Use < / > to select the [User setting] option, and press ENTER (O).

1. Use / V < / > to adjust the [Picture Mode] options.

Select [Default] option then press ENTER to reset the all adjustments.

1. Use / V < / > to select the [Close] options, and press ENTER (O) to finish setting.

Enjoying BD-LIVE

This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-Video supporting BONUSVIEW (BD-ROM version 2 Profi le 1 version 1.1/ Final Standard Profi le).

Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.

In addition to the BONUSVIEW function, BD-Video supporting BD-LIVE (BD-ROM version 2 Profi le 2) that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings (pages 28-30).
2. Insert a USB storage device to the USB port on the front panel. A USB storage device is needed to download bonus content.

USB Connection

1. Press HOME MENU, and set the [BD-LIVE connection] option on the [Setup] menu (page 37).

Depending on the disc, the BD-LIVE function may not operate if [BD-LIVE connection] option is set to [Partially Permitted].

1. Insert a BD-ROM with BD-LIVE.

The operations may differ depending on the disc. Refer to the manual supplied with the disc.

NOTE

• Do not extract the connected USB device while content is being downloaded or a Blu-ray disc is still in the disc tray. Doing so may damage the connected USB device and BD-LIVE features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.
• Some BD-LIVE contents may be restrictively accessed in some territories by contents provider's own decision.
  It may take up to several minutes to load and start enjoying BD-LIVE contents.

Playing movie fi le and VR discs

You can play DVD-RW discs that are recorded in Video Recording (VR) format and movie files contained in a disc or USB device.

1. Press HOME MENU.

1. Select [Movie] using / V < V > , and press ENTER (
2. Select the device using < / > and press ENTER

When you connect up to two devices, it appears as above.

1. Select a fi le using /V < / > , and press

▶ PLAY or ENTER to play the fi le.

NOTE

The fi Ie requirements are described on page 11.
- You can use various playback functions. Refer to pages 40-47.
- Unfamiliarized DVD VR format discs may not be played in this player.
- Some DVD-VR disc are made with CPRM data by DVD recorder. This unit cannot support these kinds of discs.

What is CPRM?

CPRM is a copy protection system (with scramble system) only allowing the recording of 'copy once' broadcast programmes. CPRM stands for Content Protection for Recordable Media.

Selecting a subtitle fi le MOVIE

If a movie file name and the subtitle file name are the same, subtitle file is played automatically when playing the movie file.

If the subtitle fi le name is different with the movie fi le name, you need to select the subtitle fi le on the [Movie] menu before playing the movie.

1. Use / < / > to select the subtitle fi le you wish to play in the [Movie] menu.
2. Press ENTER (O).

Press ENTER (again to deselect the subtitle fi le. Selected subtitle fi le will be displayed when you play the movie fi le.

NOTE

• If you press STOP during playback, the subtitle selection is cancelled.
• This function may not work in the [Home Link] feature.

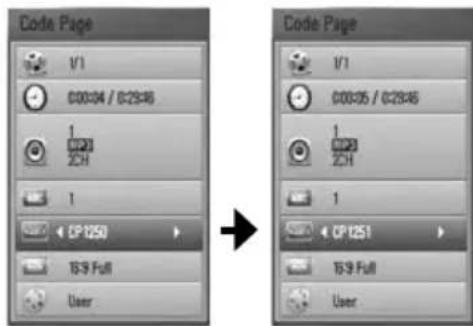

Changing subtitle code page MOVIE

If the subtitle is not displayed properly, You can change the subtitle code page to view the subtitle file properly.

1. During playback, press DISPLAY to display the on-screen display.
2. Use / to select the [Code Page] option.
3. Use < / > to select desired code option.

1. Press RETURN (o) to exit the On-Screen display.

Viewing a photo

You can view photo files using this player.

1. Press HOME MENU

1. Select [Photo] using < / > and press ENTER (C).
2. Select the device using < / > and press ENTER

When you connect up to two devices, it appears as above.

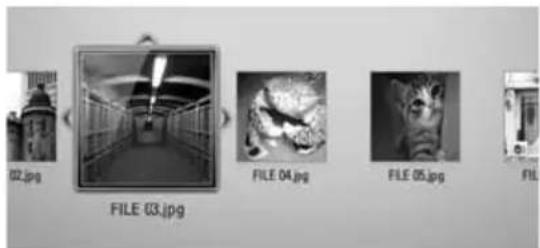

1. Select a file using / V / < / > , and press ENTER (O) to view the photo.

To play a slide show

Press PLAY to start slide show.

To stop a slide show

Press STOP during slide show.

To pause a slide show

Press PAUSE/STEP during slide show. Press PLAY to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press < or to go to the previous or next photo.

NOTE

• The fi le requirements are described on page 11.
• You can use various playback functions. Refer to pages 40-47.

Options while viewing a photo

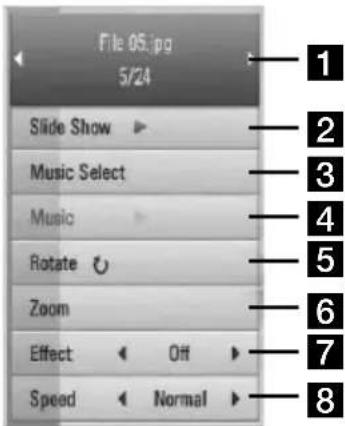

You can use various options while viewing a photo in full screen.

1. While viewing a photo in full screen, press DISPLAY to display the option menu.
2. Select an option using / .

1 Current photo/Total number of photos - Use < / > to view previous/next photo.
2 Slide Show - Press ENTER (O) to start or pause slide show.
3 Music Select - Select the background music for the slide show.
4 Music -Press ENTER (O) to start or pause background music.
5 Rotate - Press ENTER (O) to rotate the photo clockwise.
6 Zoom - Press ENTER (O) to display the [Zoom] menu.
7 Effect - Use < / > to select a transition effect between photos in a slide show.
8 Speed - Use < / > to select a delaying speed between photos in a slide show.
3. Press RETURN (o) to exit the option menu.

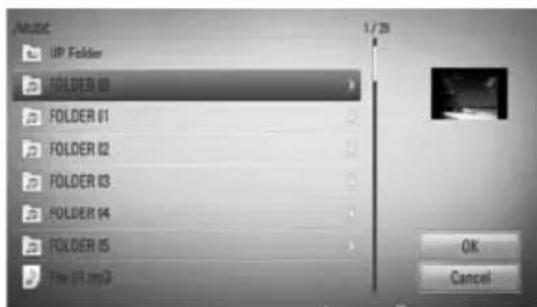

Listening to music during a slide show

You can display photo fi les while listening to music fi les.

1. Press HOME MENU

1. Select [Photo] or [Home Link] using / V < / > , and press ENTER (
2. Select the [Disc] or [USB] option using < / > and press ENTER

Selecting a server or a share folder is needed for [Home Link] menu.

1. Select a file using / V / < / > , and press ENTER (O) to view the photo.
2. Press DISPLAY to display the option menu.

3. Use / V to select [Music Select] option, and press ENTER (O) to display the [Music Select] menu.

4. Use / V to select a device, and press ENTER (C).

Devices that you can select may differ depending on the location of the photo file you are displaying in full screen.

Photo location Available Device
Disc Disc, USB
USB Disc, USB
Share Folder on your PC (CIFS)	CIFS
DLNA server DLNA	server

1. Use / V to select a file or a folder you wish to play.

Select a folder and press ENTER to display the lower directory.

Select and press ENTER (o display the upper directory.

NOTE

When selecting music from [Home Link], folder selection is not available. Only file selection is available on the [Home link].

1. Use > to select [OK], and press ENTER (to complete music selection.

Listening to music

The player can play Audio CDs and music files

1. Press HOME MENU

1. Select [Music] using / / < / > , and press ENTER (

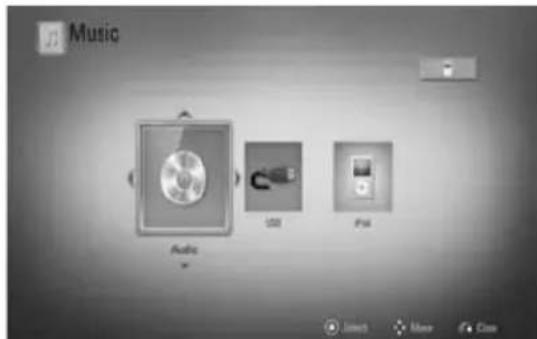

2. Select the device using < / > and press ENTER

When you connect up to two devices, it appears as above.

1. Select a music file or audio track using / < / > , and press ENTER (O) to play the music.

NOTE

The file requirements are described on page 11.
- You can use various playback functions. Refer to pages 40-47.

Audio CD Recording

You can record one desired track or all of the tracks in Audio CD to a USB storage device.

1. Insert a USB storage device to the USB port on the front panel.
2. Press (OPEN/CLOSE), and place an Audio CD on the disc tray.

Press (OPEN/CLOSE) to close the disc tray. The playback starts automatically.

1. Press DISPLAY to display the option menu.

Or

Press USB REC button on the remote control. You can record all musics in the audio CD.

1. Use / to select [CD Recording] option, and press ENTER (O) to display the [CD Recording] menu.

Repeat this step to select tracks as many as you want.

1. Use / to select a track you wish to copy on the menu, and press ENTER (C).

Repeat this step to select tracks as many as you can.

Select All	Select all the tracks on an Audio CD.
Option	Selects an encoding option from the pop-up menu (128 kbps, 192 kbps, 320 kbps or Lossless).
Close	Cancels the recording and returns to the previous screen.

1. Use /V < / > to select [Start], and press ENTER (O).

2. Use / V / < / > to select the destination folder to be copied.

If you want to create a new folder, use / / < / > to select [New Folder] and press ENTER

Enter a folder name using the virtual keyboard, and press ENTER (while [OK] is selected.

1. Use /V < / > to select [OK], and press ENTER (O) to start Audio CD recording. If you want to stop the Audio CD recording, press ENTER (O while [Cancel] is highlighted.
2. A message appears when Audio CD recording is completed. Press ENTER (O) to check the music file created in the destination folder.

NOTE

The table below shows the average recording time from an audio track with 4 minutes of playback time to a music file with 192 kbps as an example.

stop mode during playback
1.4 min. 2 min.

• All times in the above table are approximate.
• Actual recording time for USB storage device varies depending on the USB storage device's ability.
• Make sure that there is minimum of 50 MB free space when recording into the USB storage device.
  The length of the music should be longer than 20 seconds for the proper recording.
• Do not turn off this player or extract the connected USB storage device during Audio CD recording.

The making of unauthorized copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense. This equipment should not be used for such purposes.

Be responsible

Respect copyrights

Playing the iPod

You can enjoy the sound with your iPod. For details about iPod, refer to the iPod's User Guide.

Preparation

• To view iPod's Videos and Photos on the TV screen.

• Be sure to use the video connection through the VIDEO OUT jack on the rear panel of this unit. Select the appropriate video input mode on the TV.
  Depending on the iPod, make sure that select Videos > Video settings, and then set TV Out to Ask or On from your iPod. For details about Video Settings, refer to the iPod User Guide.

• The viewing photos is available only if this unit is in iPod IN mode and you can view photos only as a slide show. You have to start a slide show on your iPod to view a photo on a TV. For details about a slide show, refer to the iPod User Guide.

• Before connecting the iPod, turn this unit off and reduce the volume of this unit to its minimum.

• Connect the iPod firmly.

Connect the iPod

1. Select a file using / V / < / > , and press ENTER to play the file.

Enjoying iPod on the screen

1. Connect the iPod firmly.
2. Press HOME MENU (
3. Select [Music] or [Movie] using < / > and press ENTER If you connected the other device CD or USB),select the iPod on the menu.
4. Select a content using N / < / > and press ENTER (O) to play.

Enjoying the iPod IN mode

You can operate your iPod by using the supplied remote control and controls on your iPod.

1. Connect the iPod firmly. If you turn this unit on, your iPod is automatically turned on and recharging starts.

2. Press INPUT/TUNER to select iPod IN mode.

Λ/V/</>	Selects an option in the menu.
►/ENTER	Starts playback the music or video.
■	To pause while it is playing. To resume playing, press►(PLAY) again.
▲/▲	Fast-forward or rewind a song or video
■/■	Skip the playback forward or backward.
REPEAT To select a desired repeat mode: Track (○), All (○), Off (No display).

NOTE

This system is compatible with the audio and video of the iPod(4th generation), iPod nano, iPod classic, iPod mini, iPod touch and iPhone (iPod shuffle is not supported.).

NOTE

• An error message "CHECK IPOD" or "Connected iPod model is not supported." appears when: - your iPod is not available for the function to be operated.
• An error message "CHECK IPOD" or "Please update iPod's software." appears when: - your iPod has an old software version. Update your iPod software to latest version.
• If this unit displays an error message, follow the message. An error message "CHECK IPOD" or "Please check your iPod." appears when:
• the communication between this unit and your iPod is failed. → Undock & re-dock your iPod in this unit.
• your iPod is not connected firmly.
• this unit recognises your iPod as unknown device.
• your iPod is exceptionally low on power. → The battery needs to be charged. → If you charge the battery while iPod is extremely low in power, it may take longer to charge.
• You may use the dock adapter which should be supplied with your iPod to the dock for the stable use of the iPod. If you need an adapter, consult your iPod dealer.
• Compatibility with your iPod may vary depending on the type of your iPod.
• iPod touch and iPhone have any difference in operation other than iPod. You may need any additional control to use them with this unit. (e.g. "slide to unlock")
• If you use an application, make a call, or send and receive SMS text message, etc. on iPod touch or iPhone, disconnect it from iPod dock of this unit and then use it.
• Depending on your iPod's software version, it may not be possible to control your iPod from this unit. We recommend installing the latest software version.
• The video quality depends on the video sources on your iPod.
  If you have a problem with your iPod, please visit www.apple.com/support/ipod.

Radio Operations

Be sure that the antenna is connected.

(Refer to the page 24)

Listening to the radio

1. Press INPUT/TUNER until TUNER (FM) appears in the display window. The last received station is tuned in.
2. Press and hold TUNE (- / + ) for about two seconds until the frequency indication starts to change. Scanning stops when the unit tunes in a station. Or Press TUNE (- / + ) repeatedly.
3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOL (+ / - ) on the remote control.

Presetting the Radio Stations

You can preset 50 stations for FM.

Before tuning, make sure that you have turned down the volume.

1. Press INPUT/TUNER until the TUNER (FM) appears in the display window.
2. Select the desired frequency by using TUNE (- + )
3. Press ENTER (O) a preset number will flash in the display window.
4. Press PRESET to select the preset number you want.
5. Press ENTER (O). The station is stored.
6. Repeat the steps 2 to 5 to store other stations.

Deleting all the saved stations

Press and hold CLEAR for two seconds.

"ERASE ALL" will flash up. Press CLEAR again.

Then all the saved stations are deleted.

Improving poor FM reception

Press D (blue) (ST/MONO) colored button on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

Playing content via your home network

This player can browse and play content from your PC and DLNA certified media servers connected on your home network.

About DLNA

This Player is a DLNA Certified digital media player that can display and play movie, photo and music content from your DLNA-compatible digital media server (PC and Consumer Electronics).

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a network in the home.

The DLNA certificat cation logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Accessing a DLNA media server

1. Check the network connection and settings (pages 28-30).
2. Press HOME MENU.
3. Select [Home Link] using / < / > , and press ENTER (②).

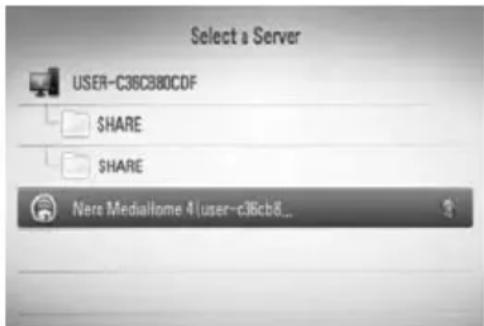

4. Select a DLNA media server from the list using / V , and press ENTER (

If you want to rescan for available media servers, press the green (B) colored button.

NOTE

Depending on the media server, this player may need to get permission from the server.

1. Select a file using / < , and press ENTER (⊙) to play the file.

NOTE

• The fi le requirements are described on page 11.
• You can use various playback functions. Refer to pages 40-47.
• The file requirements on page 11 are not always compatible. There may be some restrictions due to the file's features and media server's ability.
• The thumbnail of the unplayable files can be displayed in the [Home Link] menu, but those cannot be played on this player.
• If there is an unplayable music file in the [Home Link] menu, the player skips the file and plays the next file.
• The subtitle fi le name and movie fi le name have to be the same and located in the same folder.
• The playback and operating qualit y of the [Home Link] function may be affected by your home network condition.
• The files from removable media such as USB drive, DVD-drive etc. on your media server may not be shared properly.

Accessing a share folder from your PC

1. Start your PC that is connected on your local area network.
2. On your PC, share folders which contain movie, photo or music files.
3. On the player, check the network connection and settings (pages 28-30).
4. Press HOME MENU.
5. Select [Home Link] using / V < / > , and press ENTER (C).

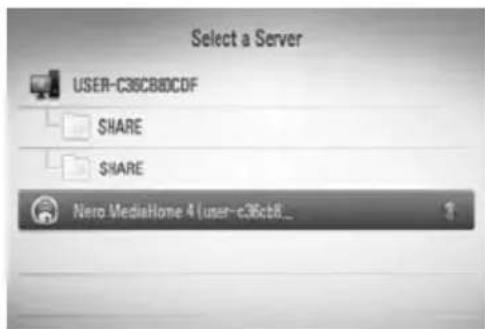

6. Select a share folder from the list using / V , and press ENTER (⊙).

If you want to rescan available media servers, press the green (B) colored button.

NOTE

Depending on the share folder, this player may need to input network user ID and password for accessing the folder.

1. Select a file using / V / < / > , and press ENTER to play the file.

NOTE

The fi Ie requirements are described on page 11.
- You can use various playback functions. Refer to pages 40-47.
- The thumbnail of the unplayable files can be displayed in the [Home Link] menu, but those cannot be played on this player.
- If there is an unplayable music file in the [Home Link] menu, the player skips the file and play next file.
- The subtitle file name and movie file name have to be the same and located at the same folder.
- The playback and operating quality of the [Home Link] function may be affected by your home network condition.
- The files on a removable media such as USB drive, DVD-drive etc. on your PC may not be shared properly.
- You may experience connection problems depending on your PC's environment.

PC requirements

• Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required), Windows 7®
  1.2 GHz Intel® Pentium® III or AMD SempronTM 2200+ processors
  Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11b/g/n)

NOTE

If you use Windows XP or Windows Vista, visit link below for more information on file share settings.

WindowsXP: http://support.microsoft.com/kb/304040

Windows Vista: http://support.microsoft.com/kb/961498

Entering a network user ID and the password

Depending on your PC's environment, you may need to enter a network user ID and the password for accessing a shared folder.

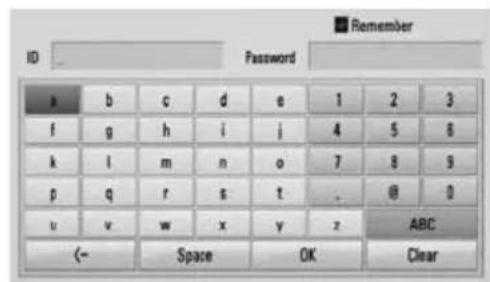

1. The keyboard menu appears automatically if the network user ID and the password are required.
2. Use / < / > to select a character then press ENTER (O) to confirm your selection on the keyboard menu.

To enter a letter with an accent mark, select the letter from the extended character set.

Example: Select "D" and then press DISPLAY to display the extended character set.

Use < / > to select "D" or "D" and then press ENTER (

[Clear] - Clear all entered characters.

[Space] - Inserts a space at the cursor position.

[- - ] - deletes the previous character at the cursor position.

[ABC/abc/#+-=&] - Change the keyboard menu settings to capital letters, small letters or symbols.

1. When you finish entering the network user ID and password, select [OK] using / < / > and press ENTER (O) to access the folder.

The network user ID and password will be remembered after accessing the folder for your convenience. If you do not want the network user ID and password to be remembered, press red (A) colored button to un-tick the [Remember] check box before accessing the folder.

5 Maintenance

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

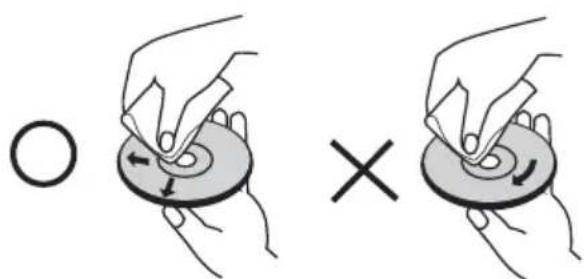

Cleaning Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.
• Wiping with strong pressure may damage the surface.
• Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center.

6

Troubleshooting

General

The Power does not turn on.	Plug the power cord into the wall outlet securely.
The unit does not start playback.	Insert a playable disc.(Check the disc type, color system, and regional code.)Place the disc with the playback side down. Place the disc on the disc tray correctly inside the guide.Clean the disc.Cancel the rating function or change the rating level.
The angle cannot be changed.	Multi-angles are not recorded on the DVD Video being played.
The subtitle language cannot be changed or turned off.	Subtitles are not recorded on the DVD Video being played.
Cannot play MP3/WMA/JPEG/DivX fi les.	The fi les are not recorded in a format that the unit can play. The unit does not support the codec of the movie fi le.
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the unit.The remote control is too far from the unit.There is an obstacle in the path between the remote control and the unit.The battery in the remote control is exhausted.


There is no picture. • Select

the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. • Connect the video connection securely. • Check the [HDMI Color Setting] in the [Setup] menu is set to the appropriate item that conforms to your video connection. • Your TV may not support the resolution you have set on the player. Change the resolution to one that your TV accepts. • The player's HDMI OUT jack is connected to a DVI device that does not support copyright protection.

Picture noise appears • You

are playing a disc recorded in a color system that is diff erent from your TV. • Set the resolution to one that your TV accepts.

Sound

There is no sound or the sound is distorted.

·The unit is in scan, slow motion, or pause mode. ·The sound volume is low. ·Check the speaker cable connection. (page 16)

Network

BD-LIVE feature does not work.

• The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space.
• Ensure that the unit is correctly connected to the local area network and can access the internet (see page 28).
• Your broadband speed may not be fast enough to use the BD-LIVE features. Contact your Internet Service Provider (ISP) and increase the broadband speed to suit the unit's.
• The [BD-LIVE connection] option in the [Setup] menu is set to [Prohibited]. Set the option to [Permitted].

Design and specifications are subject to change without notice.

Updates

Note that information on this product is available on the Pioneer website. Please check the website for information on updating or servicing your Blu-ray Disc PLAYER.

7 Appendix

Controlling a TV with the Supplied Remote Control

You can control your PIONEER TV using the buttons below.

Button Operation

© (TV Power) Turn the TV on or off.

INPUT Switch the TV's input source between the TV and other input sources.

CH +/- Scan up or down through memorized channels.

VOL +/- Adjust the volume of the TV.

● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

Setting up the remote to control your TV

You can operate your TV with the supplied remote control.

If your TV is listed in the table below, set the appropriate manufacturer code.

1. While holding down (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table below).

Manufacturer Code Number
Pioneer 1(Default)
Sony 2, 3
Panasonic 4, 5
Samsung 6, 7
LG 8, 9

1. Release the (TV POWER) button to complete setting.

Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

Area Code List

Choose an area code from this list.

AreaCode		Area		Code	Area	Code
Afghanistan AF		Fiji	FJ	Monaco	MC	Singapore SG
Argentina AR		Finland	FI	Mongolia	MN	Slovak Republic	SK
Australia AU		France	FR	Morocco	MA	Slovenia	SI
Austria AT		Germany	DE	Nepal	NP	South Africa	ZA
Belgium BE		Great Britain	GB	Netherlands	NL	South Korea KR
Bhutan BT		Greece	GR	Netherlands		Spain	ES
Bolivia BO		Greenland GL		Antilles AN		Sri Lanka	LK
Brazil BR		Hong Kong	HK	New Zealand	NZ	Sweden SE
Cambodia KH		Hungary	HU	Nigeria	NG	Switzerland CH
Canada CA		India	IN	Norway	NO	Taiwan	TW
Chile CL		Indonesia	ID	Oman	OM	Thailand	TH
China CN		Israel	IL	Pakistan	PK	Turkey	TR
Colombia CO		Italy	IT	Panama PA		Uganda	UG
Congo CG		Jamaica	JM	Paraguay	PY	Ukraine	UA
Costa Rica CR		Japan	JP	Philippines	PH	United States	US
Croatia	HR	Kenya	KE	Poland PL		Uruguay	UY
Czech Republic	CZ	Kuwait	KW	Portugal	PT	Uzbekistan	UZ
Denmark	DK	Libya	LY	Romania	RO	Vietnam	VN
Ecuador EC		Luxembourg	LU	Russian Federation	RU	Zimbabwe	ZW
Egypt	EG	Malaysia	MY	Saudi Arabia	SA
El Salvador SV		Maldives	MV	Senegal	SN
Ethiopia	ET	Mexico	MX

Language code List

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu].

Language	Code	Language	Code	Language	Code	Language
Afar 6565		French	7082	Lithuanian	7684	Sindhi 8368
Afrikaans 6570		Frisian	7089	Macedonian	7775	Singhalese 8373
Albanian 8381		Galician	7176	Malagasy	7771	Slovak 8375
Ameharic 6577		Georgian	7565	Malay	7783	Slovenian 8376
Arabic 6582		German	6869	Malayalam	7776	Spanish 6983
Armenian 7289		Greek	6976	Maori	7773	Sudanese 8385
Assamese 6583		Greenlandic	7576	Marathi 7782		Swahili 8387
Aymara 6588		Guarani 7178		Moldavian	7779	Swedish 8386
Azerbaijani 6590		Gujarati 7185		Mongolian	7778	Tagalog 8476
Bashkir 6665		Hausa	7265	Nauru	7865	Tajik 8471
Basque 6985		Hebrew	7387	Nepali 7869		Tamil 8465
Bengali; Bangla 6678		Hindi	7273	Norwegian	7879	Telugu 8469
Bhutani 6890		Hungarian	7285	Oriya	7982	Thai 8472
Bihari 6672		Icelandic 7383		Panjabi 8065		Tonga 8479
Breton 6682		Indonesian 7378		Pashto, Pushto	8083	Turkish 8482
Bulgarian 6671		Interlingua	7365	Persian	7065	Turkmen 8475
Burmese 7789		Irish	7165	Polish	8076	Twi 8487
Byelorussian 6669		Italian	7384	Portuguese	8084	Ukrainian 8575
Chinese 9072		Japanese	7465	Quechua	8185	Urdu 8582
Croatian 7282		Kannada	7578	Rhaeto-Romance		Uzbek 8590
Czech 6783		Kashmiri	7583		8277	Vietnamese 8673
Danish 6865		Kazakh 7575		Rumanian	8279	Volapuk 8679
Dutch 7876		Kirghiz 7589		Russian	8285	Welsh 6789
English 6978		Korean 7579		Samoan	8377	Wolof 8779
Esperanto 6979		Kurdish 7585		Sanskrit 8365		Xhosa 8872
Estonian 6984		Laothian 7679		Scotts Gaelic	7168	Yiddish 7473
Faroese 7079		Latin 7665		Serbian	8382	Yoruba 8979
Fiji 7074		Latvian, Lettish 7686		Serbo-Croatian	8372	Zulu 9085
Finnish 7073		Lingala 7678		Shona 8378

Video output resolution

When the non-copy protected media is playing back

Video Out Resolution	HDMI OUT	COMPONENT VIDEO OUT
		HDMI connected HDMI	disconnected
576i (480i) 576p (480i)	576i (480i)
576p (480p) 576p (480p)	576p (480p)
720p 720p 720p
1080i 1080i 1080i
1080p / 24 Hz 1080p / 24 Hz 576i (480i) 1080i
1080p / 50 (60) Hz 1080p / 50 (60) Hz 576i (480i) 1080i

When the copy protected media is playing back

Video Out Resolution	HDMI OUT	COMPONENT VIDEO OUT
		HDMI connected HDMI disconnected
576i (480i) 576p (480p)		576i (480i)
576p (480p)	576p (480p)	576p (480p)
720p	720p 576i (480i)	576p (480p)
1080i	1080i	576i (480i)	576p (480p)
1080p / 24 Hz	1080p / 24 Hz	576i (480i)	576p (480p)
1080p / 50 (60) Hz	1080p / 50 (60) Hz	576i (480i)	576p (480p)

HDMI OUT connection

For the 576i (480i) resolution setting, real output resolution of HDMI OUT will change to 576p (480p).
- If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].
- If you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.

• The 1080p video output frame rate may be automatically set to either 24Hz or 60Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

COMPONENTVIDEOOUTconnection

BD or DVD could prevent up-scaling on analogue output.

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always outputted at 576i (480i) resolution.

Trademarks and Licences

"Blu-ray Disc" and are trademarks.

"BD-LIVE" logo is a trademark of Blu-ray Disc Association.

"BONUSVIEW" is trademark of Blu-ray Disc Association.

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries.

Manufactured under licence from Dolby Laboratories. Dolby, and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under licence under U.S. Patent #s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio I Essential and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

HDMI

HDMI, the HDMI Logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

DVD is a trademark of DVD Format/Logo Licensing Corporation.

DLNA and DLNA CERTIFIED are trademarks and / or service marks of Digital Living Network Alliance.

DivX is a registered trademark of DivX, Inc., and is used under licence.

"x.v.Color" or "x.v.Color" is a trademark of Sony Corporation.

AVCHD TM

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation. This product is licenced under the AVC patent portfolio licence and VC-1 patent portfolio licence for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard ("AVC/VC-1 Video") and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licenced to provide AVC/VC-1 Video. No licence is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc.

"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

"Works with iPhone" means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

Bluetooth®

Bluetooth® wireless technology is a system which allows radio contact between electronic devices within a max. range of 10 meters. Connecting individual devices under Bluetooth wireless technology does not incur any charges. A mobile phone with Bluetooth wireless technology can be operated via the Cascade if the connection was made via Bluetooth wireless technology. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under license. Other trademarks and trade names are those of their respective owners.

Specifications

General

Power requirements: AC 120 V, 60 Hz
Power consumption: 150W In Standby mode: Less than O.5 W
Dimensions (W x H x D): Approx. 430 × 64 × 304 mm
- Net Weight (Approx.): 3.6 kg
- Operating temperature: 41^ F to 95^ F ( 5^ C to 35^ C )
- Operating humidity: 5% to 90%
- Bus Power supply (USB): DC 5V = 500 mA

Inputs/ Outputs

VIDEO OUT: 1.0V (p-p), 75 , sync negative, RCA jack x 1
COMPONENTVIDEO OUT: (Y) 1.0V p-p),75 ,sync negative, RCA jack × 1 (Pb) / (Pr) 0.7 V (p-p), 75 RCA jack × 2
- HDMI OUT (video/audio): 19 pin (HDMI standard, Type A, Version 1.3)
- Analogue AUDIO IN: 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
- DIGITAL IN (OPTICAL 1/2): 3V(p - p) Optical jack x 2
- PORTABLE IN: 0.5 Vrms (3.5 mm stereo jack)

Tuner

FM Tuning Range: 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Amplifi er

• Power output, (PEAK), (4 /3) Total 1100 W
  Front 180 W x 2
  Center 180 W
  Rear 180 W x 2
  Sub-Woofer 200 W (Passive)
• Power output, (RMS), THD 10% (4Ω/3Ω)
  Total 930 W
  Front 150 W x 2
  Center 150 W
  Rear 150 W x 2
  Sub-Woofer 180 W (Passive)

System

Laser: Semiconductor laser Wavelength: 405nm / 650nm
- Signal system: Standard NTSC color TV system
Frequency response: 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)
LAN port: Ethernet jack x 1, 10BASE-T/100BASE-TX

Speakers for HTZ-BD50

S-BD50T

• Front/Surround speaker (Left/Right)
  Type: 2 Way
  Impedance Rated: 4 Net Dimensions 260 × 1097 × 260 mm ( W × H × D ):
  Net Weight: 3.8 kg
  Center speaker Type:1 Way Impedance Rated: 4 Net Dimensions 300× 87× 65mm (W× H× D) Net Weight: 0.6kg

S-BD50SW

• Subwoofer Type: 1 Way 1 speaker Impedance Rated: 3 Ω Net Dimensions: 130.5 × 420 × 375 mm (W x H x D): Net Weight: 4.4 kg

Speakers for HTZ-BD30

S-BD30

• Front/Surround speaker (Left/Right)
  Type: 1 Way
  Impedance Rated: 4 Net Dimensions: 96 × 96 × 85 mm (W x H x D):
  Net Weight: 0.4 kg
  Center speaker Type:1 Way Impedance Rated: 4 Net Dimensions 300× 87× 65mm (W× H× D) Net Weight: 0.6kg
• Subwoofer Type: 1 Way 1 speaker Impedance Rated: 3 Net Dimensions 130.5 × 420 × 375 mm ( W × H × D ):
  Net Weight: 4.4 kg

Software License Notice

The licenses for the open source software used on this player are shown below.

The following GPL executables and LGPL libraries used in this product are subject to the GPL2.0/LGPL2.1 License Agreements:

GPL EXECUTABLES:

Linux kernel 2.6 Copyright © 1991 Linux Torvalds. Licensed under GPLv2
- BusyBox 1.2.1 Copyright © 1998-2007 Erik Andersen,Rob Landley,Denis Vlasenko and others. Licensed under GPLv2
- bash Copyright © 2000 Free Software Foundation, Inc. Licensed under GPLv2
dhcpcd Copyright © 2006-2009 Roy Marples. Licensed under GPLv2
e2fsprogs Copyright © 1995-2001 by Theodore Ts'o. Licensed under GPLv2
- fidsk Copyright © 1992 A.V. Le Blanc.
Licensed under GPLv2
msdl-1.1 Copyright © 2007-2008 metro Licensed under GPLv2
- mtd-utils Licensed under GPLv2
net-tools Copyright © 1993 MicroWalt Corporation. Licensed under GPLv2
procps Licensed under GPLv2
samba-3.0.25b Copyright © 1997-2003 Samba-Team. Licensed under GPLv2
sysutils Copyright © Kenneth Albanowski, D. Jeff Dionne, Lineo, Inc., David I.Bell, Rt-Control Inc. Licensed under GPLv2
tftpd Copyright © 1983 Regents of the University of California. Licensed under GPLv2
utelnetd 2000-2002 Robert Schwebel. Licensed under GPLv2
FFmpeg Copyright © 2000-2007 Fabrice Bellard, et al. Licensed under GPLv2
TinyLogin Copyright © 1999 by Lineo, inc. Licensed under GPLv2

LGPL LIBRARIES:

avahi Copyright © 2004-2009 by the Avahi developers. Licensed under LGPLv2.1
- ATK Copyright © The GNOME Project.
Licensed under LGPL v2.1
uClibc Copyright © Erik Andersen. Licensed under LGPLv2.1
- DirectFB Copyright © 2001-2007 The DirectFB Organization Copyright © 2000-2004 Convergence (integrated media) GmbH. Licensed under LGPLv2.1
- calro Licensed under LGPLv2.1 and MPL1.1
- fmpeg,
gail Copyright © 2001-2004 Sun Microsystems Inc. Licensed under LGPLv2.1
glib Copyright © 2005-2011 The GNOME Project Licensed under LGPLv2.1
- gnomeTLS Copyright © Free Software Foundation, Inc. Licensed under LGPLv2.1
- GTK+ Copyright © 2007-2011 The GTK+ Team. Licensed under LGPLv2.1

• iconv Copyright © Free Software Foundation, Inc. Licensed under LGPLv2.1
• libgcrypt Copyright © 2000-2011 Free Software Foundation, Inc. Licensed under LGPLv2.1
• libdaemon Copyright © 2003-2009 Lennart Poettering. Licensed under LGPLv2.1
• libgpg error Copyright © 2003, 2004, 2005, 2006, 2007 g10 Code GmbH. Licensed under LGPLv2.1
  I ibssoup Copyright © 2005-2011 The GNOME Project Licensed under LGPLv2.1
• libintl Copyright © Erik Andersen and Manuel Novoa III. Licensed under LGPLv2.1
  mpg123 Copyright © Michael Hipp. Licensed under LGPLv2.1
  pango Copyright © 1999 Red Hat Software. Licensed under LGPLv2.1
• libenchat(PyEnchant) Copyright © Dom Lachowicz. Licensed under LGPLv2.1
  WebCore Copyright © 2003 Apple Computer, Inc. Licensed under LGPLv2.1
  JavaScriptCore Copyright © 1999-2000
  Harri Porten, Copyright © 2006, 2007
  Apple Inc.
  Copyright © 2009 Google Inc. Licensed under LGPLv2.1

You can get corresponding open source code from the following URL.

http://www.oss-pioneer.com/homeahts/

We are unable to answer any question about the source code for the open source software.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software-to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the

original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files

to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole, if identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a

medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by

modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

1. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

2. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain

countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE

THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED IN ACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright ©

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright © year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type show w'. This is free software, and you are welcome to redistribute it under certain

conditions; type 'show c' for details.

The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show w' and 'show c'; they could even be mouse-clicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program 'Gnomovation' (which makes passes at compilers) written by James Hacker.

, 1 April 1989 Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software—to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages—typically libraries—of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to

make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recomposing it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the "Lesser" General

Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you". A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications

and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification.") "Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose

remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and

2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use

and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License.

Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need

not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:
   a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.
   b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.
2. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
3. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
4. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to

copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

1. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property rights claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

3. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED IN ACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH

ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright © This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA. Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice

That's all there is to it!

gSOAP Public License 1.3 LIBRARY: gsoap

you can obtain a copy of gSOAP public license from http://www.cs.fsu.edu/\~engelen/ license.html.

This product includes

• Crypt Data Packaging: Copyright © Trantor Standard Systems Inc., 2001
  curl:copyright © 1996-2008, Daniel Stenberg
• expat: copyright © 2006 expat maintainers
• fontconfig:

Copyright © 2000 Keith Packard
Copyright © 2005 Patrick Lam

• freetype: copyright © 2003 The FreeType Project (www.freetype.org).
  International Components for Unicode: copyright © 1995-2010 International Business Machines Corporation and others
  -JPEG: This software is based in part on the work of the Independent JPEG Group copyright © 1991 - 1998, Thomas G. Lane.
• JSON: Copyright © 2005 JSON.org
  lightpd:Copyright © 2004,Jan Kneschke, incremental
• mng: copyright © 2000-2007 Ge Juyn, Glenn Randers-Pehrson
• ntp:copyright © David L. Mills 1992-2006

• OpenSSL:

• cryptographic software written by Eric Young ([e-mail]).
  software written by Tim Hudson (tjh@ cryptsoft.com).

• software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssll.org)

pcre: Copyright © 1997-2010 University of Cambridge
PHP:Copyright ©1999-2010ThePHP Group

• pixman :

Copyright 1987, 1988, 1989, 1998 The Open Group
Copyright 1987, 1988, 1989 Digital Equipment Corporation
Copyright 1999, 2004, 2008 Keith Packard
Copyright 2000 SuSE, Inc.
Copyright 2000 Keith Packard, member of The XFree86 Project, Inc.
Copyright 2004, 2005, 2007, 2008 Red Hat, Inc.
Copyright 2004 Nicholas Miell
Copyright 2005 Lars Knoll & Zack Busin, Troltech
Copyright 2005 Trolltech AS
Copyright 2007 Luca Barbato
Copyright 2008 Aaron Plattner, NVIDIA Corporation
Copyright 2008 Rodrigo Kumpera
Copyright 2008 Andre Tupinamba
Copyright 2008 Mozilla Corporation
Copyright 2008 Frederic Plourde
Copyright 2009 Sun Microsystems, Inc.

• png: copyright © 2004 Glenn Randers-Pehrson
  portmap:copyright © 1990 The Regents of the University of California
  Protocol Buffer: Copyright 2008, Google Inc.

• tiff:

Copyright © 1988-1997 Sam Leffler
Copyright © 1991-1997 Silicon Graphics, Inc.

tinyxml: Original file by Yves Berquin.
UnitTest++:copyright © 2006 Noel Llopis and Charles Nicholson
UPnP SDK:copyright © 2000-2003 Intel Corporation
- xml2:copyright © 1998-2003 Daniel Veillard
- xslt:

Copyright © 2001-2002 Daniel Veillard.
Copyright © 2001-2002 Thomas Broyer, Charlie Bozeman and Daniel Veillard.

• WPA Suppliant: Copyright © 2003-2007, Jouni Malinen [e-mail] and contributors
  zlib:copyright © 1995-2002 Jean-Ioup Gailly and Mark Adler.

All rights reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

CLASS 1 LASER PRODUCT APPAREL A LASER DE CLASSE 1

Cable video (1) Telecommande (1)

Piles (1) Antenne FM (1)

Sabot iPod (1)

AVCHD (Advanced Video Codec High Defi nition)

▶ PLAY: Pour lancer la lecture.

PAUSE/STEP: Pourmettre la lecture en pause.

Eff acer stockage BD

Pourmettrelalectureenpause.

http://www.oss-pioneer.com/homeahts/

Copyright © 1989, 1991 Free Software Foundation, Inc., S1 Franklin Street, Fifth Floor Boston, MA 02110-1301, USA.

Copyright © 1991, 1999 Free Software Foundation, Inc.

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Copyright © 2000 Keith Packard
Copyright © 2005 Keith Packard

• freetype: Copyright © 2003 The FreeType Project (www.freetype.org).
  International Components pour Unicode: copyright © 1995-2010 International Business Machines Corporation et autres
• JPEG: ce logiciel est basé en partie sur le travail du groupe Independent JPEG Group Copyright © 1991-1998, Thomas G. Lane.
• JSON: Copyright © 2005 JSON.org
  lightpd: Copyright © 2004, Jan Kneschke, incrementation
• mng: Copyright © 2000-2007 Gerard Juyn, Glenn Randers-Pehrson
  ntp:Copyright © David L.Mills 1992- 2006
• OpenSSL:

pcre: Copyright © 1997-2010 University of Cambridge

PHP:Copyright ©1999-2010 PHP Group

• pixman:

Copyright 1987, 1988, 1989, 1998
Groupe Open source

Copyright 1987, 1988, 1989 Digital Equipment Corporation

Copyright 1999,2004,2008 Keith Packard

Copyright 2000 SuSE, Inc.

Copyright 2000 Keith Packard, membrde XFree86 Projectt, Inc.

Copyright 2004, 2005, 2007, 2008 Red Hat, Inc.

Copyright 2004 Nicholas Miell

Copyright 2005 Lars Knoll & Zack Rusin, Troltech

Copyright 2005 Troltech AS

Copyright 2007 Luca Barbato

Copyright 2008 Aaron Plattner, NVIDIA Corporation

Copyright 2008 Rodrigo Kumpera

Copyright 2008 Andre Tupinamba

Copyright 2008 Mozilla Corporation

Copyright 2008 Frederic Plourde

Copyright 2009 Sun Microsystems, Inc.

• png: Copyright © 2004 Glenn Randers-Pehrson.

portmap: Copyright © 1990 The Regents of the University of California.

Tampon de protocole: Copyright 2008, Google Inc.

• tiff:

Copyright © 1988-1997 Sam Leffler

Copyright © 1991-1997 Silicon Graphics, Inc.

Copyright © 2001-2002 Daniel Veillard.

Copyright © 2001-2002 Thomas Broyer, Charlie Bozeman et Daniel Veillard.

PIONEER ELECTRONICS OF CANADA, INC.

LIMITED WARRANTY

WARRANTY VALID ONLY IN COUNTRY OF PRODUCT PURCHASE

WARRANTY

Pioneer Electronics (USA) Inc. (PUSA), and Pioneer Electronics Of Canada, Inc. (POC), warrant that products distributed by PUSA in the U.S.A., and by POC in Canada that fail to function properly under normal use due to a manufacturing defect when installed and operated according to the owner's manual enclosed with the unit will be repaired or replaced with a unit of comparable value, at the option of PUSA or POC, without charge to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the option of PUSA or POC.

THIS LIMITED WARRANTY APPLIES TO THE ORIGINAL OR ANY SUBSEQUENT OWNER OF THIS PIONEER PRODUCT DURING THE WARRANTY PERIOD PROVIDED THE PRODUCT WAS PURCHASED FROM AN AUTHORIZED PIONEER DISTRIBUTOR/DEALER IN THE U.S.A. OR CANADA. YOU WILL BE REQUIRED TO PROVIDE A SALES RECEIPT OR OTHER VALID PROOF OF PURCHASE SHOWING THE DATE OF ORIGINAL PURCHASE OR, IF RENTED, YOUR RENTAL CONTRACT SHOWING THE PLACE AND DATE OF FIRST RENTAL. IN THE EVENT SERVICE IS REQUIRED, THE PRODUCT MUST BE DELIVERED WITHIN THE WARRANTY PERIOD, TRANSPORTATION PREPAID, ONLY FROM WITHIN THE COUNTRY OF PURCHASE AS EXPLAINED IN THIS DOCUMENT. YOU WILL BE RESPONSIBLE FOR REMOVAL AND INSTALLATION OF THE PRODUCT. PUSA OR POC, AS APPROPRIATE, WILL PAY TO RETURN THE REPAIRED OR REPLACEMENT PRODUCT TO YOU WITHIN THE COUNTRY OF PURCHASE.

PRODUCT WARRANTY PERIOD

Home Audio and Video

Parts Labor

Microphones, Headphones, Phono Cartridges and Styluses

1 Year 1 Year

Shorter limited warranty periods apply to some models. Please refer to the limited warranty document enclosed with the product for a definitive statement of the warranty period. The warranty period for retail customers who rent the product commences upon the date product is first put into use (a) during the rental period or (b) retail sale, whichever occurs first.

WHAT IS NOT COVERED

IF THIS PRODUCT WAS PURCHASED FROM AN UNAUTHORIZED DISTRIBUTOR, THERE ARE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THIS PRODUCT IS SOLD STRICTLY "AS IS" AND "WITH ALL FAULTS". PIONEER SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL AND/OR INCIDENTIAL DAMAGES.

PIONEER DOES NOT WARRANTY ANY PRODUCT LISTED ABOVE WHEN IT IS USED IN A TRADE OR BUSINESS OR IN ANY INDUSTRIAL OR COMMERCIAL APPLICATION. THIS WARRANTY DOES NOT APPLY IF THE PRODUCT HAS BEEN SUBJECTED TO POWER IN EXCESS OF ITS PUBLISHED POWER RATING.

THIS WARRANTY DOES NOT COVER TELEVISION OR DISPLAY SCREENS DAMAGED BY STATIC, NON-MOVING, IMAGES APPLIED FOR LENGTHY PERIODS (BURN-IN). THIS WARRANTY DOES NOT COVER THE CABINET OR ANY APPEARANCE ITEM, USER ATTACHED ANTENNA, ANY DAMAGE TO RECORDS OR RECORDING TAPE S OR DISCS, ANY DAMAGE TO THE PRODUCT RESULTING FROM ALTERATIONS, MODIFICATIONS NOT AUTHORIZED IN WRITING BY PIONEER, ACCIDENT, MISUSE OR ABUSE, DAMAGE DUE TO LIGHTNING ORTOPOWERSURGES, SUBSEQUENT DAMAGE FROM LEAKING, DAMAGE FROMINOPERATIVE BATTERIES, ORTHE USE OF BATTERIESNOT CONFORMING TO THOSE SPECIFIED IN THE OWNER'S MANUAL.

THIS WARRANTY DOES NOT COVER THE COST OF PARTS OR LABOR WHICH WOULD BE OTHERWISE PROVIDED WITHOUT CHARGE UNDER THIS WARRANTY OBTAINED FROM ANY SOURCE OTHER THAN APIONEER AUTHORIZERED SERVICE COMPANY OR OTHER DESIGNATED LOCATION. THIS WARRANTY DOES NOT COVER DEFECTS OR DAMAGE CAUSED BY THE USE OF UNAUTHORIZED PARTS OR LABOR OR FROM IMPROPER MAINTENANCE.

ALtered, DEFACED, OR REMOVED SERIAL NUMBERS Void THIS ENTIRE WARRANTY

NO OTHER WARRANTYES

IN THE U.S.A. - PIONEER LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTYING INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO A PERIOD NOTTO EXCEED THE WARRANTY PERIOD. NOWWARRANTIES SHALL APPLY AFTER THE WARRANTY PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMplied WARRANTY LASTS AND SOME STATES DONOT ALLOW THE EXCLUSIONS OR LIMITATIONS OF INCIDENTTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

OR OTHERWISE, APPLICABLE TO THIS PRODUCT.

TO OBTAIN SERVICE

PUSA and POC have appointed a number of Authorized Service Companies throughout the U.S.A. and Canada should your product require service. To receive warranty service you need to present your sales receipt or, if rented, your rental contract showing place and date of original owner's transaction. If shipping the unit you will need to package it carefully and send it, transportation prepaid by a traceable, insured method, to an Authorized Service Company. Package the product using adequate padding material to prevent damage in transit. The original container is ideal for this purpose. Include your name, address and telephone number where you can be reached during business hours. On all complaints and concerns in the U.S.A. call Customer Support at 1-800-421-1404, or, in Canada, call Customer Satisfaction at 1-877-283-5901.

INTHEU.S.A.

For hook-up and operation of your unit or to locate an Authorized Service Company, please call or write:

PIONEERELECTRONICS SERVICE, INC. P.O. BOX 1760

LONG BEACH, CALIFORNIA 90801 1-800-421-1404

http://www.pioneerelectronics.com

IN CANADA

For additional information on this warranty, please call or write:

CUSTOMERSATISFACTIONGROUP

PIONEER ELECTRONICS OF CANADA, INC. 300 ALLSTATE PARKWAY MARKHAM, ON L3R 02

[phone]

1-877-283-5901

http://www.pioneerelectronics.ca

DISPUTERESOLUTION

In the U.S.A. - Following our response to any initial request to Customer Support, should a dispute arise between you and Pioneer, Pioneer makes available its Complaint Resolution Program to resolve the dispute. The Complaint Resolution Program is available to you without charge. You are required to use the Complaint Resolution Program before you exercise any rights under, or seek any remedies, created by Title I of the Magnuson-Moss Warranty-Federal Trade Commission Improvement Act, 15 U.S.C. 2301 of seq. To use the Complaint Resolution Program call 1-800-421-1404 and explain to the customer service representative the problem you are experiencing, steps you have taken to have the product repaired during the warranty period and the name of the authorized Distributor/Dealer from whom the Pioneer product was purchased. After the complaint has been explained to the representative, a resolution number will be issued. Within 40 days of receiving your complaint, Pioneer will investigate the dispute and will either: (1) respond to your complaint in writing informing you what action Pioneer will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing informing you why it will not take any action.

IN CANADA - Call the Customer Satisfaction Manager at [phone] to discuss your complaint and to obtain a prompt resolution.

RECORD THE PLACE AND DATE OF PURCHASE FOR FUTURE REFERENCE

Model No. Serial No. Purchase Date

Purchased From

Pioneer

PIONEER ELECTRONIQUES DU CANADA, INC.

GARANTIE LIMITEE

GARANTIE VALIDSE SEULEMENT DANS LE PAYS OU LE PRODUIT A ETE ACHETE

GARANTIE

PIONEER ELECTRONICS SERVICE, INC.

P.O.BOX1760

LONG BEACH, CALIFORNIA 90801

1-800-421-1404

http://www.pioneerelectronics.com

AU CANADA

DéPARTÉMENT DE SERVICE AU CONSOMMATEUR

PIONEER ELECTRONIQUES DU CANADA, INC.

300 ALLSTATE PARKWAY

MARKHAM, ON L3R 0P2

[phone]

1-877-283-5901

http://www.pioneerelectronics.ca

RÉGEMENT DES CONFLITS

To register your product, find the nearest authorized service location, to purchase replacement parts, operating instructions, or accessories, please go to one of following URLs:

http://www.pioneerelectronics.com In Canada/Aux Canada

http://www.pioneerelectronics.ca

Published by Pioneer Corporation.

Copyright © 2010 Pioneer Corporation.

All rights reserved.

Publication de Pioneer Corporation.

© 2010 Pioneer Corporation.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACenter PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]
