Product type	Steam iron
Brand	Electrolux
Model	4Safety Plus EDB5236
Power supply	220-240 V, 50-60 Hz
Power	Not specified (estimated 2000-2400 W)
Tank capacity	Not specified (estimated 300 ml)
Soleplate	Glissium™
Functions	Spray, steam blast, vertical steam, dry ironing, self-cleaning
Automatic shut-off	Yes, after 30 s on soleplate or side, 8 min on heel
Indicator lights	Power indicator light, safety auto-off indicator light
Temperature control	Rotary dial with positions from ● to max.
Steam type	Continuous (variable) and powerful burst
Vertical use	Yes, for curtains and hanging garments
Recommended water	Tap water, preferably distilled or 50/50 mix
Maximum water level	Indicated on the tank
Maintenance	Exterior cleaning with soft damp cloth; self-cleaning for descaling
Safety	Automatic shut-off, do not immerse, keep out of reach of children under 8 years
Cord	With cord storage
Repairability	Cord replaceable only by a qualified professional
Weight	Not specified (estimated 1.2 kg)
Dimensions	Not specified

Frequently Asked Questions - 4Safety Plus EDB5236 ELECTROLUX

How to fill the water tank of the iron?

Unplug the iron, set the steam selector to Dry, open the cap, pour water up to the maximum level (indicator visible on the tank) using the provided cup, then close. Use tap water, preferably distilled or a 50% distilled / 50% tap mix.

How to use the steam blast function?

Make sure the tank is at least half full. Press the steam blast button several times to prime the pump, then press to release steam. The temperature must be set to at least ●● (steam possible).

Why is the iron not producing steam?

Check the water level: fill the tank if necessary. Make sure the steam selector is not on the Dry position. Ensure the temperature is high enough (at least ●● for steam).

How to use the spray function?

The tank must be at least a quarter full. Press the spray button several times to release a fine mist on the fabric. Ideal for pre-dampening before ironing.

What to do if brown marks come out of the soleplate?

This may be due to hard water or burned fibers. Use the self-cleaning function once or several times: fill with water, heat the iron, set the steam button to self-clean and hold for 5 seconds over a sink. Then clean the soleplate with a soft damp cloth. Never use chemical descaling agents.

How does the automatic shut-off work?

If the iron remains stationary on the soleplate or side for 30 seconds, or on the heel for 8 minutes, it turns off automatically. To restart, resume ironing.

What type of water to use?

Tap water is fine, but to prevent scale, it is recommended to use distilled water or a mix of 50% distilled water and 50% tap water.

How to clean the Glissium™ soleplate?

Allow the iron to cool, then wipe the soleplate with a soft damp cloth. For burnt residue, iron over a damp cloth while the iron is still hot. Never use scouring pads or abrasive cleaners.

Can the iron be used in a vertical position?

Yes, the vertical steam function allows you to remove wrinkles from curtains, suits, and delicate hanging fabrics. Hold the iron 10-20 cm from the item and press the steam blast button.

What are the important safety instructions?

Never leave the iron unattended while plugged in. Keep it out of reach of children under 8 years. Do not immerse in water. Unplug before filling the tank. Use on a stable surface. The cord must not touch hot parts.

USER MANUAL 4Safety Plus EDB5236 ELECTROLUX

CS PŘÍRUČKA K POUŽITÍ

DA VEJLEDNING

DE ANLEITUNG

EE KASUTUSJUHEND

EN INSTRUCTION BOOK

Abstract geometric composition with two overlapping white circles on a gray background (no text or symbols)

CONTENTS

БЪЛГАРСКИ 4

ČEŠTINA 7

DANSK....10

DEUTSCH....13

EESTI....16

ENGLISH....19

ESPAÑOL 22

SUOMI....25

FRANÇAIS......28

HRVATSKI 31

MAGYAR....34

ITALIANO....37

LIETUVIŠKAI....40

LATVIEŠU....43

NEDERLANDS......46

NORSK 49

POLSKI....52

PORTUGUÊS......55

ROMÂNĂ 58

РУССКИЙ 61

SLOVENČINA 64

SLOVENŠČINA......67

СРПСКИ 70

SVENSKA 73

TŸRKÇE....76

УКРАЇНСЬКА 79

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.electrolux.com/productregistration

Buy Accessories and Consumables for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

White electric iron with a curved arm, shown against a plain white background (no text or symbols visible)

fig. 1 fig. 2 fig. 3

Close-up of a mechanical device with a metallic clip and attached components (no visible text or symbols)

Electric iron with steam emission effect, no visible text or symbols

fig. 5

Close-up of a mechanical device with a black handle and indicator lights (no visible text or symbols)

fig. 6

Close-up of a mechanical device with labeled parts A and B, showing a knob and adjustment knob (no readable text or symbols beyond labels)

fig. 4

Close-up of a white electric shaver with black adjustment knobs and a dial (no visible text or symbols)

fig. 8

Black and white photo of a steam iron on a textured surface (no visible text or symbols)

fig. 9

Close-up of a white plastic bag with a pointed tip, lying on a plain surface (no text or symbols visible)

fig. 7

Read the following instruction carefully before using machine for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
  • The surfaces are liable to get hot during use.
• This product is appropriate for use with tap water. It is recommended to use distilled water or a mix of 50% destilled, 50% tap water.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• The iron is not to be used if it has been dropped, if there are visible signs of damage on the iron or its cord or if it is leaking.
  • The appliance must only be connected to an earthed socket.
  • The filling aperture must not be opened during use.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• The iron must be used and rested on a stable surface. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• Never leave the appliance unattended while connected to the supply mains.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
• The plug must be removed from the socket outlet before the water reservoir is filled with water.
• The mains cable must not come into contact with any hot parts of the appliance.
• Do not immerse the appliance in water or any other liquid.
• Do not exceed the maximum filling volume as indicated on the appliances.
• If there are limitations please define water quality / type of water that can be used with appliance.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

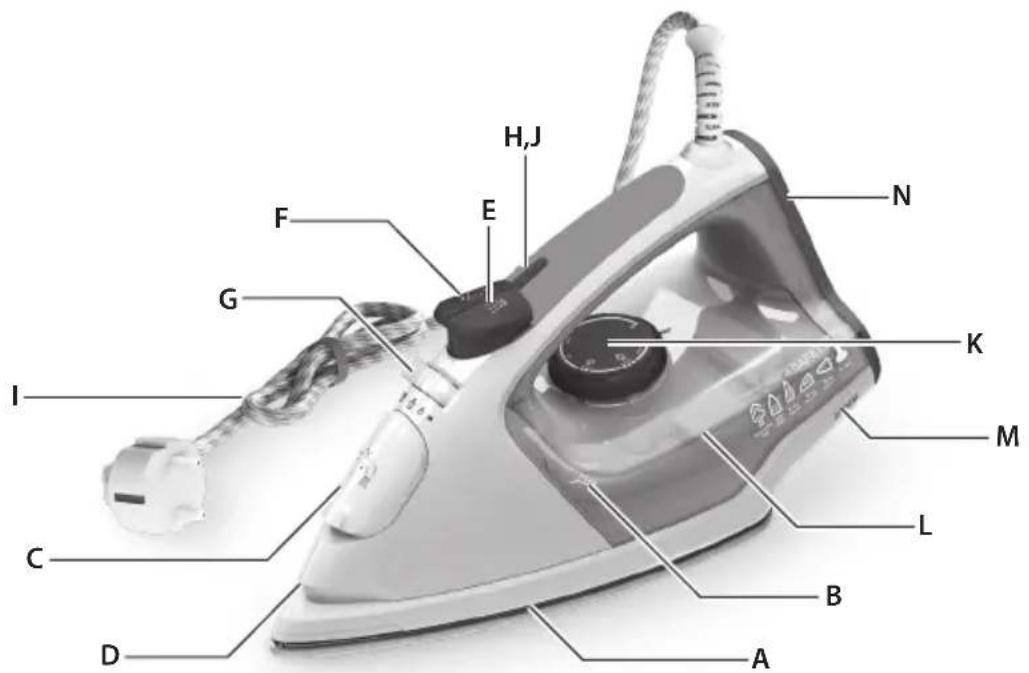

COMPONENTS

A. Soleplate
B. Maximum water level indicator
C. Filling aperture with cover
D. Spray nozzle
E. Spray button
F. Steam jet button
G. Steam selector/Self-cleaning

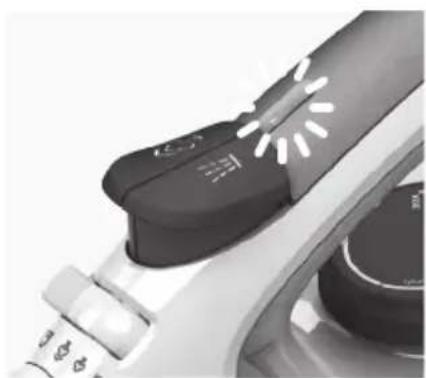

H. Power indicator light

I. Mains cable
J. Safety auto-off light
K. Temperature selector
L. Water tank
M. Cable wrap facility
N. Rubber-napped heel

IRONING CHART

Fabric Temperature setting	Ironing recommendation
Acrylic	●	Dry iron on wrong side.
Acetate	●	Dry iron on wrong side while still damp or use spray to dampen.
Nylon & Polyester	●	Iron on wrong side while still damp or use spray to dampen.
Rayon	●	Iron on wrong side of fabric.
Viscose	●	Mainly dry iron. Steam can be used under manufacturer's instructions.
Silk	●●	Iron on wrong side. Use an ironing cloth to prevent shine marks.
Cotton blends	●●	Check label and follow manufacturer's instructions. Use setting fo the fibre requiring lowest setting.
Wool & wool blends	●●	Steam iron on wrong side or use ironing cloth.
Cotton	●●	Dry iron while still damp or use spray to dampen. Use steam medium to high.
Corduroy	●●●	Steam iron on wrong side or use ironing cloth.
Linen	●●●to "max"	Iron on wrong side or use ironing cloth to prevent shine marks, especially with dark colours. Dry iron while still damp or use spray to dampen. Use steam medium to high.
Denim	●●●to "max" Use maximum steam.
Varied ironing speed and fabric dampness might cause optimal setting to differ from that recommended in the table!

GETTING STARTED

1. Before first use. Remove all adhesive remains and gently rub with a dampened cloth. Rinse water tank to remove foreign particles. When turned on for the first time, temporary vapours/odours may occur.

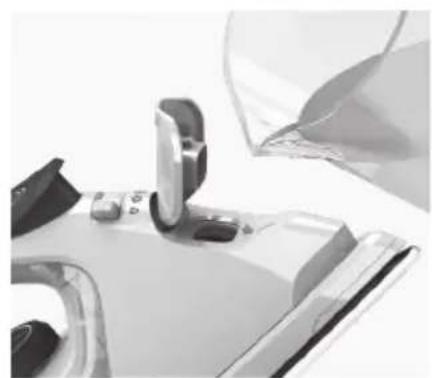

2. Filling steam iron with water.

Make sure plug is removed from power outlet.

Turn steam selector to Dry setting and open filling aperture cover. Using beaker provided, pour water up to maximum level. Close cover.

This product is appropriate for use with tap water. It is recommended to use destilled water or a mix of 50% destilled, 50% tap water.

1. Plug power cable into a power outlet. Power indicator light turns on. Set temperature by turning temperature selector to adequate choice. When the light turns off, iron is ready to be used.

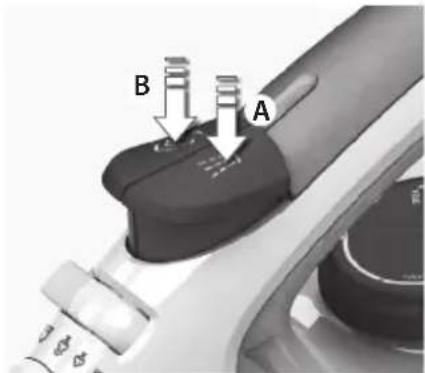

2. Using the spray mist and steam jet function.
   Ensure that water tank is at least 1/4 full. Use spray mist to pre-dampen fabrics by pressing spray button several times to release a fine mist (A). To use the steam jet function, ensure that tank is at least 1/2 full. Press steam jet button several times to prime pump (B).

3. Steaming hanging items. Vertical steam jet function is ideal for steaming curtains, suits and delicate fabrics. Hang item on a hanger, hold iron at a distance of 10–20 cm and press steam jet button.

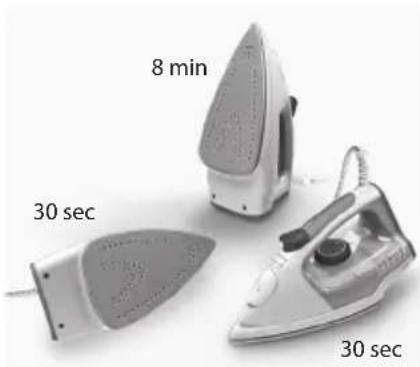

4. 3-way Auto-OFF. If iron is left unattended on soleplate or on the side, it turns off after 30 seconds. If left unattended on the heel, it turns off after 8 minutes. To turn on, just begin to iron again.

CLEANING (DO NOT USE ANY DETERGENT)

7. Always store iron on its heel rest.

To clean exterior surfaces, use a damp soft cloth and wipe dry. Do not use any chemical solvents, as these will damage the surface.

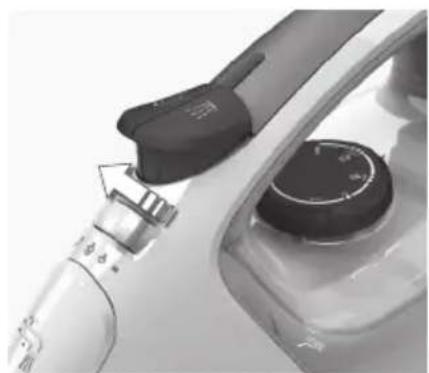

1. Self-cleaning function. Hold iron over a sink. Fill with water. Heat up iron. Move steam button to self-cleaning position, hold for 5 seconds to empty water from steam holes. Release button to stop self-cleaning function.

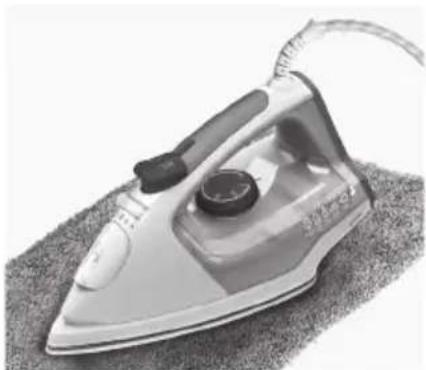

2. Cleaning the soleplate. Do not use scouring pads or harsh cleaners on the soleplate as these will damage the surface. To remove burnt residue, iron over a damp cloth while iron is still hot. To clean the Glissium™ soleplate, simply wipe with soft damp cloth and wipe dry.

TROUBLESHOOTING

Problem Possible cause Solution
Soleplate is not heating even though iron is turned on.	Connection problem Check main power supply cable, plug and outlet.
	Temperature control is in MIN position. Select adequate temperature.
Iron does not produce steam. Not enough water in tank. Fill water tank (see “Getting started”, no 2).
Spray function does not work.	Not enough water in tank.	Fill water tank (see “Getting started”, no 2).
Steam jet and vertical steam jet function does not work.	Steam jet function was used very frequently within a short period.	Put iron on horizontal position and wait before using steam jet function.
	Iron is not hot enough. Adjust the proper temperature to steam ironing (up to ●). Put iron in vertical position and wait until temperature indicator light turns off.
Brown streaks come out of the soleplate while ironing and stain the linen.	You have used hard water, which has caused scale flakes to develop in the water tank.	Use the self-clean function one or more times.
	You have used chemical descaling agents.	Do not use any descaling agents.
	Fabric fibres have accumulated in the holes of the soleplate and are burning.	Use the self-clean function one or more times. Clean the soleplate with a damp soft cloth.
	Fabrics might not be properly rinsed or the garments are new and have not been washed before ironing.	Please rinse the laundry properly again.

DISPOSAL

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
