Renew 800 E8SI2-6OG - Iron ELECTROLUX - Free user manual and instructions

Product Type	Steam Iron
Brand	Electrolux
Model	Renew 800 E8SI2-6OG
Dimensions (approx.)	30 x 12 x 15 cm
Weight (approx.)	1.2 kg
Power Supply	220-240 V, 50-60 Hz, 2400 W
Soleplate Material	Stainless Steel
Water Tank Capacity	300 ml
Steam Output (continuous)	Up to 45 g/min
Steam Boost	Up to 180 g/min
Spray Function	Yes
Vertical Steaming	Yes
Anti-Drip System	Yes
Anti-Calc System	Yes
Self-Cleaning Function	Yes
Auto Shut-Off	Yes (when left unattended)
Cord Length	2.5 m
Maintenance	Descale regularly with recommended solution
Spare Parts Availability	Contact Electrolux service center

Frequently Asked Questions - Renew 800 E8SI2-6OG ELECTROLUX

How do I fill the water tank?

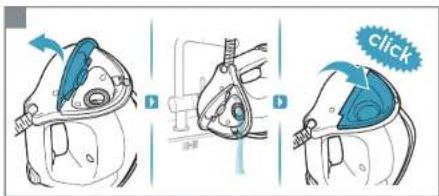

Open the water inlet cover and fill with tap water using the provided measuring cup. Do not exceed the maximum level indicated.

What temperature setting should I use for different fabrics?

Refer to the fabric guide on the iron: low for synthetic (nylon, polyester), medium for wool/silk, high for cotton/linen. Always test on a hidden area first.

How do I use the steam boost function?

Press the steam boost button firmly to release a powerful burst of steam for stubborn wrinkles. Allow a few seconds between boosts.

Why is water leaking from the soleplate?

This may happen if the iron is not hot enough. Wait until the selected temperature is reached. Also ensure the anti-drip system is working properly.

How do I clean the iron?

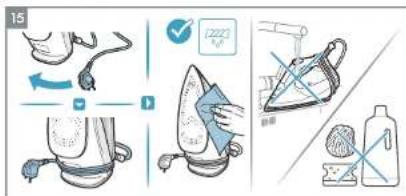

Use the self-cleaning function: fill tank, set to max temperature, unplug, hold over sink, press self-cleaning button. Wipe soleplate with a damp cloth when cool.

What does the anti-calc system do?

It reduces mineral buildup from hard water. Use a mixture of tap and distilled water for best results; descale periodically.

How does auto shut-off work?

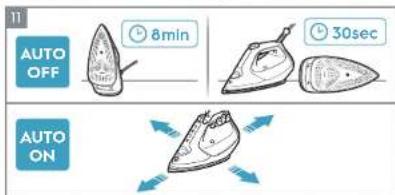

The iron shuts off automatically if left untouched for a few minutes on its heel or 30 seconds flat. It will beep and turn off; just reheat to continue.

Can I use the iron vertically?

Yes, for steaming hanging clothes, curtains, or upholstery. Hold the iron upright, press steam boost, and move slowly.

What type of water should I use?

Ordinary tap water is fine. In areas with very hard water, mix with distilled water (50/50) to reduce scaling.

Where can I get spare parts?

Contact Electrolux customer service or visit an authorized service center. Model number E8SI2-6OG will help them identify correct parts.

USER MANUAL Renew 800 E8SI2-6OG ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

Electrolux

Renew 800 Steam Iron

E8S12-8OG

E8S12-6OG

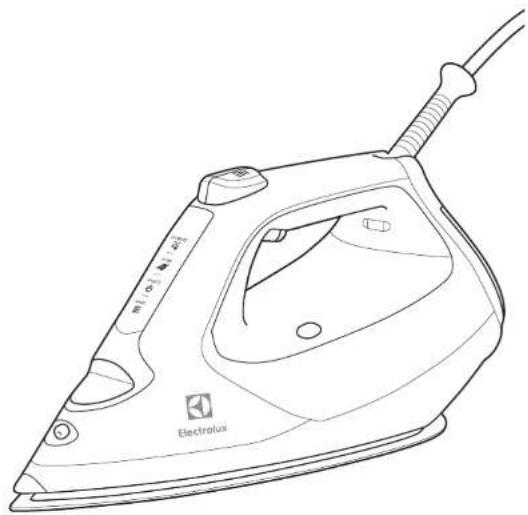

Line drawing of a Electrolux iron iron with visible internal components and branding (no text or symbols on the device itself)

Illustration of a hand holding a computer mouse with a magnified inset showing a small device (no text or symbols present)
