UltraSteam Precision ESI6123 - Iron ELECTROLUX - Free user manual and instructions

Product Type	Iron
Brand	Electrolux
Model	UltraSteam Precision ESI6123
Soleplate Material	Stainless Steel
Power Output	2400 W
Continuous Steam Output	40 g/min
Steam Shot Output	150 g/min
Water Tank Capacity	300 ml
Cord Length	2.5 m
Weight	1.5 kg
Dimensions (HxWxD)	20 x 15 x 30 cm
Voltage	220-240 V, 50-60 Hz
Functions	Dry ironing, steam ironing, vertical steam, spray, self-clean, anti-drip, anti-calc
Safety Features	Auto shut-off, heat-resistant pad
Self-Cleaning Function	Yes
Anti-Calc System	Yes
Anti-Drip System	Yes
Energy Efficiency Class	A
Guarantee	2 years
Spare Parts Availability	Through Electrolux Service
Maintenance	Regular descaling recommended

Frequently Asked Questions - UltraSteam Precision ESI6123 ELECTROLUX

How do I fill the water tank?

Open the water inlet cover and fill with tap water up to the MAX mark. Use a funnel if needed. Do not overfill.

What is the best temperature setting for different fabrics?

Refer to the fabric guide on the iron. Typically: synthetic low (1), silk medium-low (2), wool medium (3), cotton high (4), linen max (5). Start with lower temperatures and increase if needed.

How does the steam shot function work?

Press the steam shot button firmly to release a powerful burst of steam for stubborn wrinkles. Ensure the iron is at a high temperature and there is water in the tank.

Can I use the iron vertically for curtains or hanging clothes?

Yes, the vertical steam function allows you to steam hanging fabrics. Hold the iron upright and press the steam shot button. Keep a safe distance from the fabric to avoid burns.

How often should I clean the iron?

Use the self-clean function every 2-4 weeks depending on water hardness. Fill the tank, set to max temperature, unplug, and hold the self-clean button while tilting the iron over a sink.

What should I do if the iron is not producing steam?

Check if the tank has water, temperature is high enough, and steam settings are enabled. If still no steam, run the self-clean cycle to remove blockages. Ensure the anti-drip feature is not active.

Does the iron have an auto shut-off feature?

Yes, the iron automatically switches off if left idle for about 8 minutes on the soleplate or 30 seconds on its side. It will beep and the light will flash. Shake it to reactivate.

How do I prevent mineral deposits from clogging the steam vents?

Use a mixture of 50% water and 50% vinegar to descale the iron periodically. Fill the tank, heat the iron, then unplug and hold the steam button to expel the mixture. Rinse with clean water.

Can I use distilled water in the iron?

Yes, distilled or demineralized water is recommended to reduce scale buildup. Avoid using chemically softened water or perfumed water.

What accessories are included with the iron?

The iron comes with a measuring cup for filling the water tank and a user manual. A heat-resistant pad may be included depending on the region.

USER MANUAL UltraSteam Precision ESI6123 ELECTROLUX

Exterior view of a Electrolux air iron with visible branding and internal components (no text or symbols on the device itself)

UltraSteam™ Precision Steam Iron ESI6123/6133

EN

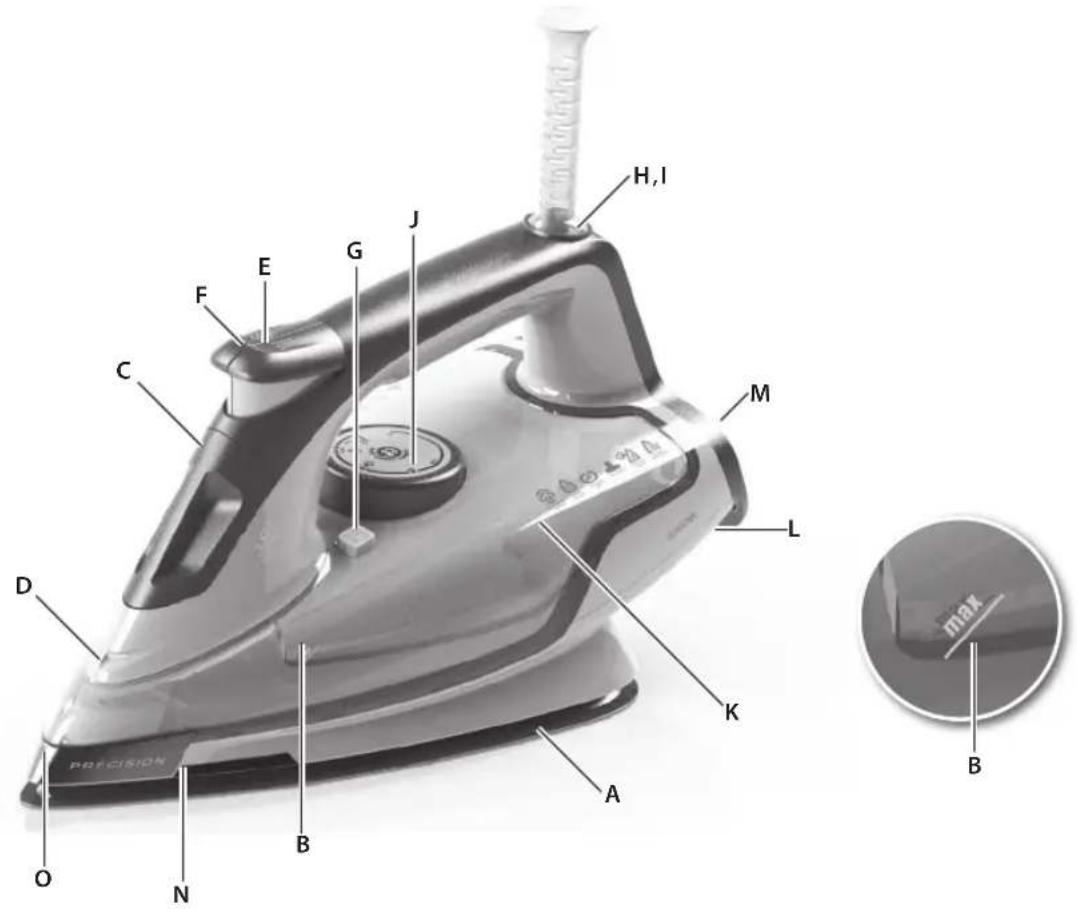

Components

A. RESILIUM™ 500 Soleplate

B. Maximum water level indicator

C. Water fill cover

D. Spray nozzle

E. Spray button

F. Steam boost button

G. Auto-clean button

H. Power indicator light

I. Safety auto-off light

J. Temperature selector

K. Water tank

L. Cable wrap facility

M. XL safety rubber stand

N. Hot soleplate indicator

O. Stainless steel precision tip

组件图

A. RESILIUM™ 500底板

B. 最高水位指示线

C. 注水孔盖

D. 喷雾嘴

E. 喷雾按钮

F. 蒸汽喷射按钮

G. 自动清洁按钮

H. 电源指示灯

1. 自动安全指示灯

J. 温度旋钮

K. 水槽

L. 电缆绕线装置

M. XL立放橡胶托盘

N. 底板高温指示灯

1. 不锈钢精密探头

組件圖

A. RESILIUM™ 500底板

B. 最高水位指示線

C. 注水孔蓋

D. 噴霧嘴

E. 噴霧調控鈕

F. 蒸汽噴射調控鈕

G. 自動清潔調控鈕

H. 電源指示燈

1. 自動安全指示燈

J. 溫度旋鈕

K. 水槽

L. 電纜繞線裝置

M. XL立放橡膠託盤

N. 底板高温指示燈

1. 不銹鋼精密探頭

KRC

구성 요소

A. RESILIUM™ 500 바닥

B. 최대 수위 표시기

C.물주입구커버

D. 스프레이 노즐

E. 스프레이 버튼

F.스팀부스트버튼

G.자동 세척 버튼

H. 전원 표시등

1.안전 자동꺼짐등

J.온도 선택기

K. 물 탱크

L.케이블감기장치

M.XL안전고무스텐드

N.열판 온도 표시기

1. 스테인리스 스틸 프리시전 팀

Read the following instruction carefully before using machine for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

• The appliance may only be connected to a power supply where voltage and frequency comply with the specifications on the rating plate!

• The iron is not to be used if it has been dropped, if there are visible signs of damage on the iron or its cord or if it is leaking.

• The appliance must only be connected to an earthed socket.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person, in order to avoid hazard.
• The iron must be used and rested on a stable surface. When placing the iron on it's stand, ensure that the surface on which the stand is placed is stable.
• Never leave the appliance unattended while connected to the supply mains.

• The appliance must be switched off and the main plug withdrawn each time after use, before cleaning and maintenance.

• The plug must be removed from the socket outlet before the water reservoir is filled with water.

• The main cable must not come into contact with any hot parts of the appliance.
• Do not immerse the appliance in water or any other liquid.
• Do not exceed the maximum filling volume as indicated on the appliances.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

首次使用本产品前，请仔细阅读以下说明。

Close-up of a pair of white fabric or paper sheets on a gray metal surface, no text or symbols visible.

1. Before first use. Remove all adhesive remains and gently rub with a dampened cloth. Rinse water tank to remove foreign particles. When turned on for the first time, temporary vapours/ odours may occur.

2. 首次使用前，请先清理掉所有粘附残留物，并用一片湿布轻轻地擦拭。冲洗水槽，以清理掉所有异物颗粒。首次开机时，熨斗可能会在短时间内发出气味/异味。

Close-up of a mechanical device with a magnified view of its top component (no visible text or symbols)

1. Filling steam iron with water. Make sure plug is removed from power outlet. Turn the temperature selector to '0' and open water fill cover. Let the iron rest on the heel. Using beaker provided, pour water up to maximum level. Close cover. Caution: Do not exceed the maximum water level. This product is appropriate for use with tap water. It is recommended to use distilled water or a mix of 50% distilled, 50% tap water. Never use distilled water only. Never put scented water, vinegar or ironing aids in the water tank. This may cause brown spitting and staining.

2. 向蒸汽熨斗内注水。确保熨斗的电源插头已经从电源插座上拔掉。将温度旋钮调至“0”，然后打开注水孔盖。将熨斗立放在熨斗架上。向随附的广口杯内注水至最高水位。盖上盖板。注意：请勿超出最高水位。本产品适合使用自来水。建议使用蒸馏水或混合使用50%的蒸馏水和50%的自来水。请勿仅使用蒸馏水。请勿向水槽内注入香水、醋或烫衣剂。这会造成衣物脱色和染色。

Close-up of a hairdryer with a coiled spring attached to the handle (no text or symbols visible)

1. Plug power cable into a power outlet. Power indicator light turns on, red colour. Set temperature by turning temperature selector to adequate choice. When the light turns green, the iron is ready to use. The light will switch between red and green as the iron is maintaining the selected temperature. The hot soleplate indicator turns red when the iron reaches 40°C.

2. 将插头插入电源插座。电源指示灯随即点亮，发出红光。通过旋转温度旋钮设置合适的温度。当温度指示灯变为绿色时，即表示熨斗已准备就绪。该指示灯会在红绿之间切换，从而保持您所选定的温度。当熨斗温度达到40℃时，底板高温指示灯会变亮。

使用説明/시작하는 방법

Close-up of a pair of white fabric or cloth bands on a gray metal object, no text or symbols visible.

CNT

Close-up of a smartwatch with a magnifying glass and a small mechanical component (no visible text or symbols)

Close-up of a mechanical component with a threaded rod and base mount (no visible text or symbols)

Close-up of a mechanical component with labeled parts A and B, showing no readable text or symbols.

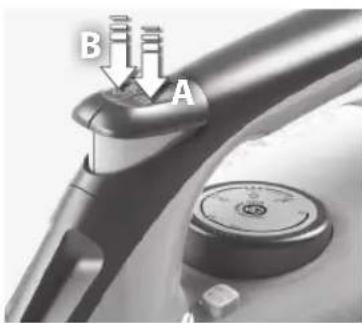

1. Using the spray mist and steam boost function. Ensure that water tank is at least 1/4 full. Use spray mist to pre-dampen fabrics by pressing spray button several times to release a fine mist (A). To use the steam boost function, ensure that tank is at least 1/2 full. Press steam boost button several times to prime pump (B).

2. 使用喷雾和蒸汽喷射功能。确保水槽至少达到1/4满。按几次喷雾按钮，喷出稀薄的水雾，通过喷雾润湿织物(A)。如要使用蒸汽喷射功能，请确保水槽内至少达到1/2的水量。按几次蒸汽喷射按钮，启动泵(B)。

Electric iron with steam emission effect, no visible text or symbols

1. Steaming hanging items. Vertical steam boost function is ideal for steaming curtains, suits and delicate fabrics. Hang item on a hanger, hold iron at a distance of 10–20 cm and press steam boost button.

2. 蒸汽挂熨衣物。垂直蒸汽喷射功能非常适合于蒸汽熨烫窗帘、西装和精致织物。将衣物悬挂在衣架上，将熨斗立在距离衣物10-20cm的位置，然后按下蒸汽喷射按钮。

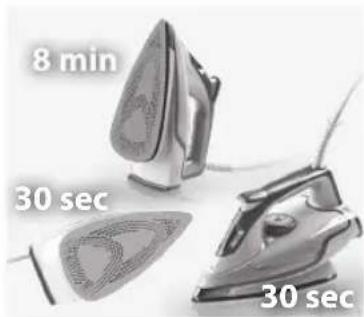

1. 3-way Auto-OFF. If iron is left unattended on soleplate or on the side, it turns off after 30 seconds. If left unattended on the heel, it turns off after 8 minutes. To turn on, just begin to iron again. The indicator light will flash yellow and the sound alert will beep 6 times before Auto-OFF.

2. 三向自动关闭。如果电熨斗在无人操作的情况下放在底座或侧放，则熨斗会在30秒后自动关闭。如果在无人操作的情况下放在熨斗架上，则熨斗会在8分钟后自动关闭。如要开启，请直接拿起熨烫即可。自动关闭(Auto-OFF)功能启动之前，指示灯会闪烁黄光，并发出6声蜂鸣警告。

使用説明/시작하는 방법

Close-up of a mechanical component with labeled parts A and B, showing no readable text or symbols.

CNT

Electric iron with steam emission effect, no visible text or symbols

Three iron iron machines with visible cooling times and sizes, no text or symbols present

Fabric Temperature setting	Ironing recommendation
Acrylic	Dry iron on reverse side.
Acetate	Dry iron on reverse side while still damp or use spray to dampen.
Nylon & Polyester	Iron on reverse side while still damp or use spray to dampen.
Rayon	Iron on reverse side of fabric.
Viscose	●
Silk	●●	Iron on reverse. Use an ironing cloth to prevent shine marks.
Cotton blends	●● Check label and follow manufacturer's instructions. Use setting for the fibber requiring lowest setting.
Wool & wool blends	●● Steam iron on reverse side or use ironing cloth.
Cotton	●●
Corduroy ●●● Steam iron on	reverse side or use ironing cloth.
Linen	●●● to "max"	Iron on reverse side or use ironing cloth to prevent shine marks, especially with dark colours.
Denim	●●● to "max"	Use steam boost if needed.
Varied ironing speed and fabric dampness might cause optimal setting to differ from that recommended in the table.

Tips: Always start ironing the fabrics that require low ironing temperature setting, and then increase the temperature setting for fabrics which require higher temperature. The iron heats up faster than it cools down.

Close-up of a pair of steam iron pieces, one white and one gray, with no visible text or symbols.

Close-up of a motorcycle's side panel showing the wheel and adjustment knob (no text or symbols visible)

Close-up of a steam iron on a textured surface (no visible text or symbols)

Problem Possible cause Solution
Soleplate is not heating even though iron is turned on.	Connection problem. Check main power supply	ly cable, plug and outlet.
	Temperature control is in MIN position. Select adequate temperature.
Iron does not produce steam. Not enough	water in tank. Fill water tank (see "Getting started", no 2).
Spray function does not work. Not enough	water in tank. Fill water tank (see "Getting started", no 2).
Steam boost and vertical steam boost function does not work.	Steam boost function was used very frequently within a short period.	Put iron on horizontal position and wait before using steam boost function.
	Iron is not hot enough. Adjust the proper temperature to steam ironing (up to●● ). Put iron in vertical position and wait until temperature indicator light turn green.
Water leaks from the soleplate during ironing.	The iron is not hot enough. Set the temperature dial to a temperature (●● to maximum) suitable for steam ironing. Put the iron on its heel and wait until the light has gone out before you start ironing.
Flakes and impurities come out of the soleplate during ironing.	You have used hard water, which has caused scale flakes to develop in the water tank	Use the self-clean function one or more times.
Water leaks from the soleplate while the iron is cooling down or after it has been stored.	The iron has been put in horizontal position while there is still water in the water tank.	Empty the water tank and set the temperature selector to position '0' before storing the iron

CNS

ID

Komponen

A. Pelat RESILIUM™ 500

B. Indikator ketinggian air maksimum

C. Tutup tangki air

D. Nosel penyemprot

Close-up of a pair of white fabric or paper sheets on a gray metal surface, no text or symbols visible.

ID

Close-up of a mechanical device with a magnified view of its top component (no visible text or symbols)

Close-up of a hairdryer with a metal screw and mechanical component (no visible text or symbols)

Close-up of a pair of white sneakers with a white cloth partially covering the side (no text or symbols visible)

Close-up of a black and white object with a curved bracket and a magnifying glass, possibly a device or tool (no visible text or symbols)

Close-up of a hair iron with a screw and handle, no visible text or symbols

Close-up of a mechanical component with labeled parts A and B, showing no readable text or symbols.

ID

Electric iron with steam emission effect, no visible text or symbols

1. 3 Situasi Mati Otomatis. Jika dibiarkan dalam posisi tetap menyala ketika diletakkan pada pelat atau direbahkan ke samping, setrika akan otomatis mati setelah 30 detik. Jika dibiarkan dalam posisi tetap menyala ketika didudukkan, setrika akan mati setelah 8 menit. Perabot akan hidup lagi setelah kembali digunakan untuk menyetrika. Lampu indikator akan berkedip kuning dan alarm akan berbunyi 6 kali sebelum setrika otomatis dimatikan.

2. ระบบตัดการทํางานอัตน์นัก 3 ทาง หาก ปล่อยเตารีดพึ่งไว้ โดยหันหน้าเตารีดลง หรือวางตะแคง ระบบจะปิดการทํางาน ภายใน 30 วินาที หากวางตั้งไว้ตาม ปกติ ระบบจะตัดการทํางานหลังจาก 8 นาที เปิดใช้งานอีกครั้งโดยเริ่มการรีดชั ลัญญาณไฟลี่เหลืองจะกะพริบและมีเสียง เดือน 6 ครั้งก่อนตัดการทํางานอัตน์นัก

3. Tất tự động 3 chiều (Auto-OFF). Nếu bàn là bị bỏ quên trên để hoặc ở mặt bên, sau 30 giây bàn là sẽ tự tất. Nếu bàn là bị bỏ quên trên mặt gót, sau 8 phút bàn là sẽ tự tất. Để bạt, chỉ cần bắt đầu là lại. Đèn chỉ báo sẽ nhắp nháy màu vàng và phát ra tiếng bíp cảnh báo 6 lần trước khi TẮT (OFF) tự động.

Close-up of a pair of steam iron pieces, one gray and one white, with no visible text or symbols.

Close-up of a motorcycle's side panel with a circular dial indicator and a small connector (no visible text or symbols)

1. Fungsi pembersihan otomatis. Isilah tangki setrika dengan air lalu setel kenopnya untuk memanaskan pelat. Setelah lampu indikator menyala hijau, cabut steker setrika dari stopkontak. Pegang setrika di atas bak cuci piring, lalu tekan terus tombol pembersihan. Tangki air harus terisi penuh. Lepaskan tombol untuk menghentikan fungsi pembersihan otomatis. Ulangi prosedur ini bila perlu. CATATAN! Jangan menggunakan cairan kimia apapun atau cuka penghilang kerak.

2. พังก์ชั่นทําความสะอาดอัตโนมัติ เดิม นักในเตาร็ดและหมุนปรับอุณภูมิเล็กน้อย เพื่อเปิดเตาร็ดให้มีความร้อน เมื่อลัญญาน ไฟเปลี่ยนเป็นสิเชียว ให้ออดปลักเตาร็ด ออก ถือเตาร็ดไว้เหนืออ่าง จากนั้งกดปุ่ม ทําความสะอาดค้างไว้ โดยต้องใช้นักเติม แท้งก์น้ํา จากนั้นปล่อยปุ่มเพื่อหยุดการ ทําความสะอาดอัตโนมัติ ทําซัก้าจำเป็น ระวัง! ห้ามใช้สารกําจัดตะกรันหรือน้ําล้ม สายธู

3. Chức năng làm sạch tự động. Đồ nước vào bàn là và làm nóng bàn là. Khi đèn chỉ báo chuyển sang màu xanh lá cây, rút phích cẩm bàn là ra. Giữ bàn là phía trên chậu rửa, nhân giữ nút làm sạch. Sử dụng bình chứa đầy nước. Thả nút ra để ngừng chức năng làm sạch Tự Động (Auto-clean). Lặp lại quá trình này nếu cần thiết. LU'U Ý! Không sử dụng bất kỳ chất lỏng có cận hoặc giám.

Close-up of a steam iron on a textured surface (no visible text or symbols)

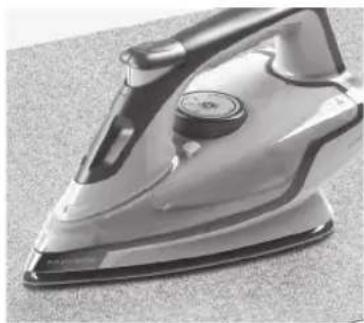

1. Membersihkan pelat. Jangan menggunakan sabut penggosok atau cairan pembersih yang kuat untuk membersihkan karena dapat merusak permukaan pelat. Untuk membersihkan sisa kain yang hangus terbakar, gunakan setrika yang masih panas untuk menyetrika kain basah. Untuk membersihkan pelat, gunakan kain lembut yang sedikit dibasahi lalu seka dan keringkan.

2. การทำความสะอาดหน้าเตารีด ห้ามใช้ ฝอยขัดหม้อหรือสารทำความสะอาดที่มี ฤทธิ์แรงบนหน้าเตารีดเนื่องจากอาจทำให้ พื้นผิวของหน้าเตารีดเลียหายได้ หาก ต้องการนําเศษใหม้ออก ให้นําเตารีดไป ริดบนผ้าชึ้นในขณะที่เตารีดยังร้อน หาก ต้องการทำความสะอาดหน้าเตารีด ให้เช็ด ด้วยผ่านุ่มขุบนั้นมาตๆ และเช็ดด้วยผ้า แห้งอีกศรั้ง

3. Làm sạch để. Không sử dụng miếng cọ rửa hoặc chất tây rửa mạnh trên để vi chúng sẽ làm hòng bề mặt. Để loại bỏ cần bám đã cháy, hãy là trên miếng vải ẩm trong khi bàn là vẫn còn nóng. Để làm sạch để, chỉ cần lau sạch bằng vải ẩm mềm và lau khô.
