USER MANUAL DKP2828 BESTRON

Instruction manual cup-cake maker

1

1

一

一

CONDITIONS DE GARANTIE

Congratulations with the purchase of your Cup-cake maker. Bakes 8 delicious cupcakes (Ø 7cm) in just 7 minutes! Also for the preparation of muffins, puff snacks, puff pastry, mini pies etc. Choose your own sweet or tasty filling for your favourite recipes.

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.
• Make sure that you always use an earthed wall socket to connect the appliance.
  Always remove the plug from the socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
• Use solely approved extension leads.
  Certain parts of the appliance may get hot. Do not touch these parts to prevent burning yourself.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered. Make sure the air vents are not covered or blocked.
• Never use the appliance in the vicinity of flammable materials.
• Make sure that the appliance, the power cord or the plug do not make contact with hot surfaces, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Never use the appliance in humid rooms.
• Place the appliance on a stable, flat, heat-resistant and splash-proof surface where it cannot fall.
• Do not let the power cord hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance or storing it after use.
• Never leave the appliance unsupervised whilst it is in use.
• Never move the appliance whilst it is switched on or is still hot. Switch off the appliance before moving it.
• Do not use sharp implements on the griddle plate; these will damage the non-stick coating.
• Never use the appliance in the vicinity of a bird cage. Fumes released from the non-stick coating when the baking plates are hot can cause stress to birds.
• Do not touch the appliance if it has fallen into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• Make sure that the appliance has sufficient ventilation whilst in use.
• Clean the appliance thoroughly after use (see "Cleaning and maintenance").
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• This appliance may not be used through an external timer or by means of a remote control.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

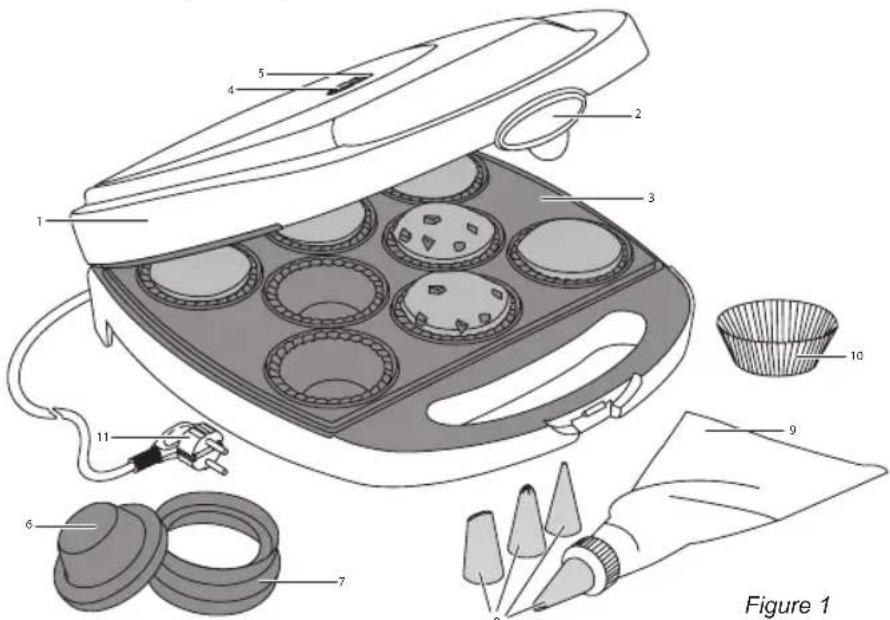

1. Housing

2. Fastening clip

3. Baking plate
4. Ready-to-use light
5. Power light
6. Stamp tool
7. Pastry cutter
8. Tips
9. Pastry bag
10. Paper cake cases
11. Power cord and plug

Figure 1

OPERATION - Before use for the first time

Clean the baking plates before first use (see 'Cleaning and maintenance'). The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal, and will soon stop. Make sure the appliance has sufficient ventilation. During use the heating element will switch on and off to keep the temperature of the baking plates constant. Consequently, the temperature pilot light will also occasionally be illuminated.

OPERATION

This appliance prepares cup-cakes, muffins, puff snacks, pasty and mini pies.

• Cup-cake: This is a small cake in a paper cake case, which you can decorate with frosting, marzipan, chocolate, different sugar pearls, etc...
  Muffin: This is a small cake in a paper cake case made of muffin dough, sometimes mixed with different ingredients such as cherries, chocolate, forest fruit, etc....
• Puff snack: This is a cup made of puff pastry filled with sweet or salty filling, for example apple/ cinnamon, cherries, leek/union, ham/cheese etc...
• Puff pastry: This is a cup made of puff pastry filled with for example chicken ragout, etc....
• Mini pie: This is a small dough cup filled with sweet or salty filling, for example strawberries, jam, tuna, mushroom/leek etc...

CUP-CAKES/MUFFINS - Basic recipe cup-cakes

Ingredients (16 pieces)

2 eggs
145g castor sugar
1/2 sachet vanilla sugar
145g self-raising flour (sifted)
- pinch of salt
- 65g melted butter

Beat the eggs with the castor sugar and vanilla sugar. Stir scoop to scoop the flour through it, and then the salt. Then stir the butter through the batter. Place the paper cake cases in the appliance. Fill each hollow in the lower plate for 1/2 with cupcake batter. Bake the cup-cakes until they are golden-brown (approx 7-10min.).

1. Prepare the batter as basic recipe above. See for various recipes the supplied book of recipes.
2. Lift the top plate of the appliance.
3. Fill each hollow in the lower plate for 1/2 with cupcake batter. The batter may not come above the edge of the cups. You can use paper cake cases first in the appliance (see figure 2).

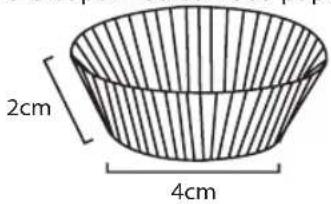

Figure 2 Size paper cake cases

1. Lower the upper plate.
2. Close the cupcake maker with the fastening clip.
3. Put the plug into the wall socket. The "power" light will illuminate, and the appliance will begin to heat up.
4. After 3-5 min, the "power" light extinguishes. The "ready-to-use" light will now illuminate. Check the baking process of the cup-cakes. During use the heating element will switch in and out to keep the temperature of the baking plates constant. Consequently the "power" and "ready-to-use" lights will also repeatedly illuminate and extinguish.
5. Bake the cup-cakes until they are golden-brown (approx 7-10min.).
6. Decorate the cup-cakes possibly

CUP-CAKES/MUFFINS - Decorate

With the supplied pastry bag and 4 stainless steel tips (see figure 3), you can decorate your cup-cakes with for example chocolate, whipping cream or colored frosting.

Figure 3 Stainless steel tips

MINI PIES

1. Prepare the pastry, see for various recipes the supplied book of recipes.
2. Lift the top plate of the appliance.

Figure 4
Figure 5

Figure 6
Figure 7

1. Roll out the pastry with a rolling pin. Use the larger side of the pastry cutter (7) to make the bottom of the mini pies (see figure 4).
2. Use the stamp tool (6) to press the pastry into the cold cupcake maker (see figure 5).

Do not preheat the cupcake maker!

1. Fill the pastry cup with 2-3 tablespoons of filling.
2. Use the smaller side of the pastry cutter to make the top of the mini pie (see figure 6), Put the top on the filled cup and use the smaller side of the pastry cutter to cut away excess pastry (see figure 7).
3. Lower the upper plate.
4. Close the cupcake maker with the fastening clip.

5. Put the plug into the wall socket. The "power" light will illuminate, and the appliance will begin to heat up.

6. After 3-5 min, the "power" light extinguishes. The "ready-to-use" light will now illuminate. Check the baking process of the mini pies. During use the heating element will switch in and out to keep the temperature of the baking plates constant. Consequently the "power" and "ready-to-use" lights will also repeatedly illuminate and extinguish.

7. Bake the mini pies until they are golden-brown and the filling is done (approx 12-18min.).

Note If you would like to make only the pastry cups, skip the numbers 5 and 6 and bake them until they are golden-brown (approx 10 min.). Leave them to cool and fill them after that.

Tips

Use your favorite recipes and mixes, or the recipes in the book of recipes.
- Most cup-cakes bake in 5 to 8 minutes. To determine if cup-cakes are done, insert a toothpick into the center of the cupcake; if it comes out clean, the cup-cakes are done.
- Cup-cakes or muffins are very fragile and hot when just baked. Carefully remove them from the cupcake maker and place on a wire rack. Use caution as the cup-cakes and steam are very hot. Allow the cup-cakes or muffins to stand about 5 minutes before serving, even if you wish to serve warm muffins.
- Use paper cake cases if desired when baking cup-cakes and muffins. They make removing and serving easy. Paper cake cases are required for brownies and cheesecake as the baked brownies or cheesecakes are so hot and delicate and must cool some before they are firm enough to hold their shape. Do not use paper bake cups for pies and tartlets.
- You can decorate the cup-cakes with for example: frosting, marzipan, fondant, icing, chocolate, chocolate vermicelli, sugar pearls, dusting sugar etc.

Bon appetit!

CLEANING AND MAINTENANCE

1. Remove the plug from the wall socket, and allow the appliance to cool down completely.
2. Clean the baking plates with a damp cloth, if necessary with an additional couple of drops of washing-up liquid. Make sure no traces of detergent remain on the plates. Dry the baking plates thoroughly.
3. Clean the appliance with a damp cloth and then dry it thoroughly.
4. Clean the stamp tool, pastry cutter, pastry bag and tips with standard washing-up liquid. Rinse with clean water, and dry thoroughly.
5. Keep the appliance in a dry place.

• Verify that the appliance is not connected to the power supply before you clean it. Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance. These could damage the non-stick coating on the baking plates.
  Never immerse the appliance, the plug or the power cord in water or other liquid.
  ever put the appliance in a dishwasher.

TECHNICAL DETAILS

Type: DKP2828

Output: 1400W

Power supply: 220-240V ~ 50-60Hz

THE ENVIRONMENT

• Dispos of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried

out during the warranty period do not extend the warranty period.

1. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

2. All claims submitted under warranty must be accompanied by the original bill of sale.

3. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

4. The warranty is issued solely to the first purchaser and cannot be transferred.

5. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW's-Hertogenbosch

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
