Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 36

Product Overview 38

Display and Key Functions 39

Installation 41

Before First Use 43

Loading the Dishwasher 48

Loading the Baskets (EN 60436) 49

Washing Programmes (EN 60436) 51

Use and Operation 52

Quick Operation Guide 54

Cleaning and Care 55

Troubleshooting 58

Product Data Sheet 62

Disposal Considerations 63

Manufacturer & Importer (UK) 63

SAFETY INSTRUCTIONS

WARNING

Risk of explosion! Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is fl ammable, do not smoke or use an open flame during this time.

• Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.
• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.
• Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
• When using your dishwasher, you should prevent plastic items from contacting with heating element.
• Check that the detergent receptacle is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
• For plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3 mm contact separation in all poles.
• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
• Young children should be supervised to ensure that they do not play with the appliance.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is open.

• The door should not be left in the open position since this could present a tripping hazard.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Please dispose of packing materials properly.
• During installation, the power supply must not be excessively or dangerously bent or fl attenued.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets, and the old hose sets should not be reused.
• Make sure that the carpet must not obstruct the openings at the bottom base.
• Use the dishwasher only for its intended function.
• The dishwasher is intended for indoor use only.
• The dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments.

CAUTION

Risk of injury! Locate sharp items so that they are not likely to damage the door seal. Load sharp knives with the handles up to reduce the risk of cut-type injuries. Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

WARNING

Risk of suffocation! Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Cut off the power supply cable and make the door closing device unusable.

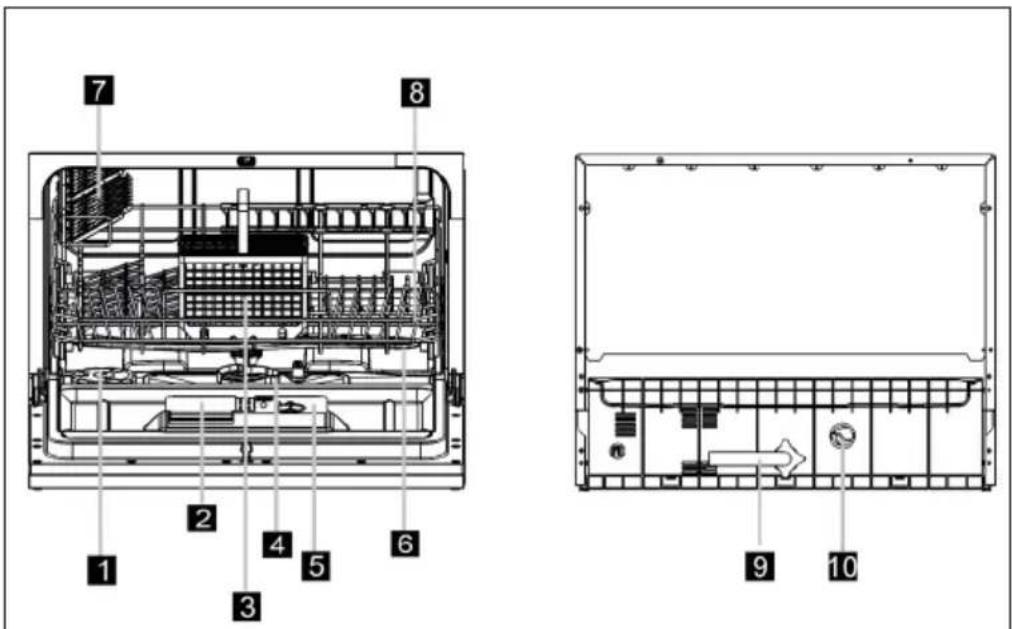

PRODUCT OVERVIEW

1	Salt container	6	Spray arms
2	Detergent dispenser	7	Cup shelf
3	Cutlery basket	8	Basket
4	Filter assembly	9	Inlet pipe connector
5	Rinse aid dispenser	10	Drain pipe connector

DISPLAY AND KEY FUNCTIONS

1	On/Off Press this	key to switch on your dishwasher.
2	Delay	Press the delay key to increase the start delay time. Delay the start of the dishwasher for up to 24 hours in 1-hour increments. Once you have set the Start Delay time, press the Start/Pause button to start the dishwasher.
3	Programm	Press this key to select the appropriate wash programme. The display for the selected programme lights up.
4	Parental control	This option allows you to lock the keys on the control panel (except the ON/OFF key) so that children cannot accidentally start the dishwasher by pressing the keys. To lock or unlock the keys on the control panel, press and hold the delay key and the programme key simultaneously for 3 seconds. When the childlock is activated, the corresponding indicator (4) lights up.
5	Start/Pause	Press this key to start or briefly stop the selected programme.

6	Programme		Intensive: For heavily soiled pots and pans as well as for dishes with dried food leftovers.
			Universal: For normally soiled loads such as pots, plates, glasses and slightly soiled pans.
			Eco: Standard programme for crockery with a normal degree of soiling. Environmentally friendly programme, as it is very energy and water saving.
			Glass: For light soiling and glasses.
			90 minutes: For crockery with normal soiling that needs to be cleaned quickly.
			Fast: Short wash cycle for dishes with light soiling and dishes that do not need to be dried.
			Soak: For soaking dishes that are to be rinsed later.
7	Display	Displays the remaining time, delay time, error codes and other information.

INSTALLATION

Preparation

• The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.
• One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

Power Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Water Supply Hose

The appliance must be connected to the water mains using new hose sets. The old hose sets should not be reused. Water pressure must be between 0.04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

- Connection: Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher. Turn water fully on before starting the dishwasher. Tighter the screws of the safety supply hose to the faucet with thread 34 inch.

- Disconnection: Turn off the water. Unscrew The safety supply 2 hose from the faucet.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Note: Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Drain Hose

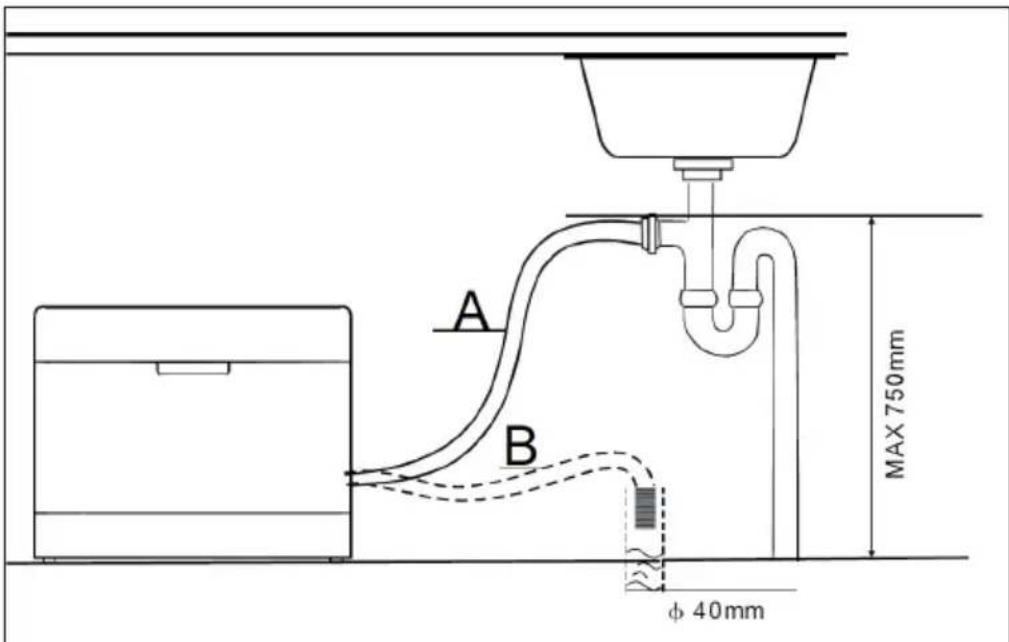

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it.

Use the special plastic support that comes with the appliance. The free end of the hose must be at a height lower than 75 cm and must not be immersed in water to avoid the back flow of it.

A B φ 40mm MAX 750mm

Note: The special plastic hose support must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

Drain Excess Water

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Extension Hose

If you need a drain hose extension, observe to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

BEFORE FIRST USE

The following things should be checked before starting the dishwasher.

• The dishwasher is level and fixed properly.
• The inlet valve is open.
• The wires are tightly connected.
• The power is switched on.
• The inlet and drain hoses are knotted.
- All packing materials and printings should be taken out from the dishwasher.

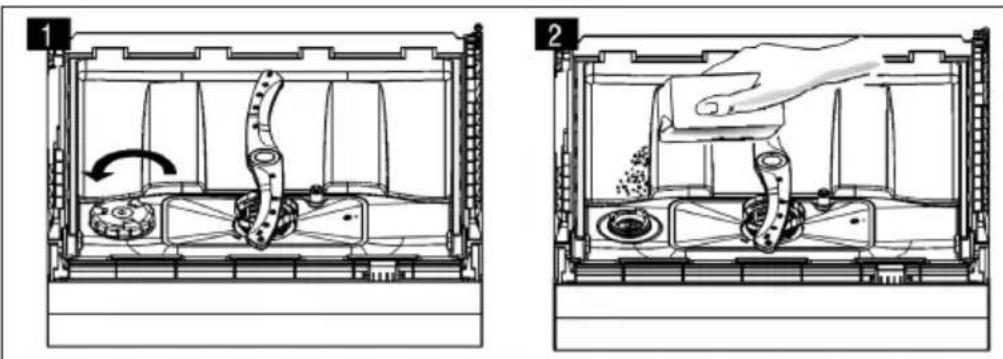

Loading the Salt into the Softener

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
• Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been split, remaining of the bottom of the machine for any period of time, which may cause corrosion.

The rinsing salt chamber is located under the basket and is filled as follows:

Technical diagram showing two views of a device interior with labeled components and directional arrows indicating motion or movement.

• Remove the basket and then unscrew and remove the cap from the salt container.
• Before first wash, add 1 lt. of water in the salt container of your machine.
• Place the end of the funnel (supplied) into the hole and introduce about 1 kg of salt.
  • After filling the container, screw the cap tightly back clockwise.
  • Usually, the salt warning light will be cease to be illuminated within 2-6 days after the salt container has been filled with salt.
• Immediately after filling the salt into the salt container, a washing programme should be started. Otherwise filter system, pump or other important parts of the machine may be damaged by salty water. It is out of warranty.

Note: The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.

Adjusting Salt Consumption

Close the door, within 60 seconds after power on, press Start/Pause button and hold for 5 seconds, the machine will enter setting mode.

Press the Start/pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1 > H2 > H3 > H4 > H5 > H6.

There are 6 levels of salt consumption in all. It is recommended to select the level according to below table:

Water hardness level		Setting on the water softener	Digital Display stalls
^^1	mmol/ I^2
0-5 0-0.9	1 H1
6-11 1.0-2.0 2 H2
12-17 2.1-3.0 3 H3
18-22 3.1-4.0 4		*	H4
23-34 4.1-6.1 5 H5
35-45 6.2-8.0 6 H6

^1 German degree of measurement for the water hardness
^2 International unit for water hardness
* Factory setting

Note: Without any operation in five seconds, the machine will exit from set mode, the machine is into standby status.

Fill the Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes. That can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110 ml.

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Refill Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the colour of the optical level indicator located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

Close-up of a mechanical component with a downward arrow and circular features, no visible text or symbols

Close-up of a hand holding a small circular device with indicator lights, next to a white electronic device panel (no visible text or symbols)

Close-up of a medical device with a dial indicator and label '2' (no readable text or symbols beyond the label)

Close-up of a hand holding a small electronic device with indicator lights (no visible text or symbols)

1 To open the dispenser, turn the cap to the „open“ (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with „open“ arrow and turning it to the closed (right) arrow.

Note: Clean up any rinse aid split during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

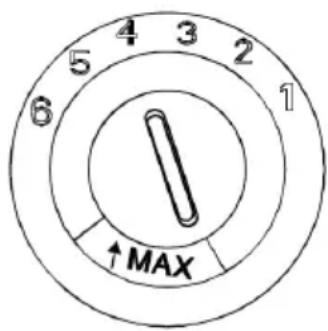

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on „4“. If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to „5“. If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.

The recommended setting is „4“. Factory value is „4“. Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

4 3 2 5 1 6 ↑MAX

Function of Detergents

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose.

Normally new pulverised detergent is without phosphate. The water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not remove completely. In this case please choose a programme with higher Temperature.

Concentrated Detergents

Based on their chemical composition, dishwasher can be split in two basic types:

• Conventional, alkaline detergents with caustic components
• Low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

Note: Detergent tablets are only for the models with 3 in 1 function or 3 in 1 program.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Refilling the Detergent Dispenser:

• If the lid is closed: press release button. The lid springs open.
  • Always add the detergent just before starting each wash cycle.
• Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

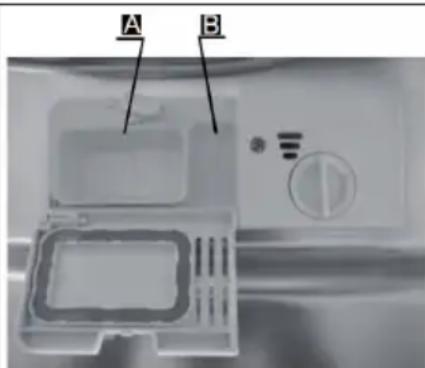

Fill in Detergent

• A = The place of main wash cycle detergent placed.
• B = The place of prewash cycle detergent placed.

• Please observe the manufacturers dosing and storage. Recommendations as stated on the detergent packaging.
• Close the lid and press until it locks in place.
• If the dishes are heavily soiled, place an additional detergent dose in the prewash detergent chamber. This detergent will take effect during the prewash phase.

A B

Note: You find information about the amount of detergent for the single programme on the last page. Please aware, that according to the level soiling and the specific hardness of water differences are possible. Please observe the manufacturer's recommendations on the detergent packaging.

LOADING THE DISHWASHER

• Consider buying utensils which are identified as dishwasher-proof.
• Use a mild detergent that is described as 'kind of dishes'. If necessary, seek further information from detergent manufacturers.
• For particular items, select a programme with as low a temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

Unsuitable Cutlery and Dished

Are not suitable Are of limited suitability
Cutlery with wooden, horn china or mother-of-pearl handlesPlastic items that are not heat resistantOlder cutlery with glued parts that is not temperature resistantBonded cutlery items or dishesPewter or copper itemsCrystal glassSteel items subject to rustingWooden plattersItems made from synthetic fibres	Some types of glasses can become dull after a large number of washesSilver and aluminium parts have a tendency to discolour during washingGlazed patterns may fade if machine washed

Hints on Loading the Dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way:

• Items such as cups, glasses, pots/pans, etc. are face down.
• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotated freely during washing.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
  • To avoid damage to glasses, they must not touch.
• Load large items which are most difficult to clean into the basket.
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket.
• Do not overload your dishwasher. This is important for good results and for
• Reasonable energy consume.

LOADING THE BASKETS (EN 60436)

Crockery basket

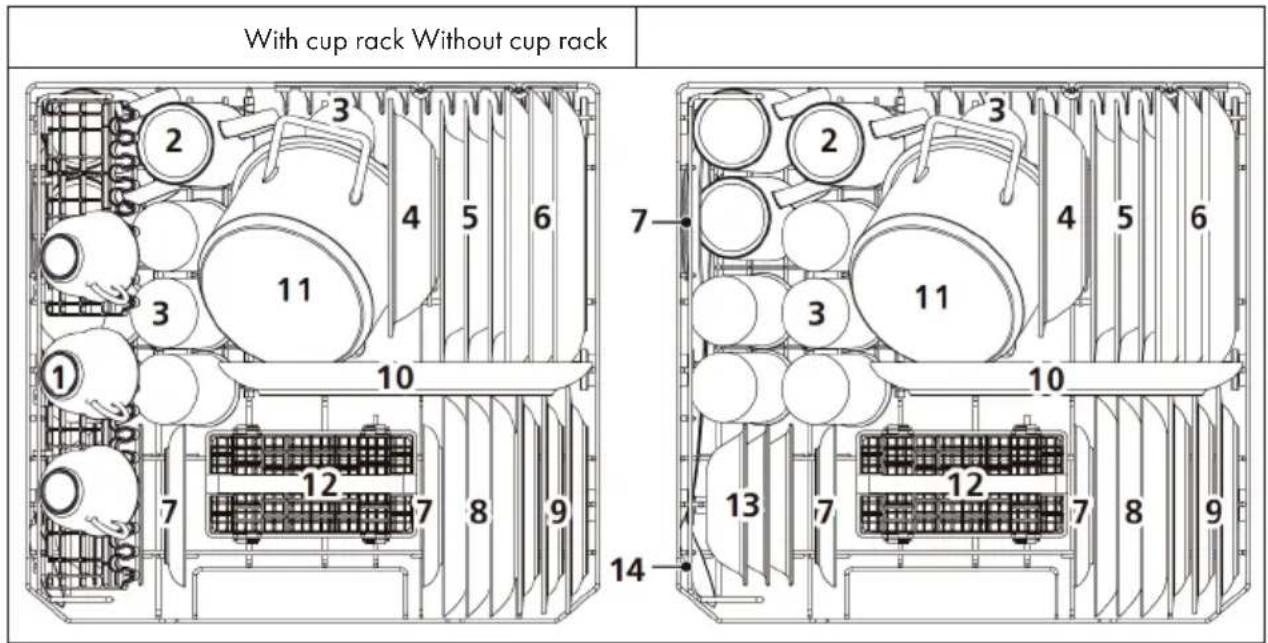

With cup rack Without cup rack 2 3 4 5 6 11 3 10 7 12 7 8 9 7- 2 3 4 5 6 3 11 3 10 13 7 12 7 8 9 14

No.	Description No. Description
1	Cups 8 Dessert dishes
2	Mugs 9 Melamine dessert plates
3	Glasses 10 Oval platter
4	Melamine bowl 11 Small pot
5	Soup plates 12 Cutlery basket
6	Dinner plates 13 Dessert bowls
7	Saucers 14 Serving spoon

Cutlery Basket

7 2 2 3 1 5 2 1 5 3 4 4 1 4 5 8 5 4 1 4 4 5 1 2 5 3 3 3 6

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Information for comparability tests in accordance with EN 60436

• Capacity: 6 place settings
- Program: ECO
- Rinse aid setting: Max
- Softener setting: H4

No. Description

1 Forks

2 Soup spoons

3 Dessert spoons

4 Teaspoons

5 Knives

6 Serving spoons

7 Gravy ladles

8 Serving forks

WASHING PROGRAMMES (EN 60436)

Program Description Rinsing cycle			Detergent Pre/Main	Time (min)	Energy (kWh)	Water (L)
[18T6]Intensive	For heavily soiled items such as pots, pans and dishes with dried food leftovers.	Prewash (50 °C)Wash (70 °C)RinseRinseRinse (70 °CDrying)	4/10 g 140	1.200 9.6
[6H7W]Universal	For insensitive, normally soiled everyday crockery.	PrewashWash (60 °C)RinseRinse (70 °CDrying)	4/10 g 120	1.050 7.7
ECO(*EN 60436)	For normally soiled parts, such as pots, plates, glasses and slightly soiled pans.	PrewashWash (45 °C)Rinse (65 °CDrying)	14 g 230	0.613 6.5
Glass	For lightly soiled loads, such as glass and fine ceramics.	Wash (45 °C)RinseRinse (60 °CDrying)	14 g 75	0.650 5.8
[828D]90 min.	For slightly soiled crockery and glass.	Wash (65 °C)RinseRinseRinse (70 °CDrying)	14 g 90	1.100	6.6
Rapid	Short programme for lightly soiled crockery that does not require extra drying.	Wash (40 °C)RinseRinse	12 g	30 0.5	00 5.8
-Soak	Soaking dishes that are to be washed later.	Prewash	-	15	0.020	2.0
*EN 60436: The ECO program was used for the test run in accordance with EN 60436.

USE AND OPERATION

Starting a Program

1. Insert the plug into the socket.
2. Press the program button, the wash program will be changed as follows direction: Eco > Glass > 90 Min. > Rapid > Intensive > Normal. If a program is selected, the response light will light.
3. Then press the Start/Pause button, the dishwasher begins to start. When you press the Pause button to pause during washing, the program light will stop blinking and the dishwasher will mooing every minute unless you press the Start button to start.

Change the Programme

You can modify the washing program, when the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see „Loading the Detergent“).

• Press Start/Pause Button to pause the machine when the door is closed, Press Button more than three seconds the machine will be in stand by state,
• Then you can change the program to the desired cycle setting.

Note: If you open the door during washing, the machine will pause. When you close the door and press the Button, the machine will keep on working after 10 seconds.

The program lights show the state of the dishwasher:

• One of the program lights on: stand by or pause
• One of the program lights blinking: run

Add Forgotten Dish

You can add dish, when the dishwasher just runs for a short time.

1. Press the Start/Pause key. Open the door a gap wide to stop the spray arms.
2. After the spray arms have stopped, you can open the door completely.
3. Add the dishes.
4. If you close the door again and press Start/Pause, the dishwasher will continue with the program after 10 seconds.

At the End of the Wash Cycle

1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap! Open the door carefully.
3. Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. In this way they will be cooler and the drying will be improved.
4. Unloading the dishwasher: It is normal that the dishwasher is wet inside.

1 Switch on the device	Press the power button and open the door.
2 Fill with detergent	Fill the large compartment before each flushing programme.Fill the small compartment only for prewash programmes.
3 Check rinse aid	Display C indicates whether there is still enough rinse aid in the chamber.
4 Check rinsing salt	Top up the rinsing salt as soon as the indicator light on the display lights up.
5 Filling the dishwasher	Remove food residues from the dishes and soak pans with burnt-in food residues beforehand. Follow the instructions for loading the dishwasher.
6 Select program	Close the door and press the program button until the desired program lights up.
7 Starting the dishwasher	Turn on the tap and press the Start/Pause button. The program starts after 10 seconds.
	Change program:You can change the programme as long as the detergent has not dissolved. If it has, you must refill it. Press the Start/Pause button for 3 seconds to cancel the current program. Select a new program and start it.
	Add crockery:Press the Start/Pause button to pause the program. Open the door.Add the crockery. Close the door and press Start/Pause. After 10 seconds the program continues.
	If the device was switched off during the program:If the program was switched off in the middle, select the program again after switching on so that the dishwasher can continue at the point where it was switched off.
8 Switch off the appliance	Once the program is finished, the buzzer sounds for 8 seconds. Press the Power button to turn the unit off. If you do not turn off the unit, it will go into standby mode and automatically turn off after 30 minutes.
9 Turn off the water tap, unload the baskets	Wait 15 minutes before removing the dishes, as the dishes are very hot and sensitive after drying and could easily break. It also dries faster.You can remove the dishes after 15 minutes.

CLEANING AND CARE

Filtering System

The filter prevent larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

Coarse filter (C)

Larger items, such as pieces of bone or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Fine filter (B):

This filter holds soil and food residue in the sump area and prevents it from being deposited on the dishes during wash cycle.

Main filter (A):

Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.

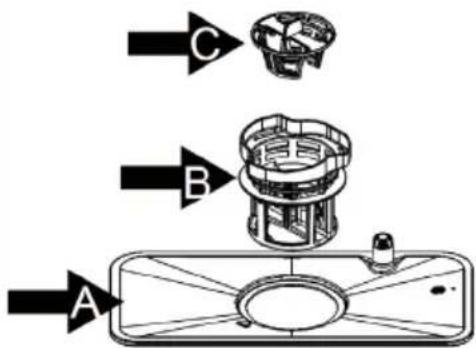

Diagram showing three labeled components (A, B, C) of a mechanical or electrical component assembly with directional arrows.

Filter Assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter assembly must be regularly cleaned. For this reason, it is a good idea to remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction.

Important: The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1. Turn the coarse filter (C) counterclockwise and remove it.

2. Disassemble the filter system.

3. After cleaning put the filters back in the shown order.

Important Hints on Cleaning the Filter System

• To clean the coarse filter and the fine filter, use a cleaning brush.
- When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be debased.

Caring for the Dishwasher

• The control panel can be cleaned by using a lightly dampened cloth and dry thoroughly.
  • The exterior use a good appliance polish wax.
• Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
• To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Protect against Freezing

Take frost protection measures on dishwasher in winter. Each time after washing cycles, please operate as follows:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to use up water in sump.

Cleaning the Spray Arms

The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded.

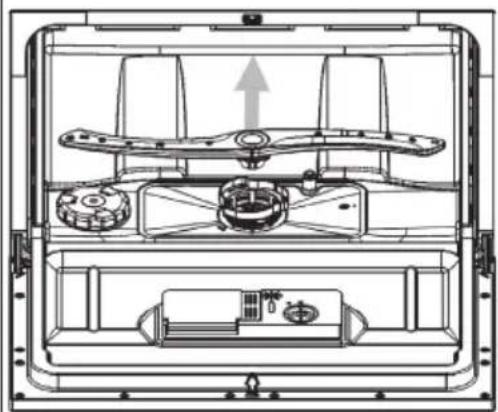

Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running water and return them carefully to their seat. After reassembly, check that the spray arms turn freely. Otherwise, check that they have been installed correctly.

Technical line drawing of a mechanical device interior showing internal components and a central fan-like structure (no text or symbols)

How to keep your Dishwasher in Shape

- After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

- Before cleaning or performing maintenance, always remove the plug from the socket.

- To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water with a little vinegar, or a cleaning product made specifically for dishwashers.

- It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

- If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

- One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals.

• Periodic cleaning with a damp sponge will prevent this from occurring.

TROUBLESHOOTING

Problem Possible Causes	Solution
Dishwasher doesn't start. Fuse blown, or the circuit breaker tripped.		Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
		Power supply is not turned on.
		Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.
		Door of dishwasher not properly closed.
		Closed dishwasher making sure that door latches.
Water not pumped from dishwasher.	Kink in drain hose. Check drain hose.
	Filter clogged. Check coarse filter.
	Kitchen sink clogged. Check kitchen sink to make sure it is draining well. If problem is kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwasher.
There are rust stains on cutlery.	The affected items are not corrosion resistant.	Don't wash corrosive items in the dishwasher.
	A programme was not run after dishwasher salt was added. Traces of salt have got into the wash cycle.	Always run the Quick wash programme, without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt.
	The lid of softer is loose. Check the lip .Ensure the fix is fine.
Stained tub interior. Detergent with colourant was used.		Make sure that the detergent is the one without colourant.
White film on inside surface.	Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
Knocking noise in the wash cabinet.	The spray arm is knocking against an item in a basket.	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet.	Item of crockery are insecure in the wash cabinet.	Interrupt the programme, and rearrange the items of crockery.
Knocking noise in the water pipe.	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on dishwasher function. If in doubt, contact a suitably qualified plumber.
Suds in the tub. Improper detergent Use only dishwashing		detergent that is suitable for dishwashers. If there is any foam in the tub, open the door and let the foam evaporate. Add some cold water to the tub and close the door. Run some washing program to remove the residue.
		Spilled rinse-aid Always wipe up rinse-aid spills immediately.
The dishes are not clean. The	dishes weren't properly invited.	Follow the instructions for loading the dishwasher.
	The program was not strong enough.	Use the intensive program.
	Too little detergent Use more	detergent or use a different detergent.
	Objects block the spray arms.	Place the dishes in the appliance so that the spray arms are not obstructed.
	The filter system is dirty or incorrectly inserted.	Clean the filters or insert them correctly. Clean the spray arms.
The dishes are not drying. In	correct loading. Follow the instructions for loading the dishwasher.
	Too little rinse aid. Increase the rinse volume.
	The dishes were removed too early.	Leave the dishes in the dishwasher for about 15 minutes after cleaning.Open the door so that the damp air can escape.
	Wrong program. In short programs, the washing and drying temperature is lower. Use a program with a longer running time.
	Cutlery with inferior coating.	Such dishes and cutlery are not suitable for the dishwasher.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
Black or gray marks on dishes.	Aluminium utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser cups.	Dishes block detergent cups.	Re-loading the dishes properly.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Code	Meaning Possible Cause
E1	Longer inlet time. Faucets is	not opened, or water intake is restricted, or water pressure is too low.
E4	Overflow. Some element of	dishwasher leaks. If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2017

Name or trademark of the producer: Klarstein
Address of the producer: Wallstraße 16, 10179 Berlin, Deutschland.
Item number: 10028327A, 10032677A
General product parameters:
Parameter Value Parameter	Value
Standard place settings 6 D	Dimensions	in mm	Height 438
			Width 550
			Depth 545
EEI 61.9 Energy efficiency class F
Cleaning performance index	1.13	Drying performance index	1.07
Energy consumption in kWh [per cycle], based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.	0.613	Water consumption in litres [per cycle], based on the eco program. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	6.5
Program duration (h:min)	3:50	Type	Free-standing
Airborne acoustical noise emissions (dB(A) re 1 pW)	49	Airborne acoustical noise emission class	C
Off-mode (W)	0.49	Standby mode (W)	0
Delay start (W) (if applicable)	1	Networked standby (W) (if applicable)	0
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Line drawing of a hand using a tool to press or install a mechanical component (no text or symbols present)

A B MAX 750mm φ 40mm

Technical diagram showing two views of a device interior with labeled components and directional arrows indicating motion or movement.

Close-up of a kitchen appliance with a control panel and indicator lights (no visible text or symbols)

Close-up of a hand holding a small electronic device with a knob, next to a wall-mounted panel (no visible text or symbols)

Close-up of a kitchen sink with a white plastic container and ventilation slots (no visible text or symbols)

Close-up of a hand holding a small electronic device with indicator lights, next to a white electronic device (no visible text or symbols)

Diagram showing three labeled components (A, B, C) with arrows pointing to a mechanical or electrical component.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Line drawing of a hand using a tool to lift a valve (no text or symbols present)

A B φ 40mm MAX 750mm

Technical diagram showing two views of a device interior with labeled components and directional arrows indicating movement or rotation.

Close-up of a mechanical component with a downward arrow and circular features, no visible text or symbols

Close-up of a hand holding a small circular device with indicator lights, next to a white electronic device (no visible text or symbols)

Close-up of a kitchen counter with a white tool partially visible, no text or symbols present.

Close-up of a hand holding a small electronic device with indicator lights (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Line drawing of a hand using a tool to press or install a light bulb (no text or symbols present)

A B φ 40mm MAX 750mm

Technical diagram showing two views of a device interior with labeled components and directional arrows indicating motion or movement.

Close-up of a mechanical component with a downward arrow and circular features, no visible text or symbols

Close-up of a hand holding a small circular device with indicator lights, next to a white electronic device (no visible text or symbols)

Close-up of a kitchen counter with a white tool partially visible, no text or symbols present.

Close-up of a hand holding a small electronic device with indicator lights (no visible text or symbols)

Diagram showing three labeled parts (A, B, C) pointing to a mechanical component with directional arrows indicating flow or assembly.

Technical line drawing of a mechanical device interior showing internal components and housing (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Geachte klant,

QR code image containing encoded data, no visible human-readable text

INHOUDSOPGAVE

Line drawing of a hand using a tool to press or install a mechanical component (no text or symbols present)

A B MAX 750mm φ 40mm

Technical diagram showing two views of a device interior with labeled components and directional arrows indicating motion or movement.

Close-up of a kitchen appliance with a control panel and indicator lights (no visible text or symbols)

Close-up of a hand pressing down on a white electronic device panel with buttons and ventilation slots (no visible text or symbols)

Close-up of a kitchen sink with a white tool partially visible, no text or symbols present.

Close-up of a hand holding a small electronic device with indicator lights (no visible text or symbols)

Technical line drawing of a mechanical device interior with no visible text or symbols

INSTRUCTIES VOOR AFVOER

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
