CWB 9831 ANP - Basket BEKO - Free user manual and instructions

Brand	Beko
Model	CWB 9831 ANP
Product type	Cooker hood
Dimensions (W x D x H)	898 x 490 x 916 mm
Net weight	23.8 kg
Supply voltage	220-240 V, 50-60 Hz
Fuse	10 A
Motor power	275 W
Maximum extraction rate	765 m³/h
Lighting	1 x 9 W LED (class 1M)
Number of speeds	3 + intensive
Air outlet diameter	150 mm (reducible to 120 mm)
Minimum safety distance	650 mm above the hob
Electrical class	Class I (earth connection mandatory)
Material	Metal, anthracite finish
Colour	Anthracite
Grease filters	Metal, dishwasher safe (clean every 2 months)
Activated carbon filter	Replaceable (approximately every 4 months), recirculation mode only
Installation type	External extraction or recirculation (kit included)
Control	Button panel with indicator lights

Frequently Asked Questions - CWB 9831 ANP BEKO

What is the minimum distance between the hood and the hob?

The minimum safety distance is 650 mm between the top of the cooker and the hood. This distance may vary depending on the recommendations of your hob; always respect the greatest distance.

How to clean the metal grease filters?

The metal grease filters should be cleaned every 2 months (more frequently in case of intensive use). They can be washed in the dishwasher or by hand with a neutral detergent. Let them dry before putting them back.

When should the activated carbon filter be replaced?

The activated carbon filter is used in recirculation mode. It is not washable and should be replaced approximately every 4 months, or more often if the hood is used intensively.

How to turn on the intermediate brightness lighting?

To turn on the bulbs at intermediate brightness, press and hold the lighting button (H) for 2 seconds. A normal press turns on or off at full brightness.

Can I use this hood in recirculation mode without an external duct?

Yes, the hood can operate in recirculation mode. In this case, you must use the activated carbon filter and install the provided air outlet grille. The space between the hood and the ceiling should be at least 8 to 10 cm.

What to do if the hood does not turn on?

First check that the hood is properly plugged in and that the fuse (10 A) has not blown. Ensure that the power cable connector is correctly inserted into the fan socket. If the problem persists, contact technical support.

Can the LED bulbs be replaced by the user?

No, the LED bulbs are integrated and can only be replaced by an authorized technical service. In case of defect, contact Beko support.

What diameter of exhaust duct to use?

The air outlet diameter is 150 mm. You can use a rigid or flexible hose of 150 mm or, with the provided reduction flange, a hose of 120 mm.

How to adjust the extraction speed?

Use the control panel buttons: press G to increase speed (1-2-3-Intensive) and B to decrease it. The indicators show the selected speed.

Can I install the hood above a gas cooker?

Yes, but you must respect the minimum distance of 650 mm and ensure adequate ventilation of the room. The negative pressure in the room must not exceed 0.04 mbar to prevent backflow of combustion gases.

USER MANUAL CWB 9831 ANP BEKO

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning for electric shock.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Recommendations and Suggestions 4

1.1 Installation 4
1.2 Use 5
1.3 Maintenance 5

2 Characteristics 6

2.1 Components.. 6
2.2 Dimensions 6

3 Installation 7

3.1 Boring the wall 7
3.2 Mounting the hood body. 7
3.3 Connection. 8
3.3.1 Air Outlet In A Ducting Hood Version. 8
3.3.2 Air Outlet In A Recycling Hood Version . . .9
3.4 Electrical Connection 9

4 Use 10

4.1 Control panel 10

5 Maintenance 11

5.1Grease Filters. 11
5.1.1 Cleaning Metal Self- Supporting Grease Filters 11
5.2 Activated charcoal filter (Recirculation version) 11
5.2.1 Replacing The Activated Charcoal Filter .11
5.3 Lighting unit. 11

1 Recommendations and Suggestions

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

1.1 Installation

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with nonelectrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

1 Recommendations and Suggestions

1.2 Use

The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

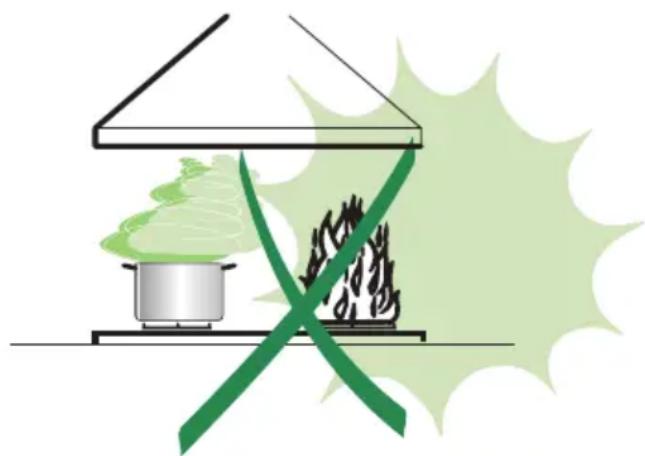

• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

1.3 Maintenance

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

2 Characteristics

2.1 Components

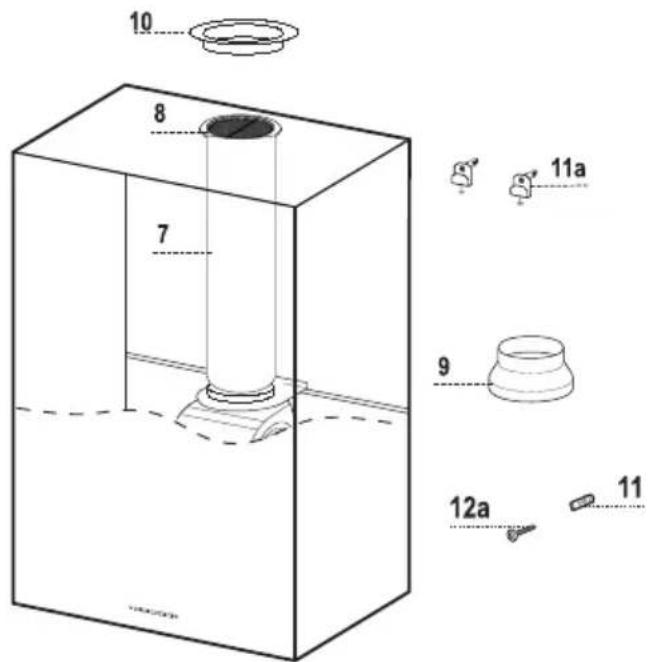

Ref. Q.ty Product components

1 1 Hood Body complete with: Controls, Light, Suction Unit, Filters, Lower Duct
7 1 PVC Pipe (fitted)
8 1 Inclinable grid (fitted)
9 1 Reduction flange 150-120 mm
10 1 Metal cover

Ref. Q.ty Assembly components

11 1 Wall Plugs
11a 2 SB 12/10 Plugs
12a 1 Screws 4,2 x 44,4

Q.ty Documents

1 Instruction Manual

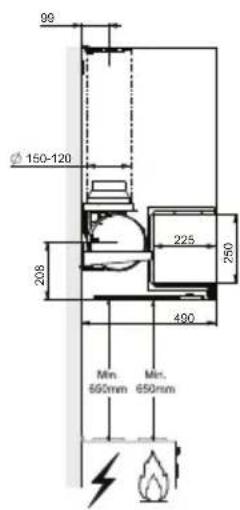

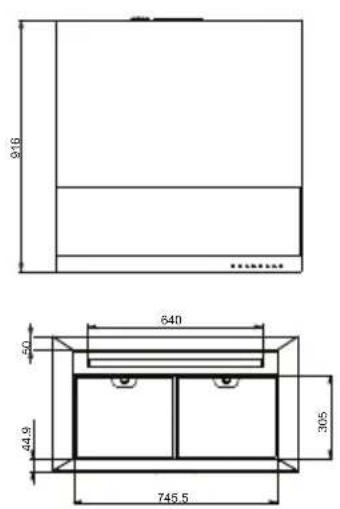

2.2 Dimensions

2.3 Technical Specifications

Width 898 mm
Depth 490 mm
Height 916 mm
Supply voltage 220 - 240 V, 50-60 Hz
Control 3 positions
Suction power	765 m³/h
Motor power	275 W
Lamp power	1X9 W
Fuse	10 A
Air outlet pipe diameter	150 mm
Net weight	23.8 kg
Gross weight	33.2 kg
Color	Antracite

Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the product and ambient conditions.

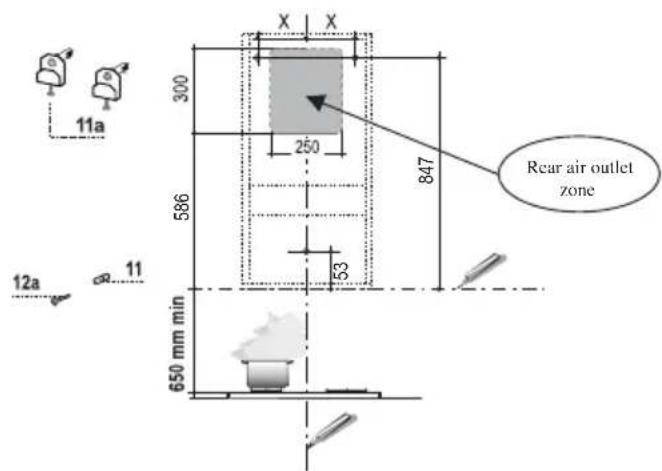

3.1 Boring the wall

Type Hood 45 60 90 X180240390

If you want to use the hood in suction version with the air outlet at the back of the hood, makesure to follow the indications given below in the drawing for a correct boring operation of the air outlet opening.

When installing the hood in recycling version it has to be taken into consideration that space remaining between the hood and the upper limit (ceiling or self) is at least 8-10 cm.

On the wall, trace:

• a vertical line up to the ceiling or top limit, at the centre of the area where you intend to fit the hood;
• a horizontal line at: 650mm min. above the cooking hob;
• As shown, mark a reference point at 847 mm above the horizontal reference line, and at X mm (X = see table in figure) to the right of the vertical reference line.
• Repeat this operation on the opposite side, checking levelling.
• Drill the points marked using a 12mm bit

• Insert plugs with screws and brackets 11a in the holes then tighten them.

• As shown, mark a reference point at 53mm above the horizontal reference line, at the center of the of the vertical reference line.

• Drill the points marked using a 8 mm bit.
• Insert the plug 11 in the hole.

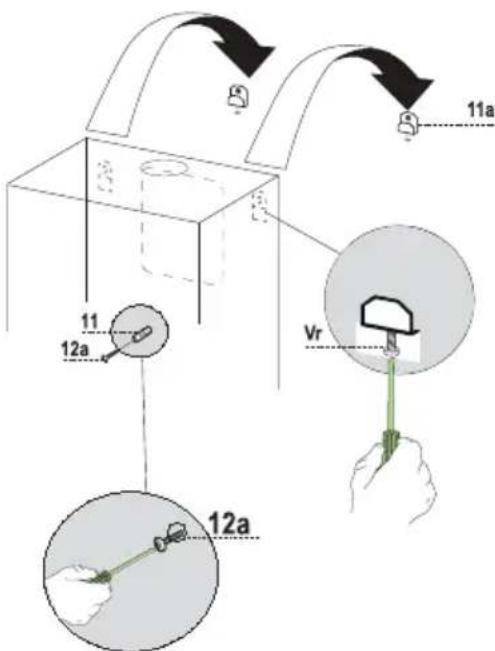

3.2 Mounting the hood body

• Remove the metal grease filters by turning the handles provided.
• Adjust the two screws Vr, on brackets 11a, to a minimum.
• Hook the hood canopy onto the two brackets 11a.
  From inside the hood canopy, adjust the screws Vr to set the Hood Canopy level.
• Tighten the safety screw 12a.

3.3 Connection

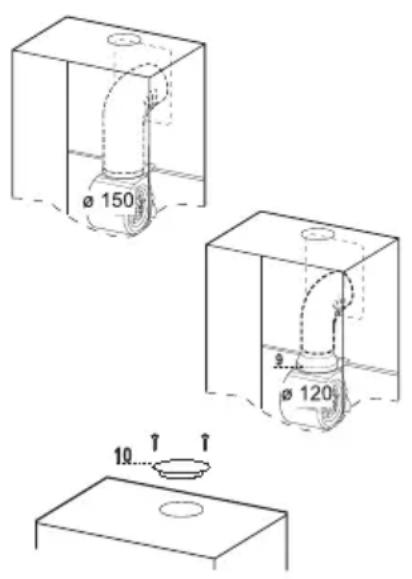

3.3.1 Air Outlet In A Ducting Hood Version

When installing the hood in ducting version, basing on the installer's choice, a rigid or a flexible pipe with a 150 or 120mm is used in order to connect the hood to the air outlet piping. The pipe connection can be made on the upper part or on the rear side of the hood.

Before connecting the hood to the air outlet ducting remove the lateral air outlet grid 8 and the plastic tube 7. The adapting flange 9 has to be removed only in case the connecting diameter is 150.

3.3.1.1 Rear Air Outlet

• When drilling the air outlet hole in the wall proceed in accordance with the scheme in the part concerning the wall drilling.
• Use a pair of tongs when breaking the rear air outlet hole in the wall.
• In case the connection is made by using a 120mm pipe insert the reduction flange 9 on the hood body outlet.
  Fix the pipe with an adequate quantity of pipe clamps. This material is not supplied together with the hood.
• Remove the charcoal filter if present.

Fix the metal cover 10 to the upper air outlet hole of the hood by using the screws supplied.

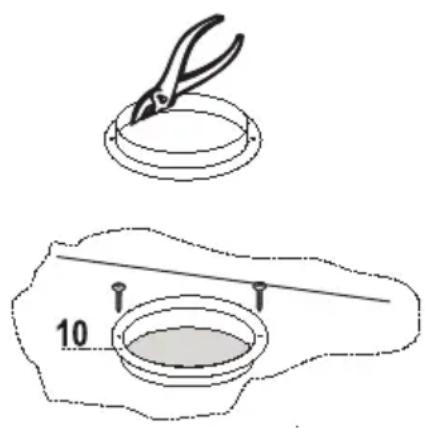

3.3.1.2 Upper Air Outlet

• In case the connection is made by using a 120mm pipe insert the reduction flange 9 on the hood body outlet.
• Use a pair of tongs when removing the central part of the metal cover 10. Fix the cover to the air outlet hole of the hood by using the screws supplied.
  Fix the pipe with an adequate quantity of pipe clamps. This material is not supplied together with the hood.
• Remove the charcoal filter if present.

3 Installation

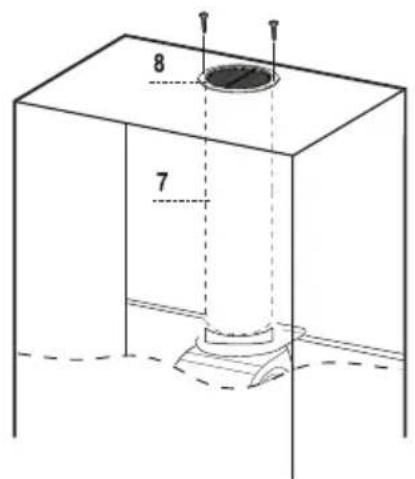

3.3.2 Air Outlet In A Recycling Hood Version

• In case the components requested for the recycling functioning have been removed earlier these have to be positioned again.
• Put the plastic tube onto the flange 7.
• Place the air outlet grid 8 on the air outlet. Make sure that the position of the grid is correct.
• Make sure that charcoal filters have been placed inside the hood.

3.4 Electrical Connection

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

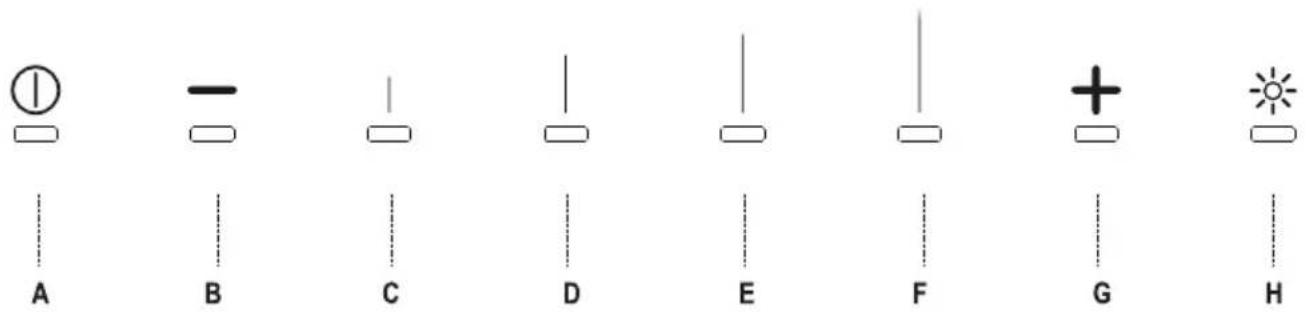

4.1 Control panel

Button F	Function Led
A Turns	the motor On/Off Leds off
B Decreases the speed (Intensive-3-2-1)		Leds C-D-E-F light up according to the speed that is set
C Lights	up when speed 1 is active
D Lights	up when speed 2 is active
E Lights	up when speed 3 is active
F Lights	up when Intensive speed is active
G Increases the speed. (1-2-3-Intensive)		Leds C-D-E-F light up according to the speed that is set
H Turns	the lights ON/OFF at maximum intensity Press and hold the button for 2 seconds to turn the lights on at intermediate intensity	Led H lights up

5.1 Grease Filters

5.1.1 Cleaning Metal Self- Supporting Grease Filters

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

5.2 Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

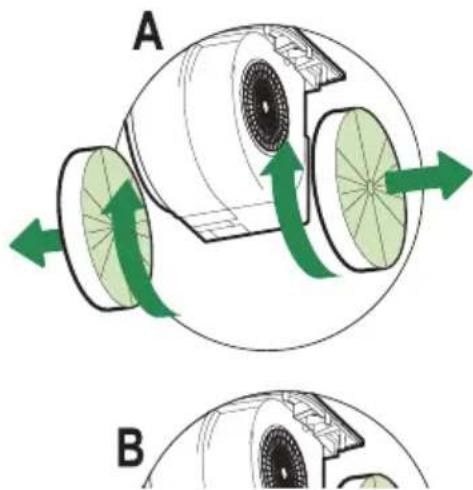

5.2.1 Replacing The Activated Charcoal Filter

• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).
• Fit the new filters (B).
• Replace the metal grease filters.

5.3 Lighting unit

Warning: This appliance is fitted with a white LED lamp classed as 1M according to EN 60825-1: 1994 + A1:2002 + A2:2001 standards; maximum optical power emitted @439nm: 7 W . Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

• For replacement contact technical support. ("To purchase contact technical support")
