TG1 - Grill plate STEBA - Free user manual and instructions

Product Type	Electric Grill Plate
Brand	Steba
Model	TG1
Dimensions (approx.)	40 x 30 x 10 cm
Weight (approx.)	2.5 kg
Power Supply	230 V ~ 50 Hz
Power	2000 W
Temperature Settings	6 positions (1: 70°C keep warm, 2: 150°C fish/vegetables, 3: 190°C tender meats, 4: 210°C, 5: 230°C, 6: 250°C intense grilling)
Cooking Surface Type	Non-stick coating
Included Accessories	Reflector tray, control element with thermostat, heat shield
Cleaning	Grill plate: wipe with a damp cloth and dish soap while still warm; do not use abrasives or metal pads; do not wash in dishwasher.
Safety	Unplug before cleaning; do not immerse; keep out of reach of children under 8 years; do not use with external timer; hot surface.
Maintenance	Check the appliance before each use; clean regularly to avoid burnt residues.
Repairability	Repairs only by a qualified electrician; contact Steba after-sales service.
Warranty	According to manufacturer's conditions, pick-up possible under warranty.
Material	Metal with non-stick coating
Color	Black/Stainless Steel

Frequently Asked Questions - TG1 STEBA

How to use the Steba TG1 grill plate for the first time?

Before first use, thoroughly clean all parts (except the heating element). Brush the grill with a thin layer of oil, then preheat the appliance for about 5 minutes at maximum power.

What foods can I cook on the grill plate?

You can grill meats, fish, vegetables, etc. Use the appropriate temperature setting: position 6 for searing, position 3 for tender meats, position 2 for fish and vegetables.

How to clean the Steba TG1 grill plate?

Unplug the appliance and let it cool. Remove the control element and the plate. Clean the plate while still warm with a damp cloth and a little dish soap. Do not use abrasive products, metal pads or scrapers and do not wash in the dishwasher.

Can I use aluminum foil on the plate?

No, never cover the grill with aluminum foil as it prevents heat from spreading properly and may damage the appliance.

Why does smoke appear during cooking?

A little smoke is normal when cooking fats. To limit smoke, regularly wipe the plate with paper towels (using tongs) to remove burnt residues.

Is the appliance safe for children?

The appliance becomes very hot. It can be used by children over 8 years under supervision. Keep the appliance and cord out of reach of children under 8 years.

What to do if the appliance stops heating?

Check that the socket works and the cord is not damaged. If the problem persists, contact a qualified electrician or Steba after-sales service. Do not attempt to repair it yourself.

Can I use an extension cord with the grill plate?

Yes, but be careful that children do not trip over the cable and that the extension cord is not damaged. Make sure it is suitable for the appliance's power.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a collection point for used electrical appliances or return it to the store where you bought it. The packaging (paper, cardboard, plastic) should be recycled according to local regulations.

Where can I find spare parts for the Steba TG1?

Contact Steba after-sales service at the coordinates provided in the manual. Repairs must be carried out by a qualified professional.

USER MANUAL TG1 STEBA

Instructions for use 22

Mode d'emploi 27

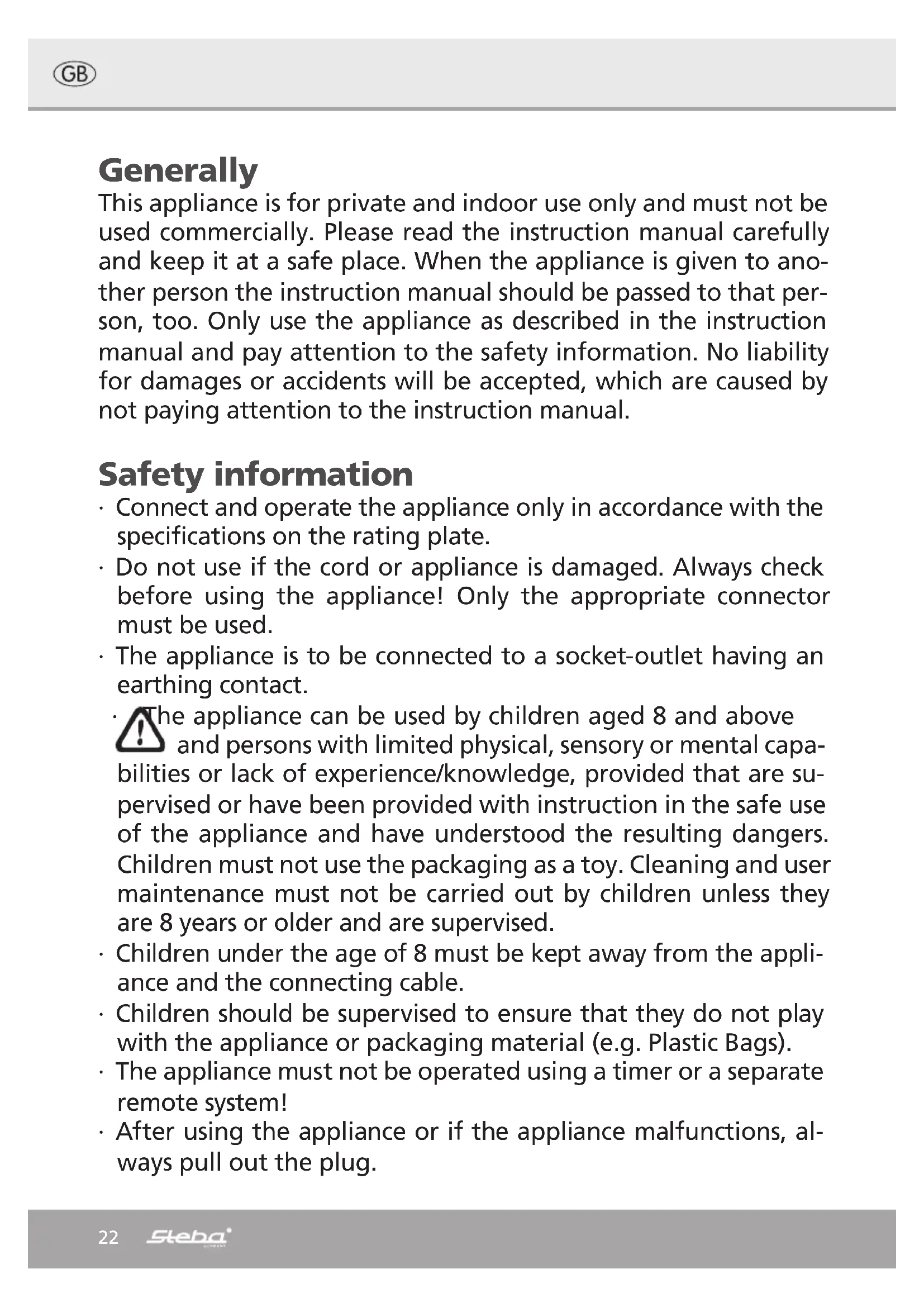

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Do not use if the cord or appliance is damaged. Always check before using the appliance! Only the appropriate connector must be used.
• The appliance is to be connected to a socket-outlet having an earthing contact.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
  Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
• The appliance must not be operated using a timer or a separate remote system!

• After using the appliance or if the appliance malfunctions, always pull out the plug.

• Never pull at the cord set. Do not chafe it over edges or squeeze it.

• Keep the power supply cord away from hot parts.
• Never leave the appliance unattended when operating.
• Do not leave the appliance outdoors or in a damp area.
• Never immerse the appliance in water.
• Do not operate the appliance if it is damaged (for example if it felt down).
• The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made
• The appliance becomes very hot. Do not move the appliance until it has cooled down!
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.

Attention! Housing and glass get hot. Danger of

burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at

least 70cm to burnable materials.

• When using a powercord extension it is important that children are not pulling at it or a trip hazard occurs.
• The appliance must always be unplugged in case of no supervision, prior to assembly, the dismantling or cleaning.

Working place:

Important: Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflatable items are near to the device.

Handle the grill area with care.

Safety requirements during usage:

• Only use the appliance at a safety plug socket. This should be connected to a earth leakage circuit breaker
• The appliance must be supplied through a residual current device(RCD) having a rated residual operating current not exceeding 30mA .
• Never immerse the appliance into water.
• Never leave the appliance outdoors after usage.
• Fat and other grill food can spatter and drop. Therefore do not place the appliance not directly on sensitive surfaces, e.g. Polished table tops, parquet or carpet.
• Be sure that the cable is placed that way that it cannot be pulled or touched during usage.
• Always unplug the appliance and cool it down before the device is carried away. Never carry it when it is hot.
  Unplug the appliance after each usage or before cleaning.

Grill preparations:

Hang in the plate slightly sloping on the left side of the housing (1) and lay down (2). Then, insert the electrical temperature controller completely into the grilling plate (3).

Oil the grill slightly before the usage. This makes it more easy to turn the food. Then heat up the device for ca 5 min; the thermostat on maximum level. The food should be not frozen during grilling. Please use the appliance only with the drip tray.

Never cover the appliance with aluminium foil, because the heat cannot get away from the heating element.

To avoid smoking and burning in of excessive fat or food residues, the grill plate should be wiped off repeatedly.

As the grill plate can be very hot, use ca 3-4pcs of scrunched paper towels and wipe off the grill area with a grill tong.

Power

By pressing the button the heating power can be changed.

6: 250^ Grilling on highest powe
5:230°C Grilling
4:210°C Grilling
3: 190^ Grilling on middle power (e.g. fir tender meat)
2: 150^ Grilling on low power (e.g. fish or vegetable)
1: 70^ keeping warm for dishes

Windshield

This helps to avoid a strong cooling down of the food on the grill. It also helps to reduce grill fat drops on the table surface.

Cleaning

• Caution: Pull out the mains plug before every cleaning.
• Cleaning is easiest while the grill plate is still fairly warm. Pull out the control panel and take out the grill plate. Use a damp cloth and some detergent for cleaning.
• Do not use any scouring agents, soaped steel wool or metal scraper, since otherwise the anti-sticking coating will be damaged.
• Do not put in the dishwasher.
• For cleaning the appliance surface and all other parts such as handles etc. a moist cloth, possibly with a little detergent is sufficient.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
