USER MANUAL RC 88 STEBA

Instructions for use 10

Mode d'emploi 16

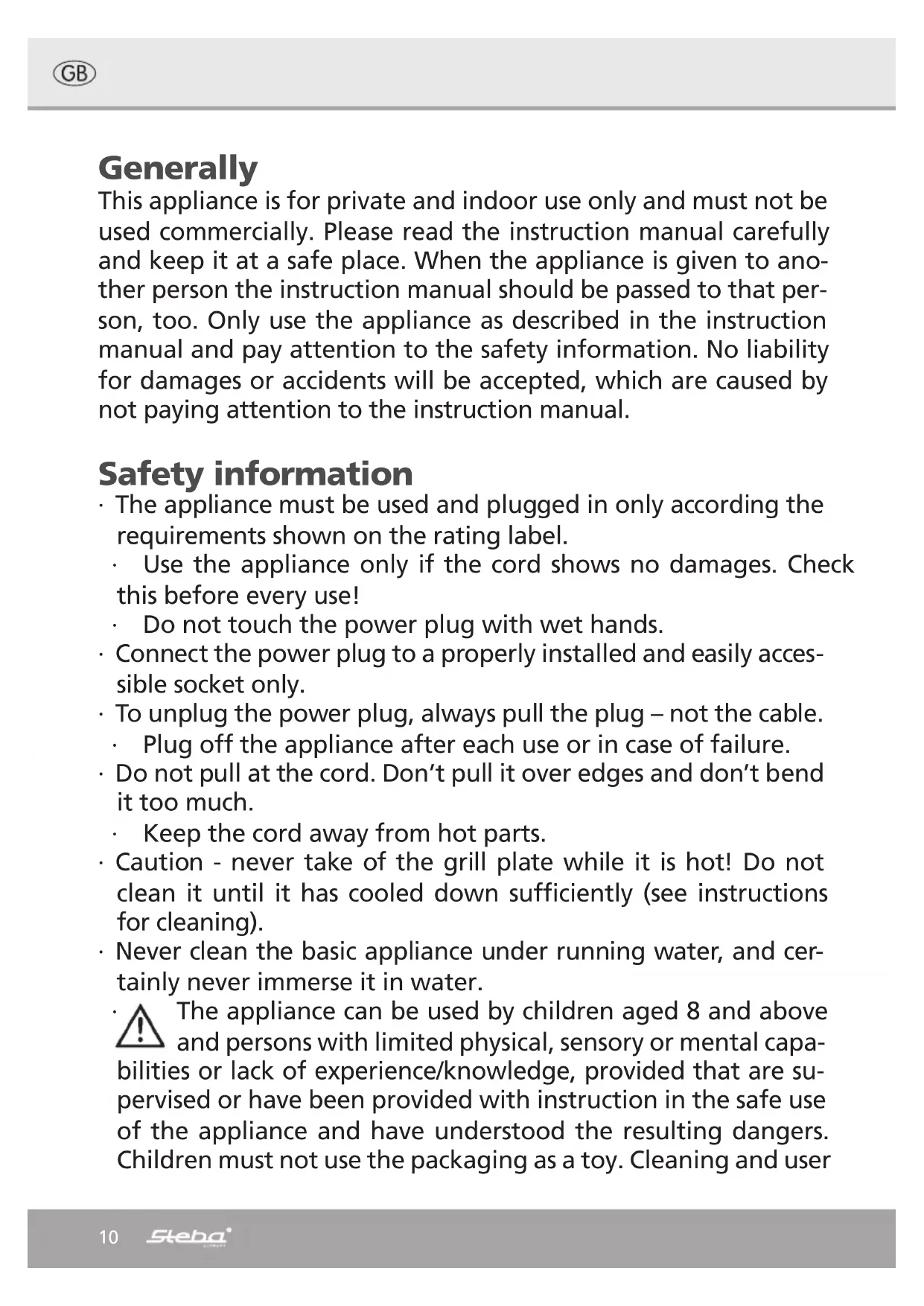

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• The appliance must be used and plugged in only according the requirements shown on the rating label.
• Use the appliance only if the cord shows no damages. Check this before every use!
• Do not touch the power plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.

Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.
• Caution - never take of the grill plate while it is hot! Do not clean it until it has cooled down sufficiently (see instructions for cleaning).
• Never clean the basic appliance under running water, and certainly never immerse it in water.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user

maintenance must not be carried out by children unless they are 8 years or older and are supervised.

Children under the age of 8 must be kept away from the appliance and the connecting cable.
Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
- The appliance must not be operated using a timer or a separate remote system!

Attention! Housing get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm toile materials.

• When using a powercord extension it is important that children are not pulling at it or a trip hazard occurs.
• Caution - watch out for splashes of fat when grilling juicy meat and/or using a large quantity of fat. Sausages should be pricked before grilling, or there may be a danger of someone suffering burns.
• Never cut meat or any other food on the grill surface as it could otherwise be damaged.
• If any repair is necessary, including the replacement of the lead, the appliance must be handed in to the electrical dealer from which it was purchased.
• Repairs to electrical appliances must only ever be carried out by a qualified electrician. Improper attempts at repair can result in serious danger for the user.
• No legal liability can be accepted for damage resulting from the appliance being used wrongly or for the wrong purpose.

Cleaning

• Always pull the plug out of the socket before cleaning the appliance.
• Clean the appliance as soon as possible alter use, but allow the grill surface to cool down sufficiently first. Cleaning is easiest while the appliance is still fairly warm. To remove the grill sur

face, lift it up from underneath with one hand. Then you can take it out without any difficulty.

Basic appliance:

Use a damp cloth for cleaning. Never immerse the appliance in water. Make sure that no water finds its way inside the appliance. Observe the safety instructions as well.

Gourmet pans:

Soak the gourmet pans in water with a little washing-up liquid for a while to soften if necessary.

Non-stick grill plate:

The Non-stick grill plate can likewise be washed up in water and washing-up liquid.

Gourmet stone plate:

Soak the grill stone in hot water (with no additives!) for sometime, and then clean it with clear, warm water and if necessary a cleaning sponge. Do not use any washing-up liquid or abrasive as these could affect the properties of the stone.

The grill stone expands when heated. This can cause small, visible cracks to appear on the surface, but these do not affect its function. For this reason the stone is excluded from guarantee cover.

Working place:

Important: Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflatable items are near to the device.

Safety requirements during usage:

• Only use the appliance at a safety plug socket. This should be connected to a earth

• leakage circuit breaker
  Use the appliance only when it is assembled.

• Do not use the grill plate outside of the appliance and never immerse into water.

• Never leave the appliance outdoors after usage.

• Fat and other grill food can spatter and drop. Therefore do not place the appliance directly on sensitive surfaces, e.g. Polished table tops, parquet or carpet.

• When using the appliance with stand, be sure that the stand is standing stable, because the danger of burns when it falls
• Be sure that the cable is placed that way that it cannot be pulled or touched during usage.

• Always unplug the appliance and cool it down before the device is carried away.

• Never carry it when it is hot.
  Unplug the appliance after each usage or before cleaning.
  Always place the oil tray bellow the grill plate.

Put into operation of the appliances

Important! Heat up the appliance for about 15 min. before baking or grilling to eliminate any production-oil.

The following food can be put on the plates:

Stone plate: meat - fisch - vegetables - crustace

Ribbed plate: meat - sausages - spits - vegetables

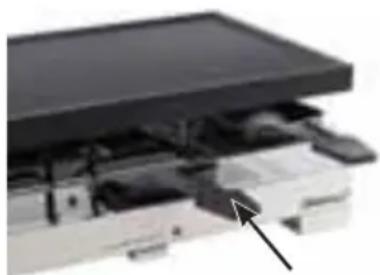

Tray for pans

Used hot pans can be put into the tray for pans. This helps to prevent them from scorch and facilitates the cleaning.

1. Grilling on the grilling plate

When planning the evening, reckon on about 200 to 250 grams of material per person. On the grillplate you can prepare meat (e.g. rump steak or mince), fish, and a wide variety of tasty dishes. A large number of side-dishes, sauces, and dips are suitable to accompany them.

• How well "done" the dishes have to be depends on the type of meat or fish, the length of time it takes, its initial temperature, and its thickness. If you prefer your steaks not too "rare", do not cut them too thick.

• The time you give meat or fish is a matter of your personal taste. Turn the meat or fish over from time to time.

• Finally, you can salt the meat or fish, or add a sauce to it. Do not salt before grilling as this draws the juice out.

No-stick grilling plate (RC68, RC88):

You can grill dishes beautifully using the ribbed surface.

Stone plate (RC78, RC88):

• No oil or grease is needed on the stone, so the natural flavour of meat, fish, and other ingredients is preserved (with the exception of the oil you apply before first using the stone).
  Always use the gourmet grill pans with the smooth surface upwards.
• It is possible that the meat or fish could "catch" (burn in slightly) the first time the appliance is used. Do not turn the meat or fish over until it is very easy to loosen from the surface.
• The grill stone is particularly suitable for the natural grilling of all kinds of juicy meat, fruit, and vegetables.

That the vegetables an meat juices does not so much burn in please wipe off the surface from time to time with a damp cloth.

2. Raclette dishes with the gourmet pans

You can fill the pans with all kinds of ingredients cut up small, whatever takes your fancy, cover it with cheese, and heat it under the grill until the cheese melts.

Anything is suitable that you can think of for overbaking with cheese, e.g. meat cut inlo tiny pieces, poultry, fish, fruits de mer, sausage, fruit, and vegetables. There are specially selected raclette cheeses on the market, but you can try other kinds provided their tat content is over 45% .

3. Overbaking „au gratin" with cheese

You can use this raclette grill to cover the dishes you have made on the grill with a delicious gratinÉ cheese crust. Simply scatter grated cheese, possibly mixed with caraway seeds, over the dish, or lay it on top in slices, and place the gourmet pan under the grill.

The gourmet pan will be heated from on top by radiant heat, just like under a grill. First the cheese will melt, then it goes dark in colour. Take the pan out as soon as the cheese is a crisp golden brown.

4. Old-original raclette cheese method

In this instance, the cheese is at the focal point of the raclette party. Plan about 200 to 250 grams of cheese and potatoes per person, and side-dishes as well. Place a slice of cheese about 5mm (3/8th of an inch) thick in the pan, cut to fit, and push it in under the grill. Once the cheese has melted into a creamy mass, take the pan out and extract the cheese with the aid of a small wooden spatula and pour it onto boiled or foil potatoes, French bread, or toast.

Important note

Cold-pressed oils, such as olive oil should not be used as dripping as these oils have a poor quality at high temperatures.

Due to the high grill temperatures (up to 250^ ), residues of oil, juices, herbs, etc. build up on the hot grill surface and the non-stick effect decreases. It is hard or impossible to remove these residues from the grilling plate.

Therefore, only use heat-resistant oils!

Some Tips for grilling

In the interest of your health:

• Minced meat must be processed immediately
• Separate roasted poultry from raw meat, do not eat raw meat and always grill until fully cooked.
  Cured meat and sausages should not be grilled too much.
  Starches (eg, bread, potatoes) must not be grilled too dark

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
