SPD3021 - External hard drive PHILIPS - Free user manual and instructions

Product Type	External Hard Drive
Brand	Philips
Model	SPD3021
Interface	USB 2.0 (High Speed)
Capacity	Varies by model
Transfer Speed	480 Mb/s
Rotation Speed	7200 rpm
Cache Memory	8 MB / 32 MB
System Requirements	Windows 2000, XP, Vista; USB 1.1/2.0 port
Power Supply	Included AC adapter (cord + block)
Package Contents	Hard drive, AC adapter, power cord, USB cable, user manual
Compatibility	Windows 2000, XP, Vista; Mac (after reformatting to FAT32)
Main Functions	External storage, backup and data transfer
Care and Cleaning	Avoid contact with water and extreme forces; install in a well-ventilated area
Safety	Do not use for illegal copying of protected content; comply with WEEE regulations for disposal
General Information	Warranty: see 'Philips Warranty' folder on the drive; support at www.philips.com/storageupdates

Frequently Asked Questions - SPD3021 PHILIPS

How to connect the Philips SPD3021 external hard drive?

Connect the power cord to the AC adapter, then connect the assembly to the hard drive and the power outlet. Connect the USB cable to the USB port on the hard drive and to a free port on the computer. A drive icon appears in Windows Explorer.

How to safely disconnect the hard drive?

Double-click the Safely Remove Hardware icon in the system tray, select the hard drive, click Stop, then OK. When the message Safe to Remove Hardware appears, disconnect the USB cable.

Is the hard drive compatible with Mac?

Yes, but it must be formatted to FAT32 before use on Mac. The default format is NTFS for Windows.

What is the storage capacity of the SPD3021?

The capacity varies by model. Check the packaging or manual for the exact capacity of your device.

How to access warranty information?

On the hard drive, open the Philips Warranty folder. You will need Adobe Reader. Download it from www.adobe.com if necessary.

What to do if the hard drive is not recognized by the computer?

Check the USB and power connections. Reset the computer if necessary. Make sure the USB driver is properly installed. Visit www.philips.com/storageupdates for further assistance.

Can I use this hard drive with Windows 10?

The manual mentions Windows 2000, XP and Vista. However, the hard drive should work with later versions of Windows thanks to USB backward compatibility. For optimal compatibility, check for updates on the Philips website.

What is the maximum transfer speed?

The maximum transfer speed is 480 Mb/s via USB 2.0. To achieve this speed, your computer must support USB 2.0.

How to clean and maintain the hard drive?

Avoid contact with water and shocks. Clean with a soft, dry cloth. Install it in a well-ventilated area to avoid overheating.

What to do in case of technical issues?

Consult the user manual, visit www.philips.com/storageupdates for FAQs and updates, or contact Philips customer service.

USER MANUAL SPD3021 PHILIPS

Exterior view of a Philips electronic device (no additional text or symbols visible)

Contents

EN

4 What's in the box?
4 How to connect?
5 How to disconnect?
5 Installation for Mac
6 Important information
7 Need help?
8 FCC Compliance

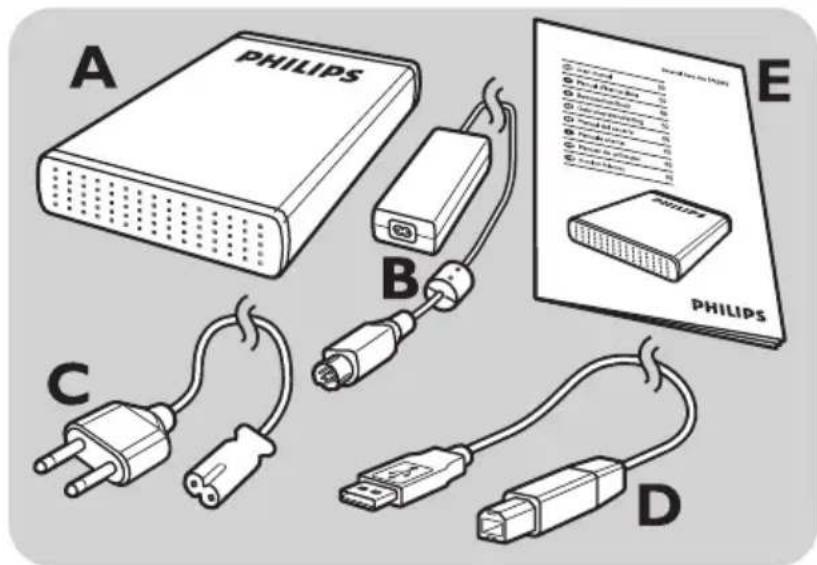

What's in the box?

A PHILIPS B C D E PHILIPS

A : External hard disk

B : Power adapter

C: Power cord

D : USB cable

E : User manual

How to connect?

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text or symbols)

Put the Power Adapter (B) and the Power Cord (C) together and connect them to the external hard disk and a power outlet.

Diagram showing connection between a Philips device and a server, with no visible text or symbols.

Plug the USB cable (D) in the USB port of your external hard disk. Connect the other side of the USB cable to an empty USB port of your computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the Blue light should light up. (To use the new hardware, the computer sometimes needs to be restarted)

Your hard disk is now ready to use and you can now save and copy data, just as you do when using your internal hard disk.

How to disconnect?

EN

I Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen.
2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.
3 When the Stop a hardware device screen appears, make sure the correct information is displayed, and then click the OK button.
4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

Installation

Installation for Mac

The hard disk is preconfigured for Windows 2000,

Windows XP and Windows Vista, with a NTFS format.

For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Look on your external hard disk and browse to the folder ‘Philips Warranty’.

You need Adobe Reader software to open these files. If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

"The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes."

WEEE mark: "Information to the Consumer"

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise

you to handle electronics with good care: Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Capacity Depending on model

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 7200 rpm

Cache memory 8 MB/32 MB*

System requirements USB 1.1 (USB 2.0 for

max. transfer speed)

Windows 2000,

Windows XP,

Windows Vista

* for versions >= 750 GB

Need help?

For interactive help and support:

www.philips.com/support

For software updates and frequently asked questions:

www.philips.com/storageupdates

Caution:

Changes or modifications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.

Table des matières

Diagram of a Philips power supply connected to an electrical outlet, showing cable routing and wiring connections (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols

Be responsible Respect copyrights

* for versions >= 750 GB

Aide

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing cable routing and wiring connections (no text or symbols)

Diagram showing connection between a Philips device and a server unit (no text or symbols visible)

Be responsible Respect copyrights

* for versions >= 750 GB

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text labels)

Diagram showing connection between a device labeled 'PHILIPS' and a server, with no visible text or symbols beyond the label.

Be responsible Respect copyrights

* for versions >= 750 GB

Hulp nodig?

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols

* for versions >= 750 GB

¡Necesita ayuda?

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing cable routing and wiring (no text or symbols)

Diagram showing connection between a Philips device and a server unit (no text or symbols visible)

* for versions >= 750 GB

Assistenza

Diagram showing connection between a Philips device and a server unit (no text or symbols visible)

Be responsible Respect copyrights

* for versions >= 750 GB

www.philips.com/support

Diagram showing connection between a Philips device and a server unit (no text or symbols visible)

Be responsible Respect copyrights

* for versions >= 750 GB

Yardım?

www.philips.com/support

Specifications subject to change without notice.

All dimensions shown are approximate.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting,

Public performance, transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
