SPD3030 - External hard drive PHILIPS - Free user manual and instructions

Product type	External hard drive
Brand	Philips
Model	SPD3030
Capacity	Variable depending on model
Interface	USB 2.0 (High speed)
Transfer speed	480 Mb/s
Rotation speed	7200 rpm
Cache memory	8 MB / 32 MB depending on model
Compatible operating systems	Windows 2000, Windows XP, Windows Vista (Mac after formatting in FAT32)
Power supply	Power adapter included
Package contents	Hard drive, power adapter, power cord, USB cable, user manual
Warranty	Information in the 'Philips Warranty' folder on the hard drive
Maintenance and cleaning	Avoid any contact with water and shocks. Install in a well-ventilated place.
Safety	Keep plastic bags out of reach of children. Follow WEEE disposal instructions.

Frequently Asked Questions - SPD3030 PHILIPS

How to connect the Philips SPD3030 external hard drive?

Plug the power cord into the power adapter, then connect the assembly to the hard drive and to the power outlet. Plug the USB cable into the USB port of the hard drive and into a free USB port on the computer. A drive icon appears in Windows Explorer and the blue indicator lights up.

How to safely disconnect the hard drive?

Double-click the 'Safely Remove Hardware' icon in the system tray, select the device, click Stop, then OK. When the message 'Safe to Remove Hardware' appears, unplug the USB cable.

Can I use this hard drive on a Mac?

Yes, but the hard drive must first be formatted in FAT32, as it is preconfigured in NTFS for Windows. Refer to the user guide for the formatting procedure.

What is the storage capacity of the SPD3030?

The capacity varies by model. Please check the label on the packaging or the hard drive itself for the exact capacity.

Where to find warranty information?

Warranty information is located in the 'Philips Warranty' folder on the hard drive. You will need Adobe Reader to open these files.

What is the maximum transfer speed?

The maximum transfer speed is 480 Mb/s via USB 2.0 interface.

Is the hard drive compatible with USB 1.1?

Yes, it is compatible with USB 1.1, but to achieve maximum transfer speed, use a USB 2.0 port.

What to do if the hard drive is not recognized by the computer?

Check that all cables are properly connected. Try restarting the computer. If the problem persists, consult the help section at www.philips.com/storageupdates.

How to maintain the external hard drive?

Avoid any contact with water and shocks. Install the device in a well-ventilated place to ensure optimal performance and long life.

What to do in case of technical problem?

For interactive help and support, visit www.philips.com/storageupdates for software updates and FAQs.

USER MANUAL SPD3030 PHILIPS

Exterior view of a Philips electronic device (no additional text or symbols visible)

Contents

EN

4 What's in the box?
4 How to connect?
5 How to disconnect?
5 Installation for Mac
6 Important information
7 Need help?
8 FCC Compliance

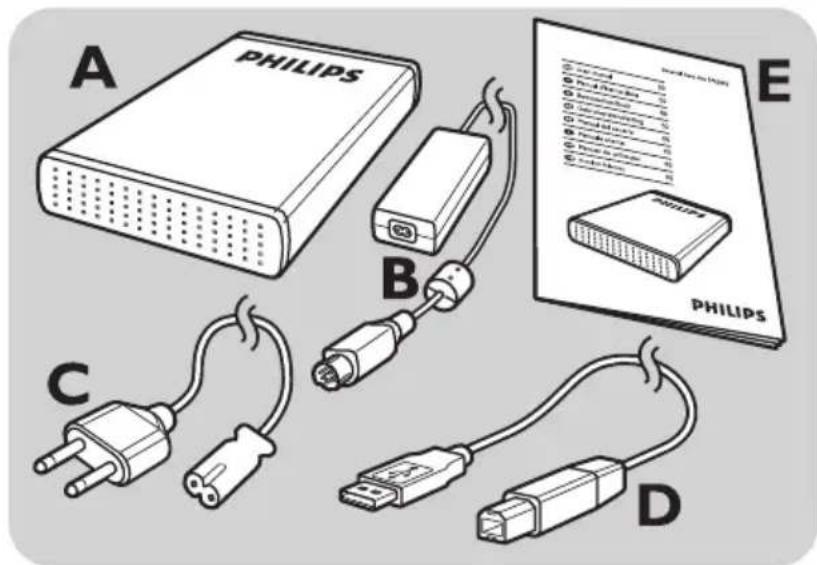

What's in the box?

A PHILIPS B C D E PHILIPS

A : External hard disk

B : Power adapter

C: Power cord

D: USB cable

E : User manual

How to connect?

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text or symbols)

Put the Power Adapter (B) and the Power Cord (C) together and connect them to the external hard disk and a power outlet.

Diagram showing connection between a Philips device and a server, with no visible text or symbols

Plug the USB cable (D) in the USB port of your external hard disk. Connect the other side of the USB cable to an empty USB port of your computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the Blue light should light up. (To use the new hardware, the computer sometimes needs to be restarted)

Your hard disk is now ready to use and you can now save and copy data, just as you do when using your internal hard disk.

How to disconnect?

EN

I Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen.
2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.
3 When the Stop a hardware device screen appears, make sure the correct information is displayed, and then click the OK button.
4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

Installation

Installation for Mac

The hard disk is preconfigured for Windows 2000,

Windows XP and Windows Vista, with a NTFS format.

For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Look on your external hard disk and browse to the folder ‘Philips Warranty’.

You need Adobe Reader software to open these files. If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

"The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes."

WEEE mark: "Information to the Consumer"

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise

you to handle electronics with good care: Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Capacity Depending on model

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 7200 rpm

Cache memory 8 MB/32 MB*

System requirements USB 1.1 (USB 2.0 for

max. transfer speed)

Windows 2000,

Windows XP,

Windows Vista

* for versions >= 750 GB

Need help?

For interactive help and support:

www.philips.com/support

For software updates and frequently asked questions:

www.philips.com/storageupdates

Caution:

Changes or modifications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.

Table des matières

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols.

Be responsible Respect copyrights

* for versions >= 750 GB

Aide

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing cable routing and wiring (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols.

Be responsible Respect copyrights

* for versions >= 750 GB

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text labels)

Diagram showing connection between a device labeled 'PHILIPS' and a server, with no visible text or symbols beyond the label.

Be responsible Respect copyrights

* for versions >= 750 GB

Hulp nodig?

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols

Be responsible Respect copyrights

* for versions >= 750 GB

¡Necesita ayuda?

www.philips.com/support

Diagram of a Philips power supply connected to an electrical outlet, showing connections via wires and components (no text or symbols)

Diagram showing connection between a Philips device and a server, with no visible text or symbols

* for versions >= 750 GB

Assistenza

Diagram of a Philips power supply connected to an electrical outlet via cable and plug (no text or symbols)

Diagram showing connection between a Philips device and a server unit (no text or symbols visible)

Be responsible Respect copyrights

* for versions >= 750 GB

www.philips.com/support

Diagram showing connection between a Philips device and a server unit (no text or symbols visible)

Be responsible Respect copyrights

* for versions >= 750 GB

Yardım?

www.philips.com/support

Specifications subject to change without notice.

All dimensions shown are approximate.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting,

Public performance, transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
