USER MANUAL SPD3041 PHILIPS

EN23 4 What’s in the box? 4 How to connect? 5 How to disconnect? 5 Installation for Mac 6 Important information 7 Need help? 8 FCC Compliance Contents EN4 What’s in the box?

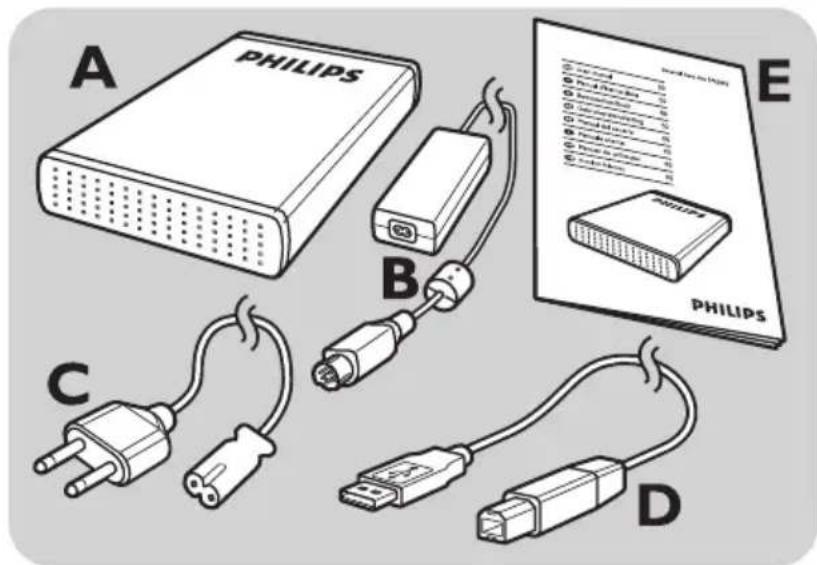

A : External hard disk B : Power adapter C : Power cord D : USB cable E : User manual How to connect? Put the Power Adapter (B) and the Power Cord (C) together and connect them to the external hard disk and a power outlet. Plug the USB cable (D) in the USB port of your external hard disk. Connect the other side of the USB cable to an empty USB port of your computer. A drive icon, Philips External Hard Disk, appears in Windows Explorer and the Blue light should light up. (To use the new hardware, the computer sometimes needs to be restarted) Your hard disk is now ready to use and you can now save and copy data, just as you do when using your internal hard disk.5 How to disconnect? Installation

1 Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen. 2 In the window that appears, select the name of the device that is to be removed, then click the Stop button. 3 When the Stop a hardware device screen appears, make sure the correct information is displayed, and then click the OK button. 4 When the message Safe to remove hardware appears, remove the drive from the computer’s USB port. Installation for Mac The hard disk is preconfigured for Windows 2000, Windows XP and Windows Vista, with a NTFS format. For Mac, the hard disk needs to be formatted to FAT32.6 Important information

How to find warranty information? Look on your external hard disk and browse to the folder ‘Philips Warranty’. You need Adobe Reader software to open these files. If you don’t have Adobe Reader, you can download it for free on www .adobe.com

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect. “The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.” WEEE mark: “Information to the Consumer” Disposal of your old product Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste. WARNING Plastic bags can be dangerous. To avoid danger of suffocation, keep this bag away from babies and small children. Although this product has been designed with utmost care for long-lasting performance. Philips does advise7 Need help?

you to handle electronics with good care:Avoid contact with water, exposure to extreme forces. Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance. Specifications Capacity Depending on model Interface Hi-Speed USB 2.0 Transfer speed 480 Mb/s Rotational speed 7200 rpm Cache memory 8 MB/32 MB* System requirements USB 1.1 (USB 2.0 for max. transfer speed) Windows 2000, Windows XP, Windows Vista

• for versions >= 750 GB For interactive help and support: www .philips.com/support For software updates and frequently asked questions: www .philips.com/storageupdates8 FCC Compliance

Caution: Changes or modifications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules.These limits are designed to

provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.9 Table des matières

• for versions >= 750 GB İnteraktif yardım ve destek için: www .philips.com/support Yazılım güncellemeleri ve sıkça sorulan sorular: www .philips.com/storageupdates50 Notes51 NotesSpecifications subject to change without notice. All dimensions shown are approximate. © 2006 Koninklijke Philips Electronics N.V. All rights reserved. Reproduction, copying, usage, modifying, hiring, renting, Public performance, transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
