USER MANUAL SPE2005 PHILIPS

Black Philips hard drive with white and black casing (no visible text or symbols beyond branding)

4 What's in the box?
5 How to connect this external hard disk to your computer?
5 How to safely disconnect?
6 How to install for Mac
7 Warranty, Environment and Safety
8 Specifications

Important note

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the USB power cable supplied together with this product. For instructions and more information, see page 5.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

Illustration of a black Philips hardcover case (no text or symbols on the cover itself)

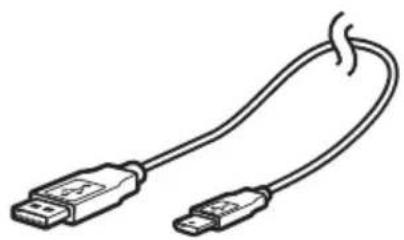

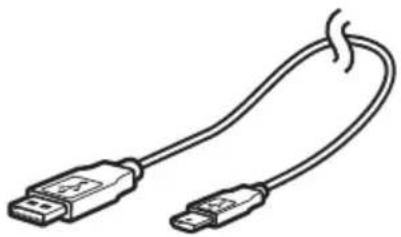

A: External hard disk B: Mini USB cable

Line drawing of a USB cable with two connectors (no text or symbols)

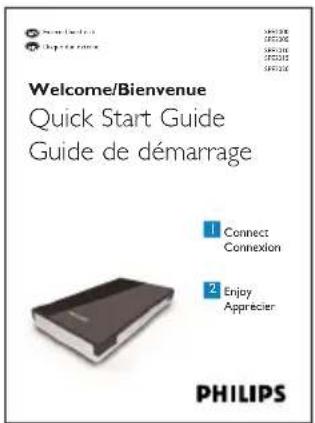

Welcome/Bienvenue Quick Start Guide Guide de démarrage 1 Connect Connexion 2 Enjoy Apprecier PHILIPS

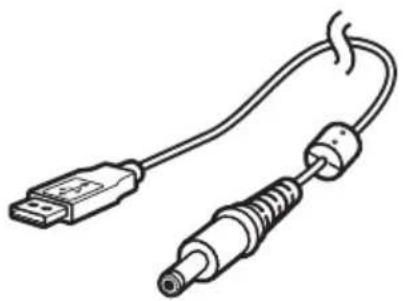

C: Quick Start Guide D: USB power cable

Line drawing of a USB cable with two connectors (no text or symbols)

How to connect this external hard disk on your system?

EN

Illustration of a black electronic device connected to a wall-mounted power bank via cable (no text or symbols visible)

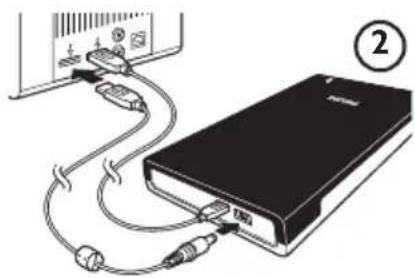

Connect the USB cable to the hard disk, and to an empty USB port of the computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the blue light should light up. (The computer sometimes needs to be restarted, before you can use the new hardware).

Diagram of a power bank connected to an external device via cable (no text or symbols visible)

When Windows does not recognize the hard disk (some PCs or laptops provide insufficient bus power on one USB port), plug the additional USB power cable (D) into an empty USB port of your computer.

How to safely disconnect?

I Double-click the Safely Remove Hardware icon in the system tray in the lower right part of the screen.

2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.

3 When the Stop a hardware device screen appears, check that the correct information is displayed, and then click the OK button.

4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

EN

How to use the software

The CoSoSys Carry it Easy software allows you to password protect your files. To launch the software, double-click on the CarryitEasy.exe file on the hard disk icon in your Windows explorer. Follow the instructions on your screen to get started.

See the Carry it Easy manual in the folder ‘Manuals’ on your hard disk for more instructions and more information.

How to install for Mac

The hard disk is preconfigured for Windows 2000, Windows XP and Windows Vista, with a NTFS file system. For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

You need Adobe Reader software to open these files.

If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

'The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.'

WEEE mark: 'Information to the Consumer'.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise you to handle electronics with good care:

Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Technical Specifications:

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 5400 rpm

Cache memory 8 MB

System requirements USB1.1 (USB 2.0 for max. transfer speed)

Windows 2000, Windows XP, Windows Vista

For interactive help and support:

www.philips.com/welcome

For software updates and frequently asked questions:

www.philips.com/storageupdates

Table des matières

Illustration of a black Philips hardcover case (no text or symbols on the cover itself)

Line drawing of a USB cable with two connectors (no text or symbols)

A: Disque dur externe B: Câble mini-USB

Welcome/Bienvenue Quick Start Guide Guide de démarrage 1 Connect Connexion 2 Enjoy Apprecier PHILIPS

Line drawing of a USB cable with two connectors (no text or symbols)

Illustration of a black electronic device connected to a wall-mounted power bank via cable (no text or symbols visible)

Diagram of a USB cable connection to a black electronic device (no text or symbols visible)

Be responsible Respect copyrights

Illustration of a black Philips hard drive case (no text or symbols on body)

A: Externe Festplatte B: Mini USB-Kabel

Line drawing of a USB cable with two connectors (no text or symbols)

Welcome/Bienvenue Quick Start Guide Guide de démarrage 1 Connect Connexion 2 Enjoy Apprecier PHILIPS

Line drawing of a USB cable with two connectors (no text or symbols)

Illustration of a device with cables and connectors, showing a black rectangular device connected to a wall-mounted interface (no text or symbols visible)

Diagram of a power bank connected to an external device via cable (no text or symbols present)

Be responsible Respect copyrights

Illustration of a black Philips hard drive case (no text or symbols on the device body)

Line drawing of a USB cable with two connectors (no text or symbols)

Line drawing of a USB cable with two connectors (no text or symbols)

C: Korte handleiding D: USB-voedingskabel

Illustration of a USB cable connecting an electronic device to a black rectangular power bank, with no visible text or symbols.

Diagram of a power bank connected to an external device via cable (no text or symbols visible)

Be responsible Respect copyrights

Illustration of a black Philips hardcover with visible spine and cover (no text or symbols beyond branding)

Line drawing of a USB cable with two connectors (no text or symbols)

A: Disco duro externo B: Cable mini USB

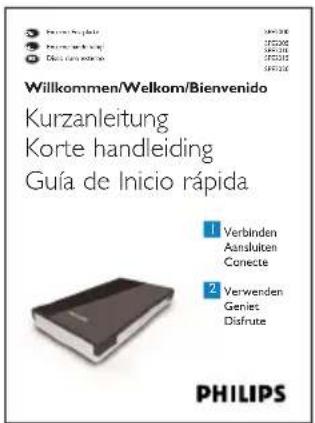

Willkommen/Welkom/Bienvenido Kurzanleitung Korte handleiding Guía de Inicio rápida 1 Verbinden Aansluiten Conecte 2 Verwenden Genies Distrute PHILIPS

Line drawing of a USB cable with two connectors (no text or symbols)

Illustration of a black electronic device connected to a wall-mounted power bank via cable (no text or symbols visible)

Diagram of a black power bank connected to a cable with two USB ports, showing connection details (no text or symbols)

Be responsible Respect copyrights

Illustration of a black Philips hard drive case (no text or symbols on body)

Line drawing of a USB cable with two connectors (no text or symbols)

A: Disco rigido esterno B: Cavo mini USB

IT

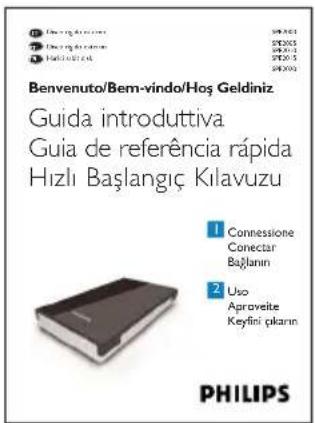

Benvenuto/Bem-vindo/Hoş Geldiniz Guida introduttiva Guia de referência rápida Hizli Başlangıç Kilavuzu 1 Connessione Conectar Bağlanın 2 Uso Aproveite Keyfini qiğlann PHILIPS

Line drawing of a USB cable with two connectors (no text or symbols)

Illustration of a black electronic device connected to a wall-mounted power bank via cable (no text or symbols visible)

Diagram of a power bank connected to an external device via cable (no text or symbols visible)

Be responsible Respect copyrights

Illustration of a black Philips hardcover with visible spine and cover (no text or symbols beyond branding)

Line drawing of a USB cable with two connectors (no text or symbols)

Line drawing of a USB cable with two connectors (no text or symbols)

Illustration of a device with cables and connectors, showing a black rectangular device connected to a wall-mounted interface (no text or symbols visible)

Diagram of a USB cable connection to a black electronic device (no text or symbols visible)

Be responsible Respect copyrights

Illustration of a black Philips hard drive case (no text or symbols on body)

Line drawing of a USB cable with two connectors (no text or symbols)

A: Harici sabit disk B: Mini USB kablosu

TR

Benvenuto/Bem-vindo/Hoş Geldiniz Guida introduttiva Guia de referência rápida Hızlı Başlangıç Kilavuzu 1 Connessione Conectar Bağlanın 2 Uso Aproveite Keyfini qiğlann PHILIPS

Line drawing of a USB cable with two connectors (no text or symbols)

Diagram showing a USB cable connecting an external network device to a black rectangular electronic device (no text or symbols visible)

Diagram of a power bank connected to an external device via cable (no text or symbols visible)

Be responsible Respect copyrights
