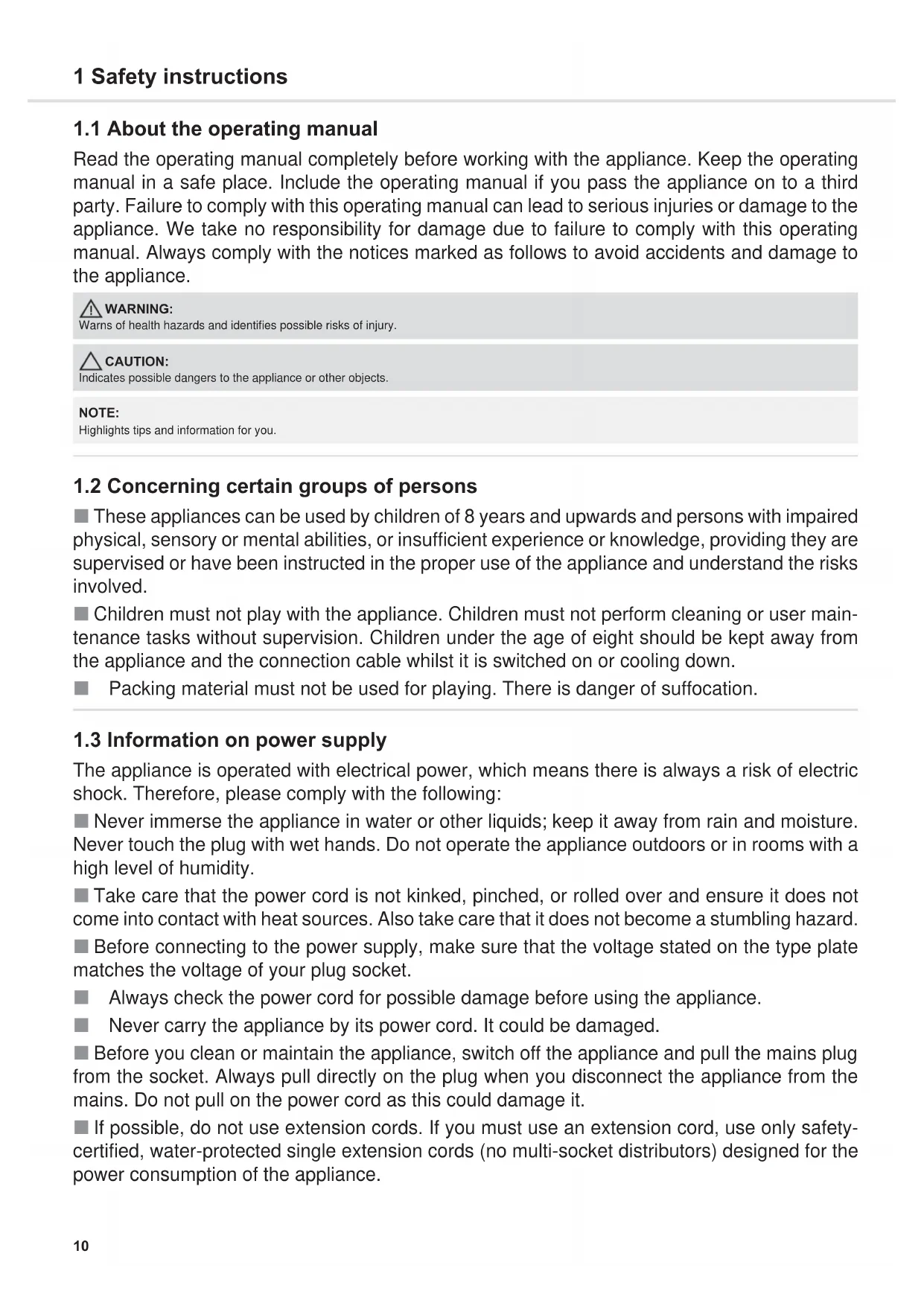

1.1 About the operating manual

Read the operating manual completely before working with the appliance. Keep the operating manual in a safe place. Include the operating manual if you pass the appliance on to a third party. Failure to comply with this operating manual can lead to serious injuries or damage to the appliance. We take no responsibility for damage due to failure to comply with this operating manual. Always comply with the notices marked as follows to avoid accidents and damage to the appliance.

1.2 Concerning certain groups of persons

These appliances can be used by children of 8 years and upwards and persons with impaired physical, sensory or mental abilities, or insufficient experience or knowledge, providing they are supervised or have been instructed in the proper use of the appliance and understand the risks involved. Children must not play with the appliance. Children must not perform cleaning or user main- tenance tasks without supervision. Children under the age of eight should be kept away from the appliance and the connection cable whilst it is switched on or cooling down. Packing material must not be used for playing. There is danger of suffocation.

1.3 Information on power supply

The appliance is operated with electrical power, which means there is always a risk of electric shock. Therefore, please comply with the following: Never immerse the appliance in water or other liquids; keep it away from rain and moisture. Never touch the plug with wet hands. Do not operate the appliance outdoors or in rooms with a high level of humidity. Take care that the power cord is not kinked, pinched, or rolled over and ensure it does not come into contact with heat sources. Also take care that it does not become a stumbling hazard. Before connecting to the power supply, make sure that the voltage stated on the type plate matches the voltage of your plug socket. Always check the power cord for possible damage before using the appliance. Never carry the appliance by its power cord. It could be damaged. Before you clean or maintain the appliance, switch off the appliance and pull the mains plug from the socket. Always pull directly on the plug when you disconnect the appliance from the mains. Do not pull on the power cord as this could damage it. If possible, do not use extension cords. If you must use an extension cord, use only safety- certified, water-protected single extension cords (no multi-socket distributors) designed for the power consumption of the appliance.

The cylinder vacuum cleaner is intended for home use only. It is not suitable for commercial use. Use the cylinder vacuum cleaner only for cleaning dry, normally soiled floors and carpet floor- ings. Depending on which nozzle you have attached (Zchapter 2.1, „Assemble appliance and adjust nozzles to surface“), you can also use the appliance to vacuum furniture or non-sensitive upholstery. Any other use is considered improper use and is prohibited. Also prohibited: Vacuuming of: - Persons, animals, plants, especially hair, fingers and other parts of the body as well as pieces of clothing worn on the body. These might be drawn in. This could result in injuries. - Water and other fluids, especially damp carpet cleaners. Moisture inside the appliance can cause a short-circuit. - Toner (for laser printers, copying machines, etc.). There is danger of fire or explosion. - Hot ashes, burning cigarettes or matches. There is a danger of fire. - Pointed objects, such as glass shards, nails, etc. They can damage the appliance. - Rubble, plaster, cement, fine drilling-dust, make-up, etc. These might damage the appli- ance. To use the appliance near explosive or highly-flammable substances. There is a risk of fire or explosion. Use of the appliance outdoors. Rain and dirt may damage the appliance. Sticking objects into the appliance's openings. It could overheat. To modify or repair the appliance yourself.

1.5 About the option turbo brush

The bristles of the optionally included turbo brush rotate very rapidly. There is a danger of injury. Do not use the turbo brush on persons, animals or plants. Keep body parts away from the rotating brush roller. Switch off the vacuum cleaner before cleaning or detaching the turbo brush. Never run over cables. Otherwise, the insulation could get damaged. The turbo brush is not suitable to clean sensitive surfaces. This may cause damage. Comply with the care and cleaning instructions provided by the manufacturer.

1.6 If the appliance is defective

Never use a defective appliance or operate an appliance with a defective power cord. If the power cord of this appliance is damaged, it must be replaced by the manufacturers, their au- thorised service representative or a similarly qualified person to avoid danger. Hand over a de- fective appliance to a specialist dealer or send it to the Dirt Devil customer service department for repairs (ZPage 46, ‘International Service’). DD 2822.book Seite 11 Montag, 22. Dezember 2014 11:55 1112 2Use 2Use

2.1 Assemble appliance and adjust nozzles to surface

1. Connect suction hose and appliance (Fig. 1).2. Insert the accessory included in the scope of delivery onto the handle (Fig. 2 - 10) depending on what type of surface you want to vacuum:- Furniture brush (Fig. 2) for objects with a sensitive surface- Crevice nozzle (Fig. 3) or optional long flexible crevice nozzle (Fig. 4)for crevices in upholstery- Optional mini turbo brush (Fig. 5) for non-sensitive upholstery, runner, mats, and the like- Floor nozzle with switch position as in Fig. 8 for carpets- Floor nozzle with switch position as in Fig. 9 for hard floors- Optional parquet brush (Fig. 10) for sensitive hard floors3. Ensure that the bypass vent is closed (Fig. 6).4. If you use the telescopic tube, adjust its length (Fig. 7).

Risk of injury! Only attach the appliance parts when the appliance is notconnected to the power supply. Otherwise the machine might start upand parts of your body, hair or pieces of clothing might be sucked in. CAUTION: Before assembling, make sure that the fitted nozzle suits the surface tobe cleaned. Never use a brush with rotating bristles for example toclean floors or objects that may not be able to withstand the treatmentwithout damage. Observe the flooring manufacturer's recommendationsand care information. NOTE: You might have to twist the parts when connecting them so they aresecurely in place.

Risk of injury! Check appliance and power cord before each use. Adamaged appliance must never be used. CAUTION: Only use the appliance with all filters undamaged, in dry condition andcorrectly fitted. Make sure that no objects obstruct the telescopic tube,the suction hose or other openings.

Danger of electric shock! If the red marking is visible (Fig. 12), retract thecord by pressing the cord retraction button ( ) to pull in the cord up to theyellow mark (Fig. 13). Otherwise, the power cord may be damaged. NOTE: When vacuuming the bypass vent (Fig. 6) must be completely closed.With its help you can quickly reduce the suction power, to releaseobjects (such as curtains) that have been sucked in.

Risk of injury! Especially when vacuum-cleaning stairs make sure thatyou always stand on a higher level than the appliance. DD 2822.book Seite 12 Montag, 22. Dezember 2014 11:55 1113 3 Service and maintenance

3 Service and maintenance

3.1 Empty dust bin and clean filter elements

1. Switch off the appliance ( ).2. Pull the plug out of the plug socket.3. Remove the dust bin (Fig. 16).4. Empty the dust bin (Fig. 17).5. Take this opportunity to also check the filter elements (dual motor pro-tection filter and filter unit) in the dust bin (Fig. 18 – 22).6. If the filter elements (dual motor protection filter and filter unit) are dirty, clean them under cold or lukewarm running water until all dirt has gone (Fig. 23).7. Let the filter elements dry (for approx. 24 hours at room temperature, Fig. 24) after wet cleaning.8. Insert the filter elements again (Fig. 25 – 28).9. Re-insert the dust bin (Fig. 29). You must be able to feel and hear it click into place. click!

24 h NOTE: The dust bin has to be emptied and cleaned regularly. Otherwise empty-ing it will get harder and harder or smells and bacteria might develop,depending on what you have vacuumed up. Therefore, it is best to empty the dust bin after each vacuuming ses-sion. Empty and clean the dust bin at least - every 3 months, - before prolonged storage or - before shipping the appliance. CAUTION: Switch off the appliance before removing the dust bin. This will preventdust from damaging the appliance. NOTE: You can dispose of the content of the dust bin with your domestic wasteas long as the dirt does not contain any substances prohibited fordomestic waste. CAUTION: The filter elements are washable, but may not be cleaned in dishwash-ers or washing machines. Do not use cleaning agents or brushes with hard bristles to clean thefilter elements. Let the filter elements dry (for approx. 24 hours at room temperature,Fig. 24) after wet cleaning. Do not re-install them until they are completely dry. Replace damaged or deformed filters immediately (for ordering infor- mation see ZChapter 3.4, ‘Spare parts and accessories’). NOTE: The filter elements are designed so that they can only be fully inserted ifin the right position. Nevertheless, it is helpful if you align the filter unit properly with thedust bin as shown in Fig. 26 before inserting it. Then lower the filter unit completely into the dust bin until the threenoses of the dust bin engage with the respective recesses of the filter unit(Fig. 26). Do not use force upon insertion. If the dust bin lid (Fig. 28) will notshut properly, you have to take the parts out again and put them back in. CAUTION: Never operate the appliance without the filters in place. Never operate the appliance with damaged filters. DD 2822.book Seite 13 Montag, 22. Dezember 2014 11:55 1114 3 Service and maintenance

3.2 Cleaning/replacing the exhaust filter

1. Switch off the appliance ( ).2. Pull the plug out of the plug socket.3. Release the exhaust filter cover as shown (Fig. 30).4. Remove the exhaust filter using the tab provided (Fig. 31). 5. Tap out the exhaust filter over a dustbin.6. Then brush out the exhaust filter with a soft brush, e.g. the furniture brush included in the scope of delivery (Fig. 32).7. Press the exhaust filter back into its console until the removal tab audibly engages.8. Attach the exhaust filter cover at the bottom first (Fig. 33).9. Lock the exhaust filter cover (Fig. 34).

3.4 Spare parts and accessories

The following accessories and spare parts can be reordered:Accessory parts and spare parts can be reordered from:ZPage 46, ‘International Service’ click!

CAUTION: Clean the filter each time you clean the dust bin. Replace the filter if it is damaged or deformed (see ZChapter 3.4, ‘Spare parts and accesso- ries’ for ordering information). CAUTION: The exhaust filter cannot be washed. NOTE: The exhaust filter cover can be locked more easily if you hold therelease mechanism (Fig. 34) and only release it when the exhaust filtercover is in its final position.

Risk of injury! Switch off the appliance after vacuuming ( ) and wind upthe power cord ( ). When winding up the cord, keep the plug in yourhand so that the cord does not thrash about and cannot injure you.

Risk of injury! Always keep the appliance out of the reach of children. CAUTION: Never store the appliance directly next to heat sources (e.g. heater,oven). Avoid exposure to direct sunlight. Keep the appliance and acces-sories in a cool, dry place where it does not take up too much space(Fig. 35 – 39). CAUTION: If you intend to store the appliance for a longer period, empty and clean the dust bin and its filter elements ZChapter 3.1, ‘Empty dust bin and clean filter elements’.Item number Content2822001 Filter set consisting of:1 dual motor protection filter (Fig. 19) + 1 exhaust filter (Fig. 32)M203-4 1 parquet brushM208-8 1 turbo brushM219 1 mini-turbo brush "Fellino"M221 1 mini-turbo brush "Fello" CAUTION: Only use original spare parts from the scope of delivery or those whichyou have purchased by reordering. DD 2822.book Seite 14 Montag, 22. Dezember 2014 11:55 1115 4 Troubleshooting and technical data

4 Troubleshooting and technical data

4.1 Before you send in the appliance

Before contacting us or even sending the appliance to us, use the table tocheck whether you can correct the problem yourself.

The statutory warranty regulations in accordance with the EU Directive1999/44/EC apply. In non-EU countries the minimum requirements of the warranty in the re-spective country apply.

Dispose of the appliance in compliance with the environmentalprotection laws of your country. Electrical waste may not be dis-posed of together with domestic waste. Use local old-appliancecollection points instead. The filters are made from environment-friendly materials. You can disposeof these — as opposed to the appliance — in your domestic waste unlessyou have cleaned up substances that are prohibited from disposal in this way.

We reserve the right to make changes to technicaland design specifications in the interest of continu-ous product improvement. © Royal Appliance International GmbH

Risk of injury! Never use a faulty appliance! Always switch off the appli-ance and disconnect it from the mains before starting troubleshooting.Problem Possible cause / solutionThe vacuum clean-er stops suddenly.The overheating protection has tripped (possibly due to blocked suction channels, filters, or similar). 1. Switch the appliance off and pull the plug out of the socket. 2. Remove the cause of overheating (e.g.by disassembling telescopic tube and suction hose and removing the obstacle and/or cleaning filters). 3. Wait around 45 minutes until the appliance has cooled down. 4. After the appliance has cooled off, you may switch it on again.When using the long, flexible crev-ice nozzle, the ap-pliance generates a whistling sound and the suction power drops rapidly.Negative pressure in the vacuum cleaner is too high. This caused the safety valve in the vacuum cleaner to trigger.Open the bypass vent until the valve no longer triggers.Problem Possible cause / solutionThe clean-ing results are unsat-isfactory in spite of the appliance working correctly.Bypass vent (Fig. 6) is open.Close the bypass vent (Fig. 6).The attached nozzle is unsuitable.Change the nozzle, ZChapter 2.1, ‘Assemble appliance and adjust nozzles to surface’.Collar brush of the floor nozzle is in a position that is not appropriate for the floor (Fig. 8 – 9). Adjust the position of the collar brush to the floor via the switch on the floor nozzle (Fig. 8 – 9).The dust bin is full. Empty and clean the dust bin ZChapter 3.1, ‘Empty dust bin and clean filter elements’.The filters are dirty.Clean the filters, ZChapter 3.1, ‘Empty dust bin and clean filter elements’ or ZChapter 3.2, ‘Cleaning/replac- ing the exhaust filter’.Nozzle, telescopic tube or suction hose is blocked.Remove the obstruction. If necessary, use a long wooden stick (e.g. a broomstick) to do this. NOTE: If you cannot solve the problem using this table, contact the Dirt Devil customer service department (ZPage 46, ‘International Service’). Type of appliance : bagless cylinder vacuum cleanerModel name : YAZZModel number : DD 2822 [-0/-1/.../-8/-9]Voltage : 220-240 V ~, 50/60 HzPower : 1,000 WMaximum usable volume of the dust bin : approx. 2.5 litresPower cord length : approx. 5 m Weight : approx. 4.5 kg DD 2822.book Seite 15 Montag, 22. Dezember 2014 11:55 1116 1 Consignes de sécurité 1 Consignes de s écurité
