USER MANUAL Reach Max BD22510 DIRT DEVIL

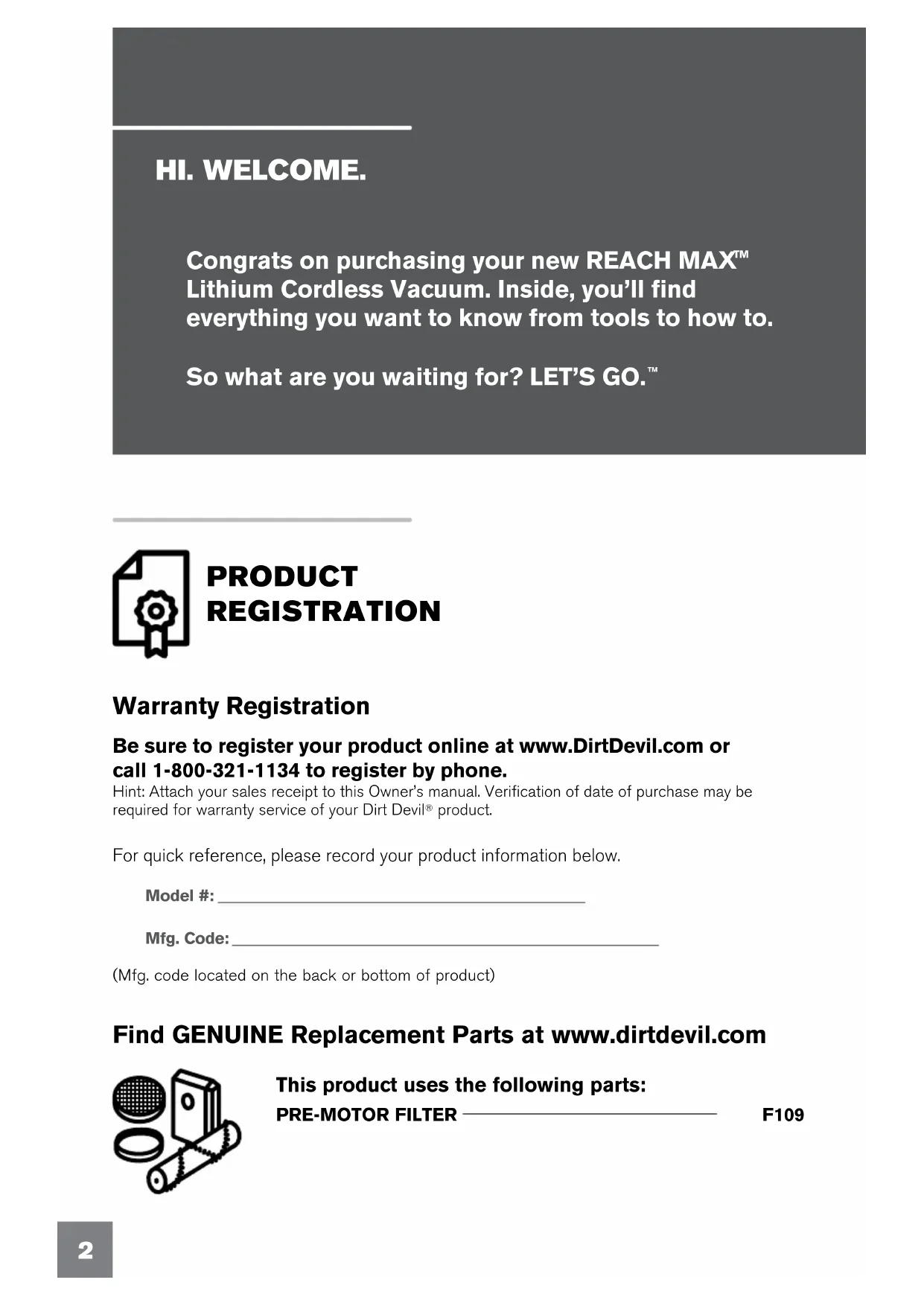

MAX TMHI. WELCOME. PRODUCT REGISTRATION For quick reference, please record your product information below. Model #: Mfg. Code: (Mfg. code located on the back or bottom of product) Warranty Registration Be sure to register your product online at www.DirtDevil.com or call 1-800-321-1134 to register by phone. Hint: Attach your sales receipt to this Owner’s manual. Verification of date of purchase may be required for warranty service of your Dirt Devil

product. Congrats on purchasing your new REACH MAX

Lithium Cordless Vacuum. Inside, you’ll find everything you want to know from tools to how to. So what are you waiting for? LET’S GO.

This product uses the following parts:

TABLE OF CONTENTS Quick Start Assembly 6-7 How to Use

How to Empty the Dirt Cup

How to Clean the Cyclonic Filter

How to Clean the Brushroll & Stair Tool

Tools 13-14 Troubleshooting 15-16 Limited Warranty

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE,

• Do not use the unit, store, or charge battery outdoors or on wet surfaces. Do not allow to get wet.• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used by or near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.• Use only as described in this manual. Use only manufacturer’s recommended attachments.• Do not use charger with damaged cord or plug. If appliance or charger is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use. • Do not pull or carry charger by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.• Do not unplug charger by pulling on cord. To unplug charger, grasp the charger, not the cord.• Do not handle charger, including charger plug, and charger terminals with wet hands.• Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. • Use extra care when cleaning on stairs. Do not place cleaner on stairs or furniture, as it may result in injury or damage.• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.• Turn power switch off before removing or installing powered nozzle.• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.• Do not use without filters and/or dirt cup in place.• WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm. WASH HANDS AFTER USING.• Do not incinerate the charger, battery, or appliance even if it is severely damaged. The batteries can explode in a fire. • This product includes rechargeable lithium-ion batteries. Do not expose batteries to high temperatures, as they may catch fire and/or explode. • Do not expose battery to crushing, incineration or similar actions.• Do not dispose of battery in a fire or trash compactor. See battery disposal section for directions. • Do not attempt to disassemble battery.• Unplug the charger from the outlet before any routine cleaning or maintenance.• Leaks from battery cells can occur under extreme conditions. If any liquid gets on the skin wash quickly with soap and water. If any liquid gets into the eyes, immediately flush them with clean water continuously for a minimum of 15 minutes. Seek medical attention immediately. • Use only the charger supplied by Royal Appliance to recharge. • Do not attempt to short circuit the battery or charger terminals. • The charger is for indoor use only. Be sure to always keep the battery and charger in a dry place.5 A THERMAL PROTECTOR HAS BEEN DESIGNED INTO YOUR CLEANER TO PROTECT IT FROM OVERHEATING. WHEN THE THERMAL PROTECTOR ACTIVATES THE CLEANER WILL STOP RUNNING. If this happens proceed as follows:

1. Turn cleaner OFF.

3. Inspect the nozzle opening, dirt cup inlet and filter. Clear obstructions if present.

4. When cleaner is turned off and motor cools for 30 minutes, the thermal protector

will deactivate and cleaning may continue. If the thermal protector continues to activate after following the above steps, your cleaner needs servicing. NOTICE

• Put product away after use to prevent tripping accidents.• CAUTION: Not to be used for grooming a pet. CAUTION: TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.

• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.

SAVE THESE INSTRUCTIONS

CAUTION: The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above manufacturer’s maximum temperature limit (60°C/140°F), or incinerate. Dispose of battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire. Do not attempt to disassemble the battery or remove any component projecting from the battery terminals. The battery and charger have no user serviceable parts. Fire or injury may result. Prior to disposal, protect exposed terminals with heavy insulating tape to prevent shorting. BATTERY DISPOSAL WARNING: RISK OF EXPLOSION OR EXPOSURE TO TOXIC MATERIAL. 1-800-822-8837 LITHIUM-ION BATTERIES The battery must be collected, recycled or disposed of in an environmentally sound manner. The EPA certified RBRC Battery Recycling Seal on the lithium-ion (Li-ion) battery indicated Techtronic Industries, a corporate affiliate of Dirt Devil., is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient alternative to placing used Li-ion batteries into the trash or the municipal waste stream, which may be illegal in your area. Please visit www.rbrc.org/call2recycle/ for information on Li-ion battery recycling and disposal bans/restrictions in your area. Dirt Devil, involvement in this program is part of our commitment to preserving our environment and conserving our natural resources.6

INSERT POWERED WAND INTO

HANDHELD AND ATTACH THE

REMOVE CREVICE TOOL FROM

REVIEW INSTRUCTIONS. CHARGE INDICATOR LIGHTS

UNIT UNTIL ALL THREE LIGHTS

ARE OFF, WHICH INDICATES

CLEAN! NEED HELP?Go to dirtdevil.com/support or contact our Customer Service Department at [phone] 8:00 a.m. - 7:00 p.m. EST Mon. - Fri. Pick up the conversation [e-mail]/DirtDevil POWER WAND RELEASE CHARGE INDICATOR LIGHTS8 NOTE: Empty dirt cup after each use or until full. Check the filter to see if it needs cleaned. Refer to page 10 for filter details. TIP: The power must be OFF for the unit to charge.

AGAIN FOR BOOST MODE. NOTE: Use only the charger supplied by the manufacturer to recharge. TIP: For a better experience, fully charge the unit before first use. NOTE: The charge indicator will pulse while charging. The charger will be warm while charging. NOTE: The unit will charge only for as long as needed. It may take up to 3 hours for full charge. NOTE: If the unit is running and the charger plug is connected to the unit, the unit will shut off to prevent damage to the charger or unit.

AND TURN OFF WHEN FULLY

BE OFF IN ORDER TO RECHARGE. HOW TOAny other servicing should be done by an authorized service representative. If the appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, take it to a service center prior to continuing use. This would be a good time to check the condition of your filter. Dirty? Check out page 10 for cleaning steps. PRESS CLICK

REMEMBER TO CLEAN THE

FILTER AND CLOSE THE LID

UNTIL THE LATCH CLICKS. WARNING To reduce the risk of personal injury - Turn off before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.TOP VIEW OF F109 FILTER WARNING To reduce the risk of personal injury - Turn off before cleaning or servicing.

RINSE FILTER WITH WATER

F109 FILTERTo reduce the risk of personal injury from moving parts, disconnect all accessories before servicing. WARNING

POWERED CARPET NOZZLE:TURN THE CARPET NOZZLE OVER. BRUSHROLL RELEASE:RETRACT BRUSH ROLL RELEASE BUTTON TO RELEASE BRUSH ROLL. PULL BRUSH ROLL UP AND OUT. REMOVE ANY HAIR AND DEBRIS FROM THE BRUSHROLL.REPLACE BRUSHROLL INSERT BRUSHROLL BACK IN THE NOZZLE BY ALIGNING BRUSHROLL TO FIT INTO HEXAGON IN THE NOZZLE. PRESS DOWN UNTIL YOU HEAR A CLICK.STAIR TOOL:TURN THE STAIR TOOL OVER. REMOVE ANY HAIR AND DEBRIS FROM THE BRUSHROLL.*NOT ALL MODELS WILL HAVE THIS TOOL CAUTION Not to be used for grooming a pet.

UPHOLSTERY TOOL:* USE ON CARPETED STAIRS, UPHOLSTERY AND IN YOUR CAR. IT SWIVELS 180° FOR CONVENIENT CLEANING.*NOT ALL MODELS WILL HAVE THIS TOOL CREVICE TOOL: USE IN TIGHT SPACES, CORNERS, CARS AND ALONG EDGES IN SUCH PLACES AS DRAWERS, UPHOLSTERED FURNITURE, STAIRS AND BASEBOARDS. LUBRICATION:The motor and brushroll are equipped with bearings which contain lifetime lubrication. The addition of lubricant could cause damage. Do not add lubricant to motor or brushroll. CAUTION To avoid injury, particularly to face and head, keep hair, loose clothing, fingers, and all parts of the body away from revolving brush. POWERED WAND: PROVIDES POWER TO CARPET NOZZLE AND EXTENDED REACH FOR ABOVE AND HARD FLOOR CLEANING. POWERED CARPET NOZZLE: GREAT FOR CARPET AND HARD FLOORS. WARNING Turn off before connecting any powered accessories. CAUTION Not to be used for grooming a pet. WARNING To reduce the risk of personal injury from moving parts, disconnect all accessories before servicing.

THE TOOLS INCLUDED WITH YOUR

ADHERE THE SUPPORT BRACKET TO THE WALL AT THE HEIGHT OF THE CORDLESS STICK VAC. APPLY EVEN PRESSURE WHEN ADHERING THE SUPPORT BRACKET TO THE WALL. SUPPORT BRACKET*15 Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTIONDust escaping from vacuum1. Dirt cup full. 1. Empty dirt cup. (see page 9)2. Dirt cup not installed correctly.2. Review Dirt Cup removal & replacement. (see page 6)3. Rinsable and/or Cyclonic Filter not installed completely.3. Review Filter Removal and Cleaning. (see page 10 & 11)Smokey/burningsmell detected1. Belt broken or stretched. 1. Call Customer Service: 1-800-321-1134.2. Brushroll is clogged. 2. Clear/remove debris from brushroll.Vacuum tools won't pick up1. Dirt cup full. 1. Empty dirt cup. (see page 9)2. One or both filters are clogged.2. Remove both filters and clean. (see page 10 & 11)3. Stair + upholstery tool not spinning.3. Remove and reattach. (see page 12)4. Power carpet nozzle not spinning.4. Remove and reattach. (see page 12)Poor suction1. Dirt cup not seated completely.1. Reinstall dirt cup make sure lid is closed completely. (see page 6)2. One or both filters clogged.2. Remove both filters and clean. (see page 10 & 11)3. Dirt Cup not installed correctly.3. Review Filter Removal & Replacement (see page 6)4. Battery charge is getting weak.4. Charge battery. (see page 8)5. Filter is dirty. 5. Clean or replace filter. (see page 10 & 11)6. Clogged filter. 6. Remove filter and clean. (see page 10)7. Nozzle/dirt passage clogged.7. Turn off the unit and then disconnect the nozzle to remove debris. (see page 12)Vacuum running warm 1. Dirty filter (s) 1. Clean filter, rinse, dry and re-assemble. (see page 10)2. Low suction. 2. Locate clog and remove.To reduce the risk of personal injury - Turn off before cleaning or servicing. WARNING TROUBLESHOOTING716 Slow Pulse = Charging(Continuous during charge cycle)Fast Blink = Error(15 seconds duration for error code) LED Illumination Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTIONVacuum won't run1. Battery not charged. 1. Charge battery for up to 3 hours. The indicator lights will pulse while charging and turn off once fully charged.2. Battery dead - won’t hold charge.2. Contact customer service. Visit our website at www.dirtdevil.com or call 1-800-321-1134. 3. Needs service. 3. Contact customer service. Visit our website at www.dirtdevil.com or call 1-800-321-1134..Charger indicator flashes and then goes out1. Problem with the charging circuit1. Contact customer service. Visit our website at www.dirtdevil.com or call 1-800-321-1134.To reduce the risk of personal injury - Turn off before cleaning or servicing. WARNINGLIMITED WARRANTY

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner’s Manual, your Dirt Devil

product is warranted against original defects in material and workmanship. During the Warranty Period, We will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to a Dirt Devil

Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Dirt Devil

online at www.DirtDevil.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Dirt Devil

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), brushroll, belt, bags, filters, improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Royal Appliance Mfg. Co. (“Royal”, “we”), owner’s acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls. This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Royal products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY ROYAL. ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL ROYAL BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.
