USER MANUAL Cafe Mattino 47082 MORPHY RICHARDS

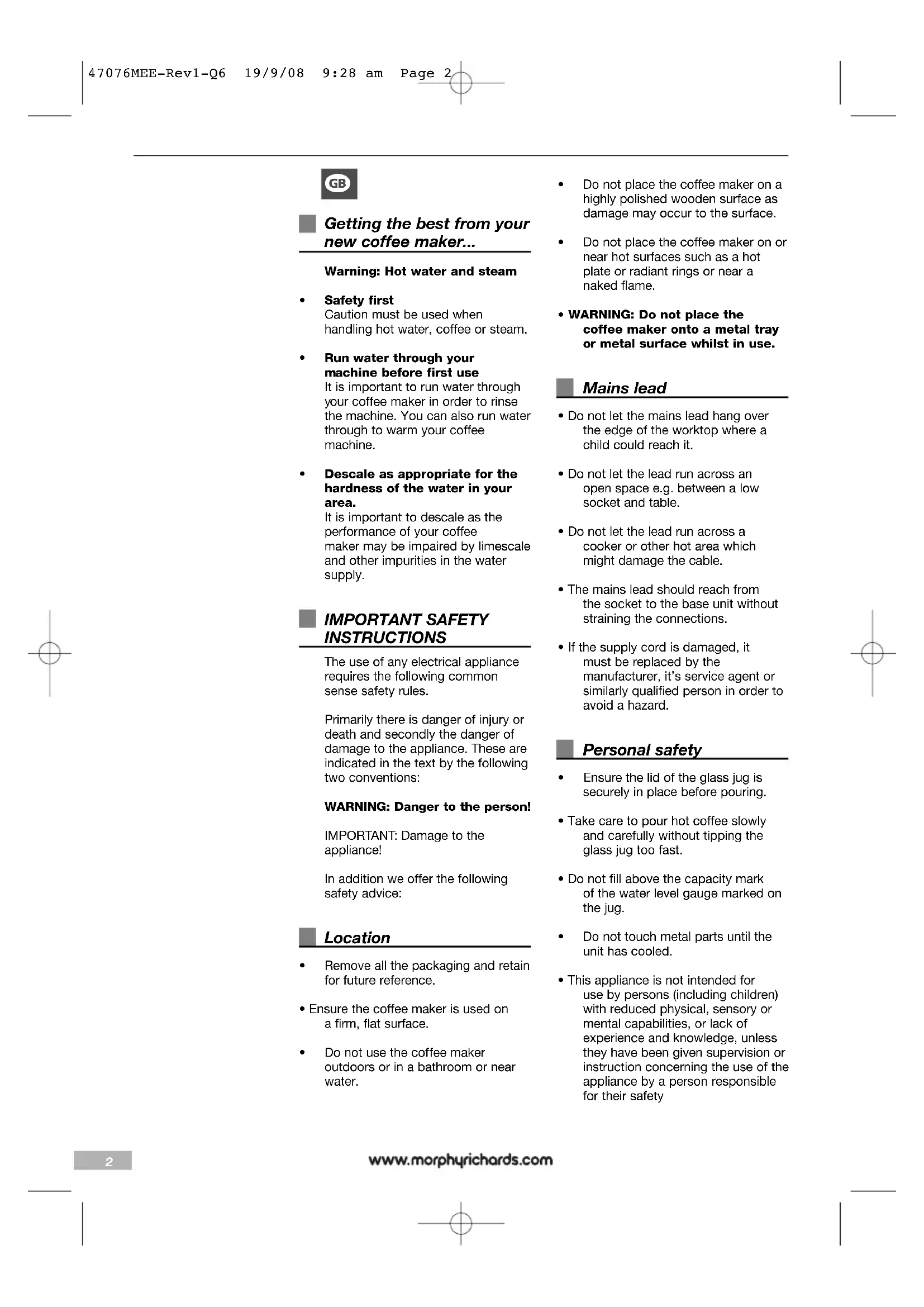

Warning: Hot water and steam

Safety first Caution must be used when handling hot water, coffee or steam.

un water through your

achine before first use It is important to run water through

our coffee maker in order to rinse the machine. You can also run water through to warm your coffee machine.

Descale as appropriate for the hardness of the water in your area. It is important to descale as the performance of your coffee maker may be impaired by limescale and other impurities in the water supply. IMPORTANT SAFETY INSTRUCTIONS The use of any electrical appliance requires the following common sense safety rules. Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

WARNING: Danger to the person!

IMPORTANT: Damage to the appliance! In addition we offer the following safety advice: Location

Remove all the packaging and retain for future reference.

• Ensure the coffee maker is used on a firm, flat surface.

Do not use the cof fee maker outdoors or in a bathroom or near water.

Do not place the coffee maker on a highly polished wooden surface as damage may occur to the surface.

Do not place the coffee maker on or near hot surfaces such as a hot plate or radiant rings or near a

• WARNING: Do not place the coffee maker onto a metal tray

r metal surface whilst in use. Mains lead

• Do not let the mains lead hang over the edge of the worktop where a child could reach it.

• Do not let the lead run across an open space e.g. between a low socket and table.

• Do not let the lead run across a cooker or other hot area which might damage the cable.

• The mains lead should reach from the socket to the base unit without straining the connections.

• If the supply cord is damaged, it must be replaced by the manufacturer, it’s service agent or similarly qualified person in order to avoid a hazard. Personal safety

• Ensure the lid of the glass jug is securely in place before pouring.

• Take care to pour hot coffee slowly and carefully without tipping the glass jug too fast.

• Do not fill above the capacity mark of the water level gauge marked on the jug.

Do not touch metal parts until the unit has cooled.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety

• W ARNING: Do not open the lid while the coffee is brewing. Children

• Teach children to be aware of

angers in the kitchen, warn them

f the dangers of reaching up to areas where they cannot see properly or should not be reaching.

Young children should be

upervised to ensure they do not play with the appliance. Product safety

• Never use warm or hot water to fill the water tank.

• Do not place the glass jug on the hot plate unless the lid is in position.

• Do not use the glass jug in a microwave.

• Do not fill above the capacity mark of the water level gauge.

• The glass jug gets hot while the machine is in use. Always use with care.

• Make sure the mains lead does not touch the hot parts of the machine.

• Do not wind the mains lead around the hot appliance or store the appliance until it has fully cooled down. Treating scalds

• Run cold water over the affected area immediately. Do not stop to remove clothing, get medical help quickly. Other safety considerations

• Disconnect the coffee maker from the mains supply when filling, cleaning or not in use.

to ‘off’, then remove plug from the wall outlet.

Keep the outside of the coffee maker area clean and dry at all times.

Do not immerse the coffee maker

tself in water and always ensure the electrical connections are kept dry.

Do not operate any appliance with

damaged cord or plug or after the appliance malfunctions or has been

amaged in any manner. Ring the helpline number for advice on examination and repair.

• The use of attachments or tools not recommended or sold by Morphy Richards may cause fire, electric shock or injury.

• Do not use the coffee maker for anything other than its intended purpose. ELECTRICAL REQUIREMENTS Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating current).

WARNING: This appliance must

be earthed. UK only If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted.

WARNING : The plug removed

from the mains lead, if severed, must be destroyed as a plug with a bar ed flexible cord is hazar dous if engaged into a live socket outlet. Where used, should the fuse in the 13 amp plug require changing a 13 amp BS1362 fuse must be fitted. 47076MEE-Rev1-Q6 19/9/08 9:28 am Page 3Features ⁄ Filter locating tab ¤ Non drip valve ‹ Digital LCD display › Control panel buttons with indicator lights fi Hot plate fl Removable permanent mesh filter ‡ Removable filter holder

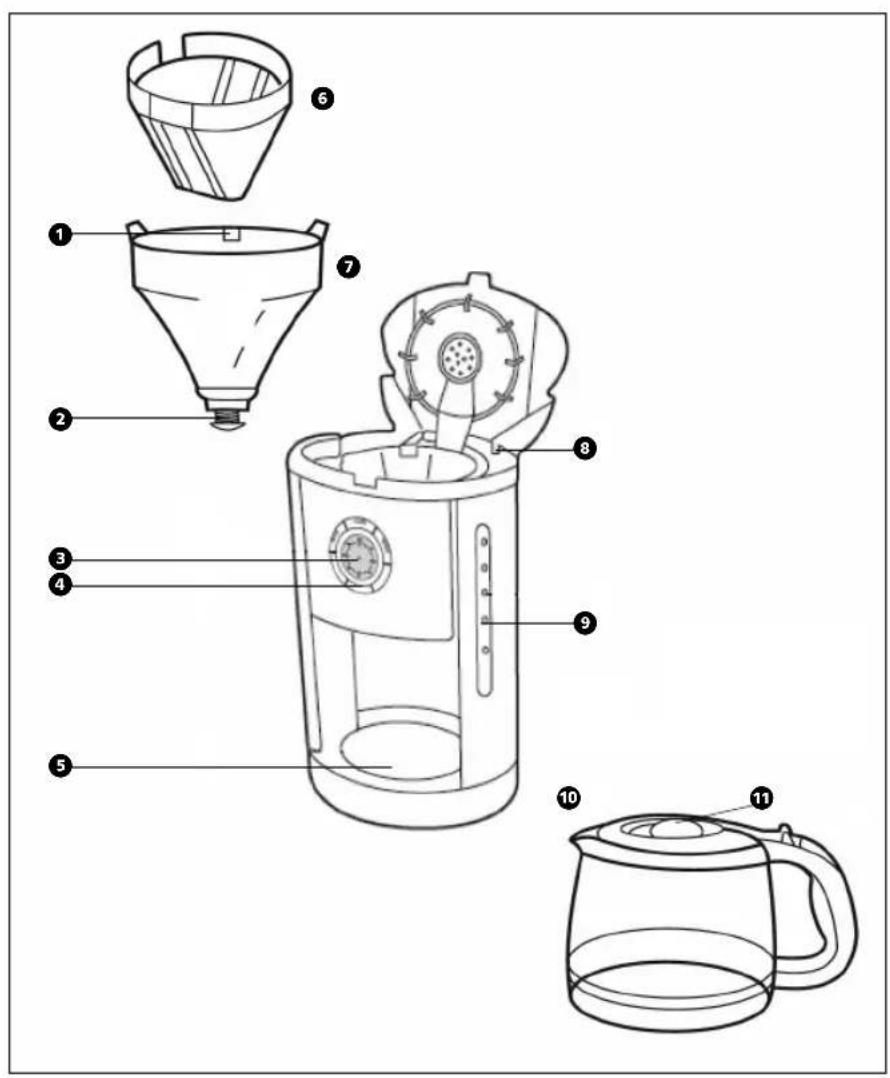

• Hinged reservoir lid ‚ W ater level indicator „ Glass jug with water level indicator ‰ Jug lid The first time you use your cof fee maker , operate the coffee maker with water only. OPERATING THE APPLIANCE General use 1 Lift up the hinged reservoir lid. 2 Fill the water reservoir with the required amount of water using the water level indicator as a guide. Both the jug and the water level indicator ar e marked in cups. Do not exceed the maximum level on the water gauge. 3 Spoon the required amount of ground filter coffee into the mesh filter spr eading it evenly . W

suggest one rounded dessert spoon for every cup, but individual tastes will vary . Ensur e the filter is sitting properly in the filter holder and do not fill above the mesh line.

nsuring it sits correctly on the hot

late. The jug lid must be in place during the brewing process, otherwise the non-drip valve will not

pen, causing the filter to flood. 6 Plug the filter coffee maker in at the wall socket and switch the coffee

lluminate to show the coffee maker

s working. 7 P ress the ON/OFF button to start the brewing process. The red power light will glow to show the coffee maker is working 8 Hot water will start to flow through the coffee grounds and into the glass jug as coffee. 9 When the coffee has been made, serve as required. The anti-drip valve will prevent any remaining coffee dripping onto the hot plate. Ensure that the jug is replaced on the hot plate after serving. While the coffee maker is switched ON the hot plate will keep the coffee warm. 10 Switch off the coffee maker when the jug is empty or the coffee is no longer required.

WARNING: The coffee maker

and hot plate are hot and remain hot for some time after switching off.

Allow the unit to cool. 12 Remove the permanent filter and empty the used coffee grounds. Wash the filter immediately and dry thoroughly. Refilling 1 Switch off the coffee maker and allow 3 minutes to cool befor

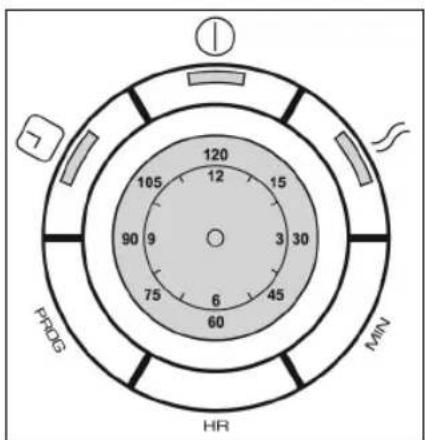

refilling with cold water. Buttons key ON/OFF Auto timer Warmer

• When the machine is switched on, the display will illuminate.

• To set the time, press the HOUR button. It is a 24 hour clock with AM or PM denoted.

• Then press the MINUTE button. To brew at a pre-set time

• Press the PROGRAM button. Note: If no buttons are pressed, the display will revert to the time display within 10 seconds.

• Press the HOUR button.

• Then press the MINUTE button to set the desired start time.

• Press the AUTO button (green light glows). Note: Press the AUTO button again to cancel pre-set brewing.

• Press the ON/OFF button (red light glows). Note: Press the ON/OFF button again to cancel brewing.

• This coffee maker gives you the

ption of adjusting the Stay Warm

etting to slightly reduce the temperature of the coffee after it has brewed.

When brewing the coffee, a steady orange light will appear on the ‘warmer’ button. In order to reduce

he Stay Warm setting, push the

warmer’ button once, and the

teady orange light will then blink.

This setting should be used when the carafe is half full or less, to ensure the coffee quality is maintained.

• The Stay Warm setting will continue to operate as long as the unit is ON and will shut off automatically after two hours.

• When you begin to brew a new pot of coffee, the steady orange light will reappear, indicating the Coffeemaker will maintain the temperature of the higher Stay Warm Setting. Coffee quality indicator

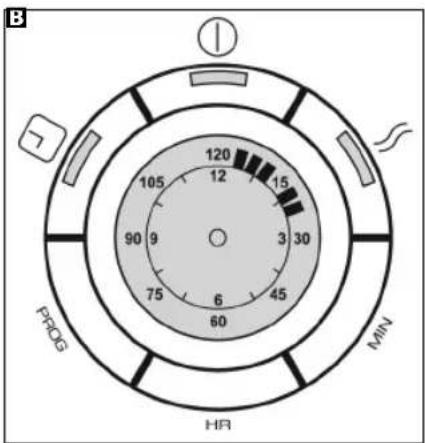

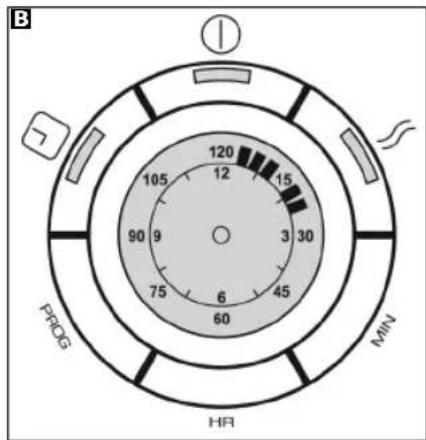

• To help you to decide if your coffee is likely to be of a good quality during keep warm mode, bars on the outside of the clock face indicate how long ago the coffee was brewed.

AINTENANCE Locating the filter 1 To remove the filter holder, lift by using the two handles either side to

lean. (See cleaning). 2 To refit, place the removable filter holder into the top of your coffee

aker. Ensure that the cut out on

he filter holder lines up with the

lot at the back of the product. 3 T hen place the permanent mesh filter inside the filter holder. Descaling

• If you live in a harder water area, we recommend that your coffee maker is descaled at regular intervals, eg. every 2 - 3 months. In areas of moderately hard water you should descale every 6 months.

• If the water filters through more slowly than usual, it is a sign that descaling is necessary.

• We recommend you to use proprietary liquid descaler which is especially made for coffee makers and plastic kettles. Follow the instructions on the bottle or sachet, and them operate the coffee maker with just water 3 times before making coffee.

• Do not use kettle descaler unless the packet specially states it is suitable for coffee makers. NOTE: The permanent mesh filter should not be used during descaling. Cleaning care Unplug the cof fee maker, and allow to cool. Do not immerse the coffee maker in liquid. Rinse the water tank occasionally with cold water. Do not use a cloth as any r esidue or lint left behind may clog the coffee maker. Remove the permanent filter discar

used coffee and wash with warm soapy water. Extended soaking

elps remove coffee stains from the mesh. Rinse and dry thoroughly.

ipe all external surfaces with a

amp cloth and dry thoroughly. Care must be taken to ensure the

on drip valve situated on the

ottom of the filter holder is not damaged during cleaning.

ever use harsh or abrasive

O NOT WASH ANY OF THE

PARTS IN A DISHWASHER.

• CAUTION: To prevent damage to the appliance, do not use alkaline cleaning agents when cleaning. Use a soft cloth and a detergent Helpline If you have any difficulty with your appliance, do not hesitate to call. We are more likely to be able to help than the store from where you bought it. Please have the following information ready to enable our staff to deal with your enquiry quickly:

• Model number as shown on the underside of the appliance.

• Serial number as shown on underside of the appliance. YOUR TWO-YEAR GUARANTEE This appliance is covered by two- year repair or replacement warranty. It is important to r etain the retailers

eceipt as proof of purchase. Staple your receipt to this back cover for futur e reference. Please quote the following information if the product develops a fault. These numbers can be found on the base of the product. Model no. Serial no. All Morphy Richards products are individually tested before leaving the

actory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase it should be

eturned to the place of purchase

or it to be replaced. If the fault develops after 28 days

nd within 24 months of original

urchase, you should contact Morphy Richards quoting Model number and Serial number on the

roduct, or write to Morphy

ichards at the address shown. You will be asked to return the

roduct (in secure, adequate packaging) to the address below along with a copy of proof of purchase. Subject to the exclusions set out below (1-6) the faulty appliance will then be repaired or replaced and dispatched usually within 7 working days of receipt. If for any reason this item is replaced during the 2-year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase. To qualify for the 2-year guarantee the appliance must have been used according to the manufacturers instructions. For example, appliances must have been descaled and filters must have been kept clean as instructed. Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where: 1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturers recommendations or where the fault has been caused by power sur ges or damage caused in transit. 2 The appliance has been used on a voltage supply other than that stamped on the products. 3 Repairs have been attempted by persons other than our service staf

(or authorised dealer).

Wher e the appliance has been used for hire purposes or non domestic use.

47076MEE-Rev1-Q6 19/9/08 9:29 am Page 75 Morphy Richards are not liable to carry out any type of servicing work, under the guarantee.

The guarantee excludes consumables such as bags, filters and glass carafes.

his guarantee does not confer any rights other than those expressly set out above and does not cover any

laims for consequential loss or

amage. This guarantee is offered

s an additional benefit and does not affect your statutory rights as a

onsumer. AUSTRALIAN WARRANTY This appliance is guaranteed for 2 years against faulty material, components and workmanship. This warranty is in addition and does not affect your statutory rights. Proof of purchase must be produced for any warranty benefit. In the unlikely event of any appliance proving to be faulty, securely pack and return the item to the place of purchase accompanied by the original receipt or invoice.

WARRANTY (Australian only)

• If the appliance has not been used in accordance with the manufacturers’ recommendations or Instructions.

• If the fault is deemed to be caused by abuse, misuse, neglect, modifications or in proper use and or care Eg: Kettles: Excessive build up of scale. Toasters: Excessive build up of crumbs or for eign matter etc.

Connection to incorrect voltage to that stamped on the product

• Unauthorised repairs

• Appliance used other than for domestic purposes.

• Excluding bags, filters, glass, carafes, and cutting blades.

Freight and insurance costs. If for any reason this item is

eplaced during the 2 year

uarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it

s vital to retain your original receipt

r invoice to indicate the date of original purchase.

orphy Richards’s policy is to

ontinually improve quality design

nd product quality. The company therefore reserves the right to

hange any specifications or to carry out modifications as deemed worthy at any time. The Australian supplier ASKO Appliances reserves the right to repair, modify, exchange or replace the faulty appliance with the same or similar model or product of equivalent value. Pour utiliser au mieux votre nouvelle cafetière...

47076MEE-Rev1-Q6 19/9/08 9:29 am Page 7980 47076MEE-Rev1-Q6 19/9/08 9:29 am Page 8081 47076MEE-Rev1-Q6 19/9/08 9:29 am Page 8182 g M orphy Richards products are intended for household use only. Morphy Richards has a policy of continuous improvement in product quality

nd design. The Company, therefore, reserves the right to change the specification of its models at any time. The After Sales Division,
