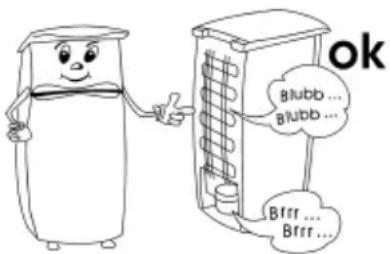

USER MANUAL KS 9816 SEVERIN

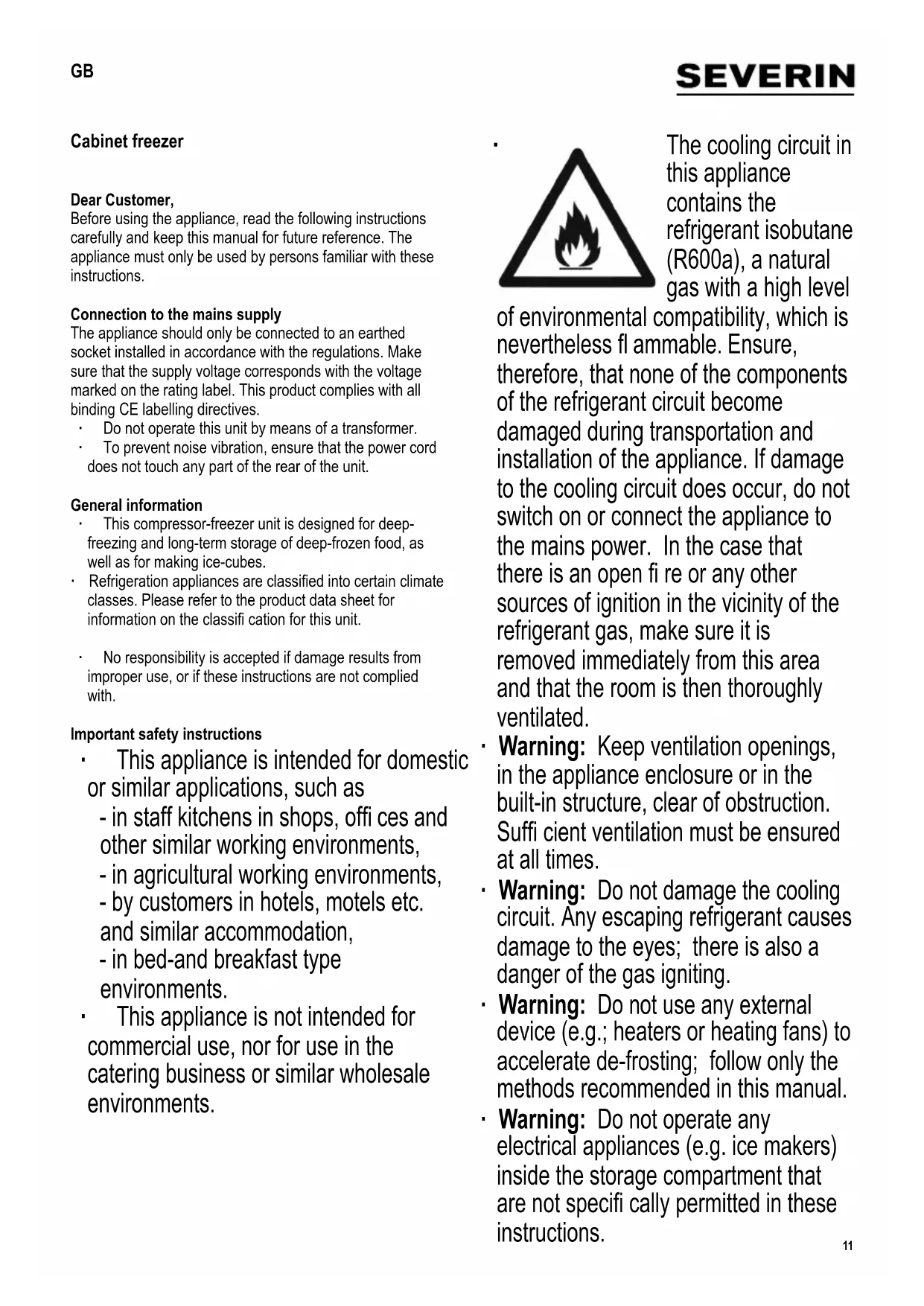

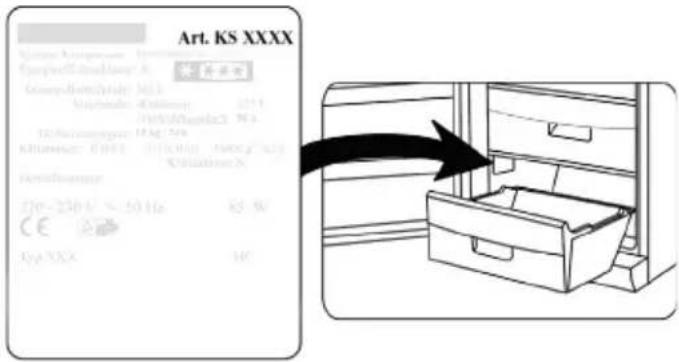

Frostfrei : Gefrierteil Nein Frostfrei: Kühlteil - Lagerzeit bei Störung in Stunden 24 Gefriervermögen in kg/24h 10 Klimaklasse N, ST, T Umgebungstemperatur in °C 16-43 Geräuschemission in dB(a) 40 Abmessungen H x B x T in mm 845 x 560 x 575 Gewicht in kg 35,5 Elektrische Daten siehe Typenschild *) Gemäß Verordnung (EU) Nr. 1060/2010 Anhang III **) Der tatsächliche Verbrauch hängt von der Nutzung und vom Standort des Gerätes ab Stand 20.12.201611 Cabinet freezer Dear Customer, Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions. Connection to the mains supply The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives. ∙ Do not operate this unit by means of a transformer. ∙ To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit. General information ∙ This compressor-freezer unit is designed for deep- freezing and long-term storage of deep-frozen food, as well as for making ice-cubes. ∙ Refrigeration appliances are classifi ed into certain climate classes. Please refer to the product data sheet for information on the classifi cation for this unit. ∙ No responsibility is accepted if damage results from improper use, or if these instructions are not complied with. Important safety instructions ∙ This appliance is intended for domestic or similar applications, such as - in staff kitchens in shops, offi ces and other similar working environments, - in agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments. ∙ This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility, which is nevertheless fl ammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open fi re or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated. ∙ Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Suffi cient ventilation must be ensured at all times. ∙ Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the gas igniting. ∙ Warning: Do n ot use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual. ∙ Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifi cally permitted in these instructions. GB12 ∙ Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains. ∙ This appliance is not designed for the storage of explosive substances such as aerosol cans with a fl ammable propellant. ∙ If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R600a. For additional information on correct recycling please refer to the Disposal section. ∙ In order to comply with safety regulations and to avoid hazards, any repairs or modifi cations to this unit must be carried out by our authorised service personnel, including the replacement of the power cord. ∙ This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. ∙ Children must not be permitted to play with the appliance. ∙ Children must not be permitted to carry out any cleaning or maintenance work on the appliance. ∙ For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning. ∙ To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging. For unpacking and installation, 2 persons are needed. ∙ Caution: Keep any packaging materials well away from children: there is a risk of suffocation. ∙ The ice removed from the unit during de-frosting is not suitable for human consumption. ∙ The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used. ∙ To avoid the risk of fi re, do not place any electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation. ∙ This unit is designed for storing food only. ∙ Alcoholic substances may be stored only in properly sealed containers and in upright positions. ∙ Do not store any glass bottles containing carbonated or other freezable liquids in the unit: such bottles may burst during the freezing process. ∙ To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not b e frozen a second time. ∙ Do not lean or put undue weight on the shelves, compartments, door etc. ∙ Protect the inside of the refrigerator at all times from open fl ames and any other sources of ignition. ∙ Remove the plug from the wall socket - in case of any malfunction, - before de-frosting, - during cleaning, - before maintenance or repair work is carried out. ∙ When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. ∙ If the unit is not used for an extended period of time, we recommend keeping the door open. ∙ We reserve the right to introduce technical modifi cations.13 Familiarisation

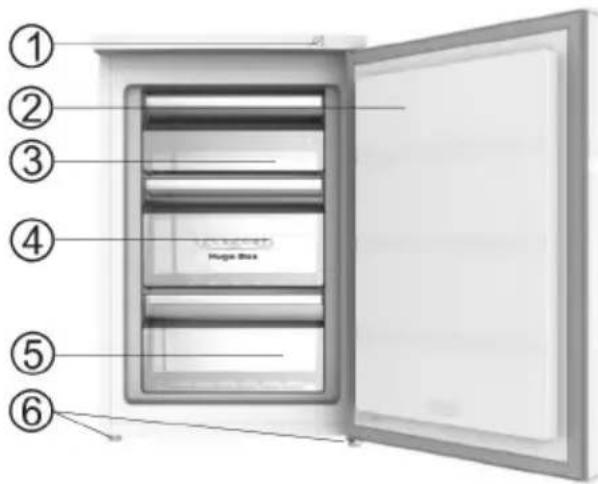

3. Frozen-food drawer (top)

4. Frozen-food drawer (middle)

5. Frozen-food drawer (bottom)

Before using for the fi rst time ∙ Remove any exterior and interior packaging materials completely, including the adhesive strips. ∙ Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord. ∙ Clean the unit as described in the section De-frosting and cleaning. ∙ Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains. ∙ If the unit has been tilted more than 30° during transport, allow it to stand upright for at least 4 hours before it is connected to the mains. ∙ When the unit is fi rst switched on, a slight ‘new’ smell may be noticed. However, this will disappear once the cooling process has begun. Installation ∙ The appliance should be set up in a well-ventilated, dry room. ∙ It should be operated in conditions where the relative humidity is no more than 70 %. ∙ The product data sheet contains details of the ambient temperature range suitable for this appliance. ∙ Do not use the appliance outdoors. Ensure that the plug is accessible and can be removed from the wall socket at any time. ∙ Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be in installed between the heat source and the unit. ∙ The unit must not be installed inside a cupboard; when positioning the unit, also ensure that it is not placed directly underneath a shelf or any other similar object. ∙ Ensure that there is suffi cient space in front for the door to open to 160°. ∙ In the case of uneven fl oors, the adjustable feet at the front can be used to compensate and ensure optimum stability. Ventilation Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear 7.5 cm, sides and top 10 cm) Reversible door The design provides for the door to be reversed, i.e. for right-hinged (default installation) to become left-hinged.

Warning: Always disconnect the unit from the mains before

any maintenance or repair work is carried out.

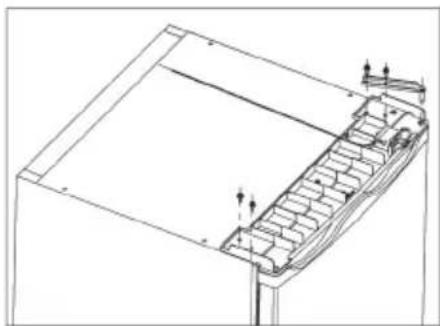

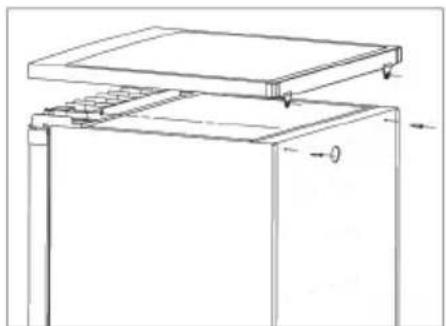

1. Remove the two screws at the rear, and then the entire

top panel. Caution: The metal plate edges on the rear corners are very sharp.

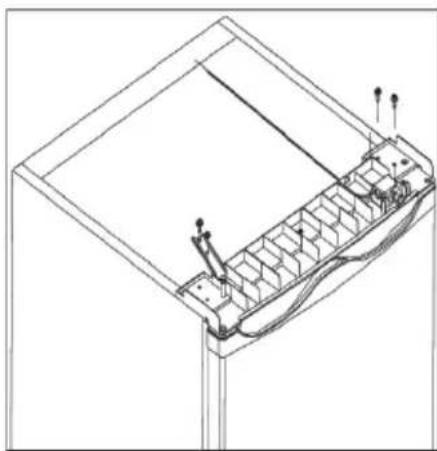

2. Remove the four threaded bolts on the top and then

take off the hinge plate.

3. Carefully lift up the door and place it on a suitable

surface to protect it from scratches.14

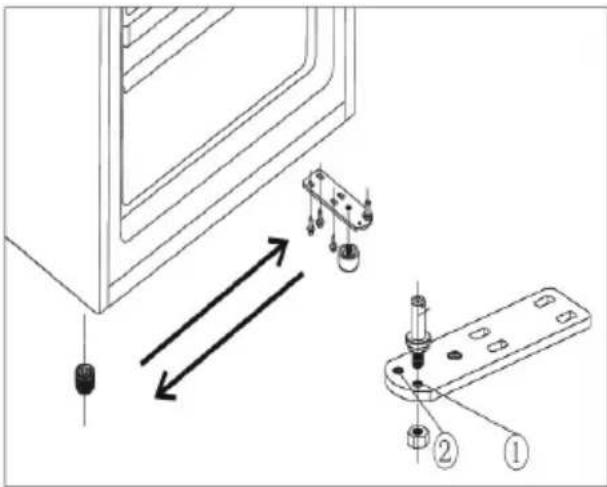

4. Remove both adjustable feet and take off the lower

5. Remove the hinge pin from the lower hinge plate and

screw it back into the opening next to it. (1↔2).

6. Attach the lower hinge plate on the other side. Do not

tighten the screws for the moment; this should only be done once the door is in its proper closed position.

7. Replace the door in its new position. Ensure that the

hinge pin is inserted into the guide bushing (hole) on the lower part of the door frame.

8. Attach the upper hinge plate (removed earlier in step

2) on the left-hand side with 2 screws. Ensure that the

hinge pin is inserted into the guide bushing (hole) on the upper part of the door frame. Insert and tighten the other 2 screws on the other side

9. Adjust the closed door to its proper position and tighten

the screws of the upper and lower hinge plates.

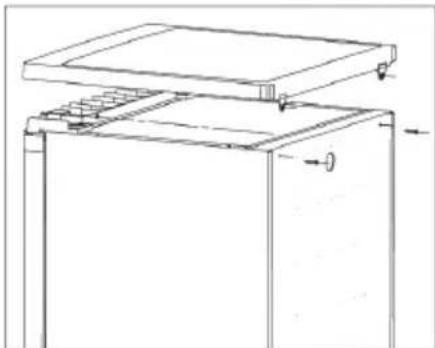

10. Replace the top panel and tighten the screws at the

11. Put the unit back in its intended position and wait for

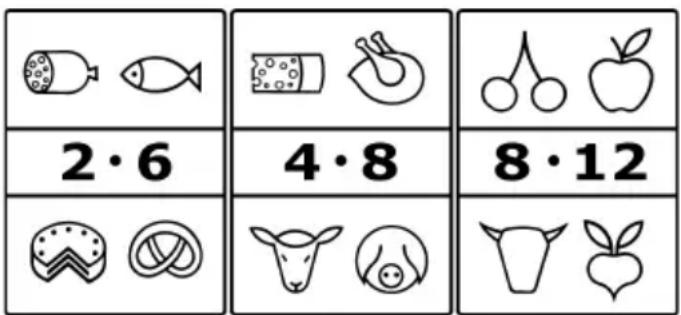

about four hours before connecting it to the mains. Temperature control The temperature control automatically regulates the temperature inside the different compartments. Cold cold setting Mid colder (normal) setting Colder coldest setting Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again. Note: The operating temperature in the freezer largely depends on factors such as the ambient temperature and that of the food to be newly frozen. It also depends on how often the door is opened and how long it remains open. If necessary, the temperature control setting may be adjusted accordingly. Freezing and storing food ∙ With an operating temperature of –18°C and below, the various freezer compartments can be used to store frozen or pre-frozen food for several months, to make ice cubes and to freeze fresh food. ∙ To ensure that nutritious elements such as vitamins are not lost, fresh food should be deep-frozen right through as quickly as possible. Caution: Do not exceed the maximum freezing capacity per day. The product data sheet contains details of the maximum daily freezing capacity. Spread it out well in the freezer compartment and avoid contact with food that has already been frozen. ∙ Prior to freezing, fresh food (e.g. meat, fi sh, minced meat) should be divided into smaller portions suitable for use after thawing). ∙ When storing pre-frozen food, strict attention should be paid to the manufacturer’s information provided on the packaging. If no such information is to be found, however, a storage period of 3 months from the date of purchase15 must not be exceeded. ∙ When buying frozen food, verify that the food is properly frozen, and that the packaging does not show any sign of damage. ∙ To maintain the quality of deep-frozen food, it should be transported only in suitable containers and then placed inside the freezer compartments without delay. ∙ Carefully check the packaging when buying frozen food: if the packaging shows signs of moisture, has bubbled up or is bulging, the food may not have been stored properly and has spoiled. ∙ The storage times for frozen foods largely depend on the ambient temperature, the temperature control setting, the type of food and the time between shop and freezer, but mainly also on how often the freezer door is opened and how long it remains open. Always follow the instructions given on the food packaging, and do not exceed the specifi ed maximum storage times. ∙ Suitable packaging materials for frozen food are transparent (i.e. non-coloured) plastic foil, bags or aluminium foil. The packaging materials should be well aired before use and then checked for air-tightness before freezing the food. We strongly recommend that you label every item stored in the freezer with all relevant information such as type of food, freezing date and use- by date. ∙ Do not deep-freeze any carbonated liquids, warm food or any liquids in glass containers or bottles. Use-by dates for frozen food are specifi ed (in months) in the table below. Do not exceed these storage times. ∙ If the unit remains switched off for an extended period (eg during a power failure), the door should be kept closed; this will help to maintain the lowest possible temperature in the cabinet. The product data sheet contains detailed information of the maximum safe storage time in case of malfunction. ∙ It should be noted, however, that even a slight rise in the inside temperature will shorten the storage life of the food. Making ice cubes A special ice-cube tray is provided for making ice cubes. Fill the tray 3/4 full with drinking water and place it in the freezer compartment. The ice cubes are easier to remove from the tray if the tray is left standing at room temperature for 5 minutes. De-frosting and cleaning After a certain period of operation and depending on several factors (e.g. how often the door has been opened), a layer of ice will form on the evaporators located below the drawers and on the drawer fronts themselves. Once the build-up of ice has reached a thickness of 4 mm, the unit must be de-frosted. The build-up of ice increases the power consumption of the appliance. When de-frosting the unit ∙ Ensure that the plug has been removed from the wall socket, ∙ Remove all food from the compartment and store it in a cool location, eg together with pre-frozen freezer-packs in a plastic container. Note that, even with a slight increase in temperature, the storage life will be shortened and the food should be used as soon as possible. ∙ To accelerate defrosting, one or several containers with hot (but not boiling) water may be placed inside the freezer compartment. ∙ Do not pour water over or inside the unit. ∙ Warning: Do not use any external device or other means (e.g. heaters or heating fans) to accelerate de-frosting. ∙ For frequent cleaning we recommend the use of warm water with some mild detergent. Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher. ∙ Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol. ∙ After cleaning, thoroughly clean all surfaces again with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands. ∙ Turn the temperature control to its maximum setting. After 24 hours, the temperature control can be returned to its normal setting. ∙ Take care not to remove or damage the rating plate inside the cabinet during cleaning. ∙ To save energy, the condenser and the compressor (at the rear) should be cleaned carefully at least twice a year with a hand-brush or a vacuum cleaner. Energy saving tips ∙ The appliance should be set up in a well-ventilated, dry room. ∙ Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit. ∙ Do not cover the ventilation openings and grilles, and ensure suffi cient air circulation behind the unit. ∙ The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption. ∙ Warm food should be allowed to cool down before it is stored inside.16 ∙ To prevent an increased build-up of ice, do not leave the freezer door open for too long when loading or taking out food. ∙ Frequent de-frosting helps to save energy. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning. ∙ Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control. Trouble-shooting Certain typical sounds can be heard when the appliance is switched on. These sounds are: ∙ caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time. ∙ caused by the cooling agent fl owing through the circuit. The following table lists the possible malfunctions, their probable causes and solutions. In the event of operational problems, c heck fi rst whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department. Problem Possible cause and solution The unit is not working. Check that ∙ the switch in your home installation fuse box is switched on. ∙ the wall socket is working. This can be done by connecting another electrical device to the socket and checking for function. The unit seems to generate insuffi cient cooling power. Check whether ∙ too much food has been stored in the unit. ∙ the thermostat is set to position ‘COLD’ (in this case, set it to a suitable higher value). ∙ the door is not properly closed. ∙ there is too much dust on the condenser. ∙ the unit is too close to a wall or other object at the rear or to the sides. The normal operating sound changes or becomes louder. Check whether ∙ the unit has been properly positioned. ∙ any objects or obstructions are touching the rear of the unit. ∙ there are any objects on top of the unit which might be vibrating. Transporting the appliance To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened. The unit must only be transported in its vertical position; do not tilt any more than 30°. Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains. If the unit has been tilted more than 30° during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains. Disposal This appliance has been manufactured from recyclable materials. After removing the plug from the wall socket, the unit should be rendered unusable by cutting off the power cord before being disposed of through special waste collection points in accordance with local regulations. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for competent disposal.17 Guarantee This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modifi ed, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase. Information needed by the Customer Service Should repairs to the appliance become necessary, please contact our Customer Service, providing a detailed fault description and quoting the article number KS … on the rating plate of the appliance (see picture). This information will help us to handle your request effi ciently. In case of any malfunction or other problem, please contact our Customer Services Department. The address can be found in the appendix to this manual. Product data sheet for refrigerating appliances * Art. no. KS 9816 Household refrigerating appliance category 8 - Cabinet freezer Energy effi ciency classifi cation A++ Energy consumption in kWh/year 141 Usable refrigerator capacity (litres) - Usable capacity - Freezer unit (litres)
