USER MANUAL iK501 KICKER

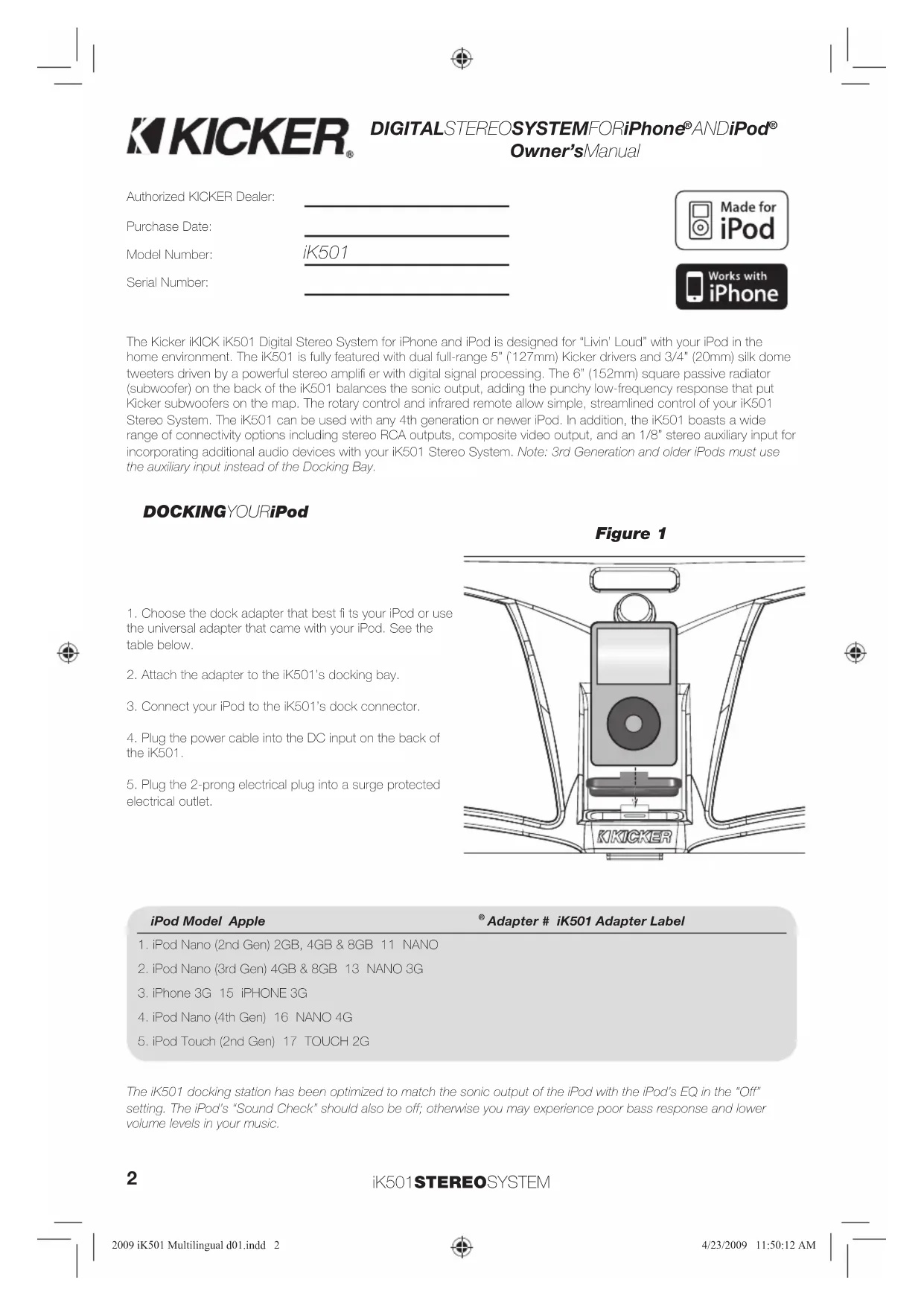

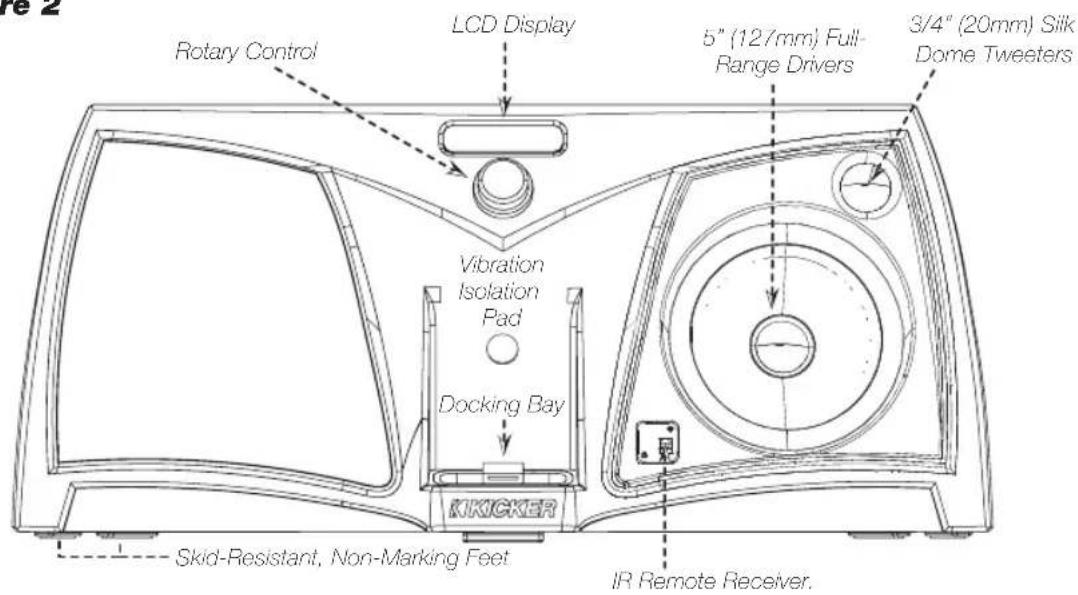

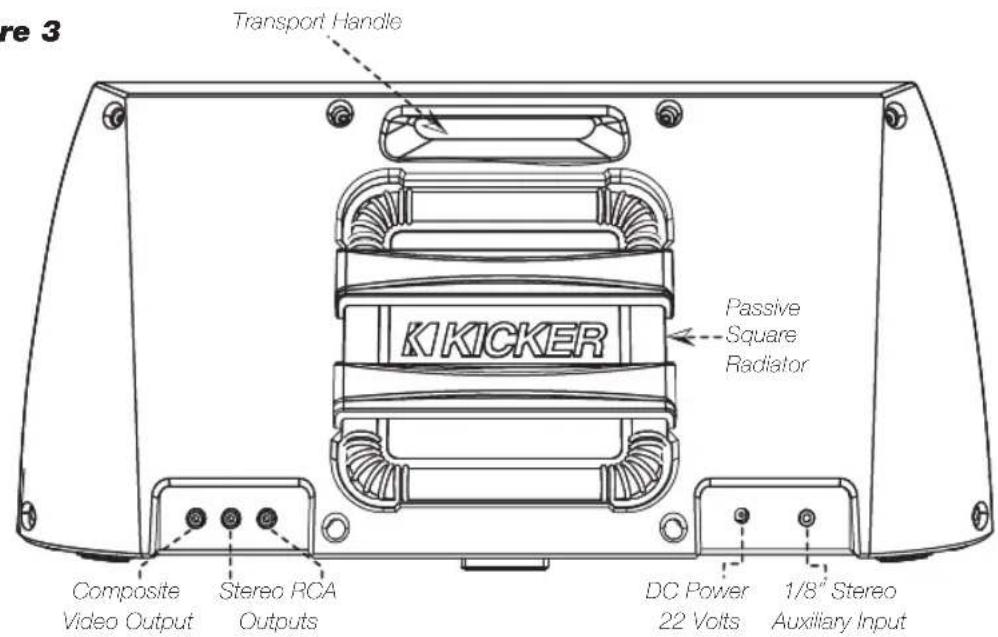

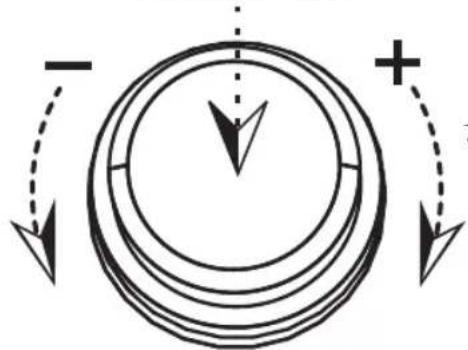

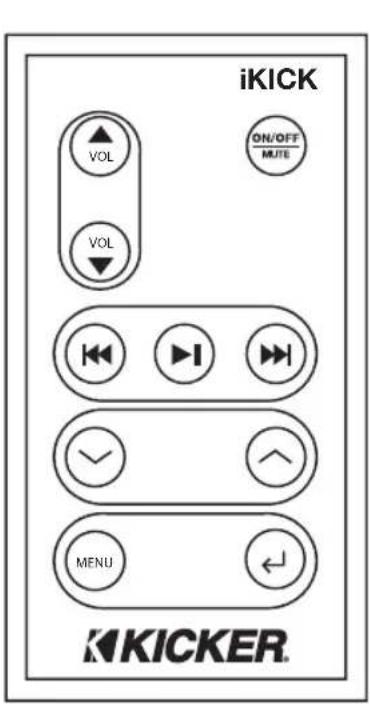

Owner’sManual The Kicker iKICK iK501 Digital Stereo System for iPhone and iPod is designed for “Livin’ Loud” with your iPod in the home environment. The iK501 is fully featured with dual full-range 5” (`127mm) Kicker drivers and 3/4” (20mm) silk dome tweeters driven by a powerful stereo amplifi er with digital signal processing. The 6” (152mm) square passive radiator (subwoofer) on the back of the iK501 balances the sonic output, adding the punchy low-frequency response that put Kicker subwoofers on the map. The rotary control and infrared remote allow simple, streamlined control of your iK501 Stereo System. The iK501 can be used with any 4th generation or newer iPod. In addition, the iK501 boasts a wide range of connectivity options including stereo RCA outputs, composite video output, and an 1/8” stereo auxiliary input for incorporating additional audio devices with your iK501 Stereo System. Note: 3rd Generation and older iPods must use the auxiliary input instead of the Docking Bay. Authorized KICKER Dealer: Purchase Date: Model Number: Serial Number: iPod Model Apple

Adapter # iK501 Adapter Label

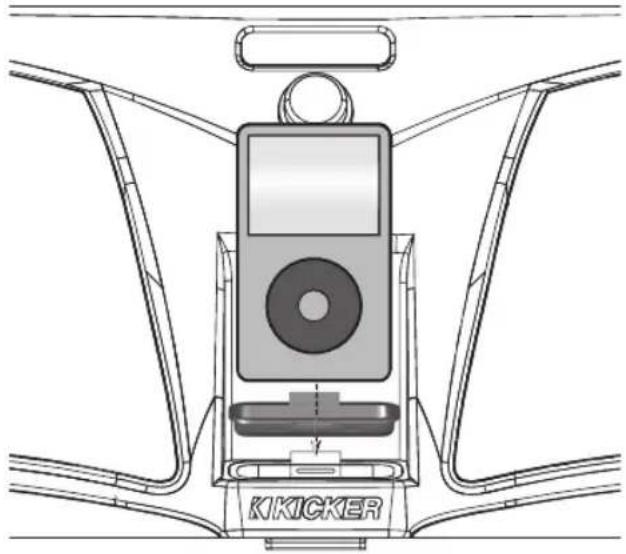

1. Choose the dock adapter that best fi ts your iPod or use

the universal adapter that came with your iPod. See the table below.

2. Attach the adapter to the iK501’s docking bay.

3. Connect your iPod to the iK501’s dock connector.

4. Plug the power cable into the DC input on the back of

5. Plug the 2-prong electrical plug into a surge protected

electrical outlet. DOCKINGYOURiPod Figure 1 The iK501 docking station has been optimized to match the sonic output of the iPod with the iPod’s EQ in the “Off” setting. The iPod’s “Sound Check” should also be off; otherwise you may experience poor bass response and lower volume levels in your music. 2009 iK501 Multilingual d01.indd 22009 iK501 Multilingual d01.indd 2 4/23/2009 11:50:12 AM4/23/2009 11:50:12 AM3 IMPORTANTSAFETYINSTRUCTIONS Read and follow all the instructions listed in this manual. Follow all safety and procedural recommendations to prevent damage to your self, your Kicker product, or your portable entertainment device. The iK501 should not be used near water or in an environment where exposure to liquids is possible. This includes but is not exclusive to areas where splashing, dripping, leaks, spills, and exposure to rain can occur. Liquid containers should not be placed on or near the iK501 Stereo System. The iK501 Stereo System should not be cleaned with liquid cleaners. Use only a dry cloth to clean the iK501. Only use the iK501 in areas with adequate open ventilation allowing at least 4” of space on all sides of the iK501. Do not set the iK501 on any surface or cover the iK501 with any object that could impede the airfl ow to and from the iK501 Stereo System. The iK501 should not be placed near any source of heat. This includes but is not limited to stoves, radiators, heating elements, electronic heat sources, and areas where excessive solar heat can be generated. Do not install the iK501 near any fl ame or place any fl ammable objects near the device. The power outlet used to provide power to the iK501 should be accessible at all times. The polarized 2-prong electrical plug has a wide blade and narrow blade that should fi t into the corresponding wide and narrow receiving connections of your electrical outlet. Do not force the plug into the outlet. If the plug provided with the unit does not fi t, consult with an electrician to upgrade the electrical outlet accordingly. The power cord should be situated in a way that protects it from being pinched, walked on, tripped over, or accidentally pulled from the electrical outlet or the electrical input on the iK501. Do not run the cable through doorways or underneath objects that could damage the wire or tear the insulating material surrounding the wire. Only use the manufacturer supplied power supply with the iK501. We recommend using a surge protector/power conditioner and unplugging the iK501 during any electrical storms or situations that could cause voltage fl uctuations in the electrical system. Figure 2 Figure 3 Transport Handle 1/8” Stereo Auxiliary Input DC Power 22 Volts IR Remote Receiver. LCD Display Docking Bay Rotary Control Vibration Isolation Pad 5” (127mm) Full- Range Drivers 3/4” (20mm) Silk Dome Tweeters Skid-Resistant, Non-Marking Feet Stereo RCA Outputs Passive Square Radiator Composite Video Output 2009 iK501 Multilingual d01.indd 32009 iK501 Multilingual d01.indd 3 4/23/2009 11:50:13 AM4/23/2009 11:50:13 AM4 iK501STEREOSYSTEM Treb Bass Vol Aux-In Standby USINGTHESYSTEMMENUROTARYCONTROLThe iK501 Stereo System’s rotary control provides an intuitive user interface. The System Menu options listed on the LCD display below are available for adjustment by the rotary control. The rotary control knob is used as a push-button to power on the iK501 and to scroll through the menus available on the LCD screen. Turning the rotary control knob allows you to adjust the parameters of the selected menu. iK501 System Menu Use the push-button selector to turn on the iK501 and to make menu selections.Turn the rotary control to adjust the system menu parameters.After plugging the power supply into the DC input on the back of the iK501, the unit will be in “Standby” mode, as displayed by the LCD screen on the System Menu. Turn the power on by pushing the rotary control button once. When the power is on, both the “Kicker” logo and “Vol” will be displayed on the System Menu. Volume: By default, the iK501 will be in volume control mode and “Vol” will be displayed on the LCD screen. Turn the rotary knob to adjust the volume up or down. The rotary control will automatically revert to volume control mode after a short time period if any other menus have been selected. To scroll through the other menus, simply use the rotary control as a push-button. Each single button push will take you from one menu to the next, rotating through Treb>Bass>Aux-In>Vol and back to the “Treb” treble control. Treble: To adjust the treble on the iK501, use the rotary control as a push-button to scroll through the menus until the “Treb” menu is displayed on the LCD screen. Turn the rotary control knob clockwise to increase treble and counter-clockwise to reduce treble. Bass: To adjust the bass level on the iK501, use the rotary control as a push-button to scroll through the menus until the “Bass” menu is displayed on the LCD screen. Turn the rotary control knob clockwise to increase bass and counterclockwise to reduce bass. Auxiliary Input: To enable the auxiliary input on the iK501, an external device must be plugged into the 1/8” stereo auxiliary input on the back of the unit. Use the rotary control as a push-button and scroll through the menus until “Aux-In” is displayed. Turn the rotary control clockwise to enable the auxiliary input. When the auxiliary is enabled, the system menu will display “ON”. Turn the rotary control counter-clockwise to disable the auxiliary input and return to iPod mode. When the auxiliary input is disabled, the system menu will display “--”. Standby: In “Standby” mode, the iK501 will be powered down, but your docked iPod will continue to charge as long as a power source is plugged into the DC input on the back of the iK501. To enter standby mode simply press and hold the rotary control button until the unit turns off and “Standby” is displayed. Note: 3rd Generation iPods are compatible with the iK501 but will not charge while docked or respond to remote control playback functions.Figure 4 2009 iK501 Multilingual d01.indd 42009 iK501 Multilingual d01.indd 4 4/23/2009 11:50:14 AM4/23/2009 11:50:14 AM5 Volume Up Volume Down Play/Pause Skip Forward (Hold down to Fast Forward) Skip Backward (Hold down to Rewind) Mute iK501 Output (Hold down to turn the iK501 on/off) Navigate upward through the iPod menu directory or increase values within the iK501 System Menu. Press the up arrow while in the Aux- In Menu to enable the Aux input. Navigate downward through the iPod menu directory or reduce values within the iK501 System Menu. Press the down arrow while in the Aux-In Menu to disable the Aux input. Navigate toward iPod root directory. Hold down to enter the iK501 System Menu. Navigate within the iK501 System Menu. Treble>Bass>Aux-In Make selections and enter sub- directories within the iPod. Use the enter button to exit the iK501 System Menu. Figure 5 USINGTHEREMOTECONTROL The Infrared Remote Control enables you to control your iPod and access the iK501 System Menu from a convenient location. With the fully featured remote control it is easy to access all of your iPod’s music and/or video content. Model: iK501 Speaker Design 2 - Way Woofer Size, in (mm) 5 (127) Tweeter Size, in (mm) 3/4 (20) Tweeter Design Silk Dome Passive Radiator Size, in (mm) 6 X 6 (152 X 152) RMS Power, Watts @ 1% Total Harmonic Distortion 2 X 20 Effective Frequency Range, Hz 50-20K Power Supply, Volts (Ampere) 22 (2.7) Height, in (mm) 8.5 (216) Width, in (mm) 19.2 (488) Depth, in (mm) 8.4 (214) Weight, lb (kg) 9.2 (4.2) VOL MENU VOL iKICK CONNECTINGEXTERNALDEVICES To connect an external video display to the iK501, make sure the video output is enabled on your iPod device. Connect a standard RCA composite video cable from the composite video output on the back of the iK501 to the RCA video input on your external video display. See Figure 3. This is a pass-through connection. If there are any problems with your external video display, refer to the iPod device manual or the instructions packaged with your external video display. To connect an external audio device to the iK501, enable Aux-In mode with the rotary control as described in the Auxiliary Input section on the previous page. Connect your line level device to the 1/8” stereo input on the back of the iK501 with the included auxiliary cable. See Figure 2. If the sound is distorted, you may be overdriving the auxiliary input. Try turning down the external device until the sound is no longer distorted. Note: 1st – 3rd Generation iPods require the use of the auxiliary input for audio playback. PERFORMANCE 2009 iK501 Multilingual d01.indd 52009 iK501 Multilingual d01.indd 5 4/23/2009 11:50:15 AM4/23/2009 11:50:15 AM6 SISTEMAESTEREOFONICOiK501 Sistema estereofónico digital para iPhone

1. No audio output from the iK501? Make sure the volume is turned up to an audible level on both the iK501 and the audio

acoustiques dues au niveau élevé de graves du iK501 peuvent entraîner le gel du baladeur iPod. L’utilisation du patin antivibratoire inclus, comme le montre la fi gure 2, peut prévenir le gel du baladeur iPod. Redémarrez le baladeur iPod en appuyant pendant environ six secondes sur la touche de lecture/pause. Appuyez sur une touche quelconque pour remettre le baladeur iPod sous tension. Si cela ne fonctionne pas, mréinitialisez le baladeur iPod en le branchant au connecteur de la station d’accueil iK501. Mettez le baladeur iPod en mode verrouillage, puis remettez le commutateur de verrouillage Hold en position Off (arrêt). Enfi n, appuyez simultanément pendant environ six secondes sur la touche centrales et la touche Menu. Pour réinitialiser un baladeur iPod d’origine avec un connecteur de station d’accueil (avec quatre touches sous l’affi cheur), appuyez simultanément pendant un certain temps sur la touche de lecture/ pause et la touche Menu. Home Limited Warranty KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase with the orginal receipt from an Authorized KICKER Dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore these exclusions may not apply to you. This warranty gives you specifi c legal rights; however you may have other rights that vary from state to state.WHAT TO DO IF YOU NEED WARRANTY OR SERVICE Defective merchandise should be returned to your local Authorized KICKER Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting KICKER directly. If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer Service Department at (405) 624-8510 for a Return Merchandise Authorization (RMA) number. Package all defective items in the original container or in a package that will prevent shipping damage, and return to: Stillwater Designs, 3100 North Husband Road, Stillwater, OK 74075 The RMA number must be clearly marked on the outside of the package. Include a copy of the original receipt with the purchase date clearly visible, and a “proof-of-purchase” statement listing your name and return shipping address, the Dealer’s name and invoice number, and product purchased. Warranty expiration on items without proof-of-purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or COD, will be refused.HOW LONG WILL IT TAKE? KICKER strives to maintain a goal of 72-hour service for all home and portable electronic returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the KICKER Customer Service Department at (405) 624-8510.WHAT IS NOT COVERED?This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:o Damage due to improper use. o Damage due to improper installation of components or audio/video devices.o Subsequent damage to other components or audio/video devices.o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation. o Damage through negligence, misuse, fl ood, fi re, earthquake, accident, or abuse. Repeated returns for the same. Damage may be considered abuse.o Items previously repaired or modifi ed by any unauthorized repair facility or person.o Return shipping on non-defective items.o Products with tampered or missing barcode labels.o Products returned without a Return Merchandise Authorization (RMA) number.o Freight Damage.o The cost of shipping product to KICKER.o Service performed by anyone other than KICKER. stillwaterdesigns P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510 20090407-D+09iK501 2009 iK501 Multilingual d01.indd 192009 iK501 Multilingual d01.indd 19 4/23/2009 11:50:27 AM4/23/2009 11:50:27 AM©2009 Stillwater Designs 2009 iK501 Multilingual d01.indd 202009 iK501 Multilingual d01.indd 20 4/23/2009 11:50:27 AM4/23/2009 11:50:27 AM
