USER MANUAL DB40LE985 DURABASE

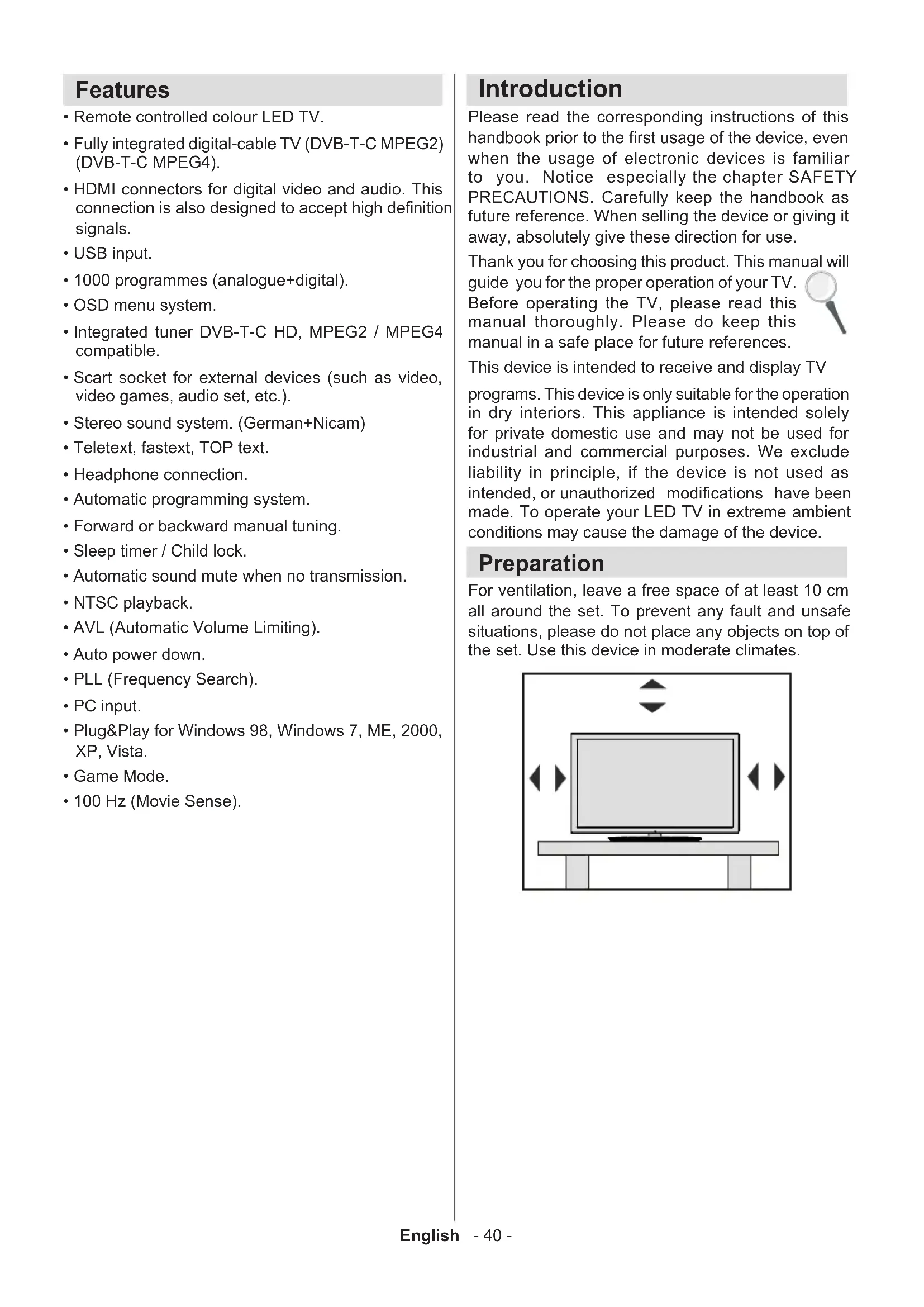

Introduction Please read the corresponding instructions of this

when the usage of electronic devices is familiar

PRECAUTIONS. Carefully keep the handbook as future reference. When selling the device or giving it away, absolutely give these direction for use. Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly. Please do keep this manual in a safe place for future references. This device is intended to receive and display TV programs. This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as

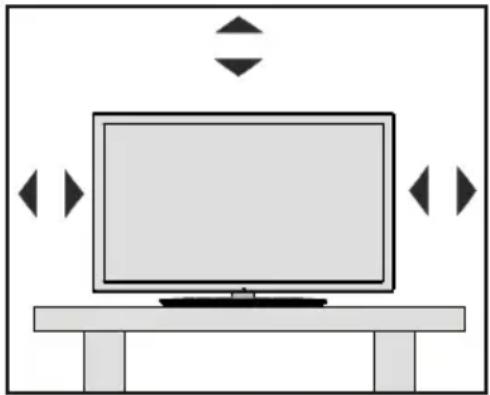

made. To operate your LED TV in extreme ambient conditions may cause the damage of the device. Preparation For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set. Use this device in moderate climates. 10 cm 10 cm 10 cmEnglish - 41 - Safety Precautions Read the following recommended safety precautions carefully for your safety. Power Source The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience. Power Cord Do not place the set, a piece of furniture, etc. on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged

When it is damaged and needs to be replaced, it should

Moisture and Water Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with

Avoid from dripping or splashing. If any solid object or liquid falls into the cabinet, unplug

before operating it any further. Cleaning Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth. Ventilation The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway. Heat and Flames The set should not be placed near to

such as an electric heater. Ensure that

candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine,

Lightning In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet. Replacement Parts When replacement parts are required, make sure that the service technician has used replacement parts,

other hazards. Servicing

personnel. Do not remove the cover yourself as this may result in an electric shock. Waste Disposal Instructions for waste disposal: Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children. Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.

Replace batteries only with the same or equivalent type. This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in EU. For more information, please contact the local authority or the dealer where you purchased the product. Disconnecting the Device The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. Headphone Volume Excessive sound pressure from earphones and headphones can cause hearing loss. Installation To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).English - 42 - LCD Screen The LCD panel is a very high technology product with

picture details. Occasionally, a few non-active pixels

red point. Please note that this does not affect the performance of your product. Warning! Do not leave your TV in standby or operating mode when you leave your house. The Standby / On button doesn´t separate this device completely from mains. Moreover the device consumes power in the standby operation. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to mains socket is guaranteed, so that in case of emergency the mains plug can be

power cord should principally be separated from the mains socket prior to a longer period of non-usage, i.e. during vacations. Electrical device not in the hands of children Never let children use electrical device unsupervised. Children can´t always recognize properly the possible dangers. Batteries / accumulators can be life threatening when swallowed. Store batteries unreachable for small children. In case of swallowing a battery medical aid has to be sought immediately. Also keep the packaging foils away from children. There is danger of suffocation. Connection to a Television Distribution System (Cable TV etc.) from Tuner Device connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using coaxial cable, may in some circumstances create a

Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11). Package Contents MENU RETURN SOURCEFAVPRESETSSLEEP

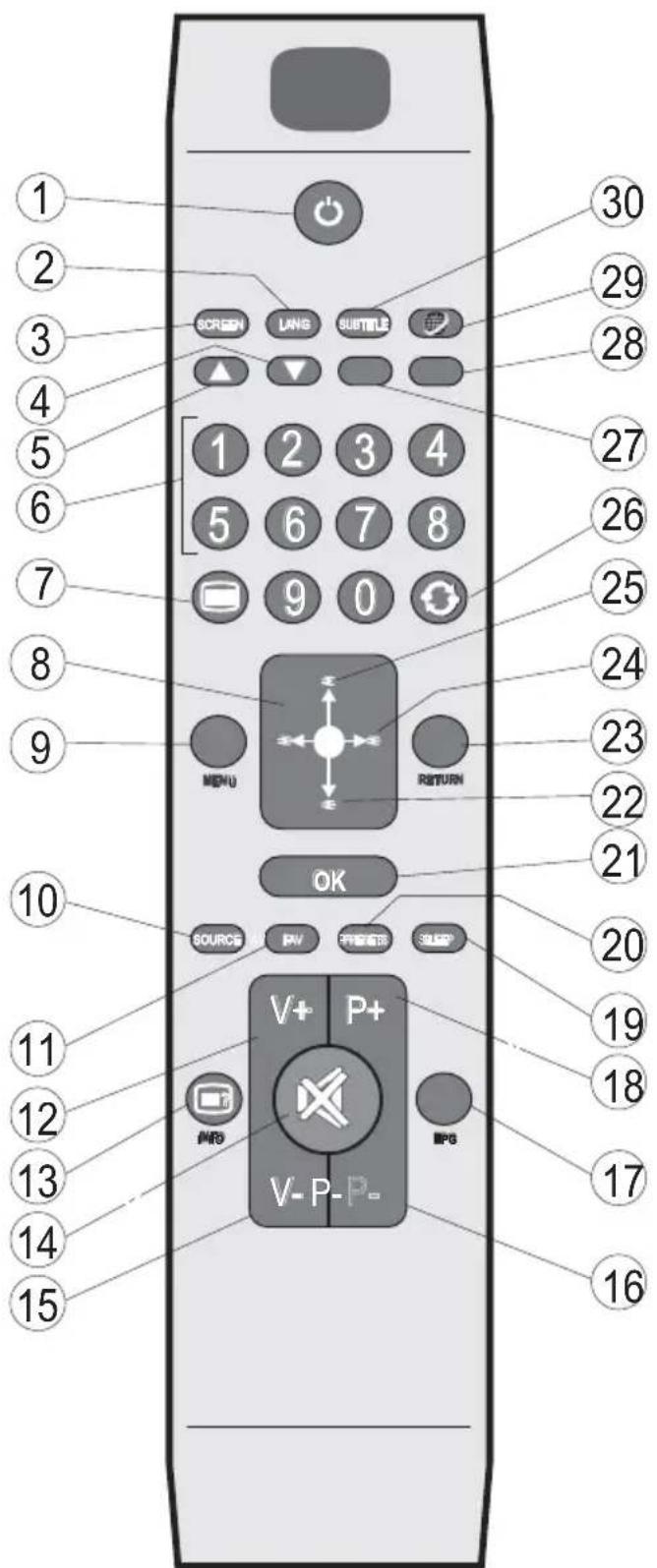

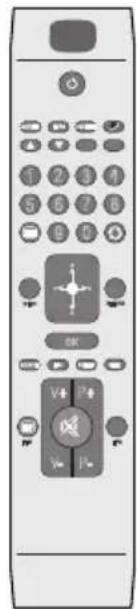

SCREENLANGSUBTITLE Remote Control 1 X Audio & Video connection cable LED TV Batteries: 2 X AAA Instruction Book Note: You should check the accessories after purchasing. Make sure that each accessory is included.English - 43 - Environmental Information

Other Settings menu. If you set Power Save Mode as On, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

the TV from the mains plug instead of keeping stand-by mode. Therefore disconnect the TV from the mains plug to save energy when you do not use. However it is highly recommended to activate Power Save Mode setting to reduce your annual power consumption.

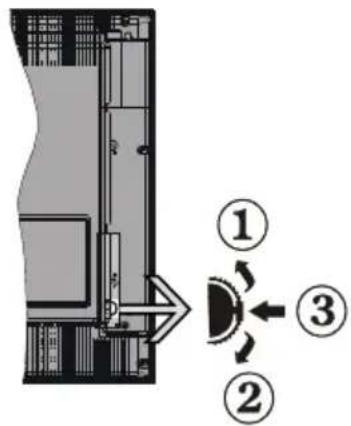

/ Standby-On selection switch Note:You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via control buttons. Viewing the Back side Connections

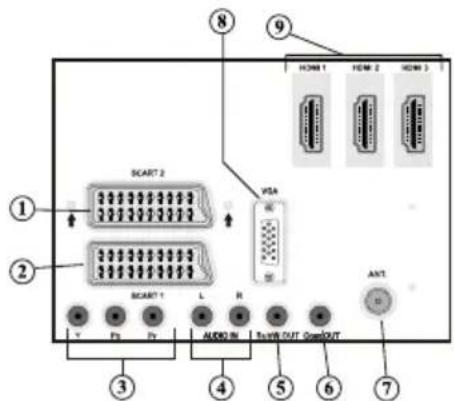

1. SCART 2 inputs or outputs for external devices.

2. SCART 1 input or output for external devices. Connect the SCART cable between SCART socket on

TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player). Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. Note: To connect external device,please use to supplied scart connection cable. Note: When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket.

3. Component Video Inputs (YPbPr) are used for connecting component video.

You can connect the component video and audio sockets with a device that has component output. Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, “Y”, “Pb”, “Pr” correspond with your device’s connectors.

4. PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the

TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio.

5. Subwoofer Out is for connecting an external, active subwoofer to the set to give a much deeper bass

effect. Use an appropriate RCA cable to connect the TV set to a subwoofer unit.English - 46 -

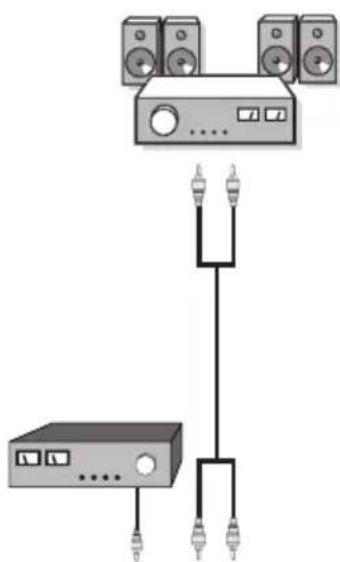

6. SPDIF Coaxial Out outputs digital audio signals of the currently watched source.

Use an SPDIF coaxial cable to trasfer audio signals to a device that has SPDIF input

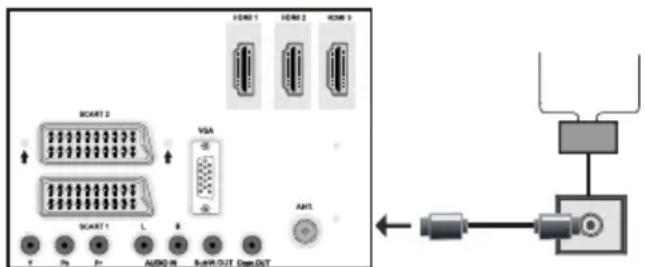

7. RF Input connects to an aerial antenna system.

Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.

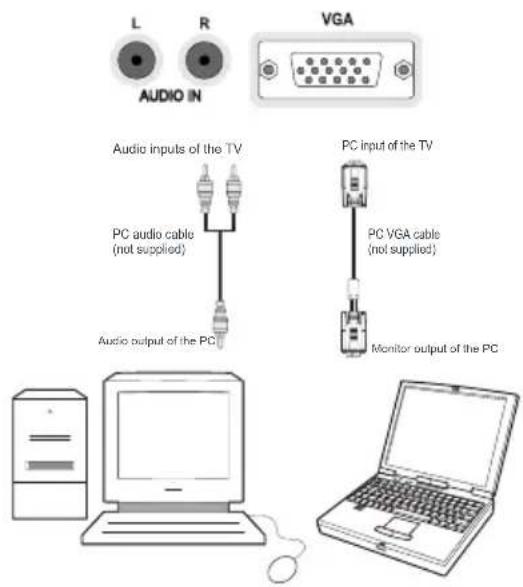

8. PC Input is for connecting a personal computer to the TV set.

Connect the PC cable between the PC INPUT on the TV and the PC output on your PC

9. HDMI Inputs are for connecting a device that has an HDMI

Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080p signals. No sound connection is needed for an HDMI to HDMI connection. Viewing the Connections - Side Connectors

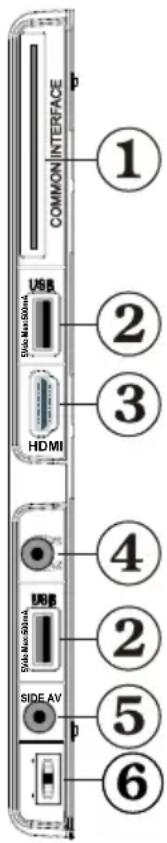

1. CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that

you subscribe to. For more information, see “Conditional Access” section.

Note that programme recording feature is available via these USB inputs. You can connect external hard disk drives to this input.

3. Side HDMI Input (HDMI 4) is for connecting a device that has an HDMI socket.

4. Headphone jack is used for connecting an external headphone to the system. Connect

to the HEADPHONE jack to listen to the TV from headphones (optional).

5. Side audio-video connection input is used for connecting video and audio signals of

external devices. To make a video connection, you must use the supplied AV connection

input (located on the plural side) of the supplied AV connection cable. Colours of the connected jacks should match. To enable audio connection, you must use RED and WHITE inputs of the side AV

and WHITE jack of the supplied side AV connection cable. Colours of the connected jacks should match. Note: You should use audio inputs of side AV connection cable (RED & WHITE) to enable sound connection when connecting a device to your TV by using PC or COMPONENT VIDEO input.

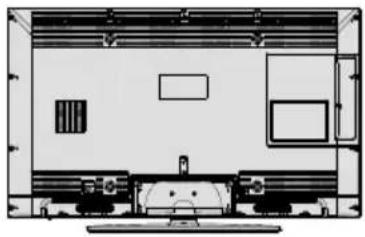

6. Volume/ Programme/ Source and Standby-On switch.

Power Connection IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet. Aerial & Cable Connection Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV. Aerial or Cable 5Vdc Max:500mA5Vdc Max:500mASIDE AV HDMI MODE oEnglish - 47 - Using Digital Multimedia Connectors

It is possible that certain types of USB devices (e.g. MP3 Players) may not be compatible with this TV.

connections to the TV set in order to avoid any possible data loss. Note that manufacturer will not

CAUTION: Quickly plugging and unplugging USB devices, is a very hazardous operation. Especially, do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and especially the USB device itself.

5Vdc Max:500mA USB USB Memory Connection IMPORTANT: The TV should be switched off while plugging or unplugging a USB device. Plug your

connect two usb device to your TV by using the USB inputs of the TV at the same time. Note: It is possible certain types of hard disk drives are not supported. Connecting the LED TV to a PC

LED TV, you can connect your computer to the TV set. Power off both computer and display before making any connections. Use 15-pin D-sub display cable to connect a PC to the LED TV. When the connection is made, switch to PC source. See “Input selection” section. Set the resolution that suits your viewing requirements. Resolution information can be found in the appendix parts. PC audio cable (not supplied) PC VGA cable (not supplied) Audio inputs of the TV PC input of the TV Audio output of the PCMonitor output of the PC Note: If you connect a PC to the TV using HDMI connection, radio interference may occur. Therefore this type of connection is not recommended. You should use VGA connection instead.English - 48 - Using Side AV Connectors You can connect a range of optional equipment to your LED TV using side connectors of the TV.

• For connecting a camcorder or camera , you should use SIDE AV socket (side). To do this, you must use the supplied video/audio connection cable. First, plug single jack of the cable to the TV’s AV IN socket (side). Afterwards, insert your camera cable’s (not supplied) connectors into the plural part of the video/ audio connection cable. Colours of the connected jacks should match. See illustration below.

• Afterwards, you should switch to Side AV source. See the section Input selection in the following sections for more information. CameraSide AV ConnectionCable (supplied)AV Cable(not supplied)HeadphoneSIDE AV
• To listen the TV sound from headphones, you should connect headphones to your TV by using the HEADPHONE jack as illustrated above. Using Other Connectors You can connect a range of optional equipment to your LED TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.

• For connecting a to a device that has SPDIF support, use an appropriate SPDIF cable to enable sound connection. External Speakers A device that supports SPDIF signal. Connecting to a DVD Player If you want to connect a DVD player to your LED TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player’s instruction book for additional information. Power off both the TV and the device before making any connections. Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, “Input Selection” section.

• Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When the connection is made, switch to YPbPr source. See, “Input selection” section.

• You may also connect through the SCART 1 or SCART 2. Use a SCART cable as shown below. Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

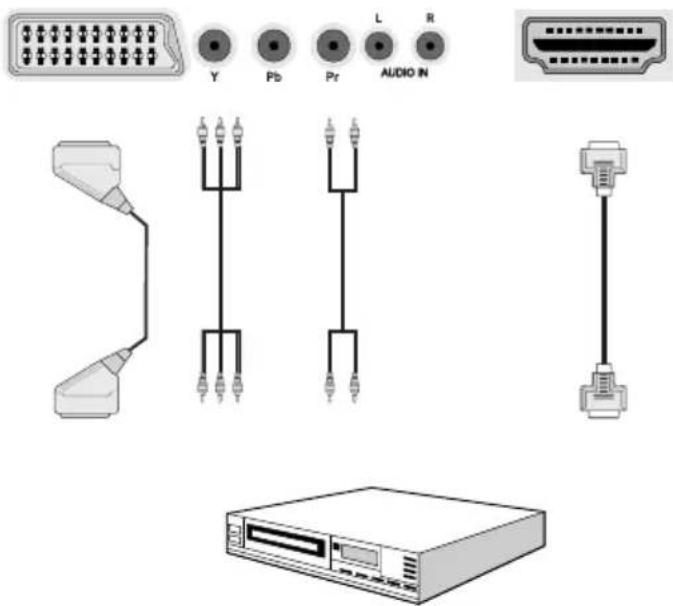

HDMI HDMI inputsScart socketsComponent videoinputsComponent audioinputsDVD PlayerEnglish - 49 - Remote Control Handset Inserting Batteries• Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.• Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

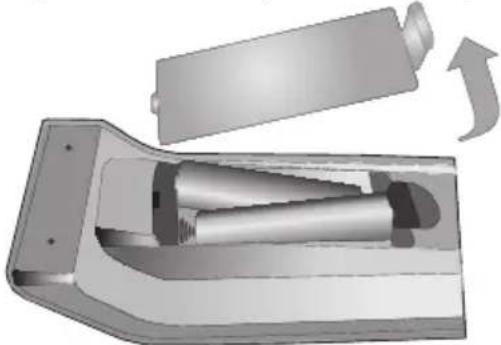

Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries. Remote range is approximately 7m/23ft. Switching On/Off To Switch the TV On• Connect the power cord to the 220-240V AC 50 Hz. • Then the standby LED lights up.• To switch on the TV from standby mode either:• Press the “” button, P+ / P- or a numeric button on the remote control.• P Press the control switch right side of the TV. The TV will then switch on.Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.By either method the TV will switch on.To Switch the TV Off• Press the “ ” button on the remote control or hold the control switch on the Tv until shut down , so the TV will switch to standby mode.• To power down the TV completely, unplug the power cord from the mains socket.Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.If the TV switches off while in No Signal mode, the following on-screen message will be displayed on the next switch-on:When the Auto Tv Off timeout is reached, the following message will be displayed on the screen. Select YES to shut down the TV. Select NO to cancel. The TV will switch off as well, if you do not make a selection on this screen.If the TV switches off owing to the auto power down feature, the following on-screen message will be displayed on the next switch-on:Digital Teletext (** for UK only)• Press the “ ” button.• The digital teletext information appears.• Operate it with the coloured buttons, cursor buttons and OK button.The operation method may differ depending on the contents of the digital teletext.Follow the instructions displayed on digital teletext screen.• When Press “SELECT” button or similar message appears on the screen, press the OK button.• When the “” button is pressed, the TV returns to television broadcasting.• With digital terrestrial broadcasting (DVB-T), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.• The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.• When you press the “” button again, the digital teletext screen will be displayed.English - 50 - Analogue Teletext Use of teletext and its functions are identical to the analogue text system. Please do refer to the “TELETEXT” explanations. Input Selection Once you have connected external systems to your TV, you can switch to different input sources. Press “SOURCE” button on your remote control consecutively for directly changing sources. You can operate your TV using both the remote control and onset buttons. Operation with the Buttons on the TV Volume Setting

downward for changing the volume. To increase volume, please move the switch upward. Move the switch downward to decrease the volume. A volume level scale (slider) will be displayed on the screen. Programme Selection First press the control switch once to change

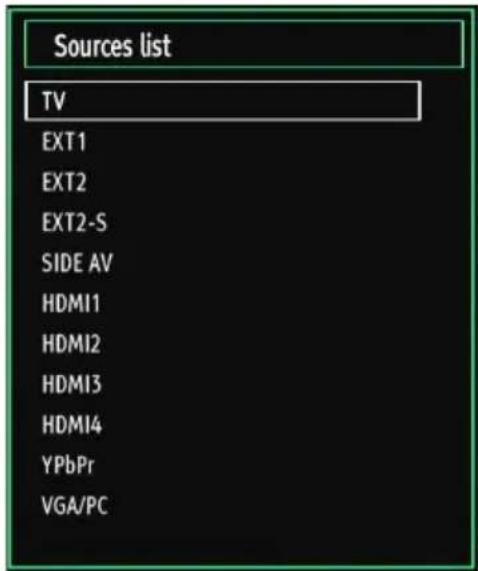

the next programme or move it downward to select the previous programme. Viewing Main Menu Menu screen cannot be displayed by using the control switch. AV Mode Press the control switch consecutively until the source OSD is displayed on the screen. Operation with the Remote Control The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV. Volume Setting Press “V+” button to increase the volume. Press “V-” button to decrease the volume. A volume level scale (slider) will be displayed on the screen. Programme Selection (Previous or Next Programme) Press “P-” button to select the previous programme. Press “P+” button to select the next programme. Programme Selection (Direct Access) Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between, press the numeric buttons consecutively. When the pressing time is due for the second

be displayed. Press directly the programme number to reselect single digit programmes. Viewing Electronic Programme Guide (EPG)

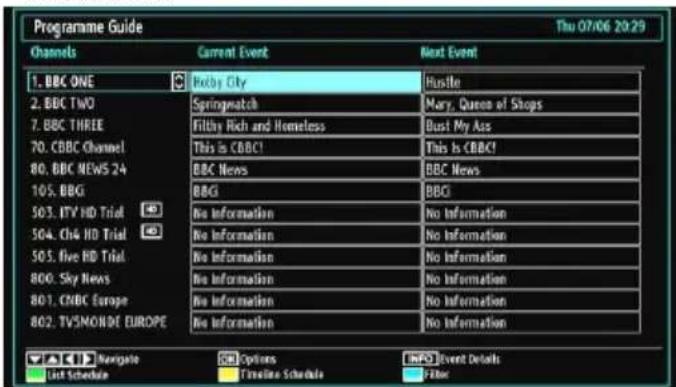

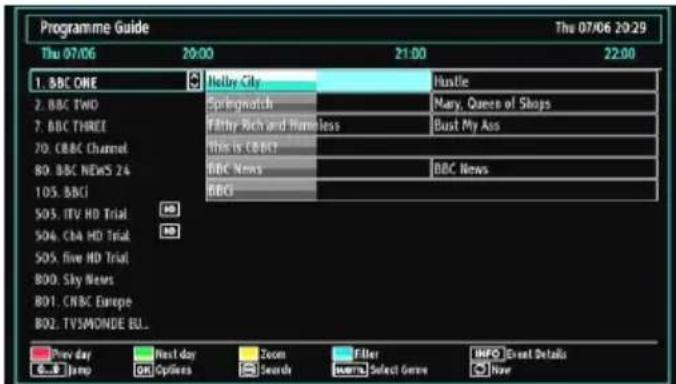

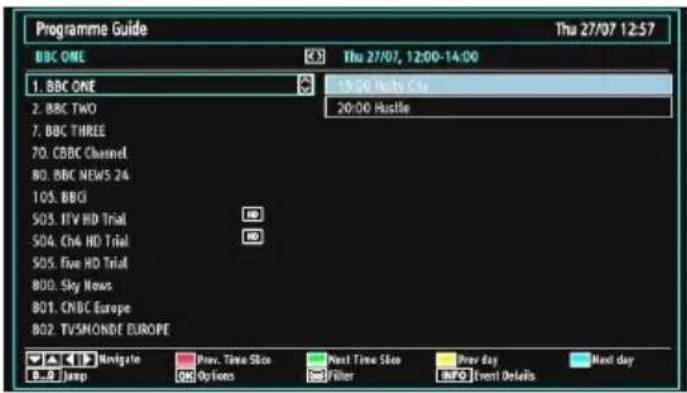

to view information about available programmes.To view the EPG menu please press EPG button on the remote control. Press “ ”/“ ” buttons to navigate through channels. Press “ ”/“ ” buttons to navigate through the programme list.

• EPG menu displays available information on all channels. Please note that event information is updated automatically. If there are no event information data available for channels, EPG will be displayed with blanks. OK (Options): Displays programme options including “Select Channel” option. INFO (Event Details): Displays the programmes in detail. Green button: Programme schedule will be listed Yellow button: Display EPG data in accordane with timeline scheduleEnglish - 51 - Blue button (Filter): Red button (Prev Time Slice): Displays the programmes of previous time slice. Green button (Next Time Slice): Displays the programmes of the next time slice. Yellow button (Prev Day): Displays the programmes of previous day. Blue button (Next day): Displays the programmes of the next day. Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons. OK (Options): Displays programme options including “Select Channel” option. Text button (Filter): INFO (Details): Displays the programmes in detail. Red button (Prev Day): Displays the programmes of previous day. Green button (Next day): Displays the programmes of the next day. Yellow button (Zoom): Expands programme information. Blue button (Filter): INFO (Details): Displays the programmes in detail. Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons. OK (Options): Displays programme options including “Select Channel” option. Text (Search): Displays “Guide Search” menu. SUBTTL: Press SUBTTL button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed. (Now) : Shows the current programme. First Time Installation IMPORTANT: Ensure that the aerial is connected and a Common Interface module is not inserted before switching on the TV for the first time installation.

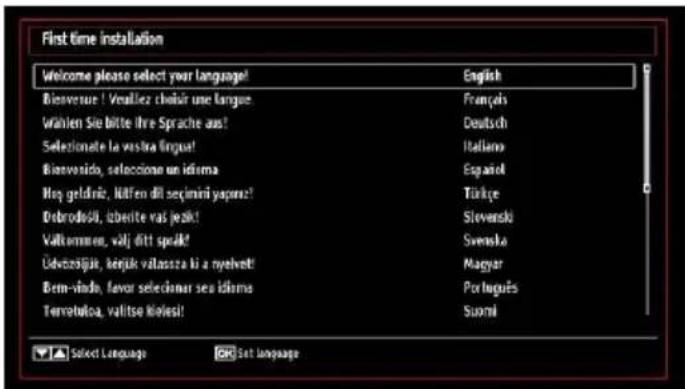

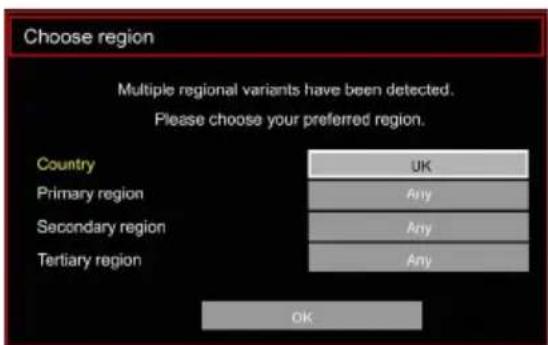

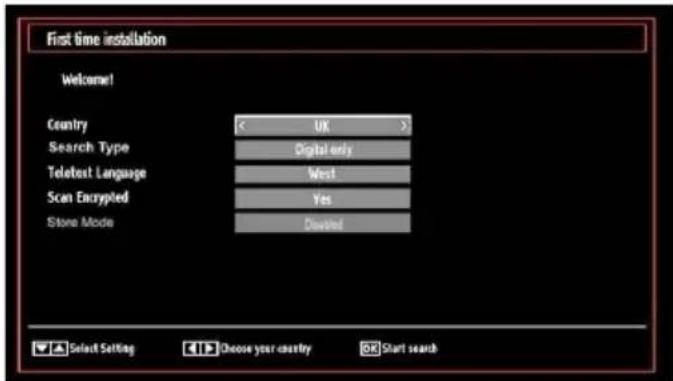

wizard will guide you through the process. First, language selection screen will be displayed: Use “ ” or “ ” buttons to select your language and press OK button to set selected language and continue. After selecting the language, “Welcome!” screen will be displayed, requiring you to set Country*, Search Type, Teletext Language,Store Mode and Scan Encrypted options. By pressing “ ” or “ ” button, select the country you want to set and press “ ” button to highlight Search Type option. Use “ ”/“ ” to set the desired search type. Available search types are digital only, analog TV only and full. When set, press “ ” to select Teletext Language. Use “ ” or “ ” to select the desired Teletext Language. Press “ ” button after setting Teletext Language option. Scan Encrypted will be then highlighted.English - 52 - Scan Encrypted as Yes if you want to scan coded stations.Afterwards select the desired Teletext Language.

or “ ” button. If the Store Mode is set to “enabled”, E-Pop option will be available in other settings menu. If it is set to “disabled”, Store Mode will not be available after the First Time Installation. Note: If Store Mode is enabled, some features may be affected. Press OK button on the remote control to continue and the following message will be displayed on the screen:

by using “ ” or “ ” buttons and press OK button. Afterwards, the following OSD will be displayed on the screen: If you select CABLE option, the following screen will be displayed:

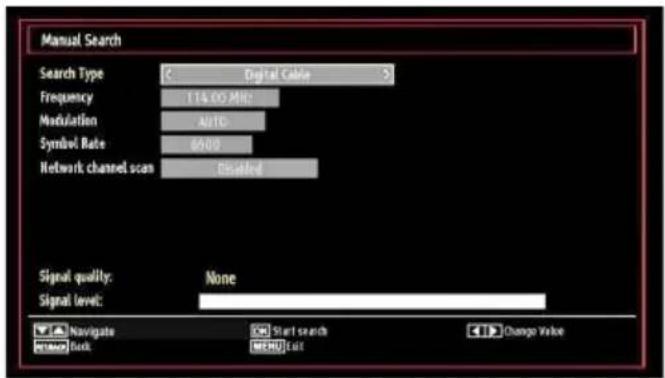

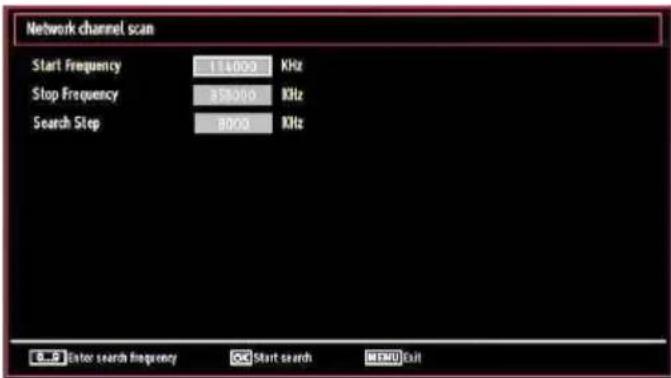

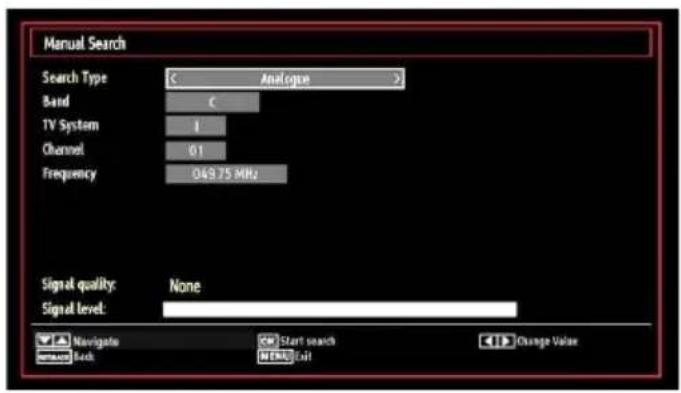

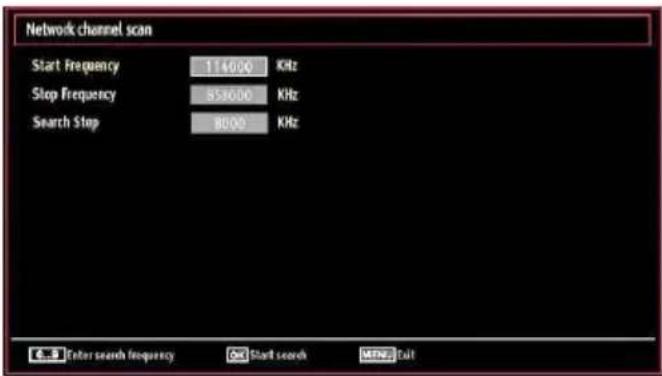

highlighting lines you see, use “ ” or “ can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. Depending on your Country selection in

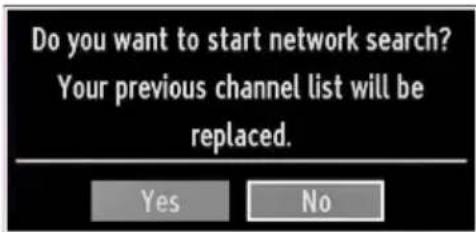

might be available on Network Channel Scan screen. Note that if you perform the search with 250KHz option, search process could take a longer time. Additionally, for some countries, Network ID option will be available. Network ID feature gets the Network Information Table. This table provides information on the selected network. It may change according to the operator and the region where that operator actively

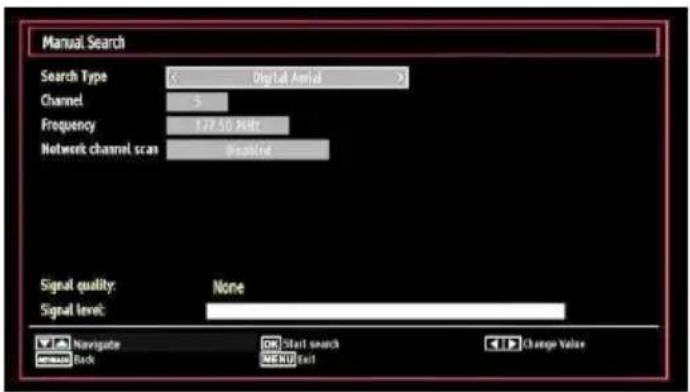

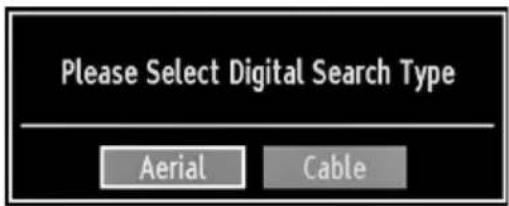

automatic search. If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts. Note: You can press “MENU” button to cancel. End of the search process, Choose Region menu screen will be displayed (if any multiple region variants are detected). Please select country and region choice then press OK to continue. After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN (optional), OK. Press OK button to quit channel list and watch TV.English - 53 - Auto Tuning HINT: Auto tuning feature will help you to retune the TV set in order to store new services or stations. Press “MENU” button on the remote control and select Installation by using “ ” or “ ” button. Press OK button and the following menu screen will be displayed.

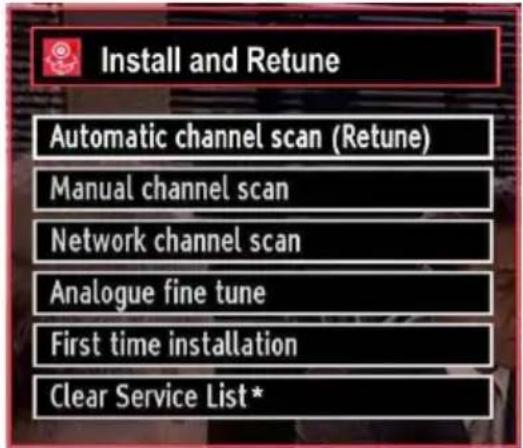

” and OK buttons. Auto Channel Scan Menu Operation Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores both analogue and aerial DVB stations. Digital Cable & Analogue: Searches and stores both analogue and cable DVB stations. Whenever you select an automatic search type and press OK on the screen. To start installation process, select Yes, to cancel select No by using .“ ” or “ ” and OK button. After auto channel scan type is set and selected

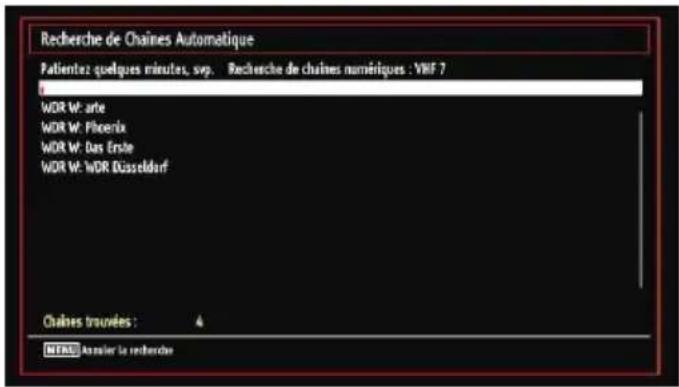

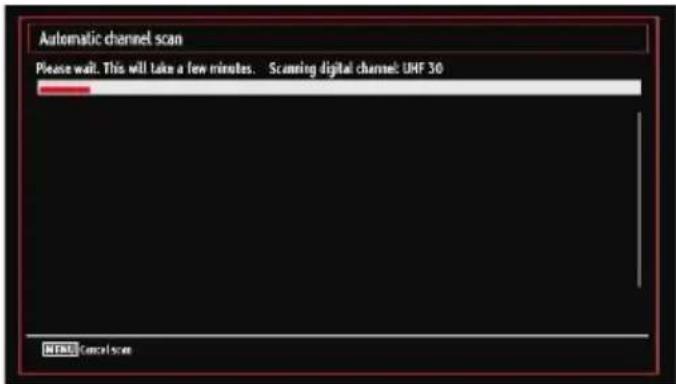

progress bar will move along. Press “MENU” button to cancel process. In such a case, located channels are not stored. Manual Tuning HINT: This feature can be used for direct broadcast entry. Select Manual Channel Scan from the Installation menu by using “ ”/“ ” and OK buttons. Manual Scan options screen will be displayed. Select the desired Search Type using “ ” or “ ” button. Manual search options will change accordingly. Use “ ”/“ ” button to highlight an item and then press “ ” or “ ” button to set an option. “MENU” button to cancel. Digital Aerial Manual Search In manual channel scan, the number of the multiplex or frequency are entered manually and only that multiplex or frequency are searched for the channels. After selecting search type as Digital Aerial, you can enter the multiplex or frequency number using the numeric buttons and press OK button to search. Digital Cable Manual Search In cable manual scan, you can enter frequency, modulation, symbol rate and network channel scan options. After selecting search type as Digital Cable, you can set the desired options and press OK button to search.English - 54 - Analogue Manual Search After selecting search type as analogue, you can use

”/“ ” button to highlight an item and then press “ ” or “ ” button to set an option. Enter the channel number or frequency using the OK button to search. When the channel is located, any new channels that are not on the list will be stored. Analog Fine Tune Select Analog Fine Tune from the Installation menu by using “ ” or “ ” and OK screen will be displayed. Analog Fine Tune feature will not be available if there are no analog channels, digital channels and external sources stored. Press OK button to proceed. Use “ ” or “ ” button OK button again. Network Channel Scan Select Network Channel Scan from the installation menu by using “ ” or “ ” and OK buttons. Network Channel Scan selection screen will be displayed. Select Digital Aerial or Digital Cable and press OK button to continue. The following message will

cancel. If you start Digital Aerial scan process, automatic MENU” button to cancel. If you start Digital Cable scan process, the following screen will be displayed.

highlighting lines you see, use “ ” or “ can enter the frequency range manually by using the numeric buttons on the remote control. Set Start and Stop Frequency as desired by using numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or 1000 KHz. If you select 1000 KHz, the Tv will perform search process in a detailed way. Searching duration will thus increase accordingly. Depending on your Country selection in

might be available on Network Channel Scan screen. Note that if you perform the search with 250KHz option, search process could take a longer time. Additionally, for some countries, Network ID option will be available. Network ID feature gets the Network Information Table. This table provides information on the selected network. It may change according to the operator and the region where that operator actively OK button to start automatic search. Automatic searching screen will be displayed during the process. Note: If you select an extended gap between Start and Stop frequency rate, automatic search duration will take a longer time. Clear Service List (*) (*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored. Press “ ” or

” button to select Clear Service List and then press OK. The following OSD message will be displayed on the screen: Press OK ” or “ ” button and press OK to delete all of the channels.English - 55 - Managing Stations: Channel List The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.

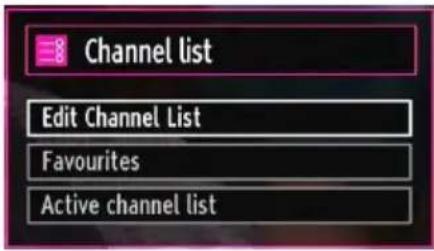

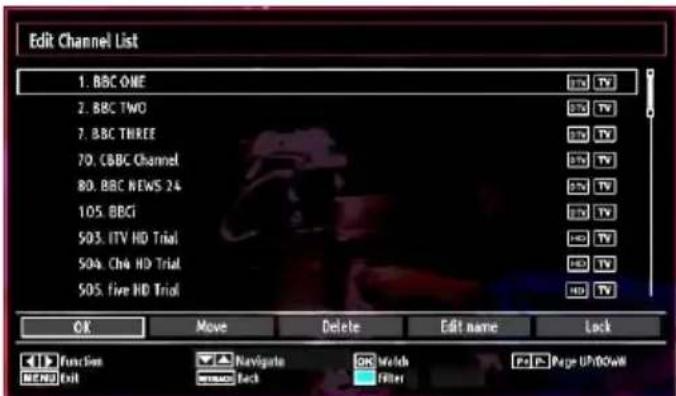

Press “MENU” button to view main menu. Select Channel List item by using “ ” or “ ” button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use “ ” or “ ” and OK buttons to select Edit Channel List. Operating the Channel List Press “ ” or “ ” button to select the channel that will be processed. Press “ ” or “ ” button to select a function on the Channel List menu. Use P+ or P- buttons to move up or down one page. Press BLUE Press “MENU” button to exit. Note: The channels listed are mixed at the channel list. Channel types can be differentiated by the icons next to them: DTV (digital tv), HD (HD TV) , ATV (Analogue TV) ,TV (TV), RD (Radio), encrypted, lock, and at the favourite list. Listed channels can also be sorted by using the

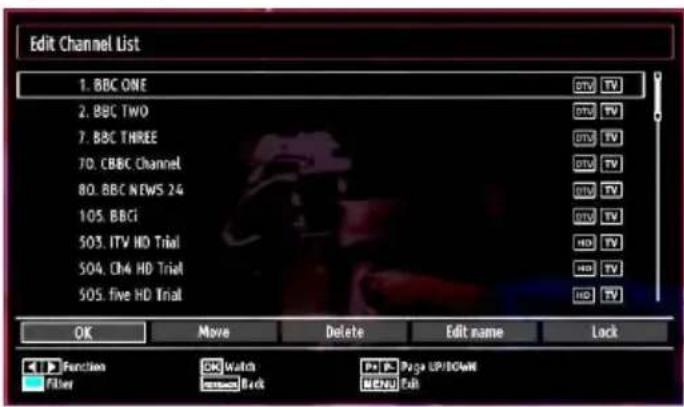

Moving a Channel First select the desired channel. Select Move option in the channel list and press OK button. Edit Number screen will be displayed. Enter the desired channel number by using the numeric buttons on the remote control. If there is a previously stored channel on that number, a warning screen

channel and press OK. Press OK button to process. Selected channel is now moved. Deleting a Channel You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag channel. Select the channel that you want to delete and select Delete option. Press OK button to continue. A warning screen will appear. Select YES to delete, select No to cancel. Press OK button to continue. Renaming a Channel Select the channel that you want to rename and select Edit Name option. Press OK button to continue. Pressing “ ” or “ ” button moves to the previous/ next character. Pressing “ ” or “ ” button toggles

by “ ”. Pressing the numeric buttons

characters printed above the button one by one as the button is pressed. OK button to save. Press “MENU” to cancel. Locking a Channel You can press GREEN button to tag/untag all channels; YELLOW button to tag/untag a single channel. Select the channel that you want to lock and select Lock option. Press OK button to continue.

Default PIN is set as 0000. Enter the PIN number. Press OK button when the desired channel is highlighted to lock/unlock the channel. Lock symbol will be displayed next to the selected channel.English - 56 - Managing Stations: Favourites

Press “MENU” button to view main menu. Select Channel List item by using “ ” or “ ” button. Press OK to view menu contents. Select Favourites to manage favourite list. Use “ ”/“ ” and OK buttons to select Favourites.

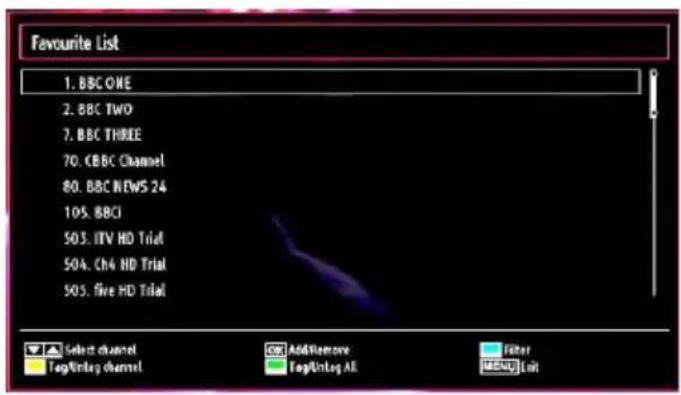

only the favourite channels are navigated. Select a channel by using “ ” or “ ” button. Press OK button to add selected channel to favourites list. Press OK button again to remove. Button Functions

• OK: Add/remove a station.

• BLUE Managing Stations: Sorting Channel List You can select broadcasts to be listed in the channel

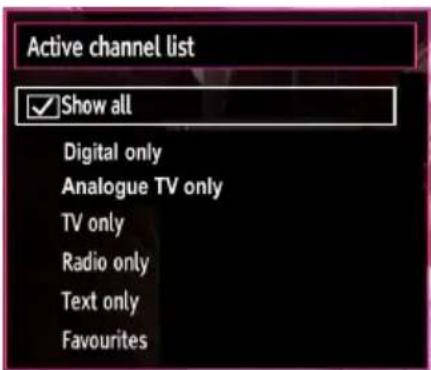

use Active channel list setting. Select Active channel list from the Channel list menu by using “ ” /“ ” button. Press OK button to continue.

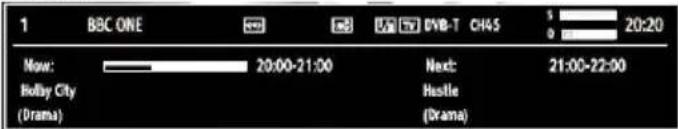

by using “ ” /“ ” and OK buttons. On-Screen Information You can press “INFO” button to display on-screen information. Details of the station and current programme will be displayed on the information banner. The information banner gives information on the channel selected and the programmes on it. The name of the channel is displayed, along with its channel list number. Hint: Not all channels broadcast the programme data. If the name and time of the programme are not available, then information banner will be displayed with blanks. If the selected channel is locked, you must enter the correct four-digit numeric code to view the channel (default code is 0000). “Enter PIN” will be displayed on the screen in such a case: Media Playback Using Media Browser If the USB stick is not recognized after power off/on

out and power off/on the TV set. Plug the USB device in again. To display Media Browser window, press either “MENU” button on the remote control and then select Media Browser by pressing “ ” or “ ” button. Press OK button to continue. Media Browser menu options will be displayed. Also, when you plug USB devices, media browser screen will be displayed automatically:

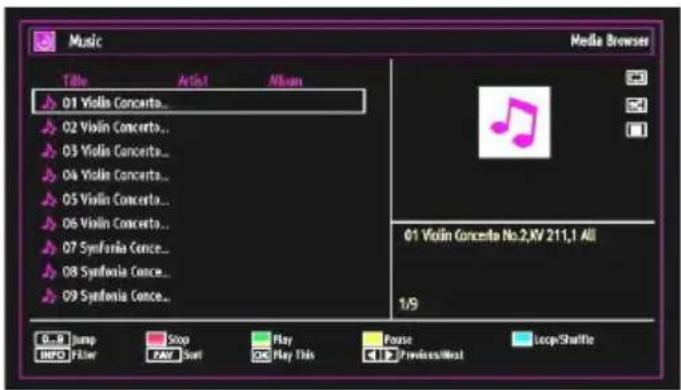

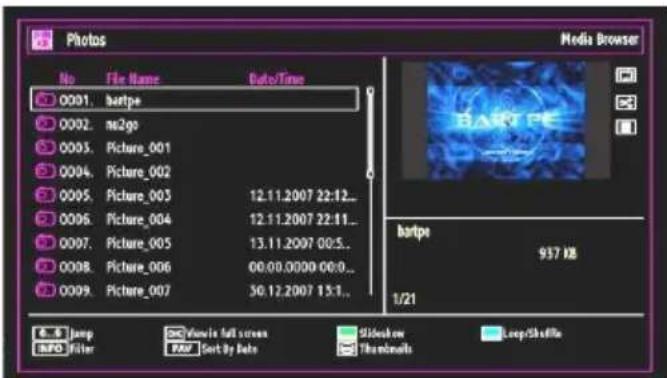

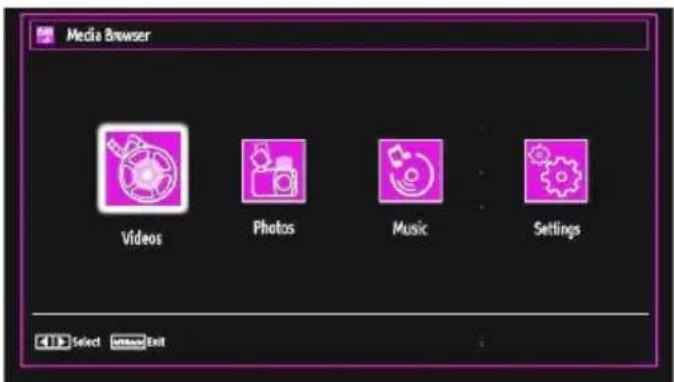

connected USB memory stick. Use “ ” or “ ” button to select Videos, Photos, Music or Settings.

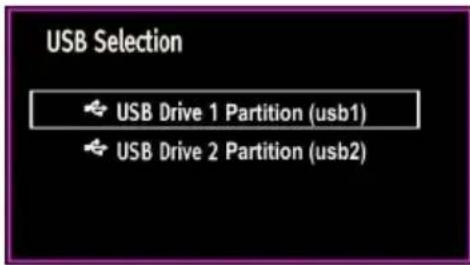

as USB Drive1. Select a device by using “ ” or “ ” button and press OK. Viewing Videos via USB When you select Videos from the main options,

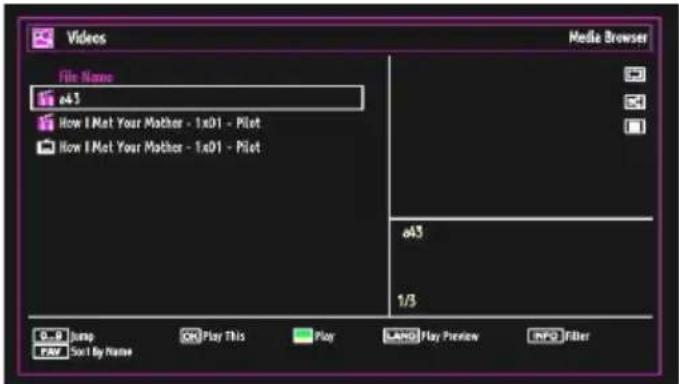

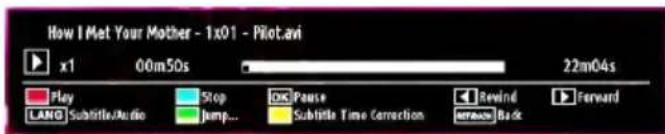

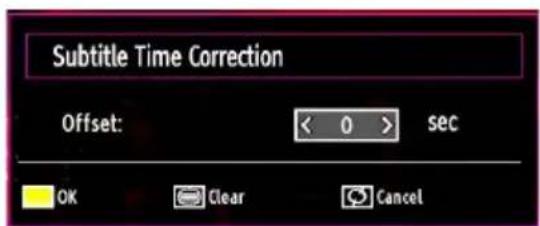

” or “ ” button to select a video OK button to play a video. If you select OK button, you can select or

screen. 0...9 (Jump) (Numeric buttons): Jump to selected

with the change of the icons. Previous/Next (Left/Right buttons): Jumps to

Rotate (Up/Down buttons): Rotates the image using up/down buttons. RET/BACK INFO: Displays help screen. Playing Music Files via USB When you select Music from the main options,

screen.English - 58 - / : Navigate. Play (Green button) with the selected one. Stop (Red button): Stops playback. Pause (Yellow button): Pauses the selected playback. Sort (FAV button): Sorts files by Title, Artist or Album. : Press once to disable

with the change of the icons. 0..9 (Numeric buttons): The TV will jump to the

buttons on your remote control. Play This (OK button) Previous/Next (Left/Right buttons): Jumps to

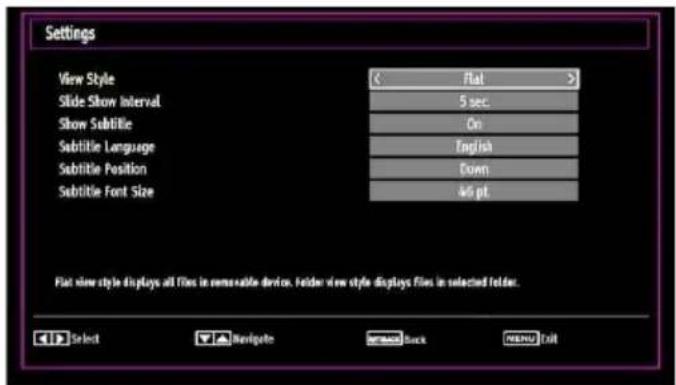

Toggle View Style (TXT button): Changes viewing style. Change Media (Info button): Changes media type. Note: If the Viewing Style is set to Folder in Media Browser Settings, Music folder will be displayed as

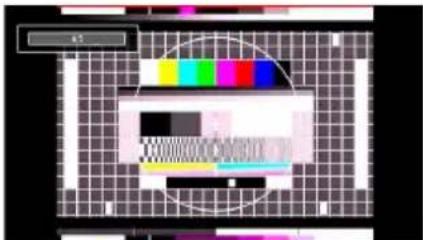

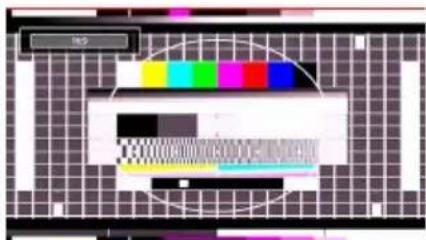

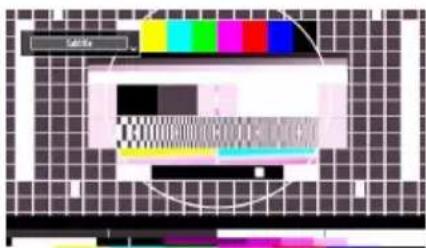

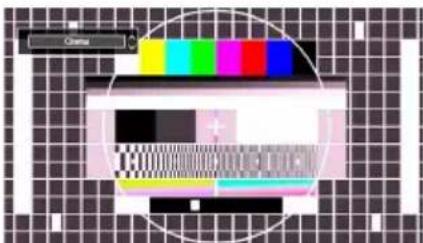

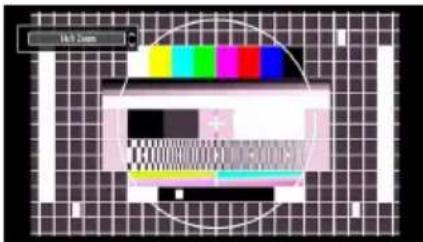

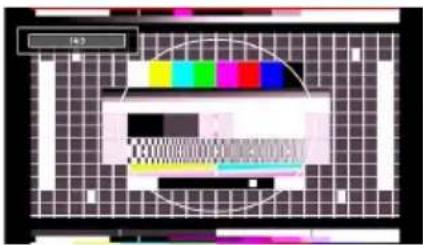

the TV to view the picture in different zoom modes. Press the “SCREEN” button repeatedly to change the image size. Available zoom modes are listed below. Auto When AUTO is selected, the aspect ratio of the screen is adjusted by the information provided by the selected source(if available). The format being displayed in AUTO mode is completely independent of WSS(Wide Screen Signaling) information which can be included in the broadcast signal or the signal from an external device. Note: Auto mode only will be available in HDMI, YPbPr and DTV sources. 16:9 This uniformly stretches the left and right sides of a

screen. For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape. Subtitle This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.English - 59 - Note: You can shift to screen up or down by pressing

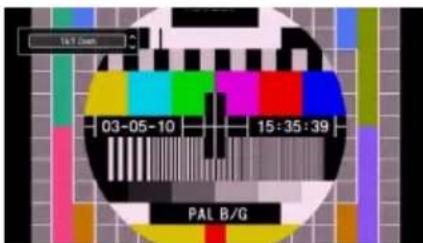

” / “ ” buttons while picture zoom is selected as 14:9 Zoom, Cinema or Subtitle. 14:9 This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen. 14:9 Zoom This option zooms to the 14:9 picture. 4:3 Use to view a normal picture (4:3 aspect ratio) as this is its original size. Cinema This zooms up the wide picture (16:9 aspect ratio) to the full screen.

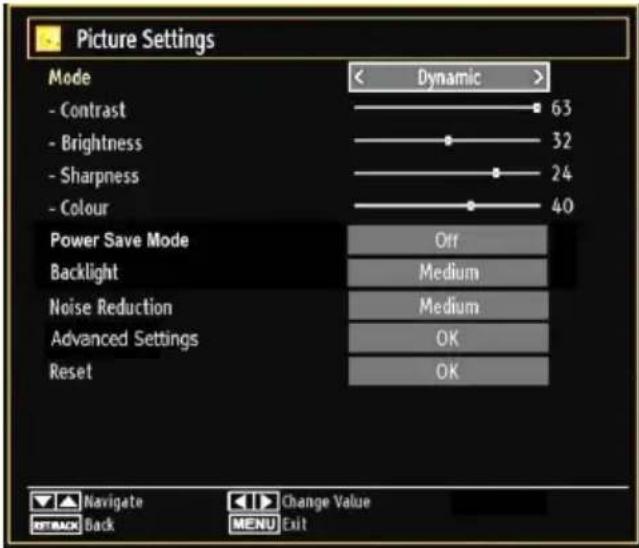

You can use different picture settings in detail. Press “MENU” button and select the Picture icon by using “ ” or “ ” button. Press OK button to view Picture Settings menu. Operating Picture Settings Menu Items

• Press “MENU” button to exit. Picture Settings Menu Items Mode: For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema,Game,Dynamic and Natural. Contrast: Sets the lightness and darkness values of the screen. Brightness: Sets the brightness value for the screen. Sharpness: Sets the sharpness value for the objects displayed on the screen. Power Save Mode: Use “ ” or “ ” button to select Power Save Mode. Press “ ” or “ ” button to set Power Save Mode as Eco, Picture Off and Disabled. See the section, “Environmental Information” in this manual for further information on Power Save Mode. Backlight: This setting controls the backlight level and it can be set to Low, Medium, High and Auto. Noise Reduction: If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off. Advanced Settings Colour Temp: Sets the desired colour tone.Setting Cool option gives white colours a slight blue stress. For normal colours, select Normal option.Setting Warm option gives white colours a slight red stress.English - 60 - Movie Sense (optional): While Movie Sense is active,

images to acquire a better quality and readability. Using Movie Sense Mode (optional) When Movie Sense option is set to Low, Med or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two sections, one displaying the movie sense activity, the other displaying the normal settings for TV screen. To cancel press OK button again. Notes: Movie Sense also works while watching 24-frame broadcasts. Picture Zoom:Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema. HDMI True Black: While watching from HDMI source, this feature will be visible in the Picture

“On” for activating HDMI True Black mode. Film Mode(optional): Films are recorded at a different number of frames per second to normal television programmes. Press “ ” or “ ” buttons to select Film mode. Press “ ” or “ ” buttons to set this feature Auto or Off. Turn this feature to Auto

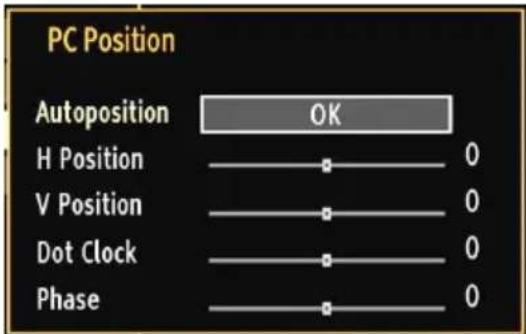

scenes clearly. Colour Shift: Adjust the desired colour tone. Reset: Resets the picture settings to factory default settings. While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode. PC Picture Settings Operation For adjusting PC picture items, do the following: Press “ ” or “ ” button to select Picture icon. Picture menu appears on the screen. Contrast, Brightness, Colour, Colour Temp and Picture Zoom, Reset settings in this menu are identical to settings Sound ,Settings and Source settings are identical to the settings explained in the main menu system. PC Position: Select this to display PC position menu items. PC Picture Settings Operation For adjusting PC picture items, do the following: Press “ ” or “ ” button to select Picture icon. Picture menu appears on the screen. Contrast, Brightness, Colour, Colour Temp and Picture Zoom, Reset settings in this menu are identical to settings Sound ,Settings and Source settings are identical to the settings explained in the main menu system. PC Position: Select this to display PC position menu items. Autoposition: Automatically optimizes the display. Press OK to optimize. H Position: This item shifts the image horizontally to right hand side or left hand side of the screen. V Position: This item shifts the image vertically towards the top or bottom of the screen. Dot Clock: Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts. Phase: Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.

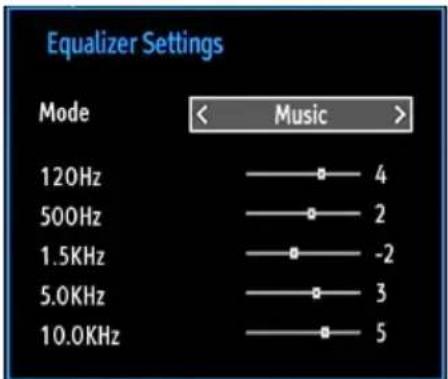

personal preferences. Press “MENU” using “ ” or “ ” button. Press OK button to view Sound Settings menu.English - 61 - Operating Sound Settings Menu Items Press “ ” or “ ” button to highlight a menu item. Use “ ” or “ ” button to set an item. Press “MENU” button to exit. Sound Settings Menu Items Volume: Adjusts volume level. Equalizer: Press OK button to view equalizer sub- menu. In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the “MENU” button to return to the previous menu. Note: Equalizer menu settings can be changed manually only when the Equalizer Mode is in User. Balance: This setting is used for emphasizing left or right speaker balance. Headphone: Sets headphone volume. AVL: Automatic Volume Limiting (AVL) function

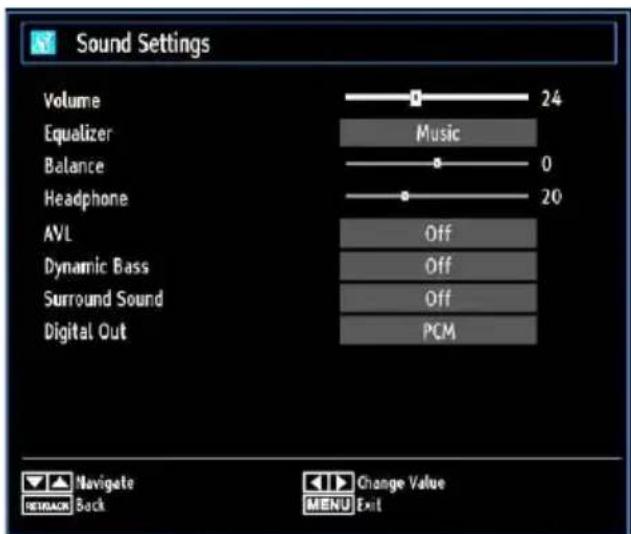

programmes (For instance, volume level of advertisements tend to be louder than programmes). Dynamic Bass: Dynamic Bass is used to increase bass effect of the TV set. Surround Mode: Surround mode can be change as On or Off. Digital Out: Sets digital out audio type.

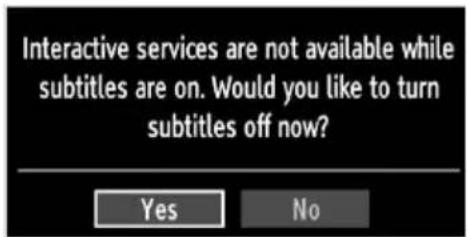

Detailed settings can be configured to suit your personal preferences. Press “MENU” button and select Settings ikon by using “ ” or “ ” button. Press OK button to view Settings menu. Operating Settings Menu Items Press “ ” or “ ” button to highlight a menu item. Press OK button to select an item. Press “MENU” button to exit. Settings Menu Items Conditional Access: Controls conditional access modules when available. Language Parental Timers: Sets timers for selected programmes. Date/Time: Sets date and time. Sources: Enables or disables selected source options. Other Settings: Displays other setting options of the TV set.English - 62 - Using a Conditional Access Module IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF. In order to watch certain digital channels, a conditional access module (CAM) can be necessary. This module must be inserted in the CI slot of your TV. Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure. Insert the CAM and then the viewing card to the slot that is located in the terminal cover at the rear side of the TV. The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted. Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated. When no module is inserted, “No Common Interface module detected” message appears on the screen. Refer to the module instruction manual for details of the settings. Viewing Conditional Access Menu (*) (*) These menu settings may change depending on the service provider. Press “MENU” button and select the icon by using

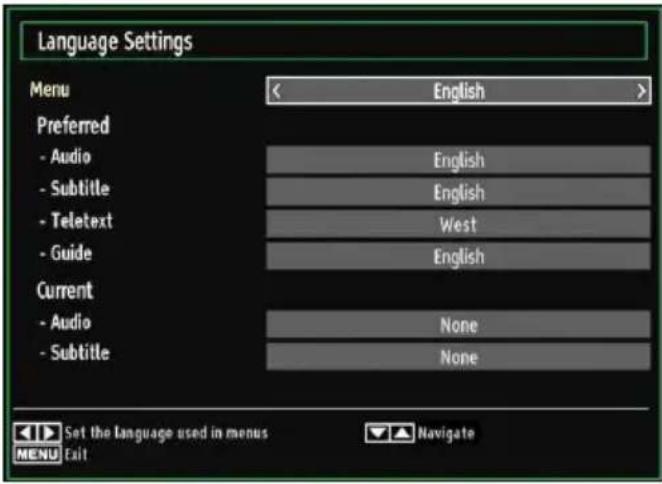

” or “ ” button. Press OK button to view Settings menu. Use “ ” or “ ” button to highlight Language and press OK to continue: Use “ ” or “ ” button to set an item. Settings are stored automatically. Menu: displays the system language. Preferred These settings will be used if available. Otherwise the current settings will be used. Audio: Sets the preferred audio language. Subtitle: Sets the subtitle language. Selected language will be seen in subtitles. Teletext: Sets teletext language. Guide: Sets the preferred Guide language. Current (*) (*) These settings can be changed if only the broadcaster supports. Otherwise, settings will not be available to be changed. Audio: Changes the audio language for the current channel. Subtitle: Sets the subtitle language for the current channel. Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:English - 63 - Language Settings

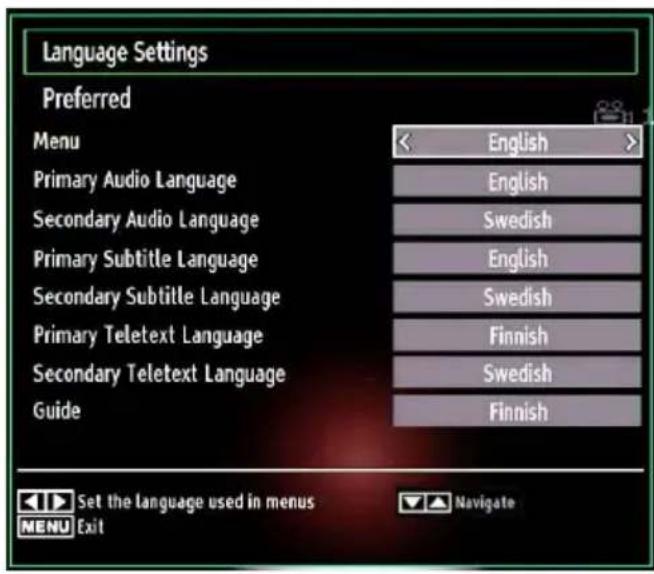

Settings item by pressing “ ” or “ ” buttons. Press OK and Language Settings submenu will be displayed on the screen: Use “ ” or “ ” buttons to highlight the menu item that will be adjusted and then press “ ” or “ ” button to set. Notes: System Language determines the on-screen menu language. Audio Language is used for selecting the soundtrack of a channels.

choices are available on a broadcast. Secondary

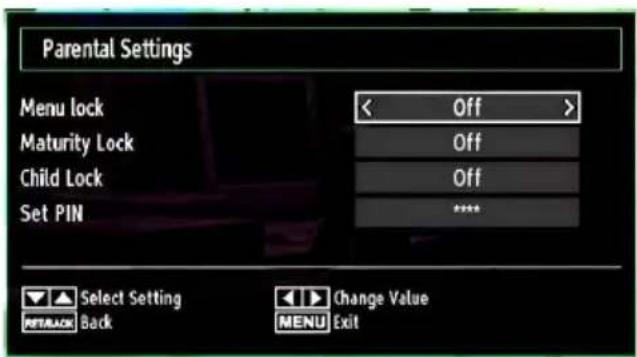

are not available. Parental Control To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system. This function enables or disables the menu protection system and allows the PIN code to be changed. Press “MENU” button and select the icon by using

installation, Maturity Lock option will not be visible. This setting is available only for EU countries. Menu Lock (Optional): Menu lock setting enables or

to the installation menu or the whole menu system. Maturity Lock (optional): When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast. Child Lock (optional): When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby/On button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby/On button. To switch the TV on again, you need the remote control. Hence, if one of those buttons is pressed, Child Lock Is On will be displayed on the screen when the menu screen is not visible. Set PIN

purposes. IMPORTANT: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.English - 64 - Timers To view Timers menu, press “MENU” button and select Settings icon by using “ ” or “ ” button. Press OK button to view Settings menu. Use “

or “ ” button to highlight Timers and press OK to continue: Setting Sleep Timer This setting is used for setting the TV to turn off after a certain time. Highlight Sleep Timer by using “ ” or “ ” button. Use “ ” or “ ” button to set. The timer can be programmed between Off and 2.00 hours (120 minutes) in steps of 30 minutes. Setting Programme Timers You can set programme timers for a particular programme using this feature. Press YELLOW button on the remote control to add a timer.

• Note: YELLOW button works only when the TV is in digital mode. Timer Type: This feature is unavailable to be set. Channel: Changes channel by using “ ” or “ ”. Date: Enter a date using the numeric buttons. Start: Enter a starting time using the numeric buttons. End: Enter an ending time using the numeric buttons. Duration: Displays duration between the starting and ending time. Repeat: Sets a timer to be repeated as Once, Daily or Weekly. Use “ ” or “ ” buttons to select an option. Change/Delete: Controls parental settings on timers. Press GREEN button to save the timer. Press RED button to cancel. Editing a Timer Select the timer you want to edit by pressing “ ” or “ ” button. Press GREEN button. Edit Timer menu screen will be displayed. GREEN button to “MENU” button to cancel. Deleting a Timer Select the timer you want to delete by pressing “ ” or “ ” button. Press RED button. Select YES by using “ ” or “ ” buttons to delete the timer. Select NO to cancel.

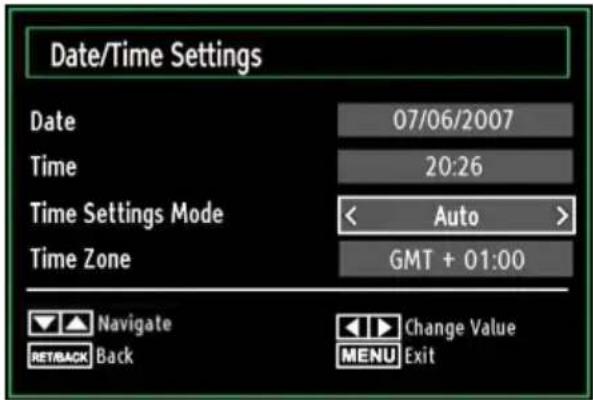

Select Date/Time Date/Time settings. Press OK button. Use “ ” or “ ” buttons to highlight Date/Time. Date, Time, Time Settings Mode and Time Zone Setting will be available. Use “ ” or “ ” buttons to highlight the Time Settings Mode. Time Settings Mode is set using “ ” or “ ” buttons. It can be set to AUTO or MANUAL. When AUTO is selected, Date/Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone can be altered:

” or “ ” buttons select Time Zone. Use “ ” or “ ” buttons to change the Time Zone between GMT-12 or GMT+12. Date/Time on the top of the menu list will then change according to the selected Time Zone. Changes are automatically stored. Press “MENU” to exit.

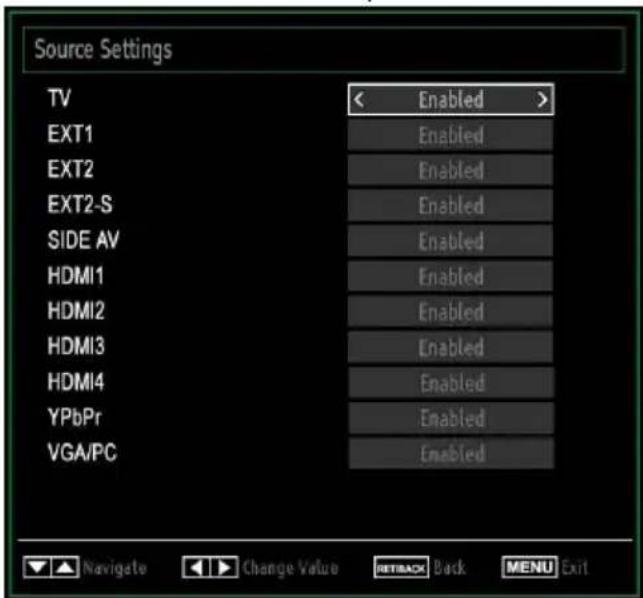

You can enables or disable selected source options. The TV will not switch to the disabled source options when “SOURCE” button is pressed.English - 65 - Select Sources in the Settings menu and press OK button. Press“ ” or “ ” buttons to select a source. Use “ ” or “ ” button to enable or disable the selected source. Changes are automatically stored.

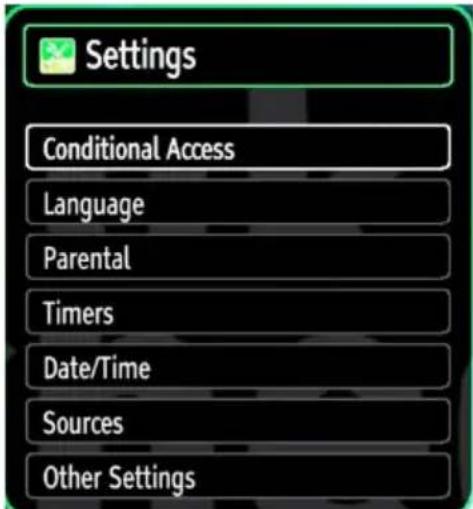

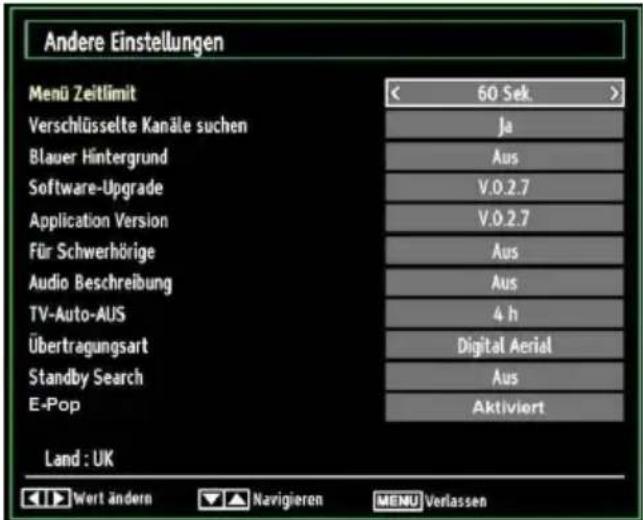

Other Settings in the Settings menu and press OK button. Operation Press “ ” or “ ” buttons to select an item. Use “ ” or “ ” button to set an option. Press OK button to view a sub-menu. Menu Timeout: Changes timeout duration for menu screens. Scan Encrypted Channels: When this setting is set as YES, search process will locate the encrypted channels as well. If it is set as NO, encrypted channels will not be located in automatic search or manual search. Blue Background: Activates or deactivates blue background system when the signal is weak or absent. Software Upgrade: To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.

selecting Scan for upgrade. Application version: Displays the current application version. Hard of Hearing: If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals. Audio Description: Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary).

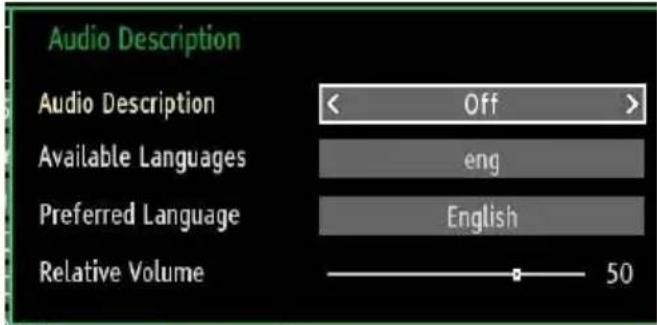

supports that additional narration track. Auto TV Off timeout value of auto off feature.After the timeout value is reached and the Tv is not operated for selected time , the TV will go off. Broadcast Type (optional): When you set the desired broadcast type by using “ ” or “ ” button, the TV will display the related channel list. If the related source has does not include any stored channels, “No channels for this type have been found.” message will be displayed on the screen. Standby Search (optional): Use “ ” or “ ” button to select Standby Search and then press “ ” or “ ” button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable.To use Standby search please make sure that you select Standby Search as On. E-Pop: features will be illustrated on the top of the screen. To deactivate this feature, please set to “disabled”.English - 66 - Other Features Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or “INFO” button is pressed. Mute Function: Press “ ” button to disable sound. Mute indicator will be displayed in the upper side of the screen. To cancel mute, there are two alternatives; ” button and the second one is increasing the volume level. Picture Mode Selection: By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic, Natural, Cinema and Game. Displaying Subtitles: If there is any subtitle information available in the broadcast, you can enable subtitles by pressing the SUBTITLE button of the remote control. Press SUBTITLE button again to disable subtitle function. If “Subtitle” is On, pressing the “ ” button causes the following warning message display on the screen (** for UK only) Teletext Teletext system transmits information such as news, sports and weather on your TV. Note that is the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted. Teletext function buttons are listed below:

” Teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix).Pressing again will quit the teletext mode. “RETURN” Index: Selects the teletext index page. “INFO” Reveal: Shows hidden information (e.g. solutions of games). “OK” Hold: Holds a text page when convenient. Press again to resume.

”/“ ” Subcode Pages: Selects subcode pages if available when the teletext is activated. P+ / P- and numbers (0-9): Press to select a page. Note: Most TV stations use code 100 for their index pages. Coloured Buttons (RED/GREEN/YELLOW/ BLUE) FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “ ” or “ ” commands will request the next or previous page respec tively.English - 67 - Tips Screen Care: Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part. Image Persistence: Please note that ghosting may occur while displaying a persistent image.LED TVs’ image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture for extended periods. No Power: If your TV system has no power, please check the main power cable and connection to the mains socket outlet. Poor Picture: Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals. No Picture: Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected. Sound: You can not hear any sound. Did you perhaps interrupt the sound, pressing the button? Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu. Remote Control: Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons on the TV. Input Sources: If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.English - 68 - Appendix A: PC Input Typical Display Modes The display has a maximum resolution of 1920 x 1200. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen. Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) Source Supported Signals Available EXT-1 (SCART-1)PAL 50/60 ONTSC 60 ORGB 50 ORGB 60 OEXT-2 (SCART-2)PAL 50/60 ONTSC 60 ORGB 50 XRGB 60 XSIDE AVPAL 50/60 ONTSC 60 OYPbPr 480I 60Hz O480P 60Hz O576I 50Hz O576P 50Hz O720P 50Hz O720P 60Hz O1080I 50Hz O1080I 60Hz O1080P 50Hz O1080P 60Hz OHDMI1 HDMI2HDMI3HDMI4480I 60Hz O480P 60Hz O576I 50Hz O576P 50Hz O720P 50Hz O720P 60Hz O1080I 50Hz O1080I 60Hz O1080P 50Hz O1080P 60Hz O1080P 24 HZ O (X: Not Available, O: Available) In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment. Index Resolution Frequency

1920x1200 60HzEnglish - 69 - Appendix C: Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer to the following resolution information. Index Resolution Frequency

upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu. Upgrade Options menu select Scan for upgrade and press OK button.

progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) 3.AM search and upgrade mode

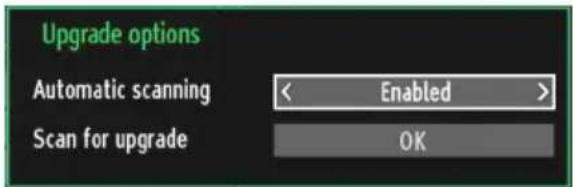

Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version. Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is

front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few

Caution: While led is blinking during reboot do not unplug your TV’s power. Doing this may cause

Products Battery Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling. Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.English - 72 -

Symbol rate: COFDM with 2K/8K FFT mode. Modulation: 16-QAM - 64-QAM FEC for all DVB modes (automatically found) MHEG-5 ENGINE compliant with ISO/IEC 13522-5

Object carousel support compliant with ISO/IEC

Frequency range: 474-850 MHz for UK models

- All MPEG2 MP@ML formats with up-conversion and

connection cable LED TV
