USER MANUAL Call of Duty MW3 Earforce Bravo TURTLE BEACH

Line drawing of a pair of headphones with a strap (no text or symbols)

Bravo Headset / Casque Bravo / Bravo-Headset

Coiled black cable with connector pins, no text or symbols visible

Headset Charging Cable / Casque câble de chargement / Headset-Ladekabel

Line drawing of a black audio jack with two connectors (no text or symbols)

XBOX 360® Talkback Cable / Câble Xbox 360 Talkback / XBOX 360-Talkback-Kabel

YUETTLE 198-04 CALL-DUTY MAG

Bravo Transmitter / Émetteur Bravo / Bravo-Transmitter

Simple line drawing of a black cable with connectors (no text or symbols)

Transmitter USB Cable / Émetteur câble USB / Transmitter-USB-Kabel

Pure electrical circuit lines without any symbols

Audio Splitter Cable / Cable séparateur audio / Lichtleiterkabel

Illustration of a black cord with metallic connectors (no text or symbols)

3.5mm to 3.5mm cable / Câble de 3,5mm / 3,5mm Kabel

Cableware MAO

MW3 Multimedia Download Card / MW3 Carte de Téléchargement Multimédia / MW3 Multimedia-Download-Kart

CALL-DUTY MAG

Bravo Presets Reference Card / Carte de préréglages Bravo / Bravo-Presets-Karte

TURTLE BEACH. S. R. BRANCHON

Turtle Beach Sticker / Autocollant / Sticker

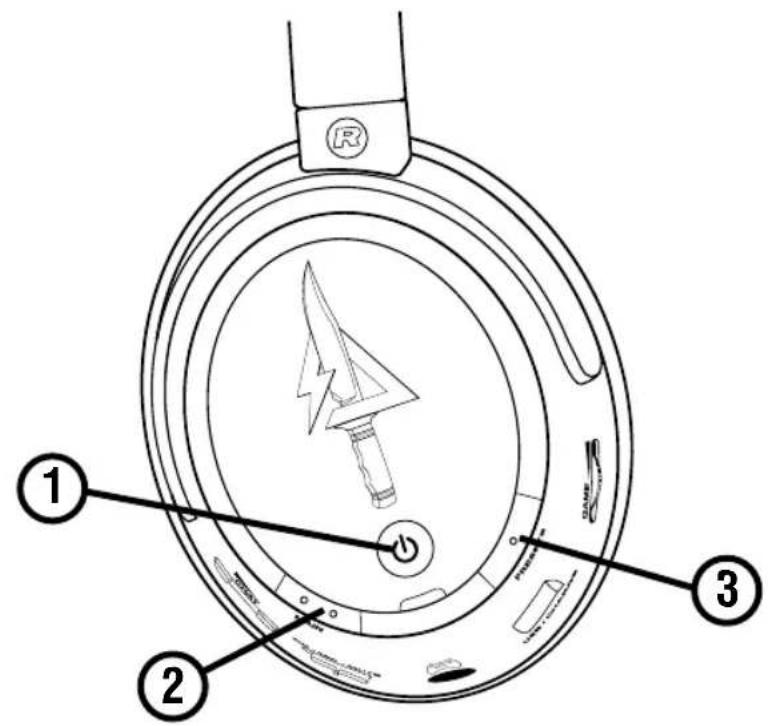

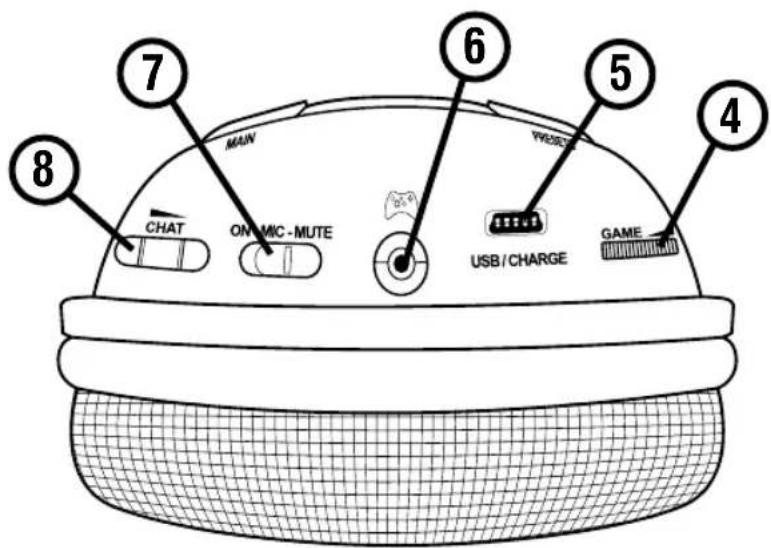

Bravo Headset Controls / Casque Bravo Contrôles / Bravo Headset Kontrollen

Technical diagram of a circular device with labeled parts including a pointer and control buttons

1. Main Power:

ON: press and hold for 3 seconds. OFF: press and hold for 3 seconds. Pairing Transmitter: (see pg. 5)

1. Main Preset: (see pg. 22)

2. Alternate Presets: (see pg. 22)

MAIN CHAT ON/MIC-MUTE 6 PRESENCE USB/CHARGE GAME 4 8 7

1. Game Volume

2. USB/Charge Input

3. XBOX 360 Controller Jack

4. Microphone Mute

5. Chat Volume

FRANÇAIS

1. Mode Selection:
   Slide to change between PS3, XBOX 360, and PC/Mac modes.
2. Power/Pairing LED:
   Solid ON: communicating with the Headset.
   Slowly Pulsing: cannot communicate with Headset (see pg 5).
   Blinking Rapidly: in pairing mode.
3. Pairing Button (see pg 5).
4. Game Audio Input
5. Power/USB Port
6. Auxiliary Input Jack (only works in PS3 and XBOX 360 modes).
7. Headset Charging Port (see pg 25).

FRANÇAIS

Make sure the Headset is OFF. (The LED on the Headset should be OFF)

Step 2:

Press and hold the POWER button on the Headset for more than 6 seconds. A tone will sound and the LED on the Headset will begin to blink rapidly.

Step 3:

Press and hold the PAIR button on the Transmitter for 3 seconds. The LED on the Transmitter will begin to blink rapidly.

After a few seconds, the Transmitter LED will be solid and the Headset will be paired.

FRANÇAIS

Audio Output Settings Audio Multi-Output On Sets to output audio through multiple connectors simultaneously. Audio output to connectors that are not selected in [Audio Output Settings] is downscaled to 2 Ch.

Configure PS3 Sound Settings /
Configurer les Paramètres Audio /
PS3 Sound-Einstellungen konfigurieren
Settings > Sound Settings > Audio Multi-Output

(PS3 A/V Cable)

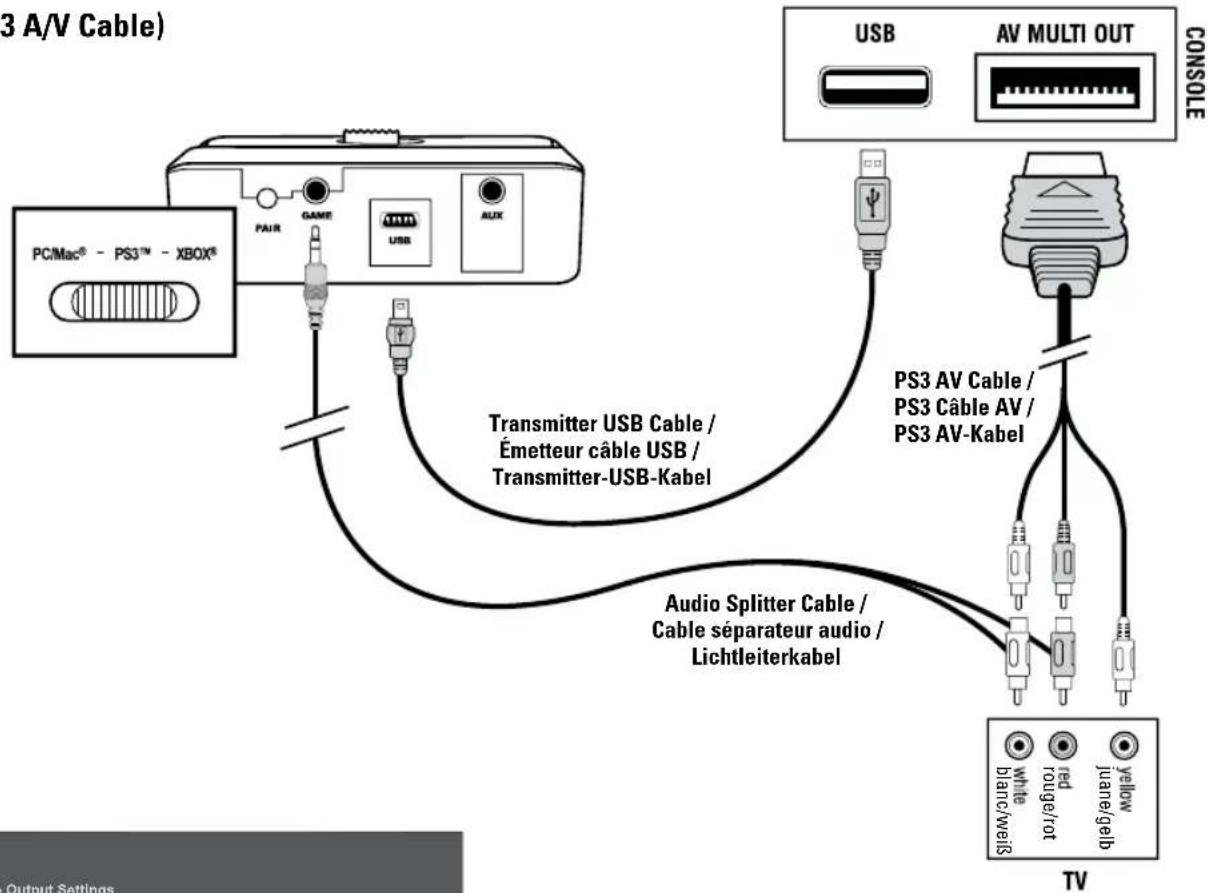

3 A/V Cable) PC/Mac® - PS3™ - XBOX® PAIR GAME USB AUX Transmitter USB Cable / Émetteur cable USB / Transmitter-USB-Kabel Audio Splitter Cable / Cable séparateur audio / Lichtleiterkabel USB AV MULTI OUT CONSOLE PS3 AV Cable / PS3 Câble AV / PS3 AV-Kabel TV white blue/weiβ red rouge/rot yellow juame/gelb Output Settings

Audio Output Settings
Select the connector on the TV or AV amplifier (receiver).
HDMI
Optical Digital
Audio Input Connector / SCART / AV MULTI

Turn on the power of the connected device.
Cancel
Configurer les Paramètres Audio /
PS3 Sound-Einstellungen konfigurieren
1. Settings > Sound Settings > Audio Output
Settings > Audio Input Connector / SCART / AV MULTI

Configure PS3 Sound Settings /

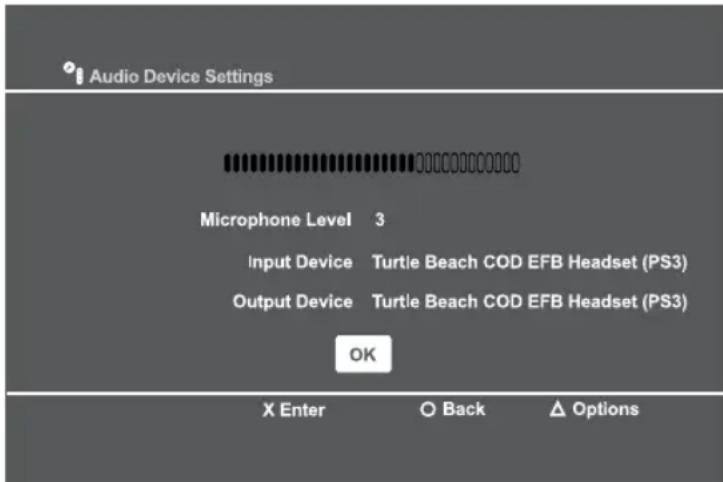

PS3 Chat Settings / Paramètres de Conversation de PS3 / PS3-Chat-Einstellungen

Audio Device Settings Microphone Level 3 Input Device Turtle Beach COD EFB Headset (PS3) Output Device Turtle Beach COD EFB Headset (PS3) OK X Enter Back Options

1. PS3 Settings > Accessory Settings > Audio Device Settings > Input Device > Turtle Beach COD EFB Headset (PS3)
2. Output Device > Turtle Beach COD EFB Headset (PS3)
3. Adjust microphone level

FRANÇAIS

Voice Voice Volume 10 Game Volume 10 □ Mute Kinect Voice Output ● Play Through Headset ○ Play Through Speakers ○ Voice Output

In the XBOX 360 System Settings, select "Preferences" > "Voice" > "Play Through Headset".

FRANCAIS

PC/Mac Setup (wireless mode) / PC/Mac installation (mode sans fil) / PC/Mac Setup (Wireless-Modus)

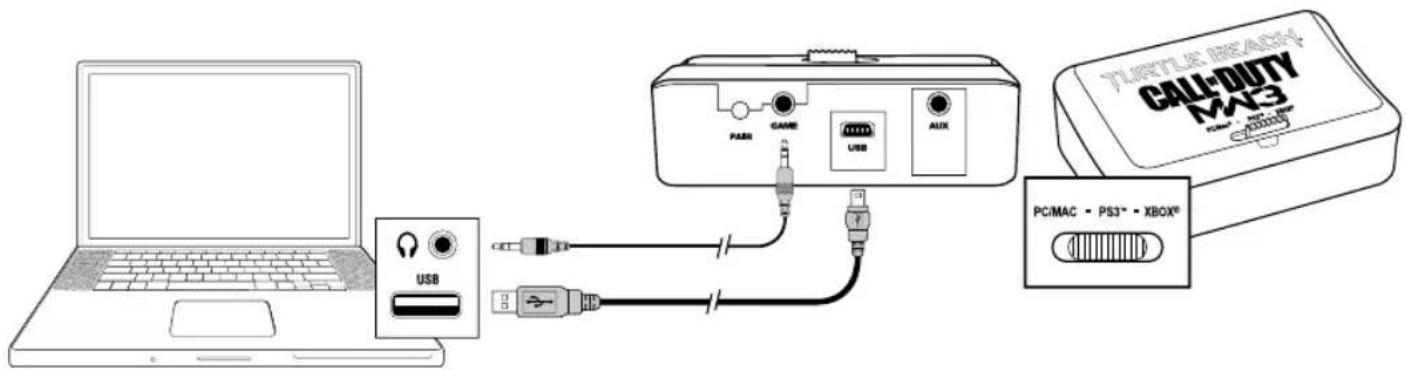

Wireless Mode with Presets

Wireless Mode with Presets

1. Switch transmitter to PS3 mode
2. Connect the Transmitter USB cable
3. Connect 3.5mm cable from the transmitter to the computer headphone jack
4. Game and chat volume is adjusted on the headset

FRANÇAIS

PC/Mac Setup (wireless mode) / PC/Mac installation (mode sans fil) / PC/Mac Setup (Wireless-Modus)

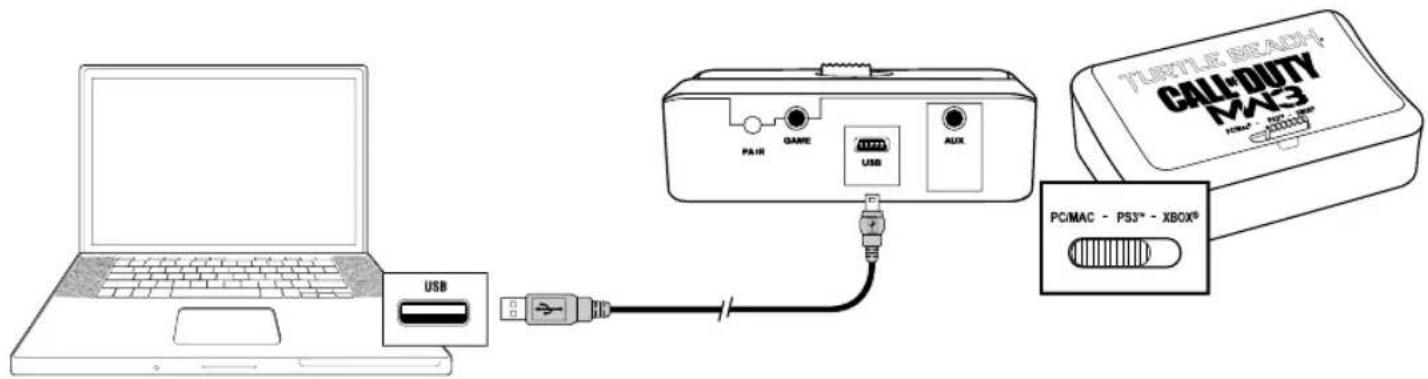

Wireless Mode (presets are deactivated)

Wireless Mode (presets are deactivated)

1. Switch Transmitter to PC/Mac mode
2. Connect the Transmitter USB cable
3. Adjust game volume from the headset
4. Adjust chat volume from computer's operating system.

NOTE: Auxiliary input is deactivated in this mode.

FRANÇAIS

Mode sans fil (préréglages désactivés)

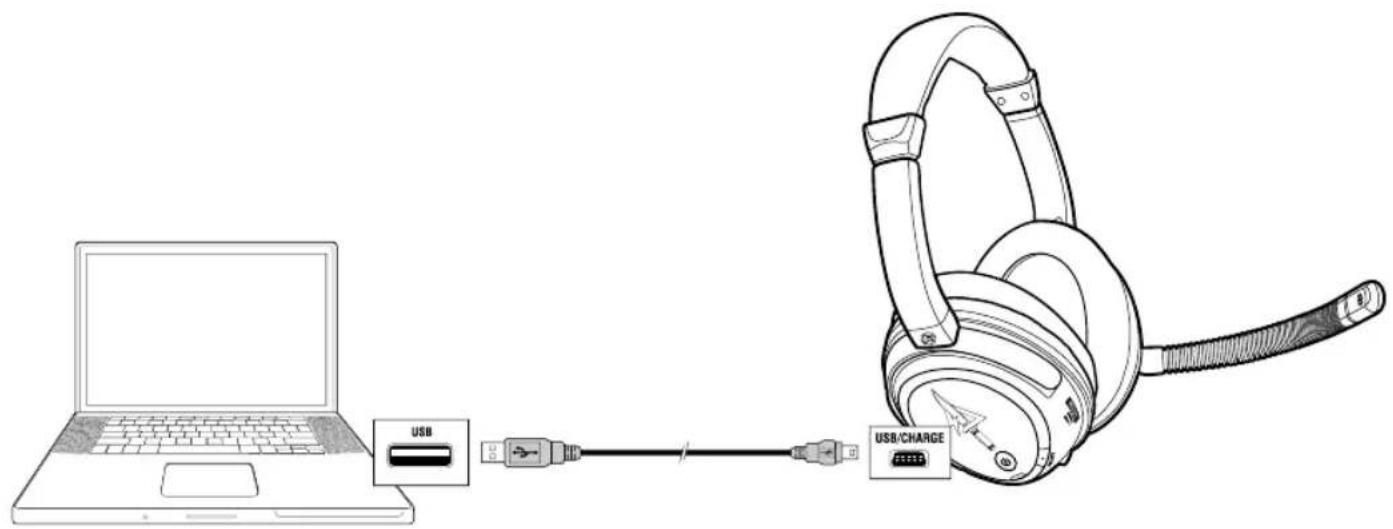

Wired Mode (presets are deactivated)

USB USB/CHARGE

Wired Mode (presets are deactivated)

1. Using the transmitter USB cable, connect the headset to your computer.*
2. Double-press the headset POWER button to enter Wired Mode.
3. Adjust game volume from the headset
4. Adjust chat volume from computer's operating system.

* Do not use the headset charging cable for this setup.

FRANÇAIS

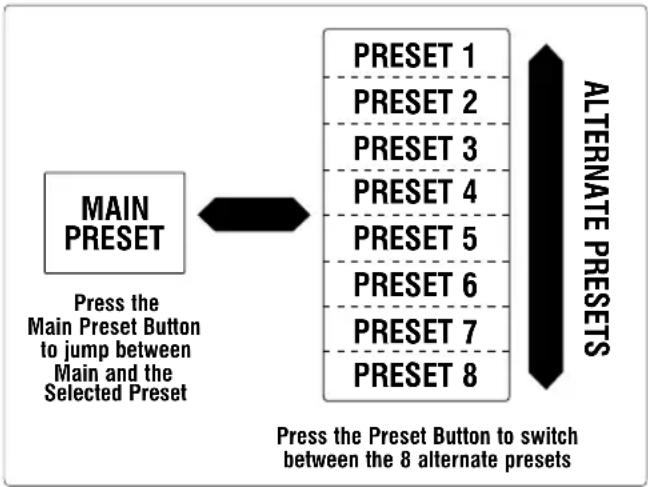

The Bravo presets are grouped as one (1) Main preset and eight (8) Alternate presets. The "Main" preset does not process the sound, while the "Alternate" presets are optimized for specific game conditions.

Main: Press the MAIN button to switch between Main and the selected "Alternate" preset.

Alternate: Press the PRESET button to select 1 of 8 "Alternate" presets.

Each time a preset is selected, a tone will sound to indicate the selected preset:

Main: one high and one low tone

Preset 1: one high tone

Preset 2: two high tones

Preset 3: three high tones

Preset 4: four high tones

Preset 5: one low tone

Preset 6: two low tones

Preset 7: three low tones

Preset 8: four low tones

FRANÇAIS

Connect the transmitter to your computer.

Download the Bravo software and new presets from Turtlebeach.com.

FRANÇAIS

Line drawing of a charging headset connected to a power adapter (no text or symbols)

The Bravo rechargeable battery provides more than 10 hours of continuous game play. When your headset battery power is low, a tone will begin to sound every 10 seconds until the headset powers off. You can recharge your headset while still gaming with the included Headset Charging Cable. Simply plug the mini USB end into your headset USB/CHARGE port and plug the other end into the CHARGE port on the Transmitter.

NOTE: Do not use the included Headset Charging Cable for Standard USB cable use. It does not include data lines.

FRANÇAIS

To avoid potential damage to the device, always disconnect all cables before transporting it.

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing. If you experience ringing in your ears after listening with the headset, it means the volume is set too loud. The louder the volume is set, the less time it takes to affect your hearing. So, please take care to listen at moderate levels.

• Before placing a headset on your ears, turn the volume down completely, then slowly increase it to a comfortable level.
• Turn down the volume if you can't hear people speaking near you.
• Avoid turning up the volume to block out noisy surroundings.

FRANCAIS

EC Declaration of Conformity

Manufacturer: Voyetra Turtle Beach

Manufacturers Address:

150 Clearbrook Rd. Suite 162, Elmsford, NY 10523

Product Name: Ear Force Bravo

Type of Product: Wireless Headset

Model Number(s): TBS-4240-01

Year of Manufacture: 2011

We, Voyetra Turtle Beach, Inc. of Elmsford, New York, declare under our own responsibility that the above-referenced product complies with the essential requirements of Article 3 of the R&TTE1999/5/EC Directive and standards:

Low Voltage Directive 73/23/EEC [Article 3.1(a) of the R&TTE Directive] comprising the harmonized standards

EN 50332-2:2003

Electromagnetic Compatibility 2004/108/EC [Article 3.1(b) of the R&TTE Directive] comprising the harmonized standards

EN 55022: 2006+A1: 2007, Class B

EN 55024: 1998+A1: 2001+A2: 2003

EN 61000-3-2: 2006+A2: 2009

EN 61000-3-3: 2008

ESTI EN 301 489-17: V2.1.1 (2009-05)

ESTI EN 301 489-1: V1.8.1 (2008-04)

IEC 61000-4-2: 2008

IEC 61000-4-3: 2008

IEC 61000-4-4: 2004

IEC 61000-4-5: 2005

IEC 61000-4-6: 2008

IEC 61000-4-8: 2009

IEC 61000-4-11:2004

Radio Frequency Spectrum Usage [Article 3.2 of the R&TTE Directive] comprising the harmonized standards

ESTI EN 300 328 V1.7.1 (2006-10)

All test reports have been reviewed and approved with a Positive Opinion from the following Notified Body:

QuieTek Corporation (Linkou Laboratory)

No.5-22, Ruei-Shu Keng, Linkou District

New Taipei City, 24451 Taiwan, R.O.C

Tel: [phone], Fax: [phone], Web: quietek.com

and

Intertek Testing Services Taiwan Ltd,

No. 11, Lane 275, Ko-nan 1 Street, Chia-Tung Li,

Shiang-Shan District, Hsinchu City, Taiwan,

Tel: [phone], Fax: [phone], Web: intertek.com

The technical documentation required by this Directive is maintained at the corporate headquarters of Voyetra Turtle Beach, 150 Clearbrook Road. Suite 162, Elmsford, New York, 10562.

Authorized Person:

Aulouw

Date: 7/13/11

Printed Name: Frederick Romano

Title: Executive Vice President

FCC Declaration of Conformity

Product Name: Ear Force Bravo

Model Number(s): TBS-4240-01

FCC Rules: FCC CFR Title 47 Part 15 Subpart B: 2009

FCC CFR Title 47 Part 15 Subpart B: 2010

FCC CFR Title 47 Part 15 Subpart C: 2009

FCC CFR Title 47 Part 15 Subpart C: 2010

Operating Environment: GENERAL OFFICE AND HOME USE

FCC COMPLIANT STATEMENT

This device complies with part 15 of the FCC rules. Operation is subjected to the following conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that may cause undesired operation.

INFORMATION TO USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

The user's manual or instruction manual for an intention or unintentional radiator shall caution the user that the changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WARNING: Changes or modifications made to this equipment not expressly approved by VOYETRA TURTLE BEACH, INC. may void user's authority to operate this equipment.

Limited Warranty for Turtle Beach Products

Voyetra Turtle Beach, Inc. ("VTB") warrants to the original end-user purchaser ("Purchaser") that the retail Turtle Beach hardware product herein ("Product") will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser ("Warranty Period"). Any Extended Warranty or Service Plans purchased through a Retail store are not honored by VTB. The Warranty refers to the repair/replacement of a defective product during this period and not a refund.

This limited warranty extends only to the Purchaser and is not transferable or assignable to any subsequent purchaser. This limited warranty is applicable only in the country or territory where the Product was purchased from an authorized VTB retailer and does not apply to a Product that has been purchased as used or refurbished (except refurbished by VTB) or was included as part of a non-VTB product. WARRANTY SERVICE

In the USA and CANADA Warranty Service is provided by our TURTLE BEACH OFFICES and in all other Countries it is provided by our local International Distributors.

VTB does not warrant uninterrupted or error-free operation of the Product and is under no obligation to support the Product for all computer operating systems or future versions of such operating systems.

If a defect should occur during the Warranty Period, Purchaser must contact VTB to obtain a Return Merchandise Authorization ("RMA") number. Purchaser will be responsible for shipping costs incurred in returning the defective Product to an authorized VTB service center, or to the repair facility located at VTB's corporate headquarters. A copy of the dated proof of purchase and a description of the problem must be included with the defective Product. VTB will not be responsible for other products or accessories included with the defective Product sent to VTB. The RMA number must be clearly indicated on the outside of the package. Packages without an RMA number will be refused by VTB or its representatives and returned to sender at the sender's expense.

In the event of a defect, Purchaser's sole and exclusive remedy, and VTB's sole liability, is expressly limited to the correction of the defect by adjustment, repair, or replacement of the Product at VTB's sole option and expense. VTB owns all Products it has replaced and all parts removed from repaired Products. VTB uses new and reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If VTB repairs or replaces a product, the original Warranty Period is not extended, however, VTB warrants that repaired or replacement parts will be free from defects in material and workmanship for a period of thirty (30) days from the date of repair or replacement, or for the remainder of the Warranty Period, whichever is greater.

This warranty does not apply to any Product that has had its serial number altered, removed or defaced, or any Product damage caused by shipping, improper storage, accident, problems with electrical power, abuse, misuse, neglect, ordinary wear, acts of God (e.g. flood), failure to follow directions, improper maintenance, use not in accordance with product instructions, unauthorized modification or service of the Product or damage resulting from the use of the Product with hardware, software or other products not provided by or specifically recommended by VTB.

Limited Warranty for Turtle Beach Products

THIS LIMITED WARRANTY IS PURCHASER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. TO THE EXTENT PERMITTED BY APPLICABLE LAW, VTB HEREBY DISCLAIMS THE APPLICABILITY OF ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE FOR THE PRODUCT. IF SUCH A DISCLAIMER IS PROHIBITED BY APPLICABLE LAW, THE IMPLIED WARRANTY IS LIMITED TO THE DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY.

IN NO EVENT SHALL VTB BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, OR DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOST PROFITS, DATA, OR LOSS OF USE, ANY THIRD PARTY CLAIMS, AND ANY INJURY TO PROPERTY OR BODILY INJURY (INCLUDING DEATH) TO ANY PERSON, ARISING FROM OR RELATING TO THE USE OF THIS PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR STRICT LIABILITY, EVEN IF VTB HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

This warranty supersedes all prior agreements or understandings, oral or written, relating to the Product, and no representation, promise or condition not contained herein will modify these terms. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights. You may also have other rights, which vary from state to state. Any action or lawsuit for breach of warranty must be commenced within eighteen (18) months following the purchase of the Product.

EXCLUSIONS FROM LIMITED WARRANTY:

This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product:

• is used for commercial purposes such as "LAN Centers" (including rental or lease);
  • is modified or tampered with;
• is damaged by Acts of God, power surge, misuse, abuse, negligence, accident, wear and tear, mishandling, misapplication, or other causes unrelated to defective materials or workmanship;
• serial number is defaced, altered or removed;
• is not used in accordance with the documentation and use instructions; or
• is repaired, modified or altered by other than authorized repair centers.
• product is no longer available because it was discarded.

TURTLE BEACH®

For more products, accessories and general product information, please visit

TurtleBeach.com

For warranty information and product support, please visit

TurtleBeach.com/support

FRANÇAIS

Federal Communications Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

RF Exposure Warning:

Headset:

The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

Transmitter Box:

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

CANADA, INDUSTRY CANADA (IC) NOTICES

This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency (RF) Exposure Information:

Headset:

The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under portable exposure conditions. (antennas are less than 20 cm of a person's body).

Transmitter:

The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body).

This device has been certified for use in Canada. Status of the listing in the Industry Canada's REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng

Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

Canada, avis d'Industry Canada (IC)

This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC) Frequency Range: 2.404-2.476GHz • Grantee Code/Reg Number: XGB/GC229855 • Voyetra Turtle Beach, Inc.

FCC Code: XGB-TB2240

FCC Code: XGB-TB2241

IC ID: 3879A-2240

IC ID: 3879A-2241

Copyright © 2011 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. No part of this package may be reproduced without permission. Turtle Beach, the Turtle Beach Logo, Voyetra, Ear Force, Sonic Lens, Ear Guard, the Digital RF logo, the DSP logo, Chat Boost and Engineered For Gaming are either trademarks or registered trademarks of VTB, Inc. PlayStation is a registered trademark and PS3 is a trademark of Sony Computer Entertainment Inc. XBOX, XBOX 360 and XBOX LIVE are registered trademarks of Microsoft Corporation. All other trademarks are properties of their respective companies and are hereby acknowledged.

Notes

Black and white photo of headphones with green laser effects, next to a green CALL gate labeled 'CALL OF DUTY MAG3' (no readable text beyond branding)
