USER MANUAL Milano PURE

Keep the radio away from heat sources.

Do not use the radio near water.

Avoid objects or liquids getting into the radio.

Do not remove screws from or open the radio casing. Fit the mains adaptor to an easily accessible socket, located near the radio and ONLY use the mains power adapter supplied.

Copyright

Copyright 2009 by Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited.

Trademarks

Milano, textSCAN, Intellitext, PURE, the PURE logo, PURE Digital, the PURE Digital logo, EcoPlus, the EcoPlus logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited. All other product names are trademarks of their respective companies. Version 1. February 2009.

Overview of controls and connectors 3

Symbols on the screen 3

Using the radio 4

Switching between DAB and FM 4

Changing stations 4

Using textSCAN™ to pause and control scrolling text.... 4

Changing the information shown on screen 5

Storing and selecting presets 5

Setting alarms 6

Setting an alarm - quick guide 6

Setting an alarm - step-by-step guide 6

Waking up 8

Cancelling an alarm 8

Snoozing an alarm 8

Cancelling an alarm that you have snoozed 8

Changing the alarm snooze time 8

Extra features ......9

Set the sleep timer 9

Cancel the sleep timer 9

Intellitext ^® 9

Options 10

Options available in DAB 10

Options available in FM 10

General options 11

Help and specifications ....12

Secondary and inactive stations 12

Troubleshooting 12

Technical Specifications 12

GB

Quick set up

①

Uncoil the aerial wire and hang it vertically, then connect the mains adapter to the bottom of the unit as shown.

Simple line drawing of a device on a base with a downward arrow indicating motion (no text or symbols)

5.5V DC

②

Plug the mains adapter into the mains supply and press the Standby button.

Diagram showing a device connected to a table with a cable, no text or symbols present

① Standby

③

Set energy saving mode.

Press the Select button when you see the message 'Enable energy saving?'.

Press Select again to switch on energy saving mode.

When energy saving mode is switched on, the radio uses less power because it does not collect and store Intellitext messages in standby. It still collects and stores Intellitext messages while the radio is switched on (see page 11).

With energy saving mode switched on, the power consumption of Milano in standby is less than 1 Watt.

For more information: Intellitext > page 9 energy saving mode > page 11

4

Wait until Milano completes an Autotune for available radio stations (about a minute).

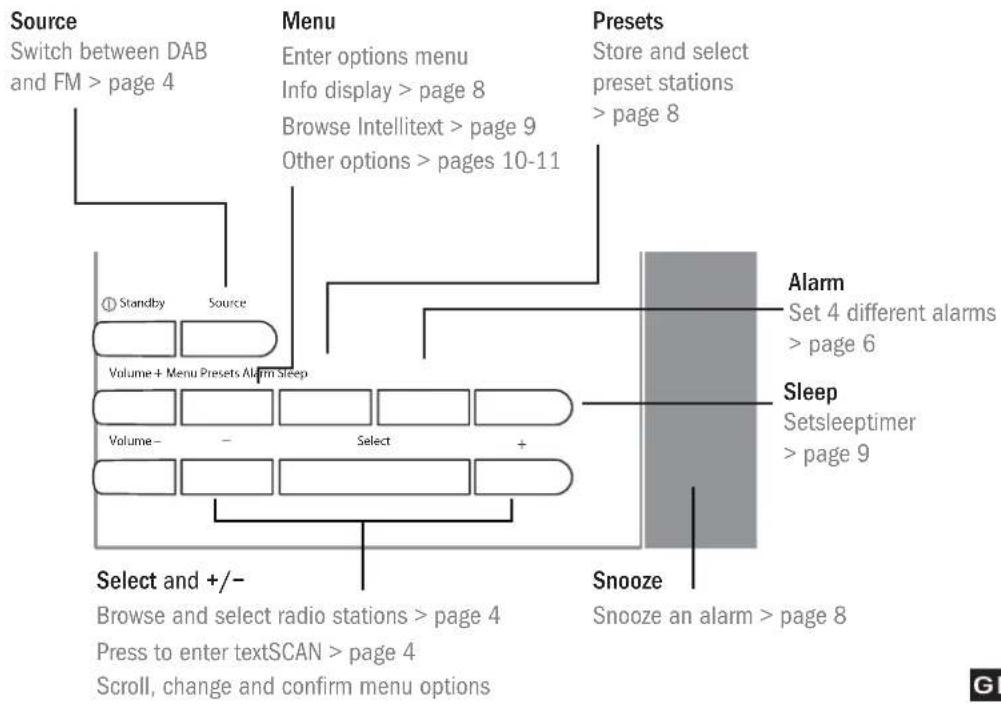

Overview of controls and connectors

Side

3.5mm headphone socket

Underneath

USB input socket (mini B type) for upgrades

5.5V DC

Power input socket for supplied 5.5V DC mains adapter

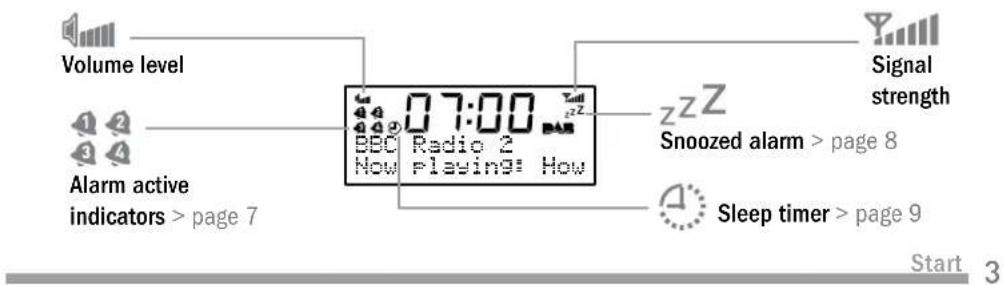

Symbols on the screen

Volume level 1 2 3 4 Alarm active indicators > page 7 07:00 BBC Radio 2 Now Playing: How zzz Snoozed alarm > page 8 Sleep timer > page 9 Start 3

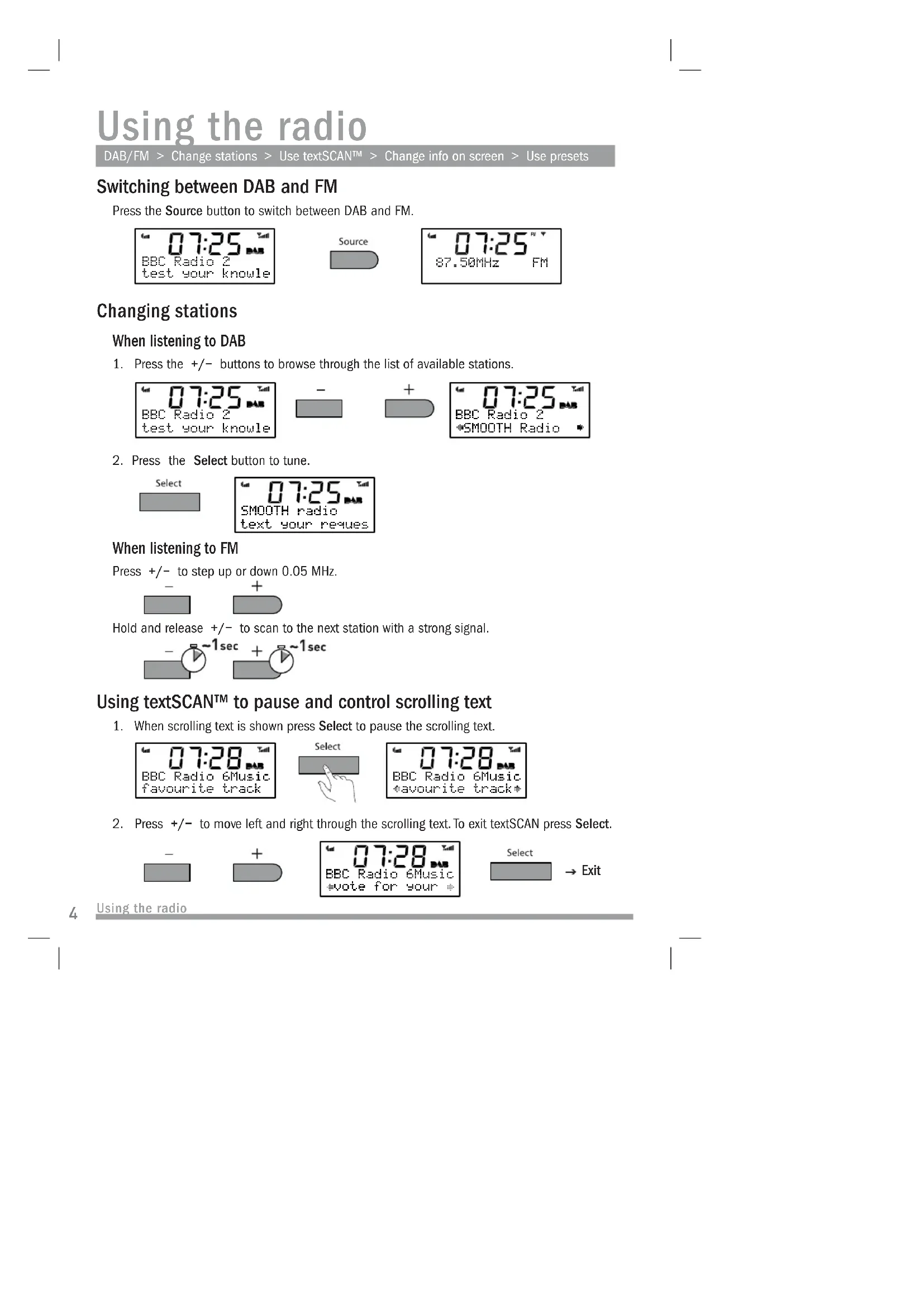

Switching between DAB and FM

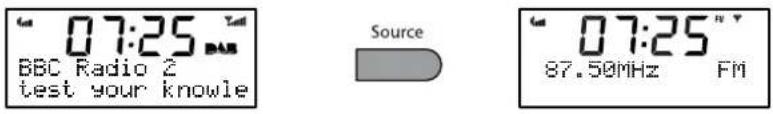

Press the Source button to switch between DAB and FM.

07:25 BBC Radio 2 test your knowle Source 07:25 87.50MHz FM

Changing stations

When listening to DAB

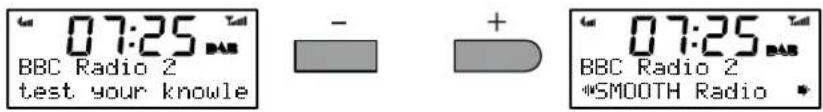

1. Press the +/- buttons to browse through the list of available stations.

07:25 BBC Radio 2 test your knowle - + 07:25 BBC Radio 2 SMOOTH Radio

1. Press the Select button to tune.

Select 07:25 SMOOTH radio text your reques

When listening to FM

Press +/- to step up or down 0.05 MHz.

Hold and release +/- to scan to the next station with a strong signal.

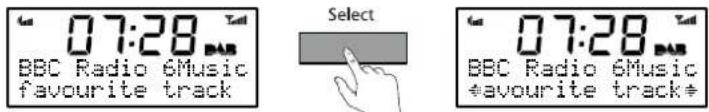

Using textSCAN™ to pause and control scrolling text

1. When scrolling text is shown press Select to pause the scrolling text.

07:28 BBC Radio 6Music favourite track Select 07:28 BBC Radio 6Music favourite track

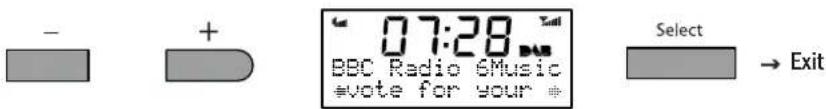

1. Press +/- to move left and right through the scrolling text. To exit textSCAN press Select.

- + 07:28 BBC Radio &Music vote for your * Select → Exit

Using the radio

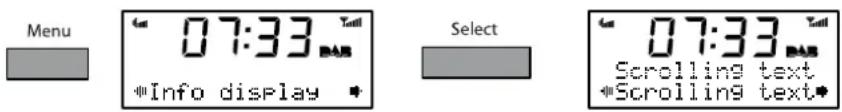

Changing the information shown on screen (Menu > Info display)

1. In DAB or FM, press the Menu button then press Select to access the 'Info display' options.

Menu 07:33 Info display Select 07:33 Scrolling text Scrolling text

1. Change the current information display option using +/- to browse and select to choose:

Scrolling text Info broadcast by most DAB stations and FM (RDS) stations.

Date Displays the current date below the station name.

Programme type Content broadcast by the current station, e.g., Pop Music.

Sig. strength Displays a signal strength meter.

Sig. quality Displays DAB signal quality: 85 to 100 Good, 70 to 84 OK, 0 to 69 poor.

Bit Rate Displays DAB signal data rate and a stereo or mono indicator.

Multiplex name Displays the DAB multiplex in which the current station is broadcast.

Multiplex info Displays the channel and frequency of the current Multiplex, e.g., 12B.

Mono/stereo (FM) Indicates stereo or mono sound (only available in FM).

Storing and selecting presets

Store up to 10 DAB and 10 FM radio stations for easy access to your favourite stations.

To store a preset

1. Tune to the DAB or FM station you want to store.
2. Press the Presets button and use +/- to scroll to a preset number between 1 and 10.

1. Press and hold the Presets or Select button for 3 seconds until you see 'Preset saved' message.

To select a preset

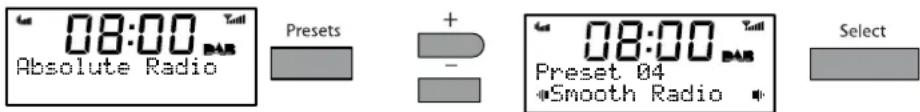

When listening to DAB or FM, press Presets to access the DAB or FM preset list. Use +/- to browse to the stored preset number, e.g. Preset 2, and press Select to listen.

08:00 Absolute Radio Presets + - 08:00 Preset 04 Smooth Radio Select

Using the radio

GB

Setting alarms

Quick guide > Step-by-step guide > Changing an alarm that you have set

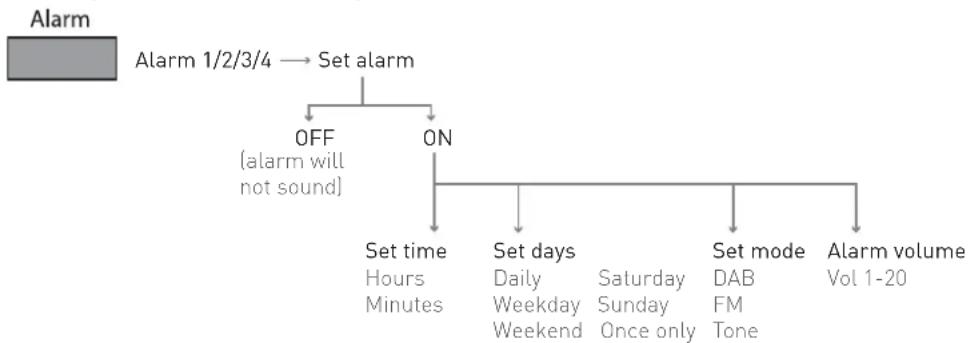

Setting an alarm - quick guide

Setting an alarm - step-by-step guide

Milano has four alarms which you can set to sound at different times as either DAB, FM or tone alarms. DAB and FM alarms switch your radio on (if in standby) and tune to the DAB or FM station you last listened to; tone alarms sound an alarm tone.

1. Press the Alarm button to access the alarm menu.

Alarm

1. Choose either Alarm 1, 2, 3 or 4 using +/- and Select.

1. Select 'Set alarm' and choose 'On' to turn the alarm on.

1. Select 'Set time' to set the time you want the alarm to sound. Adjust the hours using +/- and press Select to confirm, then adjust the minutes in the same way.

Setting alarms

1. Select 'Set days'. Choose when you want the alarm to repeat by pressing +/- to choose and Select to confirm. The following options are available:

Daily	Every	day.
Weekday	Monday – Friday, every week.
Weekend	Every	weekend.
Saturday	Every	Saturday.
Sunday	Every	Sunday

If you want to set a 'one-off' alarm choose 'Once only'.

Once only The alarm will sound at the time you have selected and not recur.

1. Select 'Set Mode' to choose the type of alarm you want: DAB, FM or Tone.

If you select DAB or FM the alarm will tune to the station that was most recently listened to.

1. Finally, set the volume of the alarm from 1 to 20 using the +/- buttons (not applicable for tone alarms).

GB

That's it! You can easily see which alarms are currently switched on by looking at the alarm bell icons on the screen, in either active or standby mode. When an alarm is sounding, the alarm clock icon will flash.

For example:

Alarm 1 is currently — switched on

Changing an alarm that you have set

You can change the settings for an alarm by pressing Alarm and adjusting the settings as described above. Remember, you can do this when Milano is switched on or in standby.

Cancelling an alarm

To cancel a tone alarm

To cancel a radio alarm

① Standby (switches the unit into standby) or press any button (except Volume +/-)

Snoozing an alarm

To temporarily silence an alarm press the Snooze bar. The alarm will pause and Milano will return to standby before sounding the alarm again after 9 minutes have elapsed.

+ 9 mins 07:39

Cancelling an alarm that you have snoozed

To cancel a snooze countdown and leave the unit in standby, press either the Alarm or Select button, or press the Standby button to turn the radio on and cancel the snooze countdown.

Select or Alarm 07:45 Alarm Cancelled

Changing the alarm snooze time

(Alarm > Snooze time)

Press Alarm and select 'Snooze time'. Use +/- to change between 5 and 60 minutes and press Select to confirm.

Alarm 07:45 Snooze time - + Select

Alarm time-out

Note that a sounding alarm will stop after one hour if no buttons are pressed (excluding the volume buttons).

Waking up

Extra features

Set the sleep timer > Cancel the sleep timer > Use Intellitext

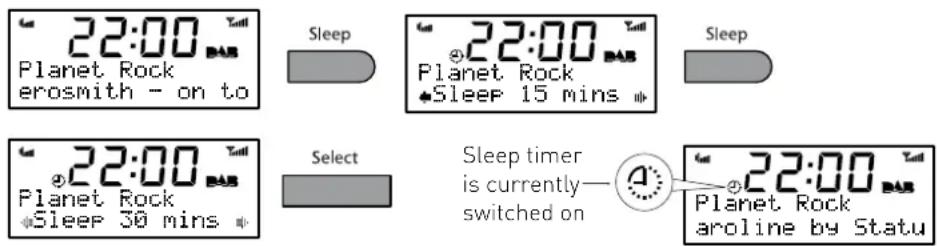

Set the sleep timer

The sleep timer switches your radio into standby after a number of minutes has elapsed. Press the Sleep button and repeat to choose the duration of the sleep timer from 15 to 90 minutes, then press Select to confirm.

22:00 Planet Rock erosmith - on to Sleep 22:00 Planet Rock Sleep 15 mins Sleep 22:00 Planet Rock Sleep 30 mins Select Sleep timer is currently- switched on 22:00 Planet Rock aroline by Statu

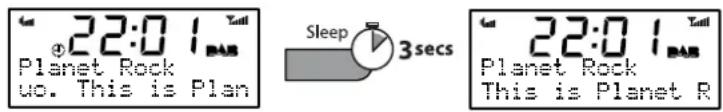

Cancel the sleep timer

Press and hold Sleep for three seconds, or press sleep, cycle to 'Sleep Off' and press Select.

22:01 Planet Rock uo. This is Plan Sleep 3secs 22:01 Planet Rock This is Planet R

Intellitext ^® (Menu > Intellitext)

Intellitext provides on-demand text information such as sports headlines and news from DAB stations. The text is updated by the broadcasters and stored in your radio while you listen to stations. Intellitext is listed by station and split into categories. For example, the broadcaster may send information on Football, Cricket, Headlines, etc.

GB

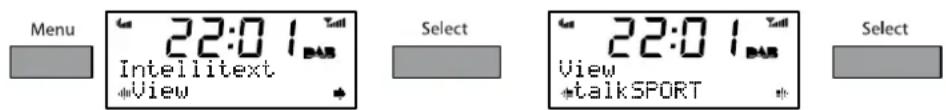

To view Intellitext data (Menu > Intellitext >View> station name)

1. Press Menu and select Intellitext>View to view a list of stations for which you have Intellitext information. Select a station and use +/- and Select to view Intellitext categories for that station, e.g. talkSPORT > Football > News. The information will scroll across the screen.

Menu 22:01 Intellitext View Select 22:01 View talkSPORT Select

You can use textSCAN when viewing the text by pressing Select (page 4). Intellitext is available for stations that broadcast the service.

Extra features

Options available in DAB > Options available in FM > General options

Menu

Press Menu to access the following options. Use +/- and Select to adjust options.

Options available in DAB

Intellitext options (Menu > Intellitext)

Set timeout

Choose to delete old Intellitext data after 1 week (default) or 1 day.

Clear all

Delete all stored Intellitext data immediately.

DRC value (Menu > DRC value)

DRC (Dynamic Range Control) value makes the quieter sounds in a DAB broadcast easier to hear at low volume or in a noisy environment. Check with the broadcasters to find out if they use DRC.

DRC off Any DRC level broadcast will be ignored.

DRC half DRC level is set to half that sent with the broadcast.

DRC full Applies the DRC level as sent with the broadcast.

Station order (Menu > Station order)

Alphanumeric Lists all stations in alphanumeric (alphabetical) order.

Active station Lists active stations first on the station list.

Multiplex Lists stations in groups according to their multiplex.

Autotune (Menu > Autotune)

Scans all DAB Band III frequencies for stations and automatically adds any new stations found to the station list. This may take a few minutes. To stop an Autotune press Menu.

Options available in FM

FM stereo mode (Menu > FM stereo mode)

Choose from Stereo or Mono (default) - mono may improve audio clarity where stereo signals are weak.

General options

Energy saving (Menu > Energy saving)

Milano is designed and manufactured to minimise power consumption when the unit is switched on and to use less than 1 Watt in standby. One way this low power consumption is enabled is by not collecting and storing Intellitext messages when the unit is in standby. You can override this option by switching off energy saving mode, but this will increase standby power consumption. Two options are available:

Energy saving On (the default setting)

Intellitext will be collected when you have been tuned for a short while to a station that broadcasts Intellitext. Intellitext data is not collected in standby, reducing power consumption.

Energy saving Off

Milano collects Intellitext data in standby from the station you last viewed Intellitext data, which increases standby power consumption.

Upgrade (Menu > Upgrade)

You can upgrade your Milano using a PC connected to the USB port. Upgrades may be issued to provide enhanced functions or improve performance. To upgrade, select Upgrade and follow the instructions provided with the upgrade software. Register your product and include an e-mail address to receive notification of upgrades or visit our website at www.pure.com/support.

Note USB upgrade requires a PC (not Mac) running Microsoft® Windows™ Vista/XP and a suitable USB cable (not included).

Clock (Menu > Clock)

GB

Set clock

Manually set the time and date if required. If you have good DAB reception these will automatically be updated from the DAB radio signal.

12/24 Hr clock

Choose 12 hour or 24 hour clock display.

Warranty information

Imagination Technologies Ltd. warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of two years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Please return your warranty card or visit www.pure.com/register to register your product with us. Should you have a problem with your unit please contact your supplier or contact PURE Support at the address shown on the rear of this manual. If you need to return your product please use the original packaging and include all parts and accessories. We reserve the right to refuse incomplete or badly packaged returns.

Options

Help and specifications

Secondary and inactive stations

Secondary DAB services

Secondary services accompany some stations, providing extra information or alternative content and may only be broadcast at certain times. A secondary service has a ‘<<’ before its name in the station list.

(?) Inactive or unavailable DAB stations

Inactive or unavailable stations are those which appear on the station list but are not currently available. Inactive stations have a '?' before their name on the station list. If you select a station which has this symbol, your radio tries to tune in or returns to the previous station.

Troubleshooting

Display says 'No stations available'

Use Autotune (page 10) to search for stations. Try adjusting your aerial or radio position.

Receiving new DAB stations that have started broadcasting

Use Autotune (page 10) to scan for new stations. Any new stations that you can receive will be added to the station list.

Resetting your radio

Resetting your radio removes all presets and stored stations and resets all options to defaults.

1. Press and hold the Menu button for three seconds.

2. Press Select to confirm the reset or press no buttons to cancel the reset.

Technical Specifications

DAB Digital radio with full Band III and FM RDS reception. ETSI EN 300 401 compliant and capable of decoding all DAB transmission modes 1-4 up to and including 256 kbps. DAB+ supported as standard.

Frequency ranges DAB Band III 174–240 MHz, FM 87.5–108 MHz.

Audio 3" full-range speaker. 1.7W RMS amplifier. Active speaker equalization filter.

Input connectors 5.5V DC power adaptor socket (230V supplied). USB connector for upgrades.

Output connectors 3.5mm stereo output for headphones.

LCD Display 16 x 2 characters, plus additional function icons. Auto-dimming backlight.

Mains power 230V AC to 5.5V (1A) DC external power adapter (supplied).

Power consumption Standby: 0.9 Watt. Active: 2.4 Watts average dependent on use.

Approvals CE marked. Compliant with the EMC and Low Voltage Directives 2004/108/EC and 2006/95/EC).

Aerial Wire aerial attached.

Dimensions (mm) 135 wide x 150 deep x 58 high.

Inhalt

Zu Beginn 2

Quick Setup - Schnellstart 2

Simple line drawing of a device on a surface with a downward arrow indicating motion (no text or symbols)

5.5V DC

②

Diagram showing a device connected to a monitor on a table (no text or symbols present)

③

22:01 Planet Rock uo. This is Plan Sleep 3secs 22:01 Planet Rock This is Planet R

Intellitext ^® (Menu > Intellitext)

Upgrade (Menu> Upgrade)

Simple line drawing of a device on a surface with a downward arrow indicating motion (no text or symbols)

5.5V DC

Simple line drawing of a device connected to a wall-mounted device (no text or symbols)

Weekend Tous les week-ends.

Saturday Tous les samedis.

10:32 DAB Set Mode Select + 10:32 DAB Tone Select

22:01 Planet Rock uo. This is Plan Sleep 3secs 22:01 Planet Rock This is Planet R

Intellitext ^® (Menu > Intellitext)

Simple line drawing of a device connected to a power outlet, with no text or symbols present.

- - : - - Enable energy saving? Select Energy saving +On Select

22:01 Planet Rock uo. This is Plan Sleep 3secs 22:01 Planet Rock This is Planet R

Intellitext ^® (Menu > Intellitext)

Simple line drawing of a device on a base with a downward arrow indicating motion (no text or symbols)

5.5V DC

②

Tilslut adapteren til elnettet, og tryk på Standby knappen.

Simple line drawing of a device connected to a table with a cable (no text or symbols)

③

Indstil energisparetilstand.

"07:25" BBC Radio 2 test your knowle Source "07:25" 87.50MHz FM

Skift mellem stationer

Select 07:25 SMOOTH radio text your reques

08:00 SMOOTH Radio by Luther Vandro Presets + - 08:00 Preset 04 Smooth Radio Select Drug of radi

Brug af radioen

10:32 DAB Set Mode Select + 10:32 DAB Tone Select

22:01 Planet Rock wo. This is Plan Sleep 3secs 22:01 Planet Rock This is Planet R

Intellitext (Menu > Intellitext)

Energispar (Menu > Energy saving)

Opgradering (Menu > Upgrade)

Displayet viser 'No stations available'

Disposal of Waste Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.

PURE Digital	[phone] sales and support
Imagination Technologies Ltd.	[phone] trade sales and support
Home Park Estate	[phone] fax
Kings Langley	[e-mail]
Herts, WD4 8LZ	[e-mail]
United Kingdom

PURE Digital	[phone] sales
Karl-Marx Strasse 6	[phone] fax
64589 Stockstadt/Rhein	[e-mail]
Germany

Milano is a member of the PURE EcoPlus™ product family. All EcoPlus products are designed and manufactured to minimise their environmental impact.

The retail carton protecting your product is printed on at least 70% recycled card finished using a water-based varnish and sized for maximum transport efficiency.

For more information please visit www.pure.com/ecoplus

101GQ

Printed on 100% recycled paper
