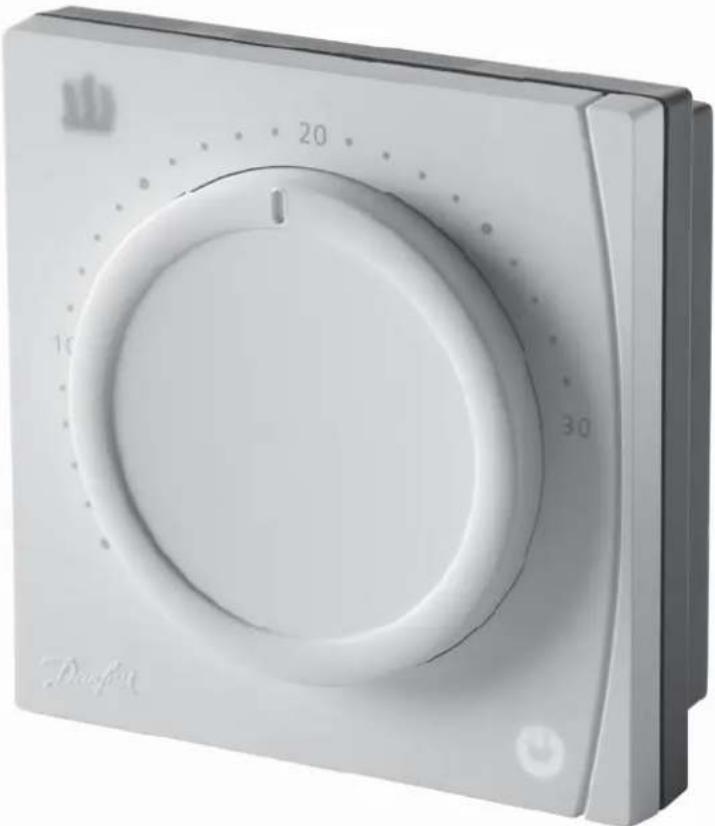

RET1000 M - Thermostat DANFOSS - Free user manual and instructions

Product type	Room thermostat
Brand	Danfoss
Model	RET1000 M
Power supply	230 VAC ±15 %, 50/60 Hz or 2 AA batteries (2.5-3 VDC)
Temperature setting range	5 to 30 °C
Operating temperature range	0 to 45 °C
Contact rating	3 A (1) at 230 VAC
Switch type	1 x SPDT Type 1B
Protection rating	IP20
Dimensions (H x W x D)	84 x 84 x 37 mm
Weight	Approximately 150 g (with batteries)
Mounting	Wall-mounted, about 1.5 m from the floor, away from drafts and heat sources
Control mode	On/Off or chronoproportional (CHRONO) with 3/6/12 cycles
On/Off control	Yes
Limitation function	Setting range limitation (e.g. 18-22 °C) via microswitch
Display	No integrated display (manual settings)
Compatibility	Radiator heating systems (6 cycles) or underfloor heating (3 cycles)
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products or solvents.
Safety	Installation by a qualified electrician or competent heating engineer; comply with IEEE and EN 60730-2-9 standards
Battery life	Approximately 2 years (with alkaline batteries)
Repairability	No spare parts available; replace the unit if faulty

Frequently Asked Questions - RET1000 M DANFOSS

How to install the RET1000 M thermostat?

The thermostat should be mounted about 1.5 m from the floor, away from drafts, radiators, open fires or direct sunlight. Installation must be carried out exclusively by a qualified electrician or a competent heating engineer in accordance with current IEEE wiring regulations.

What types of power supply does this thermostat accept?

The RET1000 M can be powered either by 230 VAC ±15 %, 50/60 Hz (for mains-powered models) or by 2 AA batteries (2.5-3 VDC) for wireless versions. Consult the manual for the exact model.

How to adjust the heating cycles (CHRONO)?

Use the microswitches located on the back of the thermostat. Select 6 cycles for radiators, 3 cycles for underfloor heating. The 12-cycle setting is also available but not used by default.

What is the difference between ON/OFF and CHRONO?

ON/OFF mode switches the boiler on and off based on a fixed temperature differential around the setpoint. CHRONO (chronoproportional) mode switches the boiler at regular intervals to reach the temperature without overheating, saving energy.

How to limit the temperature setting range?

Use the limitation microswitch to restrict the setting range, for example between 18 and 22 °C. This prevents the user from exceeding certain temperatures.

What is the maximum contact rating?

The contact rating is 3 A (1) at 230 VAC. The switch is SPDT Type 1B. Do not exceed this value to avoid damaging the thermostat.

Is the RET1000 M compatible with underfloor heating?

Yes, by setting the microswitch to 3 cycles in CHRONO mode. For radiators, use 6 cycles. The number of cycles adapts the control to the heating type.

How to clean the thermostat?

Clean the housing with a soft dry cloth. Do not use water, solvents or abrasive products that could damage the device or cause a short circuit.

What are the dimensions of the RET1000 M?

The dimensions are 84 mm high, 84 mm wide and 37 mm deep. It is designed for standard wall mounting.

What to do if the thermostat does not work?

First check the power supply (mains or batteries). If the batteries are depleted (battery life approximately 2 years), replace them. If the problem persists, contact a professional. The product is not user-serviceable; no spare parts are available, the unit must be replaced.

USER MANUAL RET1000 M DANFOSS

ENGINEERING TOMORROW

RET1000 B/M/MS

Electronic dial setting thermostat Installation Guide

Danfoss Heating

For a large print version of these instructions please call Marketing on 0845 121 7400.

This product complies with the following EC Directives:

Electro-Magnetic Compatibility Directive.

(EMC) (2004/108/EC)

Low Voltage Directive.

(LVD) (2006/95/EC)

Restriction of the use of certain Hazardous Substances

(RoHS) (2011/65/EU)

Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other printed material. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.

Installation Instructions

Specifi cations RET1000MS	RET1000M	RET1000B
Operating Voltage 230Vac ±1	5%, 50/60Hz		2.5 - 3 VDC(2xAA batteries)
Output 230Vac Volt free
Setting temp. range 5-30°C
Operating temp. range 0-45°C
Switch rating 3A (1) at 230Vac
Switch type 1 x SPDT Type 1B
Battery lifetime N/A Min. 2 years
IP rating IP20
On/off control	Yes
Chrono-proportional control	Yes
Construction	EN 60730-2-9
Control pollution situation	Degree 2
Rated impulse voltage	2.5kV
Ball pressure test	75°C
Dimensions (mm) H84 x W84	x D37
Software Classification	A

Danfoss Heating

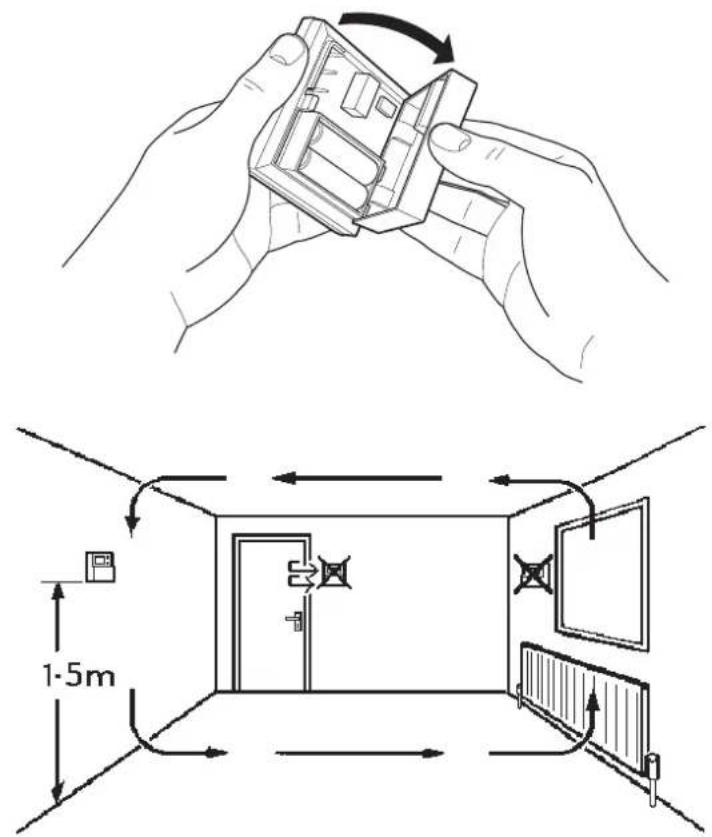

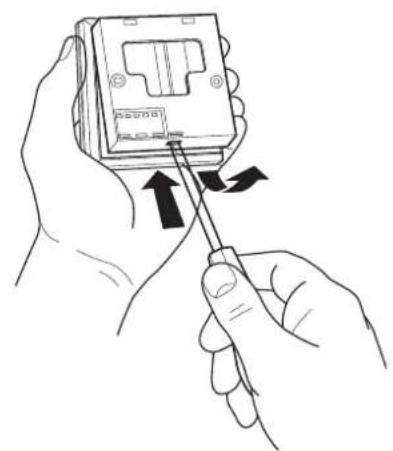

Mounting

Fix at a height of 1.5m approx from the floor, away from draughts or heat sources such as radiators, open fire or direct sunlight.

Please Note:

This product should only be installed by a qualified electrician or competent heating installer and should be in accordance with the current edition of the IEEE wiring regulations.

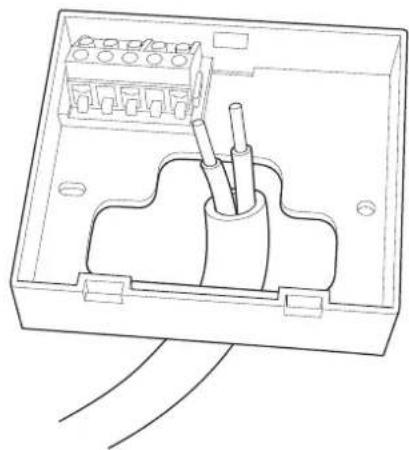

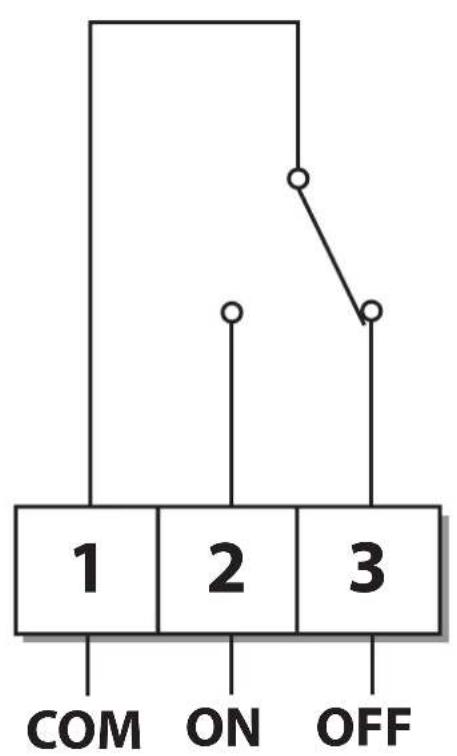

Wiring

RET1000B

4

GB

DE

DK

ES

FR

NL

RU

TR

Danfoss Heating

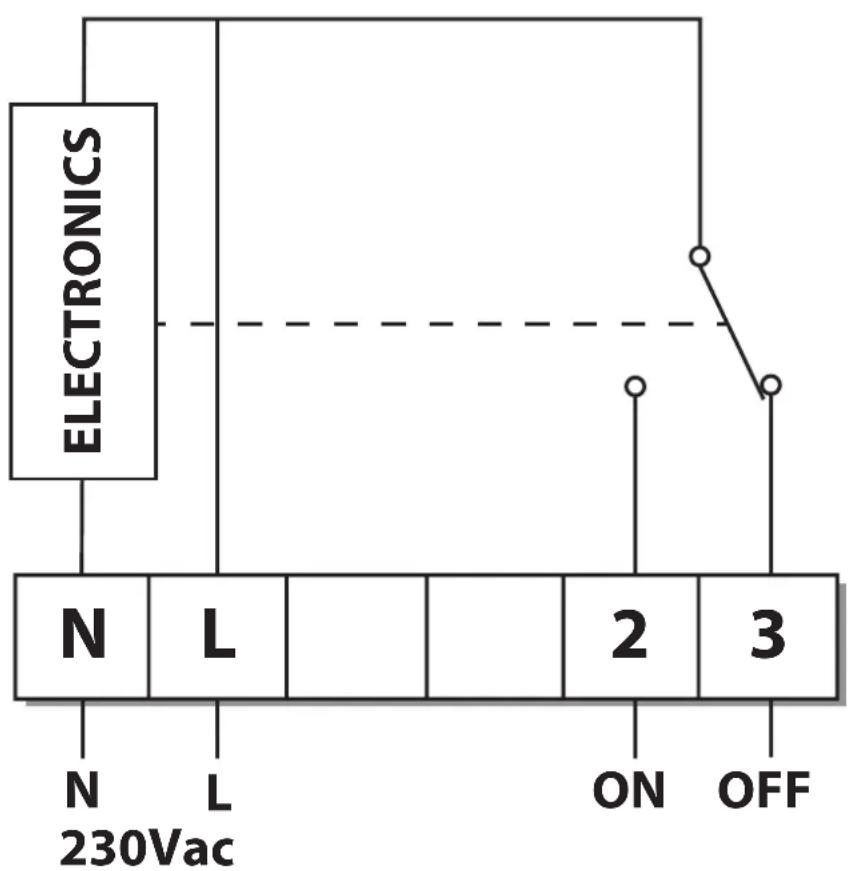

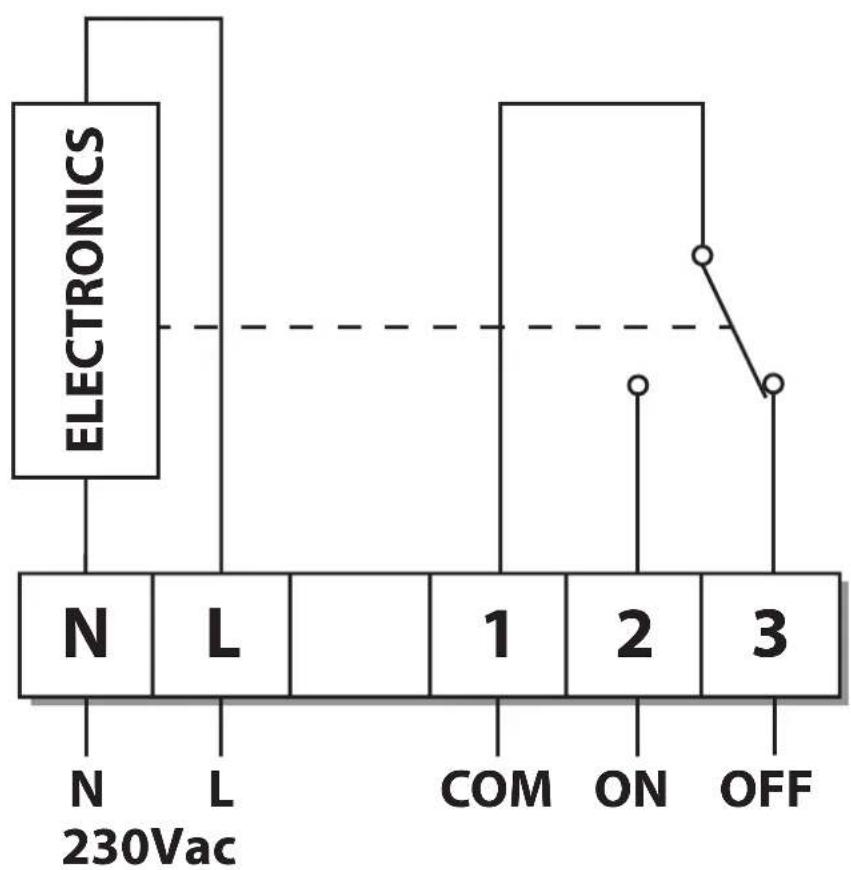

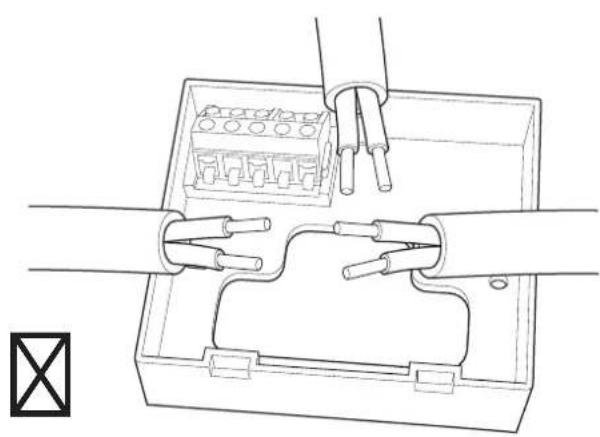

Wiring

GB

RET1000M

DE

DK

ES

FR

NL

RU

TR

RET1000MS

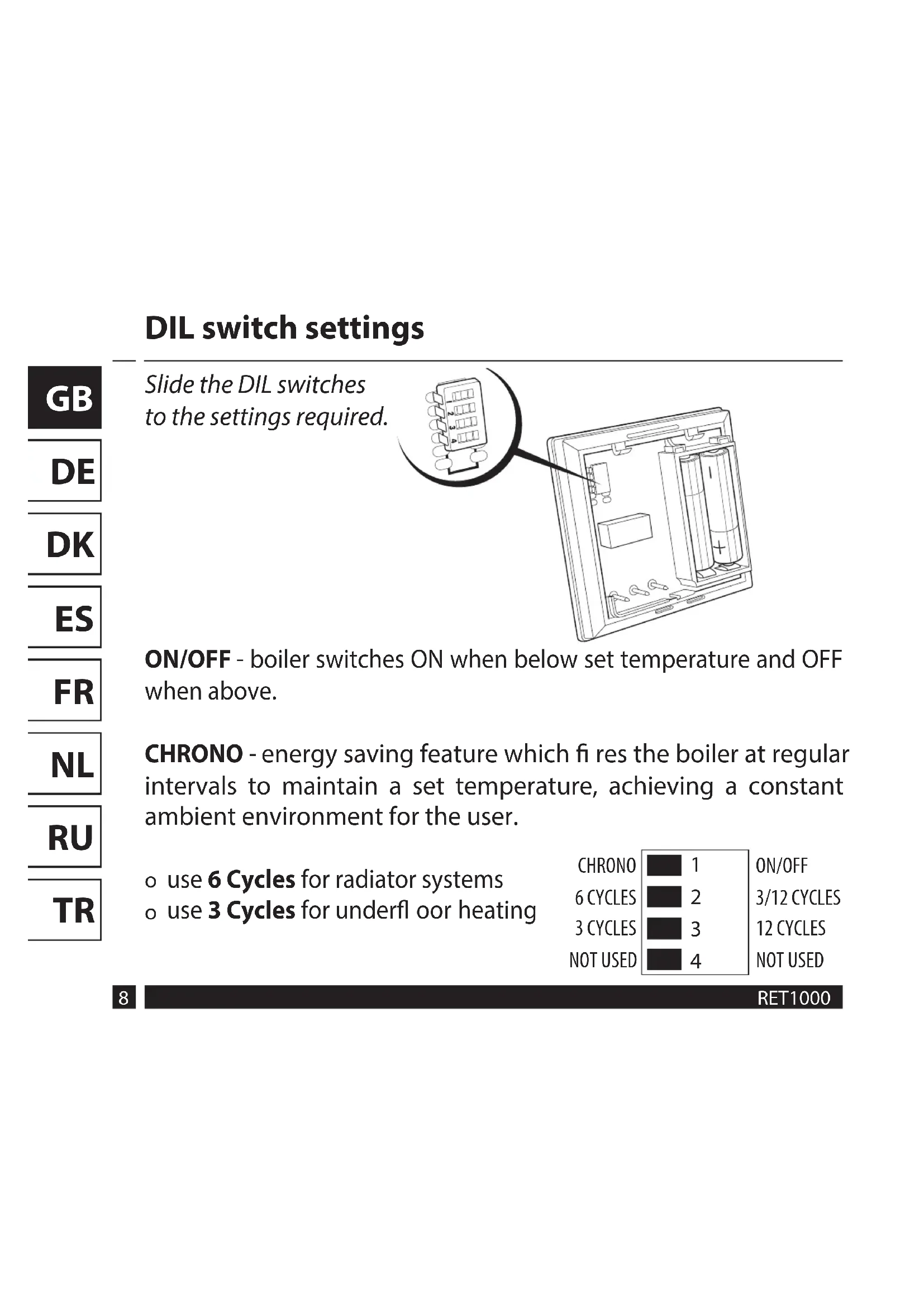

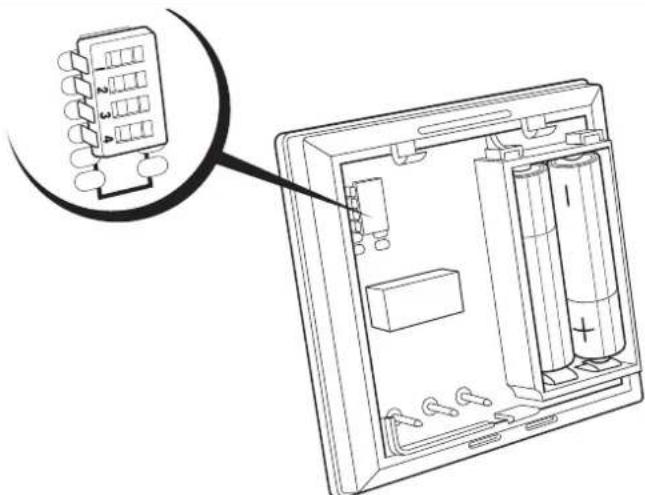

DIL switch settings

GB

DE

DK

ES

FR

NL

RU

TR

Slide the DIL switches to the settings required.

ON/OFF - boiler switches ON when below set temperature and OFF when above.

CHRONO - energy saving feature which fires the boiler at regular intervals to maintain a set temperature, achieving a constant ambient environment for the user.

o use 6 Cycles for radiator systems o use 3 Cycles for underfloor heating

CHRONO	1	ON/OFF
6 CYCLES	2	3/12 CYCLES
3 CYCLES	3	12 CYCLES
NOT USED	4	NOT USED

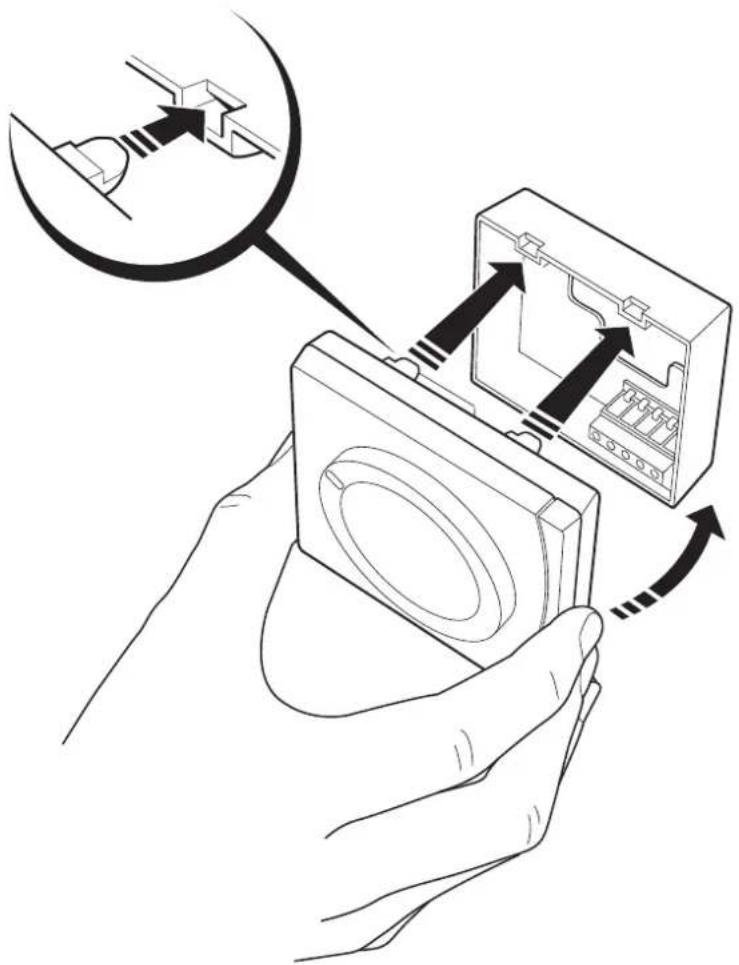

Mounting (continued)

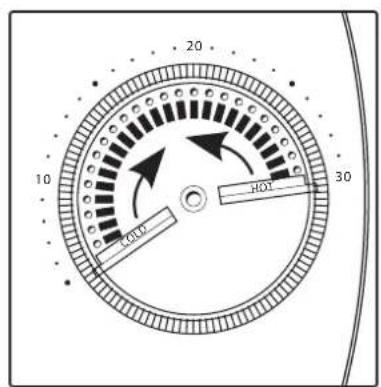

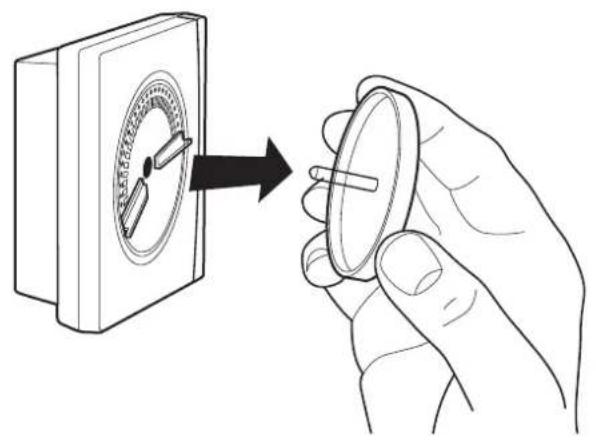

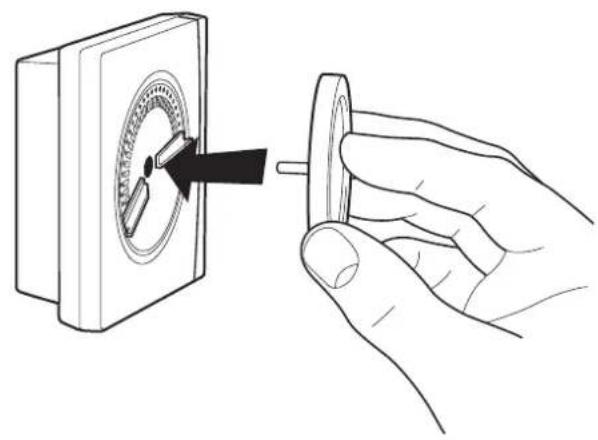

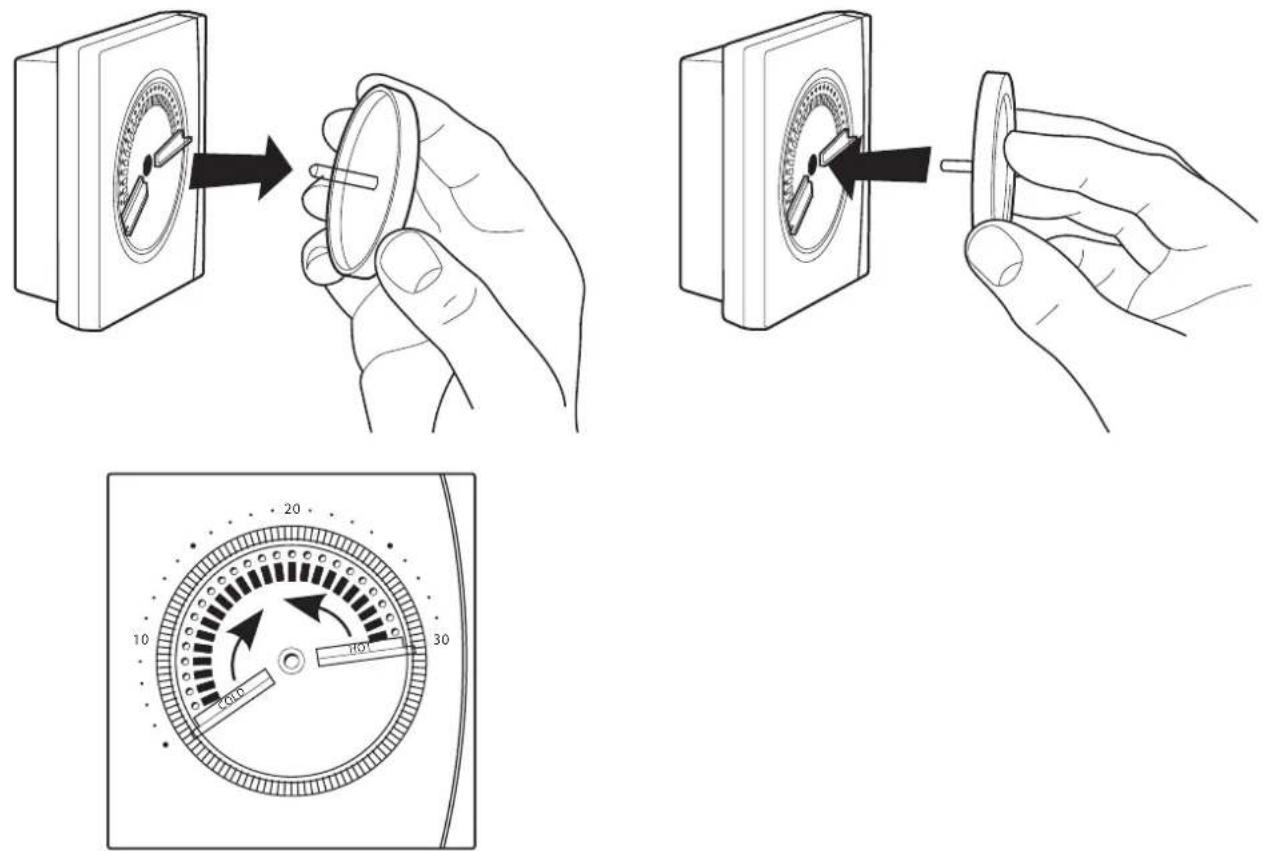

Limiting

GB

DE

DK

ES

FR

NL

RU

TR

Limiting - allowing the user to alter the temperature within a predefi ned range, which is less than the full range of the product (i.e. between 18 - 22^ ).

3/12 CYCLES (3/12 LUKKIOB)NOT USED

3 CYCLES (3 LUKNA)

12 CYCLES (12 LUKIOB)

NOT USED (HE IINIOJIb3YETCRA)

4

NOT USED (HE ICNIOJIb3YETCA)

OrpaHnueHne

OrpaHnueHne -ФyHKU, KOTOPaI NO3BOJAEr IOnb3OBaTeJIOppeRyIInPOBaTb TempePaTyB vIpeJeIax 3aJaHHoro INHTepBaIa, MeHbIeRo, Yem IOnHbI dHaNa3OH DOpyCTmblx peRyIInPOBOK np6opa (HaPpIMep, B ppeJex 18-22°).

GB

DE

DK

ES

FR

NL

RU

TR

Kurulum Talimatlari

Email: [e-mail]

Website: www.heating.danfoss.co.uk

Part No 45026v02 03/14
