Legacy 2068156 - Coffee machine RUSSELL HOBBS - Free user manual and instructions

USER MANUAL Legacy 2068156 RUSSELL HOBBS

Black and silver digital coffee maker with glass pitcher, no visible text or symbols on the device itself.

Technical diagram of a coffee maker with numbered parts and labeled parts in Chinese

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use. If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

The surface of the heating element is subject to residual heat after use.

Use the appliance according to these instructions. Any misuse may cause potential injury, electric shock or other hazards.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• farm houses.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

- Sit the appliance on a stable, level, heat-resistant surface.

- Keep the appliance and cable away from the edges of worktops.

- Don't use accessories or attachments other than those we supply.

- Don't use the appliance for any purpose other than those described in these instructions.

- Don't use the appliance if it's damaged or malfunctions.

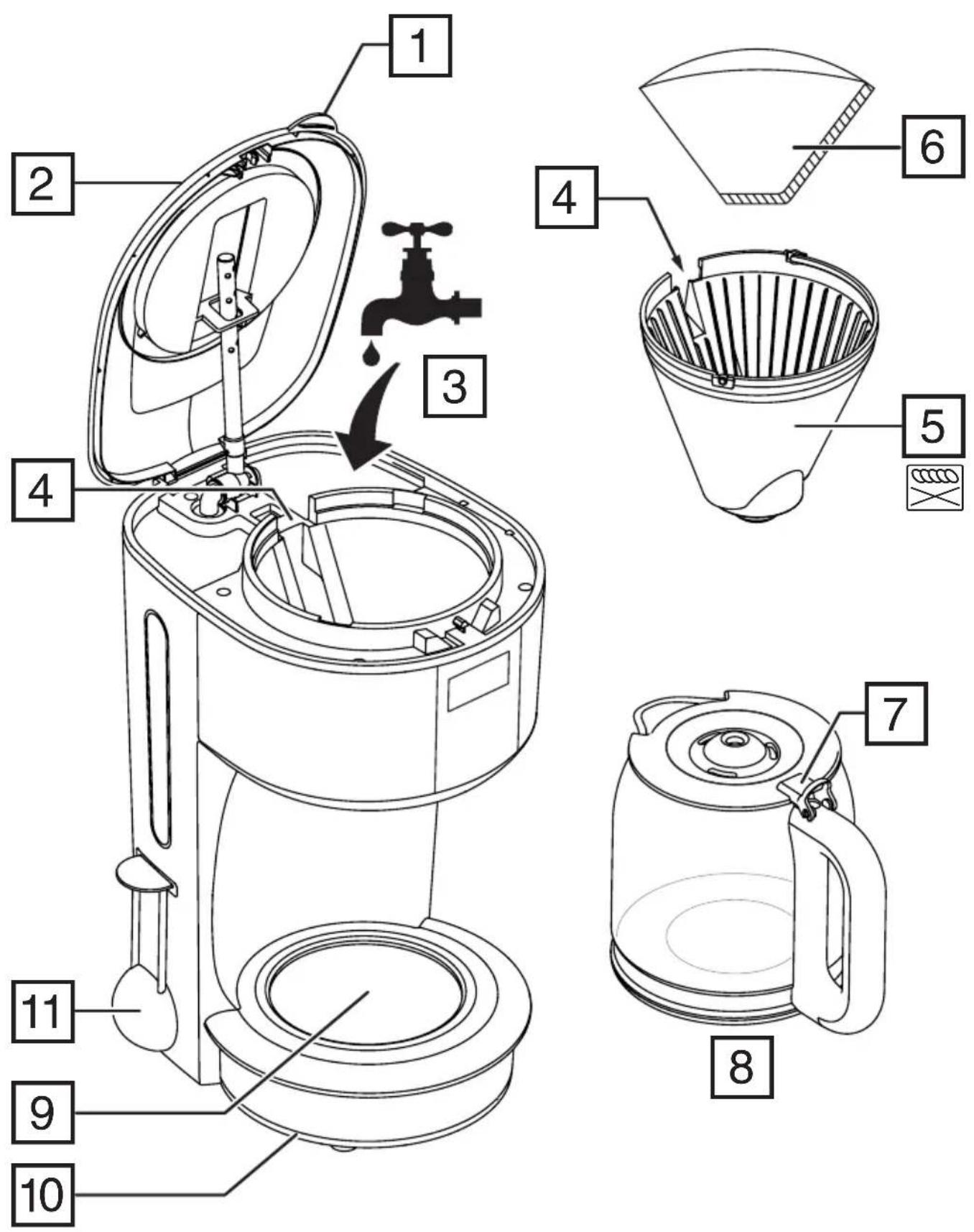

PARTS

1. Grip

2. Lid

3. Water

4. Slot

5. Filter holder

6. Paper filter #4 (not supplied)

7. Press

8. Carafe

9. Hotplate

10. Status light

11. Scoop

Dishwasher – top rack

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

FILLING

1. Remove the carafe from the hotplate.
2. Use the grip to open the lid, and expose the reservoir.
3. Fill the reservoir with the exact amount of water required.
4. Open up a #4 paper filter, and put it into the filter holder.
5. Put 1 scoop of filter-ground coffee into the filter for each cup.
6. Close the lid.
7. Replace the carafe on the hotplate.

SWITCH ON

1. Put the plug into the power socket.
2. 12:00 will blink on the display.

COFFEE NOW

1. Ignore the clock.
2. If you're making less than 5 cups of coffee, press the ♡ button. 1-4 ♡ will show on the display. It slows the brewing process, so your coffee will have the same strength as coffee from a full carafe.
3. Press the 🎨 button. The button will light up.
4. Shortly afterwards, coffee will start to drip into the carafe.
5. When it's done, the hotplate will keep the carafe warm.
6. If you want to stop the coffee maker while it's brewing, press the 🎨 button.

STATUS LIGHT

The status light will change colour to show how fresh the coffee is.

blue = brewing / 0-30 minutes since brewing

blue (blinking) = 30-40 minutes since brewing

AUTO SHUT-OFF/SLEEP MODE

About 40 minutes after brewing finishes, the appliance will shut down.

After 15 seconds of inactivity, the appliance will go to sleep.

To wake the appliance, press the min button.

COFFEE LATER

1. The clock will retain its settings until the coffee maker is unplugged.
2. It's a 24 hour clock.
3. Set the clock to the correct time.
4. Use the h and min buttons to set the correct hour and minute.
5. Set the timer to the time you want to start brewing.
6. Press the ⏻ button.
7. Use the h and min buttons to set the correct hour and minute.
8. If you don't press either the h or min buttons within 5 seconds, the coffee maker will revert to "normal", and the time will show. You'll have to press the ⏻ button, and start again.
9. If you're making less than 5 cups of coffee, press the ⏻ button. 1-4 will show on the display.

ACTIVATION

1. Press the AUTO button.
2. AUTO will show on the display.
3. At the time you set, the 🎨 button will light up, and the coffee maker will start up.
4. To cancel the timer before brewing has started, press the button again.

REMEMBER

If you forget what time you've set it to, press and hold the ⏻ button, then release it.

A QUICK CUP

You can remove the carafe at any time. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.

A STRONGER BREW

If you're making 5 cups or more, you may use the 1-4▽ function to make the brew slightly stronger. Just press the 14 button once. 1-4▽ will show on the display.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
5. Hand wash the carafe and filter holder.
6. Turn the filter holder to bring the slot in its rim towards the lid, then lower the filter holder back into the coffee maker.
7. Close the lid, and press down to lock it.
   You may wash these parts in the top rack of a dishwasher.

SELF CLEAN

To prevent scale building up, use the self clean function at least monthly in normal water areas, more often in hard water areas.

Ensure the kitchen is well ventilated, as heating vinegar causes an unpleasant smell.

This operation will take 35-45 minutes.

1. Mix 6 cups of white vinegar with 4 cups of water in the carafe.
2. Pour the mixture into the reservoir.
3. Close the lid.
4. Replace the carafe on the hotplate.
5. Put the plug into the power socket.
6. Press the ◊ button. ◊ will show on the display.
7. Part of the mixture will come through. The remainder will soak in the boiler for 30 minutes, then come through.
8. At the end of the operation the appliance will switch itself off.
9. Fill the reservoir to the max mark, and run the appliance without coffee.
10. Do this 2 or 3 times, till the vinegar smell has gone.
    Products returned under guarantee with faults due to scale will be subject to a repair charge.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
