Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

1 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.
- Keep the appliance and cable out of reach of children under 8 years.

⚠ Misuse of the appliance may cause injury.
The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use.
Don't immerse the appliance in liquid. 2 If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

3 Sit the appliance on a stable, level, heat-resistant surface.

4 Keep the appliance and cable away from the edges of worktops.

5 Don't use accessories or attachments other than those we supply.

6 Don't use the appliance for any purpose other than those described in these instructions.

7 Don't use the appliance if it's damaged or malfunctions.

household use only

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

FILLING

1 Remove the carafe from the hotplate.
2 Use the grip to open the lid, and expose the reservoir.
3 Fill the reservoir with the exact amount of water required.
4 Open up a #4 paper filter, and put it into the filter holder.
5 Put 1 scoop of filter-ground coffee into the filter for each cup.
6 Close the lid.
7 Replace the carafe on the hotplate.

SWITCH ON

8 Put the plug into the power socket.
9 The appliance will beep. 12:00 will blink on the display.

COFFEE NOW

10 Ignore the clock.
11 If you're making less than 5 cups of coffee, press the 1-4 button.
12 1-4 will show on the display.

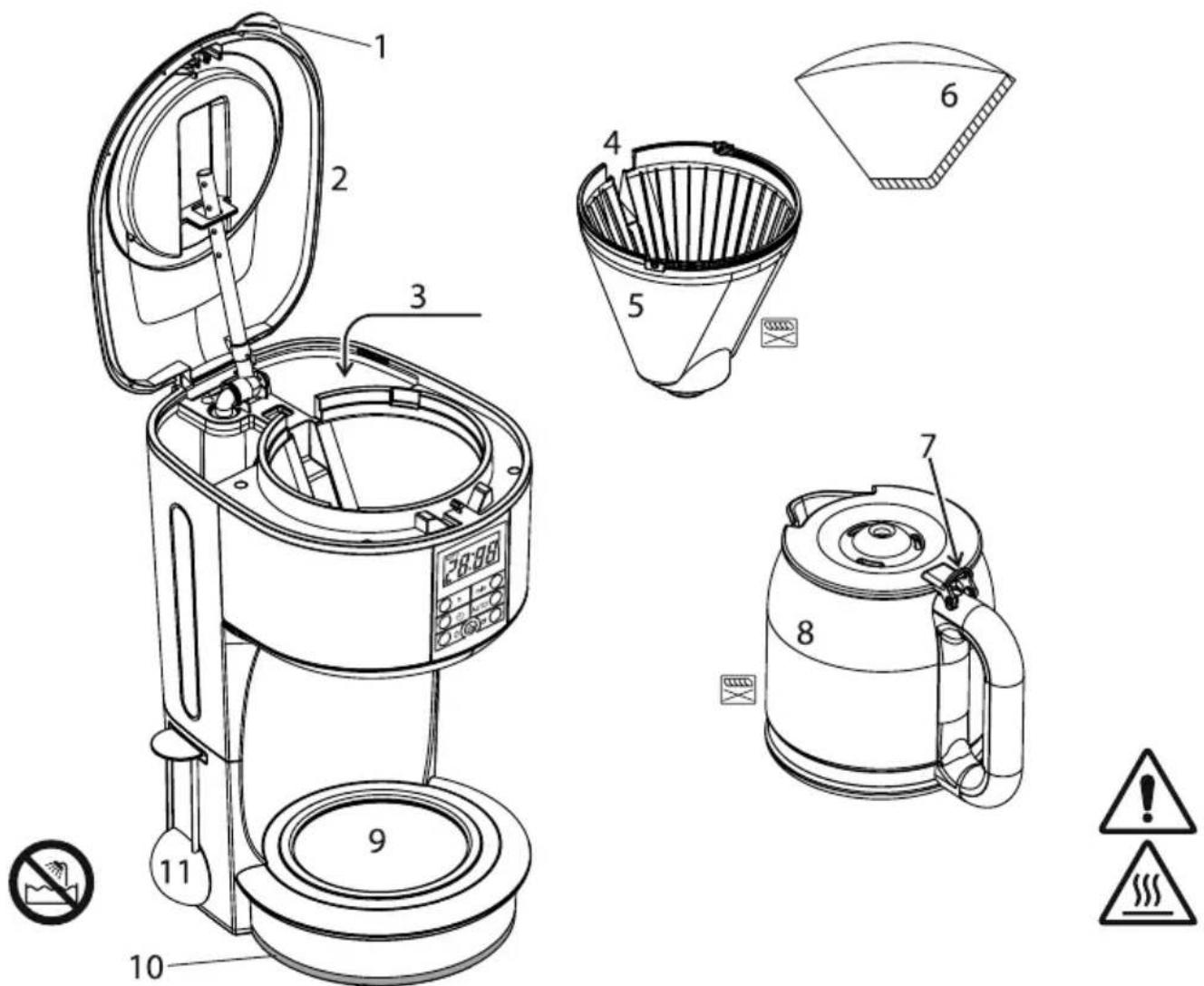

diagrams	5 filter holder	9 hotplate
1 grip	6 paper filter #4	10 status light
2 lid	(not supplied)	11 scoop
3 water	7 press	dishwasher – top rack
4 slot	8 carafe

13 It slows the brewing process, so your coffee will have the same strength as coffee from a full carafe.

14 Press the 🎨 button. The button will glow.

15 Shortly afterwards, coffee will start to drip into the carafe.

16 When it's done, the hotplate will keep the carafe warm. The appliance will beep.

17 If you want to stop the coffee maker while it's brewing, press the 🎨 button.

STATUS LIGHT

18 The status light will change colour to show how fresh the coffee is.

blue = brewing / 0-30 minutes since brewing

blue (blinking) = 30-40 minutes since brewing

AUTO SHUT-OFF

19 About 40 minutes after brewing finishes, the appliance will shut down.

★ To wake the appliance, press the min button.

20 After about 30 minutes, chemical changes will affect the taste of the coffee.

COFFEE LATER

21 The clock will retain its settings until the coffee maker is unplugged.

22 It's a 24 hour clock.

23 Set the clock to the correct time.

- Use the h and min buttons to set the correct hour and minute.

24 Set the timer to the time you want to start brewing.

- Press the ⏻ button.

- Use the h and min buttons to set the correct hour and minute.

If you don't press either the h or min buttons within 5 seconds, the coffee maker will revert to "normal", and the time will show. You'll have to press the ⏻ button, and start again.

25 If you're making less than 5 cups of coffee, press the 1-4 button.

26 1-4 will show on the display.

ACTIVATION

27 Press the AUTO button.

28 AUTO will show on the display.

29 At the time you set, the 🎨 button will glow, and the coffee maker will start up.

30 To cancel the timer before brewing has started, press the button again.

REMEMBER

31 If you forget what time you've set it to, press and hold the ⏻ button, then release it.

A QUICK CUP

32 You can remove the carafe at any time. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.

A STRONGER BREW

33 If you're making 5 cups or more, you may use the 1-4 ∅ function to make the brew slightly stronger. Just press the ⏻ button once.

34 1-4▽ will show on the display.

CARE AND MAINTENANCE

35 Unplug the appliance and let it cool.

36 Tip the contents of the filter holder into the bin.

37 Clean the outside surfaces of the appliance with a damp cloth.
38 Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
39 Hand wash the carafe and filter holder.

You may wash these parts in the top rack of a dishwasher.

40 Turn the filter holder to bring the slot in its rim towards the lid, then lower the filter holder back into the coffee maker.

41 Close the lid, and press down to lock it.

SELF CLEAN

42 To prevent scale building up, use the self clean function at least monthly in normal water areas, more often in hard water areas.

43 Ensure the kitchen is well ventilated, as heating vinegar causes an unpleasant smell.

44 This operation will take 35-45 minutes.

45 Mix 6 cups of white vinegar with 4 cups of water in the carafe.

46 Pour the mixture into the reservoir.

47 Close the lid.

48 Replace the carafe on the hotplate.

49 Put the plug into the power socket.

50 Press the ◊ button.

51 ◇ will show on the display.

52 Part of the mixture will come through. The remainder will soak in the boiler for 30 minutes, then come through.

53 At the end of the operation, the appliance will beep, then switch itself off.

54 Fill the reservoir to the max mark, and run the appliance without coffee.

55 Do this 2 or 3 times, till the vinegar smell has gone..

* Products returned under guarantee with faults due to scale will be subject to a repair charge.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn't be disposed of with unsorted municipal waste, but recovered, reused, or recycled.

instructions – more detailed instructions are available on our website:

http://www.russellhobbs.com/ifu/550979
