USER MANUAL PerfectCoffee MC01 WAECO

Line drawing of a portable coffee maker with a mug and cord, no text or symbols present

PerfectCoffee MC 01

DE 4 Kaffeemaschine

Bedienungsanleitung

EN 9 Coffee-Maker

Operating Manual

Technical line drawing of a mechanical component with a central plate and two side supports (no text or symbols)

3 1. 2.

Technical line drawing of a mechanical component with no visible text or symbols

5 1. 2.

6 1 2 3

7 1. 2.

8 1. 2.

Please read this instruction manual carefully before first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Contents

1 Safety instructions....9
2 Scope of delivery.... 10
3 Intended use 10
4 Technical description 11
5 Operating the coffee machine 11
6 Maintaining and cleaning the coffee machine.... 12
7 Guarantee....12
8 Disposal 12
9 Technical data.... 13

1 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

● Damage to the product resulting from mechanical influences
● Alterations to the product without express permission from the manufacturer
● Use for purposes other than those described in the operating manual

1.1 General safety

WARNING!

● Never pull the plug out of the cigarette lighter by the cable.
- If the cable is damaged, it must be replaced to prevent possible electrical hazards.
- Do not operate the device if it is visibly damaged.
- This device may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards.
Should your device need to be repaired, please contact customer services.

• Pull out the connection cable:
  – Before cleaning and maintenance
• After use
  – In the case of faults

- Do not fill the device with water whilst it is hot. Turn the device off and leave it to cool down for approx. 5 mins.

1.2 Operating the device safely

WARNING!

● Electronic devices are not toys!
Always keep and use the device out of the reach of children.
- Only operate the device when you or another person can attend to it and never outdoors.
- Only operate the device in vehicles when the engine is switched off.
- Do not operate the device on hot surfaces and never place it near naked flames.
- Protect the device and the cable against heat and moisture.
● Never immerse the device in water.
- Do not operate the device when the lid is open.

2 Scope of delivery

No. in fig. 1, page 2

Quantity Description Item number

1 1 Coffee machine MC-01-12
2 1 Coffee cup
3 1 Coffee filter
4 2 Securing clips
5 2 Self-tapping screws

3 Intended use

The MC-01-12 coffee machine is used for brewing coffee in the coffee cup provided.

4 Technical description

The MC-01-12 coffee machine is connected to a 12 V--- voltage source, e. g. the cigarette lighter in your vehicle.

The coffee machine may only be used in vehicles where the 12 V=== socket is fused with at least a 15 A fuse. You can find specifications on the fuse in the vehicle documentation.

The filter is a permanent filter and does not require filter paper.

4.1 Control elements

Quantity Description Item number

A - On/off switch

B - 12 V== plug

5 Operating the coffee machine

WARNING!

Do not use the device during journeys, but only when the vehicle is stationary.

Securing the coffee machine

▶ Use the two securing clips and self-tapping screws supplied to fix the coffee machine to a suitable surface (fig. 2, page 2).

Before initial use

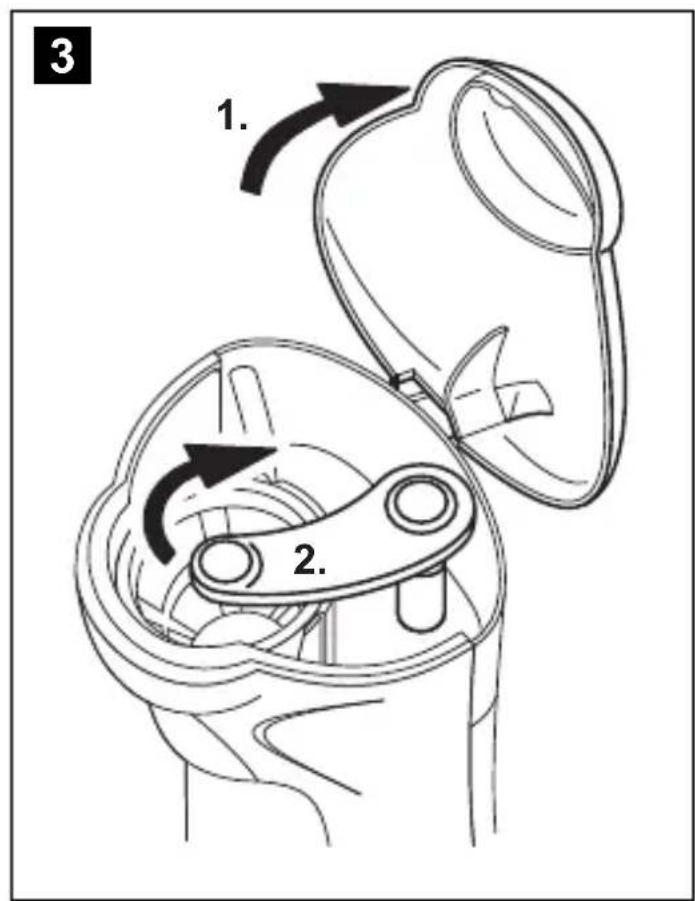

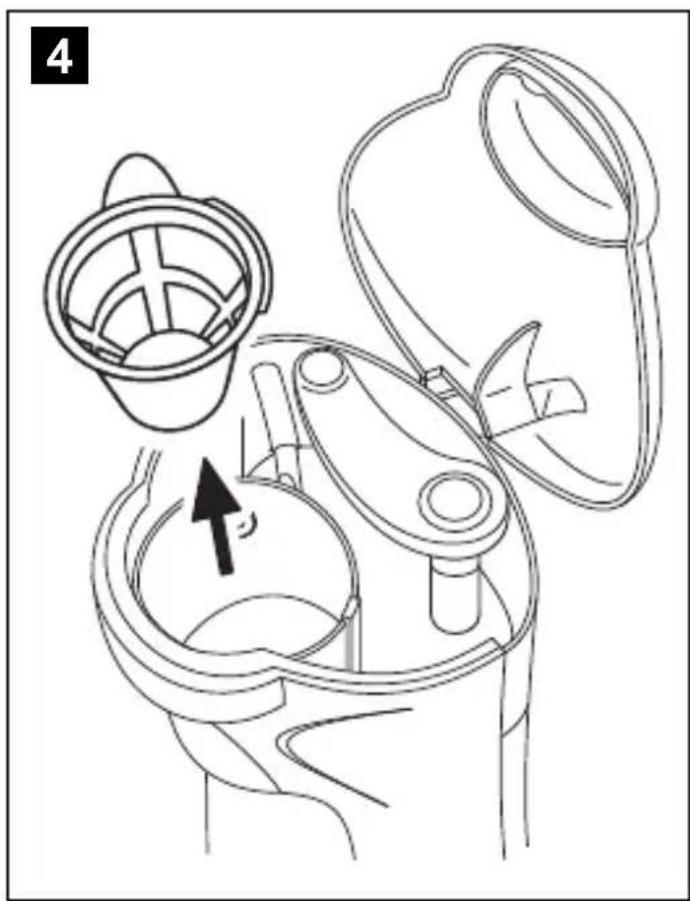

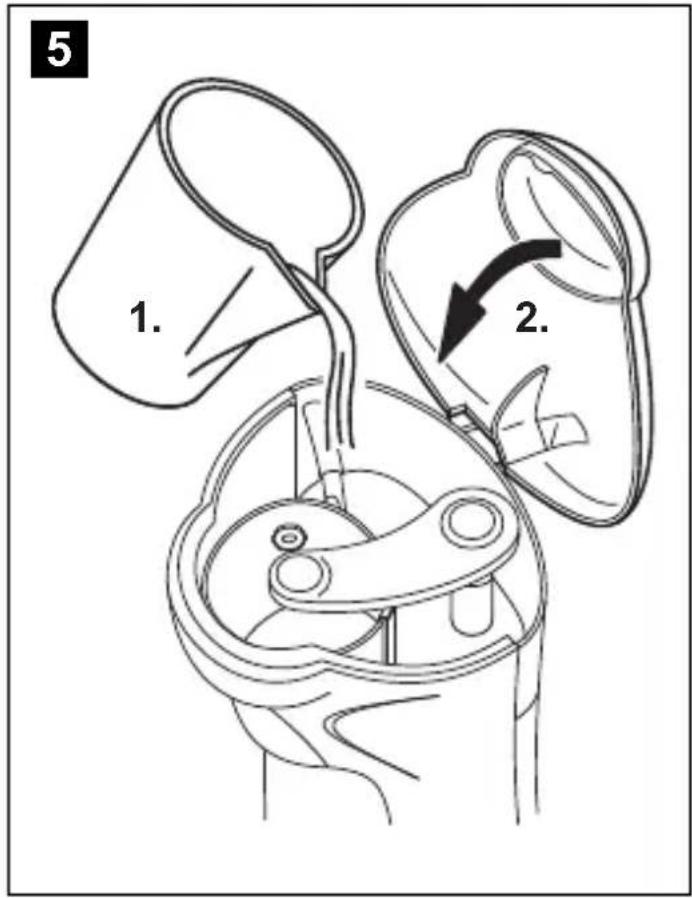

▶ Brew one to two lots of clear, cold water without the filter or coffee to clean the coffee machine (fig. 3, page 2 to fig. 5, page 3).
Do not fill the water tank above the maximum fill line.
▶Place the coffee cup in the coffee machine before switching it on.
▶Pour the brewed water away and thoroughly rinse the coffee cup under running water.
▶Put the coffee filter back in the machine.

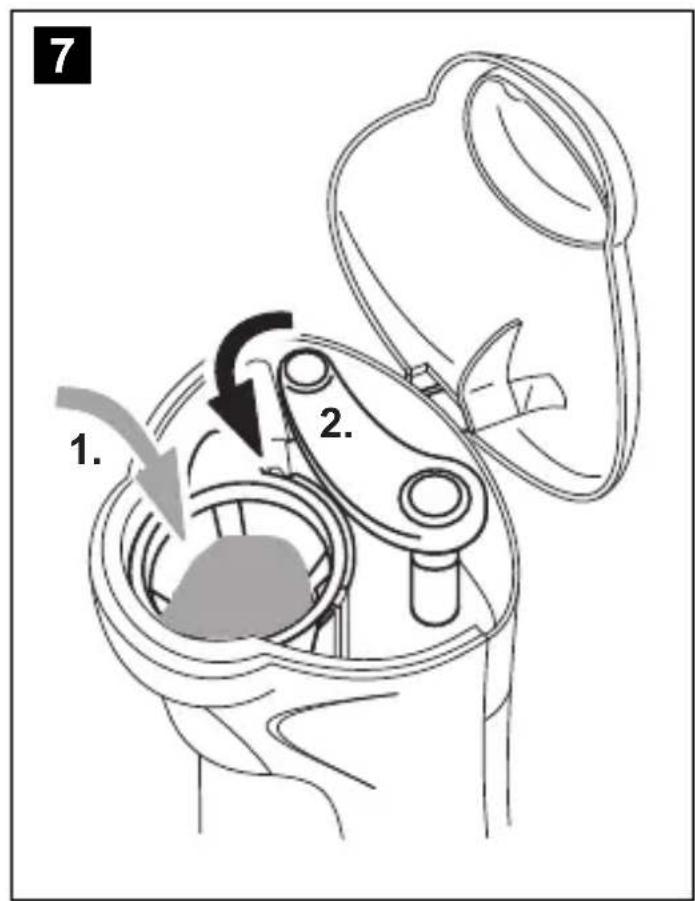

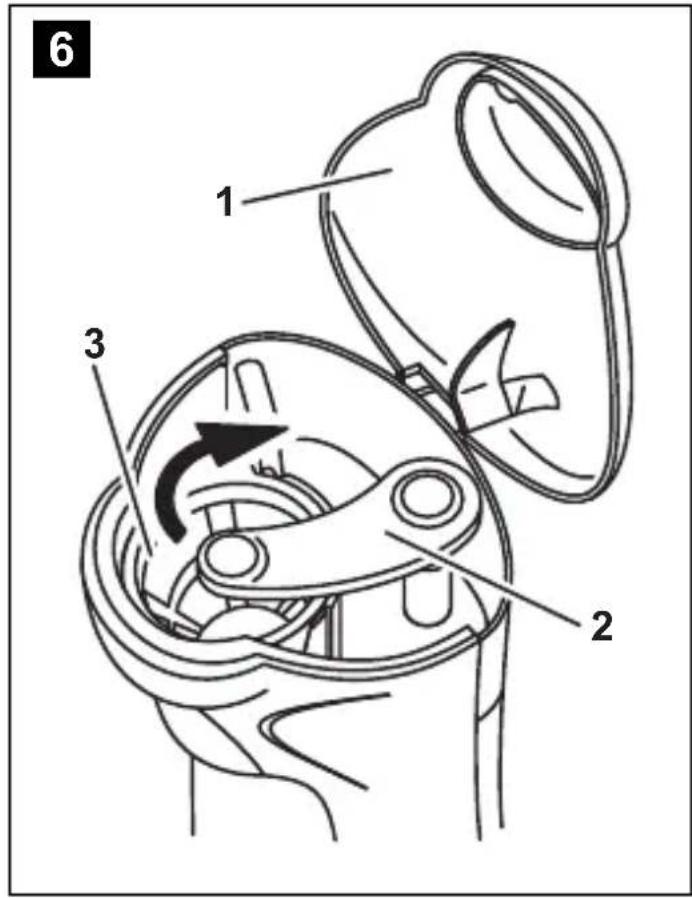

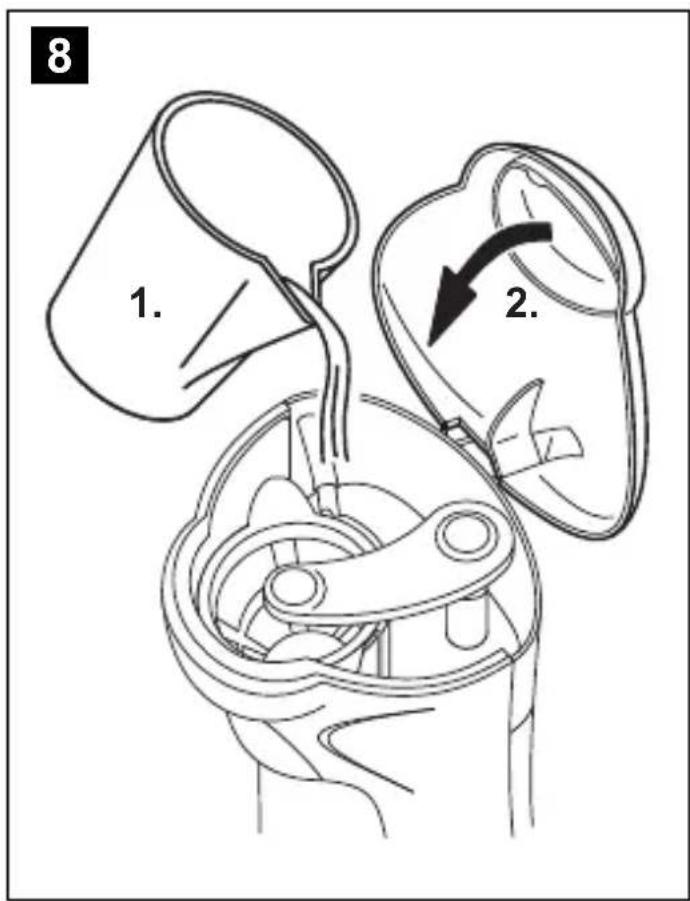

Brewing coffee (fig. 6 to fig. 8, page 3)

NOTICE!

Never use hot water. Never put milk, ready-made coffee, tea etc. in the water tank.

This could seriously damage the coffee machine.

▶Place the required amount of coffee in the filter.
▶Fill the water tank with clear, cold water.

Do not fill the water tank above the maximum fill line.

▶Place the coffee cup in the coffee machine before switching it on.
▶ Turn the on/off switch to "0" (fig. 1 A, page 2) when brewing is finished and you have removed the coffee cup.
▶If you want to switch off the device, pull out the connection cable.

6 Maintaining and cleaning the coffee machine

WARNING!

Always disconnect the device from the mains before you clean and service it.

NOTICE!

● Never clean the device under running water or in dish water.
- Do not use sharp, abrasive cleaning agents or hard objects during cleaning as these can damage the device and the coffee cup.

▶Rinse the filter under a tap after use.
▶Clean the coffee cup after use.

The coffee cup is dishwasher proof.

▶ Descale the device regularly (around every three months) using standard descaler.

Use according to manufacturer's specifications.

7 G u a r a n t e e

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

● A copy of the receipt with purchasing date
● A reason for the claim or description of the fault

8 Disposal

▶ Dispose of the coffee machine and packaging appropriately when you no longer wish to use the device.

9 Technical data

	PerfectCoffee MC 01
Capacity: 1 cup (150 ml)
Connection voltage: 12 V---
Power consumption: 170 W
Weight: 600 g

Versions, technical modifications and delivery options reserved.

Approval

C€

TÜV Rheinland Product Safety GS gepvöfte Sicherheit

TÜV CERT DN EN ISO 90012895/98A QA- Nr: 6419220423920 DN EN ISO 14001:2068 QA- Nr: 6419420649142

This device complies with the requirements of the foodstuffs law.
