Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols 16
2 Safety instructions .... 17
3 Scope of delivery 19
4 Accessories 19
5 Intended use 19
6 Technical description 20
7 Setting up the coffee maker....21
8 Operating the coffee maker 22
9 Maintaining and cleaning the coffee maker ..... 24
10 Warranty 24
11 Disposal 25
12 Technical data 25

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

▶ Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
√This symbol describes the result of an action.

Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

● Faulty assembly or connection
● Damage to the product resulting from mechanical influences
- Alterations to the product without express permission from the manufacturer
● Use for purposes other than those described in the operating manual

2.1 General safety

WARNING!

• Do not operate the appliance if it is visibly damaged.
• Never fill water into the appliance when it is hot. Turn the appliance off and leave it to cool down for approx. 10 min.
• Note that the hotplate remains hot for some time after turning the appliance off.
• Do not touch the hotplate and surfaces in contact with hot liquids.
• Avoid contact with hot steam produced during brewing.
• This appliance may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.
  Should your appliance need to be repaired, please contact customer service.
• If the connection cable is damaged, you must replace it to avoid hazards.

● Make sure that the connection cable
– is not kinked or twisted,
– does not rub on edges,
– does not come into contact with hot surfaces.

NOTICE!

• Do not use accessories that have not been recommended by the manufacturer. This can lead to injury and damage to material.
• Check that the voltage specification on the type plate is the same as that of the power supply.
• Never pull the plug out of the socket by the connection cable.
• Disconnect the appliance from the mains:

– Before cleaning and maintenance

- After use

– In the event of faults

2.2 Safety when installing the appliance

CAUTION!

● Ensure that the appliance is firmly seated.

The appliance must be set up and fastened in such a way that it cannot tip over or fall down.

2.3 Operating the appliance safely

WARNING!

- This appliance can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and knowledge, providing they are supervised, or have been taught how to use the appliance safely and are aware of the resulting risks.

● Electrical appliances are not toys.

Always keep and use the appliance out of the reach of children.

- Only operate the appliance when you or another person can attend to it and never outdoors.

- Only operate the appliance in stationary vehicles when the engine is switched off.

- Do not operate the appliance on hot surfaces and never place it near naked flames.

NOTICE!

• Protect the appliance and the cable against heat and moisture.
  ● Never immerse the appliance in water or other fluids.
• Do not operate the appliance when the lid is open.

3 Scope of delivery

No. in fig. 1, Quantity Designation Item no.page 3

1 1 Coffee maker 9103533013 (MC052, 12 V)9103533014 (MC054, 24 V)

2 1 Fixing kit 9103533015

3 1 Coffee pot 9103533016

4 1 Permanent filter 9103533017

- 1 Installation and operating manual

-- Fastening material

4 Accessories

Designation Item no.
Fixing kit	9103533015
Coffee pot	9103533016
Permanent filter	9103533017

5 Intended use

The MC052 (item no. 9103533013) and MC054 (item no. 9103533014) coffee makers are used to brew coffee or tea for up to five cups (each 125 ml).

6 Technical description

The MC052 and MC054 coffee makers are primarily designed for use in vehicles and boats, and are connected to a 12 V--- voltage source (MC052) or a 24 V--- voltage source (MC054), e.g. to the on-board supply. It allows you to brew up to five cups (each 125 ml) of coffee or tea.

The voltage source used must be protected with at least a 20 A fuse. You can find details on the fuse in the vehicle documentation.

The permanent filter is made of plastic and can be removed for cleaning. The coffee pot is made of glass.

A drip protection mechanism prevents water flowing out of the filter when the coffee pot is removed from the appliance before brewing is complete.

The fastening is suitable for use while driving.

6.1 Control elements

The coffee maker features the following operating elements:

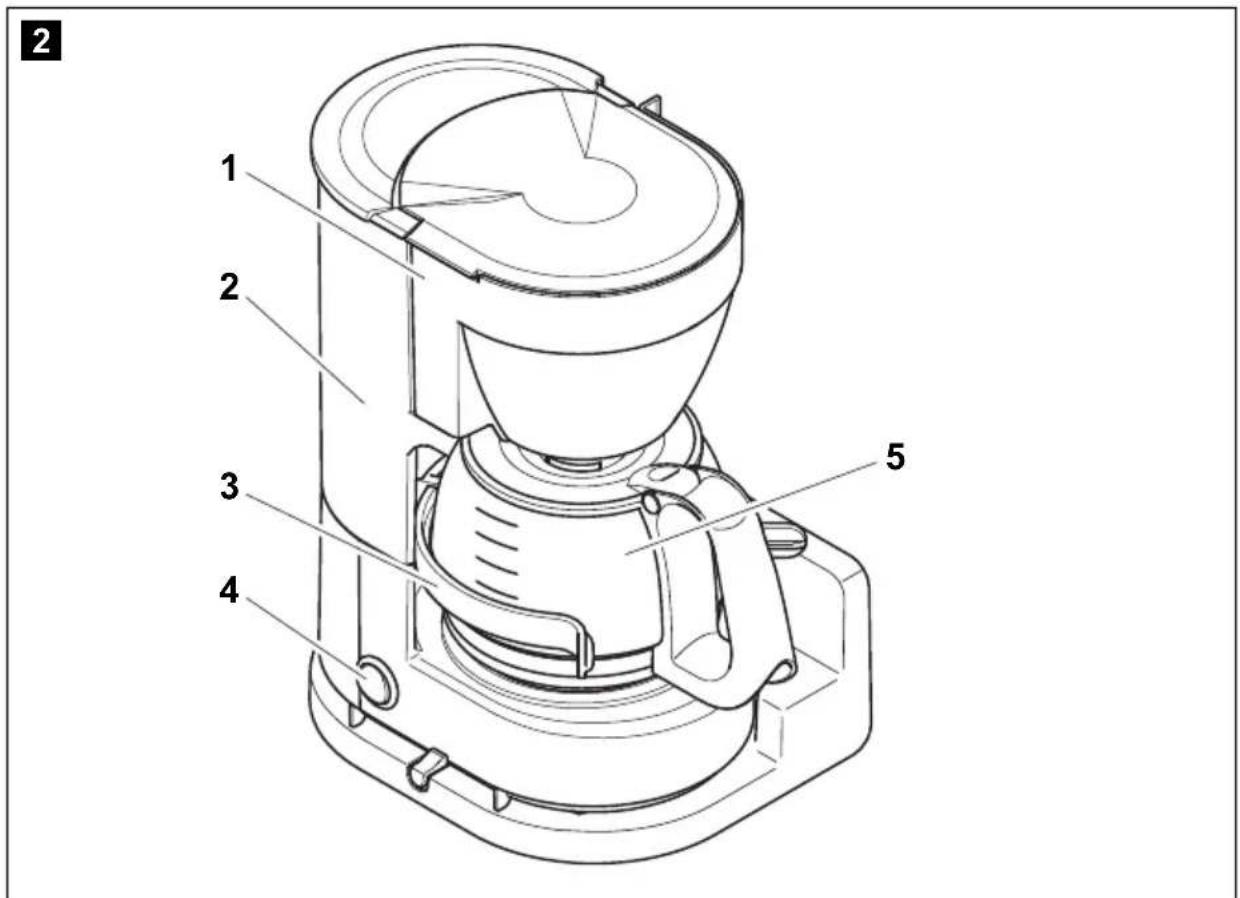

No. in fig. 2, Designation page 3

1 Filter support with drip protection mechanism

2 Water tank with fill level indicator

3 Clip for holding the coffee pot

4 On/Off switchThis LED lights up when the coffee maker is switched on.

5 Coffee pot with side markings

7 Setting up the coffee maker

WARNING!

When selecting the location for installing the appliance, ensure that passengers cannot be injured under any circumstances.

When installing the appliance, make sure the airbag function is not impaired.

Do not attach the appliance in an area where passengers could knock their heads against it. Make sure there is sufficient space for the drill head to emerge when drilling.

NOTICE!

Only install the appliance on surfaces which are heat-resistant and damp-proof.

Setting up the coffee maker

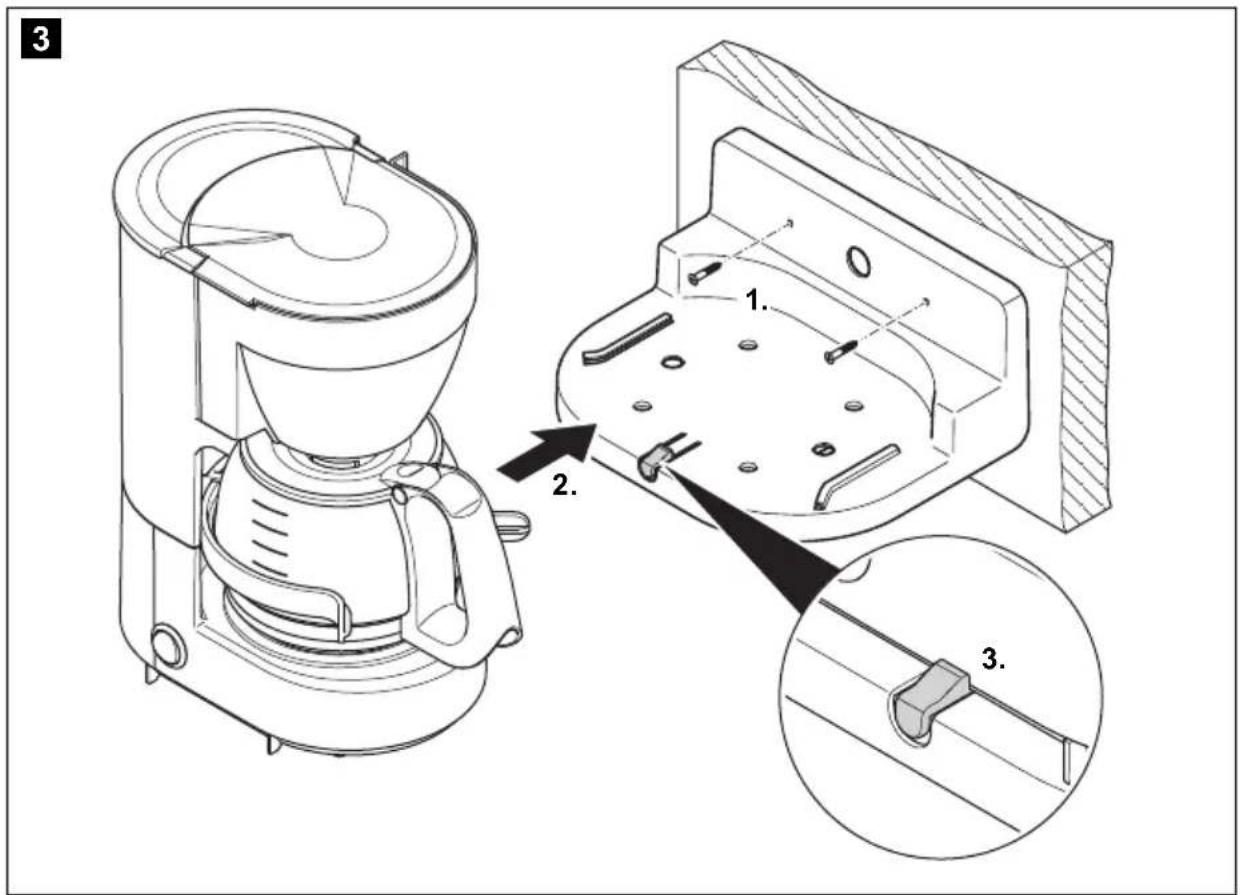

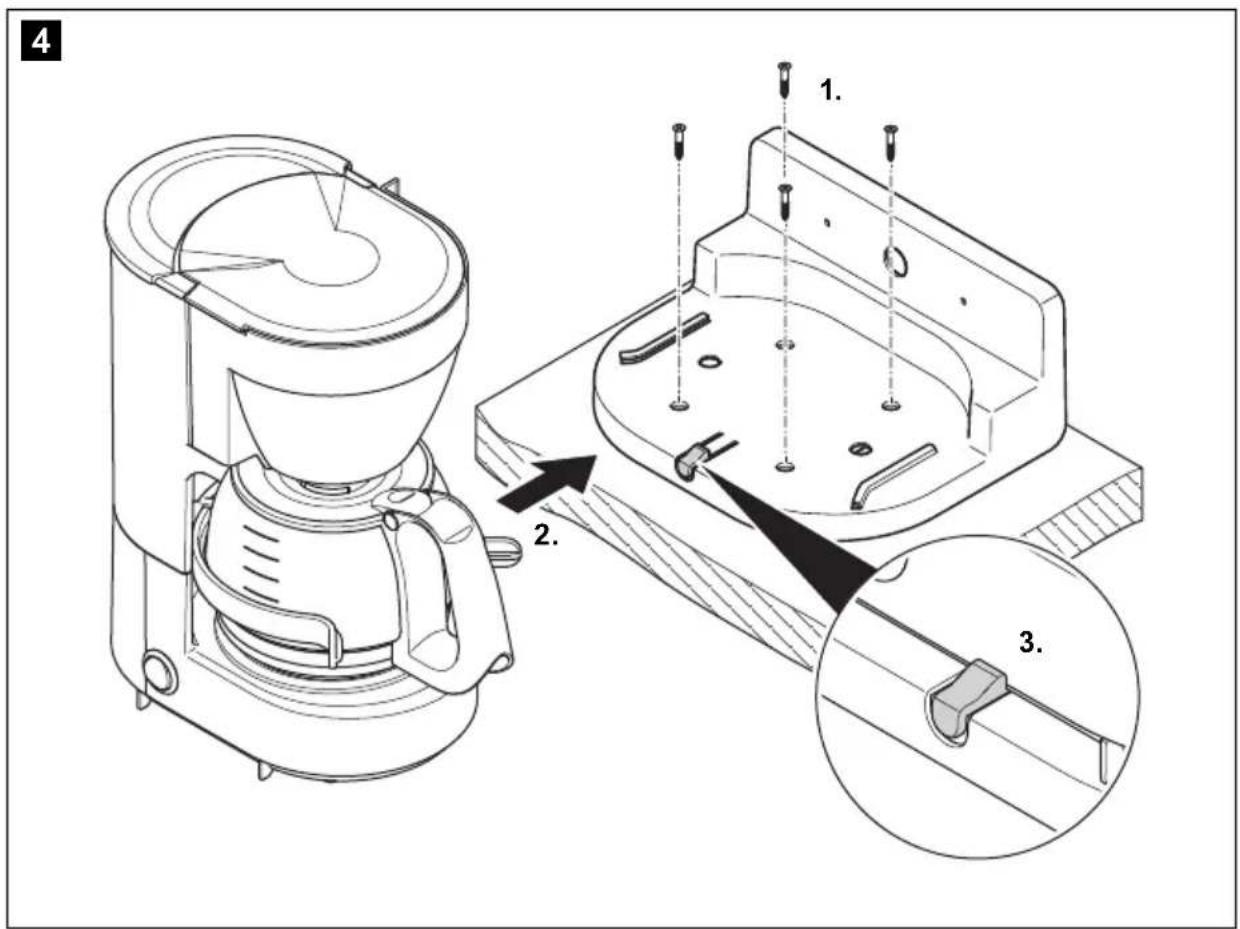

You can install the coffee maker on a wall (fig. 3, page 4) or a work surface (fig. 4, page 4).

▶Install the mounting bracket using the four crews supplied

• to a suitable wall or
• to a work surface.

▶Push the coffee maker onto the mounting bracket.

The coffee maker must lock into place on the mounting bracket.

Connecting the coffee maker

▶ Check that the voltage specification on the type plate is the same as that of the power supply.
▶Connect the DC plug to a DC socket.

NOTE

You can also connect the coffee maker directly to the battery. Observe the following in the process:

• The connection must be fitted with a fuse of its own of at least 20 A.
• The connection cable may not exceed a length of 5 m for the MC052 (12 V) or 11 m for the MC054 (24 V).
  ● The cross section must be at least 4 mm ^2 .

8 Operating the coffee maker

WARNING!

Do not use the appliance while the vehicle is moving, but rather only when stationary.

Secure the coffee pot with the clip when using it. This ensures that the pot cannot tip over.

NOTICE!

Observe the charge level of the battery when operating the appliance in vehicles with the engine turned off.

Please wipe up any spilt liquid. Damage to the electronics may be caused by moisture entering the appliance.

Before initial use

▶To clean the coffee maker, allow one to two lots of clear, cold water to boil and flow through without the filter or coffee.

Do not fill the water tank above the maximum fill line.

▶Pour the water away.
▶Clean the coffee pot in hot dishwater.

Brewing coffee

CAUTION!

Do not remove the pot from the appliance for more than 30 seconds during the brewing process, as otherwise the filter may overflow.

Never use the permanent filter together with a paper filter, as otherwise the filter may overflow.

NOTICE!

Never use the coffee maker without water.

Never use hot water. Do not fill the water tank with a liquid other than water either.

This could destroy the coffee maker.

NOTE

The brewing time for five cups of coffee totals approx. 25 minutes for the MC052 (12 V) and approx. 20 minutes for the MC054 (24 V).

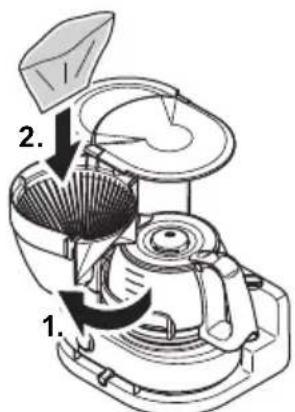

Proceed as follows (fig. 5, page 5):

▶ Fill the water tank with clear, cold water (A).
Do not fill the water tank above the maximum fill line.
▶Close the lid.

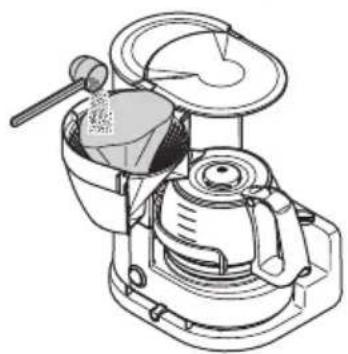

Place a commercially-available paper filter (size 2) or the permanent filter into the filter holder (B).
▶Place the required amount of coffee for the number of cups to be brewed in the filter (C).

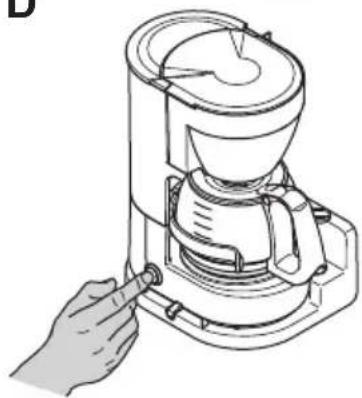

▶ Press the On/Off switch (D) to start the brewing process.
▶ After the brewing process, press the On/Off switch (D) to switch off the coffee maker.

9 Maintaining and cleaning the coffee maker

WARNING!

Before you clean the appliance, disconnect it from the power supply.

NOTICE!

● Never clean the appliance under running water or in dishwater.
- Do not use sharp or abrasive cleaning agents or hard objects for cleaning, as these can damage the appliance.

▶Rinse out the permanent filter under a tap after use.
Remove the permanent filter from the filter holder before doing so.
▶Clean the coffee pot in hot dishwater after every brewing process.
▶ Descale from the appliance in regular intervals (around four times a year). This extends the service life of the appliance and ensures coffee is prepared optimally for the long term.
Use a commercially available decalcifier for descaling. Use it according to the manufacturer's specifications.

10 Warranty

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.

For repair and guarantee processing, please include the following documents when you send in the device:

● A copy of the receipt with purchasing date
● A reason for the claim or description of the fault

11 Disposal

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	PerfectCoffee MC052 P	Perfect Coffee MC054
Item no.: 9103533013 9103533014
Capacity: 5 cups of 125 ml
Voltage:	12 V---	24 V---
Power consumption:	170 W	300 W
Brewing time (5 cups):	approx. 25 min	approx. 15 min
Dimensions (W x H x D):	240 x 270 x 155 mm
Weight:	1080 g

Approvals

CE

This appliance complies with the requirements of the German foodstuffs law.
