USER MANUAL SF7646 ALPINA

EN SF-7646 Coffee pad machine

DE SF-7646 Kaffeepadmaschine

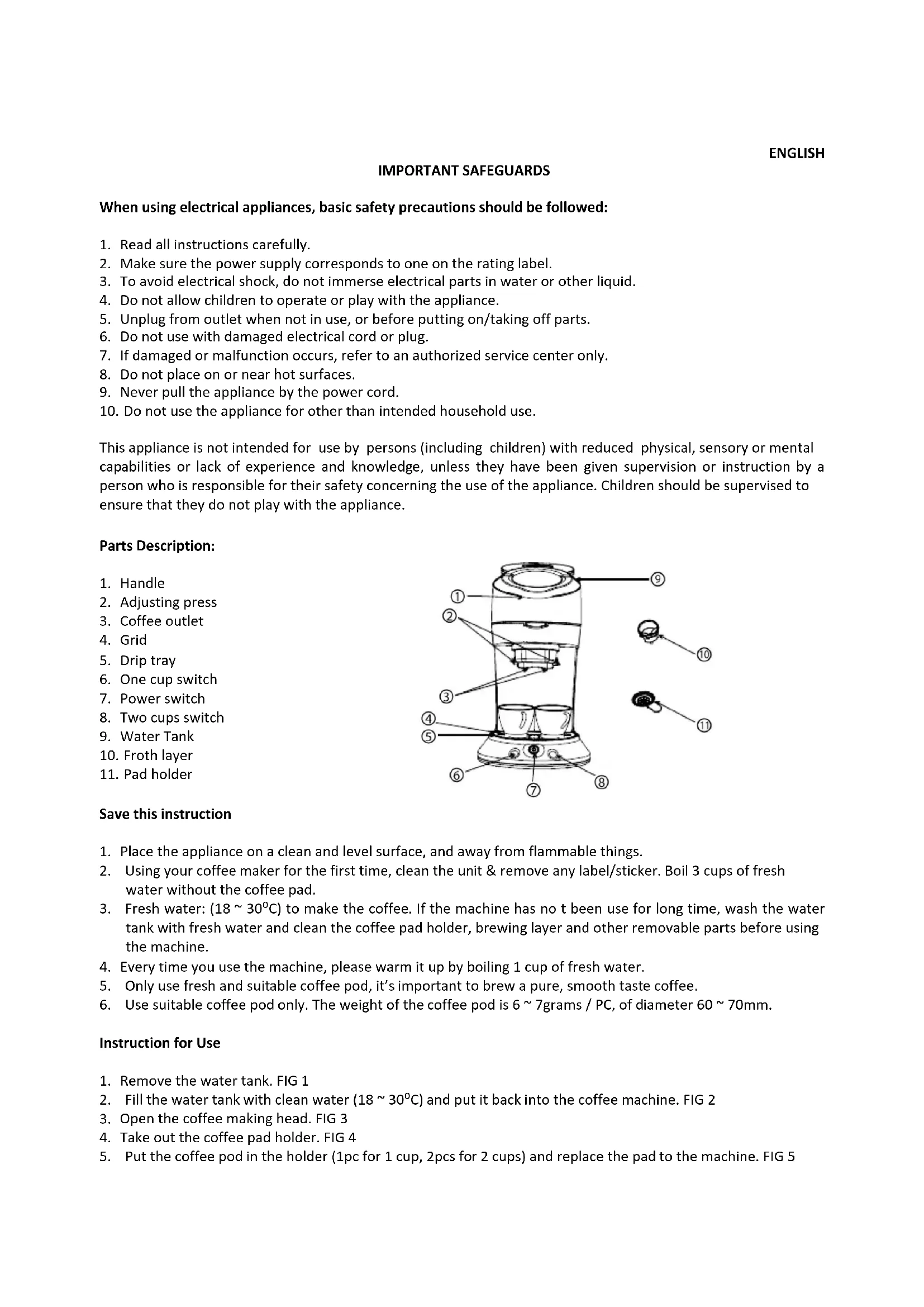

EN: For your own safety read these instructions carefully before using the appliance.

When using electrical appliances, basic safety precautions should be followed:

1. Read all instructions carefully.
2. Make sure the power supply corresponds to one on the rating label.
3. To avoid electrical shock, do not immerse electrical parts in water or other liquid.
4. Do not allow children to operate or play with the appliance.
5. Unplug from outlet when not in use, or before putting on/taking off parts.
6. Do not use with damaged electrical cord or plug.
7. If damaged or malfunction occurs, refer to an authorized service center only.
8. Do not place on or near hot surfaces.
9. Never pull the appliance by the power cord.
10. Do not use the appliance for other than intended household use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction by a person who is responsible for their safety concerning the use of the appliance. Children should be supervised to ensure that they do not play with the appliance.

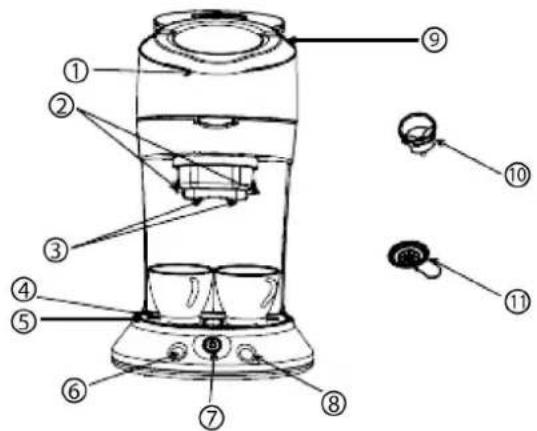

Parts Description:

1. Handle
2. Adjusting press
3. Coffee outlet
4. Grid
5. Drip tray
6. One cup switch
7. Power switch
8. Two cups switch
9. Water Tank
10. Froth layer
11. Pad holder

Save this instruction

1. Place the appliance on a clean and level surface, and away from flammable things.
2. Using your coffee maker for the first time, clean the unit & remove any label/sticker. Boil 3 cups of fresh water without the coffee pad.
3. Fresh water: (18 30^) to make the coffee. If the machine has no t been use for long time, wash the water tank with fresh water and clean the coffee pad holder, brewing layer and other removable parts before using the machine.
4. Every time you use the machine, please warm it up by boiling 1 cup of fresh water.
5. Only use fresh and suitable coffee pod, it's important to brew a pure, smooth taste coffee.
6. Use suitable coffee pod only. The weight of the coffee pod is 6 7 grams / PC, of diameter 60 70 mm.

Instruction for Use

1. Remove the water tank. FIG 1
2. Fill the water tank with clean water (18 30^) and put it back into the coffee machine. FIG 2
3. Open the coffee making head. FIG 3
4. Take out the coffee pad holder. FIG 4
5. Put the coffee pod in the holder (1pc for 1 cup, 2pcs for 2 cups) and replace the pad to the machine. FIG 5

ENGLISH

1. 0 ock the making head. FIG 6
2. Adjust the coffee outlet to proper height. FIG 7
3. Press On/Off switch to turn on the machine, the red boiler starts to boil the water; the red lights will flash for 40 seconds. When the set temperature is reached, the light will stop flashing. FIG 8
4. Press one cup/two cups button, the coffee will be made automatically. Water capacity is 100ml for 1 cup and 200ml for 2 cups. When the set quantity is reached, the machine will stop automatically. You can also stop the brewing by pressing the button again. FIG 9

Trouble Shooting

PROB®EM POSSIBLE CAUSED SUGGESTION/SO°UTION
No coffee comes out	The water tank is emptyWater tank is not assembled correctlyThe sprayer of coffee pad holder may be blocked	Fill the water tank with fresh waterReplace the water tank correctlyClean the pad holder w/ pin & fresh water
Coffee doesn't comes out smoothly or Coffee machine doesn't work	Coffee pad are over-fine or compactedThe machine is blockedSprayer is blocked	Coffee pad is not evenly flat, replace the coffee padRefer to the DESCA°ING procedureRemove the sprayer and clean
Abnormal sounds from the pump	The water tank is emptyWater tank is not correctly placed	Refill the water tank with fresh waterReplace the water tank to proper position
Brewing head can't be locked	Coffee pad is too thick Check the coffee pad if 6~7 grams of diameter 60~70mm

Warning:

This appliance is equipped with a grounded, Type G, 3-pin power supply cord. This is a safety feature. Do not attempt to defeat the safety purpose of this plug.

Danger of scalding:

Please use caution when using the coffee maker. The steam emitted from this aperture can be very hot.

CLEANING & MAINTENANCE

1. Always make sure the appliance is unplugged before cleaning.

2. Removable items such as filter, filter holder, drip tray can be washed on hot spray water (or in a dishwasher).

3. Clean the outside body of the appliance with a soft damp cloth, and do not use scouring materials.

4. Use the wet cloth to clean the brewing head and the area around the rim. The coffee pod holder should be cleaned each time after making the coffee by flashing the water through the holder without coffee pad. Don't leave coffee pad in the pod holder.

5. DESCALING: After using the coffee machine every 2 3 months, there maybe some mineral deposits left in the coffee machine, follow the steps below to clean the deposits

6. Fill the water tank with water not exceeding to the "MAX" level and put some coffee machine cleaning powder into the water then replace the water tank back to the coffee machine.

7. Put a cup under the coffee outlet, plug in the appliance and turn on the machine
8. When the water is boiled, press the button one cup or two cups.

9. When the water level reached to "MIN", turn off the machine.

10. STORAGE: The coffee machine should be placed in a place without direct sunshine. The environment temperature is between 18 38^ .

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchase the product.

SPECIFICATION

Model No.: SF-7646

Voltage: 230^50Hz

Wattage : 750watts

Email service address:

[e-mail]
