Product Type	Stroller
Brand	Nuna
Model	PEPP Luxx
Maximum child weight	15 kg
Recommended age	From birth up to about 3 years
Stroller weight	Approximately 8.5 kg (estimated)
Safety harness	5-point height-adjustable harness
Backrest recline	Multiple positions, adjustable via zipper
Adjustable handlebar	Yes, 5 positions
Sun canopy	Yes, with Dream Drape® shade visor and ventilated flap
Wheels	Swivel front wheels with lock, integrated suspension
Brake	Central pedal, locks both rear wheels
Fold	Compact, one-hand fold thanks to folding handle
Storage basket	Maximum capacity 4.5 kg
Removable bumper bar	Yes, with ejection button
Adjustable leg rest	Yes, multiple positions
Cleaning	Machine-washable fabric, frame cleanable with damp cloth
Safety standards	Compliant with European standard EN 1888:2012
Warranty	1 year
Included accessories	Canopy, bumper bar

Frequently Asked Questions - PEPP Luxx Nuna

How to install the safety harness?

The 5-point harness engages by closing the central buckle. Adjust the straps by sliding the adjustment buckles. For infants under 6 months, place the shoulder straps in the lower slots.

How to fold the stroller?

First lower the handlebar to the lowest position. Then pull the folding levers located on each side of the handlebar, then push it forward. Lock the storage latch under the seat.

How to adjust the backrest recline?

The recline is adjusted via a zipper located at the back of the seat. Open the zipper for reclined positions, close it for upright positions.

How to install the sun canopy?

Insert the canopy supports into the holes on the lower sides of the seat back. Attach the fasteners at the back of the seat back. To remove, pull the supports inward.

What is the maximum weight supported by the basket?

The storage basket can support a maximum load of 4.5 kg.

How to clean the stroller?

The frame and plastic parts can be cleaned with a damp cloth. The fabric is machine washable, air dry. Avoid abrasive detergents and direct heat.

How to use the brake?

To lock the stroller, press the central brake pedal down. To unlock, push the pedal up.

How to unlock the front wheels to swivel?

To allow swiveling, pull the swivel locks on both front wheels. To lock them straight, press those locks.

Can I use the stroller from birth?

Yes, the stroller is suitable from birth. For newborns, we recommend the most reclined position (flat). Always use the safety harness.

How to adjust the handlebar height?

Unlock the handlebar by pulling the sliders on each side. Pull or push the handlebar to select one of the 5 locked positions (a 'click' is heard).

USER MANUAL PEPP Luxx Nuna

Illustration of a yellow baby stroller with gray handle and wheels (no text or symbols)

pepp™

luxx

instruction manual

Thanks for choosing Nuna!

Enjoy your Nuna PEPP Luxx!

Nuna designs distinctive, smart and exciting products.

Lightweight and small, the Nuna PEPP ^™ folds in an ideal practical, compact package.

The one hand push bar combined with the swivel wheels and full suspension ensures very good maneuverability and a comfortable, smooth ride.

The seat recline, the adjustable handle, the basket and other features make every day use an easy task.

The unique style is the final touch to make your PEPP super distinctive.

The Nuna PEPP is simple, down to earth, and transports your child safely.

Enjoy your Nuna PEPP!

Illustrations

Usage 1

Illustration of a hand holding a green mechanical clamp next to a yellow circular device with a logo, no text or symbols present.

Diagram of a mechanical component with four blades and a central green logo (no text or symbols)

Diagram showing two hands holding a yellow mechanical component with a circular head and a green arrow indicating rotation (no text or symbols)

Diagram showing a mechanical assembly with a green curved component being inserted, no text or symbols present

6

Illustrations

Diagram of a car seatbelt with two seats and a device panel inset (no text or symbols)

Diagram of a mechanical component with a highlighted yellow component and directional arrow, no readable text or symbols present.

Illustration of a person adjusting a seatbelt, showing hands and arrows indicating movement (no text or symbols)

Technical illustration of a mechanical assembly with no visible text or symbols

Illustration of a car seatbelt with arrows indicating movement or change (no text or symbols)

Illustration of a curved object with a yellow base and gray top, no text or symbols present

Illustration of a mechanical device with a yellow-green internal component and a green handle, labeled '13' in the corner (no text or symbols on the diagram itself)

2 1 1 2 16

1 2 14

Illustration of a shoe jacket with yellow lining and black arrow indicating compression (no text or symbols)

Diagram of a car interior showing a yellow belt and directional arrows indicating movement or force (no text or symbols)

Line drawing of a small electric scooter with wheels and a green handle (no text or symbols)

Mechanical assembly diagram showing a yellow component inserted into a gray gear-like structure with an arrow indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism with directional arrow and label '22' (no text or symbols on diagram itself)

Mechanical assembly diagram showing a yellow component being inserted into a gray gear-like structure (no text or symbols)

Mechanical component diagram showing a green tool inserted into a curved part, with a green arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a belt buckle adjustment mechanism with arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with a circular component and directional arrows, no readable text or symbols present.

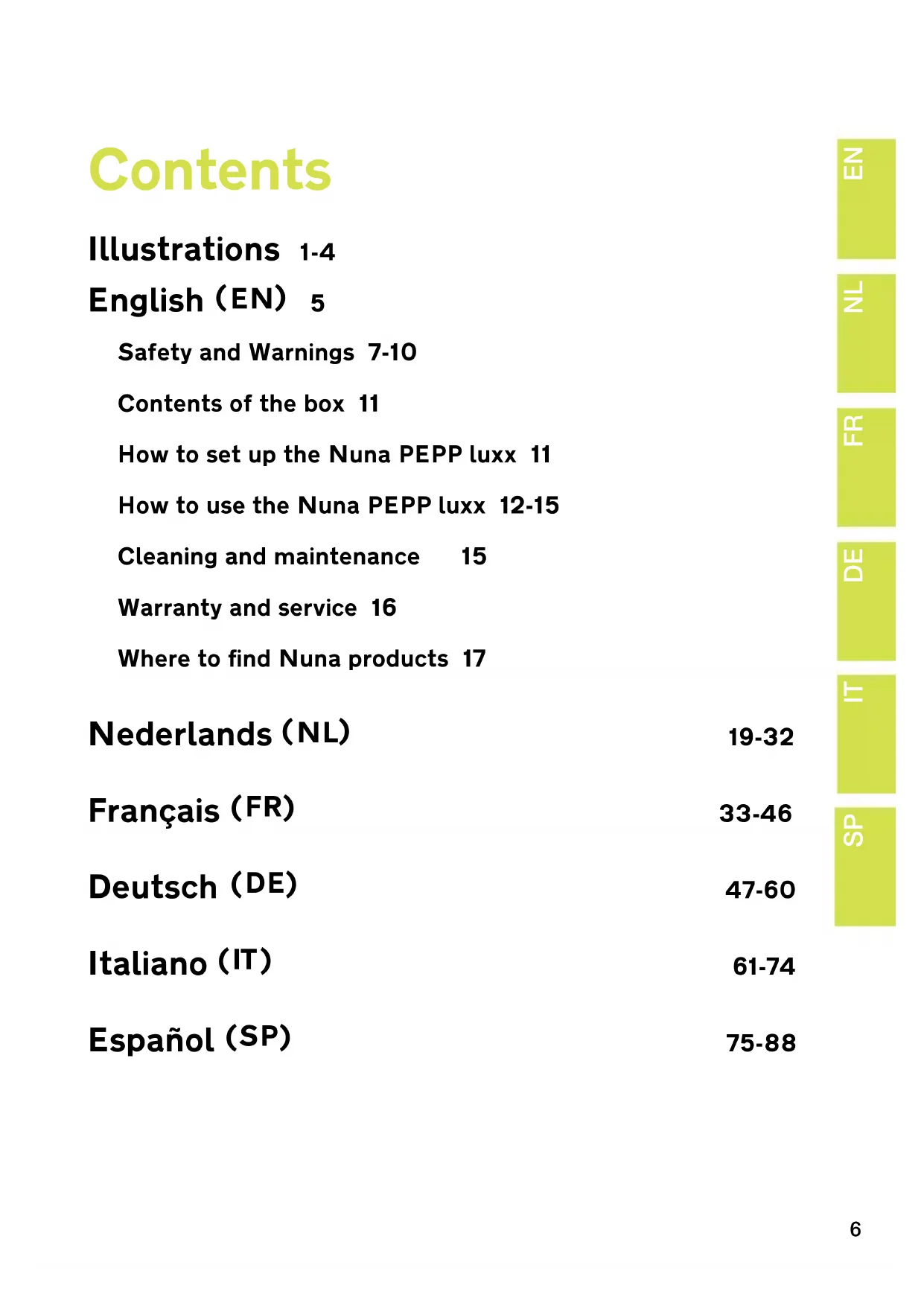

Contents

Illustrations 1-4

English (EN) 5

Safety and Warnings 7-10

Contents of the box 11

How to set up the Nuna PEPP luxx 11

How to use the Nuna PEPP luxx 12-15

Cleaning and maintenance 15

Warranty and service 16

Where to find Nuna products 17

Safety and recommendations

Please take note of the following before using the Nuna PEPP luxx.

Safety is very important to us and you can be assured that our products comply with the relevant standards and that they have been tested by a number of independent testing panels and laboratories.

The Nuna PEPP luxx is a patented product and complies with the European standard of wheeled child conveyances EN 1888:2012

If you have any questions or comments regarding the Nuna PEPP luxx, we will be glad to hear them through our web site www.nuna.eu

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

This vehicle is intended for children from birth and up to 15 kg maximum.

Warnings

Failure to follow these warnings and instructions could result in serious injury or death.

WARNING A child's safety is your responsibility.
WARNING Never leave your child unattended.
! WARNING Ensure that all the locking devices are engaged before use.
WARNING Use a harness as soon as your child can sit unaided.
WARNING Suitable from birth and designed to accommodate your child from infant to toddler (up to a weight of 15 kg).
WARNING Never carry more than one child at a time in this vehicle.
WARNING Any load attached to the handle affects the stability of the PEPP luxx/pram/pushchair.
WARNING Always use the crotch strap in combination with waist belt.
! WARNING This product is not suitable for running or skating.
WARNING To avoid any danger of suffocation, remove all plastic covers before using this item and destroy or keep away from babies and children!

Further warnings

WARNING Always use the restraint system.
! The harness must always be correctly fitted and adjusted. The harness is not a substitute for a proper adult supervision.
! Always set the parking brake on the PEPP luxx when you stop.
Children must always be clear of moving parts while making adjustments, like folding and unfolding.
Never leave a child in the PEPP luxx when ascending or descending stairs or escalators, or when traveling on other forms of transport.
Do not carry additional children, goods, accessories in or on this PEPP luxx except as permitted in this leaflet. They may cause the PEPP luxx to become unstable.
Do not place any item on the canopy.
Overloading, incorrect folding, and the use of accessories e.g. child seats, bag hooks, rain covers, PEPP luxx boards, etc... other than those approved by Nuna may damage or make this PEPP luxx unsafe.
WARNING Use original Nuna parts and accessories only.
! Any damage caused by the use of accessories not supplied by Nuna will not be covered in terms of warranty.
! Never allow children to stand on the footrest.

! WARNING Do not use the vehicle if any parts are damaged or missing.
! Negotiate curbs and rough ground carefully. Repeated impact will cause damage to the PEPP luxx.
! The tires may leave black marks on some surfaces, particularly smooth floors like parquet, laminate and linoleum.
! Do not leave the PEPP luxx exposed in the vicinity of a strong source of heat i.e. a radiator or open fire.
Do not store your PEPP luxx in a damp place. Always allow the fabric to dry naturally away from direct heat.
! Keep small parts away from children as they pose a choking hazard.
The maximum weight to be placed in the basket is 4.5 kg.
! WARNING Check that the seat unit or car seat attachment devices are correctly engaged before use.
! WARNING Do not let your child play with this product.
This pushchair has been designed to use from birth. We recommend using the most reclined position for newborn babies. D rings are provided at the ends of the waist belt on either side of the seat for the attachment of a safety harness approved to BS 6684 or EN 13210.
! Only use handle in one of the 5 locked handle positions.

Contents of the Box

Nuna PEPP luxx

Canopy

Armbar

Tools Needed: None

How to set up the Nuna PEPP luxx

Opening the Nuna PEPP luxx

Check that you have all the parts for this product before using it. The assembly should be performed only by adults.

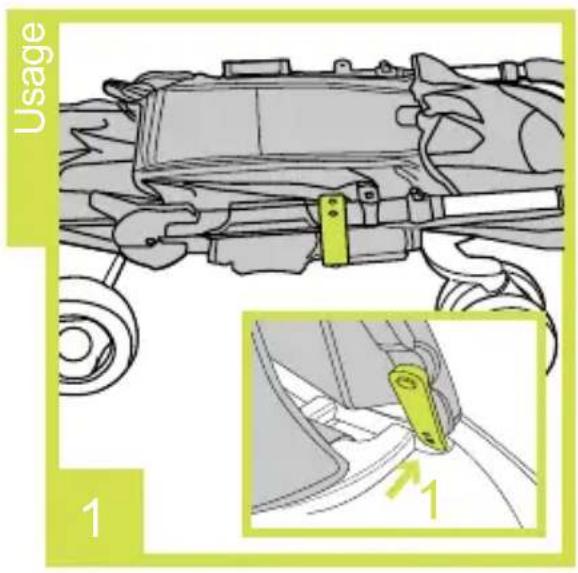

1 Open storage latch (1) and then fix the storage latch to the back of the seat. (1-1)
2 Pull handle upward.
3 Check that the stroller is completely latched open before continuing.

How to use the Nuna PEPP luxx

Securing child

1 To release the buckle latch, push on center button and remove the clips. (2)
2 To secure child, assemble buckle. (3, 4, 5)

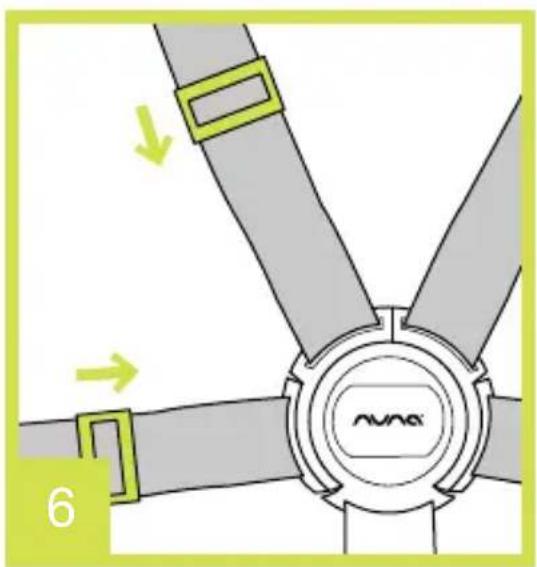

3 Fit harness snugly to child by sliding each adjustment buckle. (6)

Adjusting the shoulder harness position

1 In back of seat, turn adjustment buckle and push through the slot to remove harness.
2 Reinsert harness into desired slots for comfortable fit. (7)
3 For children less than 6 months, the shoulder straps shall run through the lowest shoulder slots. For children older than 6 months, the shoulder straps can run through the two upper shoulder slots. (7)

Adjusting the push handle

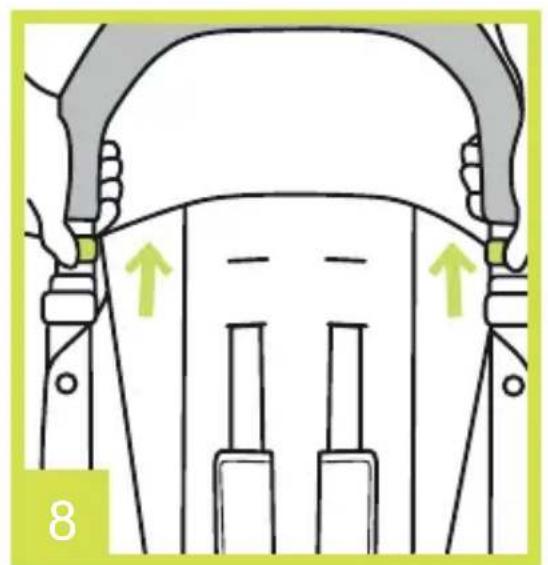

1 Unlock by pulling up on the release/sliders on both sides. (8)
2 Pull or push on handle to select your desired locked "click" position.

Attaching and detaching the canopy

1 Adjust handle to fully extended position. (8)
2 Find the holes on the upper inside of the seat back sides. (9)
3 Insert canopy mount through the hole and into the bracket on the under side of the handle on both sides. (10)
4 Attach the snaps on the rear of the seat back. (11)
5 To detach canopy, pull inwards on canopy mounts until they slide out.

Adjusting the canopy

1 To open the canopy, pull canopy towards front. To fold the canopy, push canopy towards back.
2 Position the eyeshade forward or backward as needed. (12)

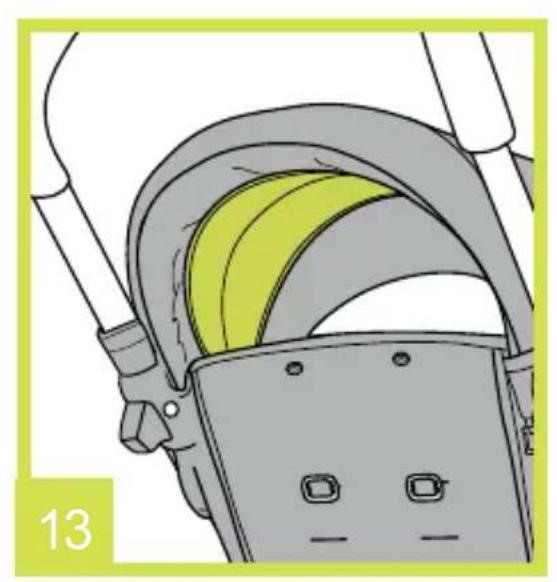

3 To provide more air flow, tuck the back canopy flap into the pocket on the underside of the canopy. (13)

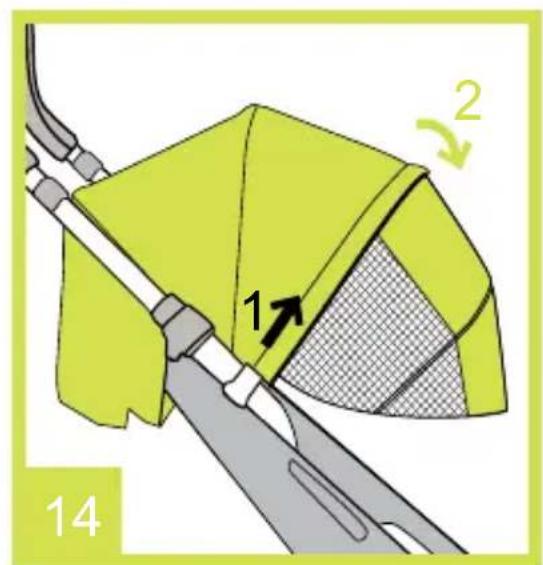

4 Unzip the zipper on the front of the canopy to reveal the Dream Drape (14). The Dream Drape can be pulled out to provide additional cover.

Assemble Armbar

1 Align the armbar ends with the armbar mounts, and then insert to lock. (15) Please ensure that the seat fabric is not caught in the arm bar attachment mount.
2 To disassemble armbar, press armbar release button (16)-1, and then pull out the armbar. (16)-2

Adjusting the recline

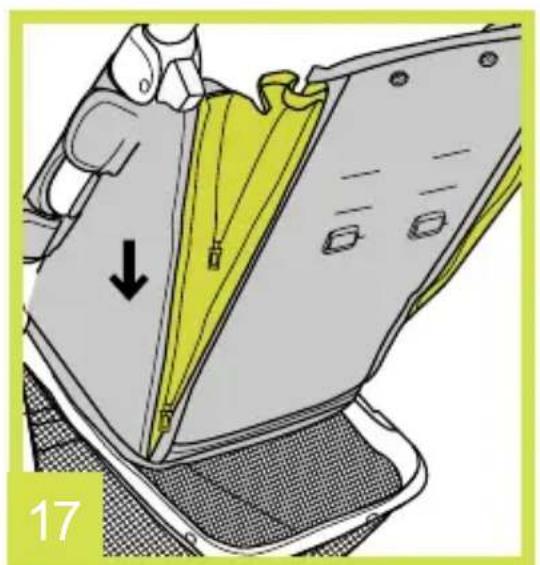

1 Unzip for recline positions. (17)
2 Zip up to upright positions.

Applying the brake

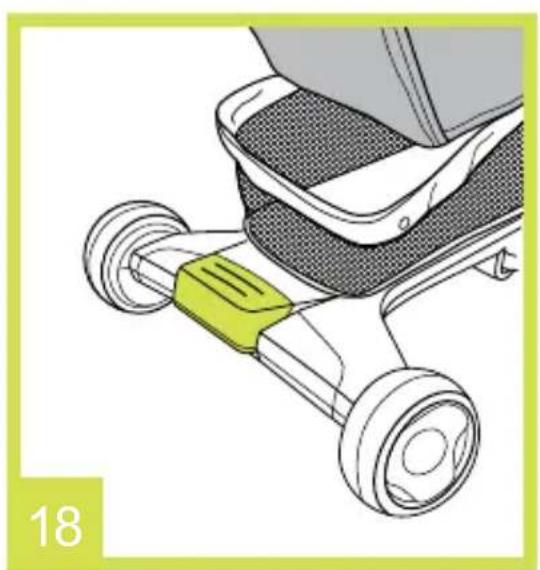

1 To lock, push down the center brake pedal. (18)
2 To unlock, push up the center brake pedal.

Swivel Lock Wheel

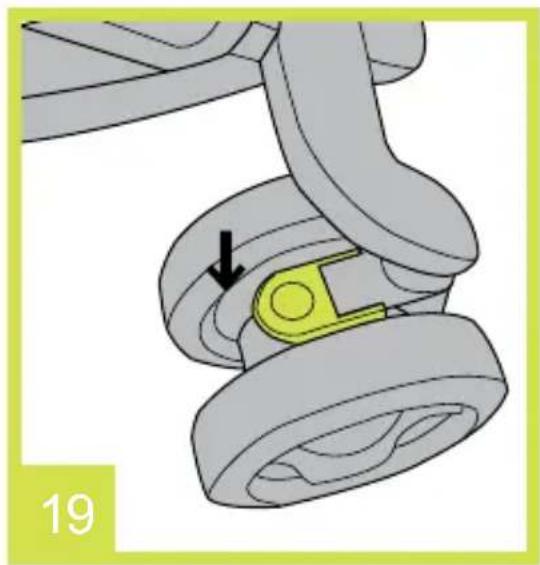

1 To lock, press down on the swivel locks on both front wheels. Locks will engage as soon as the wheel is straight. (19)
2 To unlock, pull up on both locks. (20)

Adjusting the calf support

1 To lower the calf support, press in both buttons on the sides and rotate the calf support downward. (21)

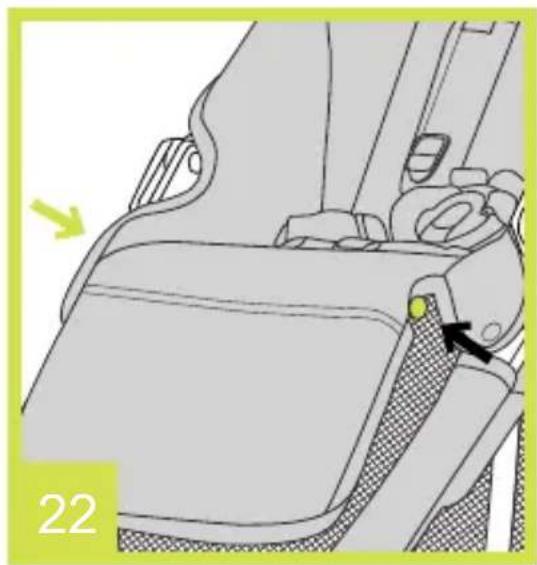

2 Raise the calf support, for up position. (22)

Folding the Nuna PEPP luxx

1 Adjust handle to lowest position. (8)
2 Pull up on the fold levers on both sides of the handle (24) and fold handle forward.

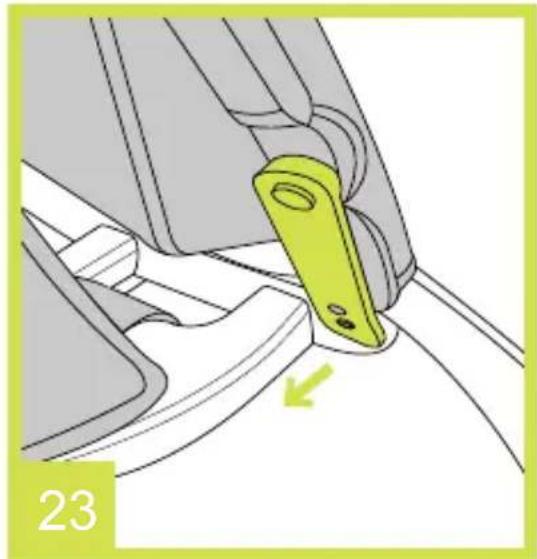

3 Unfold storage latch from the seat bottom (23) and choose the correct hole for a tight fit. (1)

Cleaning and maintenance

Your PEPP luxx is a valuable piece of equipment and deserves careful handling.

You can clean the frame, the plastic parts, and the fabric with a damp cloth, but don't use abrasives or bleach. Fabric is machine washable, Line dry. Do not use silicon lubricants, as they will attract dirt and grime. Continued and extended exposure to sunlight can change the colour of many materials.

For reasons of safety, only use original Nuna parts.

Clean the wheels regularly with water and remove the dirt.

To ensure the long-lasting use of your PEPP luxx, wipe it off with a soft, absorbent cloth after using it in rainy weather.

It is normal for fabric to discolour from sunlight and to show wear and tear after a long period of use, even when used normally.

Check regularly if any parts are torn, broken, or missing and that everything functions properly. If this is the case, stop using the PEPP luxx.

Warranty and service

The Nuna PEPP luxx is covered by a one-year warranty. If this product shows a defect during the warranty period, please contact your retailer. If the retailer is unable to help you, they will make contact with the local Nuna distributor.

Please be aware that the model number and serial number located under the basket on the frame of the product will be required in the event of a warranty claim.

To register your product, please go to our website at www.nuna.eu

Terms of warranty

The warranty takes effect at the date of purchase of the product and is valid for one year. The warranty provides you with a right of repair but not a product exchange or return. The warranty will not be extended even if some repairs have been made. Nuna has the right to improve the design of the product without any obligation to update the products manufactured previously.

The warranty will not apply in the following circumstances:

• If you can not provide the sales receipt or proof of purchase of the product.
• If the defect results from normal wear.
• If the defect results from an accident.
• If the defect results from a failure to follow the instructions of assembly, use, care, and maintenance provided in the instruction manual.
• If the defect results from overloading (maximum weight = 15 kg).
• If repairs have been carried out by a third party.
• If the defect results from the use of accessories others than Nuna.

Where to find Nuna products?

If you are looking for Nuna retailers in your area, please consult our website: www.nuna.eu

Contact

We always look forward to improving our products and developing new ideas, so please feel free to contact us to submit any comments or questions regarding the Nuna products.

www.nuna.eu

Nuna International BV De Beeke 8, 5469 DW, ERP The Netherlands

Thanks for choosing Nuna!

Nuna International BV De Beeke 8, 5469 DW, ERP The Netherlands

Nuna International BV De Beeke 8, 5469 DW, ERP The Netherlands

Nuna International BV De Beeke 8, 5469 DW, ERP The Netherlands

Nuna International BV De Beeke 8, 5469 DW, ERP The Netherlands

Illustration of a yellow and gray stroller with a handle, no text or symbols present
