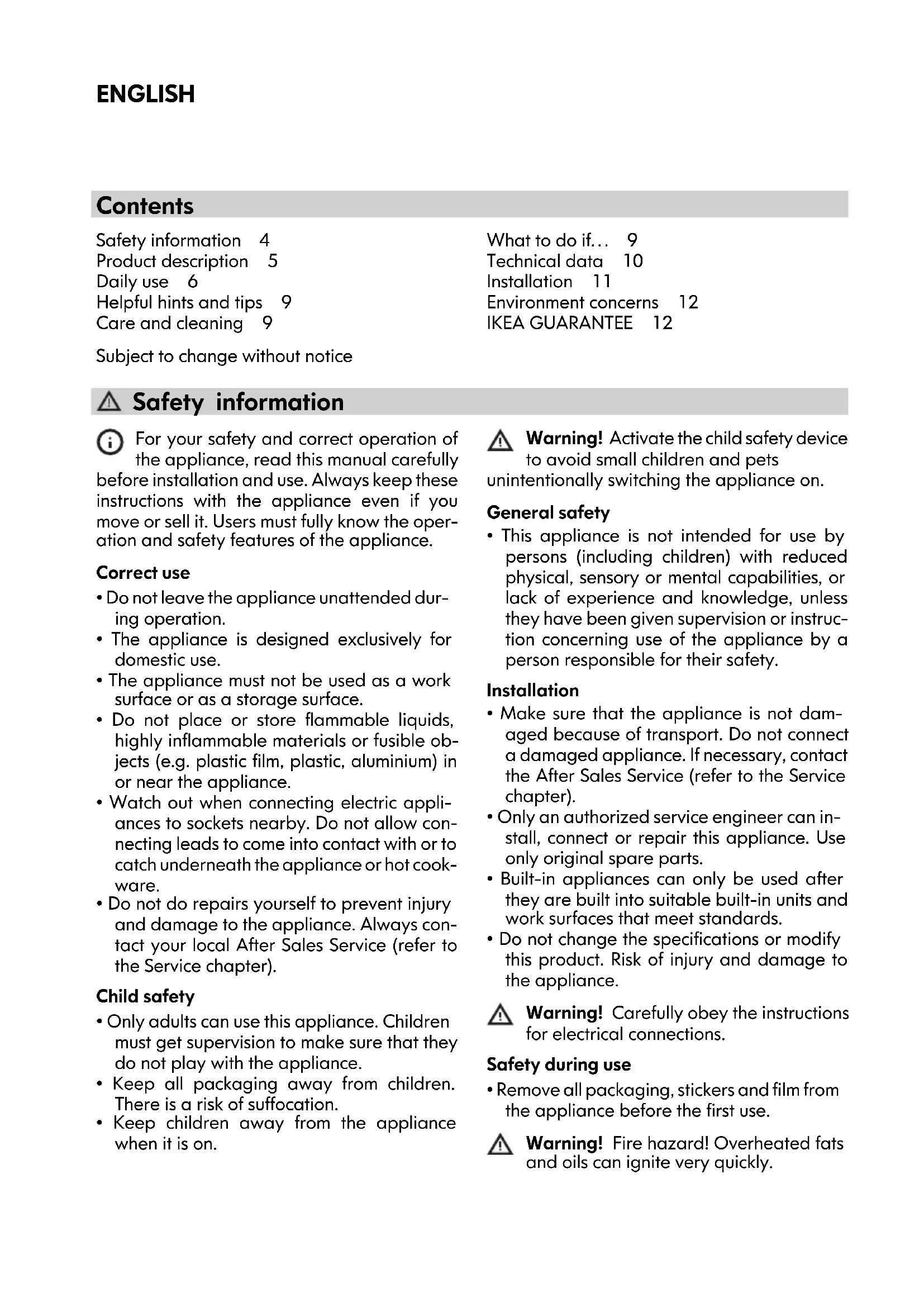

Safety information

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

Correct use

• Do not leave the appliance unattended during operation.
• The appliance is designed exclusively for domestic use.
• The appliance must not be used as a work surface or as a storage surface.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) in or near the appliance.
• Watch out when connecting electric appliances to sockets nearby. Do not allow connecting leads to come into contact with or to catch underneath the appliance or hot cookware.
• Do not do repairs yourself to prevent injury and damage to the appliance. Always contact your local After Sales Service (refer to the Service chapter).

Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.
• Keep all packaging away from children. There is a risk of suffocation.
• Keep children away from the appliance when it is on.

Warning! Activate the child safety device to avoid small children and pets unintentionally switching the appliance on.

General safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Installation

• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary, contact the After Sales Service (refer to the Service chapter).
• Only an authorized service engineer can install, connect or repair this appliance. Use only original spare parts.
• Built-in appliances can only be used after they are built into suitable built-in units and work surfaces that meet standards.
• Do not change the specifications or modify this product. Risk of injury and damage to the appliance.

Warning! Carefully obey the instructions for electrical connections.

Safety during use

• Remove all packaging, stickers and film from the appliance before the first use.

Warning! Fire hazard! Overheated fats and oils can ignite very quickly.

• Switch the cooking zones off after each use by its controls and do not rely on pan detector.
• Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and saucepan lids on the cooking surface, as they can get hot.

Warning! The ventilation gap of 5mm between the worktop and front of the unit underneath it must not be covered. For all safety distances between hob and cabinets refer to the Assembly Instruction.
Warning! Users with implanted pacemakers should keep their upper body at least 30~cm from induction cooking zones that are switched on.
Warning! Do not operate the appliance with wet hands and keep control panel surface dry. Lot of water on control panel keys will make them no longer operable.
Warning! If the surface is cracked, switch off the appliance to avoid possibility of an electric shock and call the After Sales Service (refer to the Service chapter).

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it, or knocked by the cookware.
• Cookware made of cast iron, cast aluminum or with damaged bottoms can scratch the glass ceramic if slid on the surface.
• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.
• Never line any part of the appliance with aluminium foil. Never place plastic or any other material which may melt in or on the appliance.

Information on acrylamides

Important! According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore, we recommend cooking at the lowest possible temperatures and not browning foods too much.

Product description

Cooking surface

Single cooking zone 2300W, with Booster 3200W
2 Single cooking zone 2300W, with Booster 3200W
3Control panel
4 Single cooking zone 2300W, with Booster 3200W
5 Single cooking zone 2300W, with Booster 3200W
6Control panel

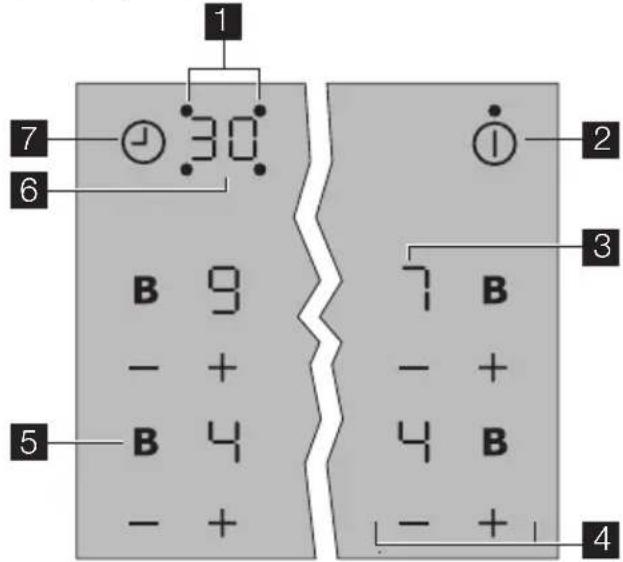

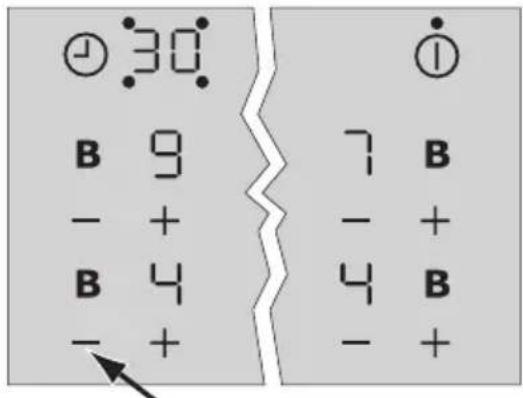

Control panel

1 Cooking zones' indicators of Timer
2 ① to switch the hob on or off
3 A heat setting display: 0, from to 9
4 + to increase, or to decrease -the heat settings
5 B to activate Booster (Display is showing a P)
6 Timer display: 00 to 99 minutes
7 to activate Timer

The cooking surface is divided into four cooking zones. In each cooking zone under the glass ceramic is an induction heating element, the middle of each one being marked with a cross on the glass ceramic surface. Cookware can be placed on any of the cooking zones. But the cross must be completely covered by the cookware. The bottom of the cookware must be from 125 - 210 mm in diameter.

Touch Control sensor fields and displays

You operate the hob by touching sensor fields. Displays and acoustic signals (short beep) confirm the selection of a function.

Heat setting display	Description
E	A malfunction occurred
H	A cooking zone is still hot

Heat setting display	Description
L	The Child Safety Device is on
F	Cookware is unsuitable, too small, or no cookware is on the cooking zone
-	The Automatic Switch off is on

Residual heat indicator

Warning! Risk of burns from residual heat! After you switch the appliance off, the cooking zones need some time to cool down. Look at the residual heat indicator H

Use residual heat for melting and keeping food warm.

Daily use

① Switching on and off

Touch 1 for 2 seconds to switch the appliance on or off.

Adjusting the heat setting

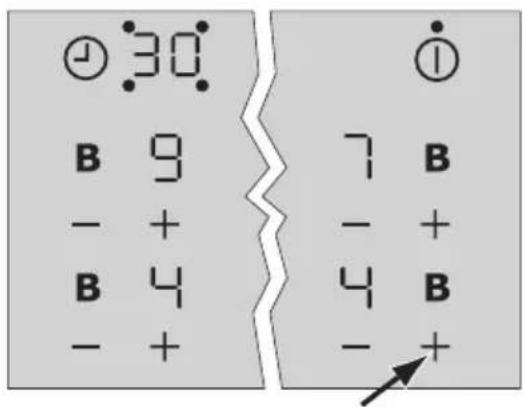

Set the heat setting with to increase.

ENGLISH

Set the heat setting with to decrease.

Touch and of a respective cooking zone simultaneously to switch off the cooking zone. The settings will reverse to 0.

B Using the Booster function

The Booster function makes additional power available to the induction cooking zones. Touch B to switch it on, a Flights up on a display. After maximum 10 minutes, the induction cooking zones automatically return to cooking level 9.

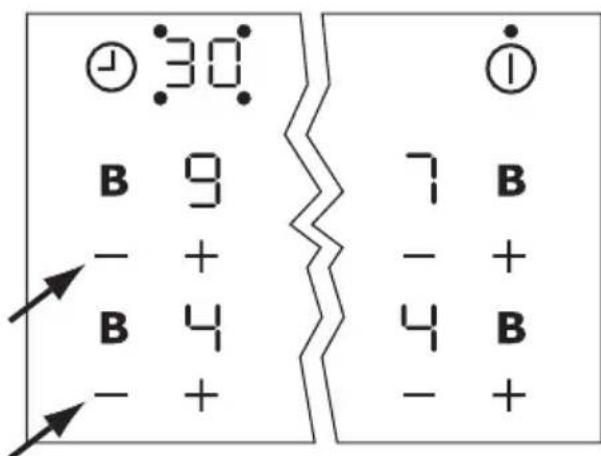

Using the child safety device

This function prevents unintentional use of the hob. First, switch the hob on ① and do not set the heat settings. Touch both - of the left cooking zones for 4 seconds and the L lights up and child safety device is now activated.

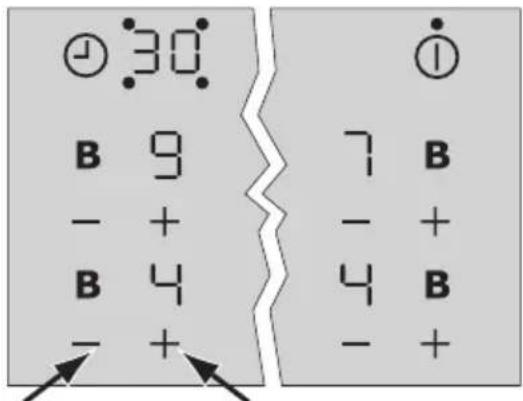

You can override the child safety device for a single cooking session and it will remain active afterwards.

Switch the hob on ① and lights up. Touch both of the left cooking zones for 4 seconds. Set the heat setting within 10 seconds. Until the next switching off of the hob, you can use it as normal. After switching off, the child safety device is active again.

Touch ① to switch this function off. Next, touch both - of the left cooking zones for 4 seconds and lights up. Switch the hob off ①

Using the Timer

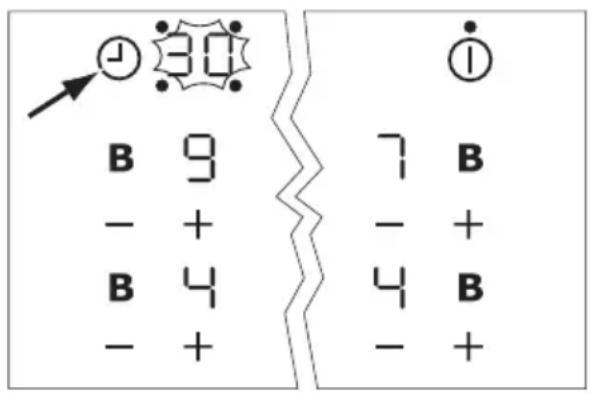

Touch repeatedly until the pilot light of a desired cooking zone displays. For example, for the front left zone.

Touch of the selected cooking zone to set the time between 00 and 99 minutes. When the pilot light flashes more slowly, the time counts down. Set the heat settings.

If the heat setting is set and the time set has elapsed, acoustic signal appears, 00 flashes, and cooking zone switches off. If cooking zone is not in use and the time set has elapsed acoustic signal appears and 00 flashes.

Select 1 for a cooking zone to switch off the function, and the pilot light of the cooking zone selected flashes faster. Touch - ,of the selected cooking zone and the remaining time counts backwards to 00 . The pilot light goes out.

To switch off acoustic signal touch , there will be a signal to acknowledge, and than signal will stop

Power management

The power management shares the maximum available power between two cooking zones generating a pair (see picture). Booster function can cause, that the maximum available power for a pair is exceeded. Then the second cooking zone will be automatically reduced to a lower power level. The display for the reduced zone alternates between selected and maximum aviable.

Automatic Switch off

The function switches the hob off automatically if:

• all cooking zones are switched off.
• you do not set the heat setting after switching on the hob.
• you cover any sensor field with objects (a pan, a cloth, etc.) for longer than approx. 10 seconds. The cooking zone is switched off automatically and acoustic signal sounds until you uncover the sensor fields.
• you do not switch a cooking zone off after a certain time, or you do not modify the heat setting, or if the overheating occurs (e.g. when a pan boils dry). The symbol - lights up. Before using again, you must set the cooking zone to 0 .

Heat setting	Automatic switch off after
1-2	6 hours
3-4	5 hours
5	4 hours
6-9	1.5 hours

i If cookware that is not suitable is used, F lights up in the display and after 2 mi

nutes the indicator for the cooking zone switches itself off.

Helpful hints and tips

Cookware is suitable for induction cooking zones if marked by the manufacturer.
When a cooking zone is switched on, it may hum briefly. This is a characteristic of all ceramic glass cooking zones and does not impair either the function or the life of the appliance.

Cookware sizes

Induction cooking zones adapt automatically to the size of the bottom of the cookware. But, it must have a minimum diameter of 125mm

Energy saving

• If possible, always place lids on the pans.
• Place cookware on the cooking zone before you switch it on.
• The bottom of the cookware should be as thick and flat as possible.

Care and cleaning

Warning! Switch the appliance off and let it cool down before you clean it.
Warning! For safety reasons, do not clean the appliance with steam blasters or high-pressure cleaners.
Warning! Sharp objects and abrasive cleaning agents will damage the appliance. Clean the appliance and remove the residues with water and washing up liquid after each use. Remove also the remnants of the cleaning agents!
i Scratches or dark stains on the glass ceramic that cannot be removed do not affect the functioning of the appliance.

Removing the residues and stubborn residues:

1. Food containing sugar, plastics, tin foil residues should be removed at once, best tool for cleaning glass surface is a scraper (not included with the appliance). Place a scraper on the glass ceramic surface at an angle and remove residues by sliding the blade over the surface. Wipe the appliance with a damp cloth and a little washing up liquid. Finally, rub the appliance dry using a clean cloth.
2. Limescale rings, water rings, fat splashes, shiny metallic discolorations should be removed after the appliance has cooled down using cleaner for glass ceramic or stainless steel.

What to do if...

Problem Possible cause and Remedy
The appliance cannot be switched on or is not operating.	More than 10 seconds have passed since the appliance was switched on.
	The child safety device is switched onL.
	Deactivate child safety device (See the section “Child safety device”).

Problem Possible cause	Use and Remedy
	Several sensor fields were touched at the same time.	Only touch one sensor field.
Acoustic signal sounds, appliance switches off.	One or more sensor fields have been covered for longer than 10 seconds.	Uncover sensor field.
Display is switching between two heat settings.	Power management is reducing the power of this cooking zone.	See the section "Switching the power function on and off".
F lights up on the heat setting display.	Unsuitable cookware. Use suitable	cookware.
	No cookware on the cooking zone.	Place cookware on the cooking zone.
	The diameter of the bottom of the cookware is too small for the cooking zone.	Cookware must have a minimum diameter of 125 mm.
E symbol plus a number appears on the heat setting display.	Electronics fault. Disconnect the device	appliance from the electrical supply for a few minutes (Take the fuse out of the house's electric system) If after switching on again, E is displayed again, call the after sales service.

If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact your dealer or the After Sales Service.

If you operated the appliance wrongly, or the installation was not carried out by a registered engineer, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

Technical data

Rating Plate

Made in Germany

© Inter IKEA Systems B.V. 1999

PQM

Model FRAMTID HINF4T Typ 55GDDD4AU 7,4kW Induction PNC 949 593 110 S NO 220V-240V AC 50 Hz

C

230V

DGT

The graphic above represents rating plate of the appliance (without serial number which is generated dynamically during the production process), which is located at its underneath surface of the casing.

Dear Customer, please apply here aside the sticker you can find in the dedicate plastic bag inserted inside the hob packaging. This will allow us to assist you better, by identifying pre

cisely your hob, in case you will need in future our assistance. Thank you for your help!

Installation

Manufacturer is not responsible for any injury to persons and pets or damage to property caused by failure to comply following requirements.

Caution! To proceed with the installation refer to the assembly instructions.
Warning! Installation process must follow the laws, ordinances, directives and standards (electrical safety rules and regulations, proper recycling in accordance with the regulations, etc.) in force in the country of use!
Warning! The appliance must be earthed!
Warning! Risk of injury from electrical current.
- The electrical mains terminal is live.
- Make electrical mains terminal free of voltage.
- Loose and inappropriate plug and socket connections can make the terminal overheat.
- Have the clamping connections correctly installed.
- Use strain relief clamp on cable.
- Follow the connection diagram (it is located on the underneath surface of the casting of the hob).

Important! You must observe the minimum distances to other appliances and furniture cabinets or other units according to Assembly Instruction.

If there is no oven beneath the hob insert a dividing panel at a minimum distance of 20mm from the bottom of the hob.

Protect the cut surfaces of the worktop against moisture using a suitable sealant included in the product in fitting bag. The sealant seals the appliance to the work top with no gap. Do not use silicon sealant between the appliance and the worktop. Avoid installing the appliance next to doors and under windows as hot cookware may be knocked off the rings when doors and windows are opened.

Only an authorized service engineer can install, connect or repair this appliance. Use only original spare parts.

Electrical connection

Before connecting, check that the nominal voltage of the appliance stated on the rating plate, corresponds to the available supply voltage. Also, check the power rating of the appliance and ensure that the wire is suitably sized to suit the appliance power rating (refer to the Technical data chapter).

The rating plate is located on the lower casing of the hob.

The appliance is not provided with mains cable. Buy the right one from specialized dealer. Single-phase or two-phase connection requires the mains cable of type H05BB-F Tmax 90^ equal or higher).

The appliance works perfectly on AC 230 V, AC220V~ or AC240V~ 50Hz electrical network.

You must have the means for disconnection incorporated in the fixed wiring. Have the appliance connected to the mains using a device that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3mm eg. automatic line protecting cut-out, earth leakage trips or fuse.

You must have the connection and the connecting links carried out as shown in the connection diagram (it is located on the underneath surface of the casting of the hob).

The earth lead is connected to terminal marked with the symbol 12 and must be longer than leads carrying electric current. Tighten the terminal screws securely! Finally, secure the connecting cable with the mains cable cleat and the covering closed by pressing firmly (lock into place).

Warning! Once connected to the mains supply check that all cooking zones are ready for use by briefly setting each to maximum power.

Environment concerns

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your

household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Before disposal of appliance

Warning! Do these steps to dispose the appliance:

• Pull the mains plug out of the mains socket.
• Cut off the mains cable and discard it.

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance,

Which appliances are not covered by the IKEA five (5) years guarantee?

The range of appliances named LAGAN and all appliances purchased in IKEA before 1st of August 2007

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

Normal wear and tear.
- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.
- Consumable parts including batteries and lamps.
- Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.
- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.
- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.
- Cases where no fault could be found during a technician's visit.
- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where nonoriginal parts have been used.
- Repairs caused by installation which is faulty or not according to specification.
- The use of the appliance in a non-domestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.
• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will re-install the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives You specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information;

The dedicated After Sales Service for IKEA appliances:

Please do not hesitate to contact IKEA After Sales Service to:

1. make a service request under this guarantee;

ENGLISH

1. ask for clarification on installation of the IKEA appliance in the dedicated IKEA kitchen furniture. The service won't provide clarifications related to:

2. the overall IKEA kitchen installation;

3. connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.
4. ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us.

How to reach us if You need our service

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

Important! In order to provide You with a quicker service, we recommend that You use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance You need an assistance for. Before calling us, assure that You have to hand the IKEA article number (8 digit code) for the appliance of which you need our assistance.

Important! SAVE THE SALES RECEIPT! It is Your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do You need extra help?

For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Inhalt

© Inter IKEA Systems B.V. 1999

PQM

Model FRAMTID HINF4T Typ 55GDDD4AU 7,4kW

PNC 949 593 110 S NO 220V-240V AC 50 Hz

230V

DGT

Induction

GARANTIE IKEA - FRANCE

CONTRAT DE GARANTIE ET DE SERVICE APRES-VENTE IKEA

© Inter IKEA Systems B.V. 1999

PQM
21552

Model FRAMTID HINF4T Typ 55GDDD4AU 7.4kW

7,4kW Induction

PNC 949593110 S NO 220V-240V AC 50 Hz

230V
DGT
