USER MANUAL WTE25112 WHIRLPOOL

• This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. To ensure best use of your appliance, carefully read the operating instructions which contain a description of the product and useful advice. Keep these instructions for future reference.

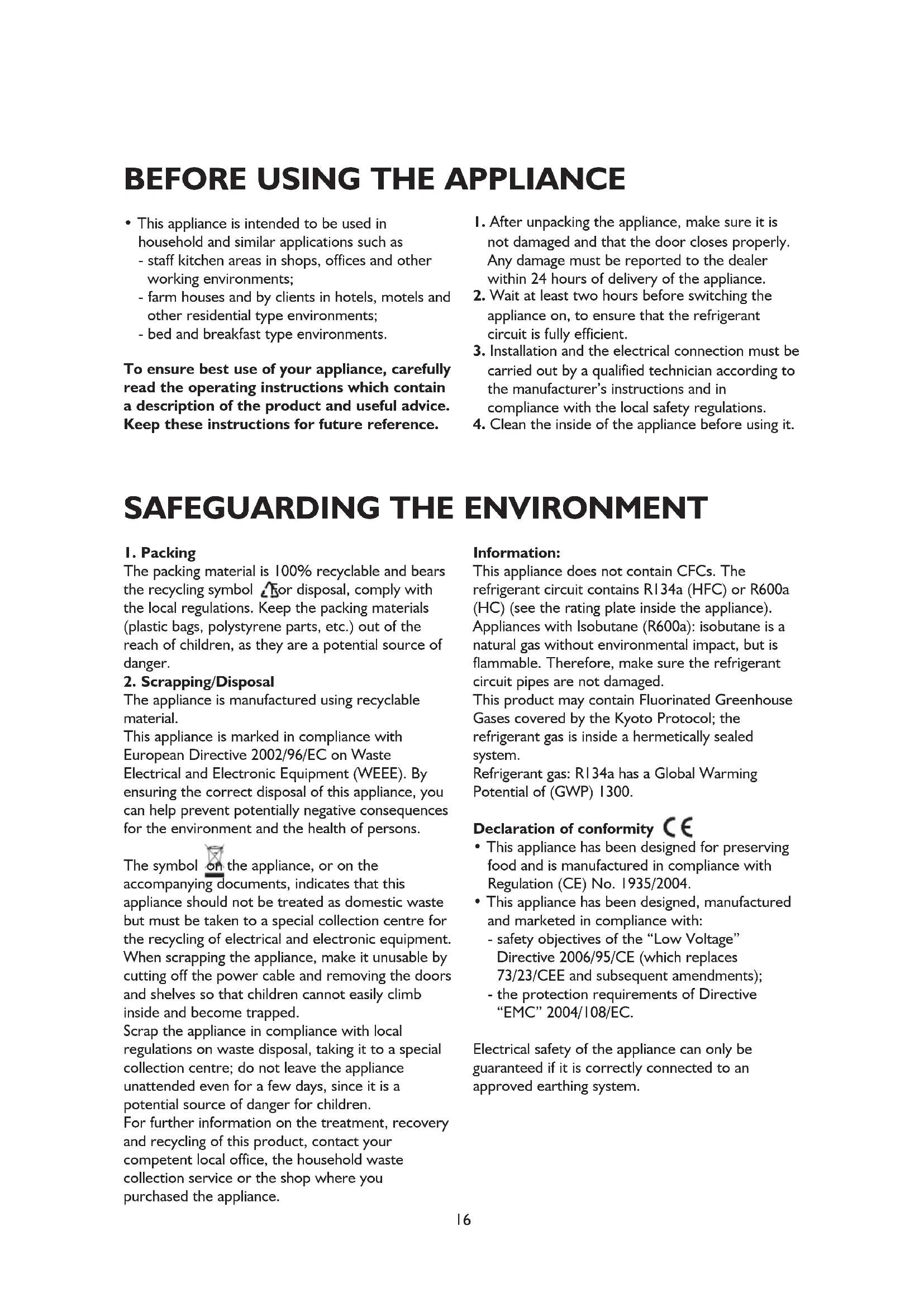

1. After unpacking the appliance, make sure it is

not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.

2. Wait at least two hours before switching the

appliance on, to ensure that the refrigerant circuit is fully efficient.

3. Installation and the electrical connection must be

carried out by a qualified technician according to the manufacturer’s instructions and in compliance with the local safety regulations.

4. Clean the inside of the appliance before using it.

The packing material is 100% recyclable and bears the recycling symbol . For disposal, comply with the local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material. This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons. The symbol on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside and become trapped. Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children. For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance. Information: This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged. This product may contain Fluorinated Greenhouse Gases covered by the Kyoto Protocol; the refrigerant gas is inside a hermetically sealed system. Refrigerant gas: R134a has a Global Warming Potential of (GWP) 1300. Declaration of conformity

• This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.

• This appliance has been designed, manufactured and marketed in compliance with: - safety objectives of the “Low Voltage” Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments); - the protection requirements of Directive “EMC” 2004/108/EC. Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.

• The appliance must be handled and installed by two or more persons.

• Be careful not to damage the floors (e.g. parquet) when moving the appliance.

• During installation, make sure the appliance does not damage the power cable.

• Make sure the appliance is not near a heat source.

• To guarantee adequate ventilation, leave a space on both sides and above the appliance and follow the installation instructions.

• Keep the appliance ventilation openings free.

• Do not damage the appliance refrigerant circuit pipes.

• Install and level the appliance on a floor strong enough to take its weight and in a place suitable for its size and use.

• Install the appliance in a dry and well-ventilated place. The appliance is arranged for operation in places where the temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

• Make sure the voltage specified on the rating plate corresponds to that of your home.

• Do not use single/multi adapters or extension cords.

• For the water connection, use the pipe supplied with the new appliance; do not reuse that of the previous appliance.

• Power cable modification or replacement must only be carried out by qualified personnel or by After-sales Service.

• It must be possible to disconnect the appliance from the power supply by unplugging it or by means of a mains two-pole switch installed upstream of the socket. SAFETY

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.

• Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

• Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the appliance.

• Do not swallow the contents (non-toxic) of the ice packs (in some models).

• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns. USE

• Before carrying out any maintenance or cleaning operation, unplug the appliance or disconnect it from the power supply.

• All appliances equipped with an automatic ice- maker and water dispenser must be connected to a water supply that only delivers drinking water (with mains water pressure of between

0.17 and 0.81 Mpa (1.7 and 8.1 bar)). Automatic

ice-makers and/or water dispensers not directly connected to the water supply must be filled with drinking water only.

• Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.

• Do not store glass containers with liquids in the freezer compartment since they may break.

• Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.

• "The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009)". The Manufacturer declines any liability if the above advice and precautions are not respected.

PRECAUTIONS AND GENERAL

RECOMMENDATIONS Climatic Class Amb. T. (°C) Amb. T. (°F) SN From 10 to 32 From 50 to 90 N From 16 to 32 From 61 to 90 ST From 16 to 38 From 61 to 100 T From 16 to 43 From 61 to 11018

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT This appliance is a refrigerator with a star freezer compartment. Defrosting of the refrigerator compartment is completely automatic. Optimal performance is obtained at temperatures between +16°C and +32°C. Switching on the refrigerator for the first time Insert the plug into the mains socket. The thermostat is used to adjust the temperature of both compartments: refrigerator and freezer. How to adjust the temperature of the compartments:

1. For correct operation and optimum storage of food, it is

advisable to set the thermostat to 2-3/MED.

2. To adjust the temperature in th

e refrigerator compartment, turn the thermostat control knob: lowest/MIN numbers for the LEAST COLD internal temperatures; highest/MAX numbers for the COLDEST internal temperatures. thermostat set to 0: no operation, no light. Note: The ambient air temperature, frequency of door opening and the position of the appliance can affect internal temperatures. These factors must be taken into account when setting the thermostat. How to use the refrigerator compartment Position the food as illustrated in the figure. A. Cooked food B. Fish, meat C. Fruit and vegetables D. Bottles E. Eggs F. Butter, cheese and dairy products Notes: The space between the shelves and the rear wall of th

refrigerator compartment must be unobstructed to allow circulation of air. Do not place food in direct contact with the rear wall of the refrigerator compartment. Do not place hot food in the refrigerator or freezer. Store liquids in closed containers. Storing vegetables with a high water content can result in condensation in the crisper drawer: this will not affect the correct operation of the appliance.19

HOW TO OPERATE THE FREEZER

COMPARTMENT The freezer is a star compartment. This compartment can be used to store frozen foods for the period of time indicated on packaging. The freezer can also be used to freeze fresh food by positioning it on the rack; place frozen food in the lower part of the compartment so that there is no contact with fresh food that has yet to be frozen. The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate. Important: Before freezing, wrap and seal fresh food in: t aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freeze r containers suitable for freezing fresh food. t In the event of a power cut, the freezer compartment will maintain a sufficiently low temperature for food storage. However, it is advisable to avoid opening the compartment door during such periods. Important: The table alongside shows the recommended maximum storage time for frozen fresh foods. When purchasing frozen food products: t Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun. t When shopping, leave fr ozen food purchases until last and transport the products in a thermally insulated cool bag. t Place the items in the freezer compartment as soon as you get home. t If food has defrosted even partially, do not re-freeze it. Consume within 24 hours. t Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package. t Always observe the storage information on the package. Making ice cubes t Fill the ice cube tray 3/4 with water and place it at the bottom of the freezer compartment. Do not use sharp or pointed instruments to detach the tray if it is stuck to the compartment bottom. MONTHS FOOD20

HOW TO DEFROST AND CLEAN THE

COMPARTMENT Defrost the freezer compartment once or twice a year, or when the ice on the walls reaches a thickness of about 3 mm. If possible, defrost the freezer when it is nearly empty.

1. Remove the food from the freezer, wrap in newspaper

and group together in a cool place or in a portable cooler.

2. Disconnect the appliance from the mains power

3. Leave the door open to allow the frost to melt.

4. Remove the defrost water from the compartment

5. Clean the interior using a sponge dampened in a solution

of warm water and neutral detergent. Do not use abrasive products.

6. Rinse the interior and dry thoroughly.

Note: Do not use s harp or pointed metal instruments to scrape off ice; do not heat the freezer compartment artificially. Periodically clean the inside of the refrigerator compartment. Defrosting of the refrigerator compartment is completely automatic. Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress. The defrost water is automatically routed to a drain outlet and into a container from which it evaporates. Clean the defrost water drain outlet regularly using the tool supplied with the appliance in order to ensure defrost water is removed correctly. Before carrying out any cleaning operations, disconnect the appliance from the power supply. t Use a sponge dampened in lukewarm water and/or neutral de tergent. t R inse the interior and dry with a soft cloth. Do not use abrasive products.21

CARE AND MAINTENANCE

• Periodically clean air vents and the condenser at the rear of the appliance with a vacuum cleaner or a brush.

• Clean the outside using a soft cloth. Prolonged disuse

1. Empty the refrigerator.

2. Disconnect the appliance from the power supply.

3. Defrost and clean the interior.

4. In the event of prolonged disuse, leave the door open to

prevent the formation of mould, odours and oxidation.

• Cl ean the inside of the low temperature compartment (where fitted) when defrosting.

• Periodically clean the inside of the refrigerator compartment with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.

• Clean the outside with a soft damp cloth. Do not use abrasive products, scourers, stain-removers

• Unplug the appliance from the mains

• Squeeze the tabs on the sides of the lamp cover and remove it.

• Replace the bulb with a new one, maximum 15 W.

• Put the lamp cover back on and wait 5 minutes before plugging the appliance back into the mains.22 TROUBLESHOOTING GUIDE When you hear these noises

1. The appliance is not working.

• Is there a power failure?

• Is the plug properly inserted in the socket?

• Is the double-pole switch on?

• Is the power cord damaged?

• Is the thermostat set to 0 (Stop)?

2. Temperature inside the compartme nts is

• Is the door shut properly?

• Is the appliance installe d near a heat source?

• Is th e thermostat setting correct?

• Are the air circulation grilles blocked?

3. Temperature inside the refrigerator

compartment is too low.

• Is the thermostat setting correct?

4. Water collects at the bottom of the

refrigerator compartment.

• Is the defrost water drain blocked?

5. The inside light is not working.

Perform the checks for problem 1, then:

Disconnect the appliance from the mains power supply. To inspect

e bulb, refer to the instructions and illustration on the attached table.

• Check the bulb and if necessary replace it. Replace using maximum 15W bulb.

6. Excessive frost build-up in the freezer

• Is the door shut properly?

• Is food obstructing proper door closure? Notes:

• The front edge of the appliance may be hot. This prevents the formation of condensation and is not a defect.

urgling and hissing noises due to expansion in the refrigerant circuit are normal. ..your appliance is alive!!!23 AFTER-SALES SERVICE Before contacting After-Sales Service:

1. See if you can solve the problem yourself with

the help of the “Troubleshooting guide”.

2. Switch the appliance on again to see if the

problem persists. If it does, switch off and wait for about an hour before switching on.

3. If the problem persists after this course of

action, contact After-sales Service. Specify:

• the nature of the problem,

• the Service number (the number after the word SERVICE on the rating plate on the inside of the appliance),

• your telephone number and area code. Note: The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty. INSTALLATION

• Install the appliance away from heat sources.

• Install the appliance in a dry, well-ventilated place.

• Do not obstruct the top and bottom vent zones.

• Clean the inside (see chapter “How to clean the refrigerator compartment”).

• Fit the accessories supplied.

• Overall dimensions with door open 110 cm

• Maximum width with door open 105 cm Electrical connection

• Electrical connections must be made in accordance with local regulations.

• Voltage and power consumption are indicated on the rating plate (at the side of the crispers). Freestanding appliances (not built-in)

• Fit the spacers (if supplied) on the rear of the condenser positioned at the back of the appliance (see figure).

• To optimize appliance efficiency, leave a 5 cm gap above the appliance and make sure that adjacent kitchen units are sufficiently distanced to allow air circulation.

• Ensure that the appliance is level, using the front adjustment feet if necessary.

• Regulations requir e that the appliance is

rthed. The Manufacturer declines all liabilities for injury to persons or animals or damage to property resulting from failure to observe these regulations.

• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.

• Do not use extension leads or adapters. Disconnecting the appliance

• It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.24 Model A Changing The Door Swing Direction to Right Hand

Remove the 2 caps from the top of the freezer door. Remove the 2 screws holding the middle hinge (Fig. 1).

Carefully remove the refrigerator and freezer doors together with the middle hinge by sliding them from the top and bottom hinge pins and gently towards you (Fig. 2)

Lay the appliance on its left side. Remove both levelling feet. Remove the screws holding the bottom hinge and remove it (Fig. 3). Unscrew the bottom hinge pin and screw it into the left hole (Fig. 4). Then screw the bottom hinge on the left hand side of the refrigerator. Screw the levelling feet back into p lace.

Remove the two plugs from the middle left hand hinge position. Remove the two screws holding the top hinge and remove it. Remove the plug from the top left hand hinge position. Remove the plug from the middle right hand hinge position (Fig. 5). Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Freezer door right cap Freezer door left cap Unscrew the two middle hinge screws Pull the doors towards to you with middle hinge Remove the two middle hinge screw caps (big) Unscrew the top hinge Remove top hinge screw left cap Remove the middle hinge screw cap (big)25

5. Loosen the screw holding the top hinge pin. Rotate the pin

180° and retighten the screw(Fig. 6).

6. Reassemble the top hinge on the left hand side (Fig. 7).

Plug the top and middle right hand holes. Transfer the middle hinge plug to the left side. (You can use the plugs supplied in the user's manual bag).

7. Replace the top bushing and top bushing cap (Fig. 8) (You can

use the new bushing cap supplied in the use r's manual bag). Remove the bottom bushing and transfer it to the left (Fig. 8).

8. Remove the top bushing and transfer

it to the left hole (Fig. 9). Remove the screw holding the right freezer door stopper and remove it. Assemble the left stopper on the left side (Fig. 9). (You can use the freezer door stopper (left) in the user's manual bag).

9. Rotate the middle hinge 180º . Reassemble the r

efrigerator and freezer doo

Carefully remove the refrigerator and freezer doors together with the middle hinge by pulling them towards you (Fig. 2)

Lay the appliance on its left side. Remove both levelling feet. Remove the screws holding the bottom hinge and remove it (Fig. 3). Unscrew the bottom hinge pin and screw it into the left hole (Fig. 4). Then screw the bottom hinge on the left hand side of the refrigerator. Screw the levelling feet back into place. Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Insert the two middle hinge screw caps (big) here Remove the two middle hinge plugs Remove the two middle hinge screws Insert the two middle hingescrew caps(big) here.27

4. Unscrew the pin located on the right (Fig. 6/Detail-A) and

screw it to the left (Fig. 6/Detail-B)

5. Replace the top bushing and top bushing cap (Fig. 7) (You can

use the new bushing cap supplied in the user's manual bag). Remove the bottom bushing and transfer it to the left (Fig. 7)

6. Replace the top bushing and top bushing cap (Fig. 8).

Remove the bottom bushing and transfer it to the left (Fig. 8).

Warning - this appliance must be earthed Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

Important: The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct

eplacement is fitted. Correct replacement are identified by the c olour insert or th

colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.29
