USER MANUAL GX5SHDXVD WHIRLPOOL

W10208432AYou can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING2 Proper Disposal of Your Old Refrigerator IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents. Before You Throw Away Your Old Refrigerator or Freezer: ■ Take off the doors.■ Leave the shelves in place so that children may not easily climb inside. INSTALLATION INSTRUCTIONS Unpack the Refrigerator Remove the Packaging■ Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.■ Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”■ Dispose of/recycle all packaging materials. Clean Before UsingAfter you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”

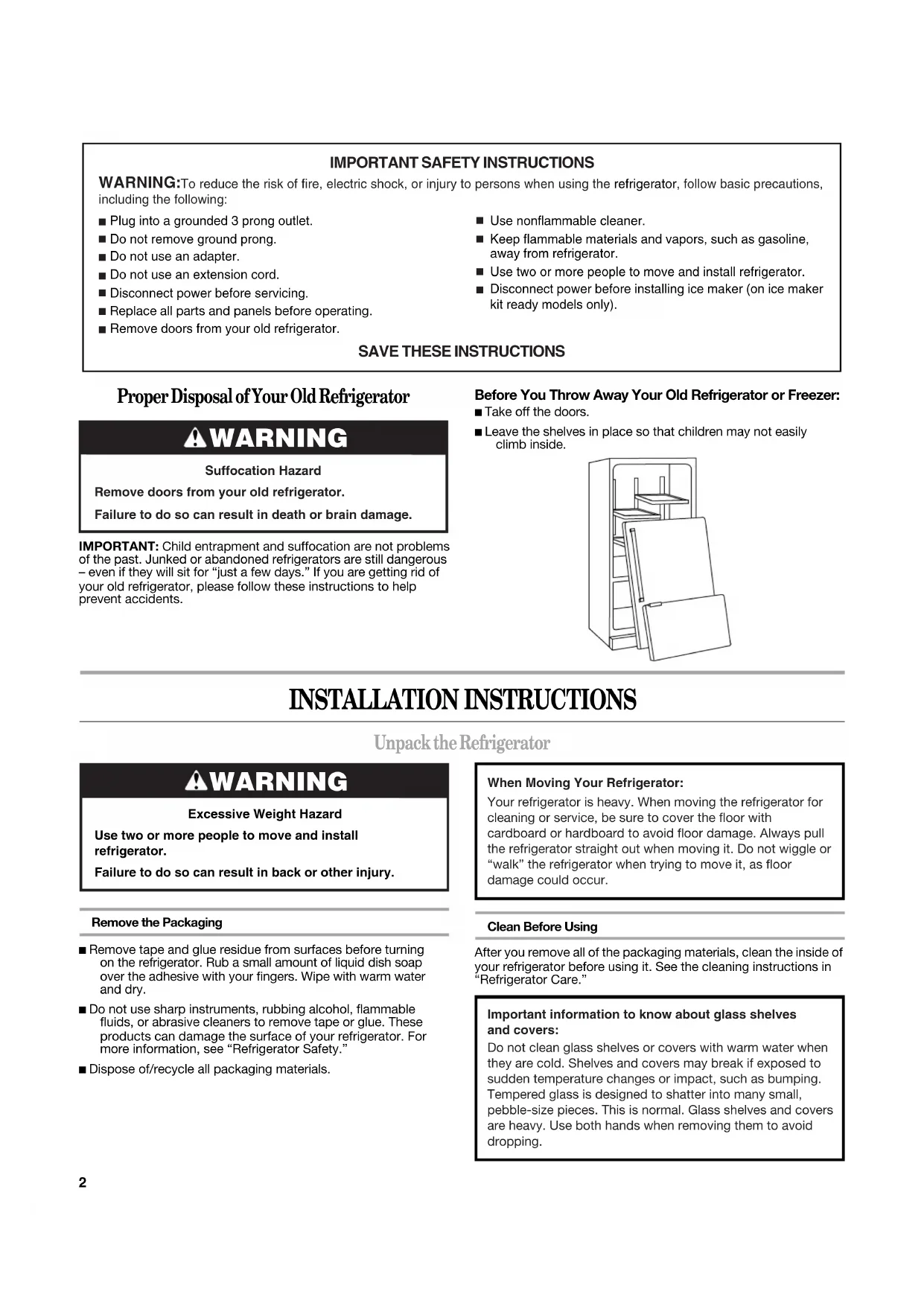

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, or injury to persons when using the refrigerator, follow basic precautions, including the following:

SAVE THESE INSTRUCTIONS

Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Disconnect power before servicing. Replace all parts and panels before operating. Remove doors from your old refrigerator. Use nonflammable cleaner. Keep flammable materials and vapors, such as gasoline, away from refrigerator. Use two or more people to move and install refrigerator. Disconnect power before installing ice maker (on ice maker kit ready models only). WARNING Suffocation HazardRemove doors from your old refrigerator. Failure to do so can result in death or brain damage. WARNING Excessive Weight HazardUse two or more people to move and install refrigerator.Failure to do so can result in back or other injury.When Moving Your Refrigerator:Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.Important information to know about glass shelves and covers:Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.3 Location Requirements To ensure proper ventilation for your refrigerator, allow for a ¹⁄₂" (1.25 cm) space at the top and behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave 2¹⁄₂" (6.3 cm) minimum on the hinge side (some models require more) to allow for the door to swing open. NOTE: It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source. Do not install the refrigerator in a location where the temperature will fall below 55°F (13°C). Electrical Requirements Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection. Recommended Grounding Method A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord. NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the refrigerator to OFF. Depending on your model, turn the freezer control to the word OFF, or press the Freezer down arrow touch pad until a dash (–) appears in both the Freezer and Refrigerator displays as shown. Disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the temperature controls to the desired setting. See “Using the Controls.” WARNING Explosion Hazard Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in death, explosion, or fire. 2¹⁄₂" (6.3 cm)¹⁄₂" (1.25 cm) Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING4 Water Supply Requirements Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. TOOLS NEEDED: IMPORTANT: ■ All installations must meet local plumbing code requirements. ■ Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve which reduces water flow and clogs more easily. ■ Use copper tubing and check for leaks. Install copper tubing only in areas where the household temperatures will remain above freezing. ■ For models with water filters, the disposable water filter should be replaced at least every 6 months. Water Pressure A cold water supply with water pressure of between 35 and 120 psi (241 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber. Reverse Osmosis Water Supply IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa). If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa). If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa): ■ Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary. ■ Allow the storage tank on the reverse osmosis system to refill after heavy usage. ■ If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.” If you have questions about your water pressure, call a licensed, qualified plumber. Connect the Water Supply Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line is connected, turn the ice maker OFF. Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Find a ¹⁄₂" to 1¹⁄₄" (12.7 mm to 31.8 mm) vertical cold water

pipe near the refrigerator. IMPORTANT: ■ Make sure it is a cold water pipe. ■ Horizontal pipe will work, but the following procedure must be followed: Drill on the top side of the pipe, not the bottom. This will help keep water away from the drill. This also keeps normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the rear of the refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" hole in the cold water pipe you

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so the washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

8. Place the free end of the tubing in a container or sink, and turn

ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Connect to Refrigerator Depending on your model, the water line may come down from the top or up from the bottom. Follow the connection instructions for your model. Style 1

1. Remove plastic cap from water valve inlet port. Attach the

copper tube to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten. Confirm copper tubing is secure by pulling on copper tubing. ■ Flat-blade screwdriver ■ ⁷⁄₁₆" and ¹⁄₂" Open-end or two adjustable wrenches ■ ¹⁄₄" Nut driver■ ¹⁄₄" Drill bit■ Cordless drill A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut E. Compression sleeve F. Shutoff valve G. Packing nut

2. Create a service loop with the copper tubing. Avoid kinks when coiling the copper tubing. Secure copper tubing to refrigerator cabinet with a “P” clamp. 3. Turn on water supply to refrigerator and check for leaks. Correct any leaks. Style 2

1. Create a service loop (minimum diameter of 2 ft [61 cm]) with

the copper tubing. Avoid kinks when coiling the copper tubing. 2. Remove the plastic cap from water valve inlet port. Place a compression nut and sleeve on the copper tubing. 3. Insert the end of the copper tubing into the water valve inlet port. Shape tubing slightly so that the tubing feeds straight into the port to avoid kinks.4. Slide the compression nut over the sleeve and screw into the water valve inlet port. 5. Using an adjustable wrench, hold the nut on the plastic water line to keep it from moving. Then, with a second wrench turn the compression nut on the copper tubing counterclockwise to completely tighten. Do not overtighten.6. Check connection by pulling on copper tubing. Attach copper tubing to refrigerator cabinet with a “P” clamp. Turn on water supply to refrigerator and check for leaks. Correct any leaks.Complete the Installation1. Plug into a grounded 3 prong outlet.NOTE: Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. Allow 3 days to completely fill the ice container. Refrigerator Door(s) and Drawer TOOLS NEEDED: ⁵⁄₁₆", ³⁄₈", ¹⁄₄" hex head socket wrench, a #2 Phillips screwdriver, and a flat-blade screwdriver.IMPORTANT:■ Your refrigerator may have a standard reversible refrigerator door (Style 1) with either a freezer door or freezer drawer, or French doors (Style 2). Follow the instructions specific to the door style of your model. ■ All graphics referenced in the following instructions are included later in this section after “Final Steps.” The graphics shown for the standard door (Style 1) are for a right-hand swing refrigerator (hinges factory installed on the right).■ If you only want to remove and replace the doors see “Remove Doors and Hinges” and “Replace Doors and Hinges.”■ Before you begin, turn the refrigerator control OFF, and remove food and adjustable door or utility bins from the doors. A. Copper tubingB. “P” clampC. Compression nutD. Compression sleeveE. Water valve inlet portA. Plastic water tubingB. SleeveC. Compression nutD. Copper tubing

A. Plastic water lineB. Water valve inlet portC. Compression nutD. Copper tubingE. “P” clamp

Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING6 Replace and Remove Handles Style 1–Standard Door ■ To replace the handle, align the handle on the door or drawer as shown. Using a Phillips screwdriver, attach the handle with the handle screws. ■ To replace the handle trim pieces, using your hand, apply firm pressure on the face of the trim and slide the trim piece toward the center of the handle. ■ To remove handles, reverse directions. Style 2–French Doors Metal handles ■ To remove the handle, use a ³⁄₃₂" Allen wrench to loosen the two setscrews located on the side of each handle. Pull the handle straight out from the door or drawer. Make sure you keep the screws for reattaching the handles. See Metal Handle graphics 1 and 2. ■ To replace the handles, reverse the directions. Plastic handles - Refrigerator door ■ To remove the handle, grasp the lower part of the handle firmly, slide the handle up and pull the handle straight out from the door. See Plastic Handle graphic 1. ■ To replace the handle, position the handle so that the large holes in the mounting clips are down and align the holes with the door studs. Rotate the handle so that the mounting clips are flat against the door and slide the handle down to engage. See Plastic Handle graphic 1. Plastic handle - Freezer drawer ■ To remove the handle, grasp the handle firmly, slide the handle to the left and pull the handle straight out from the drawer. See Plastic Handle graphic 2. ■ To replace the handle, position the handle so that the large holes in the mounting clips are to the right and align the holes with the door studs. Rotate the handle so that the mounting clips are flat against the drawer and slide the handle to the right to engage. See Plastic Handle graphic 2. Remove Doors and Hinges Style 1–Standard Door Freezer drawer models

1. Unplug refrigerator or disconnect power.

2. Keep the refrigerator door closed until you are ready to lift it

free from the cabinet. NOTE: Provide additional support for the door while the hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the refrigerator door free from the cabinet.

4. Remove the parts for the bottom hinge as shown in Bottom

Hinge graphic. Freezer door models

1. Unplug refrigerator or disconnect power.

2. Keep the freezer door closed until you are ready to lift it free

from the cabinet. NOTE: Provide additional support for the door while the hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the refrigerator door free from the cabinet.

4. Remove the center hinge pin and remove the hinge screws as

shown in the Center Hinge graphic. Lift the freezer door free from the cabinet.

5. Remove the parts for the bottom hinge as shown in Bottom

Hinge graphic. Style 2–French Doors

1. Unplug refrigerator or disconnect power.

2. Keep the refrigerator doors closed until you are ready to lift

them free from the cabinet. NOTE: Provide additional support for the refrigerator door while the hinges are being removed. Do not depend on the door gasket magnets to hold the door in place while you are working.

3. Starting with the right-hand side door, remove the parts for the

top hinge as shown in Top Hinge graphic. Lift the refrigerator door from the bottom hinge pin.

4. Remove the hinge pin cover from the bottom hinge pin and

keep it for later use. See Bottom Hinge graphic.

5. Before removing the left-hand side door, disconnect the wiring

plug located on top of the top hinge by wedging a flat-blade screwdriver or your fingernail between the two sections. See Wiring Plug graphic. NOTE: The green, ground wire remains attached to the hinge.

6. Remove the parts for the left-hand side door top hinge as

shown in the Top Hinge graphic. Lift the door from the bottom hinge pin. NOTE: Remove the hinge pin cover from the bottom hinge pin and keep it for later use. See Bottom Hinge graphic. Reverse Door - Standard Door (optional) IMPORTANT: If you want to reverse your door so it opens from the opposite side, follow these steps. If you are not reversing the door, see “Replace Door(s) and Hinges.” Hex Head Top Hinge Screw WARNING Electrical Shock Hazard Disconnect power before removing doors. Failure to do so can result in death or electrical shock. Door Stop Screw Cabinet Hinge Hole PlugFlat-Head Handle Screw Door Handle Seal Screw Fron

1. Remove hinge screws from handle side and move them to

opposite side. See Graphic 1-1.

2. Remove cabinet hinge hole plugs from cabinet top and move

them to opposite side hinge holes as shown in Graphic 1-2. Refrigerator door

1. Remove the refrigerator handle assembly as shown in

Graphic 2. Keep all parts together.

2. Remove door handle seal screw front. Move to opposite side

of refrigerator door as shown in Graphic 5.

3. Remove the door stop. Move it to the opposite side of the

refrigerator door as shown in Graphic 3.

4. Attach refrigerator handle on opposite side of the refrigerator

door with the two screws as shown in Graphic 2. Replace handle trim as shown.

5. Tighten all screws. Set aside the door until hinges and freezer

compartment drawer are in place. Freezer door

1. Remove freezer handle assembly as shown in Graphic 5-1.

Keep all parts together.

2. Remove freezer door handle seal screw. Move to opposite

side of freezer door.

3. Remove door stop. Move to opposite side of freezer door as

4. Attach handle to opposite side of freezer door.

5. Tighten all screws. Set aside door until bottom hinge is

installed on product. Replace Doors and Hinges Style 1–Standard Door NOTE: Graphics may be reversed if door swing is reversed. Freezer drawer models

1. Replace the parts for the bottom hinge as shown. Tighten

screws. NOTE: Provide additional support for the door while the hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

2. Assemble the parts for the top hinge as shown in Top Hinge

graphic. Do not tighten screws completely.

3. Adjust the door so that the bottom of the refrigerator door is

aligned with the top of the freezer drawer. Tighten all screws. Freezer door models

1. Replace the parts for the bottom hinge as shown. Tighten

screws. Replace the freezer door. NOTE: Provide additional support for the door while the hinges are being moved. Do not depend on the door gasket magnets to hold the door in place while you are working.

2. Assemble the parts for the center hinge as shown in the

Center Hinge graphic, and tighten all the screws. Replace the refrigerator door.

3. Assemble the parts for the top hinge as shown in the Top

Hinge graphic. Do not tighten the screws completely.

4. Adjust the doors so that the bottom of the refrigerator door is

aligned with the top of the freezer door. Tighten all screws. Style 2–French Doors

1. Assemble the parts for the top hinges as shown in Top Hinge

graphic. Do not tighten the screws completely.

2. Replace the parts for the bottom hinges as shown in Bottom

Hinge graphic. Tighten screws. Replace the refrigerator doors. NOTE: Provide additional support for the refrigerator doors while the hinges are being moved. Do not depend on the door gasket magnets to hold the doors in place while you are working.

3. Align each door so that the bottom of the refrigerator door

aligns evenly with the top of the freezer drawer. Tighten all screws.

Remove and Replace Freezer Drawer IMPORTANT: ■ Two people may be required to remove and replace the freezer drawer. ■ All graphics are included later in this section after “Final Steps.” Remove Drawer Front

1. Open the freezer drawer to full extension.

2. Loosen the four screws attaching the drawer glides to the

drawer front. See Drawer Front Removal graphic. NOTE: Loosen screws three to four turns. Keep the screws in the drawer front.

3. Lift drawer front upward and off the screws. See Drawer Front

Removal graphic. Replace Drawer Front

1. Slide the drawer glides out of the freezer compartment. Insert

the screws in the top of the drawer front into the slots in the drawer brackets. See Drawer Front Replacement graphic.

2. Pull the drawer brackets toward you to insert the two screws

in the bottom of the drawer front into the brackets. See Drawer Front Replacement graphic.

3. Completely tighten the four screws.

1. Check all holes to make sure that hole plugs and screws are in

place. Reinstall top hinge cover as shown in Top Hinge graphic.

2. Plug into a grounded 3 prong outlet.

3. Return all removable door parts to door and food to

refrigerator. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING8 Standard Door - Freezer Door Door Removal & Replacement B. Bottom Hinge A. Hinge Pin Shim (on some models) ³⁄₈" Hex-Head Hinge Screws Top Hinge A. Hinge Pin Cover . ⁵⁄₁₆" Hex-Head Hinge ScrewsB. Center HingeA. Top Hinge Cover

Center Hinge D. Bottom Hinge Cover

Side View Front View

Door Removal & Replacement Top Hinge A. Hinge Pin Cover C. Hinge Screws B. Bottom Hinge A. Hinge Cover ScrewB. Top Hinge Cover

" Hex-Head Hinge ScrewsD. Top Hinge

Drawer Front Replacement10 French Doors WARNING Electrical Shock Hazard Disconnect power before removing doors. Failure to do so can result in death or electrical shock. Door Removal & Replacement

Top Hinges A. Hinge Cover Screw B. Top Hinge Cover

" Hex Head Hinge Screws D. Top Hinge

Drawer Front Replacement11 Adjust the Door Your refrigerator has two front adjustable rollers located at the base of the refrigerator. If your refrigerator seems unsteady or you want the door to close more easily, use the instructions below. Style1–Freezer Door Models

1. Remove the base grille. Grasp the grille firmly and pull it

2. Remove the bracket cover. Insert the eraser end of a pencil in

the cover notch. Apply slight downward pressure to the notched side of the cover while swinging it off.

3. Using a screwdriver or ³⁄₈" hex driver, turn the roller adjustment

screw on each side to raise or lower that side of the refrigerator. NOTE: Having someone push against the top of the refrigerator takes some weight off the adjustment screws and rollers. This makes it easier to turn the screws It may take several turns of the roller adjustment screw to adjust the tilt of the refrigerator. ■ To raise, turn the roller adjustment screw to the right.■ To lower, turn the roller adjustment screw to the left.

4. Turn the brake foot clockwise until it is firmly against the floor

to keep the refrigerator from rolling forward when the freezer drawer is pulled open.

5. Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both roller adjustment screws to the right. It may take several more turns, and you should turn both adjustment screws the same amount.

6. Replace the bracket cover. Place the bracket cover into the

outer edge, swing the cover toward the cabinet and snap it into place.

1. Remove the base grille. Grasp the grille firmly and pull it

2. Raise or lower the cabinet. Using a ³⁄₈" hex driver, turn the

roller adjustment screw(s) on each side to raise or lower that side of the refrigerator. NOTE: Having someone push against the top of the refrigerator takes some weight off the adjustment screws and rollers. This makes it easier to turn the screws. It may take several turns of the roller adjustment screw to adjust the tilt of the refrigerator. ■ To raise, turn the roller adjustment screw to the right. ■ To lower, turn the roller adjustment screw to the left.

3. Turn the brake foot clockwise until it is firmly against the floor

to keep the refrigerator from rolling forward when the freezer drawer is pulled open.

4. Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both screws the same amount.

5. Replace the base grille.

A. Roller adjustment screwB. Brake foot

A. Front roller adjustment screwB. Brake foot

B12 REFRIGERATOR USE Opening and Closing Doors (French door models) There are two refrigerator compartment doors. The doors can be opened and closed either separately or together.There is a vertically-hinged seal on the left refrigerator door.■ When the left side door is opened, the hinged seal automatically folds inward so that it is out of the way.■ When both doors are closed, the hinged seal automatically forms a seal between the two doors. Using the Controls The temperature controls are located at the top front of the refrigerator or freezer compartments. Temperature ControlsFor your convenience, the temperature controls are preset at the factory. When you first install your refrigerator, make sure the controls are still set to the recommended setting as shown.Style 1Recommended Setting “4”Style 2Recommended Setting “4” IMPORTANT: ■ The recommended setting should be correct for normal household refrigerator use. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.■ Wait 24 hours for your refrigerator to cool completely before adding food. If you add food before the refrigerator has cooled completely, your food may spoil.NOTE: Adjusting the refrigerator and freezer temperature controls to a colder than recommended setting will not cool the compartments any faster.■ If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls. To Turn Off/On: Style 1 Press the freezer down arrow touch pad until adash (-) appears in both the refrigerator and freezer displays. Neither compartment will cool. Style 2 Turn the freezer control to the word OFF. Neither compartment will cool when the freezer is set to OFF. Humidity Control (on some models) The humidity control turns on a heater to help reduce moisture on the door hinge seal. Use in humid environments or when you notice moisture on the door hinge seal. The refrigerator uses more energy when Humidity Control is on.■ Press the control to ON when the environment is warm and more humid, or if you notice moisture on the door hinge seal. ■ Press the control to OFF to save energy when the environment is less humid. Adjusting ControlsIf you need to adjust the temperature in either the refrigerator or freezer compartment, use the settings listed in the chart below as a guide. For (Style 1) controls press the up or down arrow touch pads, or for (Style 2) controls turn the dial to adjust the temperature. Except when starting the refrigerator, do not adjust either control more than one setting at a time. Wait 24 hours between adjustments for the temperature to stabilize. Crisper Humidity Control You can control the amount of humidity in the moisture-sealed crisper. Depending on your model, adjust the control to any setting between FRUIT and VEGETABLES or LOW and HIGH.FRUIT / LOW (open) for best storage of fruits and vegetables with skins. VEGETABLES / HIGH (closed) for best storage of fresh, leafy vegetables. A. Hinged seal

CONDITION/REASON: ADJUSTMENT:REFRIGERATOR too warm REFRIGERATOR Control one setting higher FREEZER too warm/too little ice FREEZER Control one setting higherREFRIGERATOR too cold REFRIGERATOR Control one setting lowerFREEZER too cold FREEZER Control one setting lower13 Ice Maker (on some models) Turning the Ice Maker On/Off To turn the ice maker ON, simply lower the wire shutoff arm. To manually turn the ice maker OFF, lift the wire shutoff arm to the OFF (arm up) position and listen for the click. NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position. Do not force the wire shutoff arm up or down. Ice Production Rate ■ The ice maker should produce a complete batch of ice approximately every 3 hours. ■ To increase ice production, lower the freezer and refrigerator temperature. See “Using the Controls.” Wait 24 hours between adjustments. Remember ■ Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. ■ The quality of your ice will be only as good as the quality of the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained. ■ Do not store anything on top of the ice maker or in the ice storage bin. Water Dispenser (on some models) IMPORTANT: ■ After connecting the refrigerator to a water source, flush the water system. Press the button on the dispenser for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser button (5 seconds on, 5 seconds off) for an additional 2 minutes. This will flush air from the filter and water dispensing system. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser. NOTE: After 5 minutes of continuous dispensing, the dispenser will stop dispensing water to avoid flooding. To continue dispensing, press the dispenser button again. ■ Allow 24 hours for the refrigerator to cool down and chill water. Dispense enough water every week to maintain a fresh supply. Dispensing Water

1. Hold a container under the dispenser while pressing the

2. Release the button to stop dispensing.

Water Filtration System The water filter is located in the upper right-hand corner of the refrigerator compartment. IMPORTANT: The disposable water filter should be replaced at least every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter more often. Replacing the Water Filter To purchase a replacement water filter, model UKF8001AXX-750 Part Number UKF8001AXX, contact your dealer or call 1-800-442-9991 U.S.A. or 1-800-807-6777 Canada. IMPORTANT: Air trapped in the water system may cause water and filter to eject. Always dispense water for at least 2 minutes before removing the filter or blue bypass cap.

1. Turn filter counterclockwise to remove.

2. Remove sealing label from replacement filter and insert the

filter end into the filter head.

3. Turn the filter clockwise until it stops. Snap the filter cover

closed. NOTE: The dispenser feature may be used without a water filter installed. Your water will not be filtered. If this option is chosen, replace the filter with the blue bypass cap. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.14 REFRIGERATOR CARE Cleaning Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately.IMPORTANT:■ Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.■ For stainless steel models, stainless steel is corrosion-resistant and not corrosion-proof. To help avoid corrosion of your stainless steel, keep your surfaces clean by using the following cleaning instructions. To Clean Your Refrigerator: NOTE: Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.1. Unplug refrigerator or disconnect power.2. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water. 3. Clean the exterior surfaces.Painted metal: Wash painted metal exteriors with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots.Stainless steel: Wash stainless steel surfaces with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots. NOTE: When cleaning stainless steel, always wipe with the grain to avoid cross-grain scratching. 4. There is no need for routine condenser cleaning in normal home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.If you need to clean the condenser:■ Remove the base grille.■ Use a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille and the front surface area of the condenser.■ Replace the base grille when finished.5. Plug in refrigerator or reconnect power. Changing the Light Bulb NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with an appliance bulb of the same size, shape, and wattage (no greater than 40 watts).1. Unplug the refrigerator or disconnect power.2. Remove the light shield, if necessary.Freezer drawer models ■ Top of the refrigerator compartment - Slide the light shield toward the back of the compartment to release it from the light assembly.■ Top of freezer compartment - The light shield opens from the back. Firmly press forward on the notches in the back of the shield and pull the shield down.NOTE: You may need to remove the upper freezer shelf or basket to access the light assembly. Freezer door models■ Top of the refrigerator compartment - Slide the shield toward the back to release it from the light assembly.■ Top of freezer compartment - Squeeze and pull rear of light shield toward you to release the tabs, then pull down. 3. Replace the burned-out bulb(s) with an appliance bulb(s) no greater than 40 watts.4. Replace the light shield.Freezer drawer models■ Top of the refrigerator compartment - Insert the tabs on the shield into the liner holes on each side of light assembly. Slide the shield toward the front until it locks into place.NOTE: To avoid damaging the light shield, do not force the shield beyond the locking point.■ Top of the freezer compartment - Insert the front tabs of the shield into the liner and snap the back portion of the shield over the light assembly.Freezer door models■ Top of the refrigerator compartment - Insert the tabs on the shield into the liner holes on each side of the light assembly. Slide the shield toward the front until it locks.NOTE: To avoid damaging the light shield, do not force the shield beyond the locking point.■ Top of freezer compartment - Insert front tabs of light shield into liner and snap the back of the shield over light assembly.5. Plug in refrigerator or reconnect power. WARNING Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.15 TROUBLESHOOTING First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions) to possibly avoid the cost of a service call. In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca Refrigerator Operation The refrigerator will not operate ■ Power cord unplugged? Plug into a grounded 3 prong outlet. ■ Is outlet working? Plug in a lamp to see if the outlet is working. ■ Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Are controls on? Make sure the refrigerator controls are on. See “Using the Control(s).” ■ New installation? Allow 24 hours following installation for the refrigerator to cool completely. NOTE: Adjusting the temperature controls to coldest setting will not cool either compartment more quickly.The motor seems to run too muchYour new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.The refrigerator seems noisyRefrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with explanations. ■ Buzzing - heard when the water valve opens to fill the ice maker ■ Pulsating - fans/compressor adjusting to optimize performance ■ Hissing/Rattling - flow of refrigerant, movement of water lines, or from items placed on top of the refrigerator ■ Sizzling/Gurgling - water dripping on the heater during defrost cycle ■ Popping - contraction/expansion of inside walls, especially during initial cool-down■ Water running - may be heard when ice melts during the defrost cycle and water runs into the drain pan ■ Creaking/Cracking - occurs as ice is being ejected from the ice maker mold.The doors will not close completely ■ Door blocked open? Move food packages away from door. ■ Bin or shelf in the way? Push bin or shelf back in the correct position. The doors are difficult to open ■ Gaskets dirty or sticky? Clean gaskets and contact surfaces with mild soap and warm water. Rinse and dry with soft cloth. Temperature and Moisture Temperature is too warm ■ New installation? Allow 24 hours following installation for the refrigerator to cool completely. ■ Door(s) opened often or left open? Allows warm air to enter refrigerator. Minimize door openings and keep doors fully closed. ■ Large load of food added? Allow several hours for refrigerator to return to normal temperature. ■ Controls set correctly for the surrounding conditions? Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Control(s).”There is interior moisture buildupNOTE: Some moisture buildup is normal.■ Humid room? Contributes to moisture buildup. ■ Door(s) opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep doors fully closed. Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING WARNING Explosion HazardUse nonflammable cleaner.Failure to do so can result in death, explosion, or fire.16 Ice and Water The ice maker is not producing ice or not enough ice ■ Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open. ■ Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line. ■ Ice maker turned on? Make sure wire shutoff arm or switch (depending on model) is in the ON position. ■ New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production. ■ Freezer door closed completely? Firmly close the freezer compartment door. If the freezer compartment door will not close all the way, see “The doors will not close completely,” earlier in this section. ■ Large amount of ice recently removed? Allow 24 hours for ice maker to produce more ice. ■ Ice cube jammed in the ice maker ejector arm? Remove ice from the ejector arm with a plastic utensil. ■ Water filter installed on the refrigerator? Remove filter and operate ice maker. If ice volume improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly. ■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.” The ice cubes are hollow or small NOTE: This is an indication of low water pressure. ■ Water shutoff valve not fully open? Turn the water shutoff valve fully open. ■ Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line. ■ Water filter installed on the refrigerator? Remove filter and operate ice maker. If ice quality improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly. ■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.” ■ Questions remain regarding water pressure? Call a licensed, qualified plumber. Off-taste, odor or gray color in the ice ■ New plumbing connections? New plumbing connections can cause discolored or off-flavored ice. ■ Ice stored too long? Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice. ■ Odor transfer from food? Use airtight, moisture proof packaging to store food. ■ Are there minerals (such as sulfur) in the water? A water filter may need to be installed to remove the minerals. ■ Water filter installed on the refrigerator? Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing. Flush the water system before using a new water filter. Replace water filter when indicated. See “Water Filtration System.” The water dispenser will not operate properly ■ Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open. ■ Kink in the water source line? Straighten the water source line. ■ New installation? Flush and fill the water system. See “Water Dispenser.” ■ Is the water pressure at least 35 psi (241 kPa)? The water pressure to the home determines the flow from the dispenser. See “Water Supply Requirements.” ■ Water filter installed on the refrigerator? Remove filter and operate dispenser. If water flow increases, the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly. ■ Refrigerator door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely,” earlier in this section. ■ Recently removed the doors? Make sure the water dispenser wire/tube assembly has been properly reconnected. See “Refrigerator Door(s) and Drawer.” ■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.” Water is leaking from the dispenser system NOTE: One or two drops of water after dispensing is normal. ■ Glass not being held under the dispenser long enough? Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever. ■ New installation? Flush the water system. See “Water Dispenser.” ■ Recently changed water filter? Flush the water system. See “Water Dispenser.” ■ Water on the floor near the base grille? Make sure the water dispenser tube connections are fully tightened. See “Refrigerator Door(s) and Drawer.” Water from the dispenser is warm NOTE: Water from the dispenser is only chilled to 50°F (10°C). ■ New installation? Allow 24 hours after installation for the water supply to cool completely. ■ Recently dispensed large amount of water? Allow 24 hours for water supply to cool completely. ■ Water not been recently dispensed? The first glass of water may not be cool. Discard the first glass of water. ■ Refrigerator connected to a cold water pipe? Make sure the refrigerator is connected to a cold water pipe. See “Water Supply Requirements.”17

Interior Water Filtration System Model UKF8001AXX-750 Capacity 750 Gallons (2839 Liters) This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53. Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.78 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). ■ It is essential that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised. ■ The disposable water filter should be replaced at least every 6months. ■ The filter monitor system measures the amount of water that passes through the filter and alerts you to replace the filter. When 90% of the filter’s rated life is used, the yellow (Order) light comes on. When 100% of the filter’s rated life is used, the red (Replace) light comes on, and it is recommended that you replace the filter. For models without filter status lights, replace the filter every 6 months. Use replacement filter model UKF8001AXX-750. 2008 suggested retail price of $44.99 U.S.A./$49.95 Canada. Prices are subject to change without notice. ■ The product is for cold water use only.■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. ■ Refer to the “Water Filtration System” section for the Manufacturer’s name and telephone number. ■ Refer to the “Warranty” section for the Manufacturer’s limited warranty. Application Guidelines/Water Supply Parameters System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Atrazine, Benzene, p-Dichlorobenzene, Carbofuran, Toxaphene, Cysts, Turbidity, Asbestos and Lindane.Substance ReductionAesthetic EffectsNSF Reduction RequirementsAverageInfluentInfluent Challenge ConcentrationMaximumEffluentAverageEffluentMinimum%ReductionAverage% ReductionChlorine Taste/OdorParticulate Class I 50% reduction85% reduction1.88 mg/L5,700,000 #/mL2.0 mg/L ± 10%At least 10,000 particles/mL0.06 mg/L69,000 #/mL**0.05 mg/L30,583 #/mL96.8498.94>97.26 99.52ContaminantReductionNSF Reduction RequirementsAverageInfluentInfluent Challenge ConcentrationMaximumEffluentAverageEffluentMinimum%ReductionAverage% ReductionLead: @ pH 6.5Lead: @ pH 8.50.010 mg/L0.010 mg/L0.153 mg/L

Class I particle size: >0.5 to <1 umTest requirement is at least 100,000 particles/mL of AC Fine Test Dust.These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.Fibers greater than 10 um in lengthBased on the use of Cryptosporidium parvum oocysts® NSF is a registered trademark of NSF International.19

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be provided by a Whirlpool designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Any food or medicine loss due to refrigerator or freezer product failures.

7. Pickup and delivery. This major appliance is intended to be repaired in your home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool's published installation instructions. 11. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined.

12. Discoloration, rust, or oxidation of stainless steel surfaces.
