USER MANUAL V 15BT 10029363 OneConcept

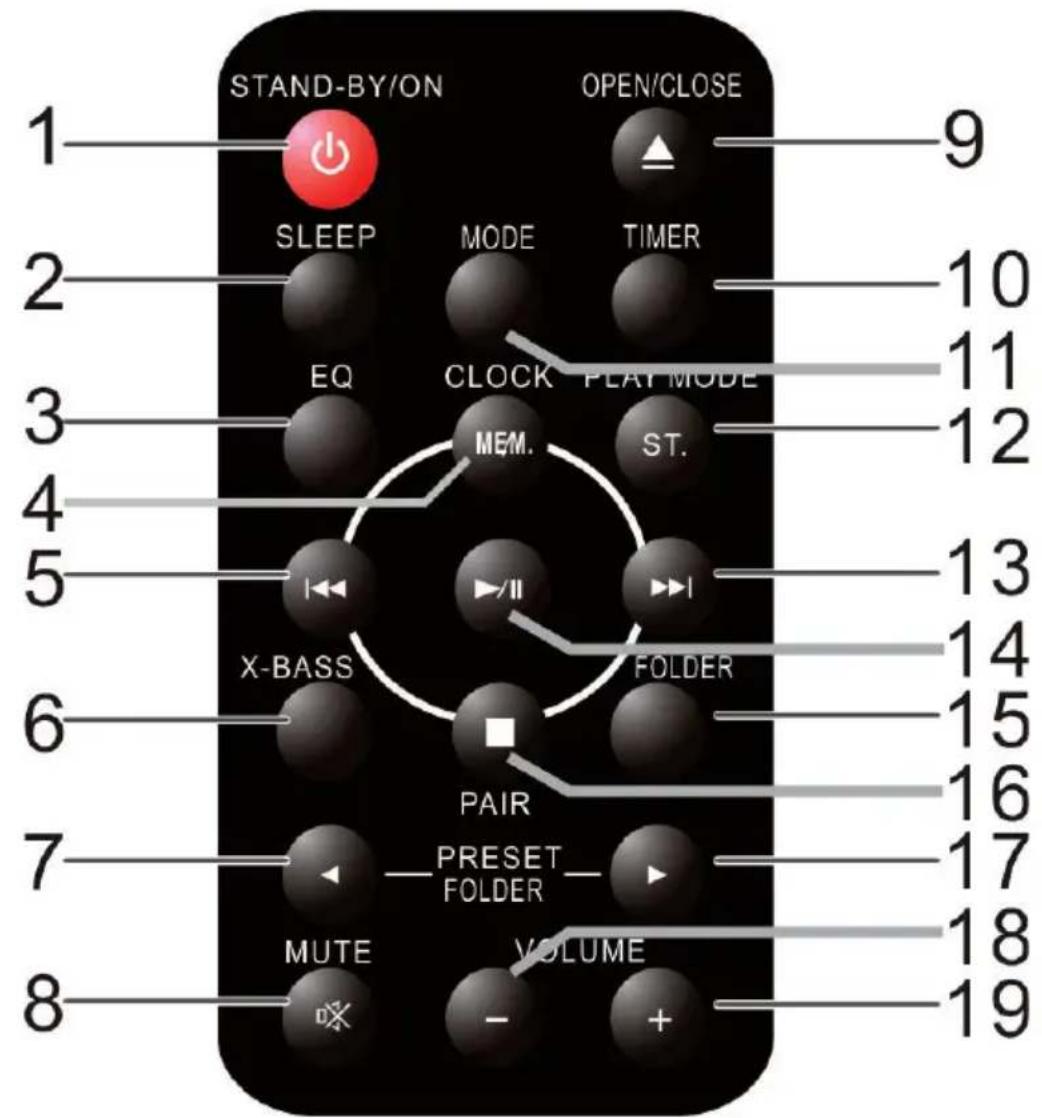

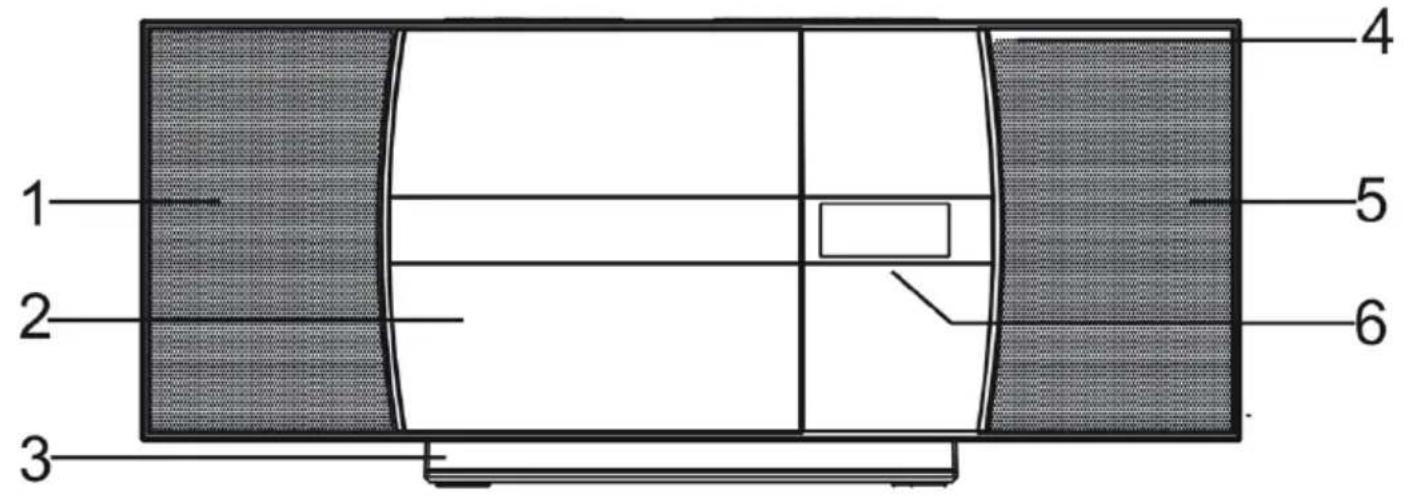

OPEN/CLOSE 9 19 VOL +

Dear Customer, Congratulations on purchasing this product. Please read and follow these instructions, in order to avoid damaging the item. We do not cover any damages that may arise from improper use of the item or the disregard of the safety instructions. Important Safety Advice

• Read all instructions before using.

• To protect against a re, electric shock or personal injury, do not immerse cord, electric plugs or device in water or other liquids.

• Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.

• The use of attachments that are not recommended by the appliance manufacturer may result in re, electric shock or personal injury.

• Do not open the unit by removing any cover parts. Do not attempt to repair the unit. Any repairs or servicing should be done by qualied personell only.

• Only qualied persons may perform technical work on the product. The product may not be opened or changed. The components cannot be serviced by the user. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications.

• The appliance is not a toy. Do not let children play with it. Never let children insert foreign objects into the appliance.

• Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical products. Instead, use a soft, dry cloth or soft brush.

• We strongly suggest you power o projector when play it for 6 hours constantly one time.

• To protect your eye , do not watch directly at the lens when projector working .

• Save these instructions. Small objects Keep small objects (i.e. screws, mounting material, memory cards etc.) and packaging out of the range of children. Do not let Children play with foil. Choking hazard! Transporting the device Please keep the original packaging. To gain sucient protection of the device while shipment or transportation, make sure to put it back in its original packaging. Cleaning the surface Do not use any volatile liquids, detergents or the like. Use a clean dry cloth.12 Technical Data Art No. 10029361, 10029362, 10029363, 10029364 Power supply AC 230V ~ 50Hz Power consumption 27W max. Speakers 2x 3“, 5W @ 4Ω (THD @ 1kHz: 10% max.) FM Frequency FM 88 - 108 MHz USB Compatible with USB 1.1 & USB 2.0 File types: MP3 (32 ~ 320 kbps)

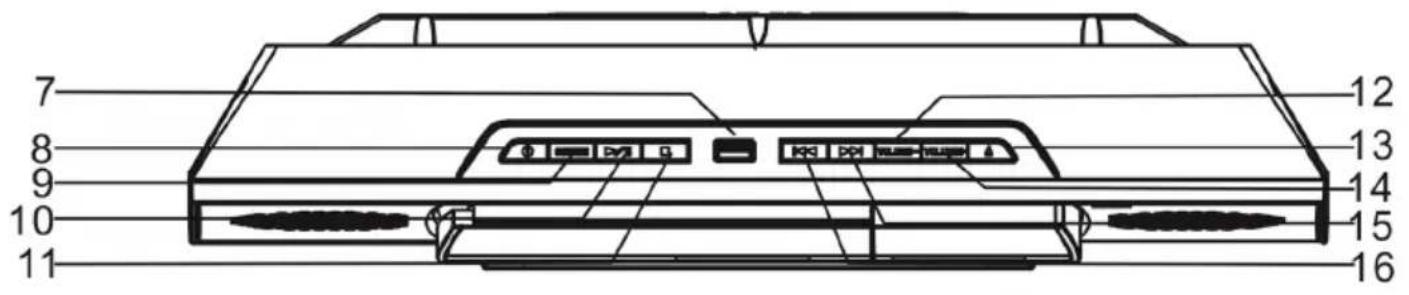

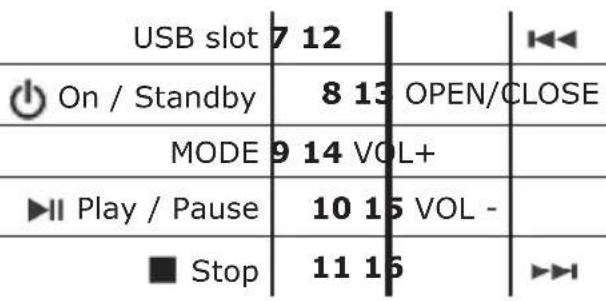

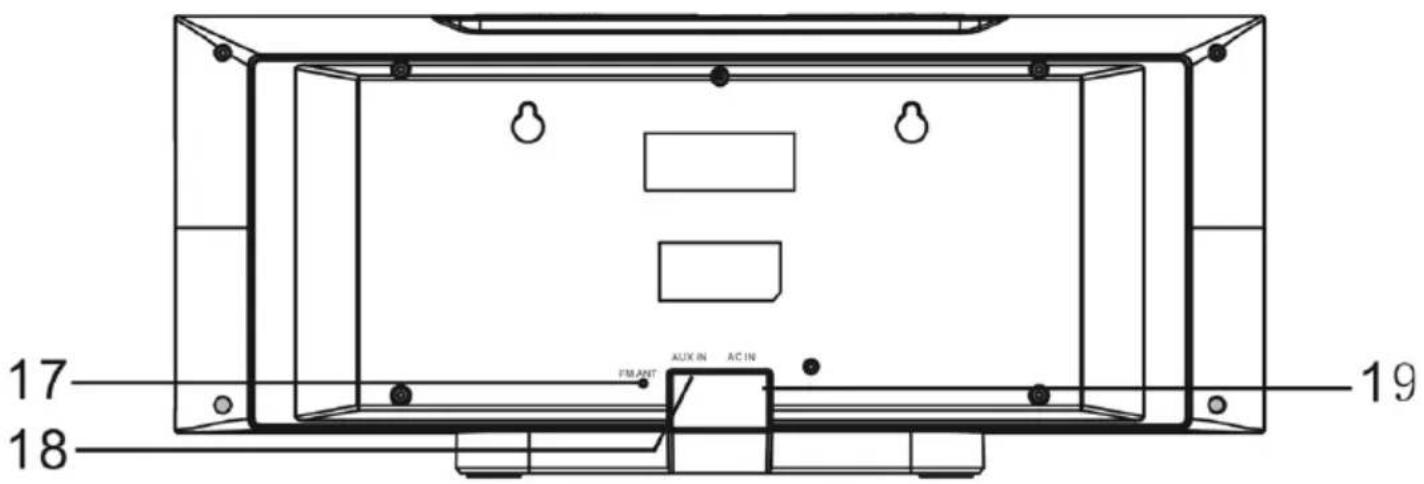

OPEN/CLOSE 9 19 VOL +

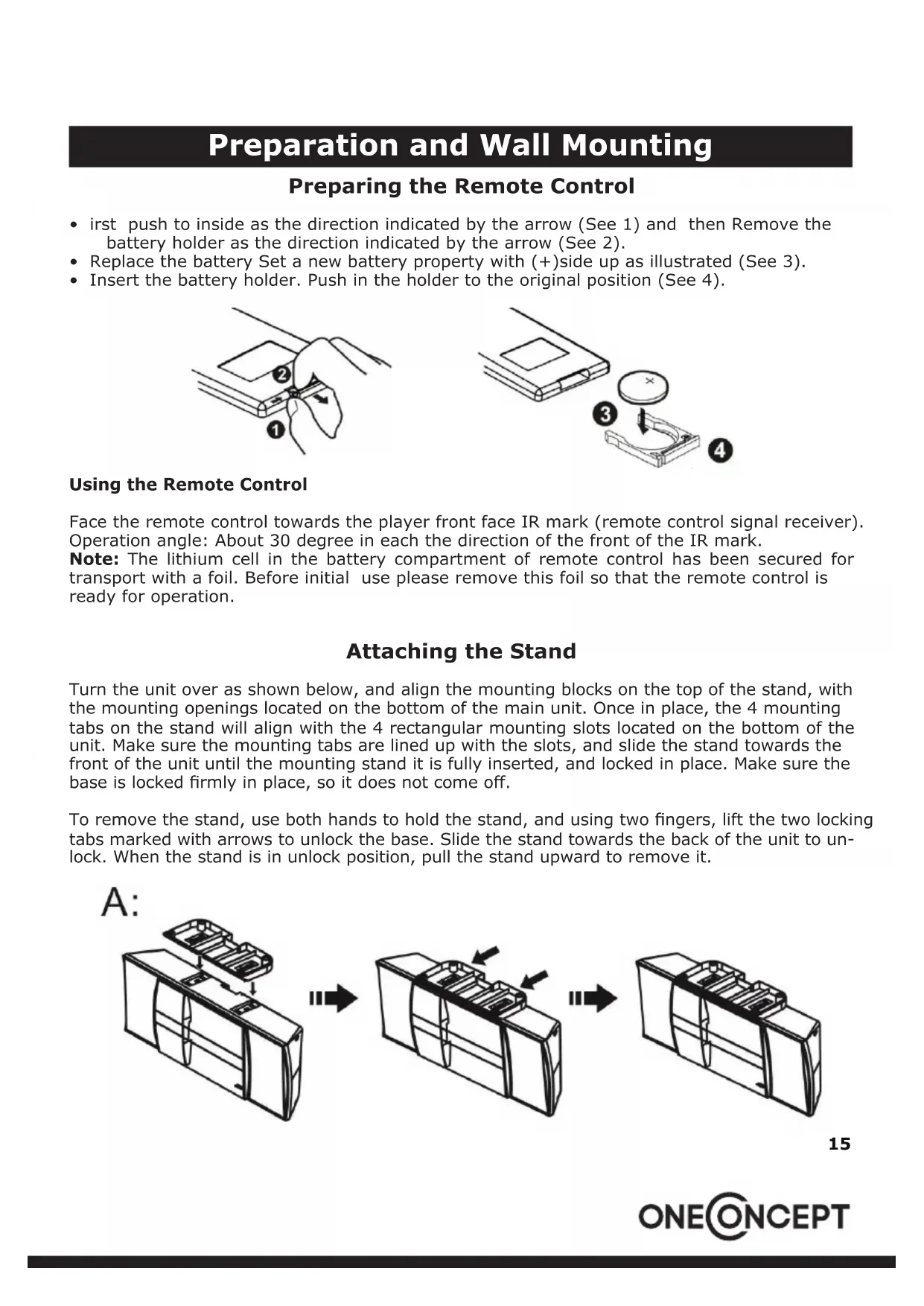

TIME 1015 Preparation and Wall Mounting Preparing the Remote Control

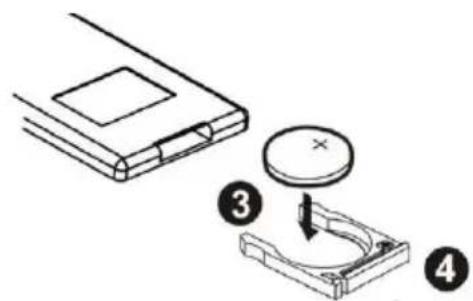

• irst push to inside as the direction indicated by the arrow (See 1) and then Remove the battery holder as the direction indicated by the arrow (See 2).

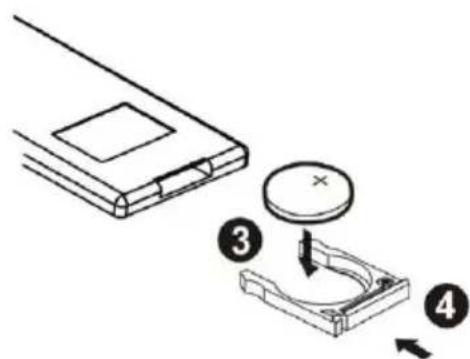

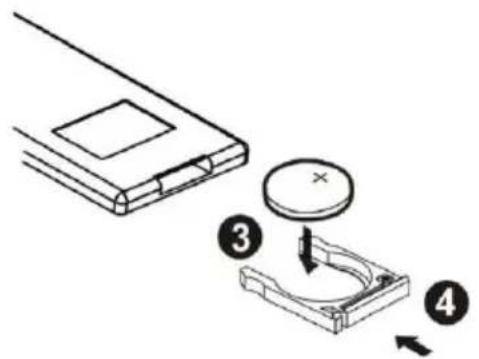

• Replace the battery Set a new battery property with (+)side up as illustrated (See 3).

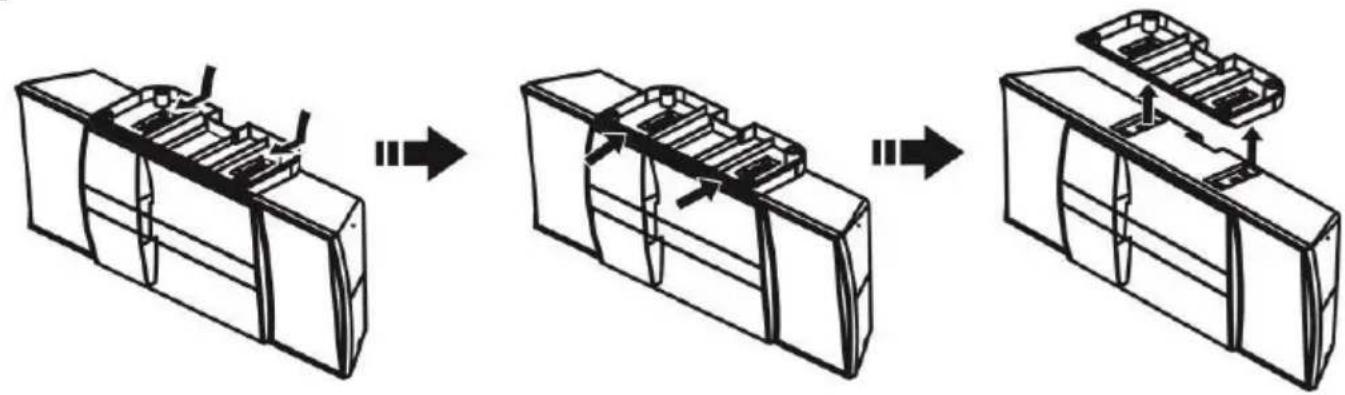

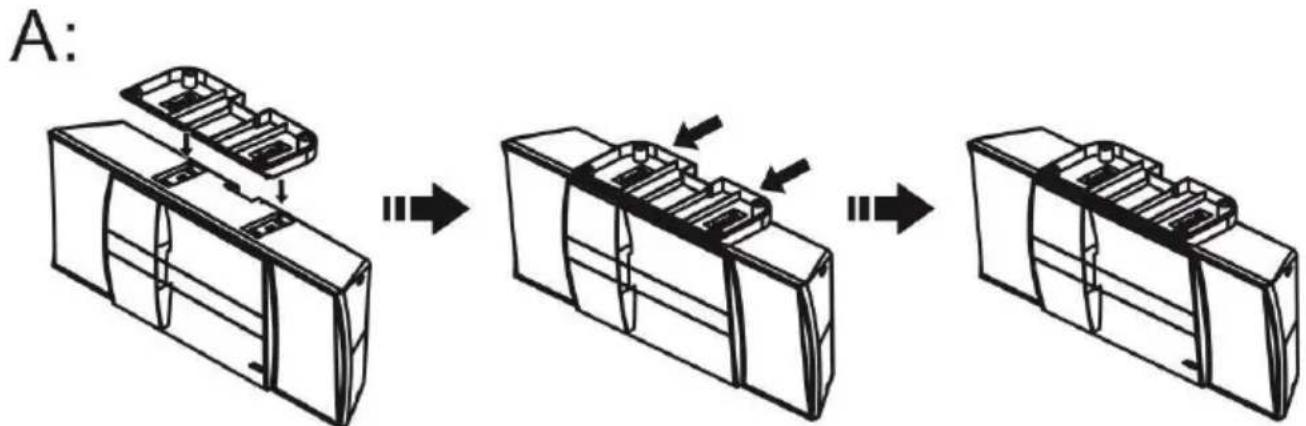

• Insert the battery holder. Push in the holder to the original position (See 4). Using the Remote Control Face the remote control towards the player front face IR mark (remote control signal receiver). Operation angle: About 30 degree in each the direction of the front of the IR mark. Note: The lithium cell in the battery compartment of remote control has been secured for transport with a foil. Before initial use please remove this foil so that the remote control is ready for operation. Attaching the Stand Turn the unit over as shown below, and align the mounting blocks on the top of the stand, with the mounting openings located on the bottom of the main unit. Once in place, the 4 mounting tabs on the stand will align with the 4 rectangular mounting slots located on the bottom of the unit. Make sure the mounting tabs are lined up with the slots, and slide the stand towards the front of the unit until the mounting stand it is fully inserted, and locked in place. Make sure the base is locked rmly in place, so it does not come o. To remove the stand, use both hands to hold the stand, and using two ngers, lift the two locking tabs marked with arrows to unlock the base. Slide the stand towards the back of the unit to un- lock. When the stand is in unlock position, pull the stand upward to remove it.16 Wall Mounting

• The stand is detachable so the device can be mounted to an appropriate wall directly. Ple- ase ask someone for support, if you are not sure how to do this.

• Make a drill pattern or simply draw marks for the drilling holes onto your wall: the holes must be on a horizontal line, with a lead of 160mm. Be sure to use appropriate tools and dowels suitable for your wall material.

• Detach the stand and hang the device with the rear eyelets to the screwheads sticking out of the dowels17 Operation Global Functions / Basic Functions MODE: Press MODE repeatedly for mode selection (Radio / CD / USB / AUX / BT). VOL+/-: Press VOL+/- to adjust the output level. MUTE: Press MUTE to mute the sound output. Press again to un-mute. X-BASS: Press to toggle X-BASS on/o. EQ: Press repeatedly to toggle pre-set equalizing (Classic - Pop - Jazz - Rock - EQ o). Radio

• Press to switch on, then use MODE to select radio mode.

• Use and to search the frequency band for stations manually (press and hold for an automatic search in the respective direction).

• Save the current station to presets with MEM (hold for 2 seconds).

• Press MEM to go to presets. Select previously saved presets with the LEFT/RIGHT buttons on the RC (7 / 17). CD / USB

• Press to switch the device on, then press MODE for the CD mode or USB mode.

• Press OPEN/CLOSE to open the CD tray and insert a CD with the printed side facing to- wards you. CDs will be read in automatically. Insert USB drives with music les into the USB slot on the top of the device.

• Control playback with , , and .

• For MP3 CDs or USB drives with folders: use the RIGHT/LEFT buttons (7 / 17) to toggle folders.

• Repeat/Random: During playback, press PLAY MODE repeatedly for REPEAT 1 (current track on repeat) - REPEAT ALL (all contained tracks on repeat) - RANDOM (tracks will be played in random order).

• Program Mode: Program a playlist with up to 20 les: Stop playback with and press- MEM. Use and to select the desired track and press MEM again. Repeat this pro- cedure for up to 20 times and start playback with .18 BT (10029363 & 10029364) This device supports BT 2.1 + EDR with the A2DP prole. The BT function can be used to stream music from your smartphone / tablet / other BT device, but does not support hands free calling.

• Press to switch the device on and press MODE to select the BT mode.

• Activate BT on your smartphone/tablet/computer and pair with V-15.

• Use the buttons , , and to navigate through your media library or use your external BT device.

• Enter „0000“ , if prompted to enter a password. The device will automatically pair to the previously connected BT device. To pair another device, press and hold PAIR for 3 seconds. The BT indicator ashes quickly: Device is in pairing mode. AUX IN

• Press MODE repeatedly to select AUX mode.

• Connect the AUX wire from the out jack of your Personal Player such as portable MP3 player to the AUX input jack.

• Turn on your player to begin playing, adjust the volume to desire listening level.

• Adjust the volume by rotating the Vol +/ – knob. Uhrzeit / Timer / Sleep Set the clock:

• Swicth to standby ( ), then press and hold CLOCK for 2 seconds.

• Switch between the clock display in 12h or 24h mode, using the LEFT/RIGHT buttons and conrm pressing CLOCK.

• Use / to set the hour and press CLOCK to conrm. Repeat for setting the minutes. Please note: The clock will be reset, when the device is disconnected from the AC outlet. Set timer:

• Press TIMER to activate the timer function. The time indicator will appear on the display.

• Press and hold TIMER for two seconds, to set the timer. Set the hour with / and press TIMER to conrm. Repeat the procedure to set the minutes.

• Select the desired music source (Radio/CD/USB) with LEFT/RIGHT (7/17) and press TIMER to conrm.

• Set the desired volume with VOL+/- and press TIMER to conrm. Sleep: While the device is playing, press SLEEP repeatedly to switch on and set the sleep timer in steps of 10 minutes (90mins - 80mins - 70mins - ... - 10mins - o).19 Hints on Disposal According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recyc- ling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environ- ment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailled information about recycling of this pro- duct, please contact your local council or your household waste disposial service. Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. Declaration of Conformity Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. This product is conform to the following European Directives: 2014/30/EU (EMC) 2014/35/EU (LVD) 2011/65/EU (RoHS)
