USER MANUAL EMCG 32 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your microwave will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the microwave (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning • Operation • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.50

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual Uses for non-intended purposes

• Improper repairs Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for

• Defrosting • warming up • cooking • grilling • reducing bakingfoods and beverages. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas;

• in agricultural estates; in B&Bs,

• by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.51 Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

AND KEEP FOR FUTURE REFERENCE

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► This appliance may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the appliance and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. ► Children are not allowed to play with the device. ► The appliance and its connecting cable must be kept away from children who are less than 8 years old. ► The appliance may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the appliance and have understood the resulting hazards.52 Please note ► The appliance should be cleaned regularly and all food residues removed after each use. ► Read and follow the instructions on “Danger due to microwaves”. ► Do not use utensils that are not suitable for the use in microwave appliances. ► The appliance may only be installed or fitted according to the instructions attached. ► Do not leave the device unsupervised when it is in operation. ► Do not operate the oven if it is empty. This could damage the device. ► The device is not intended for drying, warming up or heating up living animals. ► Food thermometers are unsuitable to be used when the microwave is in operation. ► Do not use the cooking chamber for storage purposes. Do not leave any paper products, cooking utensils or foodstuffs in the cooking chamber when the oven is not being used. ► Do not use or store the appliance outdoors. ► Do not use the appliance near water, in damp or humid basements or near swimming pools. ► The appliance must not be cleaned with a steam cleaner. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.53 Please note ► Device is not intended to be operated by means of an external timer or separate remote-control system. ► Install or locate this oven only in accordance with the installation instructions provided. ► This oven is especially designed to heat food. It is not designed for industrial or laboratory use.

► PLEASE READ THESE SAFETY INSTRUCTIONS

CAREFULLY AND KEEP FOR FUTURE REFERENCE.

12.3 Sources of danger

12.3.1 Danger due to microwaves

Warning Exposure to microwaves on the human body can result in injuries. Please observe the following safety notices in order not to expose yourself or others to microwaves. ► Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves. ► Never position any items between the front of the oven and the oven door and avoid any dirt deposits or cleaning material residues directly on the sealing areas of the device. ► Do not remove any of the coverings on the device. ► If the door or door seals are damaged, the device must not be operated until it has been repaired by an authorized person. ► Do not use the device under the following circumstances: - if the device door is warped, if the door hinges are loose - if there are visible holes or cracks on the housing, - on the door or on the walls of the cooking chamber54 Warning ► WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

12.3.2 Danger of burns

Warning The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others. ► When grilling with or without operating the microwave, the cooking chamber, the grill element and the device door will become hot! Keep the power cable away from any surfaces and make sure the ventilation slots in the appliance are not covered up. ► Accessible parts can become hot during use oft he appliance; keep children at a safe distance. ► During use the appliance will heat up; do not touch the heating elements inside the appliance. ► The appliance and accessible parts will become very hot during use. Do not touch the heating elements; keep children under the age of 8 years at a safe distances or under supervision at all times. ► Use oven mitts when sliding in or removing items that are being browned as well while foods/cookware are being handled within the cooking chamber, whenever the grill is switched on or just before it is switched on.55 Warning ► Do not use the oven for deep-frying. Hot oil can damage parts of the oven and the cookware and cause burns. ► Please bear in mind that the foods and liquids in the device are mainly being heated when the microwave is in operation, and not the container itself. Although the lid of a container is not hot, the same amount of steam and spills can be created on removing the lid as in a conventional cooking process when you remove it from the device. ► In particular, the contents of baby bottles and baby food jars must be stirred or shaken, and the temperature must be checked before consumption to prevent scolding. ► With certain foods, there is a danger of burns due to superheating. With foods consisting of a mixture of fat and water, such as broth, wait about 30 to 60 seconds before removing the food from the device. This will allow the mixture to settle. Thus, you avoid sudden bubbling up when a spoon is inserted into the food or the liquid or after adding a stock cube. ► Microwave heating of beverages can result in delayed eruptive boiling (boiling retardation), therefore care must be taken when handling the container. ► In order to prevent superheating, you can also place a metal spoon into the cooking vessel prior to cooking. However, bear in mind that the spoon must not make contact with any parts of the device walls or the grill, as this could result in damages to the device. ► The outside surfaces of the cabinet may get hot.56

12.3.3 Danger of fire

Warning There is a danger of fire due to the ignition of the content in the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► Please bear in mind that the times for cooking, heating up, defrosting using the device are frequently considerably shorter than on a stove top or in the oven. Leaving the device on for too long will result in foods drying out and eventually self-igniting. There is then a danger of fire! The danger of fire is also present if bread, rolls, flowers or herbs are being dried for too long. ► Do not overheat food. ► Do not warm up pillows or similar items filled with grains, cherry pits or gel. These items can ignite, even if they are removed out of the device after they are warmed up. ► Do not warm up any alcohol in an undiluted state. ► Never the leave the device unsupervised if you are warming up or cooking foods in disposable containers made of plastic, paper or other flammable materials. ► If smoke is emitted turn off the appliance or unplug the appliance and keep the door closed to extinguish any flames. ► Disposable containers made of plastic must have the properties shown under the heading “Notices on microwave cookware”. ► Never use the device to store or dry flammable materials.57 Warning ► The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. ► Always remove grease residues in the device, as these residues can otherwise ignite.

12.3.4 Danger of explosion

Warning There is a danger of explosion due to excess pressure that is created in the event the device is not used properly. Observe the following safety notices to avoid dangers of an explosion: ► Liquids and other food must not be heated in closed vessels as these may explode. ► Remove the sealing caps and nipples on baby bottles. ► Do not use dishes with hollow handles and buttons on lids for cooking in which liquid can get inside the voids if these voids are not sufficiently vented. ► Do not cook eggs in the shell or extremely hard boiled eggs in the device as they can still explode, even after the microwave operation has been completed. ► Remove twisted wire closures on paper or plastic bags so that no excessive pressure can develop.58

12.3.5 Dangers due to electrical power

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Ensure that the device is switched off before replacing the lamp to prevent the risk of electric shock. 13 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

Warning ► Packaging materials may not be used for playing. There is a danger of suffocation. ► Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

13.2 Delivery scope and transport inspection

As a rule, the EMCG 32 Microwave is delivered with the following components:

• Screw and Trim-kit plastic cover for installation59

• Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows:

• Remove all packaging and accessories.

• Check the appliance for possible damages (dents, damaged door etc.). Damaged appliances may not be used.

• Casing: Remove the protective film covering the outside surface of the appliance.

• The light brown/silver cover in the interior of the appliance protects the magnetron and must not be removed.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Installation of the appliance

13.5.1 Requirements for the installation:

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• Ensure that the power cable does not hang down over a table or counter edge.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

• Place the microwave appliance as far away from radios of TVs to minimize any interference to radio and TV reception.

• This appliance is only intended for domestic use.60

• This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.

• The appliance may only be operated when the door of the built-in furniture is open.

► Touching internal compponents may cause serious, severe and fatal injuries. ► Do not disassemble the appliance. ► Improper grounding can cause electrical shocks. Do not use a power outlet if it is not properly installed and grounded. In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.

• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.

• This appliance must be electrically grounded. In case of a short circuit grounding will protect against electric shocks because the electrical current is diverted through the grounding lead. The appliance is fitted with an appropriate cable with a ground lead and a grounded safety plug. The plug must be inserted into a properly installed and grounded outlet.

• The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

• Adapters, multi-way strips and extension leads must not be used. Overloading can lead to fire.

• In case the plug is no longer accessible after installation, a circuit breaker disconnecting all electrical poles with a distance of at least 3mm between contacts must be present in the line.

• In accordance with the appropriate regulations, the socket must be installed and the connecting cable must be replaced only by a qualified electrician.61

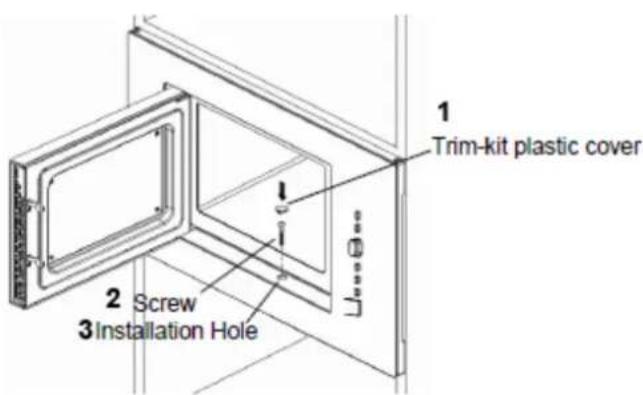

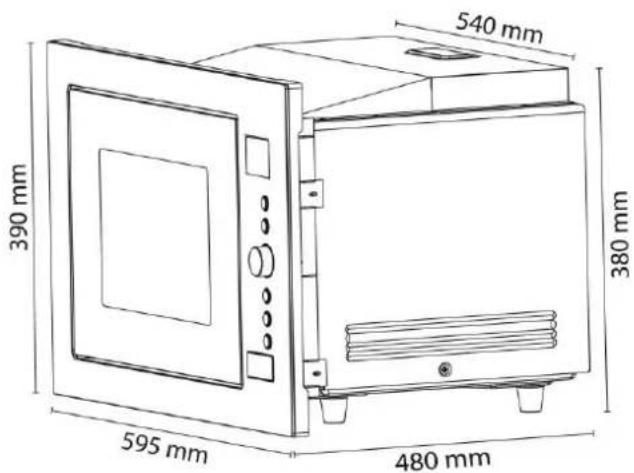

13.5.3 Installation instruction

Please observe this special installation instructions.

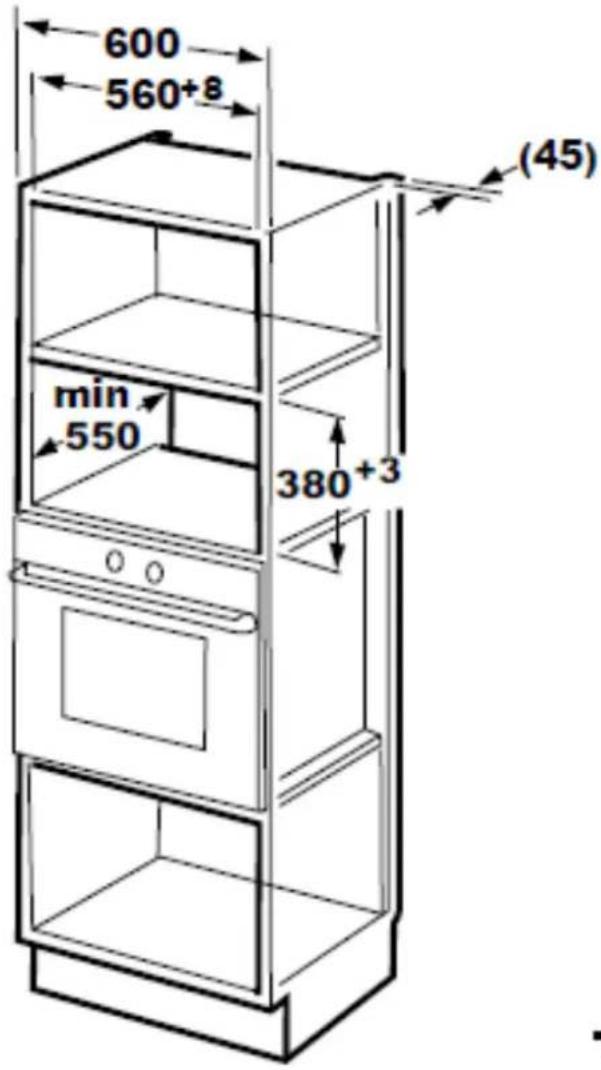

• The appliance can be installed inside a 600 mm wide wall- mounted cupboard / cabinet.

• The cabinets sides should be 4 mm thick each. (560 + 8 mm)

• The height inside the cabinet is 380 mm + 3 mm. Because of those 3 mm, the device can be easily slotted into the compartment. (at least 550 mm deep and 850 mm off the floor).

• The built-in cabinet shall not have a rear wall behind the appliance. Distance to a wall behind the fitted cupboard: at least 45 mm

• Do not cover ventilation slots and air intake points.

• Do not trap or kink the power cord.

• Make sure that the oven is installed in the center of the cabinet.62 Open the door; fix the oven to the cabinet with screw at the installation hole. Then fix the trim-kit plastic cover (1) on the screw (2) in the installation hole (3). Please note ► Install or locate this oven only in accordance with the installation instructions provided. ► The outside surfaces of the cabinet may get hot. ► If you use your appliance at a height of 900 mm or more above the floor, please ensure that the turntable does not shift when you remove your food / container. There is a danger of injuries!

13.5.4 Avoiding radio interference

The device can cause the occurrence of interference in radios, televisions or similar devices. Such faults can be rectified or reduced as a result of employing the following measures:

• Clean the door and the sealing surfaces of the device.

• Set the radio, the television, etc as far as possible away from the device.

• Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference.

• Use a properly installed antenna for the receiver, to ensure good reception.

13.6 Assembling the accessories

13.6.1 Glass turntable

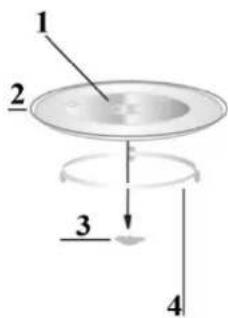

1 Hub (underside) 2 Glass turntable 3 Turntable drive 4 Rolling ring Assemble the glass turntable as follows:

• Insert the rolling ring

• Place the glass turntable inside the appliance so that the grooves on the underside of the glass dish lock into the turntable drive.

• Never place the glass tray inside the appliance upside down; it must be able to revolve freely.

• When cooking always use the glass turntable and the matching rolling ring.

• Always place all food and containers on the glass turntable or the grating for grilling.

• In case the glass turntable or the rolling ring crack or break please contact your Service Centre.63

• Place the grating on the glass turntable. Please note ► Use the grating only for grilling, convection and combination operation C3. 14 Design and Function This chapter provides you with important safety notices on the design and function of the device.

The appliance will emit the following signal tones as acoustic feedback:

• One signal tone: The appliance has accepted the entry. The buzzer will sound once when turning the knob at the beginning.

• Two signal tones: Either you are requested to turn the cooking goods or, when preheating, to place the cooking goods into the oven.

• Five signal tones: End of the cooking time.

• No signal tone: The appliance has not accepted the entry, check and try again. Display panel: Cooking time, output, function display and actual time are displayed.

14.4 Safety equipment

14.4.1 Warning notices on device

ATTENTION Danger due to hot surface! There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot. ► Do not touch the hot surfaces of the device. Danger of burns! ► Do not set or lay any items on the device. ► Do not place the microwave appliance above a cooker, hob or another devices producing heat, as this would damage the microwave appliance and render the warranty void.

A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open. ATTENTION Danger due to microwaves! If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation. ► Do not operate the device if the safety switch is defective. ► Do not disable this safety device.

14.4.3 Child-proof lock

The child-proof lock prevents children from using the device without supervision. ➢ Activating the child-proof lock: Press the button for three seconds until a signal tone is heard and the function display lights up. In the locked state, all the buttons are disabled. ➢ De-activating the child-proof lock: Press the button for three seconds until a signal tone is heard and the illumination on the function display goes out. In the locked state, all the buttons are disabled.

The rating plate with the connection and performance data can be founded on the back of the device.66 15 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Principles of microwave cooking

• The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary.

• Arrange the food carefully. Position the thickest areas on the external edge of the bowl.

• Cover the food while it is cooking. Lids protect against spatters and also contribute towards cooking/warming up the food evenly.

• During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly.

• Any existing germs in the food are only killed off if the temperature is sufficiently high enough (> 70°C) and if the time used is sufficiently long enough (> 10 m in).

• Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst.

• Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking.

• Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.

15.2 Operating modes:

The unit is to be operated in various operating modes. The following list shows the operating modes that are possible with the device: ➢ “Microwave” mode This operating mode is suitable for the normal reheating of food. ➢ “Grill and combination programmes” mode The “Grill” (G1) mode is suitable for roasting and gratinating food.67 The combination programmes are suitable for simultaneous microwaving, grilling and convection cooking. The following combination programmes are available: Display Combination programme

Microwave Grill Convection C-1

➢ “Convection” mode In this operating mode, the hot air in the cooking chamber circulates in order to warm the food quickly and evenly. ➢ „Multi-Stage Cooking“ Mode This mode allows you to program up to 2 automatic sequences. It is possible to set the sequence and duration of defrosting, microwave cooking and grilling or hot air mode. ➢ “Automatic cooking programme” mode This mode allows you to select the cooking program from 10 different menus. ➢ Automatic defrost This operating mode is suitable for defrosting frozen food. You can select whether to defrost by weight or time.

15.3 Information on microwave cookware

The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food. Please observe the following tips when selecting the correct cookware: ► Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim. ► For microwave cooking, do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire. ► Use round or oval instead of square or rectangular cookware, as otherwise the food could tend to overheat in the corners. ► You can use narrow strips of aluminium foil to protect sensitive areas against excessive heating. But do not use too much foil and maintain a distance of approx 2.5 cm between the foil and the walls of the cooking chamber. ► Do not use any aluminium foil when using the microwave or combinations with the microwave (see following table).68 The following table is intended as a basis for selecting the correct cookware: Cookware Microwave Grill Convection Combination Heat-resistant glass dishes

Heat-resistant ceramic dishes

Microwave-resistant plastic container

Aluminium foil and container

➢ Open door Push the door opener to open the door of the device. If the device is switched on, the current cooking programme will be interrupted. Please note ► Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape. ➢ Close doors Close the door until the door latch audibly locks in place. If a current cooking programme was interrupted as a result of opening the door, the current cooking programme will be continued after pressing the button .

15.5 Activation after selecting the programme

After selecting the program, press to start the preset cooking programme.

1) Quick start of the microwave: You can start the mircowave diectly with full power for

any period of time. Turn to set the time and then press directly to start the microwave on full power.

2) Press in standby mode to heat food at full power for 30 seconds. Press again

to increase the time by 30 seconds which each pressing, the maximum is 95 minutes.69

In order to interrupt an ongoing cooking programme, you can proceed as follows: Press the button once. The cooking programme that is in use will be stopped. Open the door of the device. The cooking programme that is in use will be stopped. Please note ► To continue the interrupted cooking program, press the button after closing the door. To terminate the interrupted program, press the button a second time. Please note ► Before beginning a different cooking process you must delete the display and reset the system by pressing the button .

15.8 Setting the clock

As soon as the appliance is connected to electrical power the display will show 0:00 and the buzzer will sound once.

1) Press twice, 00:00 is displayed.

2) Turn to set the hours in the range 0-23 (24 hour clock).

3) Press and the minutes will flash.

4) Turn to set the minutes in the range 0-59.

5) Press to conclude setting the clock. The colon in the clock display will flash.

Attention: If the clock has not been set it is not available later. In case you press while setting the clock the appliance will return to the previous state.

15.9 Kitchen timer function

1) Press once, 00:00 is displayed.

2) Turn to set the waking time (maximum 95 minutes).

3) Press to confirm the setting.

4) When the waking time is reached the buzzer will sound five times. If the clock has

been set, the current time is displayed. Attention: The timer is independent of the clock setting, it is simply a kitchen timer counting down the minutes.70

15.10 “Microwave” mode

When microwaving you can adjust the power level and the cooking time (maximum 95 minutes).

1) Press once and “P100” is displayed.

2) Press repeatedly or turn until the desired power level is displayed

(P100, P80, P50, P30, P10).

3) Press to confirm the setting.

4) Turn to set t he cooking time between 0:05 (5 seconds) to 95:00 (95 minutes)

5) Press again to start the cooking process.

6) When the end of the cooking time has been reached the system will sound five signal

tones. Example: If you want to cook something for 20 minutes at 80% power level proceed as follows:

1) Press once, “P100” is displayed.

2) Press again or turn to select the microwave power level.

3) Press to confirm the setting, “P80” is displayed.

4) Turn to set the cooking time until “20:00” is displayed.

5) Press to start the cooking process.

6) When the end of the cooking time has been reached the system will sound five signal

tones. Attention: The increments for the cooking times are as follows: 0 – 1 minute: 5 seconds 1 – 5 minutes: 10 seconds 5 – 10 minutes: 30 seconds 10 – 30 minutes: 1 minute 30 – 95 minutes: 5 minutes Microwave power levels: Number of presses on the button

The “Grill” operating mode is especially suitable for thin slices of meat, steaks, chops, kebabs, sausage and chicken pieces.

1) Press once and “P100” is displayed.

2) Press repeatedly or turn until G1 (Grill mode) level is displayed.

3) Press to confirm the setting.

4) Turn to set t he cooking time between 0:05 (5 seconds) to 95:00 (95 minutes).

5) Press again to start the cooking process.

6) When the end of the cooking time has been reached the system will sound five signal

tones. Please note ► Half way through the grill time the buzzer will sound twice to request that you now turn the goods in the grill. Open the door, turn the food over, and close the door again. Press to continue the grilling process. ► ATTENTION: The appliance will not stop after sounding the buzzer.

15.12 Combination programmes

1) Press once and “P100” is displayed.

2) Press again or turn to select the desirect combination programme “C-

1”, “C-2”, “C-3” or “C-4” is displayed.

3) Press to confirm.

4) Turn to set the cooking time between 0:05 (5 seconds) and 95:00 (95 minutes).

5) Press to start the cooking process.

6) When the end of the cooking time has been reached the system will sound five signal

tones. Please note ► Half way through the grill time the buzzer will sound twice to request that you now turn the goods in the grill. Open the door, turn the food over, and close the door again. Press to continue the grilling process. ► ATTENTION: The appliance will not stop after sounding the buzzer.72 Attention: Instructions for combinations Number of button presses Display Microwave Grill Convection

15.13 “Convection” mode

In this operating mode, the hot air in the cooking chamber circulates in order to warm and brown the food quickly and to cook it so it is crispy. This oven can be set to ten different cooking temperatures. The maximum cooking time is 95 minutes.

15.13.1 Mode “Convection” with preheating

1) Press once and “P100” is displayed.

2) Press repeatedly or turn to select the convection mode. When

temperatures are displayed, this inidicates the convection mode. The temperature can be chosen from 140° and 230° C.

3) Press to confirm the temperature.

4) Press again and the appliance will start preheating. When the preheating

temperature has been reached the buzzer will sound twice request that you now place the food to be cooked into the oven. The preheating temperature will flash in the display. Place the food in the oven and close the door.

5) Turn to set the cooking time to a maximum of 95 minutes and confirm by pressing

6) When the end of the cooking time has been reached the system will sound five signal

tones. Please note ► You can only entr the cooking time when the preheating temperature has been reached. You must open the door once so the cooking time canbe entered. If the cooking time is not entered within 5 mminutes after the dual buzzing the appliance will switch to standby mode.

15.13.2 Operating mode “Convection” without preheating

1) Press once and “P100” is displayed.73

2) Press repeatedly or turn to select the convection mode. When

temperatures are displayed, this inidicates the convection mode. The temperature can be chosen from 140° and 230° C.

3) Press to confirm the temperature.

4) Turn to set the cooking time to a maximum of 95 minutes and confirm by pressing

5) When the end of the cooking time has been reached the system will sound five signal

15.14 “Multi-stage Cooking" Mode

In this mode you can program up to up to 2 automatic cooking sequences. The sequence and duration of defrosting, microwaving, grill (combination) or convection cooking can be adjusted. If you intend to use the defrost function, this must be programmed as the first function in the sequence. Please note ► The automatic cooking programmes and the preheating function cannot be used for multi-stage cooking.

• Example: If you want to defrost food for 5 minutes and then microwave the food at 80% power level for 7 minutes proceed as follows:

1) Press twice and “dEF2” will be displayed to indicate defrosting by time.

2) Turn to set the defrosting time to 5 minutes.

3) Press and set the power level for microwaving to 80% by until the

display shows “P80”. Press to confirm.

4) Adjust the cooking time by turning to 7 minutes.

5) Press to start the multi-stage cooking process.

6) When the end of the cooking time has been reached the system will sound five signal

tones. Please note ► Please do not confirm the time setting between programming the first and second cooking programme because that would automatically start the first programme. After setting the time for the first cooking programme directly enter the function for the second cooking programme.74

15.15 “Cooking Program” Mode

In this operating mode, the cooking programme can be selected from 10 different menus. Please refer to the table on the next page for more detailed information.

1) In standby mode turn right to select the desired function. The display will show

“A1”, “A2”, “A3” … “A10”.

2) Press to confirm the selected programme.

3) Use to select the weight or the desired number of portions. The number of

portions or the weight in grams will be displayed (see table below). Press to start the cooking process.

4) When the end of the cookig time has been reached, the system will sound five signal

A5 Potatoes 1 (approx. 230g)

100 % 2 (approx. 460g)

microwave 100% / convection 200°C

Preheat at 180° A10 Pizza

microwave 100% / convection 200°C

Please note: A9 Cake ► If you select the cake programme A9 the appliance will first preheat; do not place the cake into the iven right away, but wait for the buzzer to sound twice (the preheating temperature of 180° has been reached) and now place the cake in the oven. Close the door again and start baking by pressing . The timer will continue and the cake is baked.

15.16 “Automatic defrost” mode

You can gently defrost frozen food with the help of the “Automatic defrost” menu.

15.16.1 Mode “Defrosting” by weight

1) Press once, the display will show “dEF1”.

2) Use to set the weight of the defrosting goods. The display will start with “200g”.

You can set the weight between 200 and 2000g.

3) Start defrosting by pressing

4) When the end of the defrosting time has been reached, the system will sound five

15.16.2 Mode “Defrosting” by time

1) Press twice, the display will show “dEF2”.

2) Use to set the defrosting time to a maximum of 95 minutes.

The defrosting power is P30 (30 % microwave) and it cannot be changed.

3) Start defrosting by pressing .

4) When the end of the defrosting time has been reached, the system will sound signal

1) If during cooking you press the set time is displayed.

2) If during cooking you press the current power level is displayed.

16 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The appliance must be cleaned regularly and any food residues must be removed. Insufficient cleanliness of the device can lead to the destruction of the surface, which for its part can have a negative impact upon the service life of the appliance and can lead to a dangerous condition of the appliance as well as fungal and bacterial contamination. ► Switch the oven off prior to cleaning it and unplug the plug from the wall power outlet. ► The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down. ► Clean the cooking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items. ► Because of the hazards involved in repair or maintenance work for which the radiation safety cover must be removed, any such work may only be carried out by a skilled and qualified specialist. ► Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass of the door as they can scratch the surface, which may result in shattering of the glass.

➢ Cooking chamber and inside of door Danger of fire ► Always remove grease residues in the device, as these residues can otherwise ignite.77

• Keep the cooking chamber of the oven clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth. If the oven is excessively dirty, you can use a mild cleaning agent.

• Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape.

• Wipe off any steam, which has settled on the oven door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal.

• Smells can be removed from the oven by mixing a cup of water with the juice and the skin of a lemon, pouring this into a deep microwave-proof bowl and allowing it to cook in Microwave mode for five minutes. Then, dry off the oven thoroughly with a soft cloth.

• After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.

• Cleaning hint – If there are cooked food residues stuck to the inside walls of the oven, there is an easy way to clean these: Place half a lemon into bowl, add 300 ml water and microwave this for 10 minutes at full power. Then simply wipe the inside of the appliance clean with a soft and dry cloth. ➢ Front of device and operating panel

• Clean the front of the device and the operating panel with a soft, slightly damp cloth.

• Please bear in mind that the operating panel does not get wet. Use a soft, damp cloth for cleaning. Please note ► Leave the oven door open to prevent the device from being re-started accidentally. ➢ Exterior housing

• Clean the exterior surfaces of the device with a damp cloth. ➢ Turntable, grating and rolling ring

• The accessories (turntable, grating and rolling ring) must occasionally be removed and cleaned. Wash the accessories in warm soapy water.

• The rolling ring should be cleaned regularly to prevent excessive noise development or a rotational malfunctions. The rolling ring can be washed in a mild soapy solution . Please remember to put the rolling ring back again properly after cleaning it.

• Wipe the bottom of the oven with a mild cleaning agent. If the floor of the oven is excessively dirty, you can use a mild cleaning agent. 17 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:78

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults. Error Possible cause Action The selected program will not start. Device door is not closed Close device door Power plug is not plugged in Plug in mains plug! Fuse is not activated Activate fuse The turntable turns jerkily. Dirt between the turntable and the base of cooking camber Remove dirt Dirt on rolling ring Cooking vessel too large Use different cooking vessel Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed. Incorrectly selected time or power level Re-set time and power level Repeat process

The device functions but the cooking chamber lighting does not work. Defective cooking chamber light. Have Service dept repair cooking chamber light. Abnormal noises can be heard during operation of microwave. Food is covered with aluminium foil Remove aluminium foil The cookware contains metal and sparks are being created within the cooking chamber Observe information on cookware! The time in the display field is not correct. Power failure Re-set time Please note ► If you are unable to solve the problem with the steps shown above, please contact Customer Service.79 18 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 19 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).80 20 Technical Data Device Microwave, Grill and Convection Oven Name EMCG 32 Item No.:

Micro-onde Grill Convection C-1
