• PARTS INDEX Dynamic Integrated New Amplifier is a brand-new amplifier system where clear mid-to-high rangefrequency sound, as well as rich low frequency sound, can bereproduced and listeners can enjoy the close-to-original soundwith less distortion at either high or low volume levels. Check your accessories Maintenance Clean the unit only as recommended in the OperatingInstructions. Damage Requiring Service Have the unit serviced by a qualified service technician if:- The AC power cord or plug has been damaged- Foreign objects or liquid have gotten inside the unit- The unit has been exposed to rain or water- The unit does not seem to operate normally- The unit exhibits a marked change in performance- The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.4 ENGLISH CONNECTING EQUIPMENT Jacks and plugs of the connecting cord are color-coded as follows:Red jacks and plugs : For the right channel of audio signalsWhite jacks and plugs: For the left channel of audio signalsYellow jacks and plugs: For video signals NOTE Insert the plugs fully into the jacks. Loose connections mayproduce a humming sound or other noise interference. CONNECTIONS Before connecting the AC cord The rated voltage of your unit shown on the rear panel is 230 VAC. Check that the rated voltage matches your local voltage. IMPORTANT Connect the speakers, antennas, and all other external equipmentfirst. Then connect the AC cord at the end. PREPARATIONS p. 25

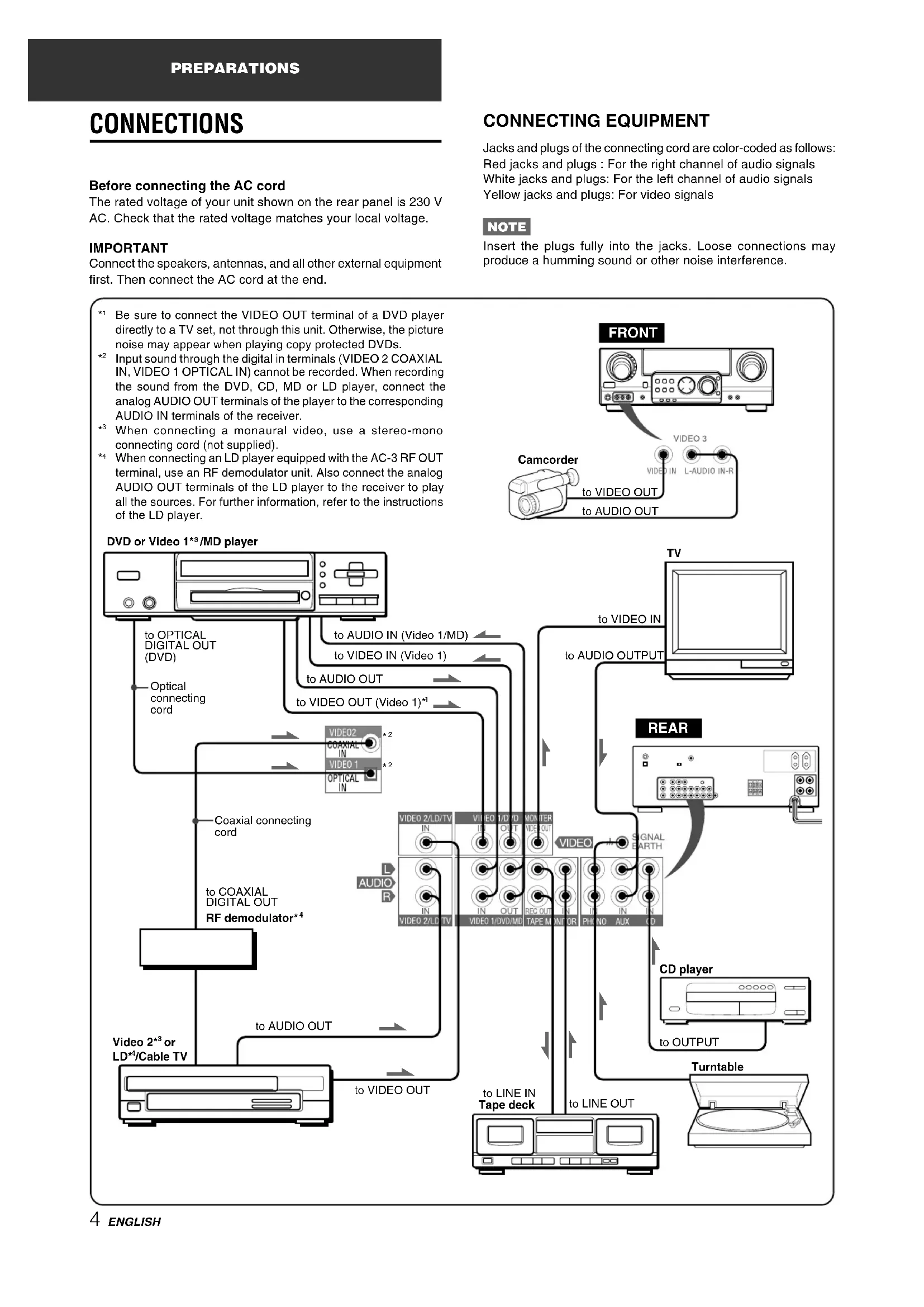

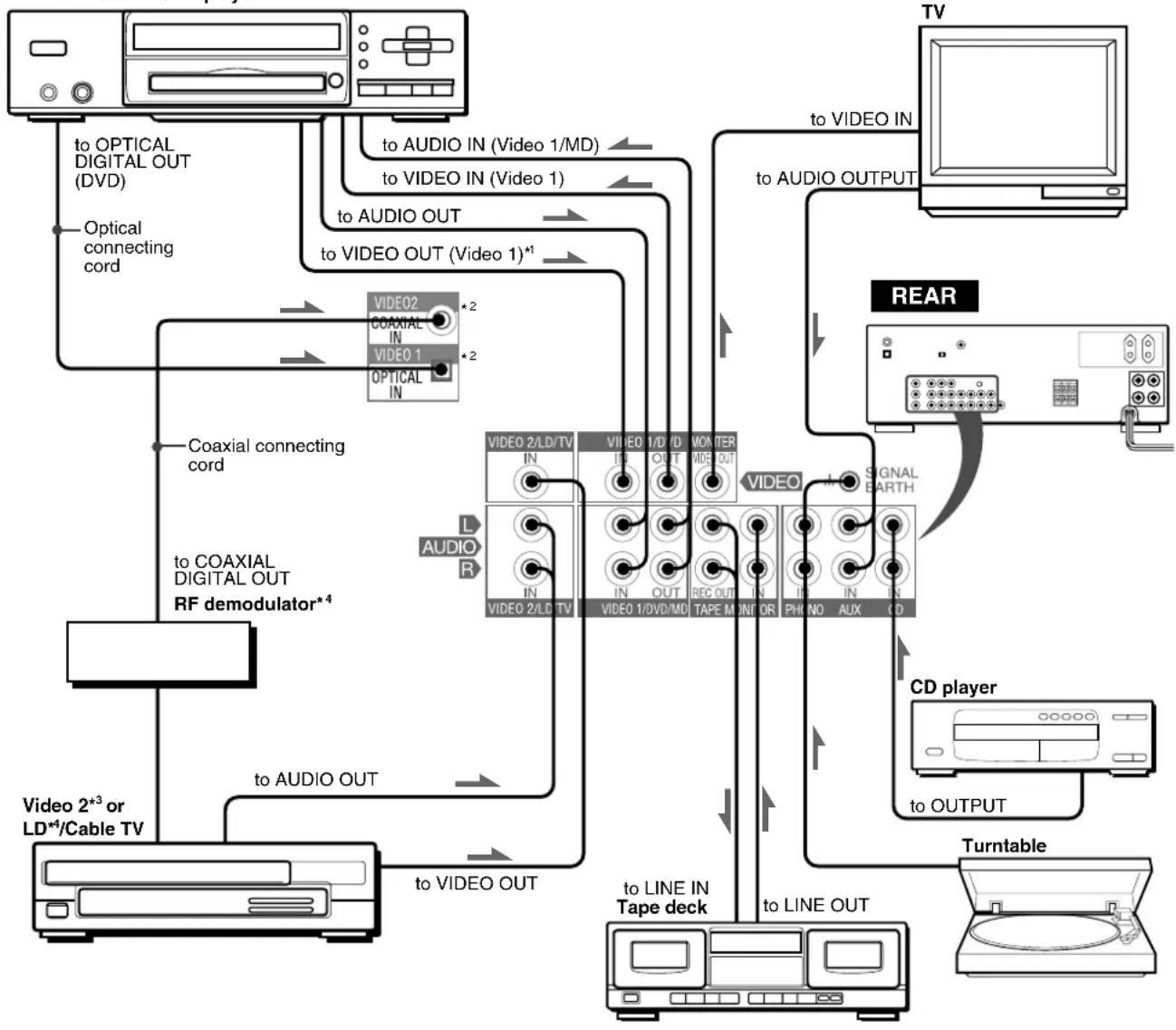

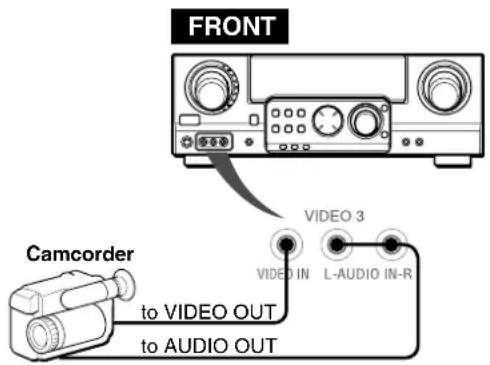

Be sure to connect the VIDEO OUT terminal of a DVD playerdirectly to a TV set, not through this unit. Otherwise, the picturenoise may appear when playing copy protected DVDs.

Input sound through the digital in terminals (VIDEO 2 COAXIALIN, VIDEO 1 OPTICAL IN) cannot be recorded. When recordingthe sound from the DVD, CD, MD or LD player, connect theanalog AUDIO OUT terminals of the player to the correspondingAUDIO IN terminals of the receiver.

When connecting a monaural video, use a stereo-monoconnecting cord (not supplied).

When connecting an LD player equipped with the AC-3 RF OUTterminal, use an RF demodulator unit. Also connect the analogAUDIO OUT terminals of the LD player to the receiver to playall the sources. For further information, refer to the instructionsof the LD player. Video 2* orLD* /Cable TVDVD or Video 1* /MD playerto VIDEO IN (Video 1)to AUDIO IN (Video 1/MD)to VIDEO INto AUDIO OUTPUTto AUDIO OUTto COAXIALDIGITAL OUTCoaxial connecting cord Opticalconnecting cord to OPTICALDIGITAL OUT(DVD)to VIDEO OUT

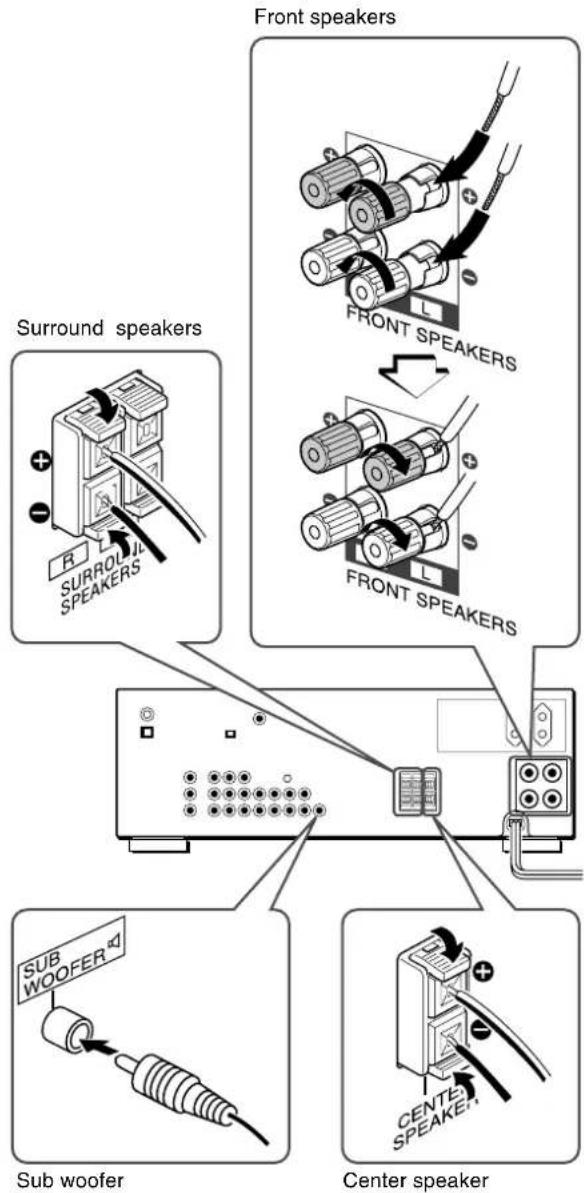

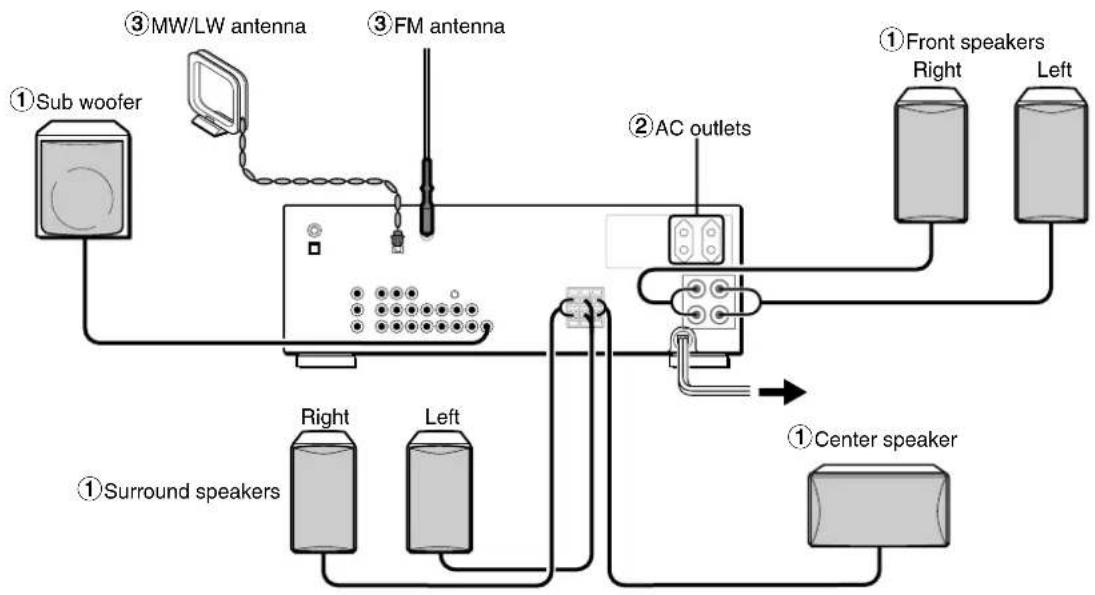

Speaker terminals Connect front speakers, a center speaker, surround speakers and a sub woofer to the corresponding speaker terminals on the unit: - the front speaker cords to the FRONT SPEAKERS terminals Insert the speaker cord lead into the terminal slot, then tighten the terminal. Check that the cord is connected securely. - the center speaker cord to the CENTER SPEAKER terminals - the surround speaker cords to the SURROUND SPEAKERS terminals. Lift up the terminal flap, insert the speaker cord lead into the terminal slot, then close the flap. Check that the cord is connected securely. - for more powerful bass, the sub woofer (with a built-in amplifier) cord to the SUB WOOFER 3 jack When connecting the sub woofer, be sure to select the “SUBW ON” (sub woofer on) mode (see page 6). Speaker impedance For all speakers, use speakers of 8 ohms or more. Connecting + to +, – to – terminals To get the proper sound effect, the speaker terminals on the unit and the speaker should be connected with proper polarity; the + terminal on the unit should be connected to the + terminal on the speaker (and – to –). NOTE

• Be sure to connect the speaker cords correctly as shown in the illustration on the right column. Improper connections can cause short circuits in the SPEAKER(S) terminals.

• Do not leave objects generating magnetism near the speakers. PREPARATIONS Sub wooferSurround speakersFront speakersCenter speaker 1, 2 and 3 in the illustration correspond to the following details. 1Surround speakers Right Left 1Center speaker 1Sub woofer 3FM antenna 3MW/LW antenna 2AC outlets 1Front speakers Right Left6 ENGLISH

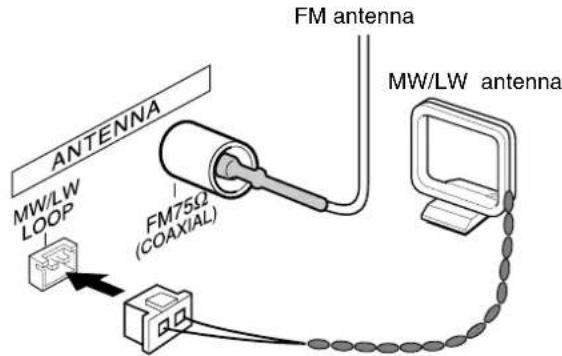

Connect the FM antenna to the FM 75 Ω terminal and the MW/ LW antenna to the MW/LW LOOP jack. To stand the MW/LW loop antenna on a surface Fix the claw to the slot as shown in the illustration. To position the antennas FM feeder antenna: Extend fully and position for the best possible reception. This antenna is of an instant type, so the use of an outdoor antenna is recommended. MW/LW loop antenna: Position for the best reception. NOTE

• Do not bring the FM antenna near metal objects or curtain rails.

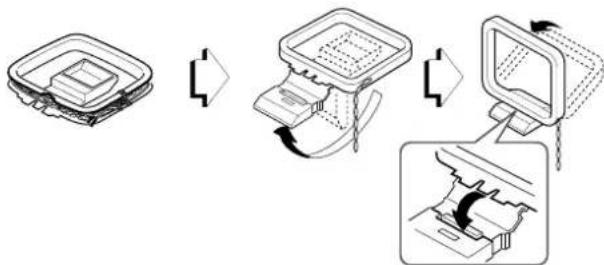

• Do not bring the MW/LW antenna near other external equipment, the unit itself, the AC power cord or speaker cords, as noise will be picked up.

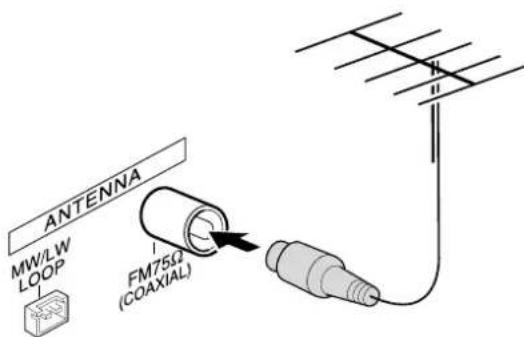

For better FM reception, use of an outdoor antenna is recommended. Connect the outdoor antenna to the FM 75 Ω terminal.

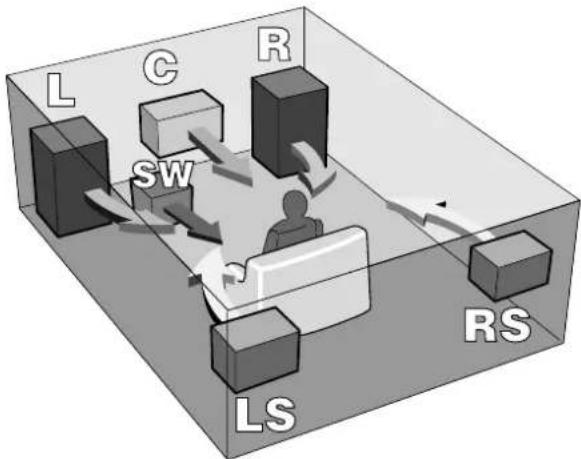

POSITIONING THE SPEAKERS

Position the speakers to make the most of Dolby, DTS or DSP surround effect. Front speakers (L/R) Center speaker (C) Position in the center of the two front speakers. In addition, position on or below the TV set, if connecting a TV set to the unit. Surround speakers (LS/RS) Place the surround speakers directly to the side of or slightly behind the listening area. Align them horizontally, about 1 meter (3.2 feet) above ear height. Sub woofer (SW) Place the sub woofer in any place between the two front speakers. When connecting a sub woofer Select “SUBW ON” mode.

1. Press MANUAL SELECT on the remote control once so

that “SUBW OFF” appears on the display.

2. Within 4 seconds, press TUNING DOWN M or turn MULTI

JOG to the left to display “SUBW ON.” If a sub woofer is not connected, be sure to select “SUBW OFF.” Display “SUBW ON” in step 1 and press TUNING UP N or turn MULTI JOG to the right in step 2. NOTE Sound from the surround speakers or center speaker depends on the setting of Dolby, DTS or DSP surround.

USING AC OUTLETS ON THE UNIT

The unit is equipped with AC outlets. You can use them once the unit is connected to an AC outlet on a wall. Do not connect equipment beyond their capacity (120 W MAX. and TOTAL) FM antenna MW/LW antennaEn ENGLISH

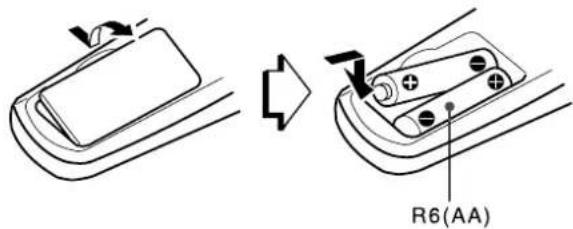

Inserting batteries Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries. When to replace the batteries The maximum operational distance between the remote control and the sensor on the unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones. Using the remote control The instructions in this manual refer mainly to the buttons on the main unit. In principle the buttons on the remote control and the main unit with identical or similar indications have the same functions. Some buttons have two functions.

• To use the function indicated on the button, or on the plate in black, simply press the button.

• To use the function indicated on the plate in green, press the button while pressing SHIFT. Important ENTER on the remote control does not substitute for ENTER on the main unit. This button is for operating the DVD player only (see right column.) To select the function (audio source) with the remote control Press FUNCTION repeatedly. The function changes cyclically. NOTE

• If the unit is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.

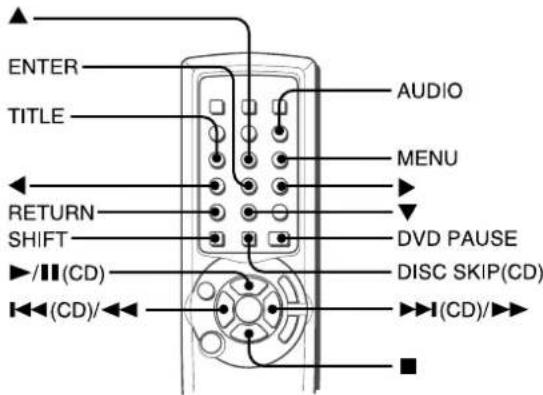

• The remote control may not operate correctly when: - The line of sight between the remote control and the remote sensor in the display window is exposed to intense light, such as direct sunlight. - Other remote controls are used nearby (those of a television, etc.) Operating AIWA CD or DVD players with the remote control You can control the basic functions of AIWA CD or DVD players with the remote control. In principle, the buttons described below have the same function as those on the DVD or CD players. For more details, refer to the operating instructions of the player. Operating CD players Press the following button. c/a(CD) - Starts or pauses playback. f,g - Searches a track. Hold the button down. r(CD),t(CD) - Skips a track. Press the button repeatedly. s - Stops playback. DISC SKIP(CD) - Skips a disc in the CD changer. Operating DVD players Press the following button while pressing SHIFT. c - Starts playback. f,g - Searches a track. s - Stops playback. i,k,j,l (up, down, left or right) - Moves the cursor to select a program etc. AUDIO - Changes an audio track (language etc.) ENTER - Enters the selected program etc. TITLE or MENU - Enters the title or menu screen. RETURN - Returns to the previous mode etc. DVD PAUSE - Pauses the playback of a DVD. NOTE There are some AIWA COMPACT DISC PLAYERs for which some of the functions of the remote control do not work.8 ENGLISH

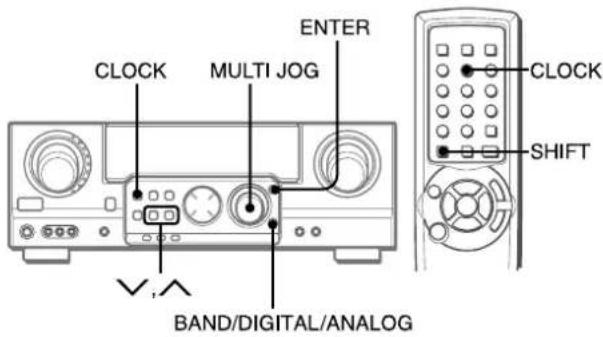

POWER ECONOMIZING (ECO) MODE

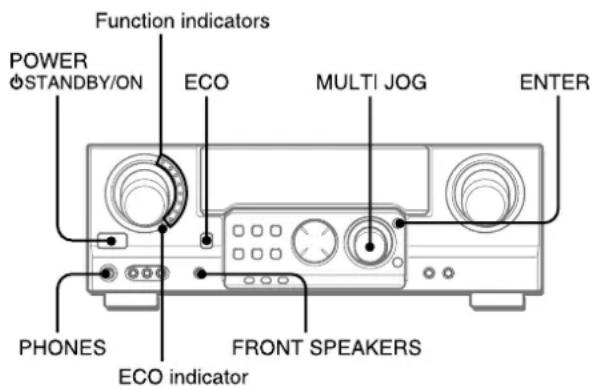

Setting this unit to ECO mode reduces power consumption instandby mode.Initial setting of ECO mode is ON.• When the current time is set, the clock display disappearsimmediately.• While the power is off, all the display lights turn off, and onlythe ECO indicator lights in red.To cancel ECO mode 1 Press ECO to display “ECO MODE” while the unit is turned on. 2 Within 4 seconds, press ENTER. 3 Within 4 seconds, turn MULTI JOG to select “ECO OFF”. The mode will be automatically set after 4 seconds. It will alsobe set if ENTER is pressed within 4 seconds after step 3. BEFORE OPERATION To turn the unit on Press POWER

6STANDBY/ON. Operation is possible after four seconds. The VOL (volume) levelor function name is displayed one after the other for the first fourseconds.The selected function indicator lights up in red.To change the brightness level of the display 1 Press ECO repeatedly until “DIM MODE” is displayed. 2 Within 4 seconds, press ENTER.3 Within 4 seconds, turn MULTI JOG to select the dimmer modeas below.The mode will be automatically set after 4 seconds. It will alsobe set if ENTER is pressed within 4 seconds after step 3. DIM-OFF: The normal display.DIMMER 1: The illumination of the display is dimmer thanusual.DIMMER 2: The illumination of the display is dimmer thanDIMMER 1. The function indicator turns off.Using the headphonesConnect headphones to the PHONES jack with a standard stereoplug (ø6.3 mm, 1/4 inch). Be sure to set FRONT SPEAKERS tohOFF. Otherwise sound is output from the speakers. NOTE When the headphones are plugged in:- The Dolby Pro Logic or DSP system is automatically canceled.- The Dolby Digital or DTS surround mode is changed to“2chSTEREO (2CH DOWNMIX)”. To turn the unit off, press POWER 6STANDBY/ON.En ENGLISH

When the AC cord is connected for the first time, the clock onthe display flashes.Set the time as follows while the power is off. 1 Press ENTER. The display becomes a little brighter. 2 Within 4 seconds, turn MULTI JOG to designate the hour and the minute. The time advances by turning it to the right, and decreasesby turning it to the left.N/M on the main unit is also available. Press the buttonrepeatedly. To change the time rapidly in 10-minute steps, holdit down. 3 Press ENTER. The clock starts from 00 seconds. NOTE When the clock is set for the first time after purchase Everything on the display will clear.This is because the power economizing mode of the unit isactivated, and is not a malfunction.The power economizing mode can be canceled. See page 8 fordetails. To correct the current time Press POWER 6STANDBY/ON to turn the unit off. Carry outsteps 1 to 3 above. To display the current time Press CLOCK while pressing SHIFT on the remote control. Theclock is displayed for 4 seconds.When operating on the main unit, press CLOCK while the poweris on and ENTER while the power is off (standby). To switch to the 24-hour standard Display the current time, and press BAND/DIGITAL/ANALOG onthe unit within 4 seconds.Repeat the same procedure to restore the 12-hour standard. In the 12-hour standard, “AM 12:00” indicates midnight and “PM 12:00” indicates noon. If the clock display flashes while the power is off This is caused by a power interruption. The current time needsto be reset.If power is interrupted for more than approximately 24 hours, allsettings stored in memory after purchase need to be reset. PREPARATIONS10 ENGLISH

CUSTOM AUDIO ADJUSTMENT

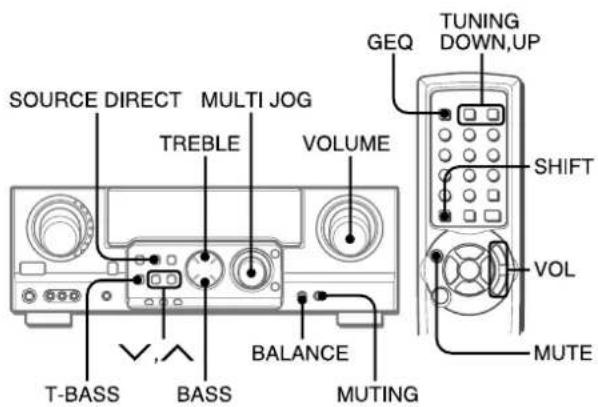

VOLUME CONTROL Turn VOLUME on the unit, or press VOL on the remote control.The volume level is shown on the display for four seconds. It canbe adjusted between 0 and MAX (50). It flashes when set overthe level of 44.The volume level remains memorized even after the power isturned off. However, if the power is turned off when the volume isset to 21 or higher, it is automatically set to 20 the next time thepower is turned on. To adjust the left/right balance of the front speakers Press BALANCE to display “L/R 0dB”. Then press N/M repeatedly or turn MULTI JOG within four seconds.Note that the front speaker balance for the Dolby and DTSsurround is also changed. To mute the sound temporarily Press MUTING (MUTE) (–20 dB). “MUTE ON” appears on the display for four seconds. While muting the sound, the selected function indicator flashes. Press MUTINGagain to restore the sound. TONE CONTROL You can adjust treble and bass sound. 1 Press TREBLE or BASS. 2 Within 4 seconds, press

N repeatedly or turn MULTI JOG to select the desired level. Both the levels can be adjusted between -10 dB and +10 dBin 2 dB steps. “TONE” is displayed while the TREBLE or BASS control is activated. To adjust with the remote control 1 Press GEQ repeatedly while pressing SHIFT to display “TREBLE” or “BASS.” 2 Press TUNING DOWN or UP while pressing SHIFT to adjustthe level.

The T-BASS system enhances the realism of low-frequencysound.Press T-BASS.Each time it is pressed, the level changes. Select one of thethree levels, or the off position to suit your preference. NOTE Low-frequency sound may be distorted when the T-BASS systemis used for a disc or tape in which low-frequency sound is originallyemphasized. In this case, cancel the T-BASS system.

SOURCE DIRECT FUNCTION

You can cancel all the sound adjustments (except the volume),with their settings kept in memory, to listen to the original sourcesound. Press SOURCE DIRECT. “SOURCE DIRECT” runs through on the display and the indicator lights up.Press it again to restore the sound adjustments. NOTE

• While the source direct function is activatedTAPE MONITOR and all the buttons to adjust the sound cannotbe used.• The source direct function is not available in digital mode.

SOUND ADJUSTMENT DURING

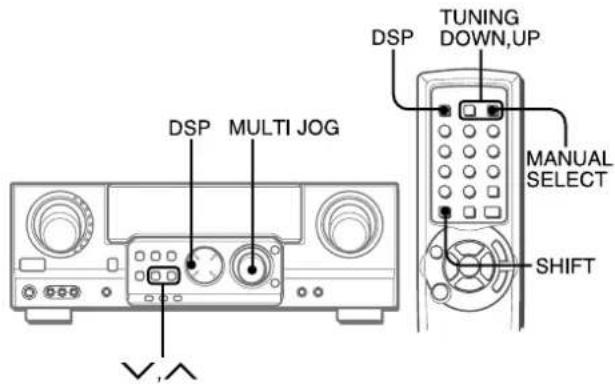

RECORDING The output volume and tone of the speakers or headphones maybe freely varied without affecting the level of the recording. SOUNDEn ENGLISH

DSP SURROUND The DSP (Digital Signal Processor) surround circuits can recreatethe effect of sounds reflected from walls or ceilings, to obtain thesound presence of real environments. The unit provides 5 DSPpreset modes. 1 Press DSP. 2 Within 4 seconds, press

N repeatedly or turn MULTI JOG to select the desired DSP mode. The “DSP” and “S” (surround speakers) indicators light up. When the music source is monaural The DSP system may not work effectively. To cancel the selected mode Press DSP to display the DSP mode name, and press the button again within 4 seconds. “DSP OFF” appears on the display. To select with the remote control 1 Press DSP.2 Within 4 seconds, press TUNING UP or DOWN repeatedlywhile pressing SHIFT until the desired DSP mode is displayed.5 preset modes can be selected. SOUND Selected mode To adjust the volume of the surround speakers 1 Press MANUAL SELECT on the remote control three times to display “S 0dB” while the DSP system is turned on. 2 Within 4 seconds, press TUNING DOWN or UP while pressingSHIFT on the remote control. To operate on the unit, press N/M repeatedly or turn MULTI JOG. NOTE

• The DSP surround system is automatically canceled and cannotbe turned on:- When headphones are plugged in.- When the bit stream of Dolby Digital or DTS surround comesin the unit in DIGITAL mode.- When the SOURCE DIRECT function is activated.• The DSP surround system is automatically canceled when theDolby Pro Logic system is turned on, and vice versa.12 ENGLISH

SELECTION OF AUDIO/VIDEO

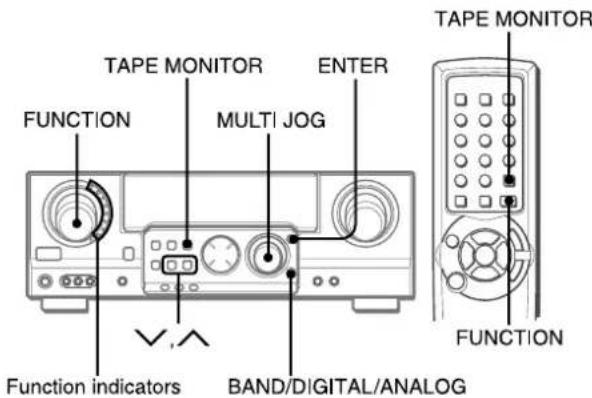

SOURCE 1 Select the program source. Turn FUNCTION or press TAPE MONITOR. The selectedfunction indicator lights in red.To listen to or watch The indicator in redTape TAPE MONITORRadio TUNERRecord PHONOCompact disc CDTelevision, etc. AUXVideo VIDEO 1/DVD/MD,VIDEO 2/LD/TV, VIDEO 3LD or Cable TV VIDEO 2/LD/TVMD or DVD VIDEO 1/DVD/MDThe function to be selected (except PHONO) depends on theequipment connected to the input terminals on the rear panelof the unit. To select with the remote control Press TAPE MONITOR or FUNCTION repeatedly. NOTE When using a turntable with a built-in equalizer amplifier, setthe switch of the equalizer amplifier to off. See the instructionsof the turntable for further information. 2 Start the selected program source. 3 Adjust the sound. About the video source to the monitor or TV The selected video source is indicated on the display and thevideo signal is output through the MONITOR VIDEO OUT jack tothe TV. BASIC OPERATIONS To select the video source 1 Turn FUNCTION to select PHONO, CD or AUX.2 Press ENTER to display VIDEO 1.3 Turn MULTI JOG to select VIDEO 2 or VIDEO 3. To change a displayed name for the VIDEO 1 and VIDEO 2 function When the VIDEO 1 function is selected, VIDEO 1 is displayedinitially. It can be changed to DVD or MD.Press BAND/DIGITAL/ANALOG while pressing ENTER, then release ENTER first.The displayed name for the VIDEO 2 function can be changed toVIDEO 2, LD or TV; while the VIDEO 2 function is selected, pressBAND/DIGITAL/ANALOG while pressing ENTER, then releaseENTER first. To select “ANALOG” or “DIGITAL” (auto) mode of the VIDEO 1 or VIDEO 2 function Press BAND/DIGITAL/ANALOG when the VIDEO 1 or VIDEO 2 function is selected. The selected mode “ANALOG” or “DIGITAL” appears on the display.In DIGITAL mode: Equipment connected to the VIDEO 1OPTICAL IN terminal is selected as a source for the VIDEO 1function, and equipment connected to the VIDEO 2 COAXIAL INterminal for the VIDEO 2 function.In ANALOG mode: Equipment connected to the VIDEO 1/DVD/ MD IN terminals is selected as a source for the VIDEO 1 function, and equipment connected to the VIDEO 2/LD/TV terminals forthe VIDEO 2 function. NOTE “DIGITAL” mode changes to “ANALOG,” when pressing TAPE MONITOR. When the “OVER LEVEL” indicator lights up The unit is equipped with the OVER LEVEL indicator. When inputanalog signals from the connected equipment are too high toaccept, the indicator lights up. In this case, adjust the input levelas mentioned below so that the indicator disappears. To adjust the sound level of the connected source The input sensitivity level of each function can be adjusted (exceptthe TUNER, VIDEO 1 (DIGITAL) and VIDEO 2 (DIGITAL)functions).When the sound level of the connected source is higher thanthat of the TUNER, adjust it as follows. 1 Select the function to be adjusted. Turn FUNCTION or press TAPE MONITOR and play thesource. Be sure to turn off the source direct function. 2 Press

Mtwice to lower the level. To restore, press N twice so that “0 dB” is displayed. V1: VIDEO 1, V2: VIDEO 2, V3: VIDEO 3Selected video source BASIC OPERATIONSEn ENGLISH

RECORDING AN AUDIO SOURCE

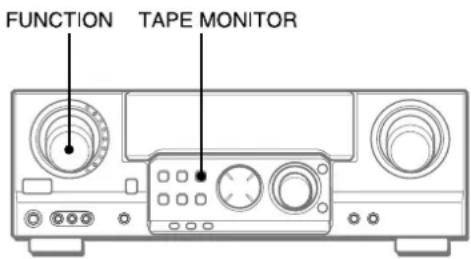

1 Select the program source to be recorded. Turn FUNCTION. 2 Set the tape deck or MD recorder to recording mode. 3 Start the selected program source. To monitor recorded sound during recording (when the connected tape deck is a three-head system) Press TAPE MONITOR. “TAPE ON” appears on the display for four seconds, and then the source name selected in step 1 comes back on. To cancel the tape monitor, press it again so that “TAPE OFF” appears. NOTE

• TAPE MONITOR is not available when the source direct functionis activated.• Any sound control system has no effect on recording (see page 10).
• Input sound through the digital in terminals cannot be recorded.When recording the sound from the DVD, CD, MD or LD player,connect the analog AUDIO OUT terminals of the player to thecorresponding AUDIO IN terminals of the receiver.The sound will be recorded in 2 ch stereo.• When recording audio sources by the MD recorder connectedto the VIDEO 1/DVD/MD AUDIO OUT terminals, the selectedvideo source (see page 12) should be V2 or V3. Recordingcannot be done while the V1 (VIDEO 1) is selected anddisplayed on the window.• Input sound from the tape deck connected to the TAPEMONITOR IN terminals cannot be recorded. BASIC OPERATIONS TO PLAY A DVD OR LD RECORDED IN

DOLBY DIGITAL OR DTS SURROUND

This receiver is equipped with the Dolby Digital decoder and DTSdecoder, and has the digital in (both OPTICAL and COAXIAL)terminals. When a DVD or LD player is connected to the digital interminal of the receiver, you can enjoy theater-quality audio rightin your home when playing discs recorded in Dolby Digital orDTS surround. Before operation

• Check that TAPE MONITOR or SOURCE DIRECT is notactivated.• When connecting an LD player equipped with the AC-3 RF OUTterminal, use an RF demodulator unit. Also connect the analogAUDIO OUT terminals of the LD player to the receiver to playall the sources. For further information, refer to the instructionsof the LD player. 1 Turn FUNCTION to select the VIDEO 1 (VIDEO 2) function and press BAND/DIGITAL/ANALOG repeatedly until “DIGITAL”(auto) is displayed. The DVD (LD) player connected to the VIDEO 1 OPTICAL(VIDEO 2 COAXIAL) IN terminal is selected as a source. 2 Start playing the DVD (LD) recorded in Dolby Digital or DTS surround.

• The “DOLBY DIGITAL” indicator will light on the display when the bit stream of the Dolby Digital surround comes in theunit.To select Dolby Digital surround mode according to your speakers, see “SELECTING DOLBY SURROUND” on page

• The “dts” indicator will light on the display when the bit stream of the DTS surround comes in the unit.To select DTS surround mode according to your speakers, see “SELECTING DTS SURROUND” on page 22. NOTE
• While TAPE MONITOR or SOURCE DIRECT is activated, “DIGITAL” cannot be selected.
• When headphones are plugged in, Dolby Digital surround modeor DTS surround mode is automatically changed to “2chSTEREO” and the “STEREO” indicator lights on the display. Even if SURROUND is pressed while the headphones areplugged in, the mode cannot be changed.• This unit supports input signals of the Dolby Digital surroundbit stream, DTS surround bit stream and linear PCM whosesampling frequency is 32 kHz, 44.1 kHz and 48 kHz.• When connecting some DVD players to the receiver throughthe digital in terminals, noise may be heard in the DVD operation:e.g. searching a disc, skipping a chapter. Selecting DTS digital mode There are some audio CDs recorded in DTS surround. Youcan play DTS audio CDs in the same way as DVDs, but theremay be a noise at the beginning part of the disc.When playing DTS audio CDs, it is recommended to select“DTS” digital mode. 1 Select “ANALOG” mode. 2 Hold down BAND/DIGITAL/ANALOG until “DTS” appears on the display. To restore auto “DIGITAL” mode, repeat the above so that “DIGITAL” appears on the display. NOTE When selecting DTS digital mode, do not play discsrecorded in linear PCM whose sampling frequency is 96 kHz. Otherwise there will be a noise.14 ENGLISH MANUAL PRESETTING 1 Turn FUNCTION to select TUNER, and press BAND/DIGITAL/ANALOG repeatedly to select a band. FM MW LW 2 Press

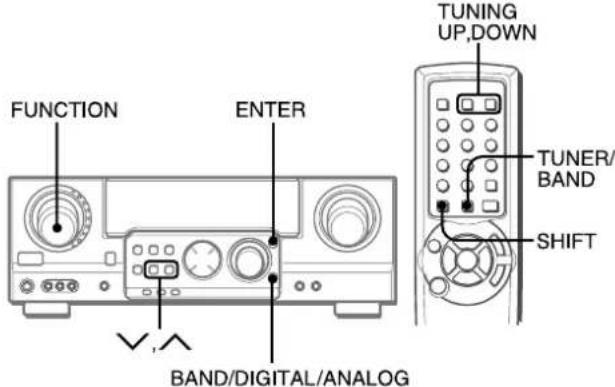

M to select a station (Manual tuning). Each time the button is pressed, the frequency changes. When tuning in to an FM RDS station After “TUNE” on the display goes out, the Program Service station name (* PS) is displayed and the RDSindicator lights up.b When tuning in to the other stations After “TUNE” on the display goes out, the band is displayed.

• During FM stereo reception, 1 lights. 3 Press ENTER to store the station. The selected preset number appears. 4 Repeat steps 1 to 3 to store the stations. The next station will not be stored if a total of 32 preset stationsfor all bands have already been stored. When operating with the remote control Press TUNER/BAND while pressing SHIFT in step 1, andTUNING DOWN or UP while pressing SHIFT in step 2. RADIO RECEPTION PRESETTING STATIONS The unit can store a total of 32 preset stations. Presetting allowsyou to tune in to a station directly. Stations are assigned presetnumbers, beginning from 1 in consecutive order for each band(FM, MW, LW). Automatic presetting: This unit has a function for reception of * RDS (Radio DataSystem) and other stations.FM RDS stations take priority over other FM stations if there aremore than 32 receivable stations. Manual presetting with Manual tuning or Auto Search tuning: You can select stations to be preset from all the bands. AUTOMATIC PRESETTING The tuner scans through the receivable frequency range andstores stations automatically. 1 Turn FUNCTION to select TUNER. 2 Keep RT pressed for three seconds until “AUTO PRESET” is displayed. 3 Press ENTER while “AUTO PRESET” is displayed. The tuner searches for a station, beginning with the FM band.When tuning in to a station, the tuner displays the frequencyof the tuned station for two seconds and stores it.Stations with weak signals may not be stored.The search continues on the MW and LW bands if presetnumbers are still available.When automatic presetting has been completed, the displayreturns to the first preset station. When the tuner detects *

identical RDS stations with alternative frequencies Only the station with the stronger signal is stored.Before storing an RDS station, the tuner checks first whetherthe same stations on the other frequencies are present, andstores the station with the best reception. NOTE When automatic presetting is done, all previously stored stationsare cleared.En ENGLISH

To search for a station quickly with

M (Auto Search tuning) Keep one of the buttons pressed until the tuner starts searchingfor a station. The search stops when the tuner tunes in to a staiton.To stop the Auto Search manually, press one of the buttons.When operating with the remote control, keep TUNING UP orDOWN pressed while pressing SHIFT.• The Auto Search may not stop at stations with very weak signals.

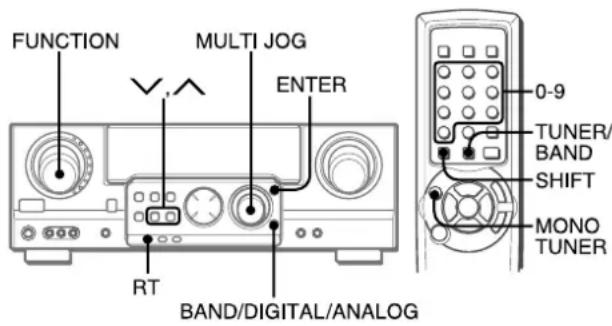

RECEPTION BY PRESET NUMBER

1 Select a band. 2 Turn MULTI JOG to select a preset number. To clear a preset station Select the preset number of the station to be cleared. Then, pressENTER , and press ENTER again within four seconds.The preset numbers of all stations in the band with highernumbers are also decreased by one. When using the remote control Select a band, then press the numbered buttons to select a presetnumber.Example:To select preset number 25, press 2 and 5.To select preset number 7, press 7. To tune in to a station which is not preset Turn FUNCTION to select TUNER, and press BAND/DIGITAL/ ANALOG repeatedly to select a band. And then press N / M to select the station (Manual tuning). When an FM stereo broadcast contains noise Press MONO TUNER while pressing SHIFT on the remote control so that “MONO” appears on the display. Noise is reduced, although reception is monaural. To restore stereo reception, repeat the above so that “STEREO” appears. When the reception contains noise interference Move the unit away from other electrical appliances, especiallydigital audio devices, or turn off the appliances that generatenoise signals. NOTE RDS functions may not work correctly if the RDS transmissiondata from the station contains too much interference or thereception signal is too weak. RADIO RECEPTION16 ENGLISH

SEARCHING WITH THE HELP OF

RDS CODES Each RDS station identifies the type of program (*

PTY) which it is currently broadcasting. If you specify a PTY, the unit can automatically detect a suitable station from the preset stations. In addition, the *

EON (Enhanced Other Network) service works in some areas, so that searching is made much faster.

Press PTY during RDS reception. Programs are classified as follows: TRAFFIC, NEWS, AFFAIRS (current affairs), INFO (information), SPORT, EDUCATE (education), DRAMA, CULTURE, SCIENCE, VARIED, POP M (pop music), ROCK M (rock music), EASY M (middle of the road music), LIGHT M (light classical), CLASSICS (serious classical), OTHER M (other music), WEATHER, FINANCE, CHILDREN (children’s programmes), SOCIAL (social affairs), RELIGION, PHONE IN (public views), TRAVEL, LEISURE, JAZZ (jazz music), COUNTRY (country music), NATION M (national music), OLDIES (oldies music), FOLK M (folk music), DOCUMENT (documentary), TEST (alarm test), ALARM NOTE

• If program type information is not being transmitted, “NO PTY” is displayed.

• If undefined program type information is being transmitted, “UNDEFINE” is displayed.

• The unit identifies “TRAFFIC” with one of the program types. To display radio text (*

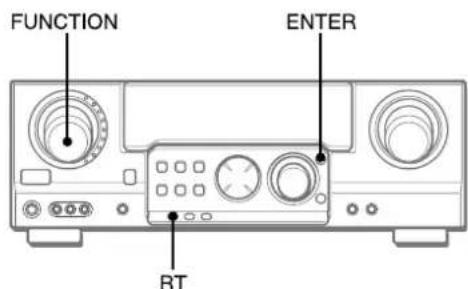

RT) during RDS reception Press RT. When the tuned station is transmitting RT codes, radio texts will appear on the display. If the tuned station is not transmitting RT codes, “NO RT” is displayed. To return to the normal display, press RT again.

RDS Today many stations transmit so-called RDS (Radio Data System) codes that contain a variety of additional information along with the regular sound signals.

Identical RDS stations with alternative frequencies (AF) This is a list of alternative frequencies which gives information on the various transmitters broadcasting the same program in the same reception area. It enables receivers equipped with memory to store the list, to reduce the time needed for switching to another transmitter.

Program service station name (PS) This is a name consisting of not more than 8 alphanumeric characters, which is displayed in order to inform listeners about the program service being broadcast by the radio station. Example: BBC 1 Characters If a character transmitted by the broadcast is not applicable to receivers, a blank space is inserted.

Radiotext (RT) Information such as the cast list of a play or the title of a song is shown on the display. Radio textEn ENGLISH

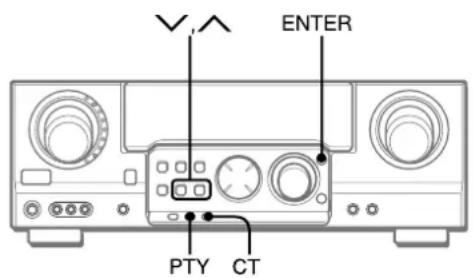

1 Press PTY. The program type of the currently tuned station is displayed. 2 Within 4 seconds, press

M to select a program type. 3 Within 4 seconds, press PTY again. The search automatically checks every preset station. After identifying a suitable staiton, the station will be selected. EON service for the PTY search When EON service works to transmit PTY, a suitable station is detected without checking every preset station. When a station transmits EON information, it takes about 15 to 30 seconds for the unit to decode the EON information. After decoding the information, the EON indicator lights up. When a station is not found “NOT FOUND” is displayed and the unit returns to the previous station. When the TRAFFIC program type is selected The unit searches for a station transmitting a *

TP code. However, the tuned station may not be broadcasting a traffic announcement currently. Wait for a while. The tuned station broadcasts traffic information regularly and a traffic announcement will be made. EON SEARCH During FM reception, the unit switches to radio programs with the specified PTY automatically as soon as they begin. 1 Press PTY. The program type of the currently tuned station is displayed. 2 Within 4 seconds, press

M to select a program type. 3 Within 4 seconds, press ENTER. “EON ON” is displayed for 3 seconds. Then, the EON indicator starts flashing and the unit enters EON search standby mode. When radio program with the specified PTY in another radio station begins, it interrupts the currently playing radio program and the radio program with the specified PTY is heard. At this time, the EON indicator flashes rapidly. At the end of the radio program with the specified PTY, the previous FM radio station is restored.

• EON search standby mode is stored until it is cancelled even if the power is turned off. To cancel EON search standby mode Keep PTY pressed. (Do not release PTY yet.) “EON PTY” and the specified PTY are displayed alternately. At this time, press ENTER with pressing PTY. “EON OFF” is displayed and EON search standby mode is cancelled. NOTE The EON search function does not work when: - FM stations are not preset. - The signals of stations with the specified PTY are weak. RADIO RECEPTION

CT) The CT function provides the unit with information about the local time. Once the CT function is set to on, the clock time will be updated every hour on the hour whenever a CT station is received. To activate the CT function Hold down CT until “CT ON” appears on the display. If the clock is set wrongly due to an incorrect clock signal, hold down CT until “CT OFF” appears to deactivate it.

Program type identification (PTY) PTY allows selection of listening by one of 30 or more program types rather than by a station.

Enhanced other networks information (EON) EON information gives the receiver a cross reference to other stations and allows the receiver to switch from the currently tuned station to another RDS station.

Traffic program identification (TP) This is a code which informs the receiver that a tuned station regularly broadcasts traffic information.

Clock-time (CT) CT function provides an accurate clock signal which is self-adjusting to time zones and seasonal time changes. To change the MW tuning interval The default setting of the MW tuning interval is 9 kHz/step. If you use the unit in an area where the frequency allocation system is 10 kHz/step, change the tuning interval as follows. Hold down BAND/DIGITAL/ANALOG and press POWER 6STANDBY/ON. To reset the interval, repeat this procedure. NOTE When the MW tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.18 ENGLISH

TO SELECT DOLBY SURROUND MODE

• When selecting Dolby Digital surround mode, select the VIDEO1 (DIGITAL) or VIDEO 2 (DIGITAL) function (see page 13) andplay a disc recorded in Dolby Digital surround beforeselecting the mode.• When selecting Dolby Pro Logic mode, select the functionexcept VIDEO 1 (DIGITAL) and VIDEO 2 (DIGITAL). 1 Press SURROUND and turn MULTI JOG to select the appropriate mode. The selected mode name appears on the display.[Dolby Digital Surround]To select 2chSTEREO mode, press SURROUND repeatedlyuntil “2chSTEREO” appears. NOTE Select Dolby Digital surround mode while playing a sourcerecorded in Dolby Digital surround.[Dolby Pro Logic]This unit is equipped with the Dolby Pro Logic decoder, DolbyDigital decoder and DTS decorder.The unit and the center and surround speakers (standard) assurefull-scale home theater sound. When playing back discs or videosoftware that have been recorded in Dolby Pro Logic, Dolby Digitalor DTS surround, astonishingly realistic sound surrounds thelistener to create a new level of audio/visual entertainment.Independent control of the five channels allows the listener toenjoy the same type of sound reproduction experienced in movietheaters. Voices are reproduced in the front and center soundfield, while ambient sounds like cars and crowds are reproducedon all sides of the listener for an incredibly lifelike audio/video experience. Please read the following carefully to “tune” the system’s output to match the characteristics of your listening space. Check the following:
• Before enjoying Dolby or DTS surround sound, adjust thespeaker sound levels to the proper balance (see page 19).• Make sure the speakers are properly connected and positioned(see pages 5 and 6).• Make sure the TV set and video unit are properly connected(see page 4).• Make sure the disc and video tape, etc., support Dolby ProLogic, Dolby Digital or DTS surround.

SELECTING DOLBY SURROUND

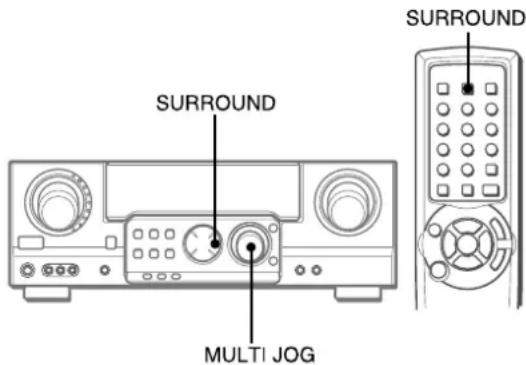

The optimal Dolby Digital surround and Dolby Pro Logic modesand settings depend on the type and placement of the speakers.Check the current type and placement of your speakers and selectthe recommended mode accordingly. Recommended mode [Dolby Digital Surround][Dolby Pro Logic]PHANTOM mode: Select this mode when the center speaker isnot connected. All center channel signals are redistributed to theleft and right channel speakers.3 STEREO mode: Select this mode when the surround speakersare not connected. DOLBY SURROUND

2 Press SURROUND again and hold it down until the center speaker mode to be selected appears. (Except 2chSTEREO and PHANTOM modes.) “NORMAL” and “WIDE” appear one after the other. When operating with the remote control Press SURROUND repeatedly to select the mode, and hold itdown to select the center speaker mode. NOTE

• Depending on the sound source or listening condition, surroundeffect may not be obtained even when Dolby Digital surroundor Dolby Pro Logic is selected.• The full Dolby Digital surround or Dolby Pro Logic effect cannotbe obtained when using software not recorded in Dolby Digitalsurround or Dolby Pro Logic system. In this case, use the DSPsurround system instead (see page 11).• When headphones are plugged in:- The Dolby Pro Logic system is automatically canceled.- The Dolby Digital surround mode is automatically changed to“2chSTEREO.”• While headphones are plugged in:- The Dolby Pro Logic cannot be turned on.- The Dolby Digital surround mode cannot be changed.

ADJUSTING SPEAKER LEVEL

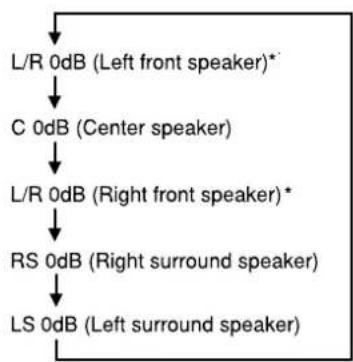

BALANCE The unit is equipped with a built-in test signal generator called anoise sequencer for easy balance adjustment of all five channels. The sequencer outputs a noise signal that “travels” from channel to channel, enabling the simple adjustment of sound level toachieve the same apparent loudness, at your listening position,from each channel. Preparation

• Before adjusting the speaker level balance, turn off the DSPsurround system.• Operate the unit while playing the source recorded in DolbyDigital surround or Dolby Pro Logic. 1 Select Dolby Digital surround (except “2chSTEREO”) or Dolby Pro Logic mode according to the current type and placement of your speakers. (See page 18.) 2 Press MANUAL SELECT on the remote control and hold it down for about two seconds until “L” of “L/R 0dB” starts to flash. A noise signal is sent to each channel in turn as follows:DOLBY D (PRO LOGIC) NORMAL or WIDE modeTo be continued

DTS SURROUND20 ENGLISH PHANTOM mode 3 STEREO NORMAL or WIDE mode

• “L” or “R” flashes to indicate one of the front speakers from which the noise signal is output. 3 Adjust the sound level of the center and surround speakers. While “C,” “RS” or “LS” flashes in the display, press TUNING UP or DOWN while pressing SHIFT on the remote control so that the sound level of the center or surround speakers matches that of the front speakers. The balance of the front speakers can be adjusted as well while “L/R” is displayed. NOTE N/M on the main unit cannot be used. 4 Press MANUAL SELECT again to stop the noise signal. NOTE When adjusting the speaker level balance of Dolby Digital surround, that of Dolby Pro Logic is also changed and vice versa. About the channels The left and right speakers create the stereo effect. The center speaker helps precise sound positioning over a broad sound field. The rear-mounted surround speakers enhance the “depth” of the sound field. To change the delay time of the surround speakers or center speaker in Dolby Digital surround or Dolby Pro Logic mode 1 While Dolby Digital surround (except “2chSTEREO”) or Dolby Pro Logic is activated, press MANUAL SELECT on the remote control repeatedly so that “C 0mS” or “S 5mS” (S 20mS) is displayed. 2 Within 4 seconds, press TUNING DOWN or UP while pressing SHIFT on the remote control. To operate on the unit, press N/M repeatedly or turn MULTI JOG. [Center speaker] Adjust the delay time so that lines (voice in a movie) are heard clearly and naturally. The center speaker delay time is initially set to 0 ms (milliseconds). It can be adjusted between 0 and 5 ms in 1 ms step. [Surround speakers] Adjust the delay time to suite your preference. Dolby Digital Surround The speakers delay time is initially set to 5 ms. It can be adjusted between 0 and 15 ms in 5 ms steps. Dolby Pro Logic The speakers delay time is initially set to 20 ms. It can be adjusted between 15 and 30 ms in 5 ms steps. NOTE

• When adjusting the delay time of the surround speakers or center speaker for Dolby Digital surround, that of Dolby Pro Logic is changed, and vice versa.

• When the surround speakers delay time of Dolby Digital surround is set to 0 ms (5 ms, 10 ms , or 15 ms), that of Dolby Pro Logic is set to 15 ms (20 ms, 25 ms or 30 ms), and vice versa. To adjust the speaker level balance while listening to the source The speaker level balance can be changed after adjusting it with the noise sequencer. The balance can be changed whenever Dolby Digital surround or Dolby Pro Logic is activated. 1 Play a disc or video software recorded in Dolby Pro Logic or Dolby Digital surround. 2 Press MANUAL SELECT on the remote control repeatedly so that “L/R,” “C,” “RS” or “LS” appears on the display. 3 Within 4 seconds, press TUNING DOWN or UP while pressing SHIFT on the remote control. To operate on the unit, press N/M repeatedly or turn MULTI JOG.En ENGLISH

ADJUSTING LFE AND DYNAMIC

EFFECT(LFE) The disc recorded in Dolby Digital and DTS surround containsspecial signals called LFE to enhance low frequency sound effect.The LFE signals are recorded in some particular parts on thedisc and output from the connected sub-woofer to reproduceastonishingly powerful low sound.The sound level of the LFE signals can be adjusted according toyour speakers while Dolby Digital or DTS surround is activated. Preparation

• When connecting a sub-woofer, select “SUBW ON” (see page 6).• Play a disc recorded in Dolby Digital or DTS surround. 1 Press

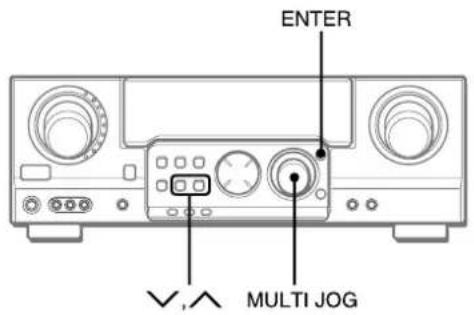

M and hold it down until “LFE” is displayed. 2 Press

M repeatedly or turn MULTI JOG to adjust the LFE level. The unit is initially set to 0 dB (maximum) and can be adjustedas shown below.

• When setting the LFE level to OFF, the “LFE” indicator goes off.

• When selecting “SUBW OFF”, the LFE signals are redistributed to other speakers.

ADJUSTING DYNAMIC RANGE

Dynamic range of the Dolby Digital surround sound can be adjusted. The unit is initially set to “STD” (standard) mode. 1 While Dolby Digital surround is activated, press ENTER and hold it down until “MID NIGHT THEATER” runs through on the display. 2 Press

M or turn MULTI JOG to select “MAX,” “STD” or “MIN”. [MIN]You can enjoy the full dynamic range of sound like in the movietheater.[STD]Original position, when playing back in home, that isrecommended by the software producers.[MAX]Select this mode when playing back at low volume. This is themode used with the midnight setting.

DTS SURROUND22 ENGLISH

The optimal DTS surround modes and settings depend on thetype and placement of the speakers.Check the current type and placement of your speakers and selectthe recommended mode accordingly. Recommended mode 4 ch mode: Select this mode when the center speaker is notconnected. All center channel signals are redistributed to the leftand right channel speakers.3 STEREO mode: Select this mode when the surround speakersare not connected.

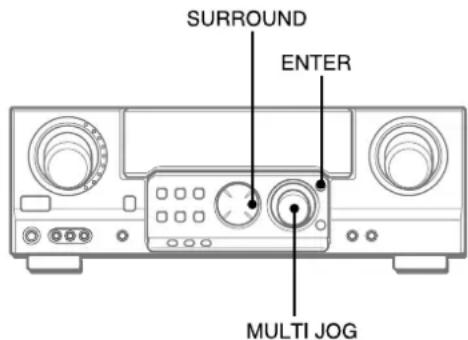

TO SELECT DTS SURROUND MODE

Preparation When selecting DTS surround mode, select the DIGITAL functionand play a disc recorded in DTS surround before selectingthe mode. 1 Press SURROUND and turn MULTI JOG to select the appropriate mode. The selected mode name appears on the display.To select 2chSTEREO mode, press SURROUND repeatedlyuntil “2chSTEREO” appears.Before playing a disc, adjust the speaker level balance in DolbyDigital or Dolby Pro Logic mode as described in page 19.To adjust the balance while listening to the source, see theright column in page 20 and follow the steps 2 and 3. The delaytime of the center and surround speakers cannot be adjusted inDTS surround mode. NOTE

• Depending on the sound source or listening condition, surroundeffect may not be obtained even when DTS surround is selected.• The full DTS surround effect cannot be obtained when usingsoftware not recorded in DTS surround. In this case, use theDSP surround system instead (see page 11).• When headphones are plugged in, DTS surround mode is automatically changed to “2chSTEREO.”
• While headphones are plugged in, DTS surround mode cannotbe changed.

TO LISTEN TO THE ORIGINAL DTS

SOUND When “dts” appears on the display, all the sound settings can be canceled. 1 While DTS surround is activated, press ENTER so that “BYPASSOFF” appears on the display. 2 Press ENTER again to display “BYPASS ON.” To restore the sound settings Repeat steps 1 and 2 so that “BYPASSOFF” appears. No center speaker 4 ch 2chSTEREOCenter speaker5.1ch3 STEREOSurround speaker(Rear speaker)No surroundspeakerEn ENGLISH

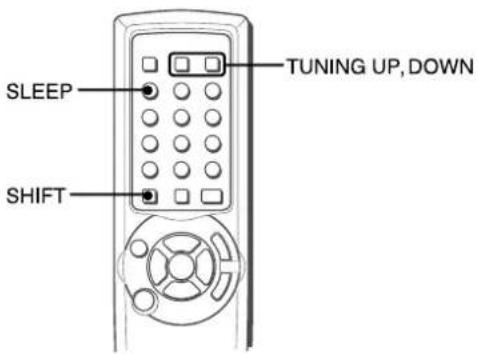

The receiver can be automatically turned off at a specified time. Press SLEEP while pressing SHIFT on the remote control. The unit will be turned off after about 60 minutes. To specify the time until the power is turned off Within 4 seconds after the above, press TUNING DOWN or UPrepeatedly while pressing SHIFT.You can change the time between 5 and 240 minutes in 5-minutesteps. To check the time remaining until the power is turned off Press SLEEP once while pressing SHIFT. The remaining time isdisplayed for four seconds. To cancel the sleep timer Press SLEEP twice while pressing SHIFT so that “SLEEPoFF” appears on the display.Specified time

TIMER24 ENGLISH SPECIFICATIONS FM tuner section Tuning range 87.5 MHz to 108 MHz Usable sensitivity 16.8 dBf (IHF) Antenna terminals 75 ohms (unbalanced) MW tuner section Tuning range 531 kHz to 1602 kHz (9 kHz step) 530 kHz to 1710 kHz (10 kHz step) Usable sensitivity 350 µV/m Antenna Loop antenna LW tuner section Tuning range 144 kHz to 290 kHz Usable sensitivity 1400 µV/m Antenna Loop antenna Amplifier section Power output Front Rated: 70 W + 70 W (8 ohms, T.H.D. 1%, 1 kHz/DIN 45500) Reference: 85 W + 85 W (8 ohms, T.H.D. 10%, 1 kHz/DIN 45324)

DIN MUSIC POWER: 180 W + 180 W

Rear (Surround) Rated: 70 W + 70 W (8 ohms, T.H.D. 1%, 1 kHz/DIN 45500) Reference: 85 W + 85 W (8 ohms, T.H.D. 10%, 1 kHz/DIN 45324)

DIN MUSIC POWER: 180 W + 180 W

Center Rated: 70 W (8 ohms, T.H.D. 1%, 1 kHz/DIN 45500) Reference: 85 W (8 ohms, T.H.D. 10%, 1 kHz/DIN 45324)

FRONT SPEAKERS IMP: 8Ω : accepts speakers of 8 ohms or more. SURROUND SPEAKERS IMP: 8Ω : accepts speakers of 8 ohms or more CENTER SPEAKER IMP: 8Ω: accepts speaker of 8 ohms or more. PHONES (stereo jack): accepts headphones of 32 ohms or more Muting –20 dB General Power requirements 230 V AC, 50 Hz Power consumption 185 W Power consumption in ECO OFF: 35.6 W standby mode ECO ON: 1.3 W Dimensions 430 × 155 × 402 mm (W × H × D) Weight 8.7 kg Specifications and external appearance are subject to change without notice.

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992- 1997 Dolby Laboratories, Inc. All rights reserved.

• Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. ©1996 Digital Theater systems, Inc. All Rights Reserved. GENERALEn ENGLISH

CARE AND MAINTENANCE

Occasional care and maintenance of the unit is needed tooptimize the performance of your unit. To clean the cabinet Use a soft dry cloth.If the surfaces are extremely dirty, use a soft cloth lightlymoistened with mild detergent solution. Do not use strongsolvents, such as alcohol, benzine or thinner as these coulddamage the finish of the unit. TROUBLESHOOTING GUIDE If the unit fails to perform as described in these OperatingInstructions, check the following guide. GENERAL There is no sound.• Is the AC cord connected properly?

• Is there an incorrect connection? (➞ page 4, 5)
• There may be a short circuit in the speaker terminals.➞ Disconnect the AC cord, then correct the speakerconnections.• Was an incorrect function button pressed?• Was TAPE MONITOR pressed?
• Is FRONT SPEAKERS set correctly? (➞ page 8) Sound is emitted from one speaker only.• Is BALANCE set appropriately?• Is the other speaker disconnected?Sound is heard at a very low volume.• Has MUTING been pressed?An erroneous display or a malfunction occurs.➞ Reset the unit as stated below. TUNER SECTION There is constant, wave-like static.
• Is the antenna connected properly? (➞ page 6)
• Is the FM signal weak?➞ Connect an outdoor antenna.The reception contains noise interference or the sound isdistorted.• Is the system picking up external noise or multipath distortion?➞ Change the orientation of the antenna.➞ Move the unit away from other electrical appliances.To resetIf an unusual condition in the display window or malfunctionoccurs, reset the unit as follows.1 Press POWER 6STANDBY/ON to turn off the power.2 Press POWER 6 STANDBY/ON while pressing ENTER.Everything stored in memory after purchase is canceled.If the power cannot be turned off in step 1 because of amalfunction, reset by disconnecting the AC cord and carry outstep 2. PARTS INDEX Instructions about each part on the unit or remote control areindicated on the pages listed below.(in alphabetical order)AUDIO 7BALANCE 10BAND/DIGITAL/ANALOG 9, 12-15, 17BASS 10CLOCK 9CT 17DISC SKIP (CD) 7DSP 11DVD PAUSE 7ECO 8ENTER 7-9, 12, 14-17, 21, 22FRONT SPEAKERS 8FUNCTION 7, 12-15GEQ 10MANUAL SELECT (TEST) 6, 11, 19, 20MENU 7MONO TUNER 15MULTI JOG 6, 8-12, 15, 18, 20-22MUTING (MUTE) 10PHONES 8POWER 6STANDBY/ON 8, 9, 17, 25PTY 17RETURN 7RT 14-16SHIFT 7, 9-11, 14, 15, 19, 20, 23SLEEP 23SOURCE DIRECT 10SURROUND 18, 19, 22TAPE MONITOR 12, 13T-BASS 10TITLE 7TREBLE 10TUNER/BAND 14TUNING DOWN(M)6, 9-12, 14-17, 20, 21, 23TUNING UP(N)6, 9-12, 14-17, 20, 21, 23VOLUME 10 GENERAL2 FRANÇAIS FRANÇAIS AVERTISSEMENT POUR REDUIRE LE RISQUE DE COURT-CIRCUIT OU DECHOC ELECTRIQUE, NE PAS EXPOSER CET APPAREILA LA PLUIE OU A L'HUMIDITE. PRECAUTIONS Lisez attentivement et complètement le mode d’emploi avantd’utiliser l’ampli-tuner et conservez-le pour toute référence future.Respectez tous les avertissements et consignes mentionnésdans le mode d’emploi, ainsi que les conseils concernant lasécurité. Installation 1 Eau et humidité — Ne pas utiliser l’ampli-tuner près d’un point d’eau, comme une baignoire, un lavabo, une piscine ouautre endroit similaire.2 Chaleur — Ne pas utiliser l’ampli-tuner près d’une source dechaleur, comme une sortie d’air chaud, un chauffage, ou autreappareil produisant de la chaleur. Il ne doit pas non plus êtreexposé à des températures inférieures à 5°C (41°F) ou supérieures à 35°C (95° F). 3 Installation — Installez l’ampli-tuner sur une surface plane,de niveau.4 Ventilation — Laissez un espace suffisant tout autour del’ampli-tuner pour garantir une bonne ventilation, soit environ10 cm à l’arrière et au-dessus de l’ampli-tuner et 5 cm sur lesdeux côtés.- Ne pas poser l’ampli-tuner sur un lit, une couverture ou touteautre surface similaire qui pourrait bloquer les orifices deventilation.- Ne pas installer l’ampli-tuner dans une étagère, un placardou un meuble où la ventilation est insuffisante.5 Objets et liquide — Veillez à ce qu’aucun objet ni liquide nepénètre dans les orifices de ventilation de l’ampli-tuner.6 Chariots et supports — Quand vous installez l’ampli-tunersur un support ou un chariot, déplacez-les lentement.A cause d’arrêts subits, de mouvements brusques et desurfaces inégales, l’ampli-tuner ou le chariot peuvent êtrerenversés.7 Fixation au mur ou au plafond — L’ampli-tuner ne doit pasêtre installé au mur ou au plafond. Electricité 1 Sources d’alimentation — Raccordez l’ampli-tuner seulement à la source d’alimentation spécifiée dans le moded’emploi et indiquée sur l’ampli-tuner proprement dit.2 Cordon d’alimentation secteur- Quand vous débranchez le cordon d’alimentation secteur,tirez sur la fiche et non pas sur le cordon.- Ne jamais toucher la fiche secteur avec des mains humidesafin d’éviter les risques d’incendie ou d’électrocution.- Les cordons d’alimentation doivent être fixés correctementpour éviter qu’ils ne soient pliés, coincés ou piétinés. Faitesparticulièrement attention au cordon reliant l’ampli-tuner àla prise secteur.- Evitez de surcharger les prises secteur et les rallonges au-delà de leur capacité, car cela risque de provoquer unincendie ou une décharge électrique. 3Période de non-utilisation — Débranchez le cordon d’alimentation de la prise d’alimentation si vous prévoyez dene pas utiliser l’appareil pendant quelques mois ou plus.Quand le cordon est branché, une petite quantité d’électricitécircule dans l’ampli-tuner même s’il a été mis hors tension. REMARQUE AIWA CO. LTD. - JAPAN - DECLARE SOUS SA PROPRE
