USER MANUAL Power 851 x Rockford Fosgate

Installation & Operation

Abstract black-and-white logo design featuring a stylized envelope and arrow (no text or symbols)

POWER

4-Channel

Amplifiers

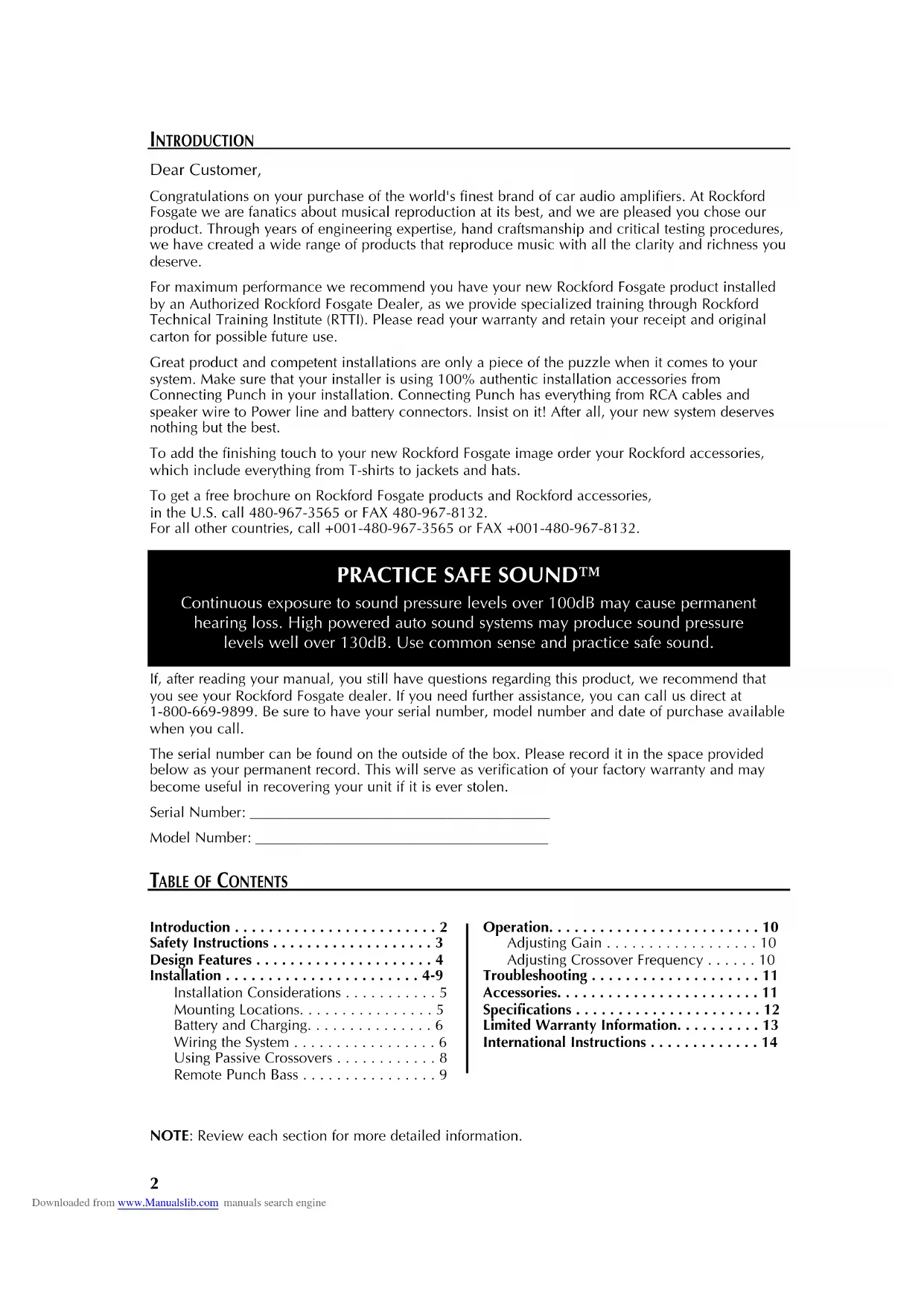

Congratulations on your purchase of the world's finest brand of car audio amplifiers. At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product. Through years of engineering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use.

Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Connecting Punch in your installation. Connecting Punch has everything from RCA cables and speaker wire to Power line and battery connectors. Insist on it! After all, your new system deserves nothing but the best.

To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts to jackets and hats.

To get a free brochure on Rockford Fosgate products and Rockford accessories, in the U.S. call 480-967-3565 or FAX [phone].

For all other countries, call +001-480-967-3565 or FAX [phone].

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

The serial number can be found on the outside of the box. Please record it in the space provided below as your permanent record. This will serve as verification of your factory warranty and may become useful in recovering your unit if it is ever stolen.

Serial Number: ____

Model Number: ____

TABLE OF CONTENTS

Introduction 2

Safety Instructions .... 3

Design Features .... 4

Installation 4-9

Installation Considerations ..... 5

Mounting Locations....5

Battery and Charging....6

Wiring the System 6

Using Passive Crossovers ..... 8

Remote Punch Bass....9

Operation....10

Adjusting Gain 10

Adjusting Crossover Frequency ..... 10

Troubleshooting....11

Accessories. 11

Specifications 12

Limited Warranty Information. . . . . . . . 13

International Instructions ..... 14

NOTE: Review each section for more detailed information.

GETTING STARTED

Welcome to Rockford Fosgate! This manual is designed to provide information for the owner, salesperson and installer. For those of you who want quick information on how to install this product, please turn to the Installation Section of this manual. Other information can be located by using the Table of Contents. We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice.

SAFETY INSTRUCTIONS

WARNING

This symbol with "WARNING" is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death.

CAUTION

This symbol with "CAUTION" is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage.

CAUTION: To prevent injury and damage to the unit, please read and follow the instructions in this manual. We want you to have enjoyment from this system, not a headache.

CAUTION If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician.

CAUTION Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CONTENTS OF CARTON

Either a Model 551X or 851X Power 4-Channel Amplifier

Installation & Operation Manual

Mounting Hardware Kit

Remote Punch Bass Kit with Cord

1 3/32" Allen Wrench

1 7/64" Allen Wrench

1 Terminal Connector for REM power wire

1 Fuse Connector (551X Only)

1 50 Amp Fuse (551X)

The hardware kit included with each amplifier contains the mounting hardware necessary to secure the amplifier to the vehicle and to attach the end caps to the amplifier.

NOTE: Refer to the specifications section for recommended fuse sizes for Model 851X

Visit our web site for the latest information on all Rockford products.

www.rockfordfosgate.com

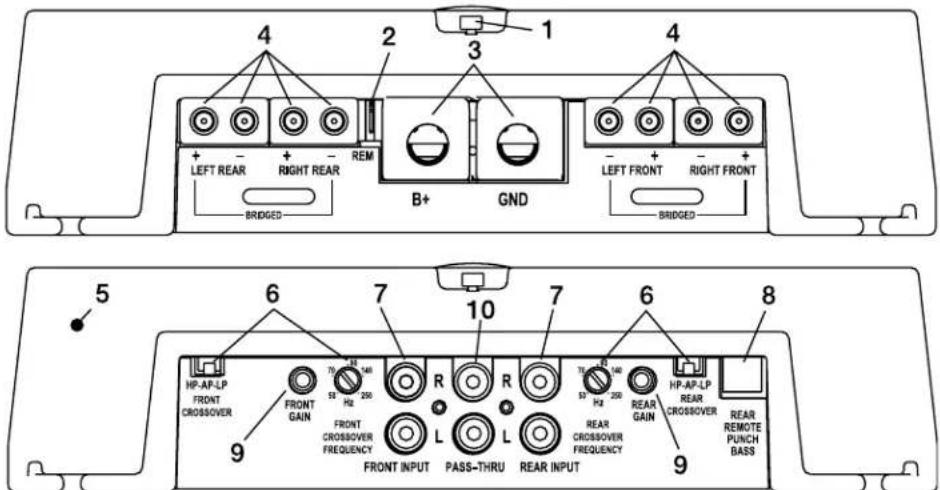

Power and Speaker Connection

4 2 3 1 4 + - + - RIGHT REAR REM B+ GND - + - - LEFT FRONT RIGHT FRONT BRIDGED BRIDGED 5 6 7 10 7 6 8 HP-AF-LP FRONT CROSSOVER FRONT GAIN 75 32 140 50 Hz 200 FRONT CROSSOVER FREQUENCY R L R L PASS-THRU REAR INPUT 75 32 140 50 Hz 200 REAR GAIN HP-AF-LP REAR CROSSOVER REAR REMOTE PUNCH BASS 9

1. LED Power Indicator (Top of unit) – The LED illuminates when the unit is turned on.
2. REM Terminal – This spade terminal is used to remotely turn-on and turn-off the amplifier when +12V DC is applied.
3. Power Terminals – The power and ground connectors on the amplifier are platinum-plated and will accommodate up to 4 AWG wire maximizing the input current capability of the amplifier.
4. Speaker Terminals – The heavy duty, platinum-plated terminal block connectors (+ and −) will accept wire sizes from 8 AWG to 18 AWG. These platinum-plated connectors are immune to corrosion that can cause signal deterioration.
5. Cast Aluminum Heatsink – The cast aluminum heatsink of the Power amplifier dissipates heat generated by the amplifier's circuitry. The inherent advantage of casting provides a 30% improvement of cooling over conventional extrusion heatsink designs.
6. Variable Crossover - The amplifiers have a built-in 24dB/octave Butterworth filter selectable for High-Pass (HP), All Pass (AP), or Low-Pass (LP) operation variable from 50Hz to 250Hz .
7. RCA Input Jacks – The industry standard RCA jacks provide an easy connection for signal level input. They are platinum-plated to resist the signal degradation caused by corrosion.
8. Punch Bass – The Punch Bass control helps correct for acoustical deficiencies in the listening environment by helping produce full range sound without adding excessive boost. The Punch Bass control is a narrow band adjustment at 45Hz variable from 0dB to +18dB. Connection is made with a cable using RJ-45 and can be installed under the dash for remote control access.
9. Gain Control – The input gain control is preset to match the output of most source units. It can be adjusted to match output levels from a variety of source units.
10. RCA Pass-Thru Jacks – The Pass-Thru provides a convenient source for daisy-chaining an additional amplifier without running an extra set of RCA cables from the front of the vehicle to the rear amplifier location.

INSTALLATION

INSTALLATION CONSIDERATIONS

The following is a list of tools needed for installation:

Volt/Ohm Meter

Wire strippers

Wire crimpers

Wire cutters

2 Phillips screwdriver

Battery post wrench

Hand held drill w/assorted bits

1/8" diameter heatshrink tubing

Assorted connectors

Adequate Length—Red Power Wire

Adequate Length—Remote Turn-on Wire

Adequate Length—Black Grounding Wire

This section focuses on some of the vehicle considerations for installing your new amplifier.

Pre-planning your system layout and best wiring routes will save installation time. When deciding on the layout of your new system, be sure that each component will be easily accessible for making adjustments.

CAUTION: If you feel unsure about installing this system yourself, have it installed by a qualified technician.

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Before beginning any installation, follow these simple rules:

1. Be sure to carefully read and understand the instructions before attempting to install the Unit.
2. For safety, disconnect the negative lead from the battery prior to beginning the installation.
3. For easier assembly, we suggest you run all wires prior to mounting your unit in place.
4. Route all of the RCA cables close together and away from any high current wires.
5. Use high quality connectors for a reliable installation and to minimize signal or power loss.
6. Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.
7. Never run wires underneath the vehicle. Running the wires inside the vehicle provides the best protection.
8. Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through metal, especially the firewall.
9. ALWAYS protect the battery and electrical system from damage with proper fusing. Install the appropriate fuse holder and fuse on the +12V power wire within 18" (45.7 cm) of the battery terminal.
10. When grounding to the chassis of the vehicle, scrape all paint from the metal to ensure a good, clean ground connection. Grounding connections should be as short as possible and always be connected to metal that is welded to the main body, or chassis, of the vehicle.

MOUNTING LOCATIONS

Engine Compartment

Never mount this unit in the engine compartment. Mounting the unit in the engine compartment will void your warranty.

Trunk Mounting

Mounting the amplifier vertically will provide the best cooling of the amplifier.

Mounting the amplifier on the floor of the trunk will work but provides less cooling capability than vertical mounting.

Mounting the amplifier upside down to the rear deck of the trunk will not provide proper cooling and will severely affect the performance of the amplifier and is strongly not recommended.

Passenger Compartment Mounting

Mounting the amplifier in the passenger compartment will work as long as you provide a sufficient amount of air for the amplifier to cool itself. If you are going to mount the amplifier under the seat of the vehicle, you must have at least 1" (2.54cm) of air gap around the amplifier's heatsink.

Mounting the amplifier with less than 1" (2.54cm) of air gap around the amplifier's heatsink in the passenger compartment will not provide proper cooling and will severely affect the performance of the amplifier and is strongly not recommended.

BATTERY AND CHARGING

Amplifiers will put an increased load on the vehicle's battery and charging system. We recommend checking your alternator and battery condition to ensure that the electrical system has enough capacity to handle the increased load of your stereo system. Stock electrical systems which are in good condition should be able to handle the extra load of any Rockford Fosgate amplifier without problems, although battery and alternator life can be reduced slightly. To maximize the performance of your amplifier, we suggest the use of a heavy duty battery and an energy storage capacitor.

WIRING THE SYSTEM

CAUTION: If you do not feel comfortable with wiring your new unit, please see your local Authorized Rockford Fosgate Dealer for installation.

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CAUTION: Avoid running power wires near the low level input cables, antenna, power leads, sensitive equipment or harnesses. The power wires carry substantial current and could induce noise into the audio system.

1. Plan the wire routing. Keep RCA cables close together but isolated from the amplifier's power cables and any high power auto accessories, especially electric motors. This is done to prevent coupling the noise from radiated electrical fields into the audio signal. When feeding the wires through the firewall or any metal barrier, protect them with plastic or rubber grommets to prevent short circuits. Leave the wires long at this point to adjust for a precise fit at a later time.
2. Prepare the RED wire (power cable) for attachment to the amplifier by stripping 1/2" of insulation from the end of the wire. Insert the bared wire into the B+ terminal and tighten the set screw to secure the cable in place.

NOTE: The B+ cable MUST be fused 18" or less from the vehicle's battery. Install the fuseholder under the hood and prepare the cable ends as stated above. Connections should be water tight.

1. Trim the RED wire (power cable) within 18" of the battery and strip 1/2" of insulation from the end of the wire. Cut the wire loop that is attached to the fuseholder in half and splice the fuse into the power line using appropriate inline connectors. Use the section of cable that was trimmed earlier and connect it to the other end of the fuseholder.
2. Strip 1/2" from the battery end of the power cable and crimp a large ring terminal to the cable. Use the ring terminal to connect to the battery positive terminal. DO NOT install the fuse at this time.
3. Prepare the BLACK wire (Ground cable) for attachment to the amplifier by stripping 1/2" of insulation from the end of the wire. Insert the bared wire into the GND terminal and tighten the set screw to secure the cable in place. Prepare the chassis ground by scraping any paint from the metal surface and thoroughly clean the area of all dirt and grease. Strip the other end of the wire and attach a ring connector. Fasten the cable to the chassis using a non-anodized screw and a star washer.
4. Prepare the REM turn-on wire for connection to the amplifier by stripping 1/4" of insulation from the wire end. Using the fully insulated connector provided, crimp the wire into the connector. Insure the insulation on the wire is covered by the insulated connector and no bare wire is visible. Slip the connector over the REM terminal on the amplifier. Connect the other end of the REM wire to a switched 12 volt positive source. The switched voltage is usually taken from the source unit's accessory lead. If the source unit does not have this output

available, the recommended solution is to wire a mechanical switch in line with a 12 volt source to activate the amplifier.

Fully Insulated Connector Strip end 1/4"

CAUTION: To prevent damage to the unit and/or personal property, only use a fully insulated connector when connecting to the REM terminal. The connector supplied is only for use with 14-18 gauge wire.

1. Securely mount the amplifier to the vehicle or amp rack. Be careful not to mount the amplifier on cardboard or plastic panels. Doing so may enable the screws to pull out from the panel due to road vibration or sudden vehicle stops.
2. Connect the source signal to the amplifier by plugging the RCA cables/high level inputs into the input jacks at the amplifier.
3. Connect the speakers. Strip the speaker wires 1/2" and insert into the speaker terminal and tighten the set screw to secure into place. Be sure to maintain proper speaker polarity. DO NOT chassis ground any of the speaker leads as unstable operation may result.
4. Perform a final check of the completed system wiring to ensure that all connections are accurate. Check all power and ground connections for frayed wires and loose connections which could cause problems.

NOTE: Follow the diagrams for proper signal polarity.

CAUTION: These amplifiers are not recommended for impedance loads below 2Ω stereo and 4Ωbridged (mono).

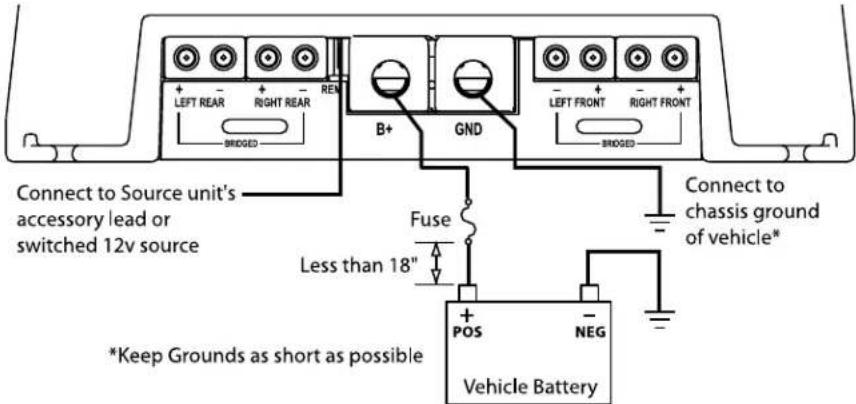

Power Connection

Connect to Source unit's accessory lead or switched 12v source *Keep Grounds as short as possible Fuse Less than 18" B+ GND Connect to chassis ground of vehicle* + POS - NEG Vehicle Battery

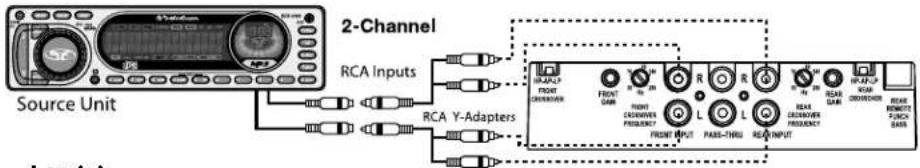

2-Channel Source Unit RCA Inputs RCA Y-Adapters RCA INPUTS RCA Y-Adapters RCA INPUTS RCA Y-Adapters RCA INPUTS RCA Y-Adapters RCA INPUTS RCA Y-Adapters RCA INPUTS RCA Y-Adapters RCA INPUTS RCA Y-Adapters RCA INPUTS RCA Y-Adapters RCA INPUTS RCA Y-Adapters RCA INPUTS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCAY-ADAPTERS RCSA10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

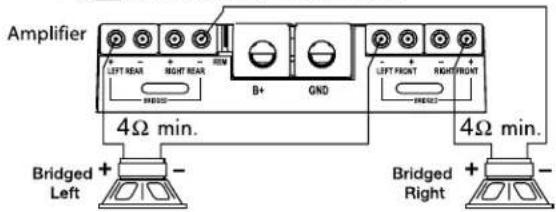

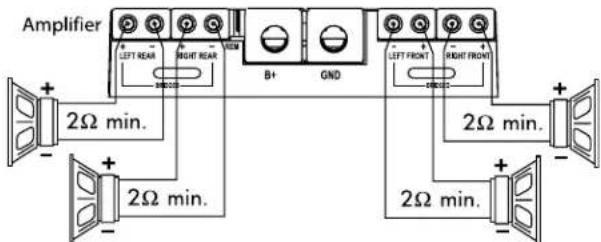

2-Channel Wiring

• RCA Y-Adapters connect to Front and Rear
- Gain - front and rear set equally
- Crossover - front and rear set identically (example; switch to LP and frequency at 60Hz)

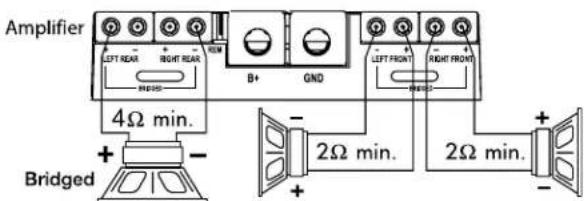

Amplifier LEFT REAR RIGHT REAR B+ GND LEFT FRONT RIGHT FRONT 4Ω min. 4Ω min. Bridged Left Bridged Right

Amplifier LEFT REAR RIGHT REAR B+ GND LEFT FRONT RIGHT FRONT 4Ω min. Bridged + - 2Ω min. 2Ω min. + -

Amplifier LEFT REAR RIGHT REAR B+ GND LEFT FRONT RIGHT FRONT 2Ω min. 2Ω min. 2Ω min. 2Ω min.

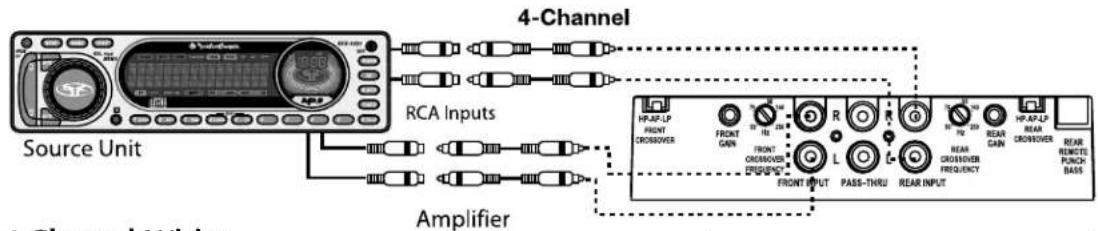

4-Channel Source Unit RCA Inputs Amplifier HRAF-LP FRONT CROSOVER FRONT GAIN FRONT CROSSOVER CROSSOVER R L FRONT INPUT PASS-THRU REAR INPUT NEAR CROSSOVER FREQUENCY HFAP-LP REAR GAIN REAR CROSOVER REAR REMCTS PUNCH BASS

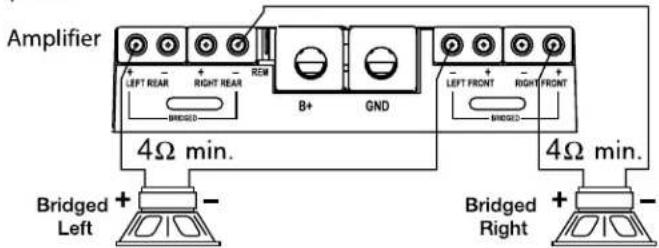

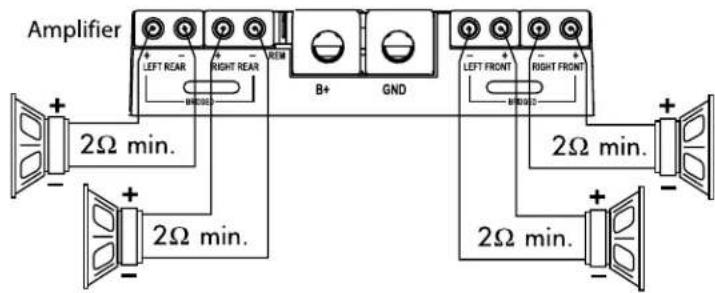

4-Channel Wiring

• RCA Inputs connect to Front and Rear

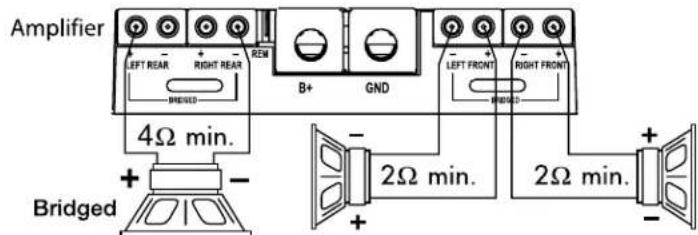

Amplifier LEFT REAR RIGHT REAR B+ GND 4Ω min. Bridged Left - RED - RED - Bridged - LEFT FRONT RIGHT FRONT Bridged - 4Ω min. Bridged + - Right +

• 3-Channel Output

NOTE: Reverse polarity on subwoofer if front channel is set to HP (High Pass) and rear channel is set to LP (Low Pass)

Amplifier LEFT REAR RIGHT REAR REM B+ GND LEFT FRONT RIGHT FRONT 4Ω min. Bridged 2Ω min. 2Ω min. +

Amplifier LEFT REAR RIGHT REAR REM B+ GND LEFT FRONT RIGHT FRONT M8000 2Ω min. 2Ω min. 2Ω min. 2Ω min.

USING PASSIVE CROSSOVERS

A passive crossover is a circuit that uses capacitors and/or coils and is placed on speaker leads between the amplifier and speaker. The crossover delegates a specific range of frequencies to the speaker for optimum driver performance. A crossover network can perform one of three functions: High-Pass (capacitors), Low-Pass (inductors or coils) and Bandpass (combination of capacitor and coil).

The most commonly used passive crossover networks are 6dB/octave systems. These are easy to construct and require one component per filter. Placing this filter in series with the circuit will reduce power to the speaker by 6dB/octave above or below the crossover point depending on whether it is a high-pass or low-pass filter. More complex systems such as 12dB/octave or 18dB/octave can cause impedance problems if not professionally designed.

Passive crossovers are directly dependent upon the speaker's impedance and component value for accuracy. When passive crossover components are used in multiple speaker systems, the crossover's effect on the overall impedance should be taken into consideration along with the speaker's impedance when determining amplifier loads.

CAUTION: These amplifiers are not recommended for impedance loads below 2Ω stereo and 4Ω bridged (mono).

C 6dB/Octave High-Pass

L = Low-Pass (Inductor) C = High-Pass (Capacitor) For more information, see your Authorized Rockford Fosgate Dealer.

Freq.Hertz	Speaker Impedance
	2 OHMS		4 OHMS		8 OHMS
	L	C	L	C	L	C
	80 4.1mH 100μF 8.2mH 500μF 16mH 250μF100 3.1mH 800μF 6.2mH 400μF 12mH 200μF130 2.4mH 600μF 4.7mH 300μF 10mH 150μF
	200 1.6mH 400μF 3.3mH 200μF 6.8mH 100μF260 1.2mH 300μF 2.4mH 150μF 4.7mH 75μF400 .3mH 200μF 1.6mH 100μF 3.3mH 50μF
	600 .5mH 136μF 1.0mH 68μF 2.0mH 33μF800 .41mH 100μF .82mH 50μF 1.6mH 26μF1000 .31mH 78μF .62mH 39μF 1.2mH 20μF
	1200 .25mH 66μF .51mH 33μF 1.0mH 16μF1800 .16mH 44μF .33mH 22μF .68mH 10μF4000 .08mH 20μF .16mH 10μF .33mH 5μF
	6000 31mH 14μF .10mH 6.8μF .20mH 3.3μF9000 34mH 9.5μF 68mH 4.7μF .15mH 2.2μF12000 25mH 6.6μF 51mH 3.3μF 100mH 1.6μF

REMOTE PUNCH BASS

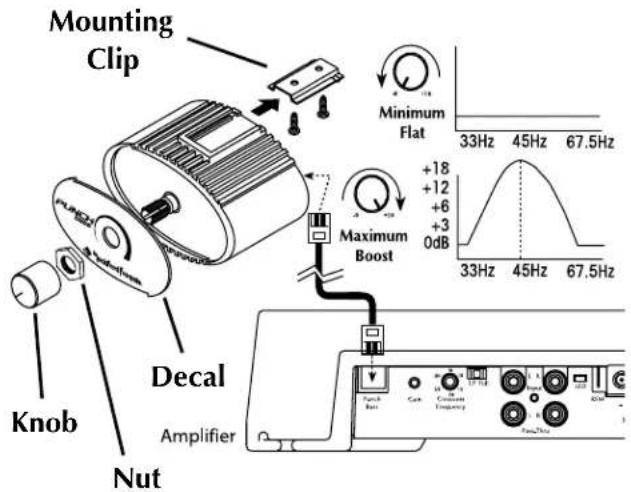

Mounting and installation

1. Find a location, either under the dash or near the center console, that gives easy access to the remote.

2. Using the screws supplied, install the mounting clip with the tabs towards the back.

3. Route the cable for the remote and connect to both the remote and amplifier.

4. Slip the remote onto the mounting clip until it snaps into place.

5. Place the decal onto the remote and use the nut to hold the decal in place. Do not over tighten nut.

6. Install the knob onto the remote.

Mounting Clip Knob Decal Nut Amplifier Maximum Boost +18 +12 +6 +3 0dB Minimum Flat 33Hz 45Hz 67.5Hz 33Hz 45Hz 67.5Hz

ADJUSTING GAIN

Do the following individually for each channel.

To adjust the gain setting, turn the amplifier gains all the way down. Turn the source unit volume up until distortion is audible and then turn it down a bit until the distortion is inaudible. This will be about two thirds all the way up on most source units. Next, turn the amplifier gain setting until once again distortion is audible and then back it down until the distortion is inaudible. Rockford Fosgate source units do not distort, so the volume can be used at maximum setting.

NOTE: For a more in depth setting procedure, contact Rockford Technical Support.

Do the following individually for both front and rear if used.

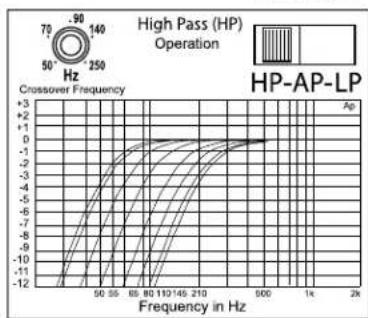

Placing the switch in the HP position sets the amplifier to the High Pass mode, enabling frequencies above the cut-off point to pass, adjustable between 50-250Hz.

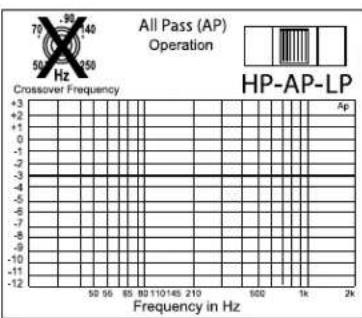

Placing the switch in the AP position sets the amplifier to the All Pass mode, preventing any crossover adjustment, allowing all frequencies to pass.

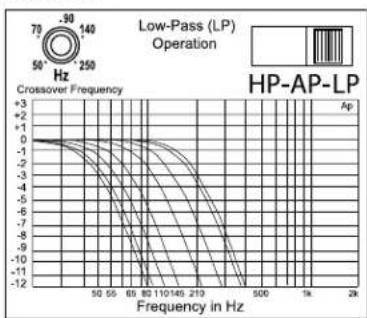

Placing the switch in the LP position sets the amplifier to the Low Pass mode, enabling frequencies below the cut-off point to pass, adjustable between 50-250Hz.

Turn the crossover adjustment knob all the way down. With the system playing, turn the crossover adjustment knob up slowly until the desired crossover point is achieved.

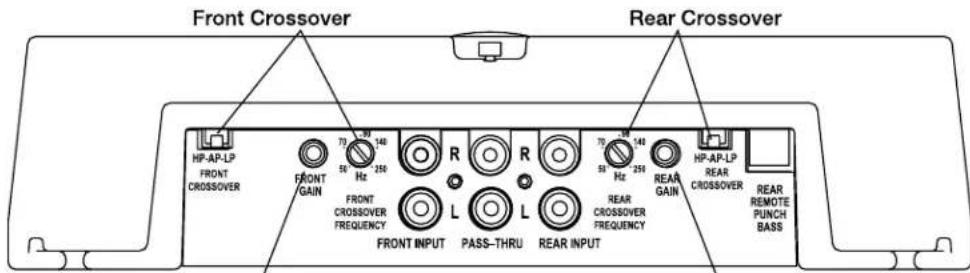

Front Crossover HP-AP-LP FRONT CROSSOVER FRONT GAIN 73 Hz 148 50 Hz 256 FRONT CROSSOVER FREQUENCY R L PASS-THRU R L REAR INPUT 70 Hz 148 50 Hz 256 REAR GAIN HP-AP-LP REAR CROSSOVER REAR REMOTE PUNCH BASS

Front Gain

Rear Gain

NOTE: If you are having problems after installation follow the Troubleshooting procedures below.

Procedure 1: Check Amplifier for proper connections.

Verify that POWER light is on. If POWER light is on skip to Step 2, if not continue.

1. Check in-line fuse on battery positive cable. Replace if necessary.
2. Verify that Ground connection is connected to clean metal of the vehicle's chassis. Repair/replace if necessary.
3. Verify there is 10.5 - 15.5 Volts of current present at the positive battery and remote turn-on cable. Verify quality connections for both cables at amplifier, stereo, and battery/fuseholder. Repair/replace if necessary.

Procedure 2: Check Amplifier for audio output.

1. Verify good RCA/high-level input connections at stereo and amplifier. Check entire length of cables for kinks, splices, etc. Test RCA/high-level inputs for AC current with stereo on. Repair/replace if necessary.
2. Disconnect RCA/high-level input from amplifier. Connect RCA/high-level input from test stereo directly to amplifier input.

Procedure 3: Check Amplifier if you experience Turn-on Pop.

1. Disconnect input signal to amplifier and turn amplifier on and off.
2. If the noise is eliminated, connect the REM lead of amplifier to source unit with a delay turn-on module.

OR

1. Use a different 12 Volt source for REM lead of amplifier (i.e. battery direct).
2. If the noise is eliminated, use a relay to isolate the amplifier from noisy turn-on output.

Procedure 4: Check Amplifier if you experience excess Engine Noise.

1. Route all signal carrying wires (RCA, Speaker cables) away from power and ground wires.

OR

1. Bypass any and all electrical components between the stereo and the amplifier(s). Connect stereo directly to input of amplifier. If noise goes away the unit being bypassed is the cause of the noise.

OR

1. Remove existing ground wires for all electrical components. Reground wires to different locations. Verify that grounding location is clean, shiny metal free of paint, rust etc.

OR

1. Add secondary ground cable from negative battery terminal to the chassis metal or engine block of vehicle.

OR

1. Have alternator and battery load tested by your mechanic. Verify good working order of vehicle electrical system including distributor, spark plugs, spark plug wires, voltage regulator etc.

ACCESSORIES

Connecting PUNCH Capacitors

Maintain the power you need to your Power Amplifier.

Connecting Links

Mount your Power Amplifiers together for space reduction and a smooth look.

See our website for other accessories to help you get the most out of your system.

www.rockfordfosgate.com

MODEL- Power 551X 851X

Continuous Power Rating (RMS) - Measured at 14.4 Battery Volts

4ΩLoad Per Channel 70 Watts x 4 110 Watts x 4

2ΩLoad Per Channel 140 Watts x 4 215 Watts x 4

4ΩLoad Bridged (Mono) 275 Watts x 2 425 Watts x 2

Dimensions: (with Endbell)

Height 2.38" (6.05cm) 2.38" (6.05cm)

Width 9.85" (25.02cm) 9.85" (25.02cm)

Length 12.07" (30.66cm) 17.07" (43.36cm)

Battery Fuse Rating (Amp) 50A 60A

(External to Amplifier)

Fuse Type ATC

Not Supplied

AGU

Signal-to-Noise Ratio >100dB A-weighted

Crossover Slope 24dB/octave Butterworth

Crossover Frequency variable from 50Hz to 250Hz

Frequency Response 20Hz to 20kHz ±0.5dB

Bandwidth 20Hz to 200kHz ±3dB

Damping Factor @ 4Ω(at output connector) >200

Slew Rate 30 Volts/ms

IM Distortion (IHF) <0.05%

Acceptable Signal Voltage Range Variable from 250mV to 6V (RCA)

Protection NOMAD - Internal analog-computer output protection circuitry limits power in case of overload. Thermal switch shuts down the amplifier in case of overheating.

Equalization (45Hz Punch Bass) Rear Variable from 0dB to +18dB @ 45Hz

Input Impedance 20k ohms

Specifications subject to change without notice

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Source Units, Speakers, Signal Processors and PUNCH Amplifiers – 1 Year POWER Amplifiers – 2 Years Type RF Amplifiers – 3 Years Any Factory Refurbished Product – 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Ship to: Electronics

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe, AZ 85281

RA#: ____

Ship to: Speakers

Rockford Acoustic Design

Speaker Returns

2356 Turner Ave. NW

Grand Rapids, MI 49544

RA#:

Cher client,

Français

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe, AZ 85281

RA# : ____

Rockford Acoustic Design

Speaker Returns

2356 Turner Ave. NW

Grand Rapids, MI 49544

RA# : ____

INTRODUCCIÓN

Estimado cliente,

Bajo Punch Remoto (Punch Bass).....9

BAJO PUNCH REMOTO (Punch Bass)

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe, AZ 85281

RA#: ____

Enviar a: Speakers

Rockford Acoustic Design

Speaker Returns

2356 Turner Ave. NW

Grand Rapids, MI 49544

RA#:

EINLEITUNG

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe, AZ 85281

RA#: ____

Senden an: Speakers

Rockford Acoustic Design

Speaker Returns

2356 Turner Ave. NW

Grand Rapids, MI 49544

RA#:

INTRODUZIONE

Egregio cliente,

Larghezza 9.85" (25,02cm) 9.85" (25,02cm)

100dB ponderati in A

Pendenza d'incrocio

24dB/ottava Butterworth

Distorsione IM (IHF)

<0,05%

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe, AZ 85281

RA#:

Spedire a: Speakers

Rockford Acoustic Design

Speaker Returns

2356 Turner Ave. NW

Grand Rapids, MI 49544

RA#: ____

14

Italiano

Rockford Fosgate®

Installation assistance available at:

RFTECH

www.rockfordfosgate.com/rftech

Rockford Fosgate

Rockford Corporation

546 South Rockford Drive

Tempe, Arizona 85281 U.S.A.

In U.S.A., [phone]

In Europe, Fax [phone]

In Japan, Fax [phone]

www.rockfordfosgate.com

02/03 B.M.

MAN-4363-B

Printed in U.S.A
