Punch P4002 - Car stereo Rockford Fosgate - Free user manual and instructions
Find the device manual for free Punch P4002 Rockford Fosgate in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | 2-channel car audio amplifier |
| Brand | Rockford Fosgate |
| Model | Punch P4002 |
| RMS Power Rating (4 ohms) | 100 W x 2 |
| RMS Power Rating (2 ohms) | 200 W x 2 |
| Power Supply | 12 V DC (vehicle battery) |
| Dimensions (H x W x D) | 2.4 x 11.0 x 11.7 in |
| Variable Filter | High-pass, full-range, low-pass 12 dB/octave, adjustable from 40 to 400 Hz |
| Bass Equalization | Punch Bass remote, 0 to +18 dB boost at 45 Hz |
| Gain Control | Variable from 150 mV to 4 V |
| Protection | Short circuit and thermal protection (yellow LED) |
| Signal Input | Nickel-plated RCA jack |
| Speaker Output | Terminals for 8 to 18 AWG wire |
| Fuse | 2 x 30 A ATC (verify on device) |
| Signal-to-Noise Ratio | >80 dB (A) @ 2 V RMS |
| Safety Instructions | Disconnect battery before installation; do not install in engine compartment; use appropriate fuses. |
| Maintenance | Clean with a soft, dry cloth; avoid chemicals. |
| Included Accessories | Mounting kit, Punch bass remote with cable, manual |
Frequently Asked Questions - Punch P4002 Rockford Fosgate

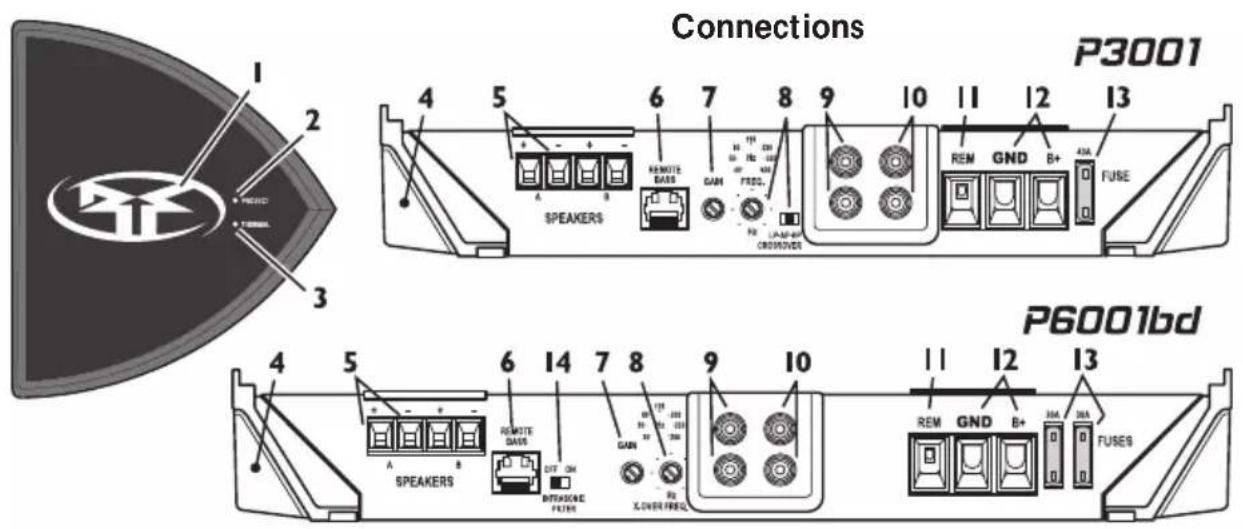

How do I connect the amplifier to the battery?

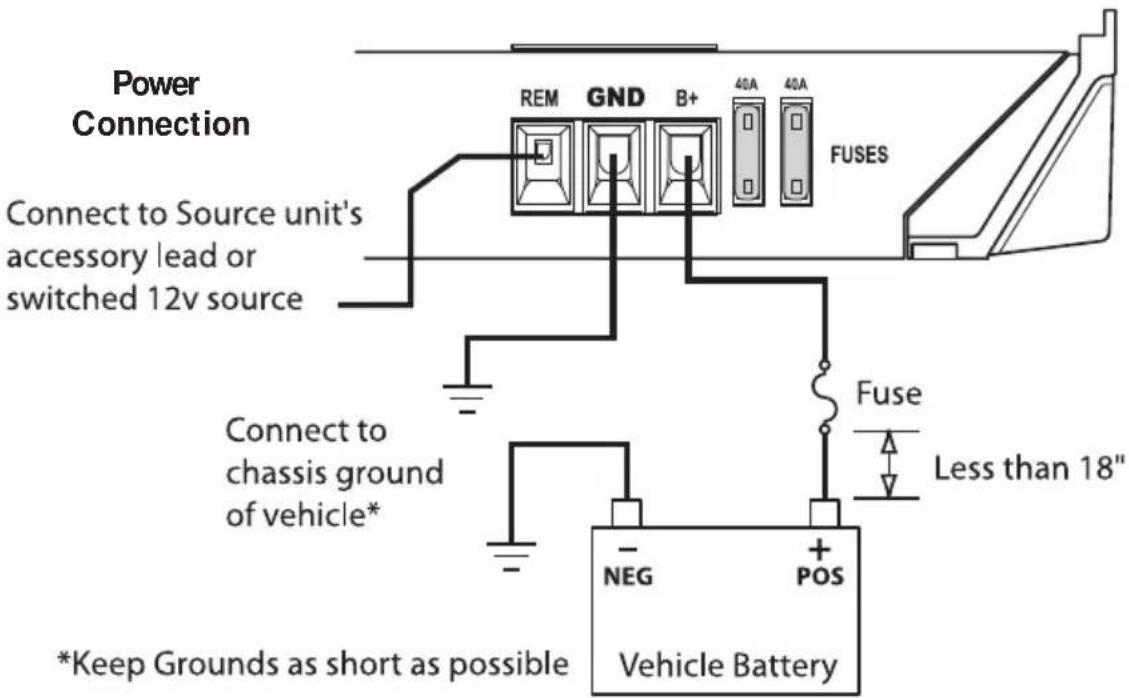

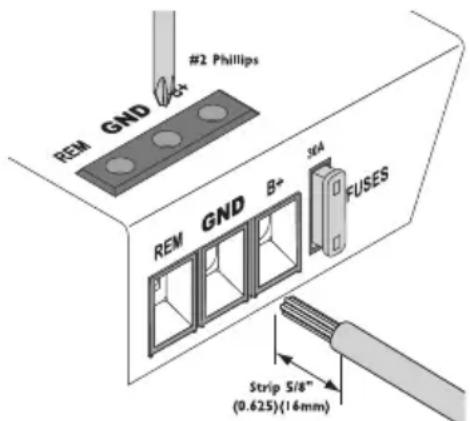

First disconnect the negative battery terminal. Connect the red power wire to the amplifier's B+ terminal and to the battery's positive terminal via a fuse holder within 18 inches of the battery. Use a 60 A fuse (recommended). Connect the black ground wire to the amplifier's GND terminal and to a clean metal surface on the chassis within 30 inches. Finally, connect the remote turn-on wire REM to a switched 12 V source (usually the amplifier output wire from the head unit).
What should I do if the protection light comes on?
The yellow protection LED indicates a short circuit or impedance that is too low on the speakers. Check the speaker connections and measure the impedance with an ohmmeter. Make sure the total load is not less than 2 ohms. Correct the wiring and restart the amplifier.
How do I set the gain correctly?

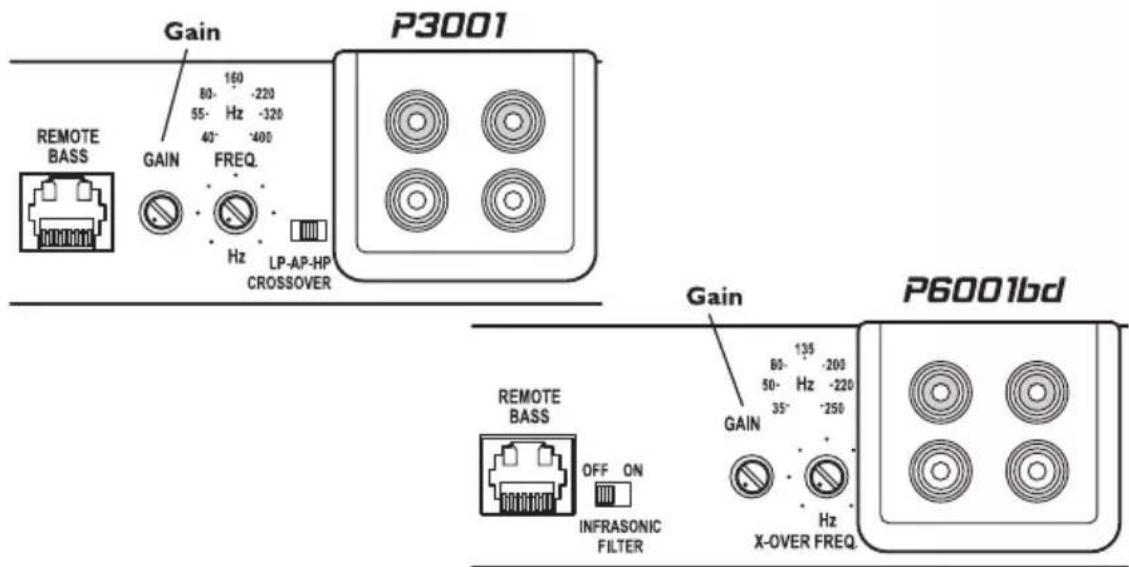

Turn the gain knob to minimum. Increase the source volume until you hear distortion, then lower it slightly. Then increase the amplifier gain until you achieve the desired volume without distortion. For best signal-to-noise ratio, keep the gain low.

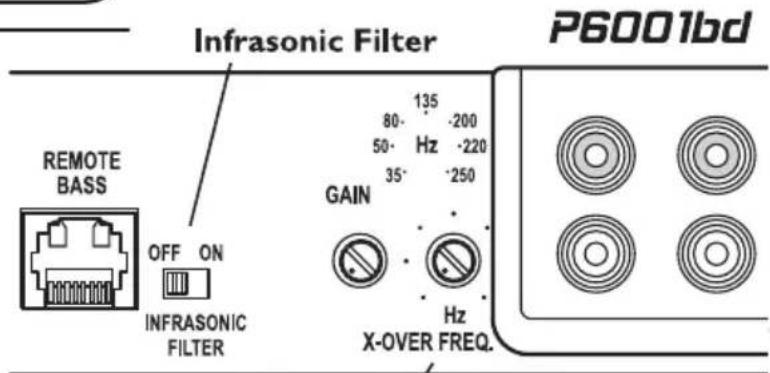

What is the variable filter used for?

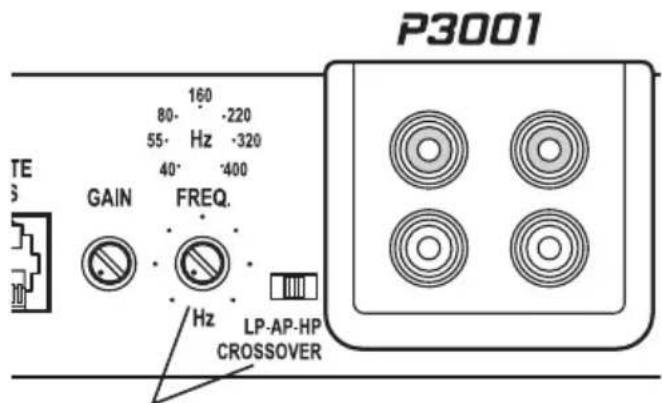

The variable filter allows you to select the operating mode: HP (high-pass) for midrange/tweeters, AP (all-pass) for no filtering, LP (low-pass) for subwoofers. The cutoff frequency is adjustable from 40 to 400 Hz with a 12 dB/octave slope.

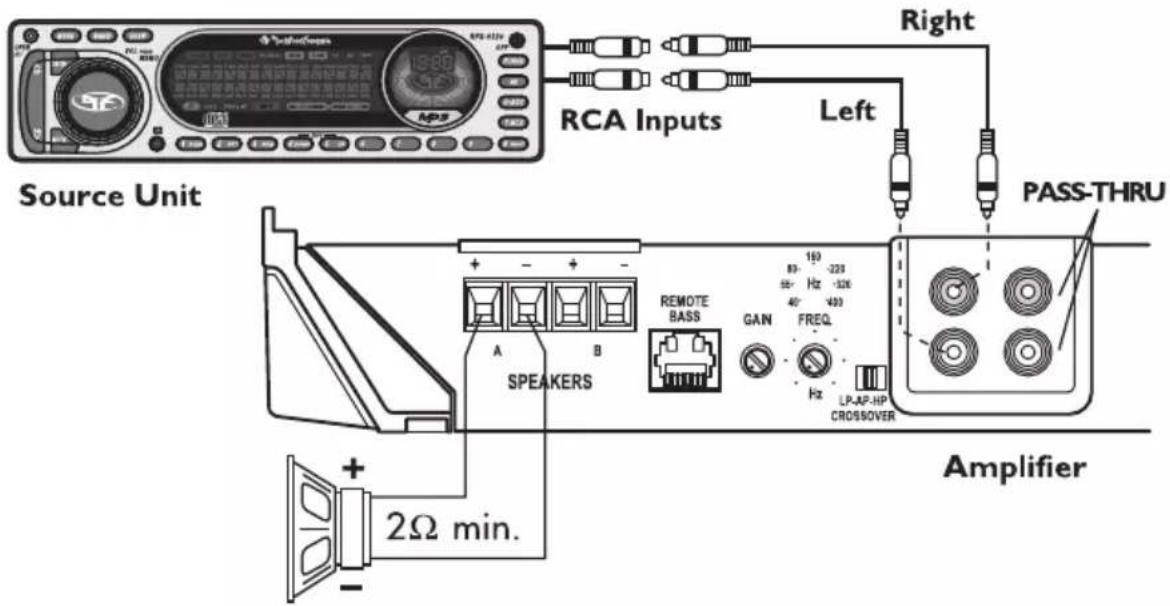

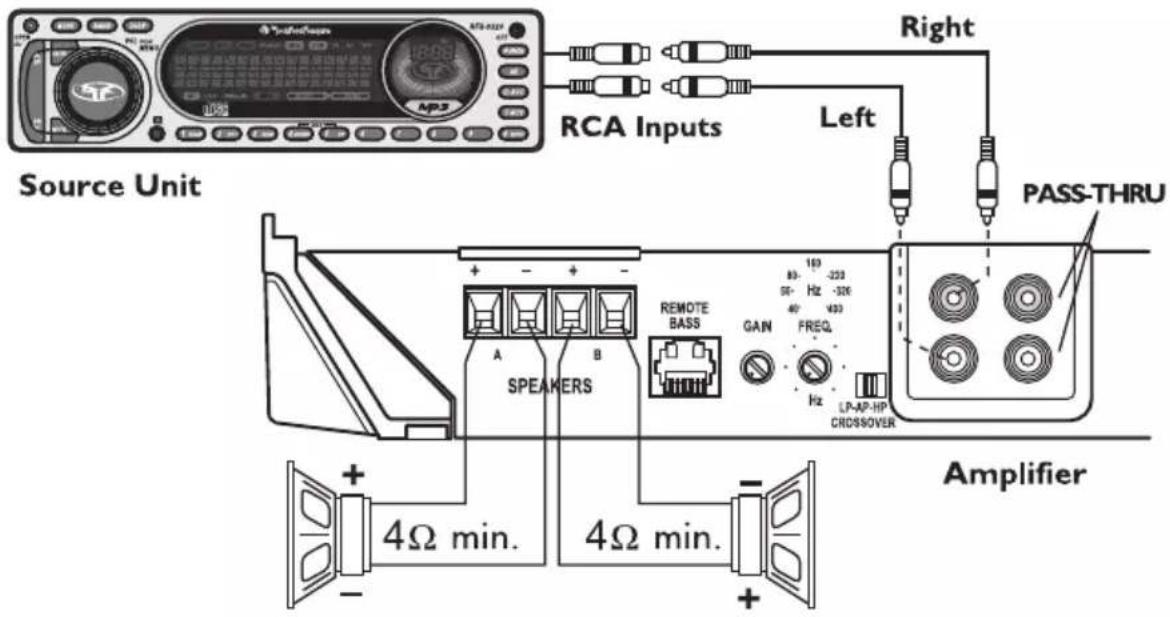

Can I use 2-ohm speakers?
Yes, the amplifier is stable at 2 ohms per channel. At 2 ohms, the power output is doubled compared to 4 ohms. Ensure correct wiring and adequate ventilation.
How do I install the bass remote?

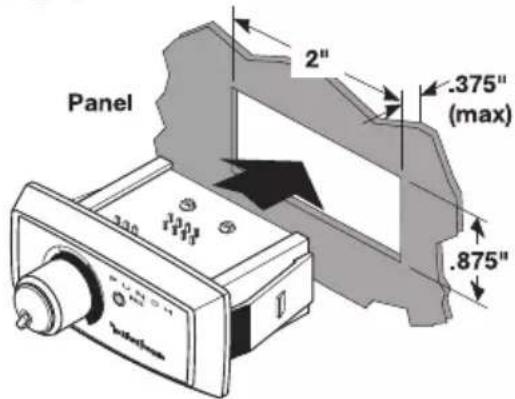

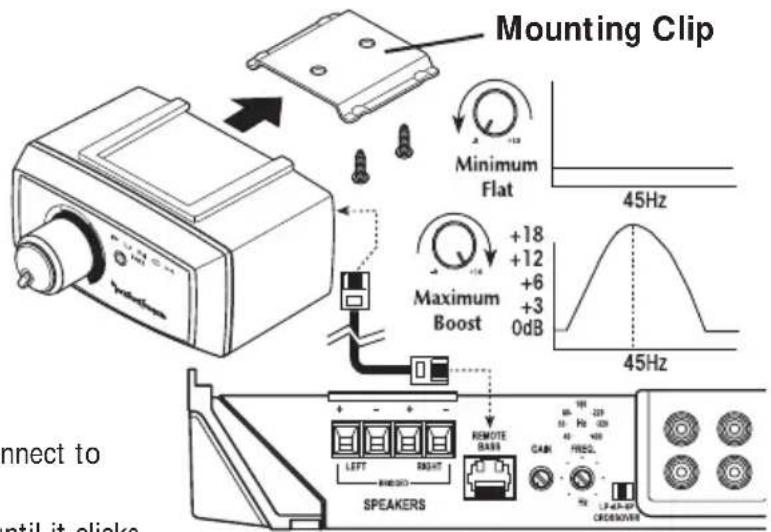

Choose an accessible location. You can surface mount the remote or flush mount it. For flush mounting, cut a hole 2 x 0.87 inches. Route the RJ-45 cable to the amplifier and plug it in. Secure the remote by snapping it into place.
What should I do if the amplifier overheats?
The yellow thermal LED lights up and the amplifier shuts off. Let the device cool down. Check that the amplifier is not installed in a confined space and that the heat sink has at least 1 inch of clearance. Make sure the speaker impedance is not too low.
How do I daisy-chain multiple amplifiers?
Use the RCA Amplifier Extension jacks to connect the signal from one amplifier to the next without additional cables. Simply plug an RCA cable from the extension output of the first amplifier to the input of the second. Ensure the source can drive multiple inputs.

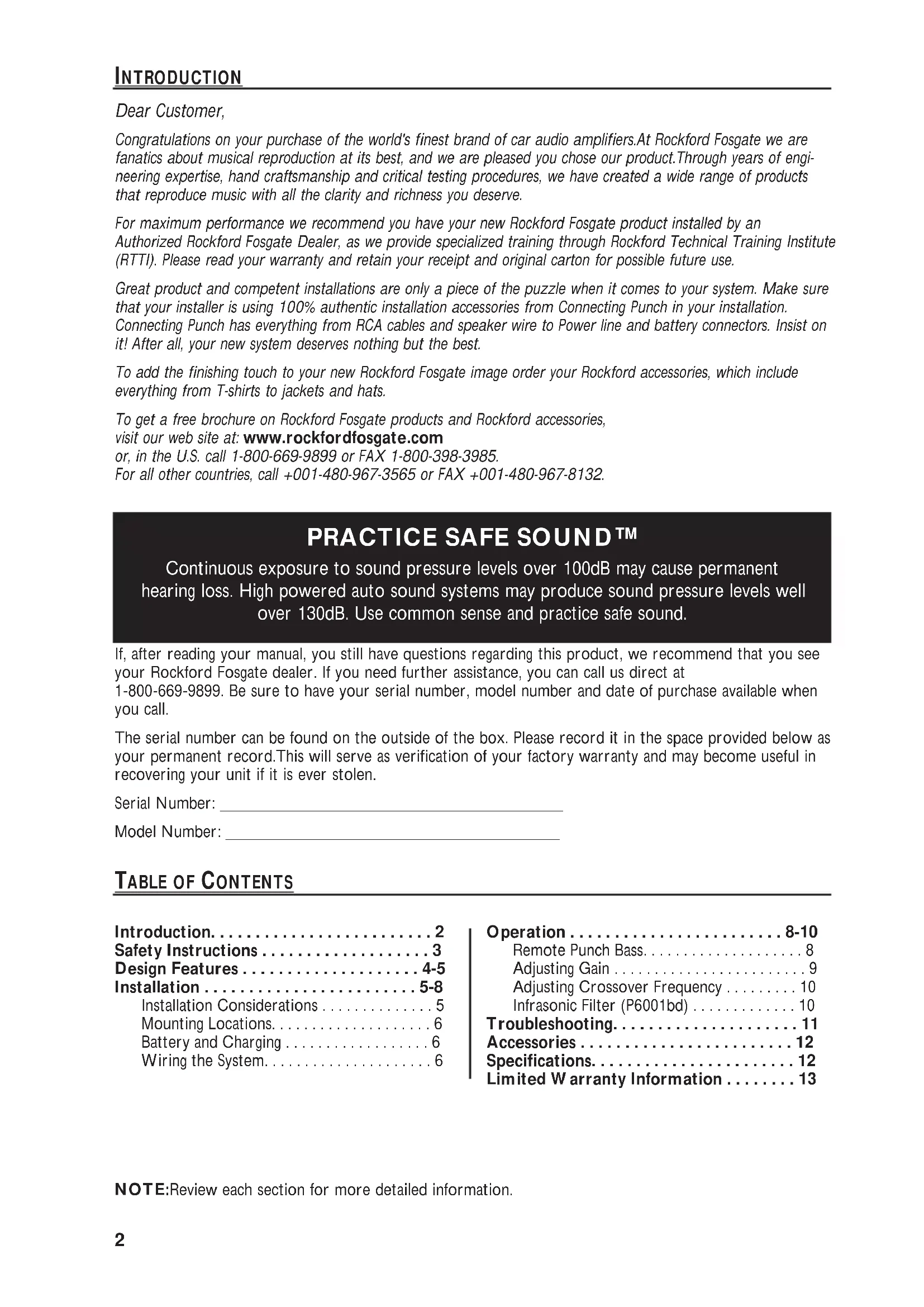

Where can I find the serial number?
The serial number is on the outside of the packaging. Write it down in the manual for warranty verification or in case of theft. It may also be on the amplifier chassis.
What is the troubleshooting procedure if there is no sound?
First check that the power LED (RF logo) is on. If not, check the fuses (battery and amplifier), the ground connection, and battery voltage (10.5-15.5 V). Check RCA cables and speakers. If the protection light is on, look for a short circuit. Consult the troubleshooting section of the manual.
User questions about Punch P4002 Rockford Fosgate
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Car stereo in PDF format for free! Find your manual Punch P4002 - Rockford Fosgate and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Punch P4002 by Rockford Fosgate.
